DRIVER SUPPORT

}}

* Option/accessory.

315

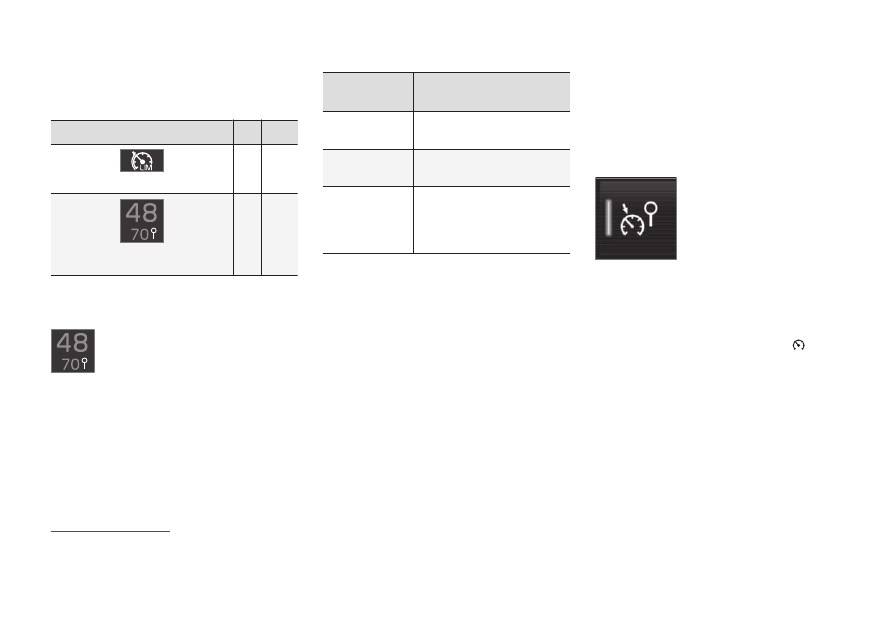

Is SL or ASL active?

Symbols in the driver display show which
speed limiter function is active:

Symbol

SL ASL

A

✓

✓

Sign symbol after "70" = ASL is

activated.

✓

A

WHITE symbol: Function active, GREY symbol: Standby

mode.

The ASL symbol

The sign symbol (displayed along-
side the stored speed, "70", in the
centre of the speedometer) can be
shown in three colours with the fol-

lowing meanings:

Colour of

sign symbol

Meaning

Greenish yel-

low

ASL is active

Grey

ASL has been set in
standby mode

Orange

ASL is in temporary
standby mode - e.g. due to
a traffic sign not being
read

Related information

•

Driving support systems (p. 300)

•

Activating or deactivating the automatic
speed limiter (p. 315)

•

Changing the tolerance for the automatic
speed limiter (p. 316)

•

Limitations for automatic speed limiter
(p. 317)

•

Speed limiter (p. 310)

•

Road Sign Information

*

 (p. 386)

Activating or deactivating the

automatic speed limiter

The automatic speed limiter function (ASL

26

)

can be activated and deactivated as a supple-
ment to the speed limiter (SL

27

).

Activating the automatic speed limiter

Activate or deactivate the
function using this button in
the centre display's function
view.

1. > GREEN button indication – the func-

tion is activated and the driver display
shows a sign symbol in the centre of
the speedometer.

2. Press the steering wheel button

.

> ASL is activated with the car’s current

speed.

26

Automatic Speed Limiter

27

Speed Limiter

||

DRIVER SUPPORT

* Option/accessory.

316

NOTE

•

If the automatic speed limiter function
is activated, Road Sign Information

*

 is

shown in the driver display even if
RSI

28

 is not activated.

•

To remove road sign information from
the driver display, you must deactivate

both

 automatic speed limiter and RSI.

•

When the Automatic Speed Limiter
function is activated but RSI is deacti-
vated, no warnings are given from RSI.
RSI must also be activated in order to
receive warnings.

Deactivating the automatic speed
limiter

To deactivate the automatic speed limiter:

–

Tap on the button in the function view.
> GREY button indication – ASL is

switched off and SL is activated
instead.

WARNING

After switching from ASL to SL the car will

no longer follow the signed speed limit but

only the stored maximum speed.

Related information

•

Speed limiter (p. 310)

•

Automatic speed limiter (p. 314)

•

Limitations for automatic speed limiter
(p. 317)

•

Road Sign Information

*

 (p. 386)

Changing the tolerance for the

automatic speed limiter

The Automatic Speed Limiter function
(ASL

29

) can be set for different tolerance lev-

els. The tolerance is adjusted in the same way
as the speed setting is in the speed limiter.

If, for example, the car follows a signed speed
limit of 70km/h (43 mph) the driver can
instead choose to allow the car to maintain
75 km/h (47 mph).

Buttons and symbols for the function.

28

Road Sign Information – RSI

29

Automatic Speed Limiter

DRIVER SUPPORT

}}

* Option/accessory.

317

–

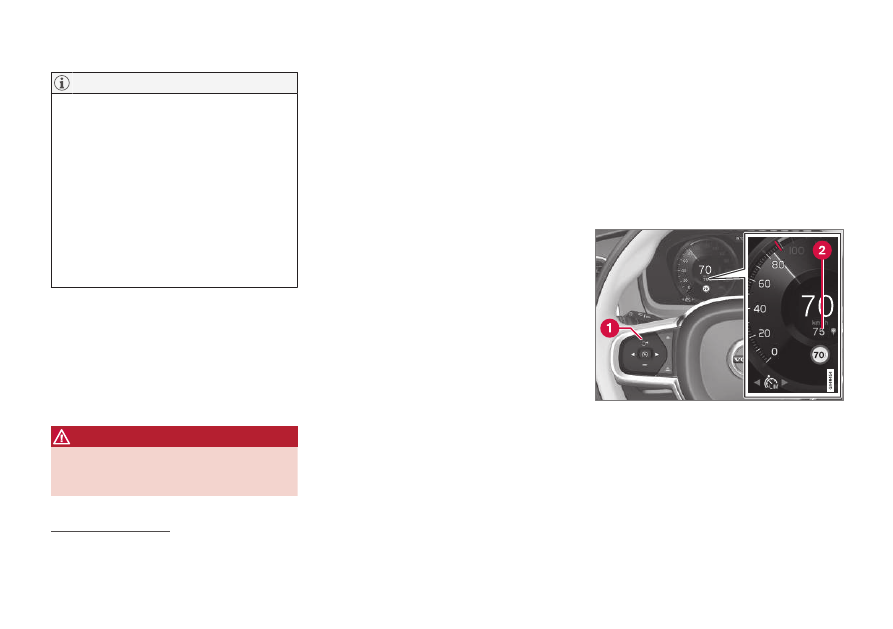

Press the steering wheel button

 (1)

until 70 km/h (43 mph) in the centre of
the speedometer (2) changes to 75 km/h
(47 mph).
> After which, the car uses the selected

tolerance 5 km/h (4 mph) as long as
signs passed are showing 70 km/h
(43 mph).

The tolerance is followed until a road sign with
a lower or higher speed is passed - then the
car follows the new signed speed limit instead
and the tolerance is deleted from the memory.

NOTE

The maximum selectable tolerance is
+/- 10 km/h (5 mph).

Related information

•

Automatic speed limiter (p. 314)

•

Limitations for automatic speed limiter
(p. 317)

•

Road Sign Information

*

 (p. 386)

Limitations for automatic speed

limiter

Automatic speed limitation (ASL

30

) takes

place using speed information from the Road
Sign Information function

*

 (RSI

31

) – not from

the speed limit road signs that the car
passes.

If road sign information cannot interpret and
provide speed information to the driver sup-
port systems, the automatic speed limiter sets
in standby mode and changes to normal
speed limiter. In such cases the driver must
intervene and brake to a suitable speed.

The automatic speed limiter will be reactivated
when road sign information can once again
interpret and provide speed information.

Related information

•

Speed limiter (p. 310)

•

Automatic speed limiter (p. 314)

•

Road Sign Information

*

 (p. 386)

Cruise control

The cruise control (CC

32

) helps the driver

maintain an even speed, which can result in
more relaxed driving on motorways and long,
straight roads in regular traffic flows.

Overview

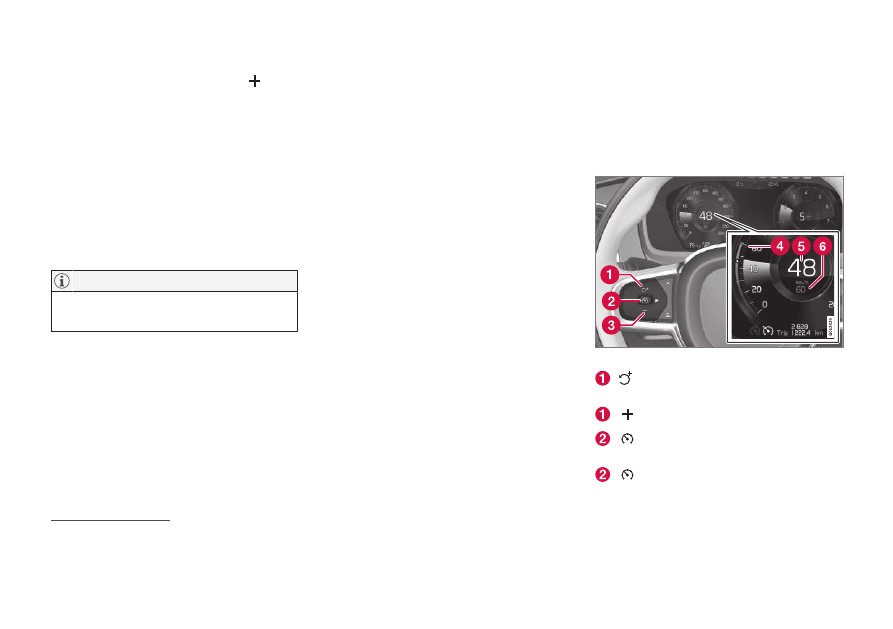

Buttons and symbols for the function.

: Activates cruise control from standby

mode and resumes stored speed

: Increases the stored speed

:

From standby mode

 – activates

cruise control and stores current speed

:

From active mode

 – deactivates/

changes cruise control to standby mode

30

Automatic Speed Limiter

31

Road Sign Information – RSI

32

Cruise Control

||

DRIVER SUPPORT

* Option/accessory.

318

: Reduces stored speed

Marker for stored speed

The car's current speed

Stored speed

NOTE

In cars equipped with adaptive cruise con-
trol

*

 (ACC

33

), it is possible to switch

between cruise control and adaptive cruise
control.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Using engine braking instead of the
foot brake

With Cruise Control, speed is regulated with
less frequent application of the foot brake. On
a downhill gradient it may sometimes be
desirable to start moving a little faster and
limit the acceleration by engine braking. In this

case the driver can temporarily disable foot
brake application by Cruise Control.

To do so, proceed as follows:

–

Depress the accelerator pedal about half-
way down and release.
> Cruise Control will disengage its auto-

matic foot braking and then uses
engine braking only.

Related information

•

Driving support systems (p. 300)

•

Selecting and activating cruise control
(p. 319)

•

Deactivating cruise control (p. 319)

•

Standby mode for cruise control (p. 320)

•

Set the stored speed for driver support
(p. 341)

•

Change between cruise control and adap-
tive cruise control

*

 in the centre display

(p. 327)

33

Adaptive Cruise Control

DRIVER SUPPORT

}}

319

Selecting and activating cruise

control

The cruise control function (CC

34

) must first

be selected and activated in order to be able
to regulate the speed.

In order to start the cruise control from the
standby mode, the car's current speed must
be 30 km/h (20 mph) or higher.

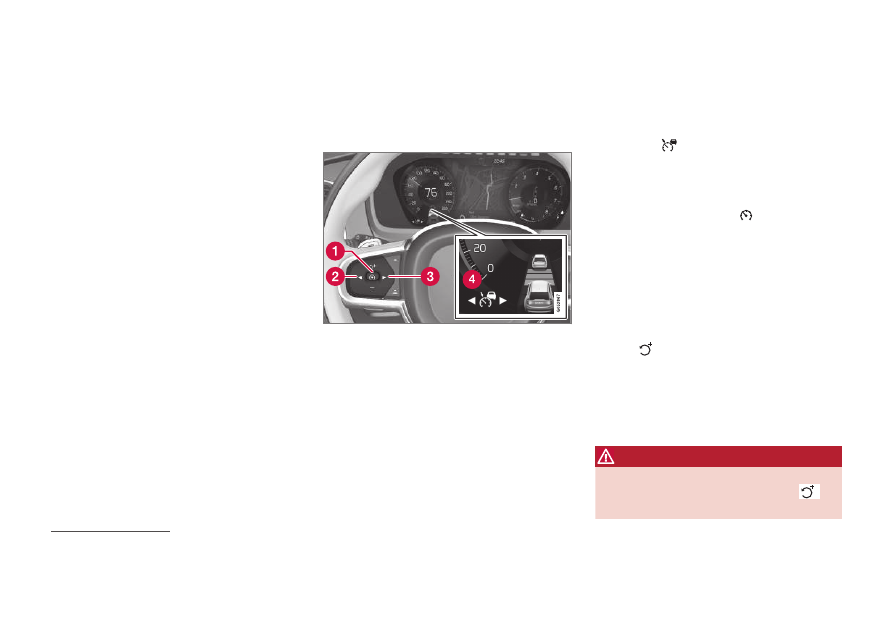

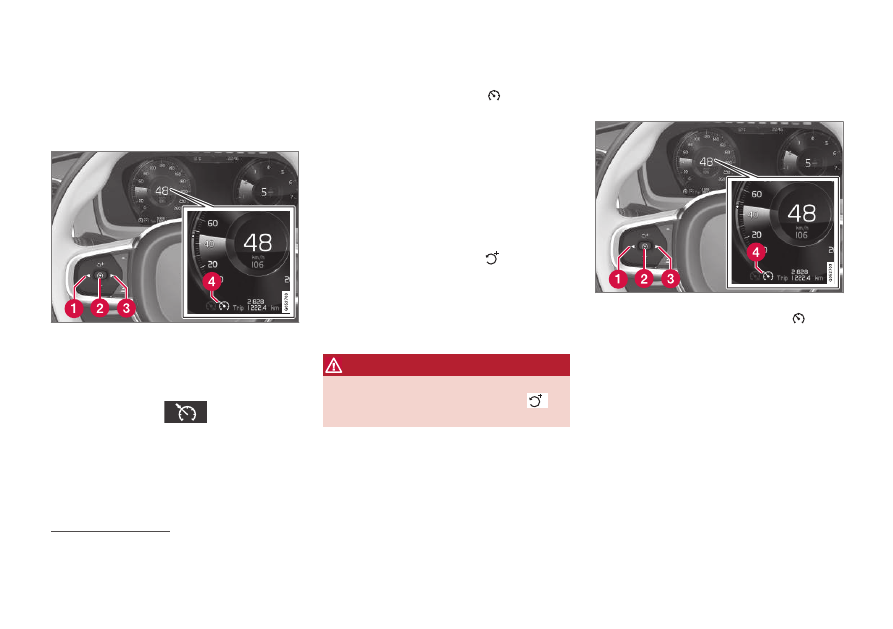

1. Press

◀

 (1) or

▶

 (3) to scroll to the symbol

for cruise control

 (4).

> The symbol is grey – cruise control is in

standby mode.

2. When cruise control is selected – press

the steering wheel button

 (2) to acti-

vate.
> The symbol is white – cruise control is

started and the current speed is stored
as maximum speed. The lowest speed
that can be stored is 30 km/h
(20 mph).

Reactivating cruise control to the last
stored speed

–

When cruise control is selected – press
the steering wheel button

 to activate.

> The cruise control markings and sym-

bols in the driver display change colour
from GREY to WHITE — the car will
now follow the most recently stored
speed again.

WARNING

A significant increase in speed may follow
when the speed is resumed with the

steering wheel button.

Related information

•

Cruise control (p. 317)

•

Deactivating cruise control (p. 319)

•

Standby mode for cruise control (p. 320)

Deactivating cruise control

Cruise control (CC

35

) can be deactivated and

switched off.

1. Press the steering wheel button

 (2).

> The symbol and indicators turn grey –

cruise control is set in standby mode.

2. Press the steering wheel button

◀

 (1) or

▶

(3) to change to another function.
> The driver display's symbol and indica-

tor for cruise control (4) are switched
off – which deletes the stored maxi-
mum speed.

34

Cruise Control

35

Cruise Control

||

DRIVER SUPPORT

* Option/accessory.

320

Related information

•

Cruise control (p. 317)

•

Change between cruise control and adap-
tive cruise control

*

 in the centre display

(p. 327)

•

Selecting and activating cruise control
(p. 319)

•

Standby mode for cruise control (p. 320)

Standby mode for cruise control

Cruise control (CC

36

) can be deactivated and

set in standby mode. This can take place due
to driver intervention or automatically.

Standby mode means that the function is
selected in the driver display but not activated.
In this case, cruise control does not regulate
speed.

Standby mode on driver intervention

The cruise control is deactivated and set in
standby mode if any of the following occurs:

•

The foot brake is used.

•

The gear selector is moved to

N

 position.

•

The clutch pedal is held depressed for
longer than 1 minute.

•

The driver maintains a speed higher than
the stored speed for longer than 1 minute.

The driver must then control the speed him-
self/herself.

A temporary increase in speed with the accel-
erator pedal, e.g. during overtaking, does not
affect the setting - the car returns to the last
stored speed when the accelerator pedal is
released.

Automatic standby mode

Automatic standby mode may occur if:

•

wheels lose traction

•

engine speed is too low/high

•

brake temperature is too high

•

speed falls below 30 km/h (20 mph).

The driver must then control the speed him-
self/herself.

Related information

•

Cruise control (p. 317)

•

Selecting and activating cruise control
(p. 319)

•

Deactivating cruise control (p. 319)

36

Cruise Control

DRIVER SUPPORT

}}

* Option/accessory.

321

Adaptive cruise control

*

37

The adaptive cruise control (ACC

38

) helps the

driver to maintain an even speed combined
with a pre-selected time interval to the vehi-
cle ahead.

An adaptive cruise control can provide a more
relaxing driving experience on long journeys on
motorways and long straight main roads in
smooth traffic flows.

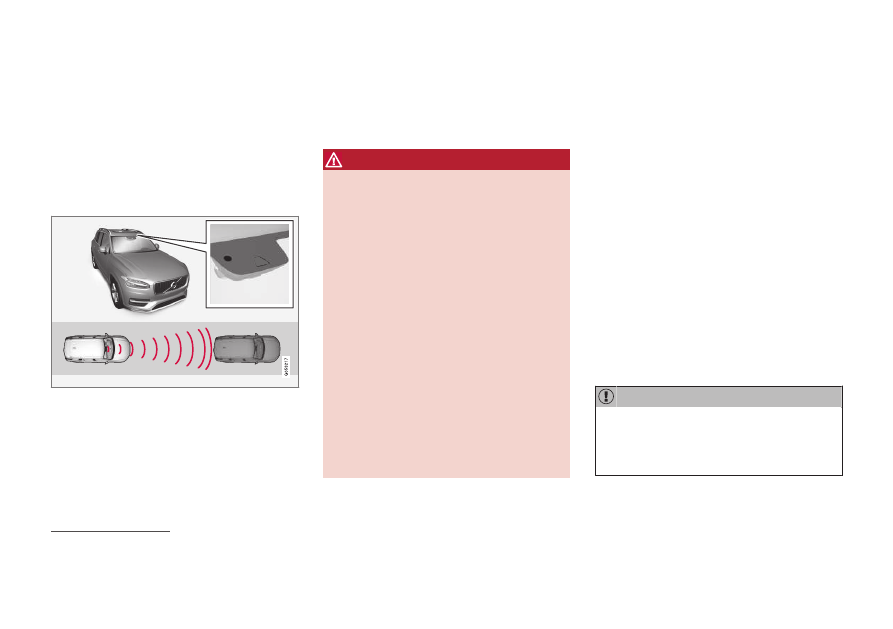

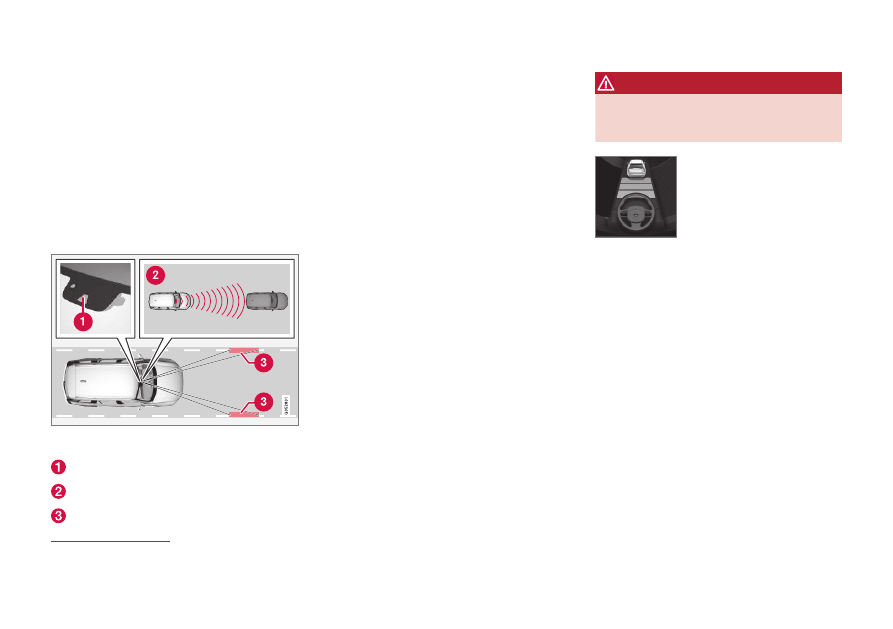

The camera and radar unit measures the distance to

the vehicle ahead.

The driver selects the desired speed and a
time interval to the vehicle ahead. If the cam-
era and radar unit detects a slower vehicle in
front of the car, the speed is adapted automat-
ically via the preset time interval to the vehicle.

When the road is clear again the car returns to
the selected speed.

If the cornering support

*

 function is activated,

this may also affect the speed of the car.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Adaptive Cruise Control regulates the speed
with acceleration and braking. It is normal for
the brakes to emit a low sound when they are
being used to adjust the speed.

The adaptive cruise control aims to control the
speed in a smooth way. In situations that
demand sudden braking the driver must brake
himself/herself. This applies in cases of large
speed differences or if the vehicle in front
brakes suddenly. Due to the limitations of the
radar unit, braking may come unexpectedly or
not at all.

The adaptive cruise control aims to follow the
vehicle ahead in the same lane at a time inter-
val set by the driver. If the radar unit cannot
see any vehicle in front then the car will
instead maintain the speed set and stored by
the driver. This also takes place if the speed of
the vehicle ahead increases and exceeds the
stored speed.

IMPORTANT

Maintenance of driver support components
must only be performed at a workshop –
an authorised Volvo workshop is recom-
mended.

37

This function can be either standard or optional, depending on market.

38

Adaptive Cruise Control

||

DRIVER SUPPORT

* Option/accessory.

322

Related information

•

Driving support systems (p. 300)

•

Controls and display mode for adaptive
cruise control

*

 (p. 322)

•

Selecting and activating adaptive cruise
control

*

 (p. 323)

•

Limitations for adaptive cruise control

*

(p. 326)

•

Symbols and messages for adaptive
cruise control

*

 (p. 328)

•

Warning from driver support in the event
of a collision risk (p. 339)

•

Set time interval to vehicle ahead (p. 342)

•

Set the stored speed for driver support
(p. 341)

•

Automatic braking with driver support
(p. 343)

•

Change of target with driver support
(p. 340)

•

Overtaking Assistance (p. 347)

Controls and display mode for

adaptive cruise control

*

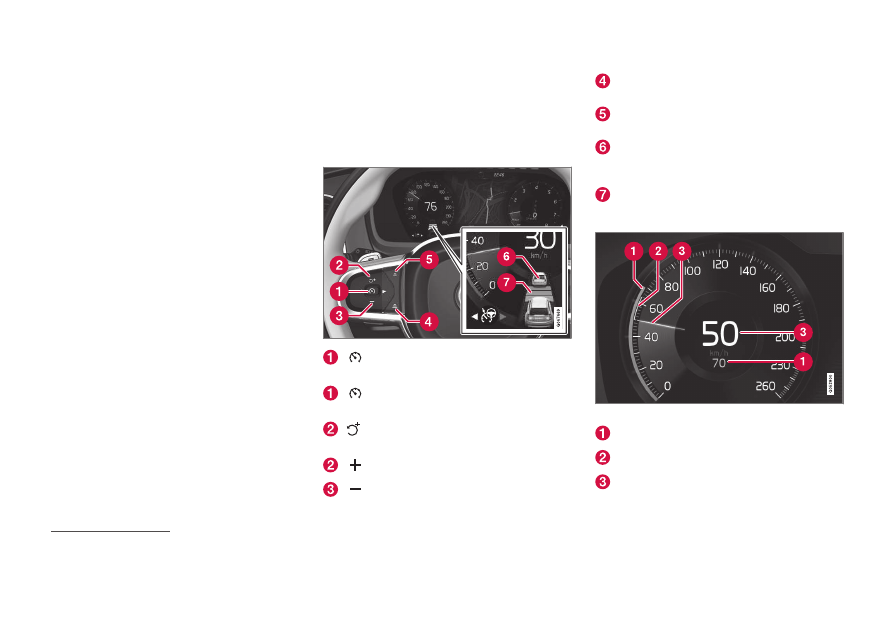

39

A summary of how adaptive cruise control
(ACC

40

) is controlled using the left-hand key-

pad on the steering wheel and how the func-
tion is shown in the display.

:

From standby mode

 - activates and

stores the current speed

:

From active mode

 - deactivates/

changes to standby mode

: Activates the function from standby

mode and resumes stored speed

: Increases the stored speed

: Reduces stored speed

Increases the time interval to vehicles
ahead
Reduces the time interval to vehicles
ahead
Target vehicle indicator: the function has
detected and is following a target vehicle
at the preset time interval
Symbol for time interval to vehicles ahead

Driver display

Indication of speeds.

Stored speed.

Speed of vehicle ahead.

Current speed of your car.

39

This function can be either standard or optional, depending on market.

40

Adaptive Cruise Control

DRIVER SUPPORT

}}

* Option/accessory.

323

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Limitations for adaptive cruise control

*

(p. 326)

Selecting and activating adaptive

cruise control

*

41

Adaptive cruise control (ACC

42

) must first be

selected and then activated to enable it to
control speed and distance.

To start the function requires the following:

•

The driver's seatbelt must be buckled and
the driver's door must be closed.

•

There must be a vehicle (the "target vehi-
cle") within reasonable distance in front of
the car, or the current speed must be at
least 15 km/h (9 mph).

•

For cars with manual gearbox. Speed
must be at the lowest 30 km/h (20 mph).

1. Press the steering wheel button

◀

 (2) or

▶

(3) to scroll to the adaptive cruise control
symbol

 (4).

> The symbol is grey – the adaptive

cruise control is in standby mode.

2. When speed limiter is selected – press the

steering wheel button

 (1) to activate.

> The symbol is white – the speed limiter

is started and the current speed is
stored as maximum speed.

Reactivating adaptive cruise control to
the last stored speed

–

When the adaptive cruise control is
selected – press the steering wheel but-
ton

 to activate.

> The cruise control markings and sym-

bols in the driver display change colour
from GREY to WHITE — the car will
now follow the most recently stored
speed again.

WARNING

A significant increase in speed may follow
when the speed is resumed with the

steering wheel button.

41

This function can be either standard or optional, depending on market.

42

Adaptive Cruise Control

||

DRIVER SUPPORT

* Option/accessory.

324

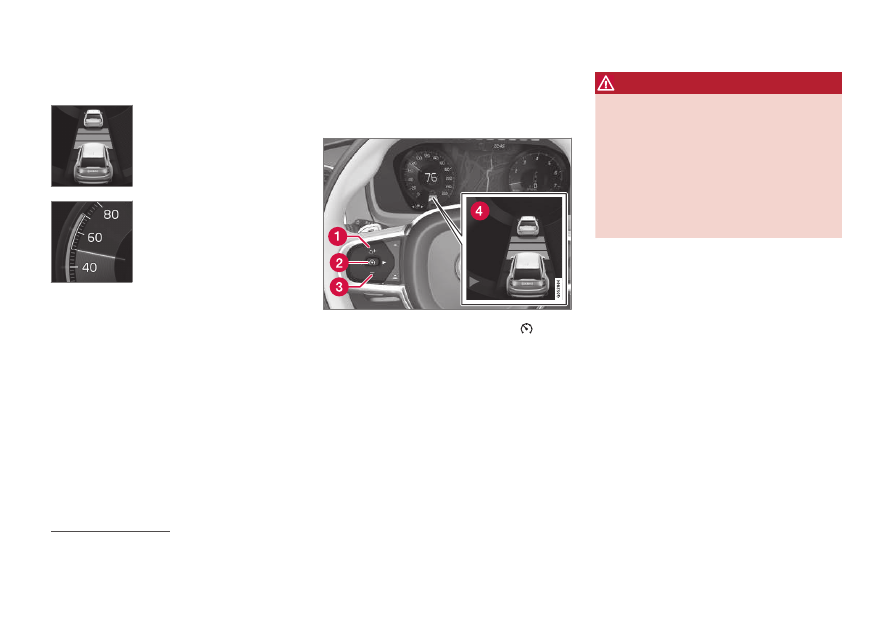

Additional indicators in the driver
display

The time interval is only
adjusted to the vehicle ahead
by the ACC when the dis-
tance symbol shows two
vehicles.

At the same time a speed
range is marked.

The higher speed is the
stored speed, and the lower
speed is that of the vehicle
ahead (target vehicle).

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Deactivating adaptive cruise control

*

(p. 324)

•

Change between cruise control and adap-
tive cruise control

*

 in the centre display

(p. 327)

•

Limitations for adaptive cruise control

*

(p. 326)

Deactivating adaptive cruise

control

*

43

The adaptive cruise control (ACC

44

) can be

deactivated and switched off.

1. Press the steering wheel button

 (2).

> The symbol and indicators turn grey –

the adaptive cruise control is set in
standby mode. The indicator for time
interval and symbol for target vehicle, if
activated, are also switched off.

2. Press the steering wheel button

◀

 (1) or

▶

(3) to change to another function.
> The driver display's symbol and indica-

tor for adaptive cruise control (4) are
switched off – which deletes the stored
maximum speed.

WARNING

•

With the adaptive cruise control is in
standby mode, the driver must inter-
vene and regulate both speed and dis-
tance to the vehicle ahead.

•

When the adaptive cruise control is in
standby mode and the car comes too
close to a vehicle ahead, the driver may
be warned of the short distance by the
Distance Warning

*

 function instead.

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Selecting and activating adaptive cruise
control

*

 (p. 323)

•

Change between cruise control and adap-
tive cruise control

*

 in the centre display

(p. 327)

•

Limitations for adaptive cruise control

*

(p. 326)

43

This function can be either standard or optional, depending on market.

44

Adaptive Cruise Control

DRIVER SUPPORT

}}

* Option/accessory.

325

Standby mode for adaptive cruise

control

*

45

Adaptive cruise control (ACC

46

) can be deac-

tivated and set to standby mode. This can
take place due to driver intervention or auto-
matically.

Standby mode means that the function is
selected in the driver display but not activated.
Adaptive cruise control does not then regulate
the speed or distance to the vehicle in front.

Standby mode on driver intervention

The adaptive cruise control is deactivated and
set in standby mode if any of the following
occurs:

•

The foot brake is used.

•

The gear selector is moved to

N

 position.

•

The driver maintains a speed higher than
the stored speed for longer than 1 minute.

•

The clutch pedal is depressed for approx. 1
minute - applies to cars with manual gear-
box.

A temporary increase in speed with the accel-
erator pedal, e.g. during overtaking, does not
affect the setting - the car returns to the last
stored speed when the accelerator pedal is
released.

WARNING

•

With the adaptive cruise control is in
standby mode, the driver must inter-
vene and regulate both speed and dis-
tance to the vehicle ahead.

•

When the adaptive cruise control is in
standby mode and the car comes too
close to a vehicle ahead, the driver may
be warned of the short distance by the
Distance Warning

*

 function instead.

Automatic standby mode

Adaptive cruise control is dependent on other
systems, e.g. stability control/anti-skid ESC

47

.

If any of these other systems stops working,
adaptive cruise control is deactivated auto-
matically.

WARNING

With automatic standby mode, the driver is

warned via an acoustic signal and a mes-

sage on the driver display.

•

The driver must then regulate the car's
speed, apply the brakes as needed and
maintain a safe distance to other vehi-
cles.

Automatic standby mode may occur if:

•

the speed is below 5 km/h ((3 mph)) and
ACC is uncertain whether the vehicle
ahead is a stationary vehicle or an object,
such as a speed bump.

•

the speed is below 5 km/h ((3 mph)) and
the vehicle ahead turns off so that ACC no
longer has a vehicle to follow.

•

speed is reduced to below 30 km/h
(20 mph) - only applies to cars with man-
ual gearbox.

•

the driver opens the door.

•

the driver takes off the seatbelt.

•

engine speed is too low/high.

•

one or more wheels lose traction.

•

brake temperature is high.

•

the parking brake is applied.

•

the camera and radar unit is covered by
e.g. snow or heavy rainfall (camera lens/
radio waves are blocked).

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Selecting and activating adaptive cruise
control

*

 (p. 323)

45

This function can be either standard or optional, depending on market.

46

Adaptive Cruise Control

47

Electronic Stability Control

DRIVER SUPPORT

* Option/accessory.

326

•

Deactivating adaptive cruise control

*

(p. 324)

•

Limitations for adaptive cruise control

*

(p. 326)

Limitations for adaptive cruise

control

*

48

Adaptive Cruise Control (ACC

49

) may have

limitations in certain situations.

Steep roads and/or heavy load

Bear in mind that the adaptive cruise control is
primarily intended for use when driving on
level road surfaces. The function may have dif-
ficulty in keeping the correct distance from the
vehicle ahead when driving on steep downhill
slopes - in which case, be extra attentive and
ready to brake.

Do not use adaptive cruise control if the car
has a heavy load or a trailer is connected to
the car.

Miscellaneous

Drive mode

Off Road

 cannot be selected

when the adaptive cruise control is activated.

WARNING

•

This is not a collision avoidance sys-
tem. The driver is always responsible
and must intervene if the system does
not detect a vehicle ahead.

•

The function does not brake for
humans or animals, and not for small
vehicles such as bicycles and motorcy-
cles. Nor for low trailers, oncoming,
slow or stationary vehicles and objects.

•

Do not use the function in demanding
situations, such as in city traffic, at
junctions, on slippery surfaces, with a
lot of water or slush on the road, in
heavy rain/snow, in poor visibility, on
winding roads or on slip roads.

NOTE

This function uses the car's camera and
radar units, which have certain general lim-
itations.

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Limitations for camera and radar unit
(p. 358)

48

This function can be either standard or optional, depending on market.

49

Adaptive Cruise Control

DRIVER SUPPORT

* Option/accessory.

327

Change between cruise control

and adaptive cruise control

*

50

 in

the centre display

When the normal cruise control (CC

51

) is

selected in the driver display, it is possible to
change to adaptive cruise control (ACC

52

) in

the centre display's function view.

Activate or deactivate the
function using this button in
the centre display's function
view.

•

GREEN button indication – adaptive
cruise control is deactivated and normal
cruise control is set in standby mode.

•

GREY button indication – normal cruise
control is deactivated and adaptive cruise
control is set in standby mode.

A symbol in the driver display shows which
cruise control is active:

Cruise control

(CC)

Adaptive cruise con-

trol (ACC)

A

A

A

WHITE symbol: Function active, GREY symbol: Standby

mode

Related information

•

Adaptive cruise control

*

 (p. 321)

•

Cruise control (p. 317)

50

This function can be either standard or optional, depending on market.

51

Cruise Control

52

Adaptive Cruise Control

DRIVER SUPPORT

* Option/accessory.

328

Symbols and messages for

adaptive cruise control

*

53

A number of symbols and messages regar-
ding the adaptive cruise control (ACC

54

) can

be shown via the driver display and/or the
head-up display

*

.

In the following illustrative example, the road
sign information

*

 (RSI

55

) function informs the

driver that the maximum permitted speed is
130 km/h (80 mph).

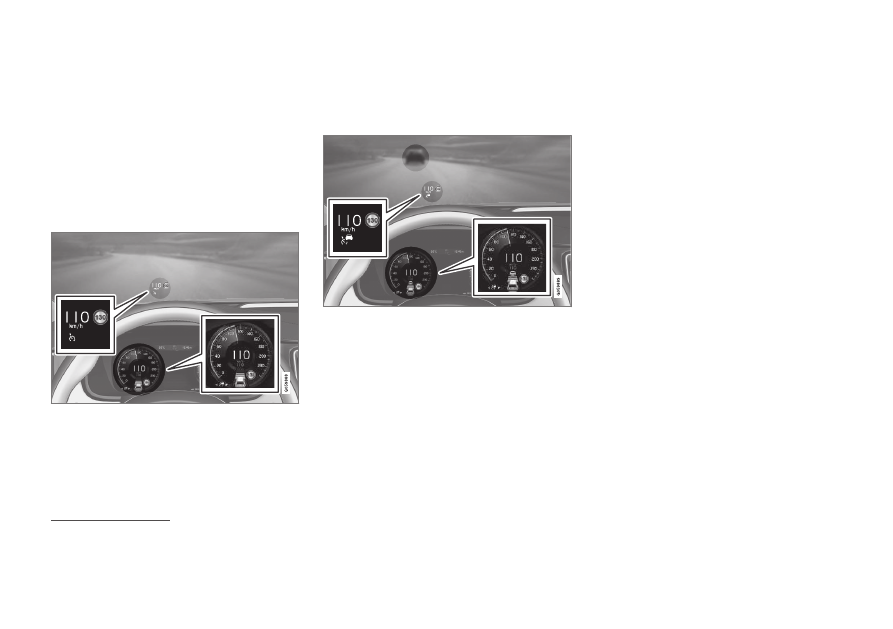

The previous illustration shows that the adap-
tive cruise control is set to maintain 110 km/h
(68 mph) and that there is no vehicle ahead to
follow.

The previous illustration shows that the adap-
tive cruise control is set to maintain 110 km/h
(68 mph) and at the same time is following a
vehicle ahead which is keeping the same
speed.

53

This function can be either standard or optional, depending on market.

54

Adaptive Cruise Control

55

Road Sign Information

DRIVER SUPPORT

* Option/accessory.

329

Symbol Message

Specification

The symbol is WHITE.

The car is maintaining the stored speed.

Adaptive Cruise Contr.

Unavailable

The symbol is GREY.

Adaptive cruise control is set to standby mode.

Adaptive Cruise Contr.

Service required

The symbol is GREY.

The system does not function as it should. A workshop should be contacted - an authorised
Volvo workshop is recommended.

Windscreen sensor

Sensor blocked, see Owner's manual

Clean the windscreen in front of the camera and radar unit's detectors.

A text message can be cleared by briefly
pressing the

 button, located in the centre

of the steering wheel's right-hand keypad.

If a message remains: Contact a workshop –
an authorised Volvo workshop is recom-
mended.

Related information

•

Adaptive cruise control

*

 (p. 321)

DRIVER SUPPORT

* Option/accessory.

330

Pilot Assist

*

56

Pilot Assist can help the driver to drive the
car between the lane's side markings using
steering assistance as well as to maintain an
even speed, combined with a preselected
time interval to the vehicle ahead.

How Pilot Assist works

The Pilot Assist function is primarily intended
for use on motorways and similar major roads
where it can contribute to more comfortable
driving and a more relaxed driving experience.

The camera and radar unit measures the distance to

the vehicle ahead and detects side markings.

Camera and radar unit

Distance readers

Readers, side markings

The driver selects the desired speed and a
time interval to the vehicle ahead. Pilot Assist
scans the distance to the vehicle ahead and
the lane's side markings on the road surface
using the camera and radar unit. The preset
time interval is maintained with automatic
speed adjustment whilst the steering assis-
tance helps to position the car in the lane.

If the cornering support

*

 function is activated,

this may also affect the speed of the car.

Pilot Assist steering assistance takes into
account the speed of the preceding car and
the lane markings. The driver can at any time
ignore the Pilot Assist steering recommenda-
tion and steer in another direction, e.g. to
change lane or avoid an obstruction on the
road.

If Pilot Assist cannot interpret the lane unam-
biguously, e.g. if the camera and radar unit
does not see the lane's side markings, Pilot
Assist temporarily deactivates steering assis-
tance, but resumes it if the lane can be inter-
preted again - although the speed and dis-
tance control functions remain active. The
steering wheel vibrates slightly when deacti-
vated temporarily in order to alert the driver to
the change.

WARNING

Pilot Assist steering assistance is automati-

cally deactivated and is resumed without

prior warning.

The current status of steering
assistance is indicated by the
colour of the steering wheel's
symbol:

• GREEN steering wheel indi-
cates active steering assis-

tance

• GREY steering wheel (as in illustration) indi-
cates deactivated steering assistance.

56

This function can be either standard or optional, depending on market.
