Changing the fan level to

increases the

noise level.

When max defroster is deactivated, the cli-
mate control system returns to the previous
settings.

Activating and deactivating max
defroster from centre console

There is a physical button in the centre con-
sole for quick access to max defroster.

With heated windscreen

the max defroster

can only be activated individually from the cli-
mate view in the centre display.

Physical button in the centre console.

Cars without heated windscreen:

–

Press the button.
> Max defroster is activated/deactivated

and the button illuminates/extin-
guishes.

Cars with heated windscreen:

–

Press the button repeatedly in order to
switch between the three levels:

•

Activated heated windscreen

•

Activated heated windscreen and max
defroster

•

Deactivated.

> Heated windscreen and max defroster

are activated/deactivated and the but-
ton illuminates/extinguishes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

* Option/accessory.

231

Max defroster starts with a certain delay in
order to avoid a short increase in fan level if
the heated windscreen is deactivated by
two quick presses of the button.

Activating and deactivating max
defroster from centre display

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Press

Max

> Max defroster is activated/deactivated

and the button illuminates/extin-
guishes.

Related information

•

Activating and deactivating the

heated windscreen

A heated windscreen is used to quickly
remove mist and ice from the window.

Activating and deactivating heated
windscreen from centre console

In the centre console is a physical button for
rapid access to the heated windscreen.

Physical button in the centre console.

–

Press the button repeatedly in order to
switch between the three levels:

•

Activated heated windscreen

•

Activated heated windscreen and max
defroster

•

Deactivated.

> Heated windscreen and max defroster

are activated/deactivated and the but-
ton illuminates/extinguishes.

Activating and deactivating heated
windscreen from centre display

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Press

Electric

> Heated windscreen is activated/deacti-

vated and the button illuminates/extin-
guishes.

A triangular area at the end of each side of
the windscreen is not electrically heated,
where de-icing may take longer.

The heated windscreen may affect the per-
formance of transponders and other com-
munication equipment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

* Option/accessory.

232

Related information

•

Activating and deactivating automatic
start of heated windscreen

•

(p. 232)

Activating and deactivating

automatic start of heated

windscreen

A heated windscreen is used to quickly
remove mist and ice from the window.

It is possible to set whether automatic start of
heated windscreen should be activated/deac-
tivated when the engine is started. With auto-
matic start activated, heating will start when
there is a risk of ice or misting on the wind-
screen/window. The heating switches off
automatically when the windscreen/window is
sufficiently warm and the ice or misting is
gone.

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

Climate

3. Select

Auto Front Defroster

to activate/

deactivate automatic start of heated wind-
screen.

Related information

•

Activating and deactivating the heated
windscreen

(p. 231)

Activating and deactivating the

heated rear window and door

mirrors

The heated rear window and door mirrors are
used to quickly remove mist and ice from the
windows and mirrors.

Activating and deactivating heated
rear window and door mirrors from
centre console

In the centre console is a physical button for
rapid access to the heated rear window and
door mirrors.

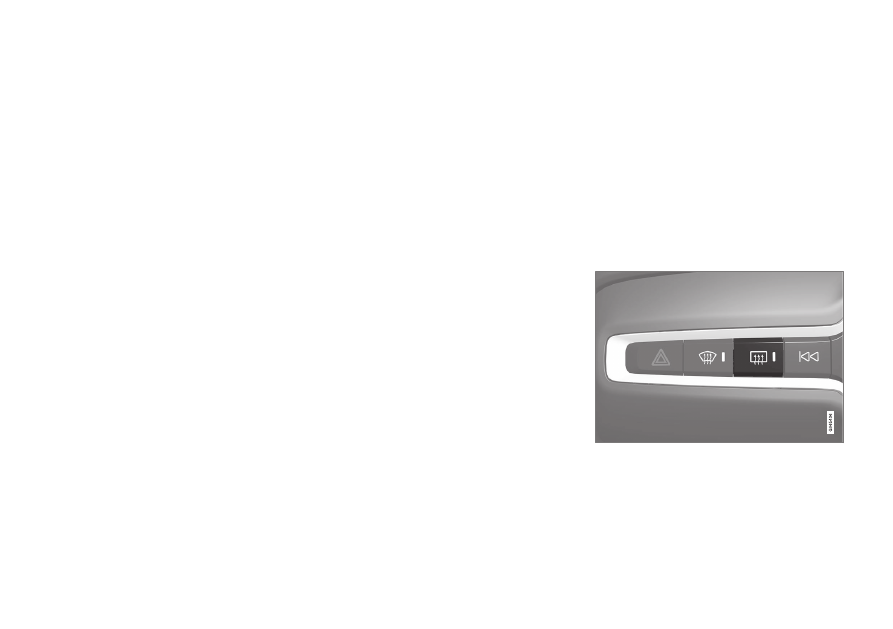

Physical button in the centre console.

–

Press the button.
> Heated rear window and door mirrors

are activated/deactivated and the but-
ton illuminates/extinguishes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

233

Activating and deactivating heated
rear window and door mirrors from
centre display

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Press

Rear

> Heated rear window and door mirrors

are activated/deactivated and the but-
ton illuminates/extinguishes.

Related information

•

Activating and deactivating automatic
starting of the heated rear window and
door mirrors (p. 233)

•

Activating and deactivating

automatic starting of the heated

rear window and door mirrors

The heated rear window and door mirrors are
used to quickly remove mist and ice from the
windows and mirrors.

It is possible to set whether automatic start of
heated rear window and door mirrors should
be activated/deactivated when the engine is
started. With automatic start activated, heat-
ing will start when there is a risk of ice or mist-
ing on the windscreen/window. The heating
switches off automatically when the wind-
screen/window is sufficiently warm and the
ice or misting is gone.

1. Press

Settings

in the top view in the cen-

tre display.

2. Press

Climate

3. Select

Auto Rear Defroster

to activate/

deactivate automatic start of heated rear
window and door mirrors.

Related information

•

Activating and deactivating the heated
rear window and door mirrors (p. 232)

Regulating fan level for front seat

The fan can be set to several different auto-
matically controlled fan speeds for the front
seat.

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

Fan control buttons in the climate view.

2. Tap on the desired fan level,

Off

Max

> Fan level is changed and the buttons

for the selected level illuminate.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

* Option/accessory.

234

IMPORTANT

If the fan is fully switched off then the air
conditioning is not engaged, which results
in a risk of misting on the insides of the
windows.

The climate control system automatically
adjusts the air flow within the selected fan
level based on requirements. This means
that the fan speed may change even
though the fan level is the same.

Related information

•

Regulating fan level for rear seat

The fan can be set to several different auto-
matically controlled fan speeds for the rear
seat.

Regulating the fan level for the rear
seat from the front seat

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Select the

Rear climate

tab.

The fan control buttons in the tab

Rear climate

the climate view.

3. Tap on the desired fan level,

The fan level for the second and third seat
row

can be switched off by tapping on

2nd row climate

Third seat row fan level follows the level
for the second seat row, but can be deac-
tivated separately by tapping on

3rd row

climate

> Fan level is changed and the buttons

for the selected level illuminate.

Regulating the fan level for the rear
seat from the rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the con-
trols.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

235

Fan controls on the climate panel at the rear of the

tunnel console.

2. Tap on the desired fan level,

> Fan level is changed and the buttons

for the selected level illuminate.

The fan level for the rear seat cannot be set
if the fan level for the front seat is in posi-
tion

Off

The rear seat fan speed can only be
switched off from the climate view in the
centre display.

The climate control system automatically
adjusts the air flow within the selected fan
level based on requirements. This means
that the fan speed may change even
though the fan level is the same.

Related information

•

Regulating temperature for front

seat

The temperature can be set to the desired
number of degrees for the front seat's climate
zones.

Temperature buttons in the climate row.

1. Press the left or right-hand side tempera-

ture button in the centre display's climate
row to open the controls.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

236

Temperature control.

2. Regulate the temperature by either of the

following:

•

drag the control to the desired tem-
perature, or

•

press

−

to raise/lower the tempera-

ture gradually.

> The temperature changes and the but-

ton shows the set temperature.

Heating or cooling cannot be hastened by
selecting a higher or lower temperature
than the actual desired temperature.

Related information

•

Regulating temperature for rear

seat

The temperature can be set to the desired
number of degrees for the rear seat's climate
zones.

Regulating temperature for rear seat
from front seat

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Select the

Rear climate

tab.

Temperature buttons in the

Rear climate

tab in

the climate view.

3. Press the left or right-hand side tempera-

ture button to open the control.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

237

Temperature control.

4. Regulate the temperature by means of the

following:

•

drag the control to the desired tem-
perature

•

press

−

to raise/lower the tempera-

ture gradually.

> The temperature changes and the but-

ton shows the set temperature.

Regulating temperature for rear seat
from rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the con-
trols.

Temperature control on the climate panel at the rear

of the tunnel console.

2. Press the left or right-hand side

but-

tons on the tunnel console's climate panel
in order to lower/raise the temperature
gradually.
> The temperature changes and the

screen in the climate panel shows the
set temperature.

Heating or cooling cannot be hastened by
selecting a higher or lower temperature
than the actual desired temperature.

Related information

•

Synchronising temperature

The temperature in the car's different climate
zones can be synchronised with the tempera-
ture set on the driver's side.

Synchronisation button on the driver's side tempera-

ture controls.

1. Press the driver's side temperature button

in the centre display's climate row in order
to open the controls.

2. Press

Synchronise temperature

> The temperature for all zones in the car

is synchronised with the temperature
set for the driver's side and the syn-
chronisation symbol is shown adjacent
to the temperature button.

The synchronisation is stopped by means of a
further press on

Synchronise temperature

by means of changing the temperature set-
tings for a climate zone other than the driver's.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

* Option/accessory.

238

Related information

•

Activating and deactivating air

conditioning

The air conditioning cools and dehumidifies
incoming air as required.

When the air conditioning is activated, the cli-
mate control system automatically controls
starting and switching off as required.

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Press

> The air conditioning is activated/deacti-

vated and the button illuminates/extin-
guishes.

Close all side windows and the panoramic
roof

so that the air conditioning should

work as well as possible.

It is not possible to activate the air condi-
tioning when the fan control is in

Off

posi-

tion.

Related information

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

* Option/accessory.

239

Activating and deactivating climate

for the third row of seats

The third seat row has separate air condition-
ing that cools and dehumidifies incoming air
when necessary.

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Select the

Rear climate

tab.

3. Press

3rd row climate

> The air conditioning is activated/deacti-

vated and the button illuminates/extin-
guishes.

The air conditioning for the third seat row
is activated automatically if anyone in the
third seat row puts on a seatbelt.

It is not possible to manually activate the
third seat row's air conditioning if the main
air conditioning is deactivated or the sec-
ond seat row's climate control is deacti-
vated.

Related information

•

Parking climate

Parking climate control is a generic term for
various functions that improve the passenger
compartment climate when the car is parked,
e.g. preconditioning.

Functions belonging to the parking
climate control are controlled from
the

Parking climate

in climate view

in the centre display. Open climate

view by pressing the symbol in the middle of
the climate row.

Related information

•

Climate (p. 212)

•

Climate comfort when parking (p. 245)

•

•

Symbols and messages for parking cli-
mate control (p. 246)

Preconditioning

Preconditioning is a climate function which, if
possible, attempts to reach comfort tempera-
ture in the passenger compartment before
departure.

Preconditioning can use direct start or be set
via the timer.

The function utilises several systems in differ-
ent cases:

•

In a cold climate, the parking heater
warms up the passenger compartment to
a comfortable temperature.

•

The air conditioning, in a hot climate, cools
the passenger compartment to the com-
fort temperature.

•

Activation of heated steering wheel

and

heated seats

for driver and passenger can

be selected.

•

Heated windscreen, rear window and door
mirrors are automatically activated as
required.

During preconditioning in a hot climate, con-
densation from the air conditioning may drip
under the car. This is normal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

240

Preconditioning is available only when the
car is connected to an electrical socket

. A

charging station which is not always
active, e.g. on account of a timer, may
cause preconditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the pas-
senger compartment briefly in a warm cli-
mate by starting preconditioning directly.

Start and switch off preconditioning
(p. 240)

During preconditioning of the passenger
compartment, the car works to reach com-
fort temperature and not the temperature
set in the climate control system.

Related information

•

Parking climate (p. 239)

•

•

Start and switch off

preconditioning

Preconditioning heats or cools the passenger
compartment, if possible, prior to driving. The
function can use direct start from the centre
display or a mobile phone.

Start and switch off from car

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Select the

Parking climate

tab.

3. Select whether seat heating and steering

wheel heating should be activated during
preconditioning by ticking/unticking the
boxes for the respective function.

4. Press

Preconditioning

> Preconditioning is started/switched off

and the button is illuminated/extin-
guished.

Preconditioning is available only when the
car is connected to an electrical socket

. A

charging station which is not always
active, e.g. on account of a timer, may
cause preconditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the pas-
senger compartment briefly in a warm cli-
mate by starting preconditioning directly.

The car's doors and windows should be
closed during the preconditioning of the
passenger compartment.

Applicable to electric heater.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

* Option/accessory.

241

WARNING

Do not use preconditioning

•

In unventilated spaces indoors.
Exhaust gases are emitted if the heater
starts.

•

In locations with combustible or flam-
mable material nearby. Fuel, gas, long
grass, sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For
example, deep snow inside the front
right-hand wheel housing can obstruct
the heater’s ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a

long time in advance.

Starting from the app

Start of preconditioning and information about
the selected settings can be managed from a
device that has the Volvo On Call

app. Pre-

conditioning heats or cools the passenger
compartment (using the car's air conditioning)
to comfort temperature.

The passenger compartment can also be pre-
conditioned with the car remote start function
(Engine Remote Start - ERS)

via the Volvo

On Call

app.

Related information

•

Parking climate (p. 239)

•

•

Preconditioning time setting

The timer can be set so that the precondition-
ing is finished at a predetermined time.

The timer can handle up to 8 different settings
for:

•

A time on a single date

•

A time on one or more days of the week,
with or without repetition.

Preconditioning is available only when the
car is connected to an electrical socket

. A

charging station which is not always
active, e.g. on account of a timer, may
cause preconditioning to malfunction.

If the car is not connected to an electrical
socket, it is still possible to cool the pas-
senger compartment briefly in a warm cli-
mate by starting preconditioning directly.

Related information

•

Adding and editing time setting for pre-
conditioning (p. 242)

•

Applicable to fuel-driven auxiliary heater.

Certain markets.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

242

•

Activating and deactivating time setting
for preconditioning (p. 243)

•

Removing time setting for preconditioning
(p. 244)

Adding and editing time setting for

preconditioning

The timer for preconditioning can manage up
to 8 time settings.

Adding a time setting

The button to add a time setting in the

Parking

climate

tab in the climate view.

1. Open the climate view in the centre dis-

play.

2. Select the

Parking climate

tab.

3. Press

Add timer

> A pop-up window is shown.

It is not possible to add a time setting if
there already are 8 settings entered for the
timer. Delete a time setting in order to be
able to add a new one.

4. Tap on

Date

to set the time for a single

date.

Tap on

Days

to set the time for one or

more days of the week.

With

Days

: Activate/deactivate repetition

by ticking/unticking the box for

Repeat

weekly

5. With

Date

: Select the date for precondi-

tioning by scrolling the date list with the
arrows.

With

Days

: Select the days of the week

for preconditioning by tapping on the but-
tons for the days of the week.

6. Set the time when the preconditioning

should be finished by scrolling with the
arrows.

Applicable to electric heater.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

}}

243

7. Tap on

Confirm

in order to add the time

setting.
> The time setting is added to the list and

is activated.

WARNING

Do not use preconditioning

•

In unventilated spaces indoors.
Exhaust gases are emitted if the heater
starts.

•

In locations with combustible or flam-
mable material nearby. Fuel, gas, long
grass, sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For
example, deep snow inside the front
right-hand wheel housing can obstruct
the heater’s ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a

long time in advance.

Editing a time setting

1. Open the climate view in the centre dis-

play.

2. Select the

Parking climate

tab.

3. Press the time setting that is to be

changed.
> A pop-up window is shown.

4. Edit the time setting in the same way as

described in "Adding a time setting"
above.

Related information

•

•

Activating and deactivating time setting
for preconditioning (p. 243)

•

•

Removing time setting for preconditioning
(p. 244)

Activating and deactivating time

setting for preconditioning

A time setting in the timer for preconditioning
can be activated or deactivated based on
need.

The timer buttons in the

Parking climate

tab in the

climate view.

1. Open the climate view in the centre dis-

play.

2. Select the

Parking climate

tab.

3. Activate/deactivate a time setting by tap-

ping on the timer button to the right of the
setting.
> The time setting is activated/deacti-

vated and the button illuminates/extin-
guishes.

Applicable to fuel-driven auxiliary heater.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

244

WARNING

Do not use preconditioning

•

In unventilated spaces indoors.
Exhaust gases are emitted if the heater
starts.

•

In locations with combustible or flam-
mable material nearby. Fuel, gas, long
grass, sawdust, etc. may ignite.

•

When there is a risk that the heater’s
exhaust line may be blocked. For
example, deep snow inside the front
right-hand wheel housing can obstruct
the heater’s ventilation.

Remember that the preconditioning can be

started by a timer that has been set for a

long time in advance.

Related information

•

•

Adding and editing time setting for pre-
conditioning (p. 242)

•

•

Removing time setting for preconditioning
(p. 244)

Removing time setting for

preconditioning

A time setting for preconditioning that is no
longer required can be deleted.

The button for editing the list/deleting the time set-

ting in the tab

Parking climate

in the climate view.

1. Open the climate view in the centre dis-

play.

2. Select the

Parking climate

tab.

3. Press

Edit list

4. Press the delete icon to the right in the

list.
> The icon changes to the text

Delete

5. Press

Delete

to confirm.

> The time setting is removed from the

list.

Related information

•

•

Adding and editing time setting for pre-
conditioning (p. 242)

•

•

Activating and deactivating time setting
for preconditioning (p. 243)

Applicable to fuel-driven auxiliary heater.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CLIMATE

245

Climate comfort when parking

The climate in the car's passenger compart-
ment can be maintained while the car is
parked, e.g. if the engine needs to be
switched off but the driver or passenger(s)
wants to remain in the car and maintain the
level of climate comfort.

Starting climate comfort retention is only pos-
sible via direct start.

The function utilises several systems in differ-
ent cases:

•

Residual heat from the engine, in a cold
climate, heats the passenger compart-
ment to comfort temperature.

•

When it is warm, the ventilation cools the
passenger compartment by blowing in air
from outside the car.

Starting and switching off climate comfort
when parking (p. 245)

Climate comfort retention is switched off
when the car is locked from the outside to
avoid using residual heat unnecessarily.
Use of the function is intended to maintain
climate comfort when driver or passengers
remain inside the car.

Related information

•

Parking climate (p. 239)

•

Starting and switching off climate

comfort when parking

Climate comfort retention maintains the cli-
mate in the passenger compartment after
driving. The function can use direct start from
the centre display.

1. Open climate view in the centre display by

pressing the symbol in the middle of the
climate row.

2. Select the

Parking climate

tab.

3. Press

Keep climate comfort

> Climate comfort retention is started/

switched off and the button illumi-
nates/extinguishes.

It is not possible to start climate comfort
retention if there is not enough residual
heat in the engine to maintain the passen-
ger compartment climate, or if the outside
temperature is above approx. 20°C (68°F).
