STARTING AND DRIVING

* Option/accessory.

499

sumption. It may also lead to an increased
load on the towbar.

Related information

•

Towbar

*

 (p. 491)

Towing

During towing, the car is towed by another
vehicle by means of a towline.

Towing a Twin Engine is not permitted as this
will damage the electric motor. Instead, the
car must be transported raised with all the
wheels on a recovery vehicle's platform, nei-
ther of the wheel pairs may have road contact.

When towing another car

Towing a car requires a lot of energy - use the

Constant AWD

 drive mode. This then

charges the hybrid battery, in combination
with improving the car's driving characteristics
and roadholding.

Find out the statutory maximum speed limit
for towing before the towing begins.

Jump starting

Tow-starting the motor is not permitted as
this will damage the electric motor. Use a
donor battery if the starter battery is dis-
charged and the engine does not start.

IMPORTANT

The electric drive motor and the catalytic
converter may be damaged during
attempts to tow-start the car.

Related information

•

Fitting and removing the towing eye
(p. 500)

•

Hazard warning flashers (p. 157)

•

Recovery (p. 501)

•

Using jump starting with another battery
(p. 489)

•

Selecting ignition mode (p. 443)

•

Gearbox (p. 454)

STARTING AND DRIVING

* Option/accessory.

500

Fitting and removing the towing

eye

Use the towing eye if the car shall tow
another vehicle. The towing eye is screwed
into a threaded socket behind a cover on the
right-hand side of the rear bumper.

NOTE

If the car is equipped with a towbar, there
is no rear mounting for a towing eye.

Fitting the towing eye

Take out the towing eye from the foam
block under the floor in the cargo area.

Remove the cover – press on the marking
with a finger while you fold out the oppo-
site side/corner.
> The cover pivots around its centre line

and can then be removed.

3. Screw in the towing eye until it reaches its

end stop.

Screw the eye in firmly. For example,
thread through the wheel bolt wrench

*

 and

use it as a lever.

IMPORTANT

It is important that the towing eye is firmly
screwed into place - right in until it stops.

Removing the towing eye

–

Unscrew and remove the towing eye after
use and return it to its place in the foam
block.

Finish by refitting the cover onto the
bumper.

STARTING AND DRIVING

* Option/accessory.

501

Related information

•

Towing (p. 499)

•

Recovery (p. 501)

•

Tool kit (p. 579)

Recovery

For recovery, the car is taken away with the
help of another vehicle.

Call a recovery service for recovery assistance.

The towing eye can be used to pull the car up
onto a recovery vehicle with a flatbed plat-
form.

IMPORTANT

Note that cars with Twin Engine must
always be transported raised up with all
the wheels on the recovery vehicle's plat-
form.

Applies to cars with level control

*

: If the car

is equipped with air suspension, this must be
disabled before the car is raised. Deactivating
the function via the centre display.

1. Press

Settings

 in the top view.

2. Press

My Car

Parking Brake and

Suspension

.

3. Select

Disable Leveling Control

.

The car's position and ground clearance deter-
mine whether it is possible to pull it up onto a
flatbed platform. If the slope of the recovery
vehicle's ramp is too steep, or if the ground
clearance under the car is inadequate, then
the car may be damaged if you try to pull it up.

The car should then be lifted using the recov-
ery vehicle's lifting device.

WARNING

No one/nothing is allowed to remain

behind the recovery vehicle while the car

pulled up onto the flatbed platform.

Related information

•

Fitting and removing the towing eye
(p. 500)

STARTING AND DRIVING

* Option/accessory.

502

HomeLink

®

*

19

HomeLink

®

20

 is a programmable remote con-

trol, integrated in the car's electrical system,
which can remotely control up to three differ-
ent devices (e.g. garage door opener, alarm
system, outdoor and indoor lighting) and
thereby replace the remote controls for them.

General

The figure is schematic - the version may vary.

Button 1

Button 2

Button 3

Indicator lamp

HomeLink

®

 is supplied built-in to the interior

rearview mirror. The HomeLink

®

 panel con-

sists of three programmable buttons and one
indicator lamp in the mirror glass.

For more information about HomeLink

®

, visit

www.HomeLink.com or call
00 8000 466 354 65 (or the toll number
+49 6838 907 277)

21

.

Save the original remote controls for future
programming (e.g. when changing to another
car or for use in another vehicle). It is also rec-
ommended that the programming for the but-
tons is deleted when the car is sold.

Related information

•

Using HomeLink

®

*

 (p. 504)

•

Programming HomeLink

®

*

 (p. 502)

•

Type approval for HomeLink

®

*

 (p. 505)

Programming HomeLink

®

*

22

Follow these instructions to program
HomeLink

®

, reset all programming or repro-

gram individual buttons.

NOTE

In certain vehicles the ignition must be
switched on or in "accessory position"
before HomeLink

®

 can be programmed or

used. If possible, fit new batteries in the
remote control that shall be replaced by
HomeLink

®

 for faster programming and

improved transmission of the radio signal.
The HomeLink

®

 buttons should be reset

before programming.

WARNING

While programming HomeLink

®

, the

garage door or gate being programmed

may activate. For this reason, make sure

that nobody is in the vicinity of the door or

gate while programming is in progress. The

car should be outside the garage while a

garage door opener is being programmed.

19

Applies to certain markets.

20

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

21

Note that the toll-free number may not be available depending on operator.

22

Applies to certain markets.

STARTING AND DRIVING

}}

503

1. Aim the remote control towards the

HomeLink

®

 button to be programmed and

hold it approx. 2-8 cm (approx. 1-3 inches)
from the button. Do not obstruct the indi-
cator lamp on HomeLink

®

.

Note:

 The ability of some remote controls

to program HomeLink

®

 is improved at a

distance of approx. 15-20 cm (approx.
6-12 inches). Bear this in mind if problems
occur with the programming.

2. Press and hold depressed both the button

on the remote control and the button to be
reprogrammed on HomeLink

®

.

3. Do not release the buttons until the indica-

tor lamp has switched from flashing
slowly (approx. once per second) to either
flashing quickly (approx. 10 times per sec-
ond) or illuminating with a constant glow.
>

If the indicator lamp illuminates with
a constant glow:

 Indication that the

programming has finished. Press the
programmed button twice to activate.

If the indicator lamp flashes quickly:

The device to be programmed to
HomeLink

®

 may have a security func-

tion that requires extra steps. Test by
pressing the programmed button twice
to see whether the programming is
working. Otherwise, continue with the
following steps.

4. Locate programming button

23

 on the

receiver for the garage door or similar. It is
normally located close to the antenna's
bracket on the receiver.

5. Depress and release the receiver's pro-

gramming button once. The programming
must be completed within 30 seconds of
the button being depressed.

6. Press and release the button on

HomeLink

®

 that you want to program.

Repeat the sequence of pressing/holding/
releasing a second time and, depending
on the receiver model, even a third time.
> Programming is now be complete and

the garage door, gate or similar should
now be activated when the pro-
grammed button is depressed.

In the event of programming problems, con-
tact HomeLink

®

 at www.HomeLink.com, or

23

Button designation and colour varies between manufacturers.

||

STARTING AND DRIVING

* Option/accessory.

504

call 00 8000 466 354 65 (or the toll number
+49 6838 907 277)

24

.

Reprogramming individual buttons

To reprogram an individual HomeLink

®

 button,

proceed as follows:

1. Press the desired button and hold it

depressed for approx. 20 seconds.

2. Once the indicator lamp on HomeLink

®

starts to flash slowly, programming can
continue as normal.

Note:

 If the button to be reprogrammed is

not programmed with a new unit, it will
resume the previously saved program-
ming.

Resetting the HomeLink

®

 buttons

It is only possible to reset all of the HomeLink

®

buttons at the same time, not each button
individually. Individual buttons can only be
reprogrammed.

–

Press and hold depressed the outer but-
tons (1 and 3) on HomeLink

®

 for approx.

10 seconds.
> When the indicator lamp changes over

from a constant glow to starting to
flash, the buttons are reset and ready to
be reprogrammed.

Related information

•

Using HomeLink

®

*

 (p. 504)

•

HomeLink

®

*

 (p. 502)

•

Type approval for HomeLink

®

*

 (p. 505)

Using HomeLink

®

*

25

When HomeLink

®

 is fully programmed it can

be used in place of the separate original
remote controls.

Depress the programmed button. The garage
door, gate, alarm system or similar is activated
(may take a few seconds). If the button is
depressed for more than 20 seconds then the
reprogramming is started. The indicator lamp
illuminates or flashes when the button has
been depressed. Naturally the original remote
controls can still be used in parallel with
HomeLink

®

 if required.

NOTE

When the ignition has been switched off,
HomeLink

®

 works for at least 7 minutes.

NOTE

HomeLink

®

 cannot be used if the car is

locked and the alarm is armed

*

 from the

outside.

24

Note that the toll-free number may not be available depending on operator.

25

Applies to certain markets.

STARTING AND DRIVING

* Option/accessory.

505

WARNING

•

If HomeLink

®

 is used to control a

garage door or gate, ensure that
nobody is near the door or gate while it
is in motion.

•

Do not use HomeLink

®

 for any garage

door that does not have safety stop
and safety reverse.

Related information

•

HomeLink

®

*

 (p. 502)

•

Programming HomeLink

®

*

 (p. 502)

•

Type approval for HomeLink

®

*

 (p. 505)

Type approval for HomeLink

®

*

26

Type approval for EU

Gentex Corporation hereby declares that
HomeLink

®

 Model UAHL5 complies with the

Radio equipment directive 2014/53/EU.

Wavelength within which the radio equipment
functions:

•

433.05MHz-434.79MHz <10mW E.R.P.

•

868.00MHz-868.60MHz <25mW E.R.P.

•

868.70MHz-868.20MHz <25mW E.R.P.

•

869.40MHz-869.65MHz <25mW E.R.P.

•

869.70MHz-870.00MHz <25mW E.R.P.

Certificate holder address: Gentex Corpora-
tion, 600 North Centennial Street, Zeeland MI
49464, USA

Related information

•

HomeLink

®

*

 (p. 502)

Compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

27

 in which the front of

the car is pointing.

Rearview mirror with compass.

Eight different compass directions are shown
by their English abbreviations:

N

 (north),

NE

(north east),

E

 (east),

SE

 (south east),

S

(south),

SW

 (south west),

W

 (west) and

NW

(north west).

Related information

•

Activating and deactivating the compass

*

(p. 506)

•

Calibrating the compass

*

 (p. 506)

26

Applies to certain markets.

27

A rearview mirror with a compass is available as an option on certain markets and models only.

STARTING AND DRIVING

* Option/accessory.

506

Activating and deactivating the

compass

*

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

28

 in which the front of

the car is pointing.

The compass is activated automatically when
the car is started.

To deactivate/activate the compass manually:

–

Depress the button on the underside of
the rearview mirror using e.g. a paper clip.
> If the compass is deactivated when the

car is switched off, it will not be acti-
vated the next time the car is started. In
this case, the compass needs to be
activated manually.

Related information

•

Compass

*

 (p. 505)

•

Calibrating the compass

*

 (p. 506)

Calibrating the compass

*

The earth is divided into 15 magnetic zones.
The compass

29

 should be calibrated if the car

is moved between several magnetic zones.

1. Stop the car in a large open area free from

steel structures and high-voltage power
lines.

2. Start the car and switch off all electrical

equipment (air conditioning, wipers, etc.)
and ensure that all doors are closed.

NOTE

Calibration may fail or not start at all if
electrical equipment is not switched off.

3. Hold the button on the underside of the

rearview mirror depressed for
approx. 3 seconds (use a paper clip, for
example). The number for the current
magnetic zone is shown.

Magnetic zones.

4. Press the button repeatedly until the

required magnetic zone (

1–15

) is shown.

See the map of magnetic zones for the
compass.

5. Wait until the display returns to showing

the character

C

, or hold the button on the

underside of the rearview mirror
depressed for approx. 6 seconds until the
character

C

 is shown.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display,
indicating that calibration is complete.
Then drive a further 2 circles to fine-tune
calibration.

28

A rearview mirror with a compass is available as an option on certain markets and models only.

29

A rearview mirror with a compass is available as an option on certain markets and models only.

STARTING AND DRIVING

* Option/accessory.

507

7.

Cars with heated windscreen

*

:

 If the

character

C

 is shown in the display when

the heated windscreen is activated, per-
form the calibration in accordance with
point 6 above with the heated windscreen
activated.

8. Repeat the above procedure as necessary.

Related information

•

Compass

*

 (p. 505)

•

Activating and deactivating the compass

*

(p. 506)

SOUND, MEDIA AND INTERNET

* Option/accessory.

510

Sound, media and Internet

The audio and media system consists of
media player and radio. You can also connect
a phone via Bluetooth to use handsfree func-
tions or play music wirelessly in the car.
When the car is connected to the Internet
you can also use apps for media playback.

Overview of audio and media

Control the functions with your voice, steering
wheel keypad or the centre display. The num-
ber of speakers and amplifiers depends on
which audio system the car is equipped with.

System updating

The audio and media system is continuously
improved. It is recommended to download
system updates when new ones are available.

Related information

•

Media player (p. 521)

•

Radio (p. 515)

•

Phone (p. 537)

•

Internet-connected car

*

 (p. 545)

•

Apps (p. 512)

•

Voice recognition (p. 141)

•

Ignition positions (p. 442)

•

Driver distraction (p. 41)

•

Managing system updates via the Down-
load Centre (p. 617)

•

License agreement for audio and media
(p. 554)

•

Managing system updates via the Down-
load Centre (p. 617)

Audio settings

The sound reproduction quality is preset, but
it can be adjusted as well.

The volume is normally adjusted with the vol-
ume control below the centre display or with
the right-hand steering wheel keypad. This
applies, for example, during playback of music,
radio, ongoing phone calls and active traffic
messages.

Sound reproduction

The sound system is pre-calibrated by means
of digital signal processing. This calibration
takes into account loudspeakers, amplifiers,
passenger compartment acoustics, listener
position, etc., for each combination of car
model and audio system. There is also a
dynamic calibration that takes into account
the setting of the volume control and vehicle
speed.

Personal preferences

Various settings are available in the top view
under

Settings

Sound

 depending on the

car's audio system.

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

511

Premium Sound

*

 (Bowers & Wilkins)

•

Tone

 – settings for bass, treble, equalizer,

etc.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

High Performance Pro

*

 (Harman

Kardon)

•

Equaliser

 – equalizer setting.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

High Performance

•

Tone

 – settings for bass, treble, equalizer,

etc.

•

Balance

 – balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

 – adjusts volume in the

various systems of the car, e.g.

Voice

Control

,

Park Assist

 and

Phone

Ringtone

.

Related information

•

Sound experience

*

 (p. 511)

•

Media player (p. 521)

•

Settings for voice recognition (p. 145)

•

Settings for phone (p. 544)

•

Sound, media and Internet (p. 510)

•

Internet-connected car

*

 (p. 545)

Sound experience

*

Sound experience is an app that provides
access to further audio settings.

Sound Experience

 is opened from the app

view in the centre display. The following set-
tings can be defined, depending on the audio
system fitted to the car:

Premium Sound

*

 (Bowers & Wilkins)

•

Studio

 – the sound can be adjusted so

that it can primarily be adapted for

Driver

,

All

 and

Rear

.

•

Individual stage

 – surround sound mode

with settings for intensity and enclosure.

•

Concert hall

 – reproduces the acoustics

from Gothenburg's Concert Hall.

Recreating the acoustics from Gothenburg Concert

Hall.

||

SOUND, MEDIA AND INTERNET

* Option/accessory.

512

High Performance Pro

*

 (Harman

Kardon)

•

Seat Optimisation

 – the sound can be

adjusted so that it can primarily be adap-
ted for

Driver

,

All

 and

Rear

.

•

Surround

 – surround sound mode with

level settings.

•

Tone

 – settings for bass, treble, equalizer,

etc.

Related information

•

Audio settings (p. 510)

•

Navigating in the centre display's views
(p. 111)

Apps

The app view contains applications (apps)
that give access to certain of the car's servi-
ces.

Swipe from right to left

1

 across the centre dis-

play's screen in order to access the app view
from the home view. Apps that have been
downloaded (third-party apps) and apps for
embedded functions, such as

FM radio

, are

found here.

App view (generic image, basic apps vary by market

and model)

Some basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Certain apps are only available for use if the
car is connected to the Internet.

1

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

SOUND, MEDIA AND INTERNET

* Option/accessory.

513

Start an app by pressing the app in the centre
display's app view.

All the apps used should be updated to the lat-
est version.

Related information

•

Downloading apps (p. 513)

•

Updating apps (p. 514)

•

Deleting apps (p. 514)

•

Apple

®

 CarPlay

®

*

 (p. 530)

•

Android Auto

*

 (p. 534)

•

Internet-connected car

*

 (p. 545)

•

Storage space on hard disk (p. 553)

•

User terms and conditions and data shar-
ing (p. 551)

Downloading apps

New apps can be downloaded when the car
is connected to the Internet.

NOTE

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

NOTE

When downloading using a phone, pay
extra attention to the data traffic costs.

1. Open the

Download Centre

 app in the

app view.

2. Select

New apps

 in order to open a list of

apps that are available but not installed in
the car.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

 in order to start the down-

load and installation of the desired app.
> The status of the download and instal-

lation is shown while it is in progress.

A message is shown if a download can-
not be started for the moment. The app
will remain in the list and it is possible
to try to start a download again.

Cancelling the download

–

Tap on

Abort

 to cancel a download in pro-

gress.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Related information

•

Apps (p. 512)

•

Updating apps (p. 514)

•

Deleting apps (p. 514)

•

Internet-connected car

*

 (p. 545)

•

Managing system updates via the Down-
load Centre (p. 617)

•

Storage space on hard disk (p. 553)

SOUND, MEDIA AND INTERNET

* Option/accessory.

514

Updating apps

The apps can be updated when the car is
connected to the Internet.

NOTE

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

NOTE

When downloading using a phone, pay
extra attention to the data traffic costs.

If an app is being used during an ongoing
update, it will be restarted in order for the
installation to be completed.

Update all

1. Open the

Download Centre

 app in the

app view.

2. Select

Install all

.

> Updating is started.

Update some

1. Open the

Download Centre

 app in the

app view.

2. Select

Application updates

 in order to

open a list of all available updates.

3. Locate the desired app and select

Install

.

> Updating is started.

Related information

•

Apps (p. 512)

•

Downloading apps (p. 513)

•

Deleting apps (p. 514)

•

Managing system updates via the Down-
load Centre (p. 617)

•

Internet-connected car

*

 (p. 545)

Deleting apps

Apps can be uninstalled when the car is con-
nected to the Internet.

An app that is being used must be closed in
order for the uninstallation to be completed.

1. Open the

Download Centre

 app in the

app view.

2. Select

Application updates

 in order to

open a list of all installed apps.

3. Locate the desired app and select

Uninstall

 in order to start the uninstalla-

tion of the app.
> When the app has been uninstalled, it

disappears from the list.

Related information

•

Apps (p. 512)

•

Downloading apps (p. 513)

•

Updating apps (p. 514)

•

Managing system updates via the Down-
load Centre (p. 617)

•

Internet-connected car

*

 (p. 545)

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

515

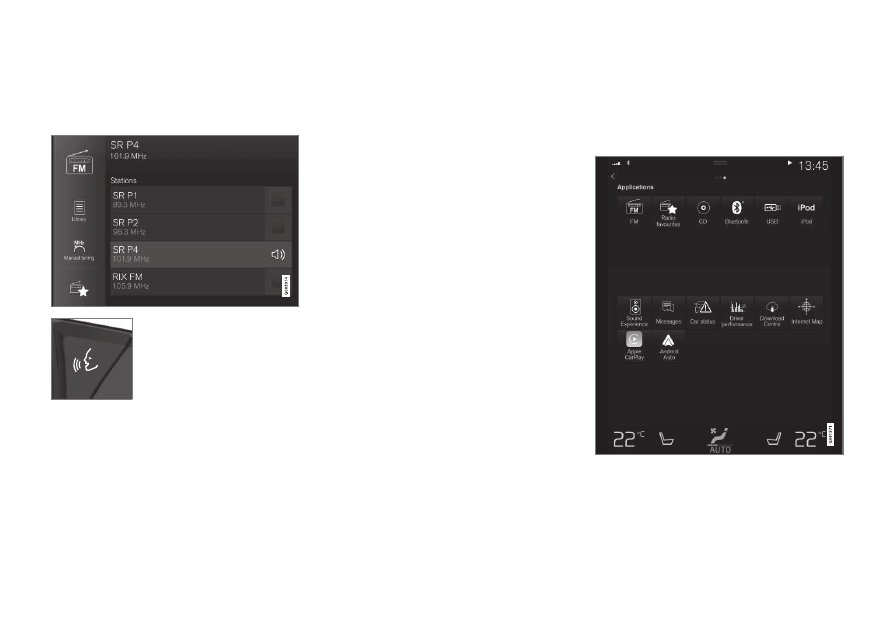

Radio

It is possible to listen to the FM bands and to
digital radio (DAB)

*

. When the car is online, it

is also possible to listen to Internet radio.

The radio can be operated
using voice recognition, the
steering wheel keypad or the
centre display.

Related information

•

Start radio (p. 515)

•

Changing radio band and radio station
(p. 516)

•

Save radio channels in the Radio Favour-
ites app (p. 518)

•

Settings for radio (p. 518)

•

Digital radio

*

 (p. 520)

•

RDS radio (p. 520)

•

Internet-connected car

*

 (p. 545)

•

Voice control of radio and media (p. 145)

•

Media player (p. 521)

Start radio

The radio is started from the centre display
app view.

1. Open the required frequency band (e.g.

FM

) from the app view.

2. Select a radio station.

Related information

•

Radio (p. 515)

•

Searching for radio stations (p. 517)

SOUND, MEDIA AND INTERNET

* Option/accessory.

516

•

Changing radio band and radio station
(p. 516)

•

Save radio channels in the Radio Favour-
ites app (p. 518)

•

Settings for radio (p. 518)

•

Voice control of radio and media (p. 145)

Changing radio band and radio

station

There are instructions here for changing the
radio band, the list in the radio band and the
radio station in the selected list.

Changing radio band

Swipe to show the app view in the centre dis-
play and select the preferred radio band (e.g.

FM

), or open the driver display's app menu

using the right-hand keypad on the steering
wheel and make your selection from there.

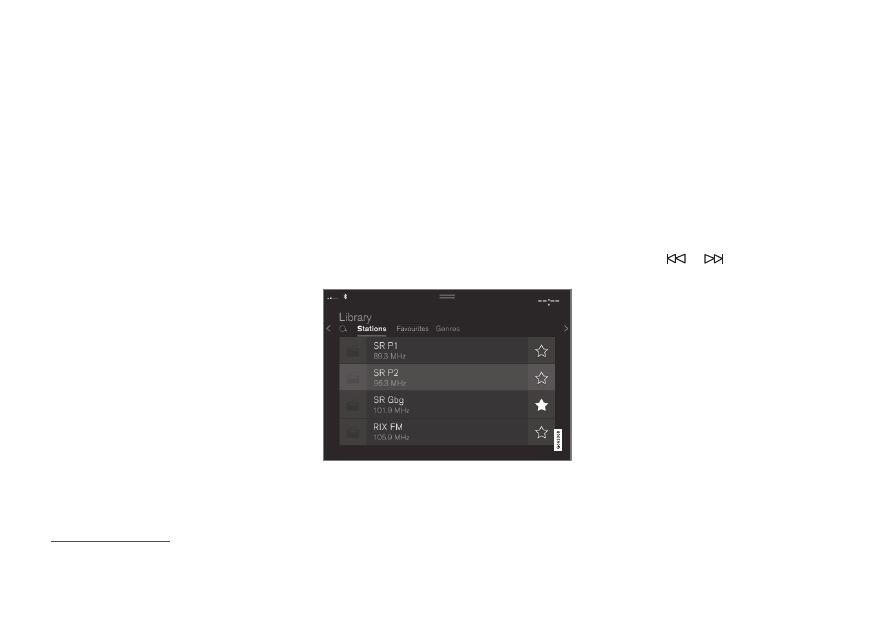

Changing lists within the frequency
band

1. Press

Library

.

2. Select playback from

Stations

,

Favourites

,

Genres

 or

Ensembles

2

.

3. Tap on the desired station from the list.

Favourites

 - only plays back selected favour-

ite channels.

Genres

 - only plays back channels broadcast-

ing the selected genre/programme type, e.g.
pop or classical.

Changing stations within the selected
list

–

Press on

 or

 under the centre dis-

play or the steering wheel's right-hand
keypad.
> The highlight moves up or down one

place in the selected playlist.

You can also change radio station in the
selected list via the centre display.

Related information

•

Radio (p. 515)

•

Searching for radio stations (p. 517)

•

Voice control of radio and media (p. 145)

•

Save radio channels in the Radio Favour-
ites app (p. 518)

•

Settings for radio (p. 518)

•

Application menu in driver display (p. 99)

2

Only applies to digital radio (DAB

*

).
