Before the charging cable is disconnected
from the car's charging input socket, the
car must be unlocked using the unlock but-
ton on the remote control key. This must
be carried out even if the doors on the car
are already unlocked. If the car is not
unlocked using the unlock button, this may
lead to damage to the charging cable or to
the system.

Opening and closing the hatch for the
charging input socket (p. 424)

Always unlock the car so that charging is
stopped before the connection to the
230 V socket (alternating current) is
unplugged. Note that the charging cable
must be unplugged from the car's charging
input socket before being unplugged from
the 230 V socket, partly to avoid damage
to the system and partly to avoid stopping
the charging unintentionally.

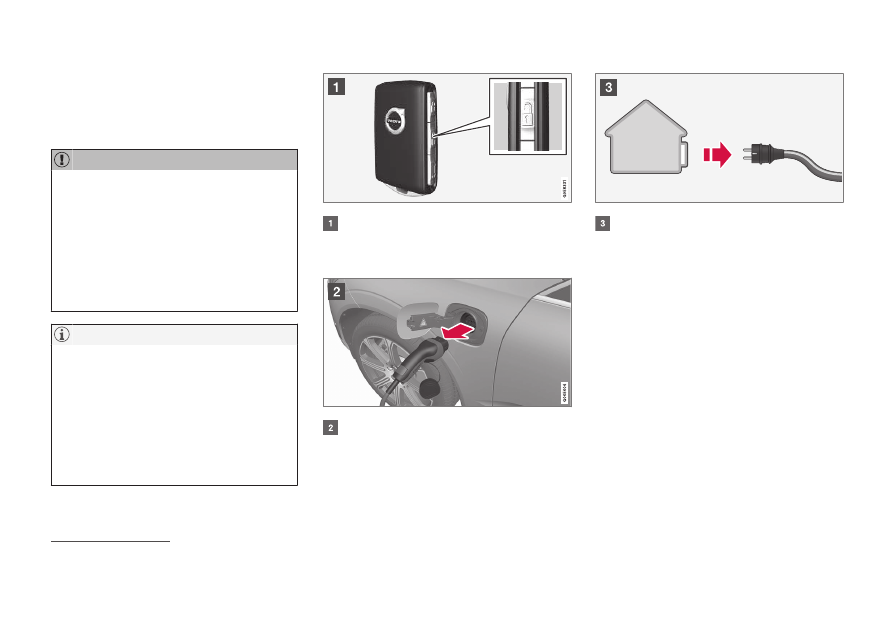

Unlock the car with the remote control key
- charging is finished and the charging
cable's locked handle releases/is
unlocked.

Unplug the cable from the car's charging
input socket and close the hatch.

Unplug the cable from the 230 V socket.

Return the charging cable to the storage
compartment under the cargo area floor.

The charging cable is locked
automatically

If the charging cable is not unplugged from
the charging input socket, it is locked in again
automatically shortly after unlocking in order
to maximise charging and range, as well as to
facilitate preconditioning prior to the journey.
The charging cable can be unplugged again if
the car is unlocked using the remote control
key. For cars with Passive Entry

, you can lock

and unlock using the handle again.

Related information

•

•

Charging cable (p. 421)

The voltage in the socket may vary depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HYBRID INFORMATION

}}

435

Symbols and messages relating to

Twin Engine in the driver display

A number of symbols and messages regar-
ding Twin Engine can be shown in the driver

display. They may also be shown in combina-
tion with general indicator and warning sym-
bols and are then extinguished when the
problems have been rectified.

Symbol Message

Specification

12 V Battery

Charging fault, service urgent. Drive
to workshop

Hybrid battery fault. Contact a workshop

to check the battery as soon as possible.

12 V Battery

Charging fault Stop safely

Hybrid battery fault. Stop the car safely and contact a workshop

to have the battery checked

as soon as possible.

12 V Battery

Fuse failure Service required

Hybrid battery fault. Contact a workshop

to check the function as soon as possible.

HV battery

Overheated, stop safely

The temperature of the hybrid battery seems to be rising abnormally. Stop the car and switch
off the engine. Wait at least 5 minutes before continuing to drive. Call a workshop

or check

from the outside that everything seems normal before continuing to drive.

Reduced performance

Max car speed limited

The hybrid battery is not sufficiently charged for driving at high speeds. Charge the battery as
soon as possible.

Propulsion system

Harsh behaviour at low speed, car
ok to use

The hybrid system does not function as intended. Contact a workshop

to check the function

as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HYBRID INFORMATION

436

Symbol Message

Specification

Hybrid system failure

Service required

The hybrid system is disengaged. Contact a workshop

to check the function as soon as pos-

sible.

Charge cable

Remove before start

Shown when the driver tries to start the car and the charging cable is connected to the car.
Disconnect the charging cable and close the charging hatch.

An authorised Volvo workshop is recommended.

Related information

•

Start charging the hybrid battery (p. 424)

•

Stop charging of hybrid battery (p. 433)

•

Charging the hybrid battery (p. 419)

•

Warning symbols in the driver display
(p. 92)

•

Indicator symbols in the driver display
(p. 89)

•

Hybrid gauge (p. 82)

•

Hybrid battery gauge (p. 83)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

HYBRID INFORMATION

437

Long-term storage of vehicles with

hybrid batteries

To minimise hybrid battery degradation dur-
ing prolonged storage (longer than 1 month)
of the vehicle a charge level of approximately
25% is recommended as indicated on the
driver display.

Proceed as follows:

1. If the state of charge is high – run the car

until approx. 25% remains. If the state of
charge is low – charge the battery until a
level of approx. 25% is reached.

2. If storage has lasted longer than 6 months

or the hybrid battery charge level is signifi-
cantly lower than 25% – charge the bat-
tery to approx. 25% again to compensate
for the natural self-discharge that occurred
during the prolonged storage. Continu-
ously check the charge level in the driver
display.

Start charging the hybrid battery (p. 424)

Choose the coolest location possible for
the vehicle in order to minimise aging of
the battery during long-term storage. Dur-
ing summer the vehicle should preferably
remain indoors or outdoors in the shade,
depending on where the temperature is
lowest.

Related information

•

•

Hybrid battery gauge (p. 83)

•

Charging the hybrid battery (p. 419)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

440

Starting the car

The car is started using the start knob in the
tunnel console when the remote control key
is in the passenger compartment.

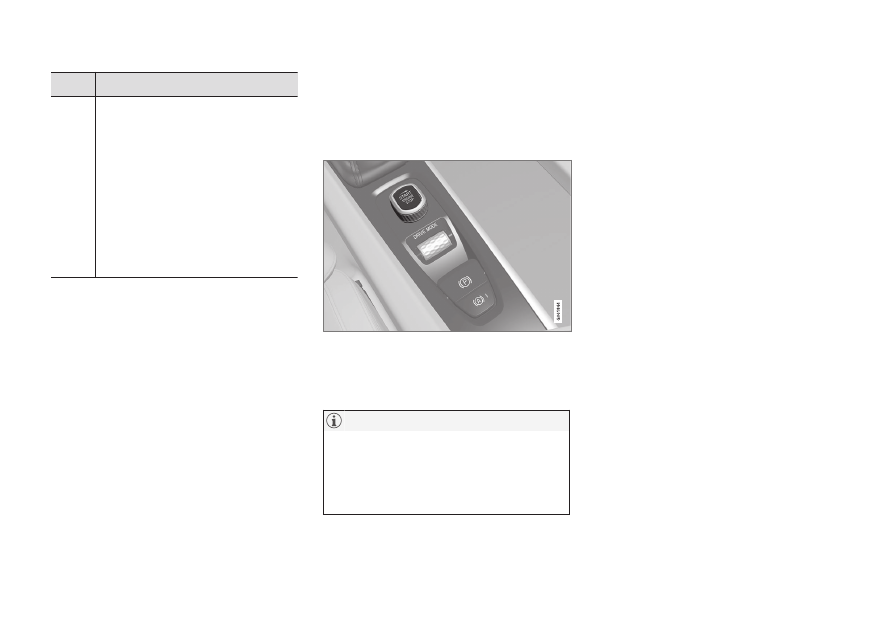

Start knob in the tunnel console.

WARNING

Before starting:

•

Fasten the seatbelt.

•

Adjust the seat, steering wheel and
mirrors.

•

Make sure that the brake pedal can be
fully depressed.

The remote control key is not physically used
when starting the car since it is equipped with
support for keyless starting (Passive start).

To start the car:

The car cannot be started if the charging
cable is still engaged. Make sure the
charging cable is removed from the charg-
ing input socket before the starting the car.

1. The remote control key must be inside the

car. For cars with Passive Start, the key
needs to be located in the front part of the
passenger compartment. With the option
for keyless locking/unlocking

of the car,

the key can be anywhere in the car.

2. Hold the brake pedal depressed

fully. For

cars with automatic gear changing, make
sure that gear position

is selected.

For cars with a manual gearbox, make
sure that the gear lever is in neutral posi-
tion or that the clutch pedal is depressed.

3. Turn the start knob clockwise and then

release it. The control automatically
returns to its starting position.

When the engine is started, the starter motor
works until the engine is started or until its
overheating protection triggers.

When starting in normal conditions, the car's
electric drive motor is prioritised - the petrol

engine remains switched off. This means that
after the start knob has been turned clock-
wise, the electric motor has ”started” and the
car is ready to drive. A started car is indicated
by the driver display's indicator lamps extin-
guishing and its preset theme illuminating.

However, there are situations where the petrol
engine is started instead, e.g. in the event of
the temperature being too low or if the hybrid
battery needs charging.

Error messages

If the

Car key not found

message is shown in

the driver display when starting, place the
remote control key by the backup reader. Then
try to start the car again.

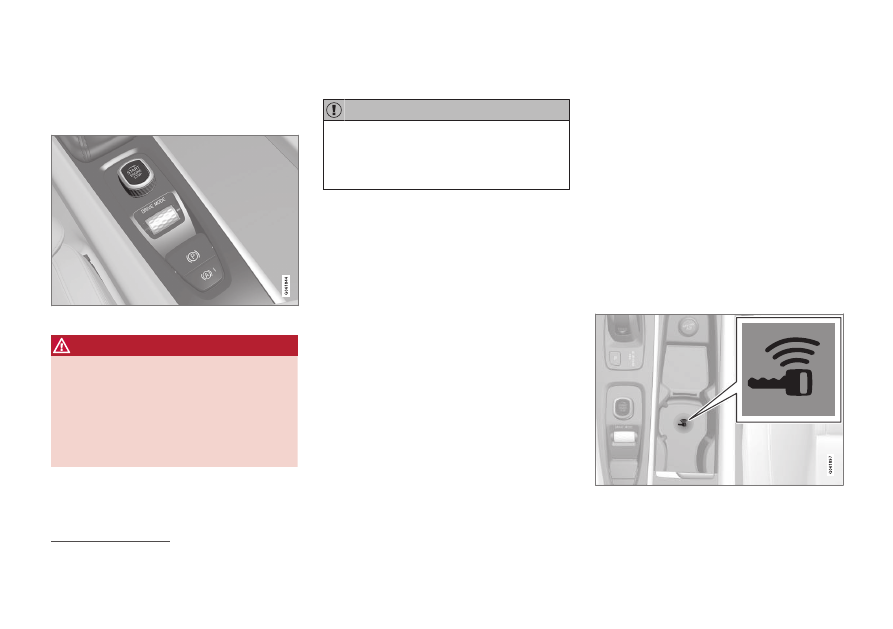

Backup reader's location in the tunnel console.

If the car is moving, the engine can be started by turning the start knob clockwise.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

441

When the remote control key is positioned
by the backup reader, make sure that there
are no car keys, metal objects or electronic
apparatus by the backup reader, (e.g.
mobile phones, tablets, laptops or charg-
ers). Several car keys close to one another
by the backup reader may cause interfer-
ence with each other.

If the message

Car start

System check, wait

is shown in the driver display when starting,
wait until the message disappears and then
try to start the car again.

If the engine fails to start after 3 attempts -
wait for 3 minutes before making a further
attempt. Starting capacity increases if the
battery is allowed to recover.

The car cannot be started if the hybrid bat-
tery is discharged.

WARNING

Never

remove the remote control key from

the car while driving.

WARNING

Always take the remote control key out

from the car when leaving the car and

make sure the car's electrical system is in

ignition position

- especially if there are

children in the car.

Switching off the car (p. 441)

The idling speed can be noticeably higher
than normal for certain engine types during
cold starting. This is done in order that the
emissions system can reach normal oper-
ating temperature as quickly as possible,
which minimises exhaust emissions and
protects the environment.

Related information

•

•

•

•

Selecting ignition mode (p. 443)

•

Switching off the car

The car is switched off using the start knob in
the tunnel console.

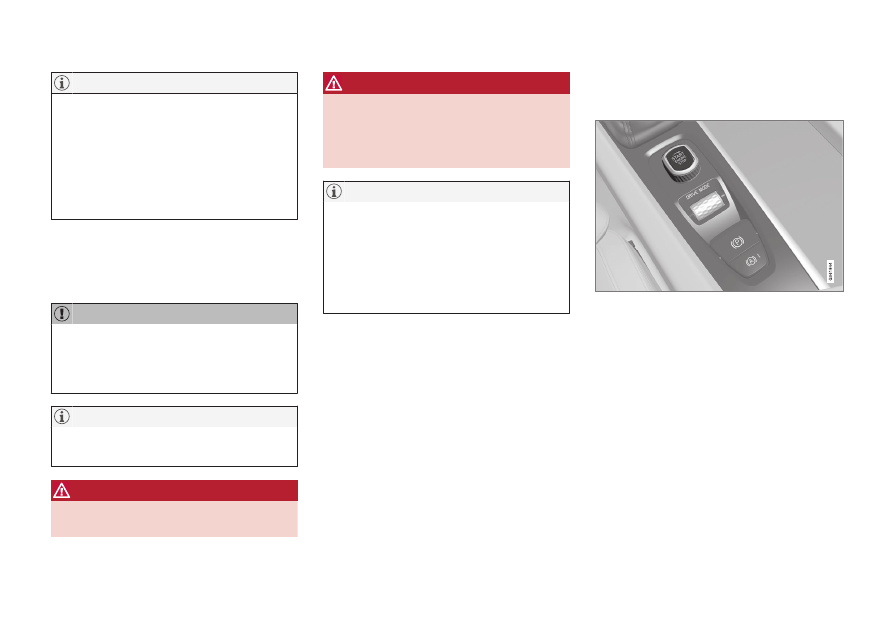

Start knob in the tunnel console.

To switch off the car:

–

Turn the start knob clockwise and release
it - the car is switched off. The control
automatically returns to its starting posi-
tion.

If the gear selector for cars with an automatic
gearbox is not in position

or if the car rolls:

–

Turn the knob clockwise and hold it until
the car is switched off.

Related information

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

442

•

Selecting ignition mode (p. 443)

•

Ignition positions

The car's electrical system can be set in dif-
ferent levels/positions and in this way make
the different functions available.

In order to facilitate the use of a limited num-
ber of functions with the engine switched off,
the car's electrical system can be set in three
different levels –

and

. These levels are

described with the denomination "ignition
position" throughout the owner's manual.

The following table shows the functions avail-
able in each ignition position/level:

Level Functions

•

Odometer, clock and tempera-
ture gauge are illuminated

•

Power

seats can be adjusted.

•

The power windows can be
used.

•

The centre display is started
and can be used

•

The infotainment system can
be used

In this mode, the functions are con-
trolled by time and are switched off
automatically after a short while.

•

Panorama roof, power win-
dows, 12V power socket in the
passenger compartment,
Bluetooth, navigation, phone,
ventilation fan and windscreen
wipers can be used.

•

Power seats can be adjusted.

•

12 V power sockets

in the

cargo area can be used.

Power is taken from the battery
in this ignition position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

443

Level Functions

•

The headlamps come on.

•

Warning/indicator lamps illumi-
nate for 5 seconds.

•

Several other systems are acti-
vated. However, heating in seat
cushions and the rear window
can only be activated after the
car has been started.

This ignition position consumes a
lot of current from the battery
and should therefore be avoided!

Also activated when the door is opened.

Related information

•

•

•

Selecting ignition mode (p. 443)

•

Selecting ignition mode

The car's electrical system can be set in dif-
ferent levels/positions and in this way make
the different functions available.

Selecting ignition position

Start knob in the tunnel console.

•

Ignition position 0

– Unlock the car and

store the remote control key inside the
car.

To reach level

without

starting the

engine - do

not

depress the brake pedal, or

the clutch pedal for cars with manual gear
changing, when these ignition positions
are to be selected.

•

Ignition position I

– Turn the start knob

clockwise and release it. The control auto-
matically returns to its starting position.

•

Ignition position II

– Turn the start knob

clockwise and hold it in position for
approx. 5 seconds. Then release the knob,
which automatically returns to its starting
position.

•

Back to ignition position 0

– To return to

ignition position

from position

and

–

Turn the start knob clockwise and release.
The control automatically returns to its
starting position.

Related information

•

Switching off the car (p. 441)

•

•

•

•

Bypass of the alcohol lock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

444

Alcohol lock

The function of the alcohol lock is to prevent
the car from being driven by individuals under
the influence of alcohol. Before the engine
can be started the driver must take a breath
test that verifies that he/she is not under the
influence of alcohol. Alcohol lock calibration
takes place in accordance with each market's
limit value in force for driving legally.

The car has an interface for the electrical con-
nection of the different makes and models of
alcohol lock recommended by Volvo. The
interface facilitates alcohol lock connection,
and gives the option of an integrated function
including messages related to the alcohol lock
in the car's main display. For information
about a specific alcohol lock, please refer to
the owner's manual from the respective alco-
hol lock manufacturer.

WARNING

The alcohol lock is an aid and does not

exempt the driver from responsibility. It is

always the responsibility of the driver to be

sober and to drive the car safely.

Related information

•

Before starting the engine with the alcohol
lock

•

(p. 445)

•

•

Bypass of the alcohol lock

In the event of an emergency situation or if
the alcohol lock is out of order, it is possible
to bypass the alcohol lock in order to drive
the car.

For deactivation via the alcohol lock, see the
separate instructions for that specific lock.

Activating the bypass function (Bypass)

All bypass activation is logged and saved in
the memory in the alcohol lock's control
unit. It is not possible to undo a bypass.

The message,

Blow into alcolock

Bypass

instead?

, is shown in the screen:

•

If "Cancel/Yes" is shown - select bypass
by pressing the right arrow button on the
steering wheel's right-hand keypad and
then on the

button.

•

If "Yes" is shown - select bypass by press-
ing the

button.

The alcohol lock is now bypassed and the car
can be started.

The number of bypasses possible before serv-
ice is required is selected during alcohol lock
installation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

445

Related information

•

Alcohol lock

Before starting the engine with the alcohol
lock

•

(p. 445)

•

•

Before starting the engine with the

alcohol lock

The alcohol lock is activated automatically
and is then ready for use when the car is
opened.

To bear in mind

In order to obtain correct function and as
accurate a measurement result as possible:

•

Avoid eating or drinking approx. 5 minutes
before the breath test.

•

Avoid excess windscreen washing - the
alcohol in the washer fluid may result in an
incorrect measurement result.

Bypass of the alcohol lock

After a completed period of driving, the
engine can be restarted within 30 minutes
without a new breath test.

Related information

•

•

Alcohol lock

•

•

Brake functions

The car's brakes are used to reduce the
speed or prevent the car from rolling.

In addition to the foot brake and parking
brake, the car is equipped with several auto-
matic brake assist functions. These can assist
the driver by not needing to keep his/her foot
on the brake pedal when at a traffic light,
when starting on an uphill gradient or when
driving on a downhill gradient.

Depending on the car's equipment, the follow-
ing auto braking functions are available:

•

Automatic brake when stationary (Auto
Hold)

•

Hill start assist (Hill Start Assist)

•

Auto braking after a collision

•

City Safety

•

Hill descent control (Hill Descent Control)

Related information

•

Automatic braking when stationary
(p. 452)

•

Parking brake (p. 449)

•

•

Auto braking after a collision (p. 454)

•

Help when starting on a hill (p. 453)

•

City Safety

™

(p. 347)

•

Hill descent control (p. 476)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

446

Foot brake

The foot brake is part of the brake system.

The car is equipped with two brake circuits. If
a brake circuit is damaged, the brake pedal
will engage deeper. Higher pressure on the
pedal will therefore be needed to produce the
normal braking effect.

WARNING

The brake servo only works when the elec-

tric motor or internal combustion engine is

running.

If the foot brake is used when the car is
switched off, greater pedal pressure is
required to brake the car.

In very hilly terrain or when driving with a
heavy load the brakes can be relieved by using
engine braking in gearshift mode

Use drive mode Off Road for increased engine
braking while driving on steep downhill gradi-
ents at low speeds.

Anti-lock braking system

The car has anti-lock brakes (ABS

), which

prevents the wheels from locking while brak-
ing and allows maintained steering control.
Vibration may be felt in the brake pedal when
this is engaged and this is normal.

A short test of the ABS system is made auto-
matically after the car has been started when
the driver releases the brake pedal. A further
automatic test of the system may be made at
low speed. The test may be felt as pulses in
the brake pedal.

Light braking charges the hybrid
battery

The electric motor's engine brake is used dur-
ing light braking. The car's kinetic energy is
then converted to electrical energy instead,
which is used to charge the hybrid battery.
Battery charging with electric motor braking is
indicated in the driver display.

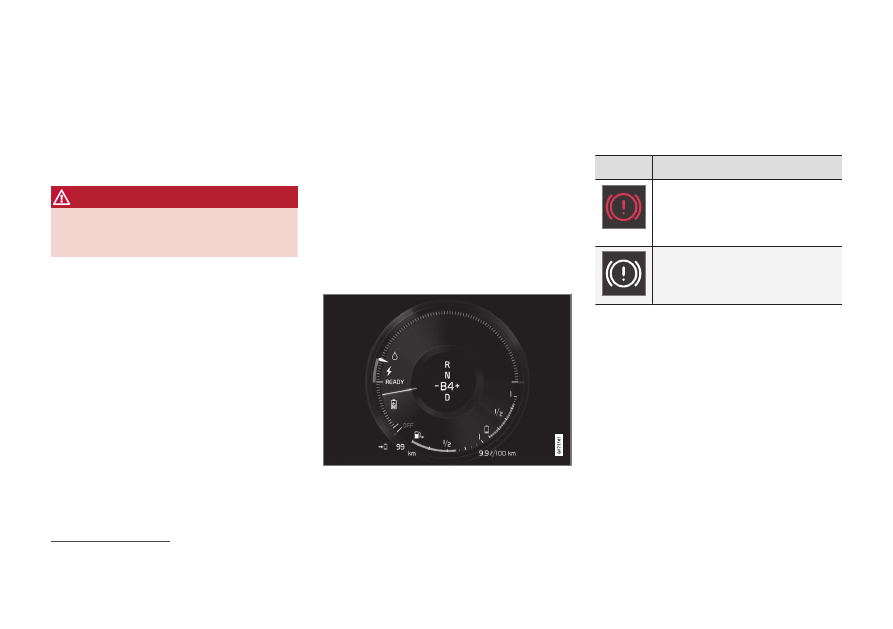

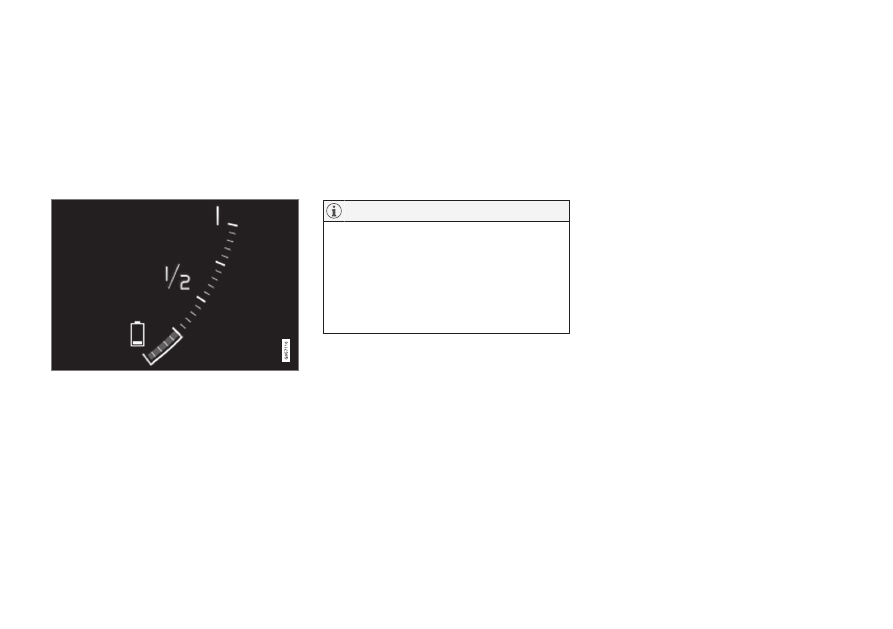

The driver display indicates charging during electric

motor braking.

This function is active in the speed interval
150-5 km/h (93-3 mph). During heavier brak-

ing, as well as outside the speed interval, brak-
ing is supplemented by the hydraulic brake
system. The driver's display shows this by the
indicator being down in the red zone.

Symbols in the driver display

Symbol Specification

Check the brake fluid level. If the
level is low, fill with brake fluid
and check for the cause of the
brake fluid loss.

Fault in pedal sensor.

Anti-lock Braking System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

447

Symbol Specification

Constant glow for 2 seconds
when the engine is started: Auto-
matic function check.

Constant glow for more than 2
seconds: Fault in the ABS sys-
tem. The car's normal brake sys-
tem is still working, but without
the ABS function.

If the message

Brake pedal

Characteristics changed Serv-
ice required

is shown, the sys-

tem for "Brake-by-wire" is disen-
gaged. A higher pedal pressure is
required to produce braking
effect.

WARNING

If both the warning lamps for brake fault

and ABS fault illuminate at the same time,

a fault has occurred in the brake system.

•

If the level in the brake fluid reservoir is
normal at this stage, drive carefully to
the nearest workshop and have the
brake system checked - an authorised
Volvo workshop is recommended.

•

If the brake fluid is below the

MIN

level

in the brake fluid reservoir, do not drive
further before topping up the brake
fluid. The reason for the loss of brake
fluid must be investigated.

Related information

•

Brake assistance (p. 447)

•

Automatic braking when stationary
(p. 452)

•

Help when starting on a hill (p. 453)

•

Braking on wet roads (p. 448)

•

Braking on gritted roads (p. 448)

•

Brake system maintenance (p. 448)

•

Brake lights (p. 156)

Brake assistance

The brake assist system (BAS

) helps to

increase brake force during braking, and can
thereby shorten the braking distance.

The system detects the way in which the
driver brakes and increases brake force where
necessary. The brake force can be boosted up
to the level when the ABS system is engaged.
The function is suspended when the pressure
on the brake pedal decreases.

Related information

•

Brake Assist System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

448

Braking on wet roads

When driving for a prolonged period of time
in heavy rain without braking, the braking
effect may be delayed slightly when next
using the brakes.

This may also be the case after a car wash. It
is then necessary to depress the brake pedal
more forcefully. You should therefore maintain
a greater distance to the vehicles in front.

Brake the car firmly after driving on wet roads
or using a car wash. This warms up the brake
discs, enabling them to dry faster and protect-
ing them against corrosion. Bear in mind the
current traffic situation when braking.

Related information

•

Braking on gritted roads (p. 448)

•

Braking on gritted roads

When driving on salted roads, a layer of salt
may form on the brake discs and brake lin-
ings.

This may extend braking distance. You should
therefore maintain a greater safety distance to
vehicles in front. In addition, make sure you do
the following:

•

Brake now and again to remove any layer
of salt. Make sure that other road users
are not put at risk by the braking.

•

Gently depress the brake pedal after fin-
ishing driving and before starting your next
trip.

Related information

•

Braking on wet roads (p. 448)

•

Brake system maintenance

Check brake system components regularly
for wear.

To keep the car as safe and reliable as possi-
ble, follow the Volvo service intervals as speci-
fied in the Service and Warranty Booklet. After
replacing brake linings and brake discs, brak-
ing effect is only adapted after they have been
"worn in" for a few hundred kilometres (miles).
Compensate for the reduced braking effect by
depressing the brake pedal harder. Volvo rec-
ommends only fitting brake linings that are
approved for your Volvo.

The wear on the brake system's compo-
nents must be checked regularly.

Contact a workshop for information about
the procedure or engage a workshop to
carry out the inspection - an authorised
Volvo workshop is recommended.

Related information

•

Activating and deactivating the parking
brake (p. 449)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

449

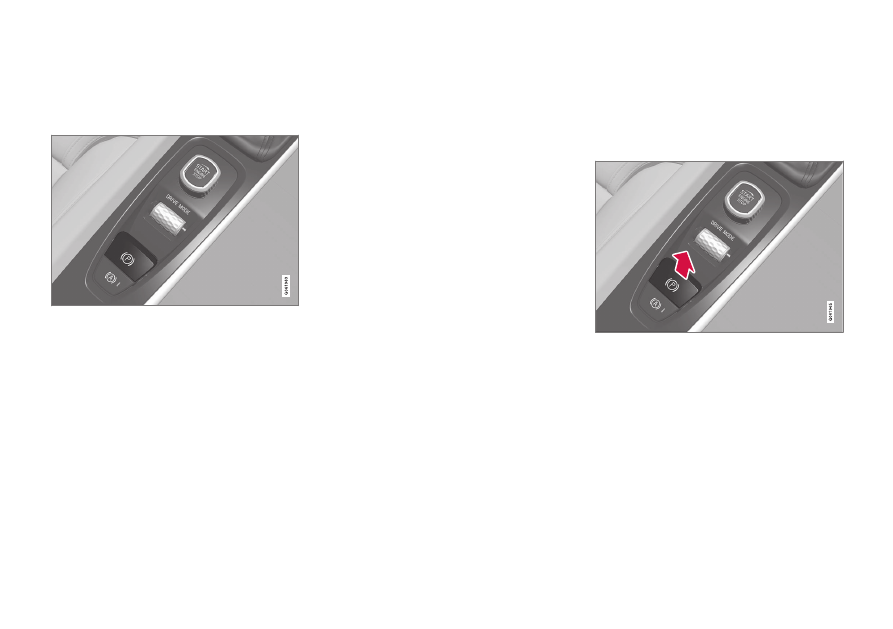

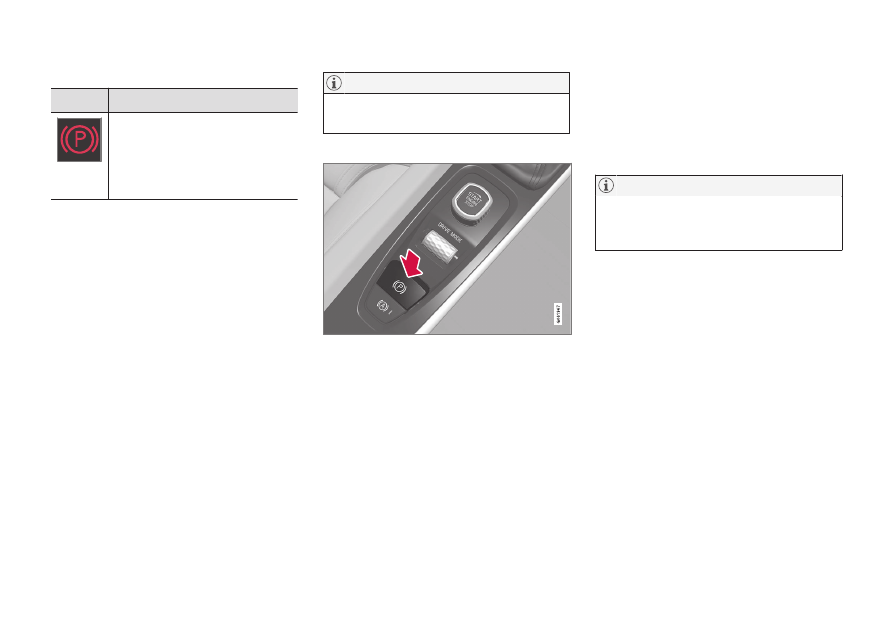

Parking brake

The parking brake prevents the car from roll-
ing away from stationary by means of
mechanically locking/blocking two wheels.

The control for the parking brake is located in the

tunnel console between the seats.

A faint electric motor noise can be heard when
the electrically-operated parking brake is
being applied. The noise can also be heard
during the automatic function checking of the
parking brake.

If the car is stationary when the parking brake
is activated, it only acts on the rear wheels. If
it is activated when the car is moving then the
normal foot brake is used, i.e. the brake acts
on all four wheels. Brake function changes
over to the rear wheels when the car is almost
stationary.

Related information

•

•

Parking on a hill (p. 451)

•

In the event of a fault in the parking brake
(p. 451)

•

Automatic braking when stationary
(p. 452)

Activating and deactivating the

parking brake

Use the parking brake to prevent the car from
rolling from stationary.

Activating the parking brake

1. Pull the control upward.

> The symbol in the driver display illumi-

nates when the parking brake is acti-
vated.

2. Check that the car is stationary.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

450

Symbol in the driver display

Symbol Specification

The symbol is illuminated when
the parking brake is activated.

If the symbol flashes, it indicates
a fault has occurred. Read the
message in the driver display.

Automatic activation

The parking brake is activated automatically

•

when the car is switched off and the set-
ting for automatic activation of the parking
brake is activated in the centre display.

•

when gear position

is selected on a

steep hill.

•

if the Auto hold (Automatic brake when
stationary) function is activated and

•

the car has been stationary for a long
time (5-10 minutes)

•

the car is switched off

•

the driver leaves the car.

Emergency brake

In an emergency, the parking brake can be
activated when the car is in motion by pulling
and holding up the control. Braking stops
when the control is released, or if the accelera-
tor pedal is depressed.

An acoustic signal sounds while emer-
gency braking is active at high speeds.

Deactivating the parking brake

Deactivate manually

1. Depress the brake pedal firmly.

2. Press the control down.

> The parking brake releases and the

symbol in the driver display extin-
guishes.

Deactivate automatically

1. Start the car.

2. Depress the brake pedal firmly. Select

gear position

and depress the

accelerator pedal.
> The parking brake releases and the

symbol in the driver display extin-
guishes.
