KEY, LOCKS AND ALARM

250

Detaching the key blade

 Hold the remote control key with the

front visible and the Volvo logo facing the
right way - slide the button at bottom
edge by the key ring to the right. Guide
the front side's shell a few millimetres
upwards.

 The shell will then come free and can

be lifted off the key.

 Detach the key blade by angling it up.

Return the key blade to its intended posi-
tion in the remote control key after use.

 Refit the shell by pressing it downward

until a clicking sound is heard.

 Then slide the shell back.

> A further click will indicate that the

shell is securely attached.

Related information

•

Locking and unlocking with the detacha-
ble key blade (p. 251)

•

Remote control key (p. 239)

7

This applies whether the car is left-hand drive or right-hand drive.

8

Supplied with cars equipped with keyless locking/unlocking

*

.

KEY, LOCKS AND ALARM

}}

* Option/accessory.

251

Locking and unlocking with the

detachable key blade

Amongst other things, the detachable key
blade can be used to unlock the car from the
outside - e.g. if the remote control key's bat-
tery has become discharged.

Unlocking

Pull out the front door handle on the left-
hand side

9

 to its end position so that the

lock cylinder become visible.

Insert the key in the lock cylinder.

Turn clockwise 45 degrees so that the key
blade is pointing straight back.

Turn the key back 45 degrees to its star-
ting position. Remove the key from the
lock cylinder and release the handle so
that the rear section of the handle is rest-
ing against the car again.

5. Pull out the handle.

> The door opens.

Locking will be performed in the same way,
but with an anticlockwise turn 45 degrees
instead of clockwise in step (3).

Switch off the alarm and start the car

*

NOTE

When the door is unlocked using the key
blade and is then opened, the alarm is trig-
gered.

The backup reader's location in the cup holder.

Deactivate the alarm as follows:

1. Place the remote control key on the key

symbol in the backup reader in the bottom
of the cup holder in the tunnel console.

2. Then turn the start knob clockwise and

release it.
> The alarm signal stops sounding and

the alarm is switched off.

Locking

It is also possible to lock the car with the
remote control key's detachable key blade e.g.
in the event of a loss of power or if the key's
battery has become discharged.

The left-hand front door can be locked with its
lock cylinder and the detachable key blade.

Other doors have no lock cylinders and
instead have a lock switch on the end of each
door which must be depressed using the key
blade - they are then mechanically locked/
blocked to prevent them being opened from
outside.

The doors can still be opened from the inside.

9

This applies whether the car is right-hand drive or left-hand drive.

||

KEY, LOCKS AND ALARM

* Option/accessory.

252

Manual locking of the door. Not to be mixed up with

the child safety locks.

–

Remove the detachable key blade from
the remote control key. Insert the key
blade in the hole for lock reset and press
the key in until it bottoms, approx. 12 mm
(0.5 inches).

The door can be opened from both the
outside and the inside.
The door is blocked against opening from
the outside. To return to position A, the
inner door handle must be opened.

The doors can also be unlocked with the
unlock button on the remote control key or
with the central locking button on the driver's
door.

NOTE

•

A door's lock reset only locks that par-
ticular door - not all doors simultane-
ously.

•

A manually locked rear door with acti-
vated manual or electric child safety
locks cannot be opened from either the
outside or the inside. A rear door that is
locked in this way can only be
unlocked with the remote control key
or central locking button.

Related information

•

Starting the car (p. 440)

•

Detachable key blade (p. 249)

•

Activating and deactivating alarms

*

(p. 278)

•

Replacing the battery in the remote con-
trol key (p. 244)

•

Remote control key (p. 239)

Immobiliser

The electronic immobiliser is a theft protec-
tion system that prevents an unauthorised
person from starting the car.

The car can only be started with the correct
remote control key.

The following error message in the driver dis-
play is related to the electronic immobiliser:

Symbol Message

Specification

Car key not
found

See
Owner's
manual

Error reading the
remote control
key during star-
ting - place the
key on the key
symbol in the cup
holder and try
again.

Related information

•

Remote control key (p. 239)

•

Ordering more remote control keys
(p. 247)

KEY, LOCKS AND ALARM

}}

* Option/accessory.

253

Type approval for the remote

control key system

Type approval for the car's remote key sys-
tem can be seen in the following tables.

Lock system keyless start (Passive
Start) and keyless locking/unlocking
(Passive Entry

*

)

CEM marking for the remote control key system. For

supplementary type approval numbers, see following

tables.

Country/Area

Type approval

Europe

Delphi Deutschland GmbH, 42367 Wuppertal hereby declares that
this VO3-134TRX conforms to the essential property requirements and
other relevant provisions contained in directive 2014/53/EU (RED).

The full text of the EU declaration of conformity can be found at
support.volvocars.com.

Jordan

TRC/LPD/2014/250

Serbia

P1614120100

Argentina

CNC ID: C-14771

||

KEY, LOCKS AND ALARM

254

Country/Area

Type approval

Brazil

MT-3245/2015

Indonesia

Nomor: 38301/SDPPI/2015

Malaysia

RDBV/28A/1118/S(18-4235), RDBV/27A/1118/S(18-4234)

Mexico

IFETEL: RLVDEVO15-0396

Russia

The United Arab Emi-
rates

ER37847/15

DA0062437/11

KEY, LOCKS AND ALARM

}}

255

Country/Area

Type approval

Namibia

TA-2016-02

South Africa

TA-2014-1868

Remote control key

Country/Area

Type approval

Europe

Huf Hülsbeck & Fürst GmbH & Co. KG hereby declares that this type of radio
equipment HUF8423 conforms to directive 2014/53/EU.

The full text of the EU declaration of conformity can be found at
support.volvocars.com.

Wavelength: 433.92 MHz

Maximum radiated transmission power: 10 mW

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG, Steeger Str. 17, 42551
Velbert, Germany

Jordan

TRC/LPD/2015/104

||

KEY, LOCKS AND ALARM

256

Country/Area

Type approval

Morocco

AGREE PAR L'ANRT MAROC

Numéro d’agrément: MR 10668 ANRT 2015

Date d’agrément: 24/07/2015

Mexico

IFETEL

Marca: HUF

Modelo (s): HUF8423

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condiciones: (1)
es posible que este equipo o dispositivo no cause interferencia perjudicial y (2)
este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.

Namibia

TA-2015-102

||

KEY, LOCKS AND ALARM

258

Country/Area

Type approval

South Africa

TA-2015-432

The United Arab
Emirates

Key Tag

Country/Area

Type approval

Europe

Huf Hülsbeck & Fürst GmbH & Co. KG hereby declares that this type of radio
equipment HUF8432 conforms to directive 2014/53/EU.

The full text of the EU declaration of conformity can be found at
support.volvocars.com.

Wavelength: 433.92 MHz

Maximum radiated transmission power: 10 mW

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG, Steeger Str. 17, 42551
Velbert, Germany

Jordan

TRC/LPD/2015/107

KEY, LOCKS AND ALARM

}}

259

Country/Area

Type approval

Morocco

AGREE PAR L'ANRT MAROC

Numéro d’agrément: MR 10667 ANRT 2015

Date d’agrément: 24/07/2015

Mexico

IFETEL

Marca: HUF

Modelo (s): HUF8432

NOM-121-SCT1-2009

La operación de este equipo está sujeta a las siguientes dos condiciones: (1)
es posible que este equipo o dispositivo no cause interferencia perjudicial y (2)
este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la
que pueda causar su operación no deseada.

Namibia

TA-2015-103

KEY, LOCKS AND ALARM

261

Country/Area

Type approval

South Africa

TA-2015-414

The United Arab
Emirates

Related information

•

Remote control key (p. 239)

KEY, LOCKS AND ALARM

* Option/accessory.

262

Keyless and touch-sensitive

surfaces

*

With the keyless locking and unlocking func-
tion, carrying the remote control key in a
pocket or bag will suffice. The car is locked or
unlocked via a touch-sensitive surface on the
door handle.

Touch-sensitive surfaces

Door handle

The outside of the door handles contains a
recess for locking, while the inside contains a
touch-sensitive surface for unlocking.

Touch-sensitive recess for locking

Touch-sensitive surface for unlocking

NOTE

It is important that only one touch-sensi-
tive surface is activated at a time. Gripping
the handle while touching the lock surface
risks giving double commands. This means
that the requested activity (locking/unlock-
ing) will not be executed, or will be execu-
ted with a delay.

Tailgate handle

The tailgate handle has a rubberised pressure
plate that is only used for unlocking.

NOTE

Be aware that the system may be activated
in connection with car washing if the
remote control key is in range.

Related information

•

Keyless locking and unlocking

*

 (p. 263)

•

Keyless unlocking of the tailgate

*

 (p. 264)

KEY, LOCKS AND ALARM

}}

* Option/accessory.

263

Keyless locking and unlocking

*

With keyless locking and unlocking, it is suffi-
cient to touch the door handle's touch-sensi-
tive surface to lock or unlock the car.

NOTE

One of the car's remote control keys must
be within range for locking and unlocking
to work.

Touch-sensitive recess for locking

Touch-sensitive surface for unlocking

NOTE

Be aware that the system may be activated
in connection with car washing if the
remote control key is in range.

Keyless locking

All side doors must be closed to be able to
lock the car. The tailgate, on the other hand,
can be open when locking the car with a side
door handle.

–

Touch the marked surface towards the
rear on the outside of a door handle after
the door has been closed. Or press the

 button on the underside of the tail-

gate before it closes.
> The lock indicator on the instrument

panel starts to flash to indicate the car
is locked.

To close all side windows and the panoramic
roof

*

 simultaneously - place a finger against

the touch-sensitive recess on the outside of
the door handle and hold it there until all of the
side windows and the panoramic roof have
been closed.

Locking when the tailgate is open

If the car has been locked and the tailgate is
still open, make sure that the remote control
key is not left in the cargo area when the tail-
gate is closed.

NOTE

If the key is detected inside the car, the
tailgate will not lock when it is closed.

Keyless unlocking

–

Grasp a door handle or gently press the
rubberised pressure plate beneath the tail-
gate handle to unlock the car.
> The lock indicator on the instrument

panel stops flashing to indicate that the
car is unlocked.

Rubberised pressure plate on the tailgate can only be

used for unlocking.

Automatic relocking

If none of the doors or the tailgate is opened
within 2 minutes of unlocking, they are locked
automatically. This function prevents the car
from being left unlocked unintentionally.

||

KEY, LOCKS AND ALARM

* Option/accessory.

264

Related information

•

Settings for Keyless entry

*

 (p. 264)

•

Keyless unlocking of the tailgate

*

 (p. 264)

•

Keyless and touch-sensitive surfaces

*

(p. 262)

Settings for Keyless entry

*

It is possible to select different sequences for
Keyless entry.

To change setting:

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

My Car

Locking

Keyless

Unlock

.

3. Select option:

•

All Doors

 - unlocks all doors simultane-

ously.

•

Single Door

 - unlocks selected door.

Related information

•

Keyless locking and unlocking

*

 (p. 263)

•

Keyless and touch-sensitive surfaces

*

(p. 262)

Keyless unlocking of the tailgate

*

With keyless locking and unlocking, it is suffi-
cient to touch the touch-sensitive surface on
the tailgate handle to unlock the tailgate.

NOTE

One of the car's remote control keys must
be within range behind the car for unlock-
ing to work.

The tailgate is held closed by an electrical lock.

To open:

1. Press gently on the rubberised pressure

plate beneath the tailgate handle.
> The lock is released.

KEY, LOCKS AND ALARM

* Option/accessory.

265

2. Lift by the outside handle in order to open

the tailgate.

IMPORTANT

•

Minimal force is required to release the
rear hatch lock - just gently press the
rubberised panel.

•

Do not place the lift force on the rubber
panel when opening the rear hatch - lift
the handle. Using too much force may
damage the electrical contacts on the
rubber panel.

It is also possible to unlock the tailgate hands-
free with a foot movement under the rear
bumper, see separate section.

WARNING

Do not drive with an open tailgate! Toxic

exhaust fumes could be drawn into the car

through the cargo area.

Related information

•

Keyless locking and unlocking

*

 (p. 263)

•

Keyless and touch-sensitive surfaces

*

(p. 262)

•

Remote control key range (p. 243)

•

Opening and closing the tailgate with foot
movement

*

 (p. 273)

Antenna locations for the start and

lock systems

An antenna for the keyless starting system
and antennas for the keyless locking system

*

are built into the car.

Antenna locations:

Under the cup holder in the front section
of the tunnel console
In the upper front section of the left-hand
rear door

10

In the upper front section of the right-hand
rear door

10

In the cargo area

10

WARNING

People with pacemaker operations should

not come closer than 22 cm (9 inches) to

the keyless system's antennas with their

pacemaker. This is to prevent interference

between the pacemaker and the keyless

system.

Related information

•

Keyless and touch-sensitive surfaces

*

(p. 262)

•

Remote control key range (p. 243)

KEY, LOCKS AND ALARM

* Option/accessory.

266

Locking and unlocking from inside

the car

The doors and tailgate can be locked and
unlocked from inside using the central lock-
ing controls in the front doors.

Central locking

Locking and unlocking button with indicator lamp in

the front door.

Unlocking using a button in the front
door

–

Press the

 button to unlock all side

doors and the tailgate.

Alternative unlocking method

Opening handle for alternative unlocking in the side
door

11

.

–

Pull the opening handle on one of the side
doors and release.
> Depending on the settings in the

remote control key, either all doors will
be unlocked or only the selected door
will be unlocked and opened.

To change this setting, tap on

Settings

My Car

Locking

Remote and

Interior Unlock

 in the centre display's

top view.

Locking using a button in the front
door

–

Press the

 button - both front doors

must be closed.
> All doors and the tailgate are locked.

Locking using a button in the rear
door

*

Locking button with indicator lamp in the rear door.

The rear door lock buttons lock their respec-
tive rear door.

Unlocking the rear door

–

Pull the opening handle.
> The rear door is unlocked and opened

12

.

10

Only in cars equipped with keyless locking and unlocking

*

.

11

The figure is schematic - parts may vary depending on car model.

12

Provided that the child safety lock is not activated.

KEY, LOCKS AND ALARM

* Option/accessory.

267

Related information

•

Settings for remotely controlled and inside
unlocking (p. 242)

•

Unlocking the tailgate from the inside of
the car (p. 267)

•

Activating and deactivating child safety
locks (p. 268)

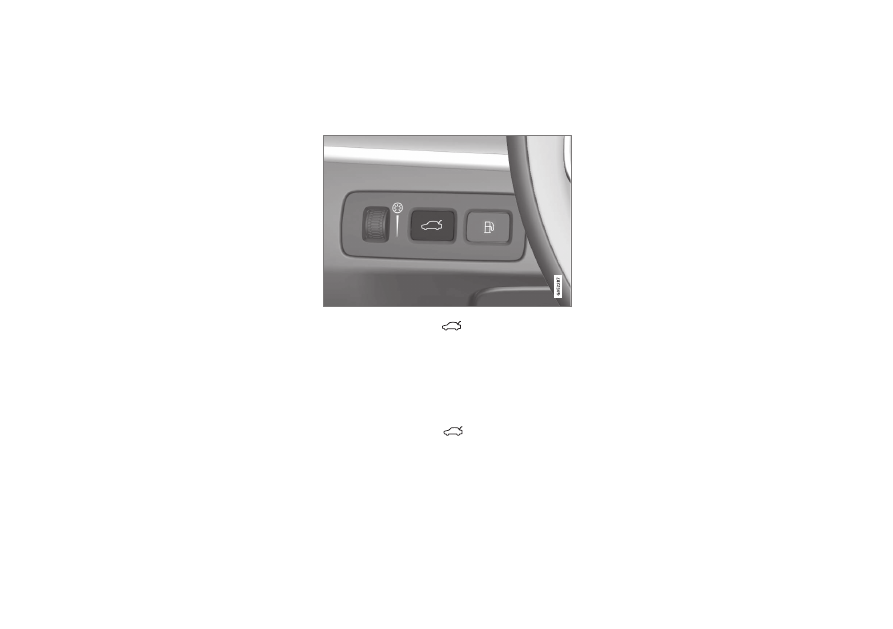

Unlocking the tailgate from the

inside of the car

The tailgate can be unlocked from inside by
pressing the button on the instrument panel.

–

Brief press on the

 button on the

instrument panel.
> The tailgate can be unlocked and

opened from the outside by grasping
the rubberised pressure plate.

With the power operated tailgate option

*

:

–

Long press on the

 button on the

instrument panel.
> The tailgate is opened.

Related information

•

Locking and unlocking from inside the car
(p. 266)

•

Opening and closing the power

*

-operated

tailgate (p. 269)
