Charging status in the car's charging input
socket (p. 408)

•

•

Charging status in the car's driver display
(p. 412)

•

Stop charging of hybrid battery (p. 414)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

412

Charging status in the car's driver

display

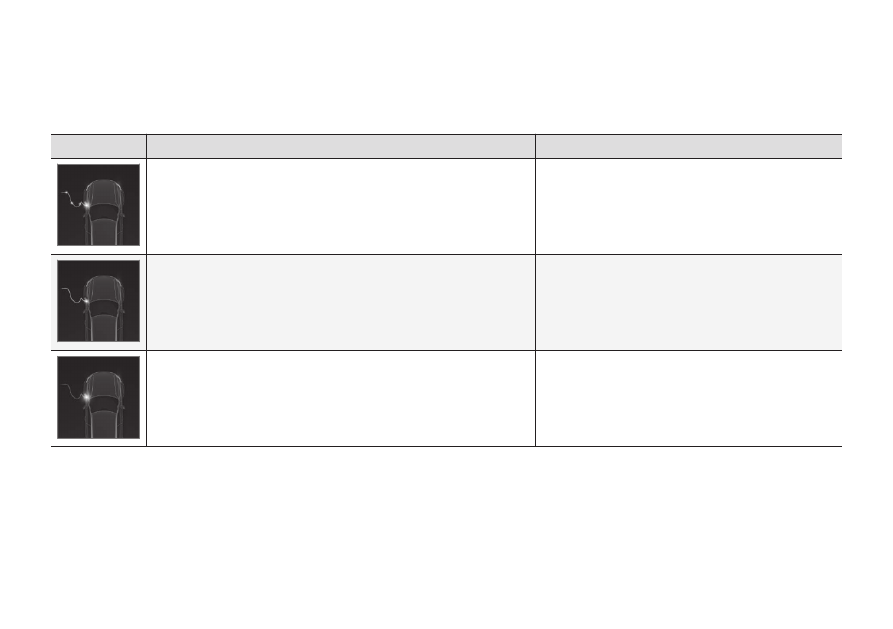

The driver display shows the status for charg-
ing with both image and text. The information

is shown for as long as the driver display is
operating.


Message

Specification

Fully charged at:

[Time]

is shown together with an animation with

blue pulsating light through the charging cable.

Charging continues and an approximate time for when
the battery is estimated to be fully charged is shown.

The text

Charging complete

is shown. An illustration of the car is

shown with an LED indicator at the charging input socket that illumi-
nates in green.

The battery is fully charged.

The text

Charging error

is shown. The LED indicator at the charging

input socket illuminates in red.

A fault has occurred, check the connection of the
charging cable to the car's charging input socket and to
the 230 V socket

(alternating current).

The voltage in the socket may vary depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

413

If the driver display is not used for a while
then it is dimmed. Reactivate the display
by means of one of the following:

•

depress the brake pedal.

•

open one of the doors.

•

set the car in ignition position

pressing and releasing the

START

but-

ton.

Related information

•

Symbols and messages relating to Twin
Engine in the driver display (p. 416)

•

•

Charging status in the car's charging input
socket (p. 408)

•

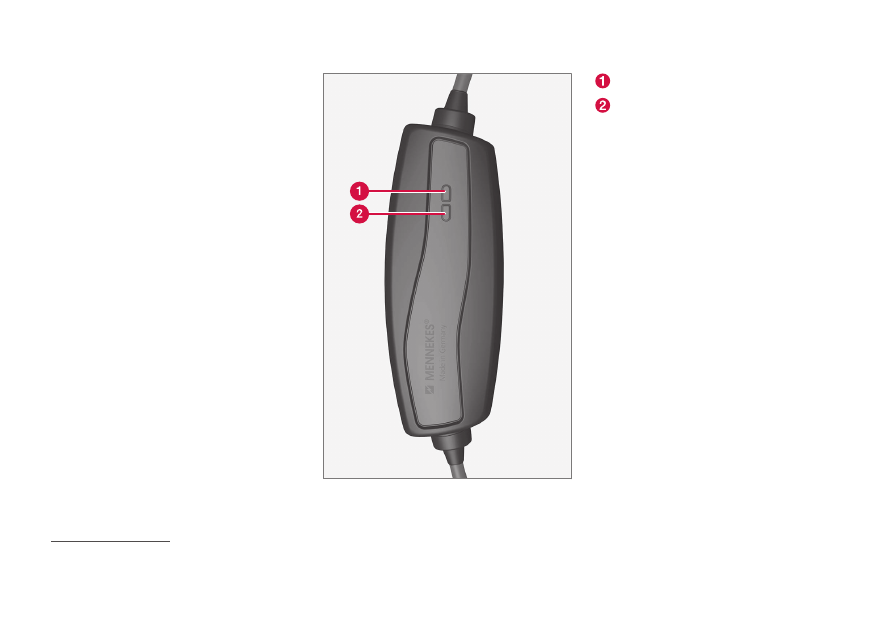

Charging status in the charging cable's
control unit (p. 409)

•

Stop charging of hybrid battery (p. 414)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

* Option/accessory.

414

Stop charging of hybrid battery

Finish charging by unlocking the car, unplug-
ging the charging cable from the car's charg-
ing input socket and then from the 230 V
socket

(alternating current).

IMPORTANT

Before the charging cable is disconnected
from the car's charging input socket, the
car must be unlocked using the unlock but-
ton on the remote control key. This must
be carried out even if the doors on the car
are already unlocked. If the car is not
unlocked using the unlock button, this may
lead to damage to the charging cable or to
the system.

Opening and closing the hatch for the
charging input socket (p. 405)

Always unlock the car so that charging is
stopped before the connection to the
230 V socket (alternating current) is
unplugged. Note that the charging cable
must be unplugged from the car's charging
input socket before being unplugged from
the 230 V socket, partly to avoid damage
to the system and partly to avoid stopping
the charging unintentionally.

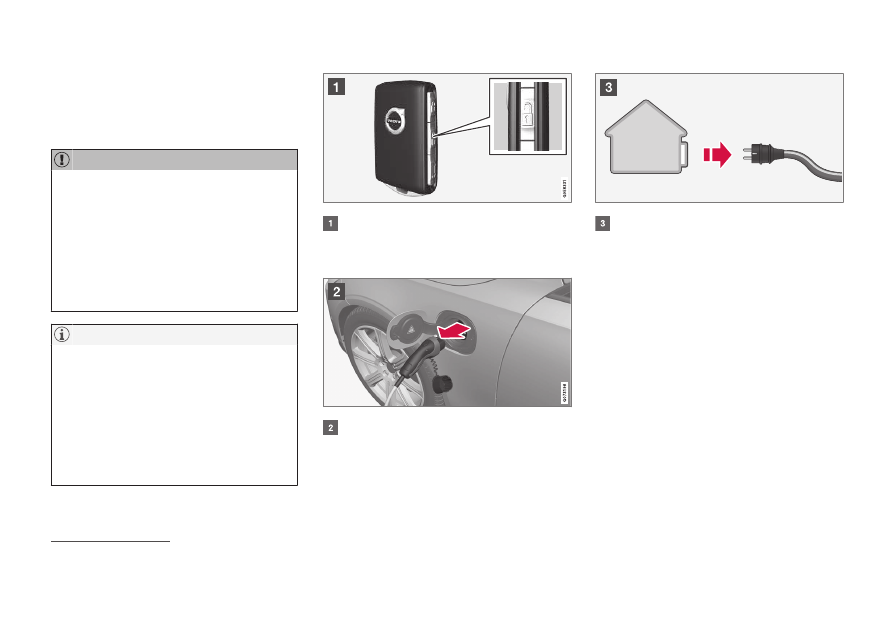

Unlock the car with the remote control key
- charging is finished and the charging
cable's locked handle releases/is
unlocked.

Unplug the cable from the car's charging
input socket and close the hatch.

Unplug the cable from the 230 V socket.

Return the charging cable to the storage
compartment under the cargo area floor.

The charging cable is locked
automatically

If the charging cable is not unplugged from
the charging input socket, it is locked in again
automatically shortly after unlocking in order
to maximise charging and range, as well as to
facilitate preconditioning prior to the journey.
The charging cable can be unplugged again if
the car is unlocked using the remote control
key. For cars with Passive Entry

, you can lock

and unlock using the handle again.

Related information

•

•

Charging cable (p. 401)

The voltage in the socket may vary depending on market.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

415

•

Start charging the hybrid battery (p. 405)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

416

Symbols and messages relating to

Twin Engine in the driver display

A number of symbols and messages regar-
ding Twin Engine can be shown in the driver

display. They may also be shown in combina-
tion with general indicator and warning sym-
bols and are then extinguished when the
problems have been rectified.

Symbol Message

Specification

12 V Battery

Charging fault, service urgent. Drive
to workshop

Hybrid battery fault. Contact a workshop

to check the battery as soon as possible.

12 V Battery

Charging fault Stop safely

Hybrid battery fault. Stop the car safely and contact a workshop

to have the battery checked

as soon as possible.

12 V Battery

Fuse failure Service required

Hybrid battery fault. Contact a workshop

to check the function as soon as possible.

HV battery

Overheated, stop safely

The temperature of the hybrid battery seems to be rising abnormally. Stop the car and switch
off the engine. Wait at least 5 minutes before continuing to drive. Call a workshop

or check

from the outside that everything seems normal before continuing to drive.

Reduced performance

Max car speed limited

The hybrid battery is not sufficiently charged for driving at high speeds. Charge the battery as
soon as possible.

Propulsion system

Harsh behaviour at low speed, car
ok to use

The hybrid system does not function as intended. Contact a workshop

to check the function

as soon as possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

417

Symbol Message

Specification

Hybrid system failure

Service required

The hybrid system is disengaged. Contact a workshop

to check the function as soon as pos-

sible.

Charge cable

Remove before start

Shown when the driver tries to start the car and the charging cable is connected to the car.
Disconnect the charging cable and close the charging hatch.

An authorised Volvo workshop is recommended.

Related information

•

Start charging the hybrid battery (p. 405)

•

Stop charging of hybrid battery (p. 414)

•

Warning symbols in the driver display
(p. 87)

•

•

Indicator symbols in the driver display
(p. 85)

•

Hybrid gauge (p. 78)

•

Hybrid battery gauge (p. 79)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ELECTRIC OPERATION AND CHARGING

418

Long-term storage of vehicles with

hybrid batteries

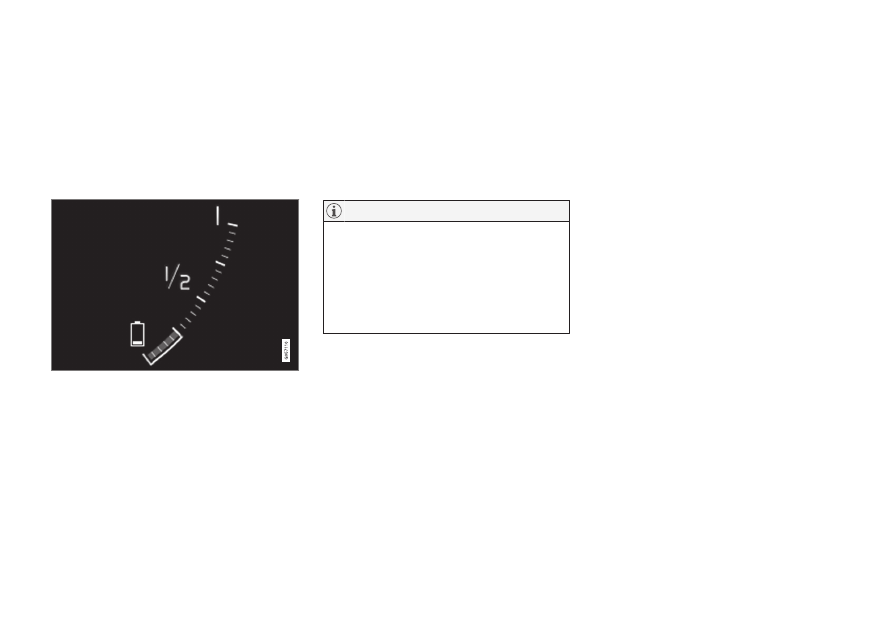

To minimise hybrid battery degradation dur-
ing prolonged storage (longer than 1 month)
of the vehicle a charge level of approximately
25% is recommended as indicated on the
driver display.

Proceed as follows:

1. If the state of charge is high – run the car

until approx. 25% remains. If the state of
charge is low – charge the battery until a
level of approx. 25% is reached.

2. If storage has lasted longer than 6 months

or the hybrid battery charge level is signifi-
cantly lower than 25% – charge the bat-
tery to approx. 25% again to compensate
for the natural self-discharge that occurred
during the prolonged storage. Continu-
ously check the charge level in the driver
display.

Start charging the hybrid battery (p. 405)

Choose the coolest location possible for
the vehicle in order to minimise aging of
the battery during long-term storage. Dur-
ing summer the vehicle should preferably
remain indoors or outdoors in the shade,
depending on where the temperature is
lowest.

Related information

•

•

Hybrid battery gauge (p. 79)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

420

Starting the car

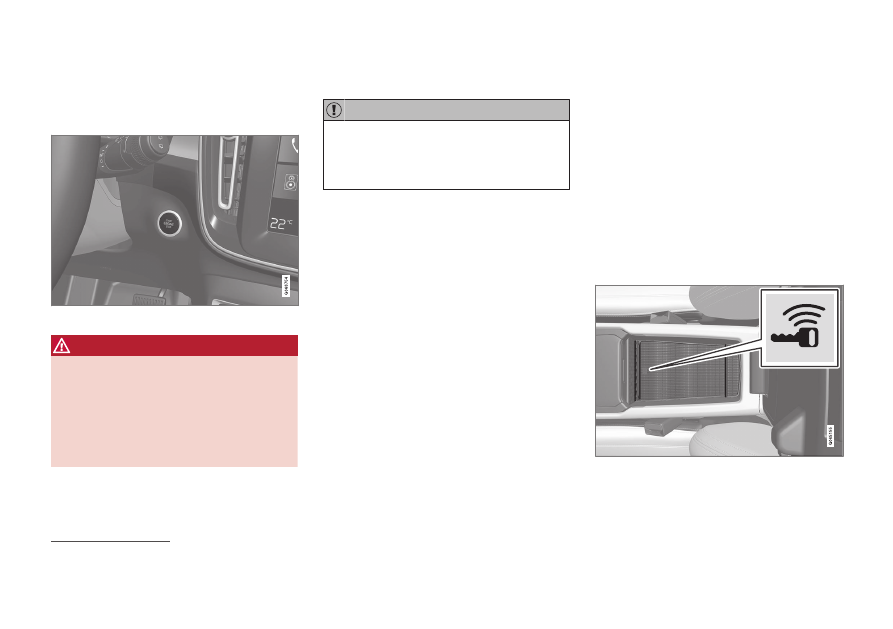

The car is started using the start button
beside the steering wheel when the remote
control key is in the passenger compartment.

Start button location.

WARNING

Before starting:

•

Fasten the seatbelt.

•

Adjust the seat, steering wheel and
mirrors.

•

Make sure that the brake pedal can be
fully depressed.

The remote control key is not physically used
when starting the car since it is equipped with
support for keyless starting (Passive start).

To start the car:

IMPORTANT

The car cannot be started if the charging
cable is still engaged. Make sure the
charging cable is removed from the charg-
ing input socket before the starting the car.

1. The remote control key must be inside the

car. For cars with Passive Start, the key
needs to be located in the front part of the
passenger compartment. With the option
for keyless locking/unlocking

of the car,

the key can be anywhere in the car.

2. Hold the brake pedal depressed

fully. For

cars with automatic gear changing, make
sure that gear position

is selected.

For cars with a manual gearbox, make
sure that the gear lever is in neutral posi-
tion or that the clutch pedal is depressed.

3. Press the start button.

When the engine is started, the starter motor
works until the engine is started or until its
overheating protection triggers.

When starting in normal conditions, the car's
electric drive motor is prioritised - the petrol
engine remains switched off. This means that
after the start button has been pressed, the

electric motor has "started" and the car is
ready to move. A started car is indicated by
the driver display's indicator lamps extinguish-
ing and its preset theme illuminating.

However there are situations where the petrol
engine is started instead e.g. in the event of
the temperature being too low or if the hybrid
battery needs charging.

Error messages

If the

Car key not found

message is shown in

the driver display when starting, place the
remote control key by the backup reader. Then
try to start the car again.

Backup reader's location.

If the car is moving, the engine can be started simply by pressing the button.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

421

When the remote control key is positioned
by the backup reader, make sure that there
are no car keys, metal objects or electronic
apparatus by the backup reader, (e.g.
mobile phones, tablets, laptops or charg-
ers). Several car keys close to one another
by the backup reader may cause interfer-
ence with each other.

If the message

Car start

System check, wait

is shown in the driver display when starting,
wait until the message disappears and then
try to start the car again.

IMPORTANT

If the engine fails to start after 3 attempts -
wait for 3 minutes before making a further
attempt. Starting capacity increases if the
battery is allowed to recover.

The car cannot be started if the hybrid bat-
tery is discharged.

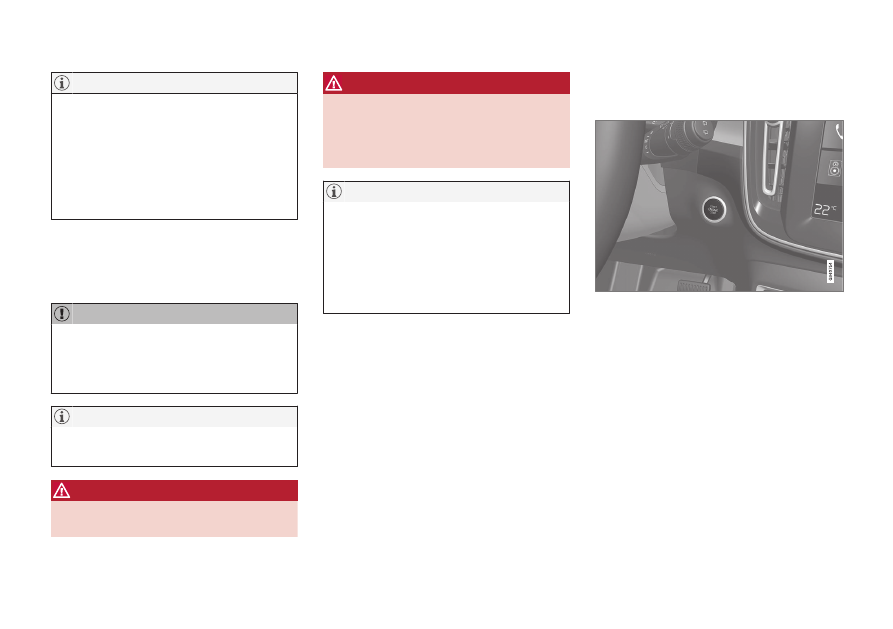

WARNING

Never

remove the remote control key from

the car while driving.

WARNING

Always take the remote control key out

from the car when leaving the car and

make sure the car's electrical system is in

ignition position

- especially if there are

children in the car.

Switching off the car (p. 421)

The idling speed can be noticeably higher
than normal for certain engine types during
cold starting. This is done in order that the
emissions system can reach normal oper-
ating temperature as quickly as possible,
which minimises exhaust emissions and
protects the environment.

Related information

•

•

•

•

Selecting ignition mode (p. 423)

•

Switching off the car

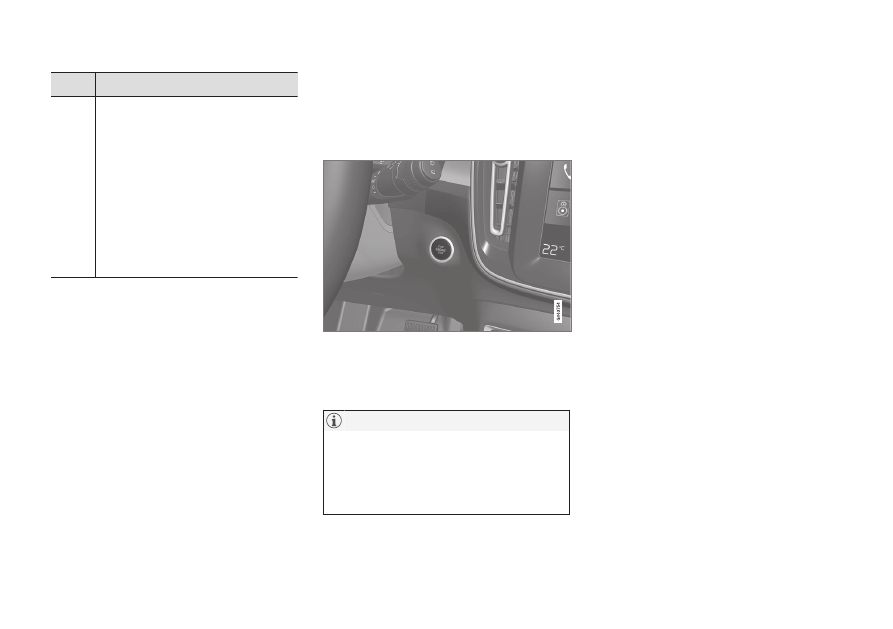

The car is switched off using the start button
beside the steering wheel.

Start button location.

To switch off the car:

–

Press the start button - the car is switched
off.

If the gear selector for cars with an automatic
gearbox is not in position

or if the car rolls:

–

Press the start button and hold it
depressed until the car is switched off.

Related information

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

422

•

Selecting ignition mode (p. 423)

•

Ignition positions

The car's electrical system can be set in dif-
ferent levels/positions and in this way make
the different functions available.

In order to facilitate the use of a limited num-
ber of functions with the engine switched off,
the car's electrical system can be set in three
different levels –

and

. These levels are

described with the denomination "ignition
position" throughout the owner's manual.

The following table shows the functions avail-
able in each ignition position/level:

Level Functions

•

Odometer, clock and tempera-
ture gauge are illuminated

•

Power

seats can be adjusted.

•

The power windows can be
used.

•

The centre display is started
and can be used

•

The infotainment system can
be used

In this mode, the functions are con-
trolled by time and are switched off
automatically after a short while.

•

Panorama roof, power win-
dows, 12V power socket in the
passenger compartment,
Bluetooth, navigation, phone,
ventilation fan and windscreen
wipers can be used.

•

Power seats can be adjusted.

•

12 V power sockets

in the

cargo area can be used.

•

The infotainment system is
started automatically if it was
running when the car was left.

Power is taken from the battery
in this ignition position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

423

Level Functions

•

The headlamps come on.

•

Warning/indicator lamps illumi-
nate for 5 seconds.

•

Several other systems are acti-
vated. However, heating in seat
cushions and the rear window
can only be activated after the
car has been started.

This ignition position consumes a
lot of current from the battery
and should therefore be avoided!

Also activated when the door is opened.

Related information

•

•

•

Selecting ignition mode (p. 423)

•

Selecting ignition mode

The car's electrical system can be set in dif-
ferent levels/positions and in this way make
the different functions available.

Selecting ignition position

Start button location.

•

Ignition position 0

– Unlock the car and

store the remote control key inside the
car.

To reach level

without

starting the

engine - do

not

depress the brake pedal, or

the clutch pedal for cars with manual gear
changing, when these ignition positions
are to be selected.

•

Ignition position I

– Depress the start

button and release.

•

Ignition position II

– Press and hold the

button depressed for approx. 5 seconds.
Then release the button.

•

Back to ignition position0

– To return to

ignition position

from position

and

–

press the start button.

Related information

•

Switching off the car (p. 421)

•

•

•

•

Bypass of the alcohol lock

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

424

Alcohol lock

The function of the alcohol lock is to prevent
the car from being driven by individuals under
the influence of alcohol. Before the engine
can be started the driver must take a breath
test that verifies that he/she is not under the
influence of alcohol. Alcohol lock calibration
takes place in accordance with each market's
limit value in force for driving legally.

The car has an interface for the electrical con-
nection of the different makes and models of
alcohol lock recommended by Volvo. The
interface facilitates alcohol lock connection,
and gives the option of an integrated function
including messages related to the alcohol lock
in the car's main display. For information
about a specific alcohol lock, please refer to
the owner's manual from the respective alco-
hol lock manufacturer.

WARNING

The alcohol lock is an aid and does not

exempt the driver from responsibility. It is

always the responsibility of the driver to be

sober and to drive the car safely.

Related information

•

Before starting the engine with the alcohol
lock

•

(p. 425)

•

•

Bypass of the alcohol lock

In the event of an emergency situation or if
the alcohol lock is out of order, it is possible
to bypass the alcohol lock in order to drive
the car.

For deactivation via the alcohol lock, see sup-
plier's manual.

Related information

•

Alcohol lock

Before starting the engine with the alcohol
lock

•

(p. 425)

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

* Option/accessory.

425

Before starting the engine with the

alcohol lock

The alcohol lock is activated automatically
and is then ready for use when the car is
opened.

To bear in mind

In order to obtain correct function and as
accurate a measurement result as possible:

•

Avoid eating or drinking approx. 5 minutes
before the breath test.

•

Avoid excess windscreen washing - the
alcohol in the washer fluid may result in an
incorrect measurement result.

Bypass of the alcohol lock

After a completed period of driving, the
engine can be restarted within 30 minutes
without a new breath test.

Related information

•

•

Alcohol lock

•

•
