SAFETY

62

Label for passenger airbag

Label on the passenger side's sun visor.

The warning label for the passenger airbag is
positioned as shown above.

Related information

•

Child seats (p. 58)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats
(p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 65)

•

Table for location of i-Size child seats
(p. 67)

•

Table for location of ISOFIX child seats
(p. 68)

Child seat mounting

It is important to remember a number of
things when a child restraint system is moun-
ted and used, which depend on where the
child restraint system is positioned.

WARNING

Booster cushions/child seats with steel

braces or some other design that could

rest on the seatbelt buckle's opening but-

ton must not be used, as they could cause

the seatbelt buckle to open accidentally.
Do not secure the straps for the child seat

into the seat's horizontal adjustment bar or

in springs, rails or beams under the seat.

Sharp edges may damage the straps.
Do not allow the upper section of the child

seat to rest against the windscreen.

NOTE

When using child safety equipment, it is
important to read the installation instruc-
tions included.

In the event of questions when fitting child
safety equipment, contact the manufac-
turer for clearer instructions.

NOTE

Never leave a child seat loose in the car.
Always secure it according to the instruc-
tions for the child seat, even when it is not
in use.

NOTE

Long-term installation and use of child
seats may cause wear and tear on the car's
fittings. Volvo recommends using the kick
guard accessory to protect the car's fit-
tings.

Installation in the front seat

•

When fitting rear-facing child seats, check
that the passenger airbag is deactivated.

•

When fitting front-facing child seats,
check that the passenger airbag is acti-
vated.

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

ISOFIX child seats can only be fitted when
the car is equipped with the ISOFIX con-
sole

3

 accessory.

3

The accessory range varies depending on market.

SAFETY

63

•

If the child seat is equipped with lower
straps, Volvo recommends that the lower
mounting points are used with these

3

.

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

•

The ISOFIX guide can be used in order to
facilitate child seat installation.

Installation in the rear seat

•

Only use child seats that are recom-
mended by Volvo, are universally approved
or are semi-universal, and where the car is
included on the manufacturer's vehicle list.

•

A child seat with support legs must not be
fitted in the centre seat.

•

The outer seats are equipped with the
ISOFIX fixture system and are approved
for i-Size

4

.

•

The outer seats are equipped with upper
mounting points. Volvo recommends that
child seat's upper straps should be pulled
through the hole in the head restraint
before being tensioned at the mounting
point. If this is not possible, follow the rec-
ommendations from the child seat manu-
facturer.

•

If the child seat is equipped with lower
straps, never adjust the position of the
seat in front after the straps have been fit-
ted in the lower mounting points. Always
remember to remove the lower straps
when the child seat is not installed.

•

If the child seat is equipped with support
legs, always fit the support leg/support
legs directly to the floor. Never fit a sup-
port leg to a footrest or other object.

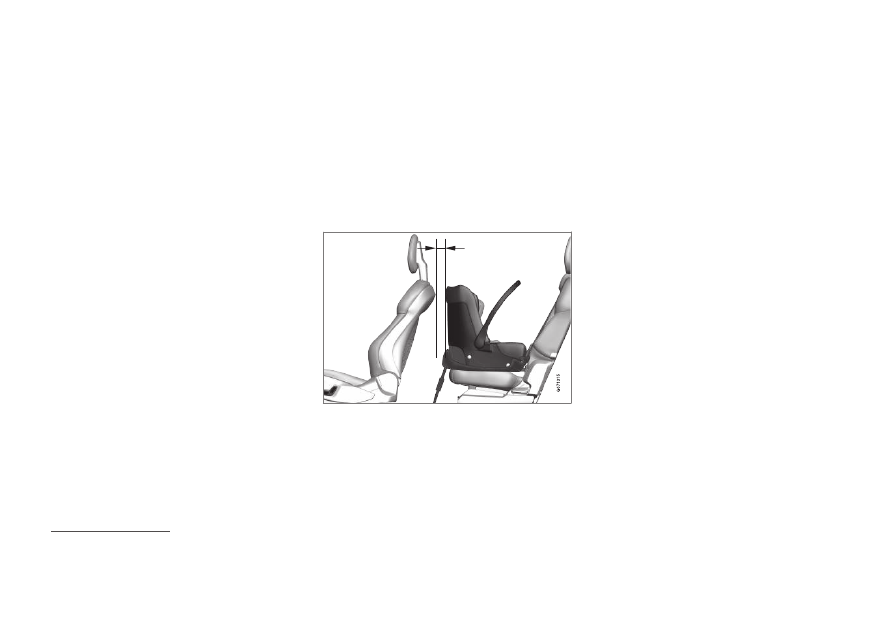

With the installation of an infant seat in the rear seat,

Volvo recommends a distance of at least 50 mm

(2 tum) from the front part of the infant seat to the

rearmost part of the seat in front.

Related information

•

Child seat positioning (p. 61)

•

Overview table for location of child seats
(p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 65)

•

Table for location of i-Size child seats
(p. 67)

•

Table for location of ISOFIX child seats
(p. 68)

3

The accessory range varies depending on market.

4

Varies depending on market.

SAFETY

64

Overview table for location of child

seats

The table gives an overview of the types of
child seats suitable for the car's seats.

Seat positions in left-hand drive cars.

Seat positions in right-hand drive cars.

i-Size child seats

Universally approved child seats secured using the car's seatbelt

Other child seat categories

A

Seat position

B

3, 5

2

C

, 3, 4, 5

2

C

, 3, 5

A

For more information, contact the child seat manufacturer.

B

According to the numbering above.

C

Activated airbag for front-facing child seats. Deactivated airbag for rear-facing child seats.

Related information

•

Child seat positioning (p. 61)

•

Child seat mounting (p. 62)

•

Table for location of child seats using the
car's seatbelts (p. 65)

•

Table for location of i-Size child seats
(p. 67)

•

Table for location of ISOFIX child seats
(p. 68)

SAFETY

}}

65

Table for location of child seats

using the car's seatbelts

The table gives a recommendation for which
child seats suit which locations, and for what
size of child.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

A

Front seat (with activated airbag, only
front-facing child seats)

A

Outer rear seat Centre rear seat

Group 0

max 10 kg

U

B, C

X

U

C

U

C

Group 0+

max 13 kg

U

B, C

X

U

C

U

C

Group 1

9-18 kg

L

D

UF

B, E

U

E

, L

D

U

E

Group 2

15-25 kg

L

D

UF

B, F

U

F

, L

D

U

F

||

SAFETY

66

Weight

Front seat (with deactivated airbag, only
rear-facing child seats)

A

Front seat (with activated airbag, only
front-facing child seats)

A

Outer rear seat Centre rear seat

Group 3

22-36 kg

X

UF

B, F

U

F

U

F

U: Suitable for universal category restraints approved for use in this mass group.

UF: Suitable for front-facing universally approved child seats.

L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.

X: The seat is not suitable for children in this mass group.

A

The seat cushion extension must always be retracted for the installation of child seats.

B

Adjust the seat to a more elevated position.

C

Volvo recommends: Volvo infant seat (type approval E1 04301146).

D

Volvo recommends: Volvo rear-facing seat (type approval E5 04212).

E

Volvo recommends rear-facing child seat for children in this mass group.

F

Volvo recommends: Booster cushion with and without back (type approval E5 04216); Volvo booster seat (type approval E1 04301312).

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

Related information

•

Child seat positioning (p. 61)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats
(p. 64)

•

Table for location of i-Size child seats
(p. 67)

•

Table for location of ISOFIX child seats
(p. 68)

•

Seatbelts (p. 44)

SAFETY

67

Table for location of i-Size child

seats

The table gives a recommendation for which
i-Size child seats suit which locations, and for
what size of child.

The child seat must be approved in accord-
ance with UN Reg R129.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Type of child seat

Front seat (with deactivated airbag,

only rear-facing child seats)

Front seat (with activated airbag, only

front-facing child seats)

Outer rear seat Centre rear seat

i-Size child seats

X

X

i-U

A, B

X

i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.

X: Not suitable for universally approved child seats.

A

Volvo recommends that children travel in a rear-facing child seat until as late an age as possible, at least until 3-4 years of age.

B

Volvo recommends: BeSafe iZi Kid X2 i-Size (type approval E4-129R-000002).

Related information

•

Child seat positioning (p. 61)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats
(p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 65)

•

Table for location of ISOFIX child seats
(p. 68)

•

i-Size/ISOFIX mounting points for child
seats (p. 60)

SAFETY

68

Table for location of ISOFIX child

seats

The table gives a recommendation for which
ISOFIX child seats suit which locations, and
for what size of child.

The child seat must be approved in accord-
ance with UN Reg R44 and the car model
must be included in the manufacturer's vehicle
list.

NOTE

Always read the owner's manual section
on installing a child seat before installing
one in the car.

Weight

Size class

A

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

B, C

Front seat (with acti-

vated airbag, only

front-facing child

seats)

B, C

Outer rear seat Centre rear seat

Group 0

max 10 kg

E

Rear-facing infant seat

IL

B, D

, X

E

X

IL

D

X

Group 0+

max 13 kg

E

Rear-facing infant seat

IL

B, D, F

, X

E

X

IL

D

X

C

Rear-facing child seat

D

Rear-facing child seat

SAFETY

}}

69

Weight

Size class

A

Type of child seat

Front seat (with deacti-
vated airbag, only rear-

facing child seats)

B, C

Front seat (with acti-

vated airbag, only

front-facing child

seats)

B, C

Outer rear seat Centre rear seat

Group 1

9-18 kg

A

Front-facing child seat

X

IL

B, F, G

, X

E

IL

G

, IUF

G

X

B

Front-facing child seat

B1

Front-facing child seat

C

Rear-facing child seat

IL

B, F

, X

E

X

IL

X

D

Rear-facing child seat

IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal
categories.

IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.

X: Not suitable for ISOFIX child restraint systems.

A

For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.

B

Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).

There are no upper mounting points for child seats here.

C

The seat cushion extension must always be retracted for the installation of child seats.

D

Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).

E

Applicable if the car is not fitted with an ISOFIX bracket.

F

Adjust the backrest so that the head restraint does not interfere with the child seat.

G

Volvo recommends rear-facing child seat for children in this mass group.

WARNING

Never use a rear-facing child seat on the

front passenger seat if the passenger air-

bag is activated.

NOTE

If an i-Size/ISOFIX child seat has no size
classification, the car model must be
included on the vehicle list for the child
seat.

NOTE

Volvo recommends contacting an author-
ised Volvo dealer for information about
which i-Size/ISOFIX child seats Volvo rec-
ommends.

||

SAFETY

70

Related information

•

Child seat positioning (p. 61)

•

Child seat mounting (p. 62)

•

Overview table for location of child seats
(p. 64)

•

Table for location of child seats using the
car's seatbelts (p. 65)

•

Table for location of i-Size child seats
(p. 67)

•

i-Size/ISOFIX mounting points for child
seats (p. 60)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

72

Displays and controls by the driver

in a left-hand drive car

The overviews show where the displays and
controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, front fog lamps/cornering lights

*

,

rear fog lamp, resetting the trip meter
Steering wheel paddles

*

 for manual gear

changing in an automatic gearbox
Driver display

Wipers and washing, rain sensor

*

Right-hand steering wheel keypad

Steering wheel adjustment

Horn

Left-hand steering wheel keypad

Display lighting, unlocking/opening

*

/clos-

ing

*

 of tailgate

Roof console

Front reading lamps and interior lighting

Panorama roof

*

Display in roof console,

ON CALL

 button

*

Manual dimming of interior rearview mir-
ror

Centre and tunnel console

Centre display

Start button

Hazard warning flashers, defrosting,
media, drive mode button

*

Electrical socket, USB port, wireless
phone charger

*

Gear selector

Parking brake

Automatic braking when stationary

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

73

Driver's door

Memory for settings for power front seat

*

,

door mirrors
Central locking, power windows, door mir-
rors, electric child safety locks

*

Bonnet opening

Adjusting front seat

Related information

•

Manual front seat (p. 172)

•

Adjusting the power

*

 front seat (p. 173)

•

Adjusting the steering wheel (p. 180)

•

Lighting control (p. 138)

•

Starting the car (p. 420)

•

Driver display (p. 75)

•

Overview of centre display (p. 98)

•

Gearbox (p. 434)

Displays and controls by the driver

in a right-hand drive car

The overviews show where the displays and
controls near the driver are located.

Steering wheel and instrument panel

Position lamps, daytime running lights,
dipped beam, main beam, direction indi-
cators, front fog lamps/cornering lights

*

,

rear fog lamp, resetting the trip meter
Steering wheel paddles

*

 for manual gear

changing in an automatic gearbox
Driver display

Wipers and washing, rain sensor

*

Display lighting, unlocking/opening

*

/clos-

ing

*

 of tailgate

Right-hand steering wheel keypad

Horn

Steering wheel adjustment

Left-hand steering wheel keypad

Roof console

Front reading lamps and interior lighting

Panorama roof

*

Display in roof console,

ON CALL

 button

*

Manual dimming of interior rearview mir-
ror

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

74

Centre and tunnel console

Centre display

Start button

Hazard warning flashers, defrosting,
media, drive mode button

*

Electrical socket, USB port, wireless
phone charger

*

Gear selector

Parking brake

Automatic braking when stationary

Driver's door

Memory for settings for power front seat

*

,

door mirrors
Central locking, power windows, door mir-
rors, electric child safety locks

*

Bonnet opening

Adjusting front seat

Related information

•

Manual front seat (p. 172)

•

Adjusting the power

*

 front seat (p. 173)

•

Adjusting the steering wheel (p. 180)

•

Lighting control (p. 138)

•

Starting the car (p. 420)

•

Driver display (p. 75)

•

Overview of centre display (p. 98)

•

Gearbox (p. 434)

DISPLAYS AND VOICE CONTROL

}}

* Option/accessory.

75

Driver display

The driver display shows information about
the car and driving.

The driver display contains gauges, indicators
and indicator and warning symbols. The con-
tent of the driver display depends on the car's
equipment, settings and which functions are
active at that time.

The driver display is activated as soon as a
door is opened, i.e. in ignition position

0

. The

driver display extinguishes after a while if it is
not used. To reactivate it, proceed with one of
the following:

•

Depress the brake pedal.

•

Activate ignition position

I

.

•

Open one of the doors.

WARNING

If the driver display should extinguish, not

illuminate on activation/start or be fully or

partially illegible, the car must not be used.

You should visit a workshop immediately.

Volvo recommends an authorised Volvo

workshop.

WARNING

In the event of a fault in the driver display

the information on e.g. brakes, airbags or

other safety systems may not be shown. In

which case, the driver cannot check the

status of the car's systems or receive cur-

rent warnings and information.

The figure is schematic - parts may vary depending

on car model.

Location in the driver display:

On the left

In the middle

On the right

Speedometer

Indicator and warning symbols

Tachometer/Hybrid gauge

A

Trip meter

Outside temperature gauge

Gear shift indicator

Odometer

B

Clock

Drive mode

Cruise control and speed limiter information

Messages, in some cases with graphics

Fuel gauge

Road Sign Information

*

Door and seatbelt information

Hybrid battery gauge

–

Charging status

Distance to empty tank

–

Media player

Distance to empty battery

||

DISPLAYS AND VOICE CONTROL

* Option/accessory.

76

On the left

In the middle

On the right

–

Navigation map

*

Instantaneous fuel consumption

–

Phone

App menu (activated via steering wheel keypad)

–

Voice recognition

–

A

Depends on drive mode selected.

B

Accumulated mileage.

Dynamic symbol

The dynamic symbol in its
basic form.

The centre of the driver display contains a
dynamic symbol that changes appearance for
different types of message. An amber or red
marker around the symbol indicates the
degree of severity of a control or warning mes-
sage.

Examples of indicator symbol.

With an animation, the basic shape can be
turned into a graphic showing where a prob-
lem is situated, or in order to clarify informa-
tion.

Related information

•

Driver display settings (p. 77)

•

Warning symbols in the driver display
(p. 87)

•

Indicator symbols in the driver display
(p. 85)

•

Trip computer (p. 80)

•

Messages in the driver display (p. 95)

•

Managing the app menu in the driver dis-
play (p. 94)

•

Drive modes (p. 441)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

77

Driver display settings

Settings for the driver display's display
options can be made via the driver display's
app menu and via the centre display's set-
tings menu.

Settings via the driver display's app
menu

The figure is schematic - parts may vary depending

on car model.

The app menu is opened and controlled using
the right-hand keypad on the steering wheel.

In the app menu, you can choose which infor-
mation is shown on the driver display from:

•

trip computer

•

media player

•

phone

•

navigation system

*

.

Settings via the centre display

Selecting information type

1. Tap on

Settings

 in the centre display's

top view.

2. Press

My Car

Displays

Driver

Display Information

.

3. Select what should be shown in the back-

ground:

•

Show no information in background

•

Show information for current
playing media

•

Show navigation even if no route is
set

Selecting theme

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the driver

display:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Selecting language

1. Tap on

Settings

 in the centre display's

top view.

2. Tap on

System

System Languages

and Units

System Language

 to select

language.
> A change will affect the language in all

displays.

These settings are personal and are saved
automatically to the active driver profile.

Related information

•

Driver display (p. 75)

•

Managing the app menu in the driver dis-
play (p. 94)

•

Other settings in the centre display's top
view (p. 121)

DISPLAYS AND VOICE CONTROL

78

Fuel gauge

The fuel gauge in the driver display shows the
fuel level in the tank.

The figure is schematic - parts may vary depending

on car model.

The beige zone in the fuel gauge indicates the
quantity of fuel in the tank.

When the fuel level is low, the fuel pump sym-
bol illuminates and turns amber colour. The
trip computer also shows the distance to
empty tank.

Related information

•

Driver display (p. 75)

•

Hybrid battery gauge (p. 79)

•

Filling fuel (p. 453)

•

Fuel tank - volume (p. 644)

Hybrid gauge

In drive modes Hybrid and Pure, the driver
display shows a hybrid gauge that can help
the driver to drive the car in a more energy-
efficient way.

The hybrid gauge shows in different ways the
relationship between how much power is
being taken from the electric motor and how
much power is available.

Symbols in the hybrid gauge

Indicates current level for available
electric motor power. If the symbol
is filled in, it means that the electric
motor is in use.

If the symbol is not filled in, it means
that the electric motor is not in use.

Indicates the power level when the
combustion engine starts. If the
symbol is filled in, it means that the
combustion engine is in use.

Indicates the power level when the
internal combustion engine is due to
start. If the symbol is not filled in, it
means that the combustion engine is

not in use.

Indicator that shows that the hybrid
battery is being charged e.g. if the
brake pedal is gently depressed.

Driver-requested power

The pointer in the hybrid gauge indicates the
amount of engine power requested by the
driver by regulating the accelerator pedal. The
higher the reading on the scale, the more
power is requested by the driver in the current
gear. The marker between the lightning flash
and the drop shows the point at which the
internal combustion engine starts.
