Programming HomeLink

Follow these instructions to program
HomeLink

, reset all programming or repro-

gram individual buttons.

Type approval for HomeLink

In certain vehicles the ignition must be
switched on or in "accessory position"
before HomeLink

can be programmed or

used. If possible, fit new batteries in the
remote control that shall be replaced by
HomeLink

for faster programming and

improved transmission of the radio signal.
The HomeLink

buttons should be reset

before programming.

WARNING

While programming HomeLink

, the

garage door or gate being programmed

may activate. For this reason, make sure

that nobody is in the vicinity of the door or

gate while programming is in progress. The

car should be outside the garage while a

garage door opener is being programmed.

Applies to certain markets.

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

Note that the toll-free number may not be available depending on operator.

Applies to certain markets.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

490

1. Aim the remote control towards the

HomeLink

button to be programmed and

hold it approx. 2-8 cm (approx. 1-3 inches)
from the button. Do not obstruct the indi-
cator lamp on HomeLink

Note:

The ability of some remote controls

to program HomeLink

is improved at a

distance of approx. 15-20 cm (approx.
6-12 inches). Bear this in mind if problems
occur with the programming.

2. Press and hold depressed both the button

on the remote control and the button to be
reprogrammed on HomeLink

3. Do not release the buttons until the indica-

tor lamp has switched from flashing
slowly (approx. once per second) to either
flashing quickly (approx. 10 times per sec-
ond) or illuminating with a constant glow.
>

If the indicator lamp illuminates with
a constant glow:

Indication that the

programming has finished. Press the
programmed button twice to activate.

If the indicator lamp flashes quickly:

The device to be programmed to
HomeLink

may have a security func-

tion that requires extra steps. Test by
pressing the programmed button twice
to see whether the programming is
working. Otherwise, continue with the
following steps.

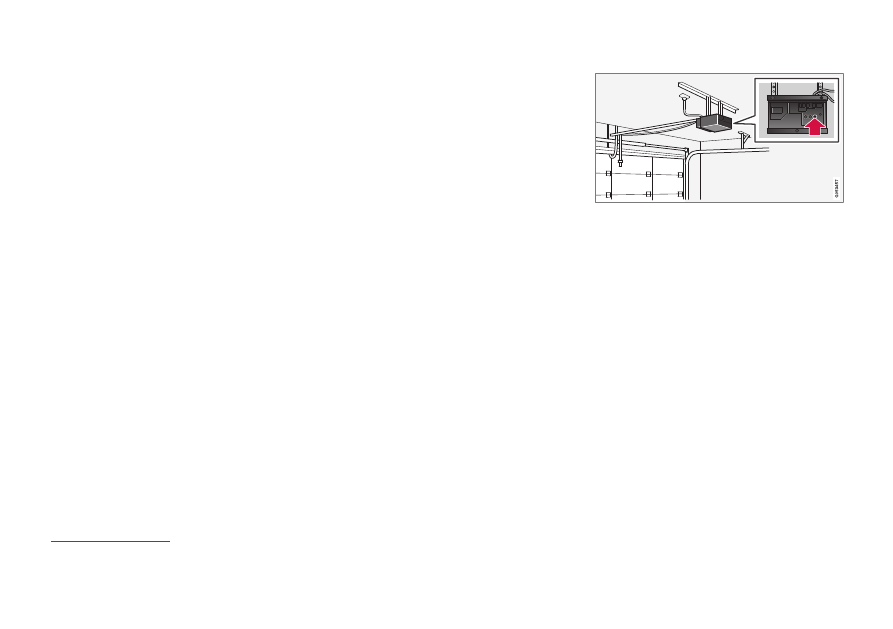

4. Locate programming button

on the

receiver for the garage door or similar. It is
normally located close to the antenna's
bracket on the receiver.

5. Depress and release the receiver's pro-

gramming button once. The programming
must be completed within 30 seconds of
the button being depressed.

6. Press and release the button on

HomeLink

that you want to program.

Repeat the sequence of pressing/holding/
releasing a second time and, depending
on the receiver model, even a third time.
> Programming is now be complete and

the garage door, gate or similar should
now be activated when the pro-
grammed button is depressed.

In the event of programming problems, con-
tact HomeLink

at www.HomeLink.com, or

Button designation and colour varies between manufacturers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

* Option/accessory.

491

call 00 8000 466 354 65 (or the toll number
+49 6838 907 277)

Reprogramming individual buttons

To reprogram an individual HomeLink

button,

proceed as follows:

1. Press the desired button and hold it

depressed for approx. 20 seconds.

2. Once the indicator lamp on HomeLink

starts to flash slowly, programming can
continue as normal.

Note:

If the button to be reprogrammed is

not programmed with a new unit, it will
resume the previously saved program-
ming.

Resetting the HomeLink

buttons

It is only possible to reset all of the HomeLink

buttons at the same time, not each button
individually. Individual buttons can only be
reprogrammed.

–

Press and hold depressed the outer but-
tons (1 and 3) on HomeLink

for approx.

10 seconds.
> When the indicator lamp changes over

from a constant glow to starting to
flash, the buttons are reset and ready to
be reprogrammed.

Related information

•

•

•

Using HomeLink

When HomeLink

is fully programmed it can

be used in place of the separate original
remote controls.

Depress the programmed button. The garage
door, gate, alarm system or similar is activated
(may take a few seconds). If the button is
depressed for more than 20 seconds then the
reprogramming is started. The indicator lamp
illuminates or flashes when the button has
been depressed. Naturally the original remote
controls can still be used in parallel with
HomeLink

if required.

When the ignition has been switched off,
HomeLink

works for at least 7 minutes.

Type approval for HomeLink

HomeLink

cannot be used if the car is

locked and the alarm is armed

from the

outside.

Note that the toll-free number may not be available depending on operator.

Applies to certain markets.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

492

WARNING

•

If HomeLink

is used to control a

garage door or gate, ensure that
nobody is near the door or gate while it
is in motion.

•

Do not use HomeLink

for any garage

door that does not have safety stop
and safety reverse.

Related information

•

•

•

Activating and deactivating the compass

Type approval for HomeLink

Type approval for EU

Gentex Corporation hereby declares that
HomeLink

Model UAHL5 complies with the

Radio equipment directive 2014/53/EU.

Wavelength within which the radio equipment
functions:

•

433.05MHz-434.79MHz <10mW E.R.P.

•

868.00MHz-868.60MHz <25mW E.R.P.

•

868.70MHz-868.20MHz <25mW E.R.P.

•

869.40MHz-869.65MHz <25mW E.R.P.

•

869.70MHz-870.00MHz <25mW E.R.P.

Certificate holder address: Gentex Corpora-
tion, 600 North Centennial Street, Zeeland MI
49464, USA

Related information

•

HomeLink

(p. 489)

Compass

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

in which the front of

the car is pointing.

Rearview mirror with compass.

Eight different compass directions are shown
by their English abbreviations:

(north),

(north east),

(east),

(south east),

(south),

(south west),

(west) and

(north west).

Related information

•

•

Calibrating the compass

Applies to certain markets.

A rearview mirror with a compass is available as an option on certain markets and models only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

}}

* Option/accessory.

493

Activating and deactivating the

compass

The upper right-hand corner of the rearview
mirror has an integrated display that shows
the compass direction

in which the front of

the car is pointing.

The compass is activated automatically when
the car is started.

To deactivate/activate the compass manually:

–

Depress the button on the underside of
the rearview mirror using e.g. a paper clip.
> If the compass is deactivated when the

car is switched off, it will not be acti-
vated the next time the car is started. In
this case, the compass needs to be
activated manually.

Related information

•

Compass

•

Calibrating the compass

Calibrating the compass

The earth is divided into 15 magnetic zones.
The compass

should be calibrated if the car

is moved between several magnetic zones.

1. Stop the car in a large open area free from

steel structures and high-voltage power
lines.

2. Start the car and switch off all electrical

equipment (air conditioning, wipers, etc.)
and ensure that all doors are closed.

Calibration may fail or not start at all if
electrical equipment is not switched off.

3. Hold the button on the underside of the

rearview mirror depressed for
approx. 3 seconds (use a paper clip, for
example). The number for the current
magnetic zone is shown.

Magnetic zones.

4. Press the button repeatedly until the

required magnetic zone (

1–15

) is shown.

See the map of magnetic zones for the
compass.

5. Wait until the display returns to showing

the character

, or hold the button on the

underside of the rearview mirror
depressed for approx. 6 seconds until the
character

is shown.

6. Drive slowly in a circle at a speed of no

more than 10 km/h (6 mph) until a com-
pass direction is shown in the display,
indicating that calibration is complete.
Then drive a further 2 circles to fine-tune
calibration.

A rearview mirror with a compass is available as an option on certain markets and models only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARTING AND DRIVING

* Option/accessory.

494

Cars with heated windscreen

If the

character

is shown in the display when

the heated windscreen is activated, per-
form the calibration in accordance with
point 6 above with the heated windscreen
activated.

8. Repeat the above procedure as necessary.

Related information

•

Compass

Activating and deactivating the compass

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

496

Sound, media and Internet

The audio and media system consists of
media player and radio. You can also connect
a phone via Bluetooth to use handsfree func-
tions or play music wirelessly in the car.
When the car is connected to the Internet
you can also use apps for media playback.

Overview of audio and media

Control the functions with your voice, steering
wheel keypad or the centre display. The num-
ber of speakers and amplifiers depends on
which audio system the car is equipped with.

System updating

The audio and media system is continuously
improved. It is recommended to download
system updates when new ones are available.

Related information

•

Media player (p. 507)

•

•

Phone (p. 523)

•

•

Voice recognition (p. 143)

•

•

Ignition positions (p. 436)

•

Driver distraction (p. 41)

•

Managing system updates via the Down-
load Centre (p. 597)

•

License agreement for audio and media
(p. 540)

•

Managing system updates via the Down-
load Centre (p. 597)

Audio settings

The sound reproduction quality is preset, but
it can be adjusted as well.

The volume is normally adjusted with the vol-
ume control below the centre display or with
the right-hand steering wheel keypad. This
applies, for example, during playback of music,
radio, ongoing phone calls and active traffic
messages.

Sound reproduction

The sound system is pre-calibrated by means
of digital signal processing. This calibration
takes into account loudspeakers, amplifiers,
passenger compartment acoustics, listener
position, etc., for each combination of car
model and audio system. There is also a
dynamic calibration that takes into account
the setting of the volume control and vehicle
speed.

Personal preferences

Various settings are available in the top view
under

Settings

Sound

depending on the

car's audio system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

497

Premium Sound

(Bowers & Wilkins)

•

Tone

– settings for bass, treble, equalizer,

etc.

•

Balance

– balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

High Performance Pro

(Harman

Kardon)

•

Equaliser

– equalizer setting.

•

Balance

– balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

High Performance

•

Tone

– settings for bass, treble, equalizer,

etc.

•

Balance

– balance between right/left

loudspeakers and balance between front/
rear loudspeakers.

•

System Volumes

– adjusts volume in the

various systems of the car, e.g.

Voice

Control

Park Assist

and

Phone

Ringtone

Related information

•

Sound experience

(p. 497)

•

Media player (p. 507)

•

Settings for voice recognition (p. 147)

•

Settings for phone (p. 530)

•

Sound, media and Internet (p. 496)

•

Navigating in the centre display's views
(p. 113)

Sound experience

Sound experience is an app that provides
access to further audio settings.

Sound Experience

is opened from the app

view in the centre display. The following set-
tings can be defined, depending on the audio
system fitted to the car:

Premium Sound

(Bowers & Wilkins)

•

Studio

– the sound can be adjusted so

that it can primarily be adapted for

Driver

All

and

Rear

•

Individual stage

– surround sound mode

with settings for intensity and enclosure.

•

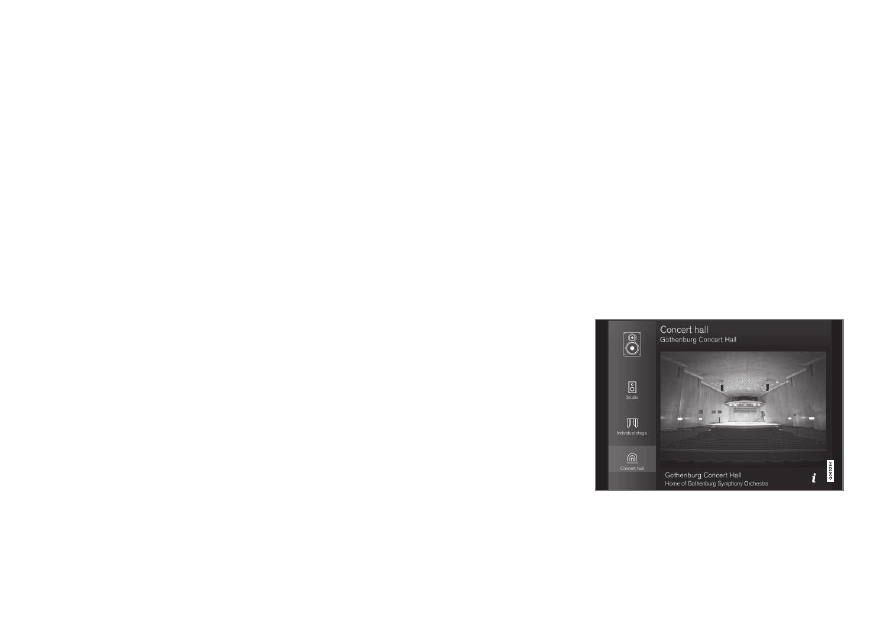

Concert hall

– reproduces the acoustics

from Gothenburg's Concert Hall.

Recreating the acoustics from Gothenburg Concert

Hall.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

498

High Performance Pro

(Harman

Kardon)

•

Seat Optimisation

– the sound can be

adjusted so that it can primarily be adap-
ted for

Driver

All

and

Rear

•

Surround

– surround sound mode with

level settings.

•

Tone

– settings for bass, treble, equalizer,

etc.

Related information

•

Audio settings (p. 496)

•

Apps

The app view contains applications (apps)
that give access to certain of the car's servi-
ces.

Swipe from right to left

across the centre dis-

play's screen in order to access the app view
from the home view. Apps that have been
downloaded (third-party apps) and apps for
embedded functions, such as

FM radio

, are

found here.

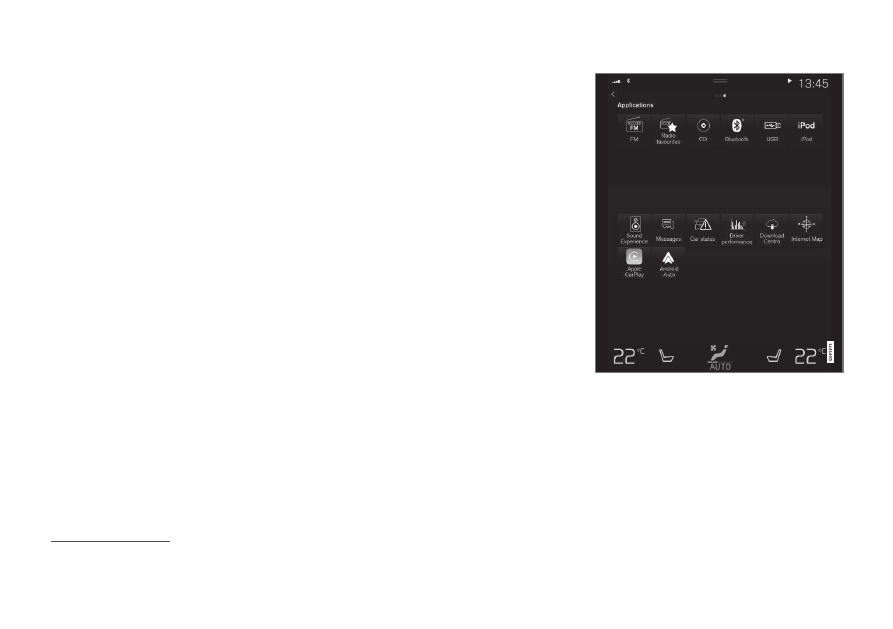

App view (generic image, basic apps vary by market

and model)

Some basic apps are always available. More
apps such as web radio and music services
can be downloaded when the car is connected
to the Internet.

Certain apps are only available for use if the
car is connected to the Internet.

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

499

Start an app by pressing the app in the centre
display's app view.

All the apps used should be updated to the lat-
est version.

Related information

•

Downloading apps (p. 499)

•

Updating apps (p. 500)

•

Deleting apps (p. 500)

•

•

•

Storage space on hard disk (p. 539)

•

•

User terms and conditions and data shar-
ing (p. 537)

Downloading apps

New apps can be downloaded when the car
is connected to the Internet.

Data download may affect other services
that transmit data, e.g. Internet radio. If the
effect on other services is experienced as
disruptive then the download can be inter-
rupted. Alternatively, it may be appropriate
to switch off or interrupt other services.

When downloading using a phone, pay
extra attention to the data traffic costs.

1. Open the

Download Centre

app in the

app view.

2. Select

New apps

in order to open a list of

apps that are available but not installed in
the car.

3. Tap on the row for an app in order to

expand in the list and get more informa-
tion about the app.

4. Select

Install

in order to start the down-

load and installation of the desired app.
> The status of the download and instal-

lation is shown while it is in progress.

A message is shown if a download can-
not be started for the moment. The app
will remain in the list and it is possible
to try to start a download again.

Cancelling the download

–

Tap on

Abort

to cancel a download in pro-

gress.

Note that only the download can be cancelled,
when the installation phase has started, this
cannot be cancelled.

Related information

•

•

Updating apps (p. 500)

•

Deleting apps (p. 500)

•

Managing system updates via the Down-
load Centre (p. 597)

•

•

Storage space on hard disk (p. 539)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

500

Updating apps

The apps can be updated when the car is
connected to the Internet.

When downloading using a phone, pay
extra attention to the data traffic costs.

If an app is being used during an ongoing
update, it will be restarted in order for the
installation to be completed.

Update all

1. Open the

Download Centre

app in the

app view.

2. Select

Install all

> Updating is started.

Update some

1. Open the

Download Centre

app in the

app view.

2. Select

Application updates

in order to

open a list of all available updates.

3. Locate the desired app and select

Install

> Updating is started.

Related information

•

Downloading apps (p. 499)

•

•

Deleting apps (p. 500)

•

Managing system updates via the Down-
load Centre (p. 597)

•

Deleting apps

Apps can be uninstalled when the car is con-
nected to the Internet.

An app that is being used must be closed in
order for the uninstallation to be completed.

1. Open the

Download Centre

app in the

app view.

2. Select

Application updates

in order to

open a list of all installed apps.

3. Locate the desired app and select

Uninstall

in order to start the uninstalla-

tion of the app.
> When the app has been uninstalled, it

disappears from the list.

Related information

•

Downloading apps (p. 499)

•

•

Updating apps (p. 500)

•

Managing system updates via the Down-
load Centre (p. 597)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

}}

* Option/accessory.

501

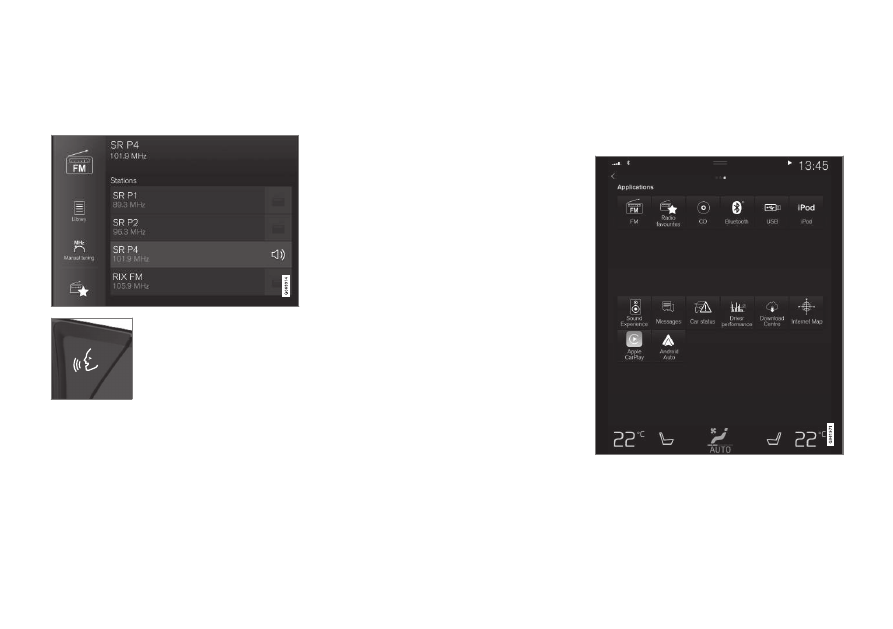

Radio

It is possible to listen to the FM bands and to
digital radio (DAB)

. When the car is online, it

is also possible to listen to Internet radio.

The radio can be operated
using voice recognition, the
steering wheel keypad or the
centre display.

Related information

•

Start radio (p. 501)

•

Save radio channels in the Radio Favour-
ites app (p. 504)

•

•

•

Digital radio

(p. 506)

•

RDS radio (p. 506)

•

•

•

Media player (p. 507)

Start radio

The radio is started from the centre display
app view.

1. Open the required frequency band (e.g.

) from the app view.

2. Select a radio station.

Related information

•

Searching for radio stations (p. 503)

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

502

•

Save radio channels in the Radio Favour-
ites app (p. 504)

•

•

•

Changing radio band and radio

station

There are instructions here for changing the
radio band, the list in the radio band and the
radio station in the selected list.

Changing radio band

Swipe to show the app view in the centre dis-
play and select the preferred radio band (e.g.

), or open the driver display's app menu

using the right-hand keypad on the steering
wheel and make your selection from there.

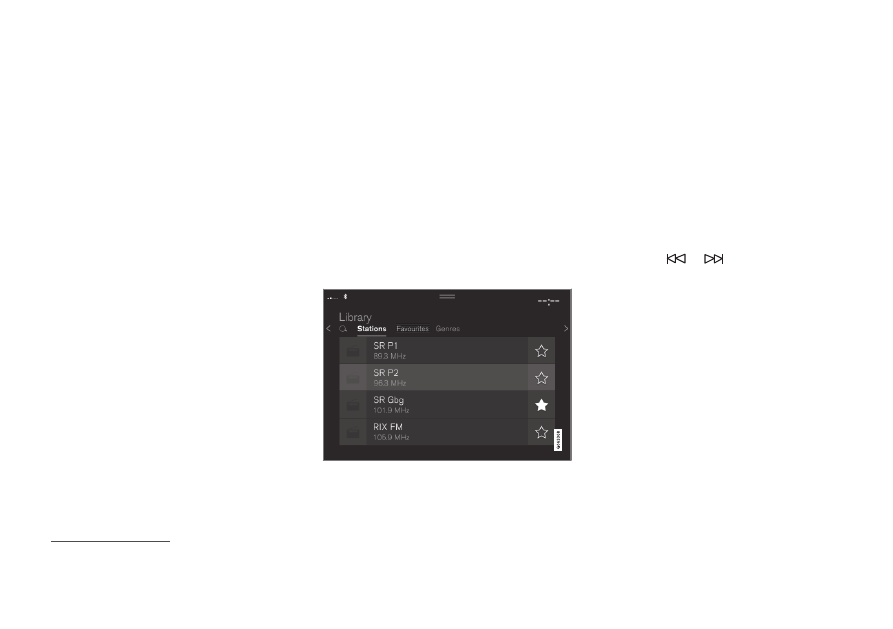

Changing lists within the frequency
band

1. Press

Library

2. Select playback from

Stations

Favourites

Genres

Ensembles

3. Tap on the desired station from the list.

Favourites

- only plays back selected favour-

ite channels.

Genres

- only plays back channels broadcast-

ing the selected genre/programme type, e.g.
pop or classical.

Changing stations within the selected
list

–

Press on

under the centre dis-

play or the steering wheel's right-hand
keypad.
> The highlight moves up or down one

place in the selected playlist.

You can also change radio station in the
selected list via the centre display.

Related information

•

Searching for radio stations (p. 503)

•

•

Save radio channels in the Radio Favour-
ites app (p. 504)

•

•

Application menu in driver display (p. 101)

•

Only applies to digital radio (DAB

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

* Option/accessory.

503

Searching for radio stations

The radio automatically compiles a station list
of the radio stations within the area that are
transmitting the strongest signals.

The parameters you can search on depend on
the frequency band selected:

•

FM — station, genre and frequency.

•

DAB

- ensembles and stations.

1. Press

Library

2. Press

> Search view with keyboard is opened.

3. Enter the search terms.

> Searching takes place with each input

of a character and the search results
are shown by category.

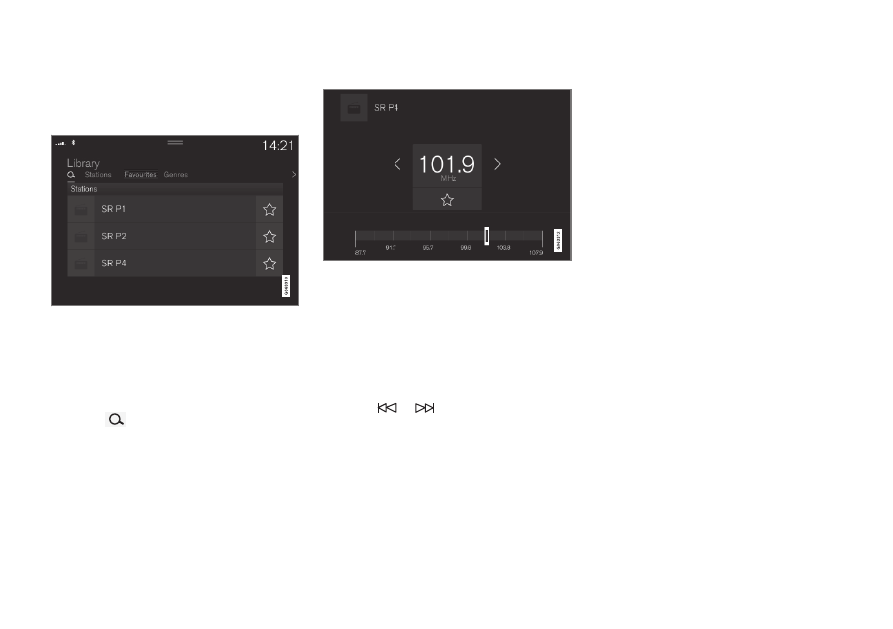

Manual tuning

Searching manually makes it possible to find
and tune to stations that are not on the auto-
matically compiled list of the strongest sta-
tions in the area.

On changing over to manual tuning, the radio
no longer changes frequency automatically
when reception is poor.

–

Press

Manual tuning

, pull the control or

press

. With a long press, the

search jumps to the next available station
in the frequency band. It is also possible to
use the right keypad on the steering
wheel.

Related information

•

•

Start radio (p. 501)

•

•

•

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SOUND, MEDIA AND INTERNET

504

Save radio channels in the Radio

Favourites app

It is possible to add a radio channel to the

Radio favourites

app and the favourites list

for the radio band (e.g. FM). Instructions on
how to add and remove radio channels can
be found below.

Radio Favourites

The Radio Favourites app
shows saved radio channels
from all frequency bands.

1. Open the app

Radio favourites

from the

app view.

2. Tap on the desired station in the list to

start listening.

Adding and removing radio favourites

1. Tap on

to add a channel to or from

frequency band favourites and the Radio
Favourites app.

2. Tap on

Library

, select

Edit

and tap on

to remove a radio channel from the favour-
ites.

When a radio channel is saved from a station
list, the radio will automatically search for the
best frequency. But if a radio channel is saved

from a manual station search, the radio does
not automatically change to a stronger fre-
quency.

If a radio channel is removed from the Radio
Favourite app, the channel will also be
removed from the favourites list for the rele-
vant frequency band.

Related information

•

Searching for radio stations (p. 503)

•

Start radio (p. 501)

•

•

•

•
