DRIVER SUPPORT

* Option/accessory.

388

•

Symbols and messages for Park Assist
Pilot (p. 391)

•

Limitations of Parking assistance (p. 390)

Park Assist Pilot front, rear and

along the sides

*

Park Assist Pilot has different behaviour
depending on which part of the car is
approaching an obstacle.

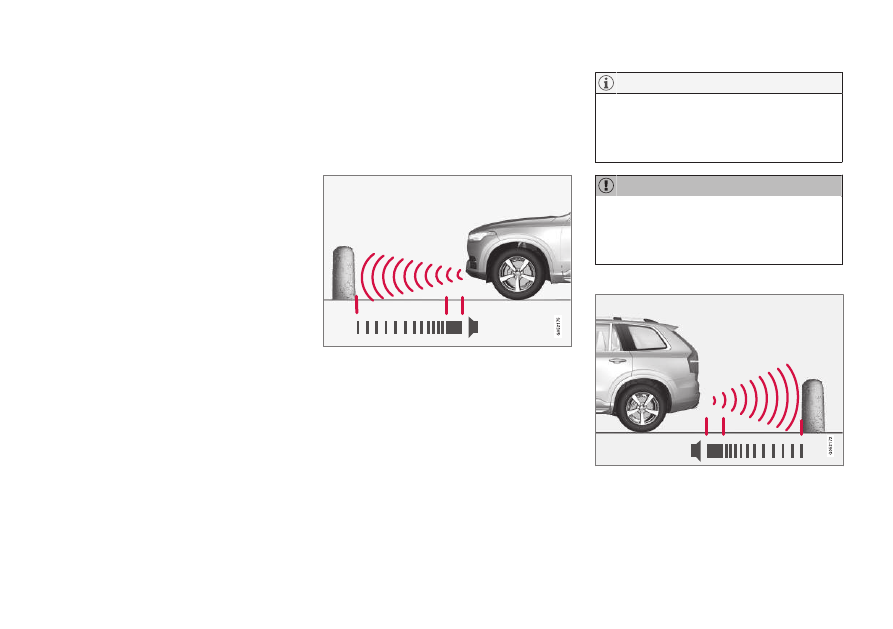

Forwards

The warning signal has a constant tone at less than

approx. 30 cm (1 ft) from an obstacle.

The Parking Assistance System's front detec-
tors are activated automatically when the
engine is started. They are active at speeds
below 10 km/h (6 mph).

The measuring range is approx. 80 cm (2.5 ft)
in front of the car.

NOTE

Parking assistance is deactivated when the
parking brake is used or

P

 mode is

selected in a car with an automatic gear-
box.

IMPORTANT

When auxiliary lamps are fitted: Remember
that these must not obscure the sensors -
the auxiliary lamps may then be perceived
as an obstacle.

Backwards

The warning signal has a constant tone at less than

approx. 30 cm (1 ft) from an obstacle.

The sensors for reverse are activated if the car
rolls backward without a gear engaged or

DRIVER SUPPORT

* Option/accessory.

389

when the gear lever is moved to reverse posi-
tion.

The measuring range is approx. 1.5 metres
(5 ft) behind the car.

When reversing with a trailer connected to the
car's electrical system, parking assistance
backward is deactivated automatically.

NOTE

When reversing with e.g. a trailer or bike
carrier on the towbar - without Volvo genu-
ine trailer wiring - parking assistance may
need to be switched off manually in order
that the sensors do not react to them.

Along the sides

The warning signal pulses intensively at less than

approx. 25 cm (0.8 ft) from an obstacle.

Parking assistance side sensors are activated
automatically when the engine is started. They
are active at speeds below 10 km/h (6 mph).

The measuring range is approx. 25 cm (0.8 ft)
from the sides.

However, the detection range of the side sen-
sors increases significantly when the steering
angle of the front wheels is increased, and
obstacles of up to approx. 90 cm (3 ft) located
diagonally behind or in front of the vehicle are
detected when the steering wheel is turned.

Related information

•

Park Assist

*

 (p. 387)

•

Sensor fields for parking assistance sys-
tem (p. 397)

Activating or deactivating the

parking assistance system

*

The park assist function can be activated or
deactivated.

The front and side parking assistance detec-
tors are activated automatically when the
engine is started. The rear detectors are acti-
vated if the car rolls backwards or when
reverse gear is engaged.

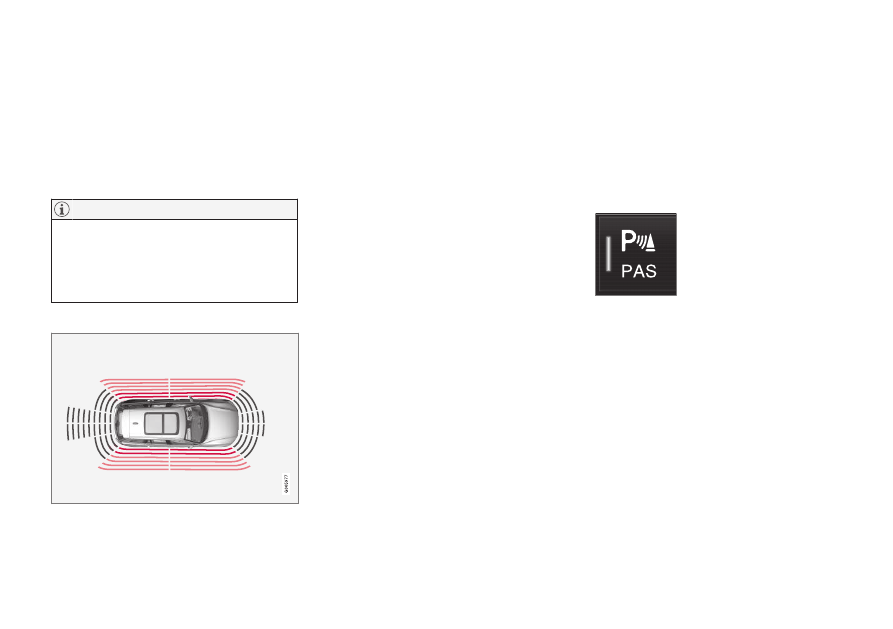

Activate or deactivate the
function using this button in
the centre display's function
view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

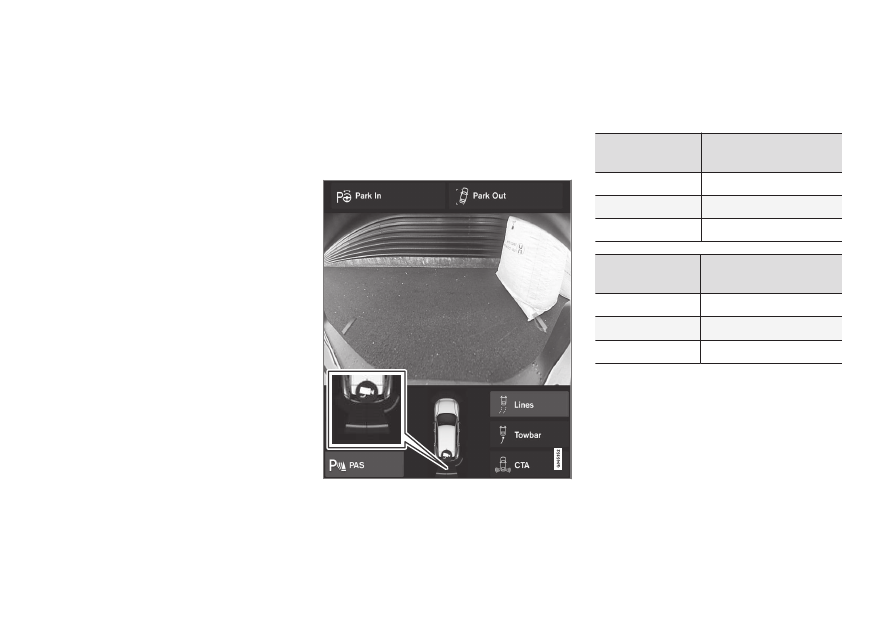

In cars equipped with a park assist camera

*

,

Park Assist Pilot can also be activated or deac-
tivated from the relevant camera view.

Related information

•

Park Assist

*

 (p. 387)

•

Limitations of Parking assistance (p. 390)

DRIVER SUPPORT

* Option/accessory.

390

Limitations of Parking assistance

The Parking Assistance System cannot
detect everything in all situations and may
therefore have limited functionality in some
cases.

A driver should be aware about the following
examples of Park Assist Pilot's limitations:

WARNING

•

The parking sensors have blind spots
where obstacles cannot be detected.

•

Pay particular attention if there are
people and animals near the car.

•

Bear in mind that the front of the car
may swing out towards oncoming traf-
fic during the parking manoeuvre.

WARNING

Pay additional attention

while reversing when this

symbol is shown if a

trailer, bicycle rack or sim-

ilar is mounted and electri-

cally connected to the car.
The symbol indicates that

the parking assistance sensors rearward

are

switched off

 and will not warn of any

obstacles.

IMPORTANT

Objects e.g. chains, thin glossy poles or
low barriers may be in the "signal shadow"
and are then temporarily not detected by
the sensors - the pulsating tone may then
unexpectedly stop instead of changing
over to the expected constant tone.

The sensors cannot detect high objects,
such as projecting loading docks.

•

In such situations, pay extra attention
and manoeuvre/reposition the car par-
ticularly slowly or stop the current
parking manoeuvre - there may be a
high risk of damage to vehicles or
other objects since information from
the sensors is not always reliable in
such situations.

IMPORTANT

In certain conditions the parking assistance
system may produce incorrect warning
signals that are caused by external sound
sources with the same ultrasonic frequen-
cies that the system works with.

Examples of such sources include horns,
wet tyres on asphalt, pneumatic brakes,
exhaust noises from motorcycles, etc.

NOTE

Since a towbar is configured with the car's
electrical system, towbar protrusion is
included when the function measures the
distance to an object behind the car.

Related information

•

Park Assist

*

 (p. 387)

DRIVER SUPPORT

* Option/accessory.

391

Symbols and messages for Park

Assist Pilot

Symbols and messages for Park Assist Pilot
can be shown in the driver display and/or the
centre display. Here are some examples.

Symbol

Message

Specification

The rearward parking assistance sensors are

deactivated

, so there are no acoustic warn-

ings for obstacles/objects.

Park Assist System

Sensors blocked, cleaning nee-
ded

One or more of the function's sensors are blocked - check and correct as soon as possi-
ble.

Park Assist System

Unavailable Service required

The system does not function as it should. A workshop should be contacted

A

.

A

An authorised Volvo workshop is recommended.

A text message can be cleared by briefly
pressing the

 button, located in the centre

of the steering wheel's right-hand keypad.

If a message persists, contact a workshop

A

.

Related information

•

Park Assist

*

 (p. 387)

•

Limitations of Parking assistance (p. 390)

DRIVER SUPPORT

* Option/accessory.

392

Park assist camera

*

The park assist camera can assist the driver
when manoeuvring in tight spaces by indicat-
ing obstacles with a camera image and
graphics in the centre display.

The parking assistance camera is a support
function which is activated automatically
when reverse gear is selected or manually via
the centre display.

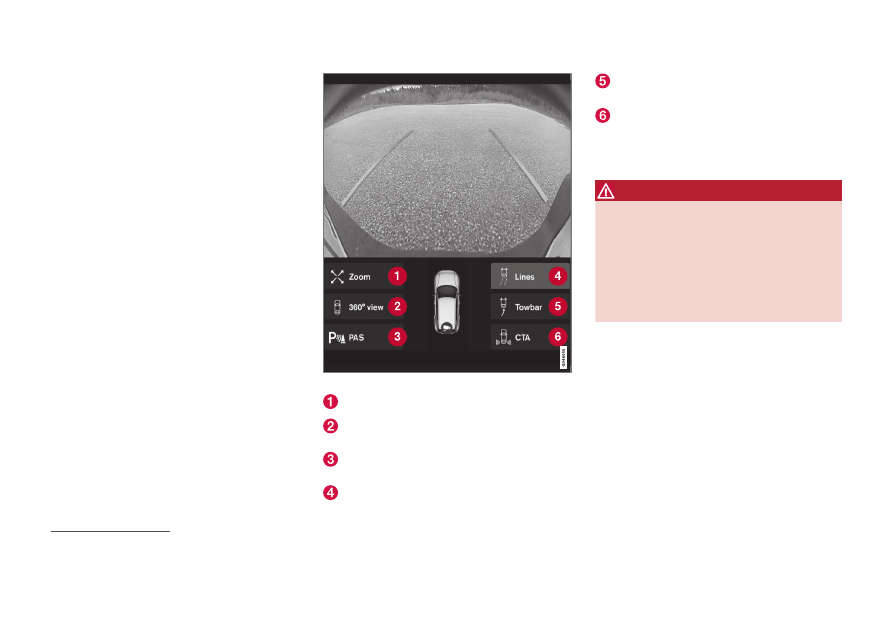

Example of camera view.

Zoom

114

 - zoom in/out

360° view

*

 - activates/deactivates all

cameras

PAS

*

 - activates/deactivates the Parking

Assistance System

Lines

 - activates/deactivates park assist

lines

Towbar

*

 - activates/deactivates the tow-

bar park assist line

*

115

CTA

*

 - activates/deactivates Cross Traffic

Alert

Objects/obstacles may be closer to the car
than they appear to be on screen.

WARNING

•

The parking sensors have blind spots
where obstacles cannot be detected.

•

Pay particular attention if there are
people and animals near the car.

•

Bear in mind that the front of the car
may swing out towards oncoming traf-
fic during the parking manoeuvre.

114

The park assist lines are switched off when zooming in.

115

Not available for all models and markets.

DRIVER SUPPORT

}}

* Option/accessory.

393

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Related information

•

Driving support systems (p. 280)

•

Park assist camera locations and surveil-
lance areas

*

 (p. 393)

•

Park assist lines for park assist camera

*

(p. 395)

•

Sensor fields for parking assistance sys-
tem (p. 397)

•

Activate park assist camera (p. 398)

•

Symbols and messages for Park assist
camera (p. 400)

•

Limitations for camera and radar unit
(p. 337)

•

Park Assist

*

 (p. 387)

•

Cross Traffic Alert

*

 (p. 361)

Park assist camera locations and

surveillance areas

*

The function can display a composite 360°
view and separate views for each of the four
cameras: rear, front, left or right camera view.

||

DRIVER SUPPORT

* Option/accessory.

394

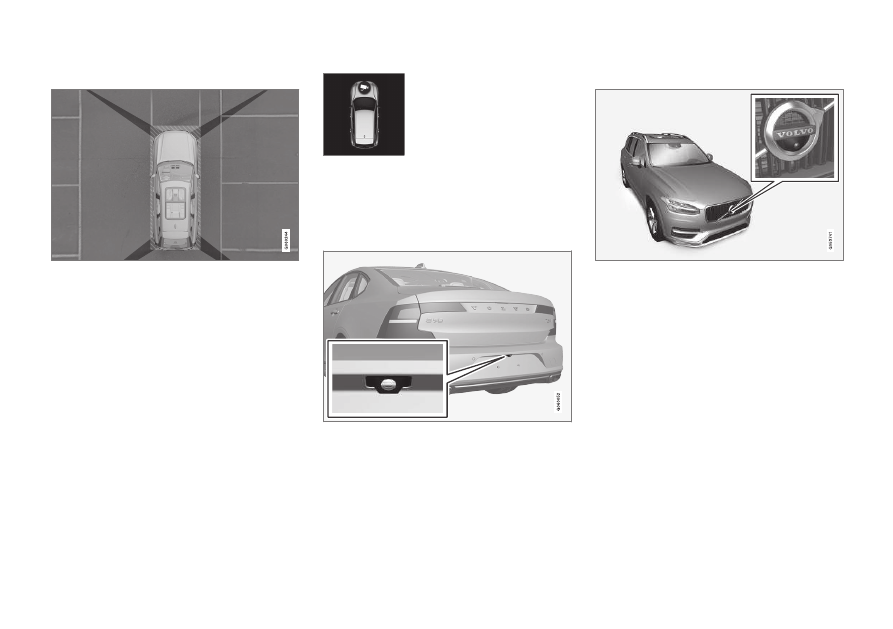

360° view

*

The "field of vision" of the parking cameras with

approximate coverage area.

The

360° view

 function activates all parking

cameras, whereupon the four sides of the car
are shown simultaneously in the centre dis-
play, which helps the driver to observe what is
around the car when manoeuvring at slow
speeds.

From the 360° view, each camera view can
be activated separately:

•

Press the screen for the desired “field of
vision” of the camera, e.g. on the surface
in front of/above the front camera.

A camera symbol on the cen-
tre display's car symbol indi-
cates which of the cameras is
active.

If the car is also equipped
with

Park Assist System

*

then distance to detected obstacles is illus-
trated with fields in different colours.

The cameras can be activated automatically or
manually.

Backwards

The backwards-facing camera is fitted above the reg-

istration plate.

The backward-facing camera shows a wide
area behind the car. For certain models, part
of the bumper can be seen as well as the tow-
bar in some cases.

Objects shown in the centre display may
appear slightly tilted — this is normal.

Forwards

The forwards parking camera is located in the grille.

The front camera can be helpful on an exit
road with limited visibility to the sides, e.g.
when there are high hedges. It is active at
speeds up to 25 km/h (16 mph) - following
which, the front camera is switched off.

If the car does not reach 50 km/h (30 mph)
and the speed falls below 22 km/h (14 mph)
within 1 minute after the forward-facing cam-
era has been extinguished, the camera is reac-
tivated.

DRIVER SUPPORT

}}

* Option/accessory.

395

The sides

The side cameras are positioned in each door mirror.

The side cameras can show what is along
each side of the car.

Related information

•

Park assist camera

*

 (p. 392)

•

Activate park assist camera (p. 398)

•

Limitations for camera and radar unit
(p. 337)

Park assist lines for park assist

camera

*

The Park assist cameras indicate the position
of the car in relation to its surroundings by
displaying lines on the screen.

Example of park assist lines.

Park assist lines show the intended route for
the car's external dimensions with the current
steering wheel angle - this can facilitate paral-
lel parking, reversing into tight spaces and
when connecting a trailer.

The lines on the screen are projected as if they
were at ground level behind the car and
respond directly to steering wheel move-
ments, showing the driver the path the car will
take - also when the car is turning.

These park assist lines include the car's most
protruding parts, e.g. towbar, door mirrors and
corners.

NOTE

•

When reversing with a trailer which is
not connected electrically to the car,
the park assist lines on the display
show the route the

car

 will take – not

the trailer.

•

The screen shows no park assist lines
when a trailer is connected electrically
to the car's electrical system.

•

Park assist lines are not shown when
zooming in.

||

DRIVER SUPPORT

* Option/accessory.

396

IMPORTANT

•

Remember, that with the rear camera
view selected, the monitor only dis-
plays the area behind the car. Be
aware of the sides and front of the car
when manoeuvring in reverse.

•

The same applies vice versa - note
what happens to the rear parts of the
car when the front camera view is
selected.

•

Note that the park assist lines show
the

shortest

 route. Therefore, pay extra

attention to the car's sides so that they
do not go against/over something
when the steering wheel is turned
when driving forward or that the front
sweeps against/over something when
the steering wheel is turned when
reversing.

Park assist lines in 360° view

*

360° view with park assist lines.

With the 360° view, park assist lines are
shown behind, in front of and at the side of the
car (depending on the direction of travel):

•

When driving forwards: Front lines

•

When reversing: Side lines and reversing
lines.

With front or rear camera selected, the park
assist lines appear regardless of the car's
direction of travel.

With one side camera selected, the park assist
lines only appear when reversing.

Towbar assist line

*

Towbar with park assist line.

Towbar

 - activates the towbar assist line.

Zoom

 - zoom in/out.

The camera can facilitate connecting up to a
trailer by showing an assist line representing
the towbar's intended "path" to the trailer.

DRIVER SUPPORT

}}

* Option/accessory.

397

1. Press

Towbar

 (1).

> The park assist lines for the towbar's

intended "path" appear - the car's park
assist lines disappear simultaneously.

Park assist lines for both car and tow-
bar cannot be shown at the same time.

2. Press

Zoom

 (2) when a more precise

manoeuvring is required.
> The camera view zooms in.

Related information

•

Park assist camera

*

 (p. 392)

•

Park assist camera locations and surveil-
lance areas

*

 (p. 393)

•

Limitations for camera and radar unit
(p. 337)

•

Towbar

*

 (p. 478)

Sensor fields for parking

assistance system

If the car is equipped with parking assistance
system

*

 then the distance is shown in the

360° view with coloured fields for each sen-
sor that registers an obstacle.

Sensor fields backwards and forwards

The screen can show coloured sensor fields on the

car symbol.

The fields for the sensors for forwards and
reverse change colour as the distance to the
obstacle decreases – from AMBER through
ORANGE to RED.

Field colour

reverse

Distance in metres

(feet)

Yellow

0,6-1,5 (2,0-4,9)

Orange

0,3–0,6 (1,0–2,0)

Red

0-0,3 (0-1,0)

Field colour

forwards

Distance in metres

(feet)

Yellow

0,6–0,8 (2,0–2,6)

Orange

0,3–0,6 (1,0–2,0)

Red

0-0,3 (0-1,0)

For RED sensor fields, the pulsating acoustic
signal changes over to a constant tone.

||

DRIVER SUPPORT

* Option/accessory.

398

Sensor field to the sides

Warning signals depend on the intended route
of the car. When the steering wheel is turned,
therefore, there may also be a warning for
obstacles diagonally in front of or diagonally
behind the car, not just straight ahead or
directly behind.

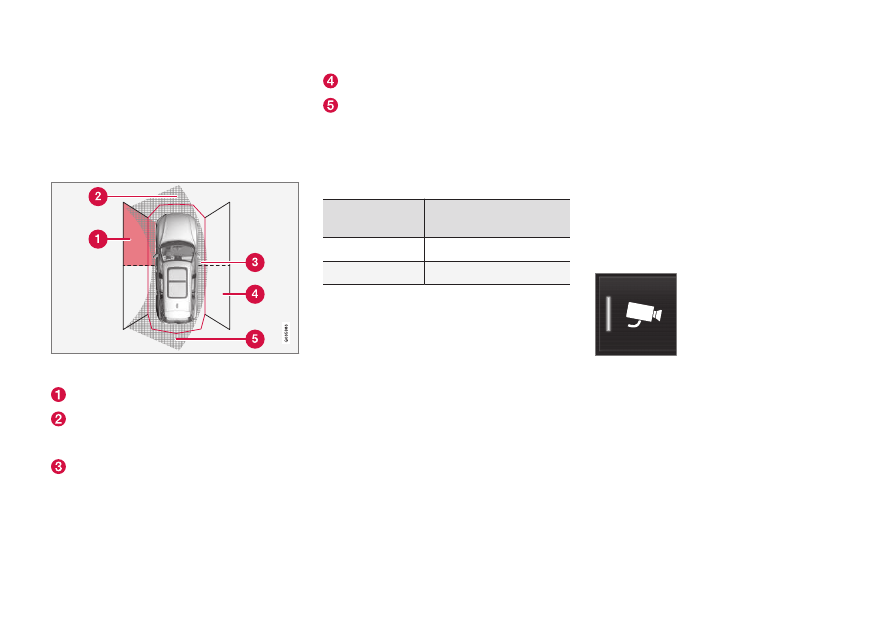

Parking sensor sectors where obstacles can be

detected.

Left-hand side front sensor field

Obstacle sector in the car's intended route
forwards – depending on steering wheel
angle
Sector with RED field colour and inten-
sively pulsing tone

Right-hand side rear sensor field

Obstacle sector in the car's intended route
in reverse – depending on steering wheel
angle.

The colour of the side fields changes with
reduced distance to the obstacle – from
AMBER to RED.

Colour of side

fields

Distance in metres

(feet)

Yellow

0,25–0,9 (0,8–3,0)

Red

0–0,25 (0–0,8)

In the case of RED sensor fields, the acoustic
signal changes from pulsing to intensively
pulsing.

Related information

•

Park Assist

*

 (p. 387)

•

Park assist camera

*

 (p. 392)

•

Park assist camera locations and surveil-
lance areas

*

 (p. 393)

•

Limitations for camera and radar unit
(p. 337)

Activate park assist camera

The park assist camera is activated automati-
cally when reverse gear is engaged or man-
ually with one of the centre display's function
buttons.

Camera view when reversing

When reverse gear is engaged, the screen
shows the 360° view if it or any of the side
views was the last used camera view, other-
wise the rear view is shown.

Camera view for manual camera
activation

Activate the parking camera
with this button in the centre
display's function view.

The screen then initially
shows the last used camera
view. However, after each

engine start, the previously shown side view is
replaced by the 360° view and the previously
shown zoomed rear view is replaced by the
rear view.

•

GREEN button indication – the function is
activated.

•

GREY button indication – the function is
deactivated.

Automatic deactivation of camera

The front view extinguishes at 25 km/h
(16 mph) to avoid distracting the driver – it

DRIVER SUPPORT

* Option/accessory.

399

reactivates automatically if the speed drops to
22 km/h (14 mph) within 1 minute, on the con-
dition that the speed has not exceeded
50 km/h (31 mph).

Other camera views are extinguished at
15 km/h (9 mph) and not reactivated.

Related information

•

Park assist camera

*

 (p. 392)

•

Limitations of Parking assistance (p. 390)

•

Limitations for camera and radar unit
(p. 337)

DRIVER SUPPORT

400

Symbols and messages for Park

assist camera

Symbols and messages for Park assist cam-
era can be shown in the driver display and/or
the centre display. Here are some examples.

Symbol

Message

Specification

The rearward parking assistance sensors are

deactivated

, so there are no acoustic warnings

and field marks for obstacles/objects.

The camera is disengaged.

Park Assist System

Sensors blocked, cleaning nee-
ded

One or more of the function's sensors are blocked - check and correct as soon as possible.

Park Assist System

Unavailable Service required

The system does not function as it should. A workshop should be contacted

A

.

A

An authorised Volvo workshop is recommended.

A text message can be cleared by briefly
pressing the

 button, located in the centre

of the steering wheel's right-hand keypad.

If a message persists, contact a workshop

A

.

DRIVER SUPPORT

* Option/accessory.

401

Related information

•

Park assist camera

*

 (p. 392)

•

Limitations for camera and radar unit
(p. 337)

DRIVER SUPPORT

* Option/accessory.

402

Park Assist Pilot

*



Park Assist Pilot (PAP

116

) can assist the driver

to manoeuvre the car while parking. The
function can also assist with steering when
driving out from parallel parking.

The function first checks if a space is large
enough and if so then assists the driver to
steer the car into the space.

The centre display indicates with symbols,
graphics and text the various operations to be
carried out and when to do so.

WARNING

•

The function is supplementary driver
support intended to facilitate driving
and make it safer – it cannot handle all
situations in all traffic, weather and
road conditions.

•

•

Driver support functions are not a sub-
stitute for the driver's attention and
judgement. The driver is always
responsible for ensuring the car is
driven in a safe manner, at the appro-
priate speed, with an appropriate dis-
tance to other vehicles, and in accord-
ance with current traffic rules and reg-
ulations.

Related information

•

Driving support systems (p. 280)

•

Parking variants with Park Assist Pilot

*

(p. 403)

•

Using Park Assist Pilot

*

 (p. 404)

•

Leaving parallel parking with Park Assist
Pilot

*

 (p. 406)

•

Limitations of Park Assist Pilot

*

 (p. 407)

•

Messages for Park Assist Pilot

*

 (p. 409)

116

Park Assist Pilot

DRIVER SUPPORT

* Option/accessory.

403

Parking variants with Park Assist

Pilot

*

Park Assist Pilot (PAP

117

) can be used for

both parallel and perpendicular parking.

Parallel parking

The principal of parallel parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space.
3. The car is positioned in the space by

means of driving forward/backward.

With the

Park Out

 function, a parallel-parked

car can also get help from the function with
leaving the parking space.

Perpendicular parking

Principle for perpendicular parking.

The function parks the car using the following
steps:

1. A parking space is identified and meas-

ured.

2. The car is reversed into the space and

then positioned in the space by means of
driving forward/backward.

NOTE

When leaving a parking space, the

Park

Out

 function must only be used for a paral-

lel-parked car - it does not work for a per-
pendicular-parked car.

Related information

•

Park Assist Pilot

*

 (p. 402)

•

Leaving parallel parking with Park Assist
Pilot

*

 (p. 406)

117

Park Assist Pilot
