MAINTENANCE AND SERVICE
Related information
Rustproofing
Cleaning the interior
•
Car wash (p. 378)
The car received a thorough and complete rust-
Only use cleaning agents and car care products
proofing at the factory. Parts of the body are
recommended by Volvo. Clean regularly and
made of galvanised sheet metal. The underbody
treat stains at once for best results. Vacuuming
is protected by a wear-resistant anti-corrosion
is important prior to using cleaning agents.
compound. A thin, penetrating rustproofing fluid
was sprayed into the exposed members, cavi-
IMPORTANT
ties, closed sections and side doors.
•
Certain items of coloured clothing (e.g.
dark jeans and suede garments) may
Inspection and maintenance
stain the upholstery. If this occurs, it is
The car's anti-corrosion protection does not nor-
important to clean and treat these parts
mally need to be maintained, but keeping the car
of the upholstery as soon as possible.
clean always helps to further reduce the risk of
corrosion. Strong alkaline or acidic cleaning solu-
•
Never use strong solvents such as
tions must always be avoided on the glossy trim
washer fluid, pure petrol or white spirit to
components. Any stone chips should be rectified
clean the interior, since this may damage
as soon as they are discovered.
the upholstery as well as other interior
materials.
Related information
•
Never spray the cleaning agent directly
• Paint damage (p. 383)
onto components that have electrical but-
tons and controls. Wipe them instead
using a moistened cloth containing the
cleaning agent.
•
Sharp objects and Velcro may damage
the fabric upholstery.
Fabric upholstery and ceiling upholstery
Volvo offers a comprehensive fabric care product
for fabric upholstery and ceiling upholstery which,
when used in accordance with the instructions,
preserves the properties of the upholstery. The
}}
381

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE
||
fabric care product is available for purchase from
Do not scrape or rub stains. Never use strong
Related information
a Volvo dealer.
stain removers. A special cleaning agent available
•
Car wash (p. 378)
from Volvo dealers can be used for more difficult
Leather upholstery
cleaning.
Volvo's leather upholstery is treated to preserve
its original appearance.
Seatbelts
Use water and a synthetic detergent. A special
Leather upholstery is a natural product that
textile cleaning agent is available from a Volvo
changes and acquires a beautiful patina over
dealer. Ensure that the seatbelt is dry before
time. Regular cleaning and treatment are
allowing it to retract.
required in order that the properties and colours
of the leather shall be preserved. Volvo offers a
Inlay mats and floor mat
comprehensive product, Volvo Leather Care Kit/
Remove inlaid carpets for separate cleaning of
Wipes, for the cleaning and treatment of leather
the floor carpet and the inlaid carpets. Use a vac-
upholstery which, when used in accordance with
uum cleaner to remove dust and dirt. Each inlay
the instructions, preserves the leather's protective
mat is secured with pins.
coating.
Remove the inlay mat by taking hold of the inlay
To achieve best results, Volvo recommends the
mat at each pin and lifting the mat straight up.
cleaning and application of the protective cream
once to four times per year (or more if required).
Fit the inlay mat in place by pressing it in at each
pin.
The Volvo Leather Care Kit/Wipes is available for
purchase from a Volvo dealer.
WARNING
Leather steering wheel
Only use one inlaid mat at each seat, and
Leather needs to breathe. Never cover the
check before setting off that the mat by the
leather steering wheel with protective plastic.
driver's seat is firmly affixed and secured in
Volvo Leather Care Kit/Wipes is recommended
the pins so that it does not get caught adja-
for cleaning the leather steering wheel.
cent to and under the pedals.
Interior plastic, metal and wood parts
A special textile cleaner is recommended for
A fibrillated fibre or microfibre cloth, lightly mois-
stains on the floor mat after vacuuming. Floor
tened with water, available from a Volvo dealer, is
mats must be cleaned with agents recommended
recommended for cleaning interior parts and sur-
by a Volvo dealer.
faces.
382

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE
Paint damage
Repair minor paintwork damage such
Paint is an important part of the car's rustproof-
as stone chips and scratches
ing and should therefore be checked regularly.
The most common types of paintwork damage
are stone chips, scratches, and marks on the
edges of wings, doors and bumpers.
Touching up minor paintwork damage
To avoid the onset of rust, damaged paintwork
should be rectified immediately.
Materials that may be needed
• Primer17 - a special adhesive primer in a
Exterior colour code
spray can is available for e.g. plastic-coated
bumpers.
Any secondary exterior colour code
Before work is begun, the car must be clean and
• Base coat and clear coat - are available in
It is important that the correct colour is used. For
dry and at a temperature above 15 °C.
spray cans or as touch-up pens/sticks18.
product label location, see Type designations
1. Apply a piece of masking tape over the dam-
• Masking tape.
(p. 386).
aged surface. Then remove the tape to
• Fine sand paper17.
remove any loose paint.
Colour code
If the damage is down to the metal, use of a
The label for colour code is located on the car's
primer is appropriate. In the event of damage
door pillar and is visible when the right-hand rear
to a plastic surface, an adhesive primer
door is opened.
should be used to give better results - spray
into the lid of the spray can and brush on
thinly.
17 If required.
18 Follow the instructions that are included with the package for the touch-up pen/stick.
}}
383

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MAINTENANCE AND SERVICE
||
2. Before painting, gentle polishing using a very
fine polishing agent may be carried out
locally if required (e.g. if there are any uneven
edges). The surface is cleaned thoroughly
and left to dry.
3. Stir the primer well and apply using a fine
brush, a matchstick or similar. Finish off with
a basecoat and clearcoat once the primer
has dried.
4. For scratches, proceed as above, but mask
around the damaged area to protect the
undamaged paintwork.
NOTE
If the stone chip has not penetrated down to
the meal and an undamaged layer of paint
remains in place, fill in with basecoat and
clearcoat as soon as the surface has been
cleaned.
Related information
• Rustproofing (p. 381)
384

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Type designations
Type designation, vehicle identification number,
etc., i.e. information unique to the car, can be
read on a label in the car.
386

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Label location

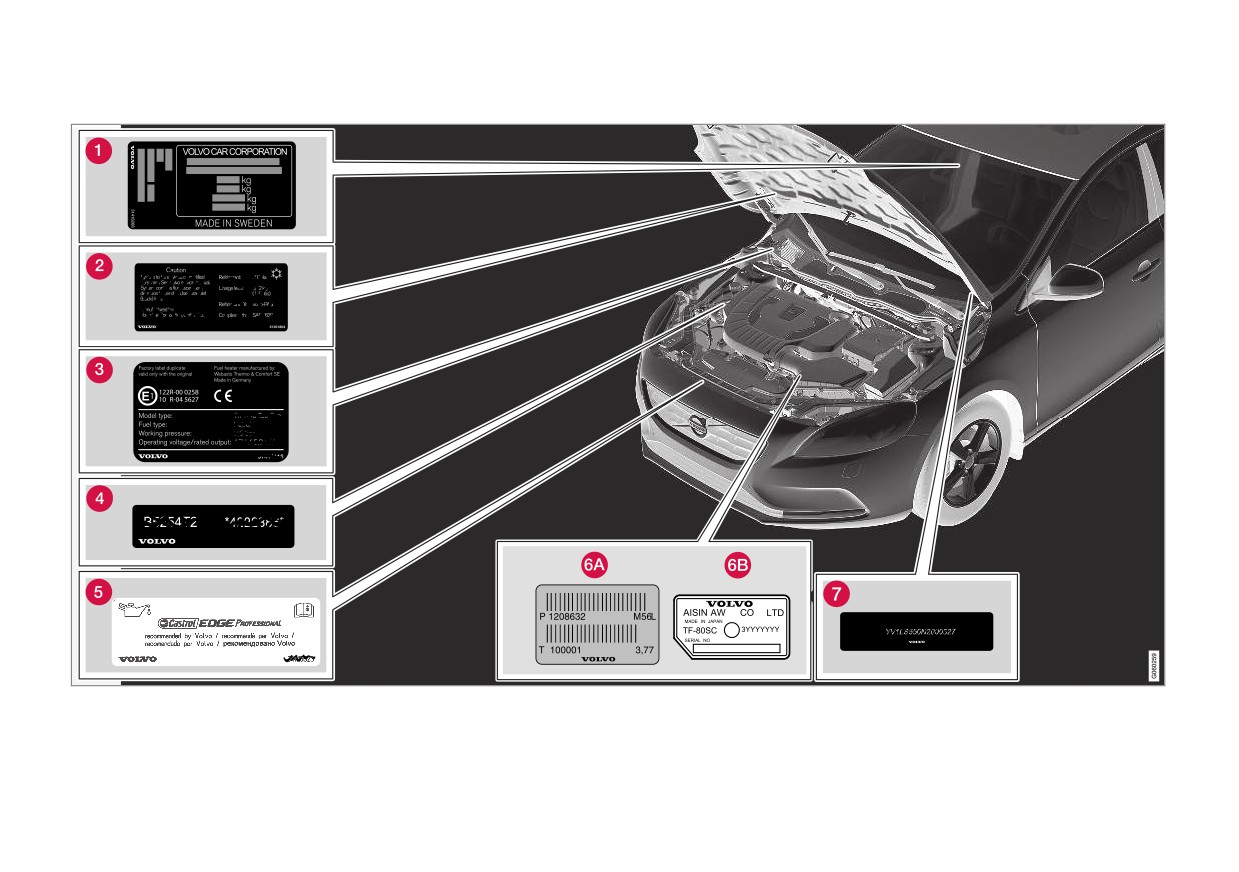

The illustration is schematic - details may vary depending on market and model.
Knowing the car's type designation, vehicle iden-
tification and engine numbers can facilitate all
}}
387

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
||
contact with an authorised Volvo dealer regarding
NOTE
the car and when ordering spare parts and
accessories.
It is not intended that the decals illustrated in
the owner's manual should be exact replicas
Decal for type designation, vehicle identifica-
of those in the car. They are included to show
tion number, permissible maximum weights
their approximate appearance and locations
and code designation for exterior colour and
in the car. The information that applies to your
type approval number. The decal is posi-
particular car can be found on the decal on
tioned on the door pillar, and will be visible
the car.
when the right-hand rear door is opened.

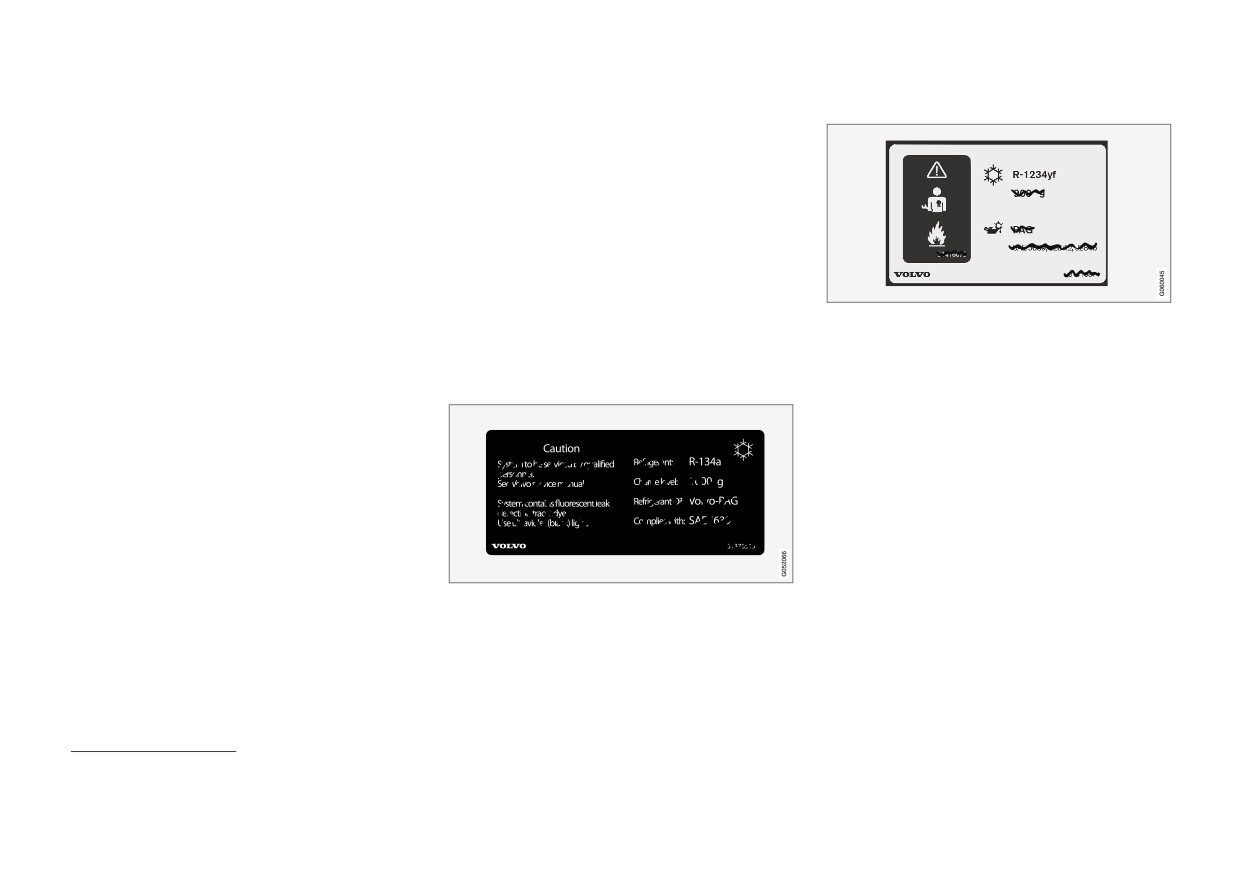

Label for A/C system.
Related information
Label for parking heater.
• Weights (p. 390)
•
Engine specifications (p. 394)
Decal for engine code and the engine's
serial number.
Label for engine oil.
Decal for gearbox type designation and serial
number.
Manual gearbox
Automatic gearbox
Decal for the car's identification number -
VIN (Vehicle Identification Number).
Further information on the car is presented in the
registration document.
388

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Dimensions
Measurement of car length, height, etc. can be
read in the table.
V40 CROSS COUNTRY.
Dimensions
mm
Dimensions
mm
Dimensions
mm
A
Wheelbase
2647
G
Front track
1552A
K
Width including door mirrors
2041
B
Length
4370
1547B
L
Width including folded-in door
mirrors
1857
C
Load length, floor, folded rear
H
Rear track
1540A
seat
1508
A Offset 50 mm.
1535B
B Offset 52.5 mm.
D
Load length, floor
684
I
Load width, floor
960
E
Height
1458
J
Width
1802
F
Load height
532
389

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Weights
NOTE
Max. gross vehicle weight, etc. can be read on a
The documented kerb weight applies to cars
label in the car.
in the standard version - i.e. a car without
Kerb weight includes the driver, the fuel tank
extra equipment or accessories. This means
90% full and all fluids.
that for every accessory added the loading
capacity of the car is reduced correspondingly
The weight of passengers and accessories, and
by the weight of the accessory.
towball load (p. 391) (when a trailer is hitched)
influence the load capacity and are not included
Examples of accessories that reduce load
in the kerb weight.
capacity are the different equipment levels
(e.g. Kinetic, Momentum, Summum), as well
Permitted max. load = Gross vehicle weight -
as other accessories such as towbar, load
Kerb weight.
carrier, space box, audio system, auxiliary
For information on label location, see Type designations
lamps, GPS, fuel-driven heater, safety grille,
(p. 386).
carpets, cargo cover, power seats, etc.
Max. gross vehicle weight
Weighing the car is a certain way of ascer-
Max. train weight (car+trailer)
taining the kerb weight of your own particular
car.
Max. front axle load
Max. rear axle load
WARNING
Equipment level
The car's driving characteristics change
depending on how heavily it is loaded and
Max. load: See registration document.
how the load is distributed.
Max. roof load: 75 kg.
Related information
• Towing capacity and towball load (p. 391)
390

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Towing capacity and towball load
Towing capacity and towball load for driving with
Max. weight braked trailer
a trailer can be read in the tables.
NOTE
Not all engines are available in all markets.
}}
391

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
||
V40CCA
Engine codeB
Gearbox
Max. weight braked trailer (kg)
Max. towball load (kg)
Engine
T3
B4154T2
Automatic, TF-71SC
1500
75
T3
B4154T4
Automatic, TF-71SC
1500
75
T4
B4204T19
Automatic, TF-71SC
1500
75
T4 AWD
B4204T21
Automatic, TG-81SC
1500
75
T5
B4204T41
Automatic, TG-81SC
1500
75
T5 AWD
B4204T41
Automatic, TG-81SC
1500
75
T5 AWD
B4204T11
Automatic, TG-81SC
1500
75
D2
D4204T8
Automatic, TF-71SC
1500
75
D2
D4204T13
Manual, M76
1500
75
D2
D4204T13
Automatic, TF-71SC
1500
75
D3
D4204T16
Manual, M76
1500
75
D3
D4204T16
Automatic, TF-71SC
1500
75
D3
D4204T9
Automatic, TF-71SC
1500
75
D4
D4204T14
Automatic, TG-81SC
1500
75
A V40 CROSS COUNTRY
B Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
392

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Max. weight unbraked trailer
V40CCA
Max. weight unbraked trailer (kg)
Max. towball load (kg)
Engine
D3 (D4204T16) with manual gearbox
750
50
other
700
50
A V40 CROSS COUNTRY
Related information
• Weights (p. 390)
• Driving with a trailer (p. 307)
• Trailer Stability Assist - TSA (p. 314)
393

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Engine specifications
NOTE
Engine specifications (output etc.) for each
Not all engines are available in all markets.
respective engine alternative can be read in the
table.
V40CCA
Engine codeB
Output (kW/
Output (hp/
Torque (Nm/rpm)
No. of cyl-
Bore
Stroke
Swept vol-
Compres-
rpm)
rpm)
inders
(mm)
(mm)
ume (litres)
sion ratio
Engine
T3
B4154T2
112/5000
152/5000
250/1800-4000
4
82.0
70.9
1.498
10.5:1
T3
B4154T4
112/5000
152/5000
250/1700-4000
4
82.0
70.9
1.498
10.5:1
T4
B4204T19
140/4700
190/4700
300/1300-4000
4
82.0
93.2
1.969
11.3:1
T4 AWD
B4204T21
140/5000
190/5000
320/1500-4000
4
82.0
93.2
1.969
10.8:1
T5 / T5 AWD
B4204T41
180/5500
245/5500
350/1500-4800
4
82.0
93.2
1.969
8.6:1
T5 AWD
B4204T11
180/5500
245/5500
350/1500-4800
4
82.0
93.2
1.969
10.8:1
D2
D4204T13
88/3750
120/3750
280/1500-2250
4
82.0
93.2
1.969
16.0:1
D2
D4204T8
88/3750
120/3750
280/1500-2250
4
82.0
93.2
1.969
16.0:1
D3
D4204T16
110/3750
150/3750
320/1750-3000
4
82.0
93.2
1.969
16.0:1
D3
D4204T9
110/3750
150/3750
320/1750-3000
4
82.0
93.2
1.969
16.0:1
D4
D4204T14
140/4250
190/4250
400/1750-2500
4
82.0
93.2
1.969
15.8:1
A V40 CROSS COUNTRY
B Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
Related information
• Coolant - grade and volume (p. 398)
• Engine oil - grade and volume (p. 396)
394

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Engine oil - adverse driving
IMPORTANT
conditions
In order to fulfil the requirements for the
Adverse driving conditions can lead to abnor-
engine's service intervals all engines are filled
mally high oil temperature or oil consumption.
with a specially adapted synthetic engine oil
Below are some examples of adverse driving
at the factory. The choice of oil has been
conditions.
made very carefully with regard to service life,
Check the oil level (p. 349), more frequently for
starting characteristics, fuel consumption and
long journeys:
environmental impact.
An approved engine oil must be used in order
• towing a caravan or trailer
that the recommended service intervals can
• in mountainous regions
be applied. Only use a prescribed grade of oil
• at high speeds
for both filling and oil change, otherwise you
• in temperatures colder than -30 °C or hotter
will risk affecting service life, starting charac-
than +40 °C
teristics, fuel consumption and environmental
impact.
The above also apply to shorter driving distances
at low temperatures.
Volvo Car Corporation disclaims all warranty
liability if engine oil of the prescribed grade
Choose a fully synthetic engine oil for adverse
and viscosity is not used.
driving conditions. It provides extra protection for
the engine.
Volvo recommends that oil changes are car-
ried out at an authorised Volvo workshop.
Volvo recommends:
Related information
• Engine oil - grade and volume (p. 396)
• Engine oil - general (p. 348)
395

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Engine oil - grade and volume
NOTE
Recommended engine oil grade and volume for
Not all engines are available in all markets.
each respective engine alternative can be read
in the table.
Volvo recommends:
V40CCA
Engine codeB
Oil grade
Volume, incl. oil filter
Engine
(litres, approx.)
T3
B4154T2
Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20
5.6
T3
B4154T4
5.6
396

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
V40CCA
Engine codeB
Oil grade
Volume, incl. oil filter
Engine
(litres, approx.)
T4
B4204T19
Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20
5.6
T4 AWD
B4204T21
5.6
T5 / T5 AWD
B4204T41
5.6
T5 AWD
B4204T11
5.6
D2
D4204T13
Castrol Edge Professional V 0W-20 or VCC RBS0-2AE 0W-20
5.2
D2
D4204T8
5.2
D3
D4204T16
5.2
D3
D4204T9
5.2
D4
D4204T14
5.2
A V40 CROSS COUNTRY
B Engine code, component and serial number can be read on the engine; see Type designations (p. 386).
Related information
• Engine oil - adverse driving conditions
(p. 395)
• Engine oil - checking and filling (p. 349)
397

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Coolant - grade and volume
V40CCA
Volume
Approved coolant volume for each respective
EngineB
(litres)
engine alternative can be read in the table.
D2
D4204T13
Prescribed grade: Coolant recommended by
Volvo mixed with 50% water1, see the packaging.
D2
D4204T8
D3
D4204T16
8,0 (8,4C)
NOTE
Not all engines are available in all markets.
D3
D4204T9
D4
D4204T14
V40CCA
Volume
A V40 CROSS COUNTRY
B Engine code, component and serial number can be read on the
EngineB
(litres)
engine; see Type designations (p. 386).
C Applies to cars with fuel-driven heater.
T3
B4154T2
Related information
T3
B4154T4
• Coolant - level (p. 351)
T4
B4204T19
7.5 (7,8C)
T4 AWD
B4204T21
T5 / T5 AWD
B4204T41
T5 AWD
B4204T11
1 Water quality must fulfil the standard STD 1285.1.
398

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Transmission fluid - grade and
volume
The prescribed transmission fluid and volume for
each respective gearbox alternative can be read
in the table.
Manual gearbox
Manual gearbox
Volume (litres)
Prescribed transmission fluid
M76
approx 1.6
BOT 352 B1
Automatic gearbox
Automatic gearbox
Volume (litres)
Prescribed transmission fluid
TF-71SC
approx 6.8
AW1
approx. 6.6A
TG-81SC
AW1
approx. 7.5B
A Petrol engines
B Diesel engines
NOTE
The transmission fluid does not need to be
changed under normal driving conditions.
However, it may be necessary under adverse
driving conditions.
Related information
• Engine oil - adverse driving conditions
(p. 395)
• Type designations (p. 386)
399

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Brake fluid - grade and volume
Brake fluid is the term for the medium in a
hydraulic brake system that is used to transfer
pressure from the master brake cylinder to the
mechanical brakes.
Prescribed grade: Volvo Original Dot 4 class 6
or equivalent.
Volume: 0.6 litres
Related information
• Brake and clutch fluid - level (p. 352)
400

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Fuel tank - volume
Fuel tank volume for each respective engine
alternative can be read in the table.
V40CCA
Volume (litres)
Prescribed grade
Engine
T4 AWD
approx. 57
Fuel - petrol (p. 299)
T5 AWD
Other petrol engines
approx. 62
Diesel engines
approx. 62
Fuel - diesel (p. 300)
A V40 CROSS COUNTRY
Related information
• Filling up with fuel (p. 298)
• Engine specifications (p. 394)
401

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
Tank volume for AdBlue®2
Air conditioning, fluid - volume and
Decal for R1234yf
Approx. 16.5 litres of the AdBlue additive can be
grade
added to the tank.
The climate control system in the car uses a
refrigerant, either R1234yf or R134a, depend-
ing on market. Information about which refriger-
Related information
ant the car's climate control system uses can be
• AdBlue® - checking and topping up (p. 305)
seen on a decal, located on the inside of the
bonnet.
Prescribed grades and volumes of fluids and
lubricants in the air conditioning system can be
The label is fitted on the inside of the bonnet.
read in the tables below.
A/C decal
Decal for R134a
The label is fitted on the inside of the bonnet.
2 Registered trademark belonging to Verband der Automobilindustrie e.V. (VDA)
402















Content      ..     15      16      17      18     ..
