Volvo V40 Cross Country (2019 year). Manual in english

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCKS AND ALARM

Child safety locks - manual

Child safety locks - electrical

NOTE

activation

activation*

• A door's knob control only blocks that

The child safety locks prevent children from

particular door - not both rear doors

being able to open a rear door from the inside.

simultaneously.

The child safety locks are located on the trailing

• Cars with an electric child safety lock do

Activation

edge of the rear doors and are only accessible

not have a manual child lock.

The electrical child safety locks can be activated/

when the doors are open.

deactivated in all key positions (p. 80) higher

than 0. Activation/deactivation can be performed

Activate/deactivate child safety locks

Related information

up to 2 minutes after switching off the engine,

• Child safety locks - electrical activation*

provided that no door is opened.

(p. 176)

• Locking/unlocking - from the inside (p. 171)

Manual child safety locks. Not to be mixed up with man-

ual door lock (p. 170).

- Use the remote control key's detachable key

Control panel driver's door.

blade (p. 163) to turn the knob.

1. Start the engine or choose a key position

The door is blocked against opening from

higher than 0.

the inside.

The door can be opened from both the out-

side and the inside.

176

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCKS AND ALARM

2. Press the button in the driver's door control

Alarm*

NOTE

panel.

The alarm is a device that warns in the event of

The movement sensors trigger an alarm in

> The information display shows the mes-

e.g. a break-in in the car.

the event of movement in the passenger

sage Rear child lock activated and the

Activated alarm is triggered if:

compartment - air currents are also regis-

button's lamp illuminates - the locks are

tered. For this reason the alarm is triggered if

active.

• a door, the bonnet or the tailgate is opened¹¹

the car is left with a window open or if the

When the electric child safety lock is active then

• a movement is detected in the passenger

passenger compartment heater is used.

the rear:

compartment (if fitted with a movement

To avoid this: Close the window when leaving

detector*)

• windows can only be opened with the driver's

the car. If the car's integrated passenger

door control panel

• the car is raised or towed away (if fitted with

compartment heater (or a portable electric

a tilt detector*)

heater) shall be used - direct the airflow from

• doors cannot be opened from inside.

the air vents so that they are not pointing

The current setting is stored when the engine is

• the starter battery's cable is disconnected

upwards in the passenger compartment.

switched off - if the child safety locks are acti-

• the siren is disconnected.

Alternatively, reduced alarm level can be used,

vated at engine shutdown, the function will

If there is a fault in the alarm system then the

Reduced alarm level* (p. 180).

remain activated the next time the engine is

information display in the combined instrument

started.

panel shows a message. In which case, contact a

workshop - an authorised Volvo workshop is rec-

NOTE

Related information

ommended.

• Child safety locks - manual activation

Do not attempt to repair or alter components

(p. 176)

in the alarm system yourself. Any such

attempts may affect the terms of the insur-

• Locking/unlocking - from the inside (p. 171)

ance.

Arming the alarm

- Press the remote control key lock button.

Deactivate the alarm

- Press the remote control key unlock button.

11 Applies to certain markets.

}}

* Option/accessory.

177

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCKS AND ALARM

Deactivating a triggered alarm

Alarm indicator*

Alarm* - automatic re-arming

- Press the remote control key unlock button

The alarm indicator shows alarm system

Automatic re-arming of the alarm (p. 177) pre-

or insert the remote control key in the igni-

(p. 177) status.

vents the car being left with the alarm disarmed

tion switch.

unintentionally.

Related information

If the car is unlocked with the remote control key

• Alarm* - automatic re-arming (p. 178)

(p. 156)(and the alarm is disarmed) but none of

the doors or the tailgate is opened within 2

• Alarm* - remote control key not working

minutes, then the alarm is automatically re-

(p. 179)

armed. The car is relocked at the same time.

Related information

• Alarm* - automatic arming (p. 179)

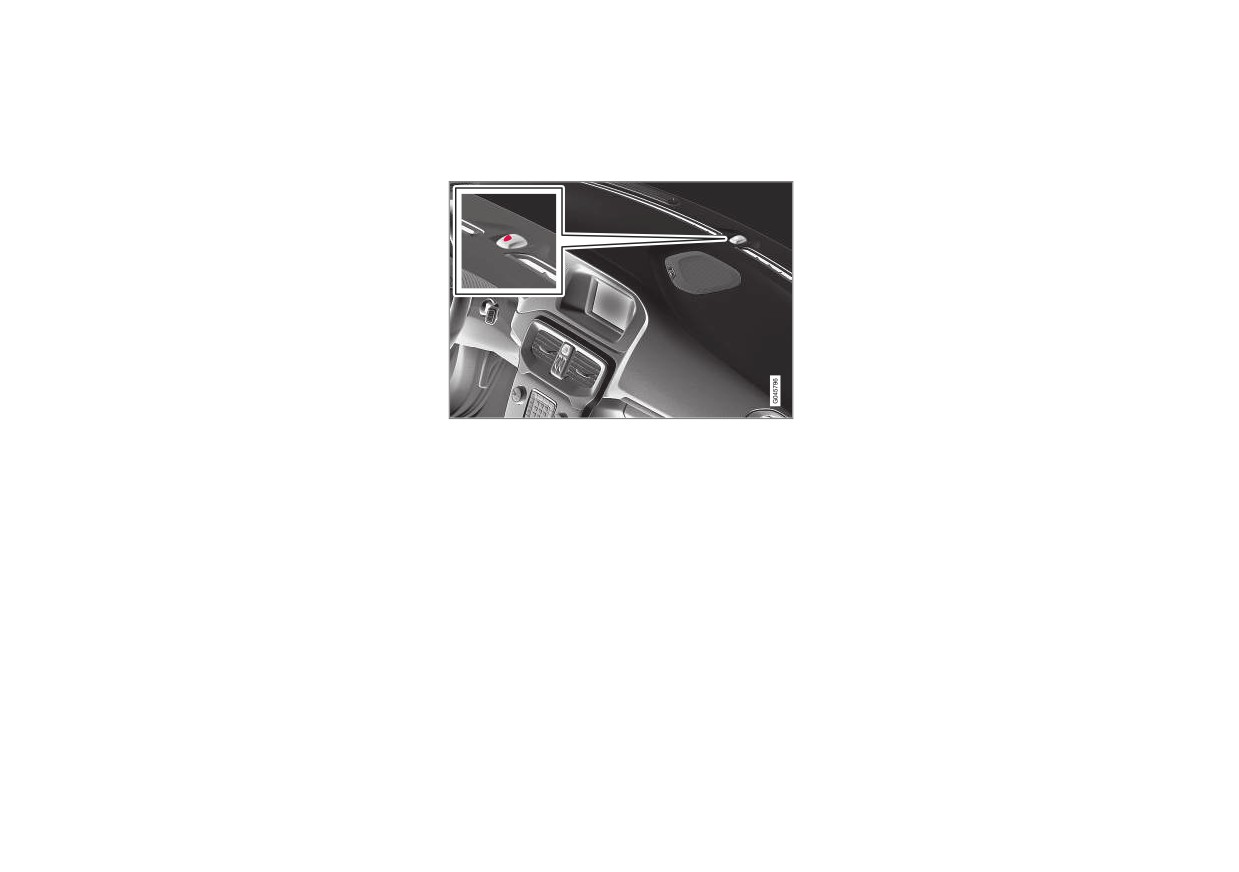

Same LED as lock indicator (p. 158).

A red LED on the instrument panel indicates the

alarm system's status:

• LED not lit - Alarm not armed

• The LED flashes once every other second -

Alarm is armed

• The LED flashes rapidly after disarming the

alarm (and until the remote control key is

inserted in the ignition switch and key posi-

tion I is selected) - Alarm has been trig-

gered.

178

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCKS AND ALARM

Alarm* - automatic arming

Alarm* - remote control key not

Alarm signals*

In certain countries the alarm(p. 177) is acti-

working

When the alarm (p. 177) is triggered a siren

vated after a certain delay if the driver's door

If the alarm (p. 177) cannot be deactivated with

sounds and all direction indicators flash.

was opened and closed but the car was not re-

the remote control key, e.g. if the key's battery

locked.

(p. 164) is discharged - the car can be

• A siren sounds for 30 seconds or until the

alarm is switched off. The siren has its own

unlocked, disarmed and the engine started as

battery and works independently of the car's

follows:

Related information

starter battery.

• Alarm signals* (p. 179)

1. Open the left-hand front door with the

• The direction indicators flash for 5 minutes

detachable key blade (p. 168).

or until the alarm is switched off.

> The alarm is triggered, the direction indi-

cators flash and the siren sounds.

2. Insert the remote control key in the ignition

switch.

> The alarm is deactivated.

* Option/accessory.

179

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LOCKS AND ALARM

Reduced alarm level*

Type approval - remote control key

Keyless lock system (Keyless drive)

Reduced guard means that the movement and

system

Coun-

tilt detectors can be temporarily deactivated.

Type approval for the remote control key system

try/

can be read in the table.

Area

To avoid accidental triggering of the alarm - e.g. if

a dog is left in a locked car or during transport on

Lock system, standard

Delphi Deutschland GmbH, 42367

a car train or car ferry - temporarily deactivate the

Wuppertal hereby certifies that this

Country/Area

movement and tilt detectors.

VO1-125kHz is compliant with the

EU, China

essential attribute requirements and

The procedure is the same as with the temporary

other relevant provisions as stipula-

disengaging of deadlocks, see Deadlocks*

ted in Directive 2014/53/EU

(p. 174).

(RED). The original declaration of

Related information

conformity can be viewed here:

• Alarm* (p. 177)

support.volvocars.com.

• Alarm indicator* (p. 178)

Korea

180

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Adjustable steering force*

Related information

Electronic stability control (ESC) -

Speed related power steering causes the steer-

•

MY CAR (p. 113)

general

ing wheel force to increase with the speed of the

Stability system ESC (Electronic Stability

car in order to give the driver enhanced sensitiv-

Control) helps the driver to avoid skidding and

ity.

improves the car's traction.

On motorways the steering feels firmer. Steering

The activation of the ESC system dur-

is light and requires no extra effort when parking

ing braking may be noticed as a throb-

and at low speed.

bing sound. The car may accelerate

slower than expected when the accel-

The driver can choose between three different

erator pedal is depressed.

levels of steering force for road responsiveness

or steering sensitivity in the menu system MY

CAR (p. 113):

WARNING

• Once there, search for Steering force level

• The stability system ESC is supplemen-

tary driver support intended to facilitate

and select Low, Medium or High.

driving and make it safer - it cannot han-

This menu is not accessible when the car is mov-

dle all situations in all traffic, weather and

ing.

road conditions.

• ESC is not a substitute for the driver's

NOTE

attention and judgement. The driver is

In certain situations the power steering may

always responsible for ensuring the car is

become too hot and then needs to be tempo-

driven in a safe manner, at the appropri-

rarily cooled - during this time the power

ate speed, with an appropriate distance to

steering operates with reduced power and

other vehicles, and in accordance with

turning the steering wheel may then be per-

current traffic rules and regulations.

ceived to be slightly heavier.

In parallel with the temporarily reduced steer-

The ESC system consists of the following func-

ing assistance the combined instrument panel

tions:

shows a message.

• Active Yaw Control

• Spin Control

• Traction control system

184

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

• Engine drag control - EDC

Corner Traction Control - CTC

Related information

CTC (Corner Traction Control) compensates for

•

Electronic stability control (ESC) - operation

• Corner Traction Control - CTC

understeer and allows higher than normal accel-

(p. 186)

• Driver Steering Recommendation - DSR

eration in a bend without wheelspin on the inner

•

Electronic stability control (ESC) - symbols

• Trailer Stability Assist* - TSA

wheel, e.g. on an arcing motorway entrance road

and messages (p. 187)

to quickly reach the prevailing traffic speed.

Active Yaw Control

The function checks the driving and brake force

Driver Steering Recommendation -

of the wheels individually in order to stabilise the

DSR

car.

DSR (Driver Steering Recommendation) helps

the driver steer the car in the right direction when

Spin Control

there is reduced traction or when the ABS sys-

The function reduces engine power if the drive

tem engages.

wheels slip against the underlying surface in

order to maintain stability and traction.

The primary role of the DSR function is to help

the driver steer in the right direction when the car

Traction control system

is skidding.

The function is active at low speed and transfers

DSR engages by applying slight torque to the

power from the driving wheel that is spinning to

steering wheel in the direction in which the car

the one that is not.

should be steered to maintain/achieve maximum

Engine drag control - EDC

possible traction and stabilise the car.

EDC (Engine Drag Control) prevents involuntary

Trailer Stability Assist* - TSA¹

wheel locking, e.g. after shifting down or engine

Trailer stability assist (p. 314) function is to sta-

braking when driving in low gears on slippery

bilise the car and trailer combination if it begins

road surfaces.

to snake. For more information, see Driving with a

Involuntary wheel locking while driving can,

trailer (p. 307).

amongst other things, impair the driver's ability to

steer the car.

NOTE

The function is deactivated if the driver

selects Sport mode.

1 Trailer Stability Assist is included in the installation of the Volvo genuine towbar.

* Option/accessory.

185

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Electronic stability control (ESC) -

Sport mode is indicated in the com-

operation

bined instrument panel by means of

this symbol illuminating with a constant

Selection of level - Sport mode

glow until the driver deselects the

The ESC system is always activated - it cannot be

function or until the engine is switched off - after

deactivated.

the next time the engine is started the ESC sys-

tem is back in its normal mode once again.

However, the driver can select

the Sport mode, which allows

Related information

for a more active driving experi-

•

Electronic stability control (ESC) - general

ence.

(p. 184)

In Sport mode the system

•

Electronic stability control (ESC) - symbols

detects whether the accelera-

and messages (p. 187)

tor pedal, steering wheel movements and corner-

•

MY CAR (p. 113)

ing are more active than in normal driving and

then allows controlled skidding with the rear sec-

tion up to a certain level before it intervenes and

stabilises the car.

If the driver stops a controlled skid by releasing

the accelerator pedal, for example, then the ESC

system intervenes and stabilises the car.

With Sport mode, maximum traction is also

obtained if the car has become stuck, or when

driving on a loose surface - e.g. sand or deep

snow.

Proceed as follows to select Sport mode:

Sport mode is selected in the menu system MY

CAR. For a description of the menu system, see

MY CAR (p. 113).

186

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Electronic stability control (ESC) -

symbols and messages

Table

Symbol

Message

Specification

ESC Temporarily OFF

ESC system has been temporarily reduced due to excessive brake disc temperature - the function is reactivated

automatically when the brakes have cooled.

ESC Service required

ESC system disengaged.

• Stop the car in a safe place, switch off the engine and start it again.

• Visit a workshop if the message remains - an authorised Volvo workshop is recommended.

"Message"

There is a message in the combined instrument panel - read it!

and

Constant glow for

System check when the engine is started.

2 seconds.

}}

187

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Speed limiter*

Related information

Speed limiter* - getting started

A (Speed Limiter) can be regarded as a reverse

• Speed limiter* - getting started (p. 189)

A (Speed Limiter) can be regarded as a reverse

cruise control - the driver regulates the speed

• Speed limiter - temporary deactivation and

cruise control - the driver regulates the speed

using the accelerator pedal but is prevented

standby mode* (p. 191)

using the accelerator pedal but is prevented

from accidentally exceeding a pre-selected/set

• Speed limiter* - alarm for speed exceeded

speed by the speed limiter.

(p. 192)

• Speed limiter* - deactivation (p. 192)

Steering wheel keypad and combined instrument panel

Digital and Analogue.

Speed limiter - On/Off.

Standby mode ceases and the stored speed

is resumed.

Standby mode

Activate and adjust the max. speed.

Selected speed

Speed limiter active

}}

* Option/accessory.

189

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Switch on and activate

Speed limiter* - changing speed

2. Scroll with the

button until the combined

When the speed limiter is active, its symbol (6) is

instrument panel shows a mark (5) by the

shown in combination with a mark (5) by the set

desired maximum speed.

Changing the stored speed

maximum speed in the combined instrument

Stored max. speed is changed with short or long

> The speed limiter is then active and the

panel.

selected max. speed is stored in the

presses on the

steering wheel button.

Selection and storage of the highest possible

memory.

To adjust +/- 5 km/h (+/- 5 mph):

speed in the memory can be made both during a

Related information

• Use short presses - each press gives

journey and while stationary.

•

Speed limiter* (p. 189)

+/- 5 km/h (+/- 5 mph).

While driving

To adjust +/- 1 km/h (+/- 1 mph):

1. Press the steering wheel button

to switch

• Hold down the button and release it at the

on the speed limiter.

required max. speed.

> The symbol (6) for speed limiter illumi-

Last press made is stored in the memory.

nates in the combined instrument panel.

2. When the car is moving at the desired high-

Related information

est possible speed: Press one of the steering

• Speed limiter* (p. 189)

wheel buttons

until the combined

instrument panel shows a mark (5) next to

the desired maximum speed.

> The speed limiter is then active and the

selected max. speed is stored in the

memory.

When stationary

1. Press the steering wheel button

to switch

on the speed limiter.

190

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Speed limiter - temporary

Temporary deactivation - standby mode

- Depress the accelerator pedal fully.

deactivation and standby mode*

To temporarily deactivate the speed limiter and

> The combined instrument panel shows

A Speed Limiter (Speed Limiter) can be regar-

set it in standby mode:

the stored maximum speed with a col-

ded as a reverse cruise control - the driver regu-

oured mark (5) and the driver can tempo-

- Press

lates the speed using the accelerator pedal but

rarily exceed the set maximum speed -

is prevented from accidentally exceeding a pre-

> The combined instrument panel's

the mark (5) changes colour from GREEN

mark (5) changes colour from GREEN to

selected/set speed by the speed limiter.

to WHITE (Digital) or WHITE to GREY

WHITE (Digital) or from WHITE to GREY

(Analogue) during that time.

(Analogue) and the driver can temporarily

The speed limiter is automatically reacti-

exceed the set maximum speed.

vated after the accelerator pedal is

The speed limiter is reactivated with one

released and the car's speed is slowed

press on . The mark (5) then changes

down to below the selected/stored maxi-

colour from WHITE to GREEN (Digital) or

mum speed - the mark (5) changes colour

GREY to WHITE (Analogue) and the car's

from WHITE to GREEN (Digital) or GREY

maximum speed is limited again.

to WHITE (Analogue) and the car's maxi-

mum speed is again limited.

Temporary deactivation with the

accelerator pedal

Related information

The speed limiter can also be set in standby

• Speed limiter* (p. 189)

mode with the accelerator pedal, e.g. for rapidly

Steering wheel keypad and instrument panel Digital and

accelerating the car out of a situation:

Analogue.

Speed limiter - On/Off.

Standby mode ceases and the stored speed

is resumed.

Standby mode

Activate and adjust the max. speed.

Selected speed

Speed limiter active

* Option/accessory.

191

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Speed limiter* - alarm for speed

Speed limiter* - deactivation

Cruise control*

exceeded

A (Speed Limiter) can be regarded as a reverse

The cruise control (CC - Cruise Control) helps

A Speed Limiter (Speed Limiter) can be regar-

cruise control - the driver regulates the speed

the driver maintain an even speed, resulting in

ded as a reverse cruise control - the driver regu-

using the accelerator pedal but is prevented

more relaxing driving on motorways and long,

lates the speed using the accelerator pedal but

from accidentally exceeding a pre-selected/set

straight roads with regular traffic flows.

is prevented from accidentally exceeding a

speed by the speed limiter.

Overview

pre-selected/set speed by the speed limiter.

To deactivate the speed limiter:

On steep roads the speed limiter's engine brak-

- Press the steering wheel button

ing effect may be inadequate and the selected

maximum speed is exceeded. The driver is aler-

> The combined instrument panel's (p. 189)

ted about this with an acoustic signal. The signal

symbol for the speed limiter and the mark

is active until the driver has slowed to below the

for the set speed are extinguished. The

selected maximum speed.

selected and stored speed are thus

deleted from the memory and cannot be

NOTE

resumed with the

button.

The alarm is only activated after 5 seconds if

The driver can then use the accelerator

the speed has been exceeded by at least

pedal to choose a speed without limita-

3 km/h (approx. 2 mph), provided that neither

tion.

of the

buttons has been depressed

The steering wheel buttons and combined instrument

Related information

panel in cars without speed limiter².

during the last half minute.

• Speed limiter* (p. 189)

Related information

• Speed limiter* (p. 189)

2 A Volvo dealer has updated information about what applies in each respective market.

192

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Cruise control* - managing speed

WARNING

It is possible to activate, set and change the

The driver must always be observant with

stored speed.

regard to the traffic conditions and intervene

when the cruise control is not maintaining a

Activating and setting the speed

suitable speed and/or suitable distance.

The driver always bears ultimate responsibility

for ensuring that the vehicle is driven safely.

Related information

• Cruise control* - managing speed (p. 193)

• Cruise control* temporary deactivation and

The steering wheel buttons and combined instrument

standby mode (p. 195)

panel in cars with speed limiter².

• Cruise control* - resume set speed (p. 196)

Cruise control - On/Off.

•

Cruise control* - deactivate (p. 197)

Standby mode ceases and the stored speed

• Adaptive cruise control (ACC)* (p. 201)

is resumed.

The steering wheel buttons and display in cars without

Standby mode

speed limiter³.

Activate and adjust the speed.

Selected speed (GREY = Standby mode).

Cruise control active - WHITE symbol (GREY

= Standby mode).

2 A Volvo dealer has updated information about what applies in each respective market.

3 A Volvo dealer has updated information about what applies in each respective market.

}}

* Option/accessory.

193

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

WHITE - the car then follows the stored

NOTE

speed.

If any of the Cruise Control buttons are held

depressed for several minutes then it is

NOTE

blocked and deactivated. To be able to reacti-

Cruise Control cannot be enabled at speeds

vate Cruise Control, the car must be stopped

below 30 km/h (20 mph).

and the engine restarted.

Changing the stored speed

Related information

Stored speed is changed with short or long

•

Cruise control* (p. 192)

presses on the

steering wheel button.

To adjust +/- 5 km/h (+/- 5 mph):

The steering wheel buttons and display in cars with

speed limiter³.

• Use short presses - each press gives

+/- 5 km/h (+/- 5 mph).

To start the cruise control:

To adjust +/- 1 km/h (+/- 1 mph):

• Press the steering wheel button for CRUISE

(without speed limiter) or

(with speed

• Hold down the button and release it at the

required speed.

limiter).

Last press made is stored in the memory.

> The cruise control symbol (6) in the com-

bined instrument panel illuminates - Cruise

If speed is increased using the accelerator pedal

control is in standby mode.

prior to pressing the

/ button, then it is the

To activate cruise control:

car's current speed when the button is pressed

that is stored.

• At the required speed - press the steering

A temporary increase in speed with the accelera-

wheel button

tor pedal, e.g. during overtaking, does not affect

> The current speed is stored in the memory

the cruise control setting - the car returns to the

and the combined instrument panel's

last stored speed when the accelerator pedal is

marking (5) illuminates at the selected speed

released.

and the symbol (6) changes from GREY to

3 A Volvo dealer has updated information about what applies in each respective market.

194

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Cruise control* temporary

• the foot brake is used

deactivation and standby mode

• the clutch pedal is depressed for longer than

The function can be temporarily deactivated and

1 minute⁵

set in standby mode.

• the gear lever/selector is moved to N posi-

tion

Temporary deactivation - standby mode

• the driver maintains speed higher than the

stored speed for longer than 1 minute.

The driver must then regulate the speed.

A temporary increase in speed with the accelera-

tor pedal, e.g. during overtaking, does not affect

the setting - the car returns to the last stored

The steering wheel buttons and display in cars with

speed when the accelerator pedal is released.

speed limiter⁴.

To temporarily disengage cruise control and set it

Automatic standby mode

in standby mode:

Cruise control is temporarily disengaged and set

in standby mode if:

• Press

The steering wheel buttons and display in cars without

• wheels lose traction

> The combined instrument panel's

speed limiter⁴.

marking (5) and symbol (6) change colour

• engine speed is too low/high

from WHITE to GREY - Cruise control is tem-

• speed falls below 30 km/h (20 mph).

porarily disengaged.

The driver must then regulate the speed.

Standby mode due to driver

Related information

intervention

• Cruise control* (p. 192)

Cruise control is temporarily disengaged and set

automatically in standby mode if:

• Cruise control* - managing speed (p. 193)

• Cruise control* - resume set speed (p. 196)

• Cruise control* - deactivate (p. 197)

4 A Volvo dealer has updated information about what applies in each respective market.

5 Disengaging and selecting a higher or lower gear does not involve standby mode.

* Option/accessory.

195

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Cruise control* - resume set speed

• Cruise control* temporary deactivation and

The cruise control (p. 192) (CC - Cruise

standby mode (p. 195)

Control) helps the driver to maintain an even

• Cruise control* - deactivate (p. 197)

speed.

After temporary deactivation and standby

mode (p. 195) it is possible to resume the set

speed.

The steering wheel buttons and display in cars with

speed limiter⁶.

To reactivate the cruise control from standby

mode:

• Press the steering wheel button

> The combined instrument panel's

marking (5) and symbol (6) change colour

The steering wheel buttons and display in cars without

from GREY to WHITE - the car then follows

speed limiter⁶.

the last stored speed.

NOTE

A marked speed increase may occur once the

speed has been resumed by selecting

Related information

• Cruise control* (p. 192)

• Cruise control* - managing speed (p. 193)

6 A Volvo dealer has updated information about what applies in each respective market.

196

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Cruise control* - deactivate

Distance Warning*

The Distance Warning function (Distance Alert)

How it is deactivated is described here.

warns the driver if the time interval to the vehicle

ahead becomes too short.

Distance Warning is active at speeds above

30 km/h (20 mph) and only reacts to vehicles

driving in front of the car, in the same direction.

No distance information is provided for oncoming,

slow or stationary vehicles.

The steering wheel buttons and display in cars with

speed limiter⁷.

The cruise control is switched off with the steer-

The steering wheel buttons and display in cars without

ing wheel button (1) or by switching off the

speed limiter⁷.

engine - the stored speed is deleted from the

memory and cannot be resumed with the

but-

ton.

Related information

• Cruise control* (p. 192)

• Cruise control* - managing speed (p. 193)

Orange-coloured warning lamp⁸.

• Cruise control* temporary deactivation and

An orange-coloured warning lamp in the wind-

standby mode (p. 195)

screen illuminates with a constant glow if the dis-

tance to the vehicle in front is shorter than the

• Cruise control* - resume set speed (p. 196)

set time interval.

7 A Volvo dealer has updated information about what applies in each respective market.

8 NOTE: The illustration is schematic - details may vary depending on car model.

}}

* Option/accessory.

197

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

once there, search for the Distance Alert func-

NOTE

tion.

Distance warning is deactivated during the

The higher the speed the longer the calcula-

time the adaptive cruise control is active.

Set time interval

ted distance in metres for a given time inter-

val.

The set time interval is also used by the func-

WARNING

tion adaptive cruise control (p. 202).

Distance warning only reacts if the distance

to the vehicle ahead is shorter than the preset

Only use the time intervals permitted by local

value - the speed of the driver's vehicle is not

traffic regulations.

affected.

Related information

Operation

•

Distance Warning* - limitations (p. 199)

•

Distance Warning* - symbols and messages

(p. 200)

Controls and symbol for time interval.

Time interval - Increase/decrease.

Time interval - On.

Different time intervals to the

vehicle in front can be selected

and shown in the combined

instrument panel as 1-5 hori-

zontal lines - the more lines the

Press the button in the centre console to switch

longer the time interval. One

the function on or off. The function is switched on

line corresponds to

if one lamp is illuminated in the button.

approximately 1 second to the vehicle in front,

5 lines approximately 3 seconds.

Some combinations of the selected equipment

leave no vacant space for a button in the centre

The same symbol is also shown when adaptive

console - in which case, the function is operated

cruise control (p. 201) is activated.

in the car's menu system MY CAR (p. 113) -

198

* Option/accessory.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DRIVER SUPPORT

Distance Warning* - limitations

Related information

•

Distance Warning* (p. 197)

This function, which uses the same radar sensor

•

Distance Warning* - symbols and messages

as Adaptive cruise control (p. 201) and Collision

(p. 200)

warning with auto brake (p. 227), has certain lim-

itations.

NOTE

Strong sunlight, reflections or strong varia-

tions in light intensity, as well as wearing sun-

glasses, could mean that the warning light in

the windscreen cannot be seen.

Poor weather or winding roads could affect

the radar sensor's capacity to detect vehicles

in front.

The size of other vehicles could also affect

detection capacity, e.g. motorcycles. This

could mean that the warning lamp illuminates

at a shorter distance than the setting or that

the warning is temporarily absent.

Extremely high speeds can also cause the

lamp to illuminate at a shorter distance than

that set due to limitations in sensor range.

For further information on radar sensor limita-

tions, see Radar sensor - limitations (p. 214) and

Collision warning system* - operation (p. 231).

* Option/accessory.

199

Volvo V40 Cross Country (2019 year). Manual in english - page 8
