Volvo C70 Convertible (2010 year). Instruction

09 Maintenance and servicing

Battery

220

No smoking, no open flames,
no sparks

Explosion

Battery replacement

Removing the battery

Switch off the ignition and remove the key.

Wait at least 5 minutes after switching off
the ignition before disconnecting the bat-
tery so that all information in the vehicle's
electrical system can be stored in the con-
trol modules.

Remove the cover over the battery.

Disconnect the battery negative (ground)
cable.

Disconnect the positive cable.

Remove the front side of the battery box
with a screwdriver.

Release the clamp holding the battery.

Lift out the battery.

Installing a new battery

Put the battery in place in the engine com-
partment.

Install the battery's retaining clamp.

Reinstall the front side of the battery box.

Connect the positive cable.

Connect the ground cable.

Reinstall the cover over the battery.

NOTE

Used batteries should be properly disposed
of at a recycling station or similar facility, or
taken to your Volvo retailer.

WARNING

•

Never expose the battery to open flame
or electric spark.

•

Do not smoke near the battery.

•

Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.

09 Maintenance and servicing

Replacing bulbs

221

Introduction

Before replacing bulbs in your vehicle, please
keep the following points in mind:

NOTE

Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.

The optional Dual Xenon headlight bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by a
trained and qualified Volvo service techni-
cian.

Certain bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian:

•

Courtesylighting

•

Reading lights

•

Glove compartment lights

•

Turn signals and courtesy lights in the
side door mirrors

•

High-mounted brake lights

•

Dual Xenon headlights, Brake lights

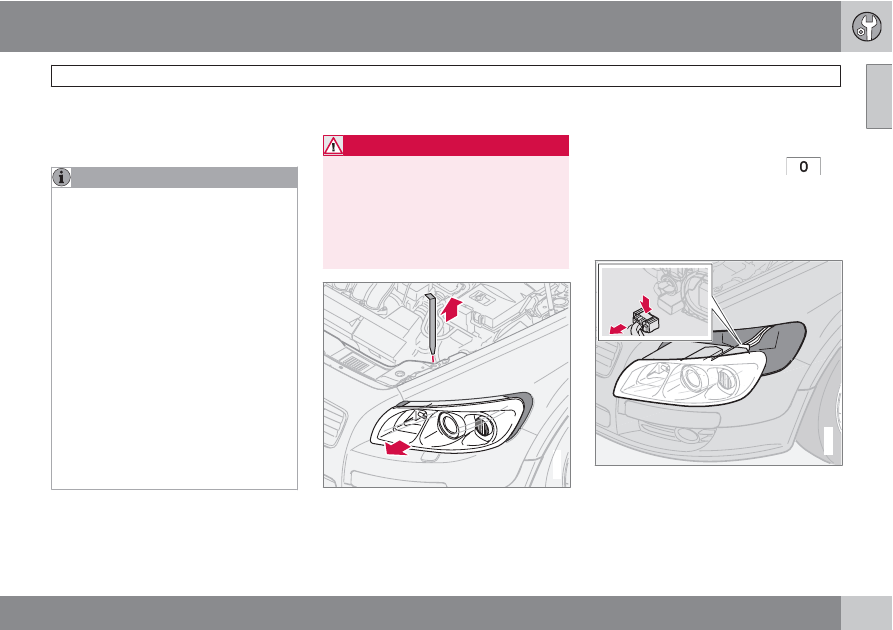

Removing the headlight housing

WARNING

•

The engine should not be running when
changing bulbs.

•

When changing in the headlight hous-
ing, if the engine has been running just
prior to replacing bulbs, please be
aware that components in the engine
compartment will be hot.

G007334

The entire headlight housing must be lifted out
when replacing the high/low beam, parking

light, turn signal, and side marker bulbs. To lift
out the housing:

Remove the key from the ignition and turn

the headlight switch to position

Open the hood.

Pull up the headlight housing's retaining
pin.

Pull out the headlight housing.

G007612

Disconnect the wiring connector by press-
ing down the clip with your thumb while at
the same time pulling the connector with
your other hand.

09 Maintenance and servicing

Replacing bulbs

222

Option/accessory, for more information, see Introduction.

Lift out the headlight housing and place it
on a soft surface to avoid scratching the
lens.

CAUTION

When disconnecting the connector, pull on
the connector itself and not on the wiring.

After the defective bulb has been replaced,
reinsert the housing in the reverse order. Check
that the retaining pin is correctly inserted.

WARNING

Dual Xenon headlights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a trained
and qualified Volvo service technician.

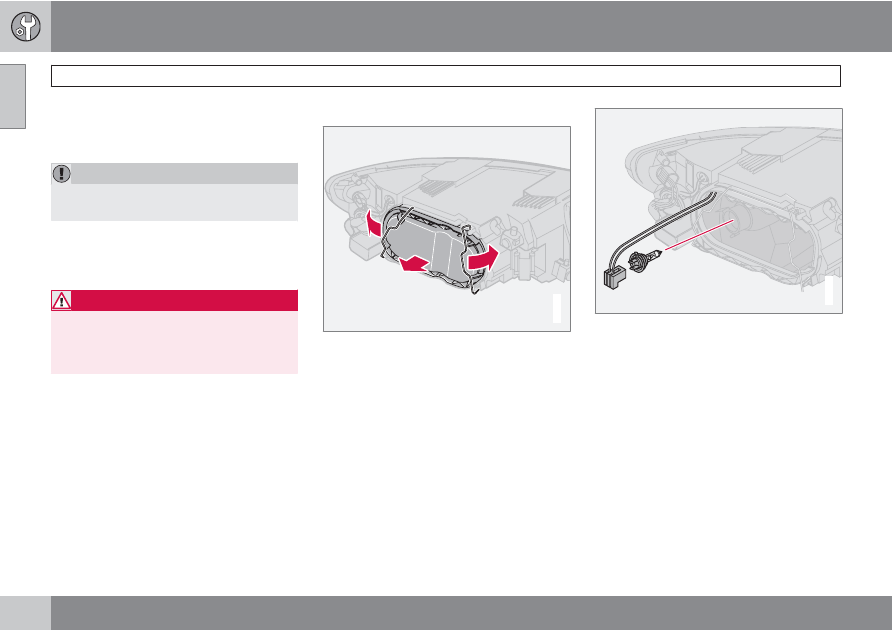

Low beam bulb

G020255

Cover with retaining clamps

Open the hood and remove the headlight
housing (see page 221 for instructions).

Release the retaining clamps on the cover.

Release the bulb's retaining spring holding
the bulb in place by pressing it first to the
left and then moving it outward and down-
ward.

Pull out the bulb.

G007339

Low beam bulb

Installing a new bulb

Insert the new bulb. It can only be installed
in one position.

Press the retaining spring inward and
upward and slightly to the right until it
snaps into place.

Press the wiring connector onto the bulb.

Put the plastic cover in place.

Press the retaining clamps back into place.

Reinstall the headlight housing (see
page 221).

09 Maintenance and servicing

Replacing bulbs

Option/accessory, for more information, see Introduction.

223

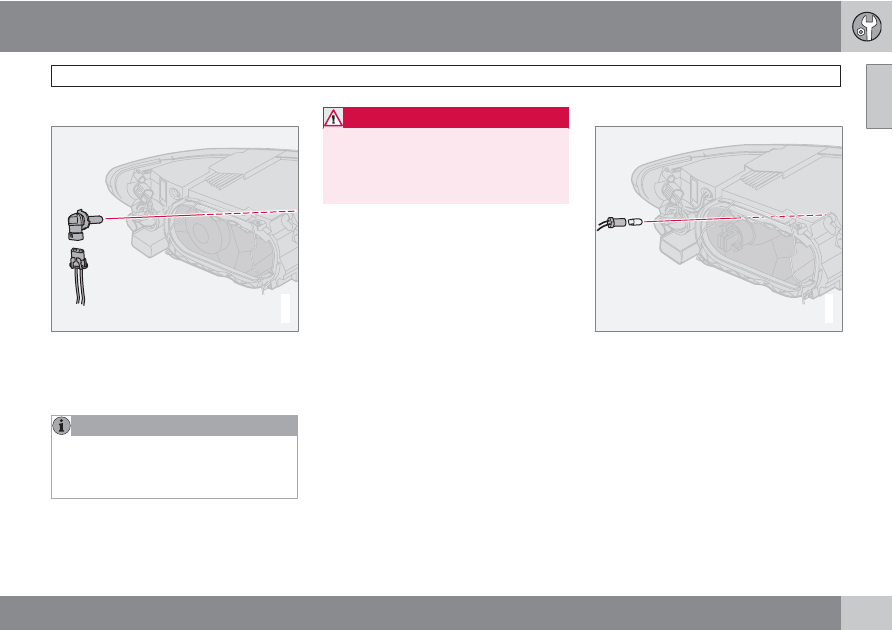

High beam bulb

G007338

Halogen high beam bulb

Open the hood.

Remove the headlight housing (see
page 221).

NOTE

The halogen high beam bulb has a different
socket on vehicles equipped with the
optional Dual Xenon headlights. On these
models, pull the bulb straight out.

WARNING

Dual Xenon headlights* – due to the high
voltage used by these headlights, the Dual
Xenon bulbs should only be replaced by a
trained and qualified Volvo service techni-
cian.

Driver's side headlight: Turn the bulb
holder counterclockwise.

Passenger's side headlight: Turn the bulb
holder clockwise.

Pull out the bulb holder and replace the
bulb.

Reinstall the bulb holder. It can only be
installed in one position.

Reinstall the headlight housing (see
page 221).

Parking light bulb

G007392

Pull out the bulb holder with a pair of pliers.
The bulb holder should not be pulled out
by the wire.

Replace the bulb.

Press the bulb holder back into place. It
can only be installed in one position.

09 Maintenance and servicing

Replacing bulbs

224

Option/accessory, for more information, see Introduction.

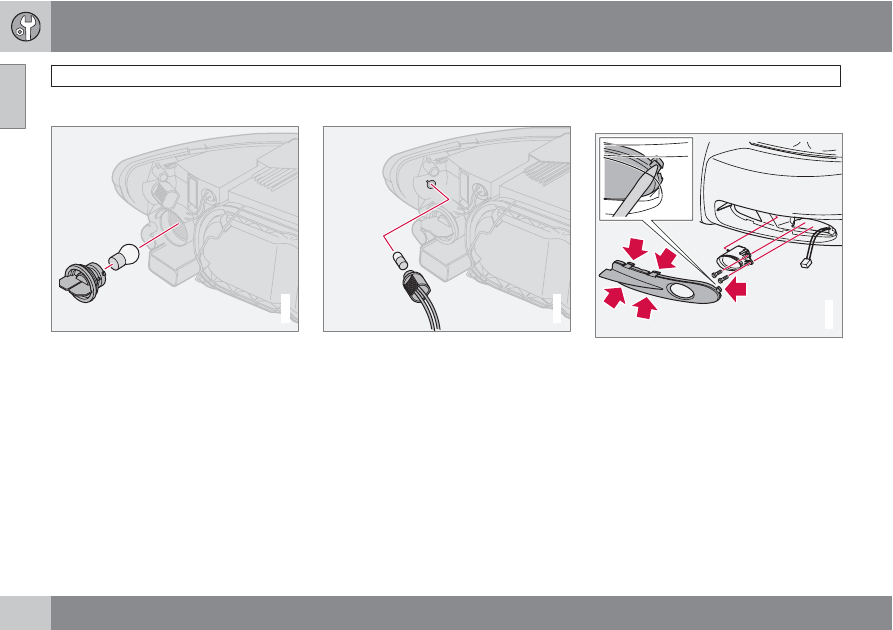

Turn signal

G007393

Turn the bulb holder counterclockwise and
remove it.

Remove the bulb from the holder by press-
ing it in and twisting it counterclockwise.

Insert a new bulb and reinstall the bulb
holder in the headlight housing.

Side marker light

G007394

Turn the bulb holder counterclockwise,
pull it out, and replace the bulb.

Reinstall the bulb holder. It can only be
installed in one position.

Front fog lights*

G021046

Switch off all lights and turn the key to
position 0.

Remove the panel around the fog light
housing.

Unscrew both torx screws in the fog light
housing and remove it.

Disconnect the connector from the bulb.

Turn the bulb counterclockwise and pull it
out.

Install the new bulb in its seat and turn it
clockwise.

Reconnect the connector to the bulb.

09 Maintenance and servicing

Replacing bulbs

225

Secure the fog light housing with the
screws and press the panel back into
place.

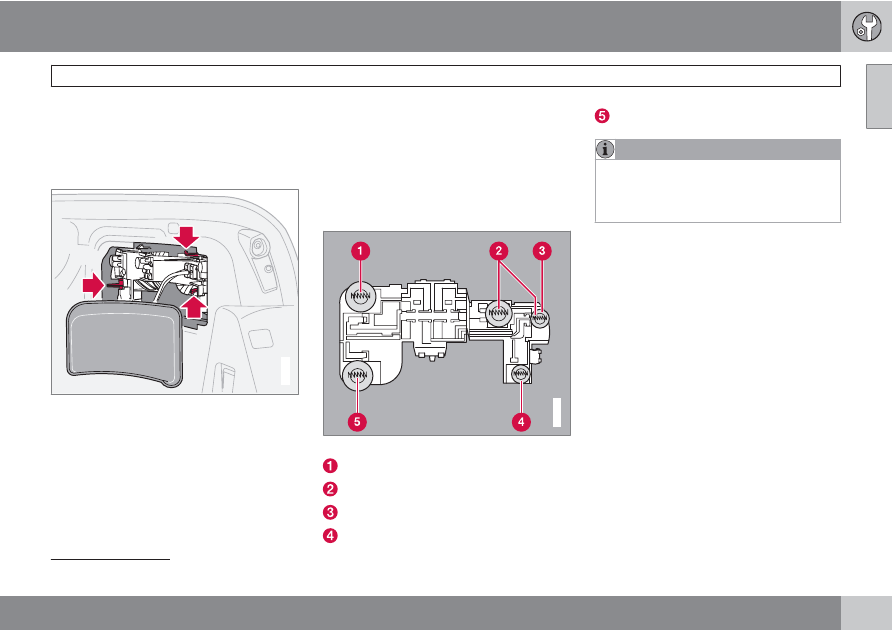

Removing the taillight bulb holder

G020963

All bulbs in the taillight cluster can be replaced
from the trunk. To access the bulb holders:

Switch off all lights and turn the key to
position 0.

Remove the covers in the left/right panels
to access the bulb holders.

Disconnect the wiring connector from the
affected bulb holder.

Press the catches together and pull out the
bulb holder.

Replace the defective bulb.

Press the bulb holder into place and rein-
stall the cover.

Location of taillight bulbs

G020964

Location of taillight bulbs

Brake light (LED)

Taillight/parking light

Fog light (driver's side only)

Turn signal

Back-up light

NOTE

If the message indicating a burned out bulb
remains in the information display after the
bulb has been replaced, consult a trained
and qualified Volvo service technician.

High-level brake light

These bulbs should only be replaced by a
trained and qualified Volvo service technician.

The wiring to the LED brake lights is permanently connected to the bulb holder. It should not be removed.

09 Maintenance and servicing

Replacing bulbs

226

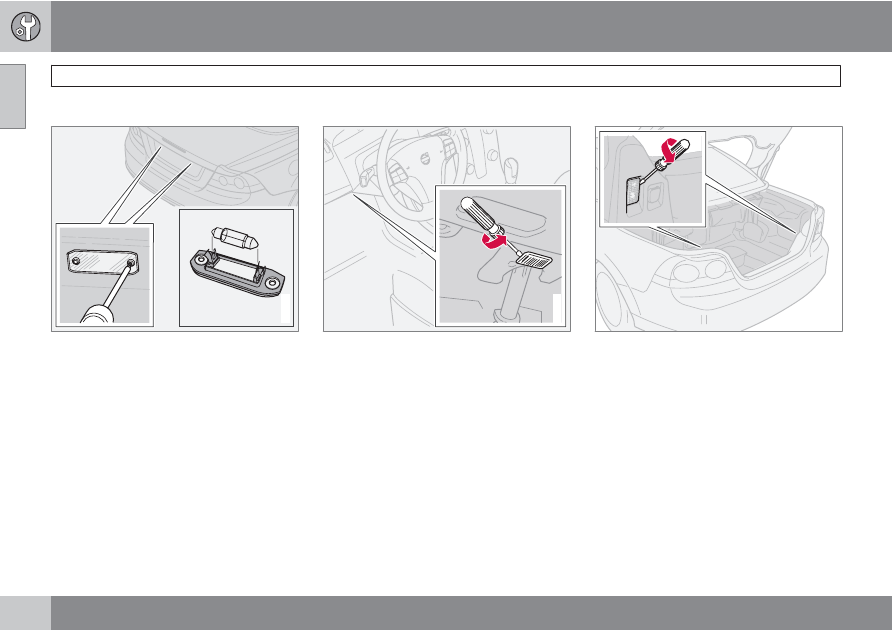

License plate lighting

G020965

Switch off all lights and turn the key to
position 0.

Remove the screws with a screw driver.

Detach the lens (bulb housing) carefully.

Replace the defective bulb.

Reinstall the entire bulb housing and screw
it into place.

Footwell lighting

G020795

The footwell lighting is located under the dash-
board on the driver's and passenger's sides.
To replace a bulb:

Insert a screwdriver under the edge of the
lens. Turn the screwdriver gently to detach
the lens.

Remove the defective bulb.

Install a new bulb.

Press the lens back into place.

Trunk lighting

G020968

Insert a screwdriver and turn it gently to
detach the bulb housing.

Remove the defective bulb.

Install a new bulb.

Press the bulb housing back into place.

09 Maintenance and servicing

Replacing bulbs

227

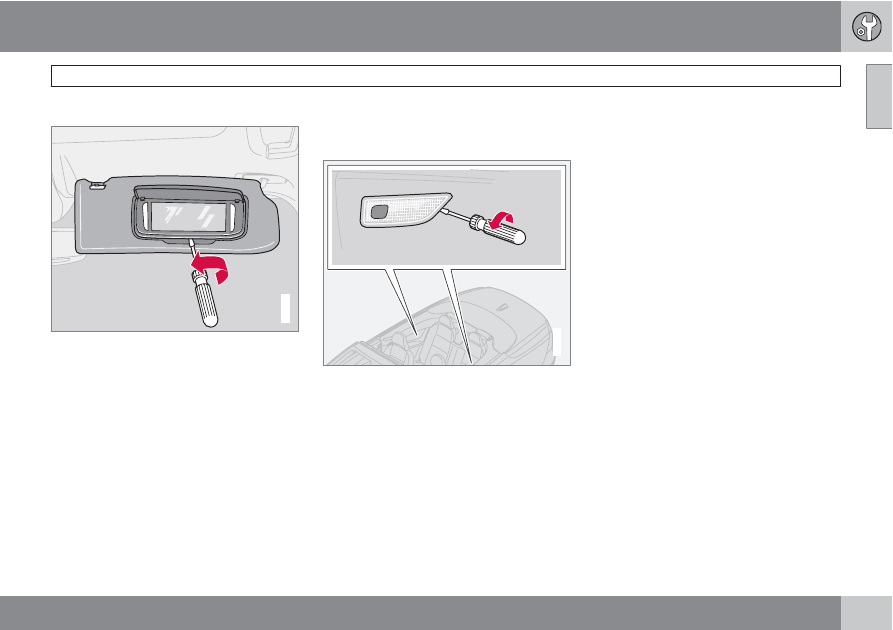

Vanity mirror lighting

G020253

Insert a screwdriver under the center of the
lower edge of the mirror, turn it, and care-
fully pry up the lugs at the edge.

Move the screwdriver under the edge on
the left and right-hand sides (near the black
rubber sections) and pry carefully to
release the lower edge of the mirror.

Pry carefully and lift out the entire mirror
and the cover.

Remove the defective bulb and replace it
with a new one.

To reinstall the mirror, begin by pressing
the three lugs at the upper edge of the mir-
ror back into place.

Press the three lower lugs back into place.

Rear reading light bulbs

G020969

Insert a screwdriver and turn it gently to
detach the bulb housing.

Remove the defective bulb.

Install a new bulb.

Press the bulb housing back into place.

09 Maintenance and servicing

Fuses

228

Replacing fuses

There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.

If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.

To do so:

Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.

From the side, examine the curved metal
wire in the fuse to see if it is intact.

If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).

If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.

WARNING

Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing

Fuses

229

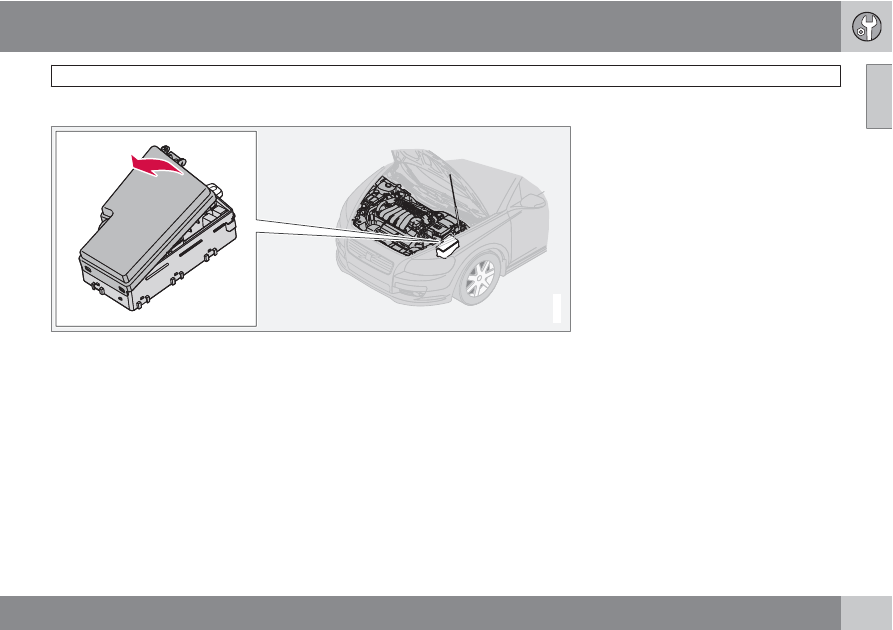

Fuse box in the engine compartment

G007446

The fuse box in the engine compartment has
positions for 36 fuses.

•

Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.

•

Fuses 19–36 may be changed at any time
when necessary.

Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing

Fuses

230

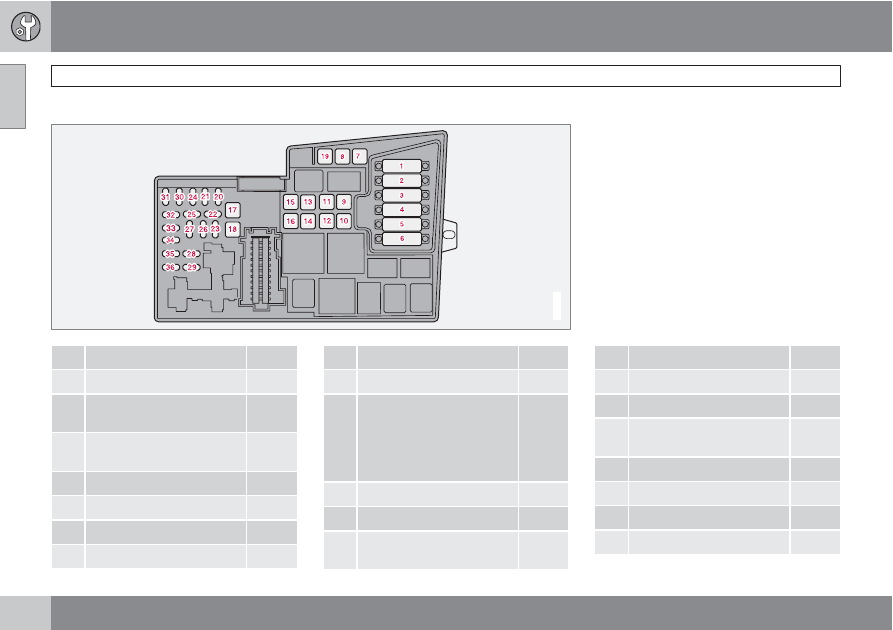

Fuses in the engine compartment

G020250

Coolant fan (radiator)

50A

Power steering

80A

Feed to passenger com-
partment fuse box

60A

Feed to passenger com-
partment fuse box

60A

Element, climate unit

80A

Not in use

ABS pump

30A

ABS valves

20A

Engine functions

30A

10.

Climate system blower

40A

11.

Headlight washers

Headlight washers, climate
system blower, power
retractable hard top, lock-
ing storage compartments

20A

12.

Feed to heated rear window

30A

13.

Starter motor relay

30A

14.

Trailer connector (acces-
sory)

40A

15.

Power retractable hard top

30A

16.

Feed to audio system

40A

17.

Windshield wipers

30A

18.

Feed to passenger com-
partment fuse box

40A

19.

Not in use

20.

Horn

15A

21.

Not in use

22.

Subwoofer

25A

09 Maintenance and servicing

Fuses

Option/accessory, for more information, see Introduction.

231

23.

Engine control module
(ECM)/transmission control
module (TCM)

10A

24.

Not in use

25.

Not in use

26.

Ignition switch

15A

27.

A/C compressor

10A

28.

Not in use

29.

Front fog lights*

15A

30.

Not in use

31.

Not in use

32.

Fuel injectors

10A

33.

Heated oxygen sensor, vac-
uum pump

20A

34.

Ignition coils, climate unit
pressure sensor

10A

35.

Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter

15A

36.

Engine control module
(ECM), throttle sensor

10A

09 Maintenance and servicing

Fuses

232

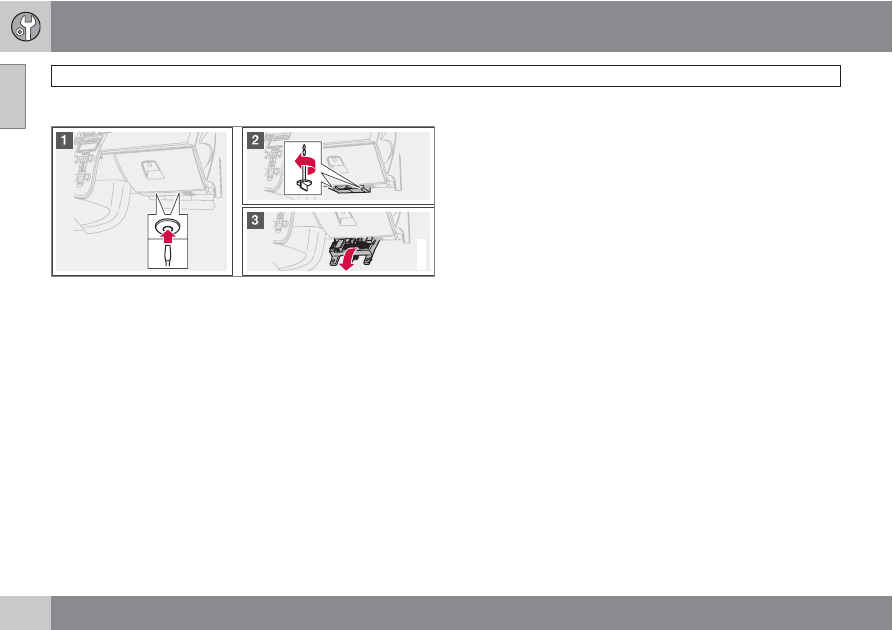

Fuse box in the passenger compartment

G020601

The fuse box in the passenger compartment is
located under the glove compartment.

To access the fuses:

Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the pins out.

Turn both retaining screws (2) counter-
clockwise until they release.

Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.

Replace the blown fuse.

Close the fuse box in reverse order.

Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.

09 Maintenance and servicing

Fuses

Option/accessory, for more information, see Introduction.

233

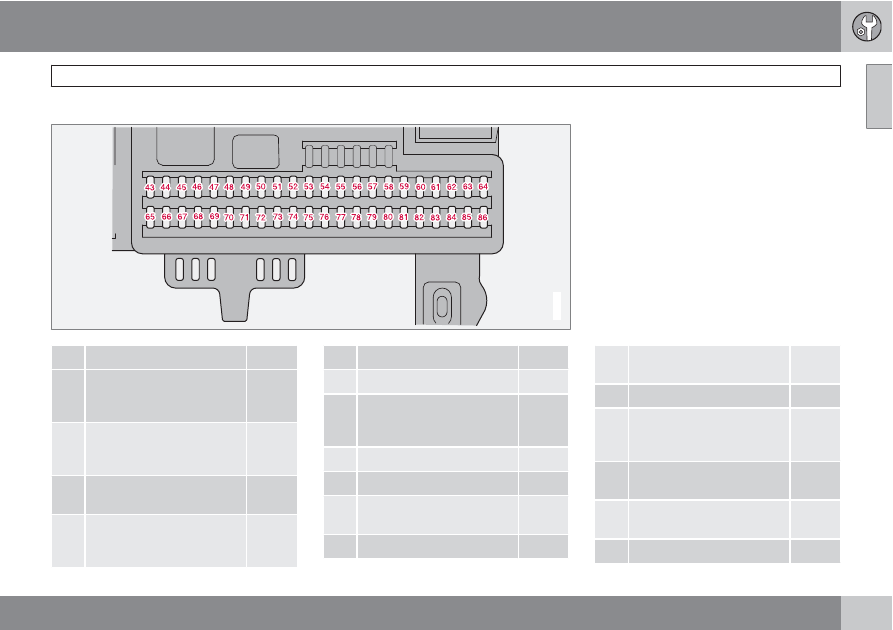

Fuses in the passenger compartment

G020246

Fuse 37-42, not in use

43.

Audio system, Blue-
tooth,Volvo Navigation sys-
tem*

15A

44.

Supplemental Restrain Sys-
tem (SRS), engine control
module

10A

45.

12-volt socket in passeng-
er's compartment

15A

46.

Lighting – glove compart-
ment, instrument panel, and
footwells

47.

Interior lighting

48.

Windshield washers

15A

49.

Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)

10A

50.

Not in use

51.

Fuel filter relay

10A

52.

Transmission control mod-
ule (TCM), ABS

53.

Power steering

10A

54.

Park assist*, Dual Xenon
headlights*

10A

55.

Not in use

56.

Volvo Navigation System
remote key module, alarm
siren control module

10A

57.

On-board diagnostic
socket, brake light switch

15A

58.

Right high beam, auxiliary
lights relay

7.5A

59.

Left high beam

7.5A

09 Maintenance and servicing

Fuses

234

Option/accessory, for more information, see Introduction.

60.

Heated driver's seat*

15A

61.

Heated passenger's seat*

15A

62.

Not in use

63.

Power window – rear pas-
senger's side

20A

64.

Volvo Navigation system*,
lock indicator lights in door
panels

65.

Audio system

66.

Audio system control mod-
ule (ICM), climate system

10A

67.

Not in use

68.

Cruise control

69.

Climate system, rain sen-
sor*, BLIS button*

70.

Not in use

71.

Not in use

72.

Not in use

73.

Front ceiling lighting

74.

Fuel pump relay

15A

75.

Not in use

76.

Not in use

77.

12-volt socket in trunk, aux-
iliary equipment control
module (AEM)

15A

78.

Not in use

79.

Back-up lights

80.

Not in use

81.

Power window and door
lock – rear driver's side

82.

Power window – front pas-
senger's side door

25A

83.

Power window and door
lock – front driver's side
door

25A

84.

Power passenger's seat

25A

85.

Power driver's seat

25A

86.

Interior lighting relay, trunk
lighting, power seats

10 Audio

Audio functions

238

Option/accessory, for more information, see Introduction.

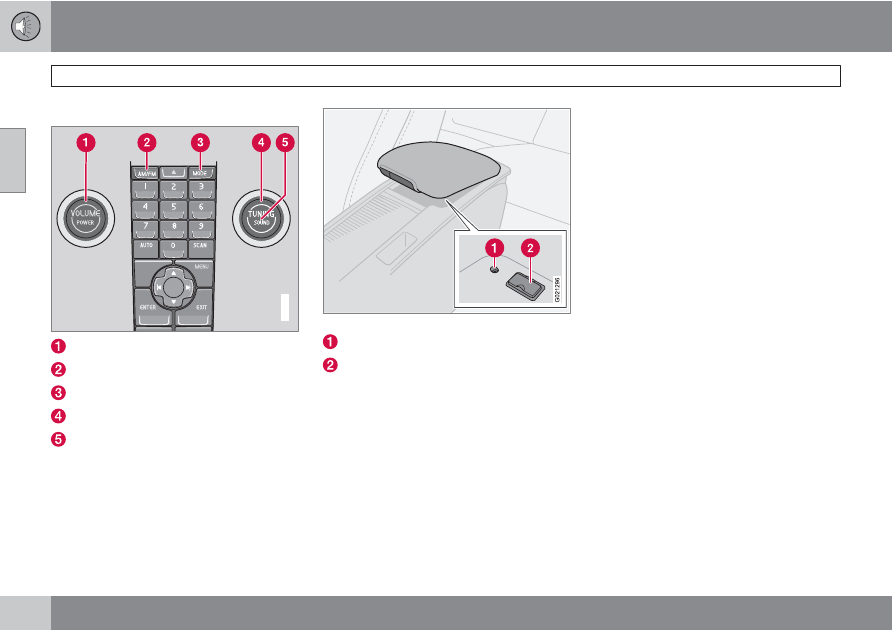

Audio system controls

G026347

VOLUME dial

AM/FM – select a radio band

MODE – select a sound source

TUNING dial

SOUND button

Auxiliary connector

AUX port

USB connector*

Selecting a sound source

Press AM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.

Press MODE (3) repeatedly to toggle
between the CD player and the optional
external sound source AUX, USB or the
optional Sirius satellite radio.

The currently selected sound source will be
shown in the display.

AUX

The AUX (auxiliary) port, located under the cen-
ter armrest, can be used to connect for exam-
ple, an MP3 player.

If the player is being charged through a 12-volt
socket while it is connect to the AUX port,
sound quality may be impaired.

The volume of the external sound source AUX
may be different from the volume of the internal
sound sources such as the CD player or the
radio. If the external sound source's volume is
too high, the quality of the sound may be
impaired.

This can be prevented by adjusting the external
sound source's input volume.

While playing the radio or a CD, lower the
audio volume to about one-quarter.

Switch to

AUX

mode on the audio system

by pressing the MODE button.

Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.

Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.

Volvo C70 Convertible (2010 year). Instruction - part 13
