Volvo C30 (2013 year). Instruction - part 1





01 Safety

Seat belts

01

20

Using seat belts

G020104

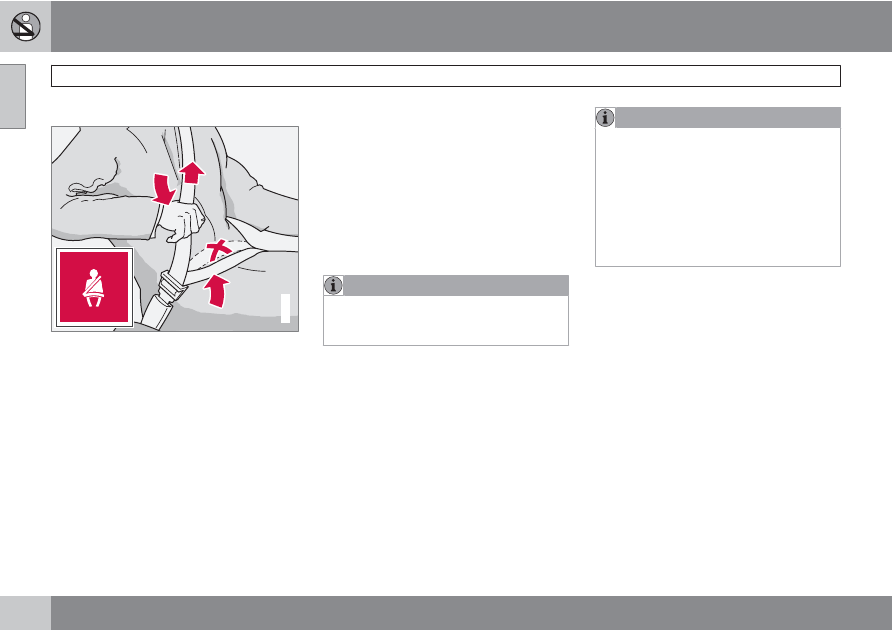

Adjusting the seat belt

Seat belts should always be worn by all occu-
pants of your vehicle. Children should be prop-
erly restrained, using an infant, car, or booster
seat determined by age, weight and height.

Volvo also believes no child should sit in the
front seat of a vehicle.

Most states and provinces make it mandatory
for occupants of a vehicle to use seat belts.

Seat belt pretensioners

All seat belts are equipped with pretensioners
that reduce slack in the belts. These preten-
sioners are triggered in situations where the
front or side impact airbags deploy, and in cer-

tain impacts from the rear. The front seat belts
also include a tension reducing device which,
in the event of a collision, limits the peak forces
exerted by the seat belt on the occupant.

Buckling a seat belt

Pull the belt out far enough to insert the latch
plate into the receptacle until a distinct click is
heard. The seat belt retractor is normally
"unlocked" and you can move freely, provided
that the shoulder belt is not pulled out too far.

NOTE

The seat belt is easiest to reach by grasping
it near the lower seat belt guide, not over the
shoulder.

The seat belt retractor will lock up in the fol-
lowing situations:

if the belt is pulled out rapidly

during braking and acceleration

if the vehicle is leaning excessively

when driving in turns

if the Automatic Locking Retractor/Emer-
gency Locking Retractor (ALR/ELR) is acti-
vated

NOTE

Each seat belt (except for the driver's belt)
is equipped with the ALR/ELR function,
which is designed to help keep the seat belt
taut. ALR/ELR activates if the seat belt is
pulled out as far as possible. If this is done,
a sound from the seat belt retractor will be
audible, which is normal, and the seat belt
will be pulled taut and locked in place. This
function is automatically disabled when the
seat belt is unbuckled and fully retracted.

See also page 39 for information about using
a seat belt's ALR/ELR function to anchor a
child seat.

When wearing the seat belt remember:

The belt should not be twisted or turned.

The lap section of the belt must be posi-
tioned low on the hips (not pressing against
the abdomen).

Make sure that the shoulder belt is rolled
up into its retractor and that the shoulder
and lap belts are taut.

Unbuckling the seat belt

To remove the seat belt, press the red sec-
tion on the seat belt receptacle. Before
exiting the vehicle, check that the seat belt
retracts fully after being unbuckled. If nec-
essary, guide the belt back into the retrac-
tor slot.

01 Safety

 Seat belts

01

21

WARNING

Never use a seat belt for more than one
occupant. Never wear the shoulder portion
of the belt under the arm, behind the back
or otherwise out of position. Such use could
cause injury in the event of an accident. As
seat belts lose much of their strength when
exposed to violent stretching, they should
be replaced after any collision, even if they
appear to be undamaged.

WARNING

Never repair the belt yourself; have this
work done by a trained and qualified
Volvo service technician only.

Any device used to induce slack into the
shoulder belt portion of the three-point
belt system will have a detrimental
effect on the amount of protection avail-
able to you in the event of a collision.

The seat back should not be tilted too
far back. The shoulder belt must be taut
in order to function properly.

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children who have outgrown these
devices sit in the rear seat with the seat
belt properly fastened.

Seat belt guides

G020106

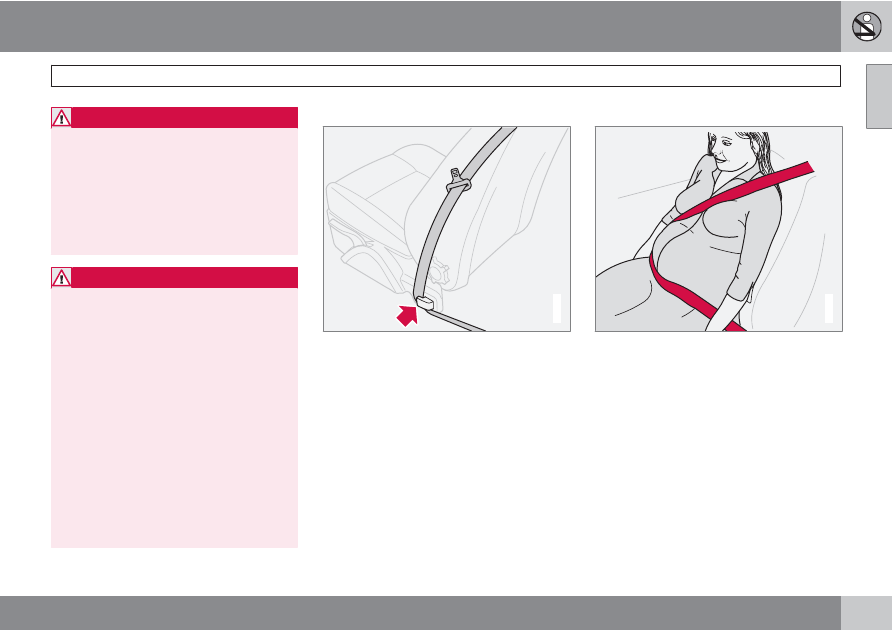

Seat belt guides (on both front seats)

These guides are designed to help provide
easier access to the seat belts. A belt can be
taken out of the guide and slid to the rearmost
part of the lower seat belt anchorage rod to
make it easier for passengers to enter or exit
the rear seat.

Seat belt use during pregnancy

G020105

The seat belt should always be worn during
pregnancy. But it is crucial that it be worn in the
correct way. The diagonal section should wrap
over the shoulder then be routed between the
breasts and to the side of the belly. The lap
section should lay flat over the thighs and as
low as possible under the belly. It must never
be allowed to ride upward. Remove all slack
from the belt and insure that it fits close to the
body without any twists.

As a pregnancy progresses, pregnant drivers
should adjust their seats and steering wheel
such that they can easily maintain control of the
vehicle as they drive (which means they must
be able to easily operate the foot pedals and

01 Safety

Seat belts

01

22

steering wheel). Within this context, they
should strive to position the seat with as large
a distance as possible between their belly and
the steering wheel.

Child seats

Please refer to page 40 for information on
securing child seats with the seat belts.

Seat belt reminder

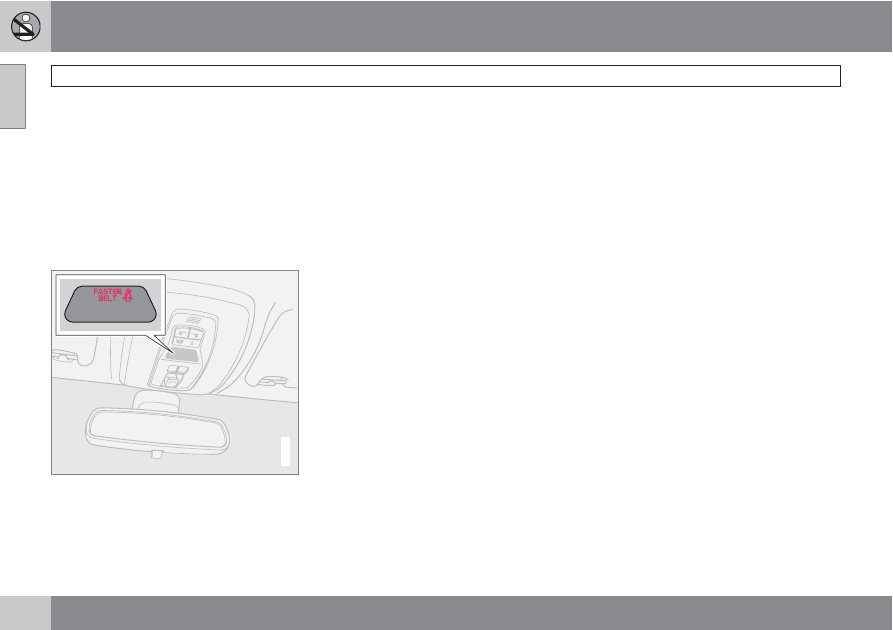

G018084

Seat belt reminder light in ceiling console

The seat belt reminder consists of an audible
signal, an indicator light near the rearview mir-
ror and a symbol in the instrument panel that
alert all occupants of the vehicle to fasten their

seat belts. The audible signal and warning light
will be on for a total of 6 seconds from the time
the ignition is switched on, regardless of
whether or not
 the seat belts are fastened.

If the front seat belts are unbuckled while the
vehicle is in motion, the audible signal and
warning light will be active for a total of 6 sec-
onds.

Rear seats

The seat belt reminder in the rear seat has two
additional functions:

It provides information about which seat
belts are fastened in the rear seat. A mes-
sage will appear in the information display
when a belt is being used. This message
will disappear after approximately 6 sec-
onds or can be erased by pressing the
READ button on the left steering wheel
lever.

It also provides a reminder if one of the
occupants of the rear seat has unbuckled
his/her seat belt while the vehicle is in
motion. A visual and audible signal will be
given. These signals will stop when the
seat belt has been re-buckled or can be
stopped by pressing the READ button.

The message in the information display can
always be accessed, even if it has been erased,
by pressing the READ button to display stored
messages.

Seat belt maintenance

Check periodically that the seat belts are in
good condition. Use water and a mild deter-
gent for cleaning. Check seat belt mechanism
function as follows: attach the seat belt and pull
rapidly on the strap.

01 Safety

 Supplemental Restraint System

01

23

Supplemental Restraint System (SRS)

G026330

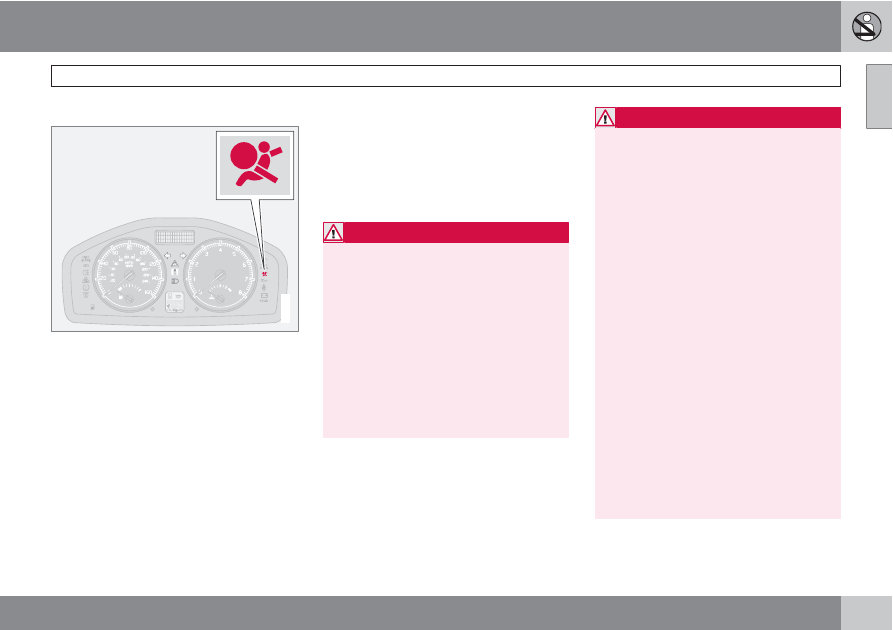

SRS warning light

As an enhancement to the three-point seat
belts, your Volvo is equipped with a Supple-
mental Restraint System (SRS). Volvo's SRS
consists of seat belt pretensioners, front air-
bags, side impact airbags, the occupant
weight sensor, and inflatable curtains. All of
these systems are monitored by the SRS con-
trol module. An SRS warning light in the instru-
ment panel (see the illustration) illuminates
when the ignition key is turned to position III,
or III, and will normally go out after approxi-
mately 7 seconds if no faults are detected in
the system.

Where applicable, a text message will also be
displayed when the SRS warning light illumi-
nates. If this warning symbol is not functioning
properly, the general warning symbol illumi-
nates and either

SRS AIRBAG SERVICE

URGENT

 or

SRS AIRBAG SERVICE

REQUIRED

will be displayed.

WARNING

If the SRS warning light stays on after
the engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified
Volvo service technician as soon as
possible.

Never try to repair any component or
part of the SRS yourself. Any interfer-
ence in the system could cause mal-
function and serious injury. All work on
these systems should be performed by
a trained and qualified Volvo service
technician.

WARNING

If your vehicle has been subjected to flood
conditions (e.g. soaked carpeting/standing
water on the floor of the vehicle) or if your
vehicle has become flood-damaged in any
way, do not attempt to start the vehicle or
put the key in the ignition before discon-
necting the battery (see below). This may
cause airbag deployment which could result
in personal injury. Have the vehicle towed to
a trained and qualified Volvo service tech-
nician for repairs.

Automatic transmission

Before attempting to tow the vehicle, use
the following procedure to override the
shiftlock system to move the gear selector
to the neutral position:

1.

Switch off the ignition for at least
10 minutes and disconnect the battery.

2.

Wait at least one minute.

3.

Insert the key in the ignition and turn it
to position II.

4.

Press firmly on the brake pedal.

5.

Move the gear selector from Park (P) to
the Neutral (N) position, see page 158,
for information on manually overriding
the shiftlock system.

01 Safety

Supplemental Restraint System

01

24

The front airbag system

G0201

11

The front airbags supplement the three-point
seat belts. For these airbags to provide the
protection intended, seat belts must be worn
at all times.

The front airbag system includes gas genera-
tors surrounded by the airbags, and decelera-
tion sensors that activate the gas generators,
causing the airbags to be inflated with nitrogen
gas.

G015167

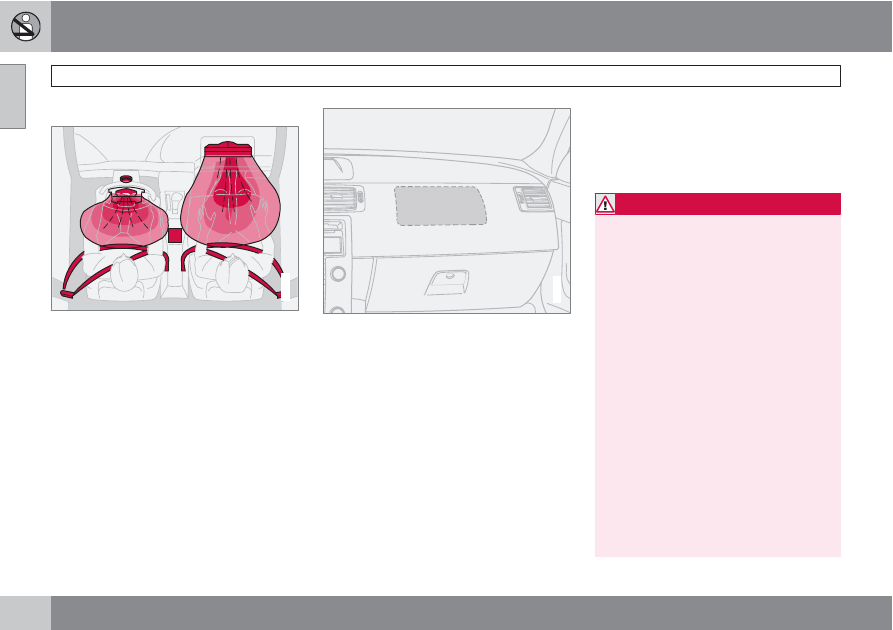

Location of the passenger's side front airbag

As the movement of the seats' occupants com-
presses the airbags, some of the gas is expel-
led at a controlled rate to provide better cush-
ioning. Both seat belt pretensioners also
deploy, minimizing seat belt slack. The entire
process, including inflation and deflation of the
airbags, takes approximately one fifth of a sec-
ond.

The location of the front airbags is indicated by
SRS AIRBAG embossed on the steering wheel
pad and above the glove compartment, and by
decals on both sun visors and on the front and
far right side of the dash.

The driver's side front airbag is folded and
located in the steering wheel hub.

The passenger's side front airbag is folded
behind a panel located above the glove
compartment.

WARNING

The airbags in the vehicle are designed
to be a SUPPLEMENT to-not a replace-
ment for-the three-point seat belts. For
maximum protection, wear seat belts at
all times. Be aware that no system can
prevent all possible injuries that may
occur in an accident.

Never drive a vehicle with your hands on
the steering wheel pad/airbag housing.

The front airbags are designed to help
prevent serious injury. Deployment
occurs very quickly and with consider-
able force. During normal deployment
and depending on variables such as
seating position, one may experience
abrasions, bruises, swellings, or other
injuries as a result from deployment of
one or both of the airbags.

When installing any accessory equip-
ment, make sure that the front airbag
system is not damaged. Any interfer-
ence in the system could cause mal-
function.

01 Safety

 Supplemental Restraint System

01

25

Front airbag deployment

The front airbags are designed to deploy
during certain frontal or front-angular col-
lisions, impacts, or decelerations, depend-
ing on the crash severity, angle, speed and
object impacted. The airbags may also
deploy in certain non-frontal collisions
where rapid deceleration occurs.

The SRS sensors, which trigger the front
airbags, are designed to react to both the
impact of the collision and the inertial
forces generated by it, and to determine if
the intensity of the collision is sufficient for
the seat belt pretensioners and/or airbags
to be deployed.

However, not all frontal collisions activate the
front airbags.

If the collision involves a nonrigid object
(e.g., a snow drift or bush), or a rigid, fixed
object at a low speed, the front airbags will
not necessarily deploy.

Front airbags do not normally deploy in a
side impact collision, in a collision from the
rear or in a rollover situation.

The amount of damage to the bodywork
does not reliably indicate if the airbags
should have deployed or not.

NOTE

Deployment of front airbags occurs only
one time during an accident. In a colli-
sion where deployment occurs, the air-
bags and seat belt pretensioners acti-
vate. Some noise occurs and a small
amount of powder is released. The
release of the powder may appear as
smoke-like matter. This is a normal
characteristic and does not indicate fire.

Volvo's front airbags use special sen-
sors that are integrated with the front
seat buckles. The point at which the air-
bag deploys is determined by whether
or not the seat belt is being used, as well
as the severity of the collision.

Collisions can occur where only one of
the airbags deploys. If the impact is less
severe, but severe enough to present a
clear injury risk, the airbags are trig-
gered at partial capacity. If the impact is
more severe, the airbags are triggered
at full capacity.

Should you have questions about any compo-
nent in the SRS system, please contact a
trained and qualified Volvo service technician
or Volvo customer support:

In the USA

Volvo Cars of North America, LLC

Customer Care Center

1 Volvo Drive

P.O. Box 914

Rockleigh, New Jersey 07647

1-800-458-1552

www.volvocars.us

In Canada

Volvo Cars of Canada Corp.

National Customer Service

175 Gordon Baker Road

North York, Ontario M2H 2N7

1-800-663-8255

www.volvocars.ca

01 Safety

Supplemental Restraint System

01

26

WARNING

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that occupants under 4 feet 7 inches
(140 cm) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened

1

.

Never drive with the airbags deployed.
The fact that they hang out can impair
the steering of your vehicle. Other
safety systems can also be damaged.

The smoke and dust formed when the
airbags are deployed can cause skin
and eye irritation in the event of pro-
longed exposure.

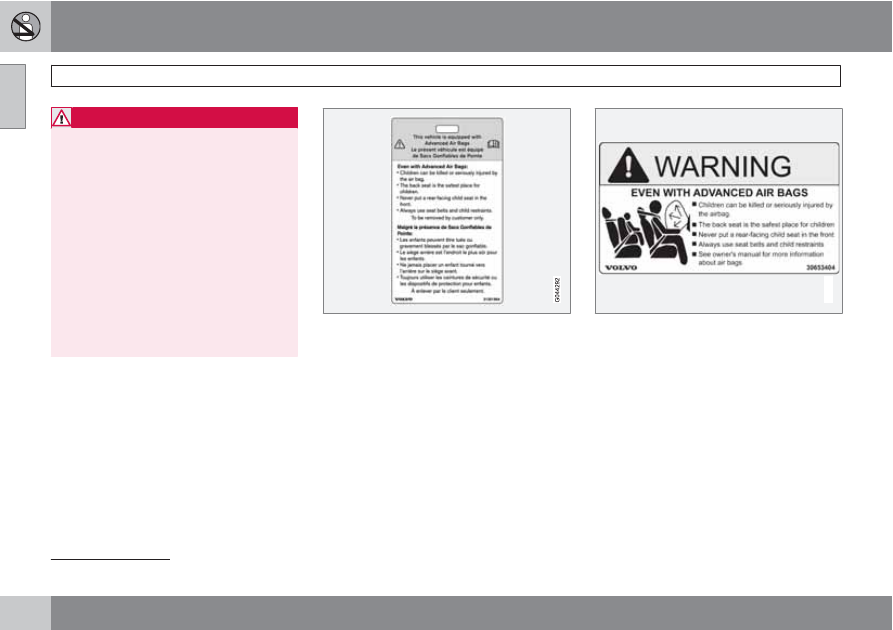

Passenger's side airbag decal

G032934

Airbag decal on the outside of both sun visors

1

See also the Occupant Weight Sensor information on page 28.

01 Safety

 Supplemental Restraint System

01

27

WARNING

Children must never be allowed in the
front passenger's seat.

Occupants in the front passenger's seat
must never sit on the edge of the seat,
sit leaning toward the instrument panel
or otherwise sit out of position.

The occupant's back must be as upright
as comfort allows and be against the
seat back with the seat belt properly
fastened.

Feet must be on the floor, e.g., not on
the dash, seat or out of the window.

WARNING

No objects or accessory equipment,
e.g. dashboard covers, may be placed
on, attached to, or installed near the air
bag hatch (the area above the glove
compartment) or the area affected by
airbag deployment.

There should be no loose articles, e.g.
coffee cups, on the floor, seat, or dash-
board area.

Never try to open the airbag cover on
the steering wheel or the passenger's
side dashboard. This should only be
done by a trained and qualified Volvo
service technician.

Failure to follow these instructions can
result in injury to the vehicle occupants.

01 Safety

Occupant Weight Sensor (OWS)

01

28

Disabling the passenger's side front
airbag

2

G018082

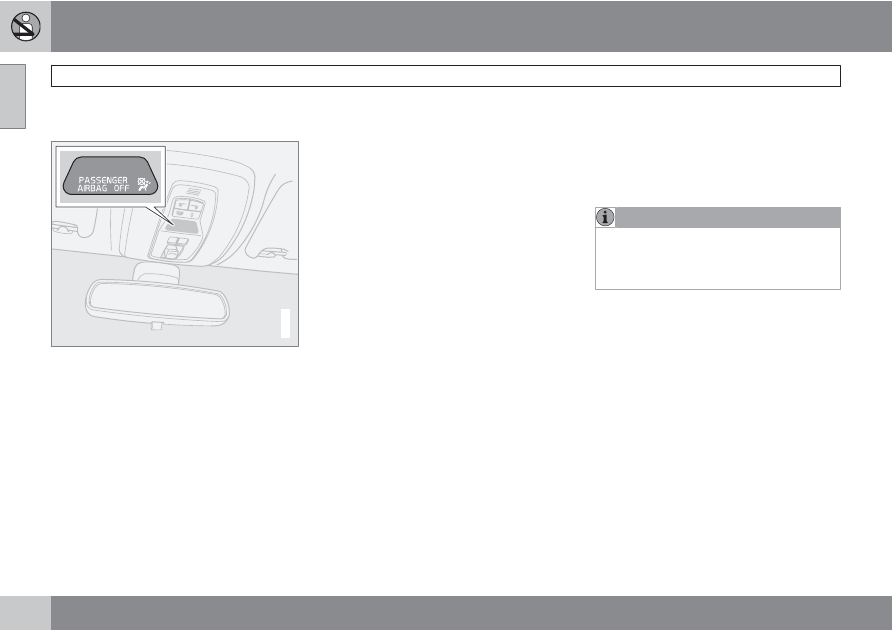

Occupant Weight Sensor (OWS) indicator light

Volvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the rear seat of any vehi-
cle with a passenger's side front airbag, and be
properly restrained. Children should always be
seated in child restraints appropriate for their
size and weight. See also the child safety rec-
ommendations on page 38.

The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements
of Federal Motor Vehicle Safety Standard
(FMVSS) 208 and is designed to disable (will

not inflate) the passenger's side front airbag
under certain conditions.

The OWS works with sensors that are part of
the front passenger's seat and seat belt. The
sensors are designed to detect the presence of
a properly seated occupant and determine if
the passenger's side front airbag should be
enabled (may inflate) or disabled (will not
inflate).

The OWS will disable (will not inflate) the pas-
senger's side front airbag when:

the front passenger's seat is unoccupied,
or has small/medium objects in the front
seat,

the system determines that an infant is
present in a rear-facing infant seat that is
installed according to the manufacturer's
instructions,

the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufac-
turer's instructions,

the system determines that a small child is
present in a booster seat,

a front passenger takes his/her weight off
of the seat for a period of time,

a child or a small person occupies the front
passenger's seat.

The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on
to remind you that the passenger's side front
airbag is disabled. The PASSENGER AIRBAG
OFF
 indicator lamp is located in the overhead
console, near the base of the rearview mirror.

NOTE

When the ignition is switched on, the OWS
indicator light will go on for up to 10 seconds
while the system performs a self-diagnostic
test.

However, if a fault is detected in the system:

The OWS indicator light will stay on

The SRS warning light (see page 23) will
come on and stay on

The message

PASS. AIRBAG OFF SERVICE

URGENT

 will be displayed in the information

display.

01 Safety

 Occupant Weight Sensor (OWS)

01

29

WARNING

If a fault in the system is detected and indi-
cated as explained on the preceding page,
be aware that the passenger's side front air-
bag will not deploy in the event of a collision.
In this case, the SRS system and Occupant
Weight Sensor should be inspected by a
trained and qualified Volvo service techni-
cian as soon as possible.

WARNING

Never try to open, remove, or repair any
components in the OWS system. This
could result in system malfunction.
Maintenance or repairs should only be
carried out by an a trained and qualified
Volvo service technician.

The front passenger's seat should not
be modified in any way. This could
reduce pressure on the seat cushion,
which might interfere with the OWS sys-
tem's function.

The OWS is designed to disable (will not inflate)
the passenger's side front airbag when a rear
facing infant seat, a forward-facing child
restraint, or a booster seat is detected. The
PASSENGER AIRBAG OFF indicator lamp will
illuminate and stay on to remind you that the

passenger's side front airbag is disabled (see
the following table).

Passenger's
seat occu-
pancy status

OWS indica-
tor light sta-
tus

Passenger's
side front
airbag sta-
tus

Seat unoc-
cupied

OWS indica-
tor light

 lights

up

Passenger's
side front
airbag disa-
bled

Seat occu-
pied by low
weight
occupant/
object

A

OWS indica-
tor light

 lights

up

Passenger's
side front
airbag disa-
bled

Seat occu-
pied by
heavy occu-
pant/object

OWS indica-
tor light

 is not

lit

Passenger's
side front
airbag ena-
bled

A

Volvo recommends that children always be properly
restrained in appropriate child restraints in the rear seats. Do
not assume that the passenger's side front airbag is disabled
unless the PASSENGER AIRBAG OFF indicator lamp is lit.
Make sure the child restraint is properly installed. If there is
any doubt as to the status of the passenger's side front air-
bag, move the child restraint to the rear seat.

The OWS is designed to enable (may inflate)
the passenger's side front airbag in the event
of a collision anytime the system senses that a

person of adult size is sitting properly in the
front passenger's seat. The PASSENGER
AIRBAG OFF
 indicator lamp will be off and
remain off.

If a person of adult size is sitting in the front
passenger's seat, but the PASSENGER
AIRBAG OFF
 indicator lamp is on, it is possible
that the person isn't sitting properly in the seat.
If this happens:

1.

Turn the vehicle off and ask the person to
place the seatback in an upright position.

2.

Have the person sit upright in the seat,
centered on the seat cushion, with the per-
son's legs comfortably extended.

3.

Restart the vehicle and have the person
remain in this position for about two
minutes. This will allow the system to
detect that person and enable the pas-
senger's frontal airbag.

4.

If the PASSENGER AIRBAG OFF indicator
lamp remains on even after this, the person
should be advised to ride in the rear seat.

This condition reflects limitations of the OWS
classification capability. It does not indicate
OWS malfunction.

Modifications

If you are considering modifying your vehicle in
any way to accommodate a disability, for

01 Safety

Occupant Weight Sensor (OWS)

01

30

example by altering or adapting the driver's or
front passenger's seat(s) and/or airbag sys-
tems, please contact Volvo at:

In the USA

Volvo Cars of North America, LLC

Customer Care Center

1 Volvo Drive

P.O. Box 914

Rockleigh, New Jersey 07647

1-800-458-1552

In Canada

Volvo Cars of Canada Corp.

National Customer Service

175 Gordon Baker Road North York, Ontario
M2H 2N7

1-800-663-8255

WARNING

No objects that add to the total weight
on the seat should be placed on the
front passenger's seat. If a child is
seated in the front passenger's seat
with any additional weight, this extra
weight could cause the OWS system to
enable the airbag, which might cause it
to deploy in the event of a collision,
thereby injuring the child.

The seat belt should never be wrapped
around an object on the front passeng-
er's seat. This could interfere with the
OWS system's function.

The front passenger's seat belt should
never be used in a way that exerts more
pressure on the passenger than normal.
This could increase the pressure exer-
ted on the weight sensor by a child, and
could result in the airbag being enabled,
which might cause it to deploy in the
event of a collision, thereby injuring the
child.

WARNING

Keep the following points in mind with
respect to the OWS system. Failure to follow
these instructions could adversely affect the
system's function and result in serious injury
to the occupant of the front passenger's
seat:

The full weight of the front seat passen-
ger should always be on the seat cush-
ion. The passenger should never lift
him/herself off the seat cushion using
the armrest in the door or the center
console, by pressing the feet on the
floor, by sitting on the edge of the seat
cushion, or by pressing against the
backrest in a way that reduces pressure
on the seat cushion. This could cause
OWS to disable the passenger's side
front airbag.

Do not place any type of object on the
front passenger's seat in such a way
that jamming, pressing, or squeezing
occurs between the object and the front
seat, other than as a direct result of the
correct use of the Automatic Locking
Retractor/Emergency Locking Retrac-
tor (ALR/ELR) seat belt, see page 39.

No objects should be placed under the
front passenger's seat. This could inter-
fere with the OWS system's function.

01 Safety

 Side impact protection airbags

01

31

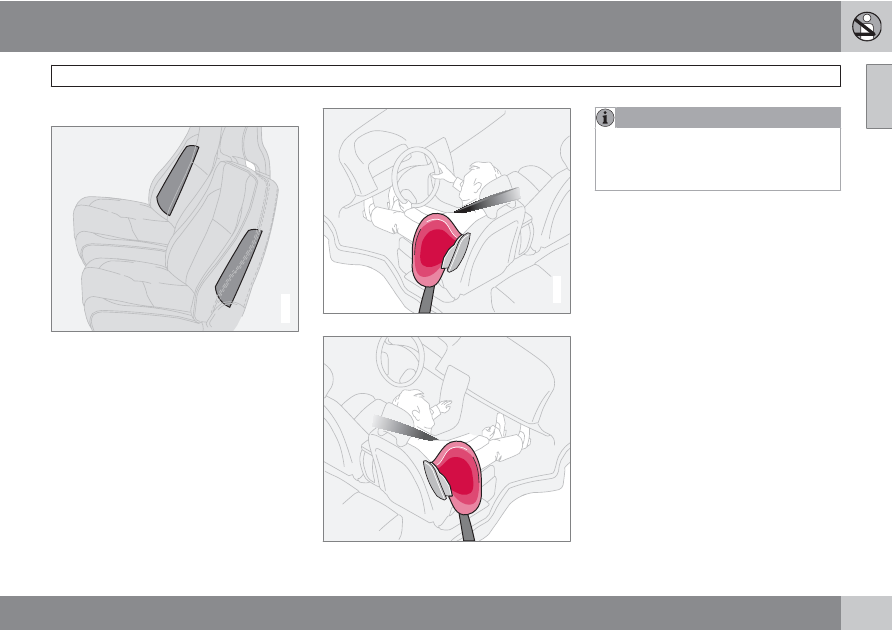

Side impact airbags – front seats only

G0201

18

Location of the side impact (SIPS) airbag

As an enhancement to the structural side
impact protection built into your car, the car is
also equipped with Side Impact Protection
System (SIPS) airbags.

The SIPS airbag system is designed to help
increase occupant protection in the event of
certain side impact collisions. The SIPS air-
bags are designed to deploy only during cer-
tain side-impact collisions, depending on the
crash severity, angle, speed and point of
impact.

G025315

Driver's side SIPS airbag

G025316

Passenger's side SIPS airbag

NOTE

SIPS airbag deployment (one airbag) occurs
only on the side of the vehicle affected by
the impact. The airbags are not designed to
deploy in all side impact situations.

Components in the SIPS airbag system

This SIPS airbag system consists of gas gen-
erators and side airbag modules built into the
outboard sides of both front seat backrests.

01 Safety

Side impact protection airbags

01

32

WARNING

The SIPS airbag system is a supple-
ment to the structural Side Impact Pro-
tection System and the three-point seat
belt system. It is not designed to deploy
during collisions from the front or rear of
the car or in rollover situations.

The use of seat covers on the front seats
may impede SIPS airbag deployment.

No objects, accessory equipment or
stickers may be placed on, attached to
or installed near the SIPS airbag system
or in the area affected by SIPS airbag
deployment.

Never try to open or repair any compo-
nents of the SIPS airbag system. This
should be done only by a trained and
qualified Volvo service technician.

In order for the SIPS airbag to provide
its best protection, both front seat
occupants should sit in an upright posi-
tion with the seat belt properly fastened.

Failure to follow these instructions can
result in injury to the occupants of the
vehicle in the event of an accident.

01 Safety

 Inflatable Curtain (IC)

01

33

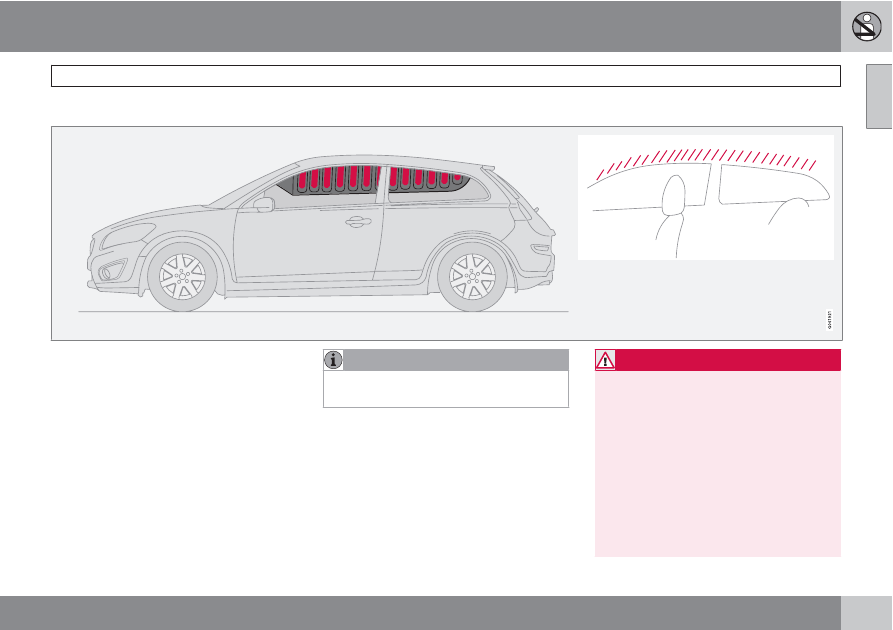

The Inflatable Curtain system

This system consists of inflatable curtains
located along the sides of the roof liners,
stretching from the center of both front side
windows to the rear edge of the rear side door
windows. It is designed to help protect the
heads of the occupants of the front and rear
seats in certain side impact collisions.

In certain side impacts, both the Inflatable Cur-
tain (IC) and the Side Impact Airbag System
(SIPS airbag) will deploy. The IC and the SIPS
airbag deploy simultaneously.

NOTE

If the inflatable curtain deploys, it remains
inflated for approximately 3 seconds.

WARNING

The IC system is a supplement to the
Side Impact Protection System. It is not
designed to deploy during collisions
from the front or rear of the car or in roll-
over situations.

Never try to open or repair any compo-
nents of the IC system. This should be
done only by a trained and qualified
Volvo service technician.

Never hang heavy items from the ceiling
handles. This could impede deployment
of the Inflatable curtain.

01 Safety

Inflatable Curtain (IC)

01

34

WARNING

In order for the IC to provide its best pro-
tection, all occupants of the vehicle should
sit in an upright position with the seat belt
properly fastened; adults using the seat belt
and children using the proper child restraint
system. Only adults should sit in the front
seats. Children must never be allowed in the
front passenger's seat, see page 39 for
guidelines. Failure to follow these instruc-
tions can result in injury to the vehicle occu-
pants in an accident.

01 Safety

 Whiplash Protection System

01

``

35

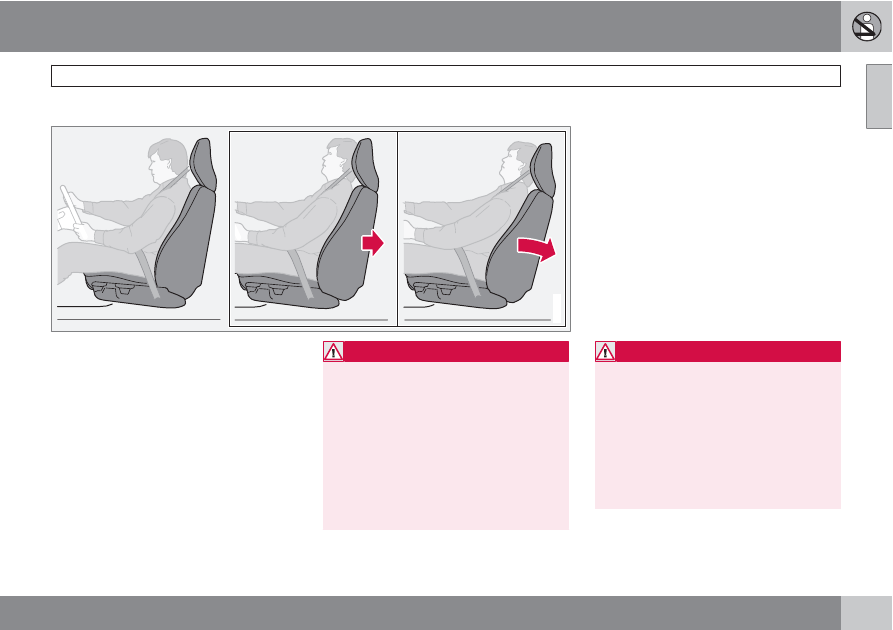

Whiplash Protection System (WHIPS) – front seats only

G020347

The WHIPS system consists of specially
designed hinges and brackets on the front seat
backrests designed to help absorb some of the
energy generated in a collision from the rear
(when the vehicle is "rear-ended").

In the event of a collision of this type, the hinges
and brackets of the front seat backrests are
designed to change position slightly to allow
the backrest/head restraint to help support the
occupant's head before moving slightly rear-
ward. This movement helps absorb some of
the forces that could result in whiplash.

WARNING

The WHIPS system is designed to sup-
plement the other safety systems in
your car. For this system to function
properly, the three-point seat belt must
be worn. Please be aware that no sys-
tem can prevent all possible injuries that
may occur in an accident.

The WHIPS system is designed to func-
tion in certain collisions from the rear,
depending on the crash severity, angle
and speed.

WARNING

Occupants in the front seats must never
sit out of position. The occupant's back
must be as upright as comfort allows
and be against the seat back with the
seat belt properly fastened.

If your car has been involved in a rear-
end collision, the front seat backrests
must be inspected by a trained and
qualified Volvo service technician, even
if the seats appear to be undamaged.















Content   ..    1  2   ..
