AUDIO AND MEDIA

}}

511

source and binary forms, with or without
modification, are permitted provided that the
following conditions are met: Redistributions of
source code must retain the above copyright
notice, this list of conditions and the following
disclaimer. Redistributions in binary form must
reproduce the above copyright notice, this list of
conditions and the following disclaimer in the
documentation and/or other materials provided
with the distribution. Neither the name of the
<ORGANIZATION> nor the names of its
contributors may be used to endorse or promote
products derived from this software without
specific prior written permission. THIS
SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS "AS IS" AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF

THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

This software is based in part on the work of the
Independent JPEG Group.

This software uses parts of sources from
"libtess". The Original Code is: OpenGL Sample
Implementation, Version 1.2.1, released January
26, 2000, developed by Silicon Graphics, Inc. The
Original Code is Copyright (c) 1991-2000 Silicon
Graphics, Inc. Copyright in any portions created
by third parties is as indicated elsewhere herein.
All Rights Reserved. Copyright (C) [1991-2000]
Silicon Graphics, Inc. All Rights Reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the "Software"),
to deal in the Software without restriction,
including without limitation the rights to use,
copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software,
and to permit persons to whom the Software is
furnished to do so, subject to the following
conditions: The above copyright notice including
the dates of first publication and either this
permission notice or a reference to http://
oss.sgi.com/projects/FreeB/ shall be included in
all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL
SILICON GRAPHICS, INC. BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT
OF OR IN CONNECTION WITH THE SOFTWARE
OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE. Except as contained in this notice,
the name of Silicon Graphics, Inc. shall not be
used in advertising or otherwise to promote the
sale, use or other dealings in this Software
without prior written authorization from Silicon
Graphics, Inc.

This software is based in parts on the work of the
FreeType Team.

This software uses parts of SSLeay Library:
Copyright (C) 1995-1998 Eric Young
(eay@cryptsoft.com). All rights reserved

Linux software

This product contains software licensed under
GNU General Public License (GPL) or GNU
Lesser General Public License (LGPL), etc.

You have the right of acquisition, modification,
and distribution of the source code of the GPL/
LGPL software.

You may download Source Code from the
following website at no charge: http://
www.embedded-carmultimedia.jp/linux/oss/
download/TVM_8351_013

||

AUDIO AND MEDIA

512

The website provides the Source Code "As Is"
and without warranty of any kind.

By downloading Source Code, you expressly
assume all risk and liability associated with
downloading and using the Source Code and
complying with the user agreements that
accompany each Source Code.

Please note that we cannot respond to any
inquiries regarding the source code.

camellia:1.2.0

Copyright (c) 2006, 2007

NTT (Nippon Telegraph and Telephone
Corporation). All rights reserved.

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer as
the first lines of this file unmodified.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

THIS SOFTWARE IS PROVIDED BY NTT ``AS
IS'' AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL NTT BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

Unicode: 5.1.0

COPYRIGHT AND PERMISSION NOTICE

Copyright c 1991-2013 Unicode, Inc. All rights
reserved. Distributed under the Terms of Use in
http://www.unicode.org/copyright.html.

Permission is hereby granted, free of charge, to
any person obtaining a copy of the Unicode data
files and any associated documentation (the
"Data Files") or Unicode software and any
associated documentation (the "Software") to
deal in the Data Files or Software without
restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute,
and/or sell copies of the Data Files or Software,
and to permit persons to whom the Data Files or
Software are furnished to do so, provided that (a)

the above copyright notice(s) and this permission
notice appear with all copies of the Data Files or
Software, (b) both the above copyright notice(s)
and this permission notice appear in associated
documentation, and (c) there is clear notice in
each modified Data File or in the Software as
well as in the documentation associated with the
Data File(s) or Software that the data or software
has been modified.

THE DATA FILES AND SOFTWARE ARE
PROVIDED "AS IS", WITHOUT WARRANTY OF
ANY KIND, EXPRESS OR IMPLIED, INCLUDING
BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND
NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE
COPYRIGHT HOLDER OR HOLDERS
INCLUDED IN THIS NOTICE BE LIABLE FOR
ANY CLAIM, OR ANY SPECIAL INDIRECT OR
CONSEQUENTIAL DAMAGES, OR ANY
DAMAGES WHATSOEVER RESULTING FROM
LOSS OF USE, DATA OR PROFITS, WHETHER
IN AN ACTION OF CONTRACT, NEGLIGENCE
OR OTHER TORTIOUS ACTION, ARISING OUT
OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF THE DATA FILES OR
SOFTWARE.

Except as contained in this notice, the name of a
copyright holder shall not be used in advertising
or otherwise to promote the sale, use or other

AUDIO AND MEDIA

519

Terms and conditions for services

and Customer Privacy Policy

Read the terms and conditions for services and
the Customer Privacy Policy at
support.volvocars.com.

Terms & Conditions for Services

Volvo is committed to offering you the absolute
best services to ensure that it is as safe, comfort-
able and pleasant as possible for you to drive
your Volvo. Volvo offers a wide range of services,
from assistance in emergency situations to navi-
gation in various infotainment services.

Read these terms and conditions ("Service Terms
and Conditions") carefully before using the serv-
ices - support.volvocars.com.

Customer Privacy Policy

This policy applies for the processing of customer
data and personal data. The purpose of the policy
is to provide our existing, previous and prospec-
tive customers with a general understanding of:

The circumstances in which we gather and
process your personal data.

The types of personal data we gather.

The reason we gather your personal data.

How we handle your personal data.

This policy can be read in its entirety at
support.volvocars.com.

Related information

License agreement for audio and media
(p. 509)

License agreement for the driver display
(p. 106)

Type approval for radar units (p. 334)

WHEELS AND TYRES

522

Tyres

Amongst other things, the function of the tyres is
to carry load, provide grip on the road surface,
dampen vibration and protect the wheel from
wear.

The tyres greatly affect the car's driving characte-
ristics. The type of tyre, dimensions, tyre pressure
and speed rating are important for how the car
performs.

Recommended tyres

On delivery, the car is equipped with Volvo origi-
nal tyres that have the VOL

1

 marking on the side

of the tyres. These tyres are carefully adapted to
the car. In the event of changing tyres, it is there-
fore important that the new tyres also have this
marking in order for the car's driving characteris-
tics, comfort and fuel consumption to be main-
tained.

New tyres

Tyres are perishable. After a few years they begin
to harden at the same time as the friction
capacity/characteristics gradually deteriorate. For
this reason, aim to get as fresh tyres as possible
when you replace them. This is especially impor-

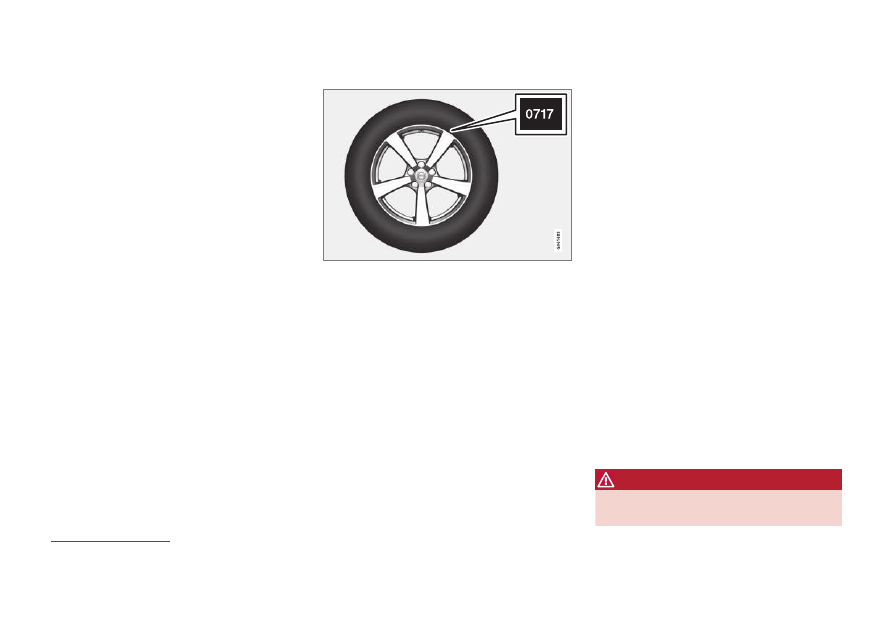

tant with regard to winter tyres. The last four dig-
its in the sequence mean the week and year of
manufacture. This is the tyre's DOT marking
(Department of Transportation), and this is stated
with four digits, for example 0717. The tyre in the
figure was manufactured in week 07 of 2017.

Tyre age

All tyres older than 6 years old should be
checked by an expert even if they seem undam-
aged. Tyres age and decompose, even if they are
hardly ever or never used. The function can
therefore be affected. This applies to all tyres that

are stored for future use. Examples of external
signs which indicate that the tyre is unsuitable for
use are cracks or discoloration.

Wear and maintenance

Correct tyre pressure results in more even wear.
Driving style, tyre pressure, climate and road con-
dition affect how quickly the tyres age and wear.

To avoid differences in tread depth and to pre-
vent wear patterns forming on the tyres, the front
and rear wheels can be switched with each other.
A suitable distance for the first change is approx.
5000 km and then at 10000 km intervals.

Volvo recommends the an authorised Volvo work-
shop is contacted for checking if you are uncer-
tain about tread depth. If significant differences in
wear (> 1 mm difference in tread depth) between
tyres have already occurred, then the least worn
tyres must always be fitted on the rear. Under-
steer is normally easier to correct than oversteer,
and leads to the car continuing forwards in a
straight line rather than having the rear end skid-
ding to one side, resulting in possible complete
loss of control over the car. This is why it is
important for the rear wheels never to lose grip
before the front wheels.

WARNING

A damaged tyre may lead to loss of control

over the car.

1

There may be deviations for certain tyre dimensions.

WHEELS AND TYRES

* Option/accessory.

523

Storage

Wheels with tyres fitted must be stored lying
down or hanging up - never standing up.

Related information

Checking the tyre pressures (p. 524)

Tyres' rotation direction (p. 523)

Tread wear indicators on the tyres (p. 524)

Tyre monitoring

* (p. 525)

Emergency puncture repair kit (p. 530)

Dimension designation for tyre (p. 542)

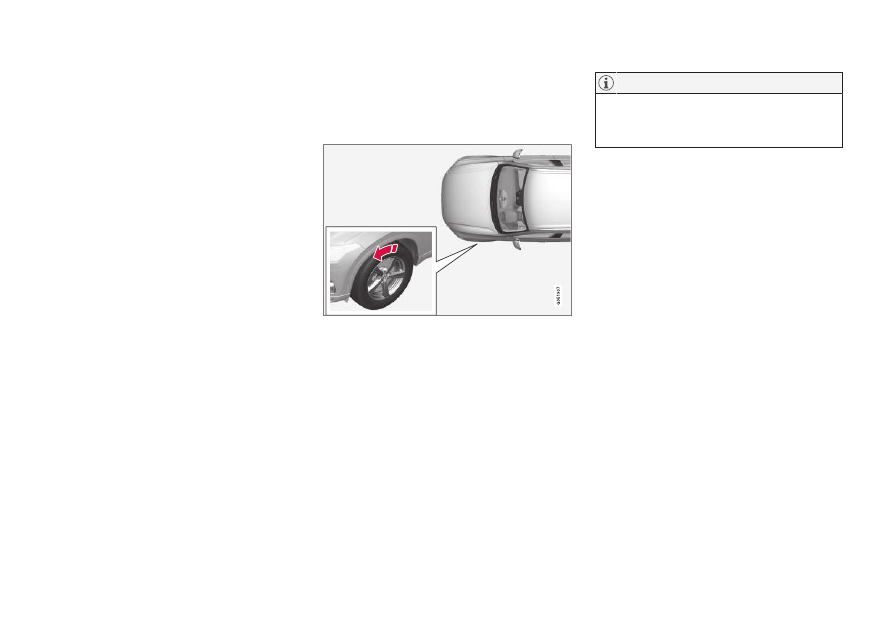

Tyres' rotation direction

Tyres with a tread pattern which are designed to
only turn in one direction have the direction of
rotation marked with an arrow.

The arrow shows the tyre's direction of rotation.

The tyre must always rotate in the same direction
throughout its lifespan. Tyres should only be
switched between front and rear positions, never
between left and right-hand sides, or vice versa. If
the tyres are fitted incorrectly, the car's braking
characteristics and capacity to force rain and
slush out of the way are adversely affected. Tyres
with the greatest tread depth should always be
fitted to the rear of the car (to decrease the risk
of skidding).

NOTE

Make sure that both pairs of wheels have the
same type and dimension, and also the same
make.

Related information

Tyres (p. 522)

WHEELS AND TYRES

524

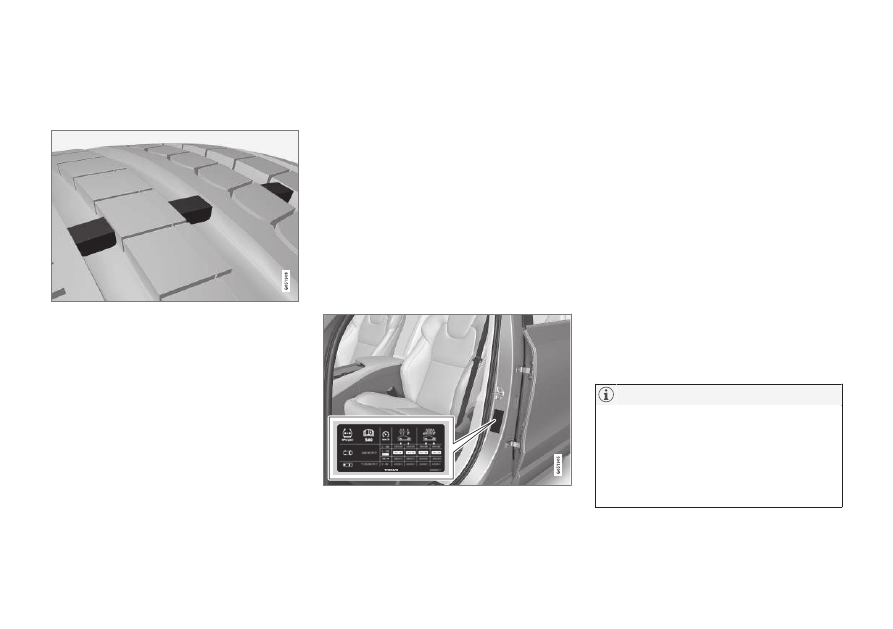

Tread wear indicators on the tyres

Tread wear indicators show the status of the
tyre's tread depth.

A tread wear indicator is a narrow elevation
across the longitudinal grooves of the tyre's tread
pattern. On the side of the tyre are the letters
TWI (Tread Wear Indicator). When the tyre's tread
depth is down to 1.6 mm (1/16"), the tread will
be level in height with the tread wear indicators.
Change to new tyres as soon as possible.
Remember that tyres with little tread depth pro-
vide very poor grip in rain and snow.

Related information

Tyres (p. 522)

Checking the tyre pressures

Tyres with the correct air pressure increase driv-
ing safety, save fuel and extend the service life of
the tyres.

Tyre pressure decreases over time, this is a natu-
ral phenomenon. Tyre pressure also varies
depending on ambient temperature. Inadequate
tyre pressure increases fuel consumption, short-
ens tyre lifespan and impairs the car's driving
characteristics. Driving on tyres with tyre pressure
that is too low could result in the tyres overheat-
ing and being damaged. Tyre pressure affects
travelling comfort, road noise and driving charac-
teristics.

Recommended tyre pressure

The tyre pressure label on the driver's side door
pillar (between frame and rear door) shows which

pressures the tyres should have at different loads
and speed conditions.

Improved fuel economy with ECO pressure

For a light load (max. 3 people) and a speed of
up to 160 km/h (100 mph), the ECO pressures
can be chosen for optimum fuel economy. How-
ever, the lower comfort pressures are recom-
mended instead if optimum noise and travelling
comfort are desired.

Checking the air pressure

1. Check the tyre pressures monthly. Carry out

the check on cold tyres, which means that
the tyres should have the same temperature
as the outside temperature. After several few
kilometres of driving, the tyres warm up and
the pressure increases.

2. If necessary, inflate so that the air pressure

corresponds with the approved tyre pressure
in accordance with the tyre pressure label.

NOTE

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

WHEELS AND TYRES

}}

* Option/accessory.

525

Related information

Tyres (p. 522)

Checking tyre pressure with the tyre monitor-
ing system

* (p. 527)

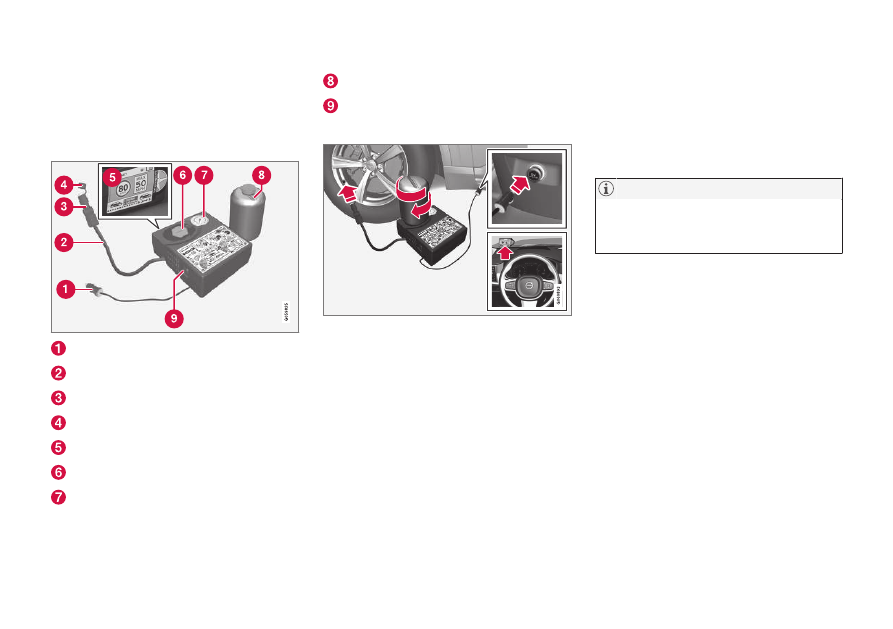

Inflate tyres with the compressor from the
emergency puncture repair kit (p. 534)

Approved tyre pressures (p. 607)

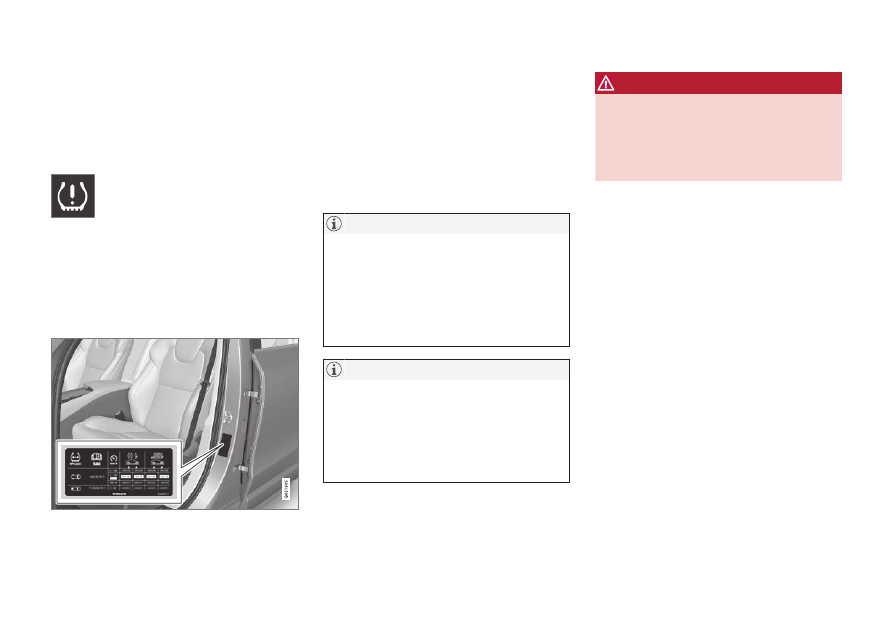

Tyre monitoring

*

The tyre monitoring system, Indirect Tyre
Pressure Monitoring System (ITPMS), gives a
warning with an indicator symbol in the driver
display when the pressure in one or more of the
car's tyres is too low.

If the symbol first flashes for approximately one
minute and then changes to a constant glow, it
may indicate that the system cannot detect or
warn of low tyre pressure as intended.

Symbol

Specification

The symbol illuminates in the
event of low tyre pressure.

The symbol flashes for approxi-
mately one minute and then
changes over to illuminating
with a constant glow in the
event of a fault in the ITPMS
system.

System description

ITPMS measures differences in rotation speed
between the different wheels via the ABS system
in order to be able to determine whether they
have the correct tyre pressure. If the tyre pres-
sure is too low, the tyre's diameter is changed
and, as a result, so is its rotation speed. By com-
paring the tyres with each other the system can
determine whether one or more tyres have pres-
sure that is too low.

When the tyre pressure is too low, the indicator
symbol for low tyre pressure is illuminated in the
display and a message is shown, see also the
heading "Message in the driver display" below.

||

WHEELS AND TYRES

* Option/accessory.

526

General information on the tyre monitoring
system

In the information below, the tyre monitoring sys-
tem is referred to generically as TPMS.

Each tyre, including the spare tyre

*, should be

checked once a month. When checking, the tyre
should be cold and have the air pressure recom-
mended by the car manufacturer specified on the
tyre pressure label or in the tyre pressure table. If
the car has tyres of a different size than that rec-
ommended by the manufacturer, find out what
the correct air pressure level is for these.

As an extra safety feature, the car is equipped
with a tyre pressure monitoring system (TPMS),
which shows when the air pressure in one or
more tyres is too low. When the indicator symbol
for low air pressure is lit, stop and check the tyres
as soon as possible and inflate to the correct air
pressure.

Driving with tyres that have tyre pressure that is
too low may cause the tyre to overheat, which
can cause a puncture. Low tyre pressure also
reduces fuel efficiency as well as tyre service life,
and can affect car handling and stopping ability.
Note that TPMS does not replace regular tyre
maintenance. It is the driver's responsibility to
maintain correct tyre pressure, even if the limit for
low tyre pressure has not been reached so that
the indicator symbol illuminates.

The car is also equipped with a TPMS system
fault indicator, which indicates when the system

is not functioning correctly. The TPMS system
fault indicator is combined with the indicator sym-
bol for low tyre pressure. When the system
detects a fault, the symbol in the driver display
will flash for about one minute and then remain
illuminated. This procedure will be repeated when
the car is started until the fault has been rectified.
When the symbol is illuminated, the system's abil-
ity to detect or warn of low tyre pressure may be
affected.

A TPMS system fault can occur for several rea-
sons, such as after changing to a spare tyre, or
changing tyres or wheels that prevent TPMS from
functioning correctly.

Always check the indicator symbol for TPMS
after changing one or more tyres in order to
ensure the new tyre or wheel is working correctly
with TPMS.

Messages in the driver display

The following messages may be shown when the
indicator symbol is illuminated:

Tyre pressure low



Check tyres, calibrate

after fill

Tyre pressure system



Temporarily

unavailable

Tyre pressure system



Service required

.

If the system cannot determine which tyre has
low pressure, all four tyres will be indicated in the
centre display.

To bear in mind

Always calibrate the system after a wheel
change or tyre pressure adjustment. See the
tyre pressure label on the driver's side door
pillar for Volvo's recommended tyre pres-
sures.

The system does not replace normal tyre
maintenance.

There is no option to deactivate ITPMS.

Related information

Tyres (p. 522)

Checking tyre pressure with the tyre monitor-
ing system

* (p. 527)

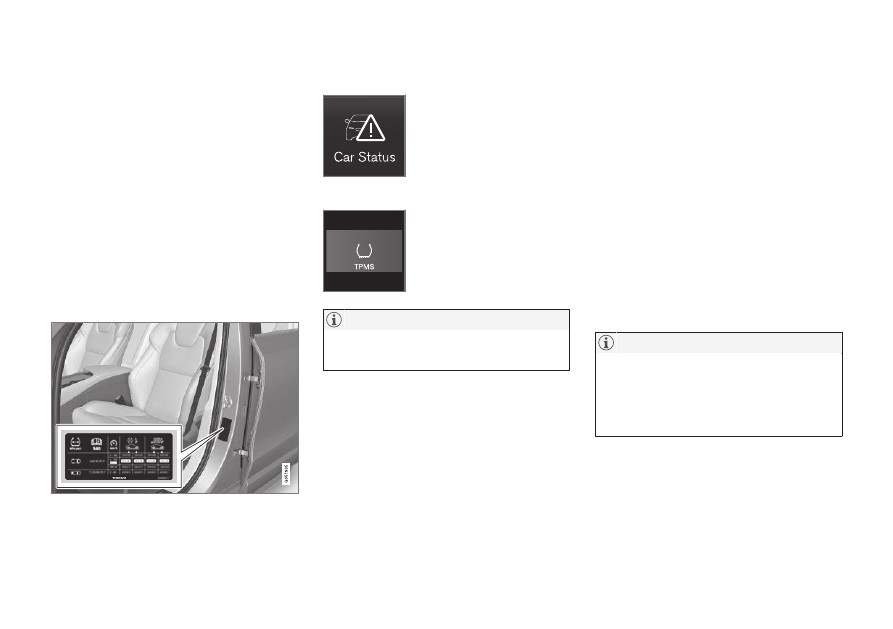

Calibrating tyre monitoring

* (p. 529)

Rectifying low tyre pressure with tyre moni-
toring

* (p. 528)

WHEELS AND TYRES

* Option/accessory.

527

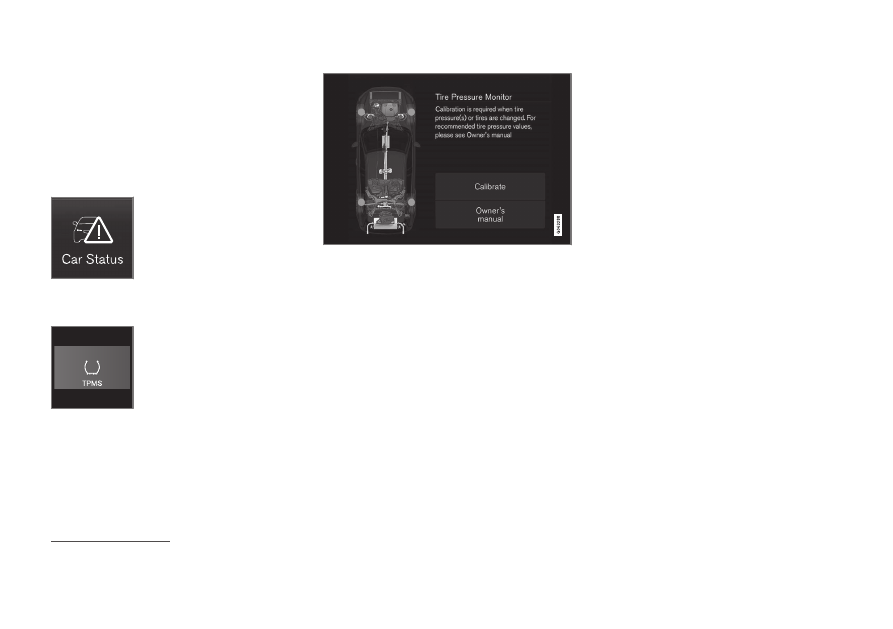

Checking tyre pressure with the tyre

monitoring system

*

With the system for tyre monitoring, Indirect Tyre
Pressure Monitoring System (ITPMS), tyre pres-
sure status can be viewed in the centre display.

Checking status

1. Open the

Car status

 app in the app view.

2. Tap on

TPMS

 to show the status of the

tyres.

Status indication

The graphics show the status for each tyre

2

.

Green tyre:

The tyre pressure is above the limit value for
a warning.

Yellow tyre:

The tyre's pressure is too low. Stop and
check/rectify the tyre pressure as soon as
possible. Calibrate ITPMS after the tyre pres-
sure has been adjusted.

All tyres yellow:

The pressure is too low in two or more tyres.
Stop and check/rectify the tyre pressures as
soon as possible. Calibrate ITPMS after the
tyre pressures have been adjusted.

All tyres grey:

Calibration in progress.

Unknown status.

Several minutes driving above 35 km/h (22 mph)
may be required for the system to become active.

All tyres grey and a message:

Tyre pressure system



Temporarily

unavailable

. The indicator symbol flashes

and changes to constant glow after approx. 1
minute. The system is currently unavailable,
activated shortly.

Tyre pressure system



Service required

.

The indicator symbol flashes and changes to
constant glow after approx. 1 minute. The
system is not working correctly, contact an
authorised Volvo workshop (recommended).

Related information

Tyre monitoring

* (p. 525)

Calibrating tyre monitoring

* (p. 529)

Rectifying low tyre pressure with tyre moni-
toring

* (p. 528)

Car status (p. 546)

2

The figure is schematic. Layout may vary depending on car model or updated software.

WHEELS AND TYRES

* Option/accessory.

528

Rectifying low tyre pressure with

tyre monitoring

*

When the tyre monitoring system, Indirect Tyre
Pressure Monitoring System (ITPMS), gives a
warning, the tyre pressure in one or more of the
car's tyres is too low.

Check and rectify the tyre pressure
when the indicator symbol for ITPMS is
illuminated and the message

Tyre

pressure low

 is shown. Calibrate

ITPMS after the tyre pressure has been adjusted.

1. Check the tyre pressure in all four tyres with

a tyre pressure gauge.

2. Inflate the tyres to the correct pressure as

indicated on the tyre pressure label on the
door pillar on the driver's side.

3. Recalibrate the ITPMS system, see the sec-

tion "Calibrating tyre monitoring".

4. Drive the car at a speed above 35 km/h

(22 mph).

Note that the ITPMS symbol does not extin-
guish until the low tyre pressure has been
rectified and new calibration has been per-
formed.

NOTE

To avoid incorrect tyre pressure, the pressure
should be checked on cold tyres. "Cold tyres"
means the tyres are the same temperature as
the ambient temperature (approx. 3 hours
after the car has been driven). After a few kil-
ometres of driving, the tyres warm up and the
pressure increases.

NOTE

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

WARNING

Incorrect tyre pressure may lead to tyre
failure, which could result in the driver
losing control of the car.

The system cannot indicate sudden tyre
damage in advance.

Related information

Tyre monitoring

* (p. 525)

Checking tyre pressure with the tyre monitor-
ing system

* (p. 527)

Calibrating tyre monitoring

* (p. 529)

Approved tyre pressures (p. 607)

Inflate tyres with the compressor from the
emergency puncture repair kit (p. 534)

WHEELS AND TYRES

* Option/accessory.

529

Calibrating tyre monitoring

*

In order for the Indirect Tyre Pressure Monitoring
System (ITPMS) to work correctly, a reference
value for the tyre pressure must be determined.
This must be performed each time the tyres are
changed or the tyre pressure is changed.

For example, when driving with a heavy load or at
high speed above 160 km/h (100 mph), the tyre
pressure should be adjusted in accordance with
Volvo's recommended tyre pressure values. Fol-
lowing which, the system must be recalibrated.

1. Switch off the car.

2. Inflate the tyres to the desired pressure in

accordance with the tyre pressure label on
the door pillar on the driver's side.

3. Start the car.

4. Open the

Car status

 app in the app view.

5. Press

TPMS

.

NOTE

The car must be stationary when calibration is
started.

6. Press

Calibrate

.

7. Tap on

OK

 to confirm that the tyre pressure

in all four tyres has been checked and
adjusted.

8. Drive the car.

Calibration is performed when the car is
driven at a speed above 35 km/h (22 mph).
Calibration is interrupted temporarily if the
engine is switched off, but is resumed auto-
matically in the background when the car is
driven again.
> When sufficient data has been collected

to enable the system to detect low tyre
pressure, the tyres in the centre display
change colour from grey to green. The
system provides no additional confirma-
tion that the calibration is complete.

If calibration fails, a message is shown:

Calibration unsuccessful. Please try
again.

.

NOTE

Remember that the TPMS system must be
recalibrated at each tyre change or if the tyre
pressure is adjusted. New reference values
must be stored for the system to work cor-
rectly.

Related information

Tyre monitoring

* (p. 525)

Checking tyre pressure with the tyre monitor-
ing system

* (p. 527)

Rectifying low tyre pressure with tyre moni-
toring

* (p. 528)

WHEELS AND TYRES

530

Emergency puncture repair kit

The emergency puncture repair kit, Temporary
Mobility Kit (TMK), is used to seal a puncture as
well as to check and adjust the air pressure.

The puncture repair kit consists of a compressor
and a bottle with sealing fluid. The sealing works
as a temporary repair. The sealing fluid effectively
seals tyres punctured in the tread.

The puncture repair kit has limited capacity to
seal tyres which have punctures in the wall. Do
not use the puncture repair kit on tyres that have
larger slits, cracks or similar damage.

NOTE

The emergency puncture repair kit is only
intended for sealing tyres with a puncture in
the tread.

NOTE

The compressor for temporary emergency
puncture repair has been tested and
approved by Volvo.

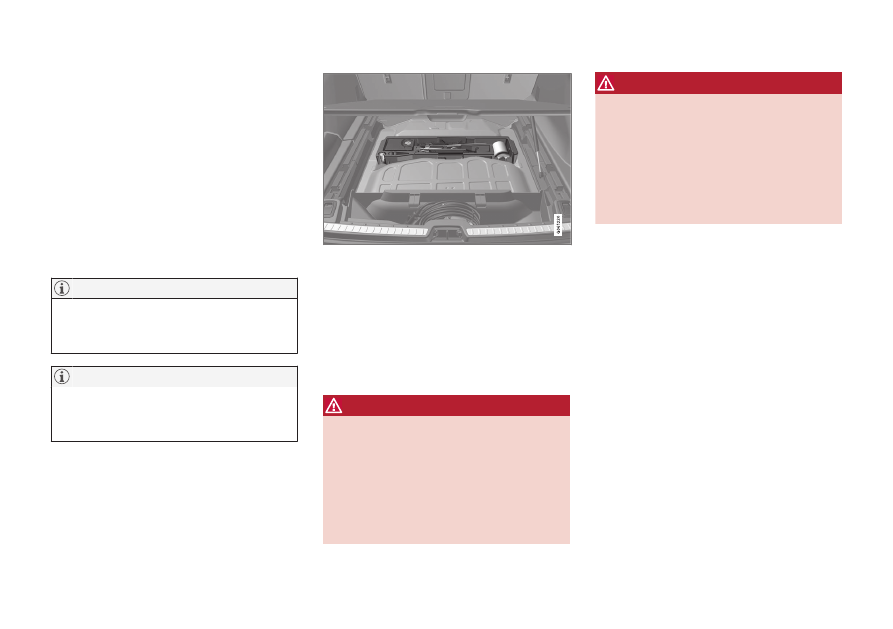

Location

The puncture repair kit is located in the foam
block under the floor in the cargo area.

Sealing fluid bottle

The bottle of sealing fluid must be replaced if the
bottle's expiry date has passed (see the decal on
the bottle). Treat the old bottle as environmentally
hazardous waste.

The sealing fluid bottle must be replaced after
use. Volvo recommends that the replacement is
performed by an authorised Volvo workshop.

WARNING

The bottle with sealing fluid contains 1.2-

Ethanol and natural rubber-latex.

Harmful if ingested.

Could result in allergic reaction in the
event of skin contact.

Avoid contact with the skin and eyes.

Store out of the reach of children.

WARNING

In the event of skin contact with the seal-
ing fluid, it must be washed off immedi-
ately with soap and plenty of water.

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If
the discomfort persists then the eye
should be examined by a doctor.

Related information

Using the emergency puncture repair kit
(p. 531)

Inflate tyres with the compressor from the
emergency puncture repair kit (p. 534)

Tyres (p. 522)

WHEELS AND TYRES

}}

531

Using the emergency puncture

repair kit

Seal a puncture with the emergency puncture
repair kit, Temporary Mobility Kit (TMK).

Overview

Electrical cable

Air hose

Pressure reducing valve

Protective cap

Label, maximum permitted speed

Bottle holder (orange cap)

Pressure gauge

Sealing fluid bottle

Switch

Connecting

1. Set up the warning triangle and activate the

hazard warning lights if a tyre is being sealed
in a trafficked location.

If the puncture was caused by a nail or simi-
lar, allow this to remain in the tyre. It helps to
seal the hole.

2. Detach the decal for maximum permitted

speed that is affixed on one side of the com-
pressor. Affix it visibly on the windscreen as a
reminder to observe the speed limit. You
should not drive faster than 80 km/h
(50 mph) after the emergency tyre repair kit
has been used.

3. Check that the switch is in position 0 (Off),

and locate the electrical cable and the air
hose.

4. Unscrew the orange-coloured cap from the

compressor, and unscrew the cork from the
sealing fluid bottle.

NOTE

Do not break the bottle's seal before use. The
seal is broken automatically when the bottle is
screwed in.

||

WHEELS AND TYRES

532

5. Screw in the bottle to the bottom of the bot-

tle holder.
> The bottle and the bottle holder are

equipped with a reverse catch to prevent
sealant leakage. When the bottle is
screwed in it cannot be unscrewed from
the bottle holder again. Bottle removal
must be performed at a workshop, Volvo
recommends an authorised Volvo work-
shop.

WARNING

In the event of skin contact with the seal-
ing fluid, it must be washed off immediately
with soap and plenty of water.

Sealing fluid that makes contact with an
eye must be rinsed away immediately with
eye wash fluid or with plenty of water. If the
discomfort persists then the eye should be
examined by a doctor.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

6. Unscrew the tyre's dust cap.

Check that the pressure reducing valve on
the air hose is fully screwed on, and screw in
the air hose's valve connection to the bottom
of the tyre valve's thread.

7. Connect the electrical cable to the closest

12 V socket and start the car.

NOTE

Make sure that none of the other 12 V sock-
ets is in use when the compressor is operat-
ing.

WARNING

Do not leave children in the car without

supervision when the engine is running.

8. Start the compressor by flicking the switch to

position I (On).

WARNING

Never stand next to the tyre when the com-

pressor is running. If cracks or unevenness

arise then the compressor must be switched

off immediately. The journey should not be

continued. Call roadside assistance for recov-

ery to a tyre centre. Volvo recommends an

authorised tyre centre.

NOTE

When the compressor starts, the pressure
can increase up to 6 bar (88 psi) but the
pressure drops after approximately
30 seconds.

9. Inflate the tyre for 7 minutes.

IMPORTANT

The compressor must not be operated for
longer than 10 minutes - risk of overheating.

WHEELS AND TYRES

}}

533

10. Switch off the compressor to check the pres-

sure on the pressure gauge. Minimum pres-
sure is 1.8 bar (22 psi) and maximum is
3.5 bar (51 psi). Release air using the pres-
sure reducing valve if the tyre pressure is too
high.

WARNING

If the pressure is below 1.8 bar (22 psi) then

the hole in the tyre is too big. The journey

should not be continued. Call roadside assis-

tance for recovery to a tyre centre. Volvo rec-

ommends an authorised tyre centre.

11. Switch off the compressor and detach the

electrical cable.

12. Unscrew the air hose from the tyre valve and

refit the dust cap on the tyre.

13. Fit the protective cap on the air hose in order

to avoid leakage of the remaining sealing
fluid. Place the equipment in the cargo area.

14. As soon as possible, drive at least 3 km

(2 miles) at a maximum speed of 80 km/h
(50 mph) so that the sealing fluid can seal
the tyre, and then perform a follow-up check.

NOTE

Sealant will spurt out of the puncture during
the first few rotations of the tyre.

WARNING

Make sure that nobody is standing near the

car and gets the sealing fluid splashed onto

them when the car is driven away. The dis-

tance should be at least 2 metres (7 feet).

15. Follow-up inspection

Connect the air hose on the tyre valve and
screw in the valve connection to the bottom
of the tyre valve's thread. The compressor
must be switched off.

16. Read the tyre pressure on the pressure

gauge.

If it is below 1.3 bar (19 psi) then the tyre
is insufficiently sealed. The journey should
not be continued. Call roadside assistance
for recovery.

If the tyre pressure is higher than 1.3 bar
(19 psi), the tyre must be inflated to the
pressure specified in accordance with the
tyre pressure label on the driver's side
door pillar (1 bar = 100 kPa). Release air
using the pressure reducing valve if the
tyre pressure is too high.

17. If the tyre needs to be inflated:

1. Connect the electrical cable to the closest

12 V socket and start the car.

2. Start the compressor and inflate the tyre

to the pressure specified in accordance
with the tyre pressure label.

3. Switch off the compressor.

||

WHEELS AND TYRES

534

18. Remove the tyre sealing equipment.

Fit the protective cap on the air hose in order
to avoid leakage of the remaining sealing
fluid.

WARNING

Do not unscrew the bottle, it is equipped with

a reverse catch to prevent leakage.

19. Refit the dust cap on the tyre.

NOTE

After a tyre has been inflated, always refit
the dust cap in order to avoid damage to
the valve from gravel, dirt, etc.

Only use plastic dust caps. Metal dust
caps can rust and become difficult to
unscrew.

NOTE

The sealing fluid bottle and the hose must be
replaced after use. Volvo recommends that
this replacement is performed by an author-
ised Volvo workshop.

WARNING

Check the tyre pressure regularly.

Volvo recommends that the car is driven to the
nearest authorised Volvo workshop for the
replacement/repair of the damaged tyre. Advise
the workshop that the tyre contains sealing fluid.

WARNING

You should not drive faster than 80 km/h
(50 mph) after the emergency tyre repair
kit has been used.

Maximum mileage with tyres containing
sealing fluid is 200 km (120 miles).

Volvo recommends visiting an authorised
Volvo workshop as soon as possible for
inspection of the sealed tyre. The staff
there can determine whether or not the
tyre can be repaired or if it needs to be
replaced.

Related information

Emergency puncture repair kit (p. 530)

Inflate tyres with the compressor

from the emergency puncture repair

kit

The car's original tyres can be inflated using the
compressor in the emergency puncture repair
kit.

1. The compressor must be switched off. Make

sure that the switch is in position 0 (Off), and
take out the electrical cable and the air hose.

2. Unscrew the tyre's dust cap and screw in the

air hose's valve connection to the bottom of
the thread on the tyre's air valve. Check that
the pressure reducing valve on the air hose
is fully screwed in.

3. Connect the electrical cable to the closest

12 V socket and start the car.

WARNING

Inhaling car exhaust fumes could result in

danger to life. Never leave the engine running

in sealed areas or areas that lack sufficient

ventilation.

WARNING

Do not leave children in the car without

supervision when the engine is running.

4. Start the compressor by flicking the switch to

position I (On).
