INSTRUMENTS AND CONTROLS

115

Managing a new message

For messages with buttons:

1. Navigate between the different buttons that

are available by tapping on left or right (1).

2. Confirm the selection by pressing on confirm

(2).
> The message disappears from the driver

display.

For messages without buttons:

–

Close the message by pressing on confirm
(2), or allow the message to close automati-
cally after a while.
> The message disappears from the driver

display.

If a message needs to be saved, it is placed in
the

Car status

 app, which is opened from the

app view in the centre display. The message

Car

message stored in Car Status application

 is

shown in the centre display in conjunction with
this.

Centre display

Message in the centre display.

Some messages in the centre display have a but-
ton (or several buttons in pop-up messages) for
e.g. activating/deactivating a function linked to
the message.

Managing a new message

For messages with buttons:

–

Press the button to perform the action or
allow the message to close automatically
after a while.
> The message disappears from the status

bar.

For messages without buttons:

–

Close the message by tapping on it, or allow
the message to close automatically after a
while.
> The message disappears from the status

bar.

If a message needs to be saved, it is positioned
in the top view in the centre display.

Related information

•

Messages in the driver display and the centre
display (p. 113)

•

Managing messages saved from the driver
display and centre display (p. 116)

INSTRUMENTS AND CONTROLS

116

Managing messages saved from

the driver display and centre display

Whether saved from the driver display or the
centre display, messages are managed in the
centre display.

Messages saved from the driver display

Saved messages can be seen in the Car Status app.

Messages that are shown in
the driver display and that need
to be saved are added in the

Car status

 app in the centre

display. The message

Car

message stored in Car
Status application

 is shown

in the centre display in conjunction with this.

Reading a saved message

To read a saved message immediately:

–

Press the button to the right of the

Car

message stored in Car Status
application

 message in the centre display.

> The saved message is shown in the

Car

status

 app.

To read a saved message later:

1. Open the

Car status

 app from the app view

in the centre display.
> The app is opened in the bottom subview

of the home view.

2. Select the

Messages

 tab in the app.

> A list of saved messages is shown.

3. Press on the arrow to the right to maximise/

minimise a message.
> More information on the message is

shown in the list and the image to the left
in the app shows information about the
message graphically.

Managing a saved message

In maximised mode, some messages have two
buttons available to book service or read the
owner's manual.

To book service for a saved message:

–

In maximised mode for the message, press

Request appoint.Call to make
Appointment

1

 for help in booking service.

> With

Request appoint.

: The

Appointments

 tab opens in the app and

creates a request to book service and
repair work.

With

Call to make Appointment

: The

phone app is initiated and calls a service
centre to book service and repair work.

To read the owner's manual for a saved mes-
sage:

–

In maximised mode for the message, press

Owner's manual

 to read about the mes-

sage in the owner's manual.
> The owner's manual opens in the centre

display and shows information linked to
the message.

Saved messages in the app are deleted automat-
ically each time the engine is started.

1

Depending on market.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

117

Messages saved from the centre
display

Saved messages and possible options in the top view.

Messages that are shown in the centre display
that need to be saved are added in the top view
of the centre display.

Reading a saved message

1. Open the top view in the centre display.

> A list of saved messages is shown. Mes-

sages with an arrow to the right can be
maximised.

2. Press on the arrow to maximise/minimise

the message.

Managing a saved message

Some messages have a button for e.g. activating/
deactivating a function linked to the message.

–

Press the button to perform the action.

Saved messages in the top view are deleted
automatically when the car is switched off.

Related information

•

Messages in the driver display and the centre
display (p. 113)

•

Managing messages in the driver display and
the centre display (p. 114)

Head-up display

*

The head-up display supplements the car's
driver display and projects information from the
driver display onto the windscreen. The projec-
ted image can only be seen from the driver posi-
tion.

Incoming phone calls.

The head-up display shows warnings and infor-
mation relating to speed, cruise control functions,
navigation, etc. in the driver's field of vision. Road
sign information and incoming phone calls are
also shown in the head-up display.

||

INSTRUMENTS AND CONTROLS

* Option/accessory.

118

NOTE

The driver's ability to see the information in
the head-up display is impaired by the follow-
ing:

•

use of polarising sunglasses

•

a driving position which means that the
driver is not sitting centred in the seat

•

objects on the display unit's cover glass

•

unfavourable light conditions.

IMPORTANT

The display unit from which the information is
projected is located in the instrument panel.
To avoid damage to the display unit's cover
glass - do not store any objects on the cover
glass and make sure that no objects fall down
onto it.

Examples of what can be shown in the display.

Speed

Cruise control

Navigation

Road signs

A number of symbols can be shown temporarily
in the head-up display, e.g.:

If the warning symbol illuminates - read
the warning message in the driver dis-
play.

If the information symbol illuminates -
read the message in the driver display.

NOTE

Certain visual defects may cause headaches
and a feeling of stress during the use of the
head-up display.

City Safety in the head-up display

NOTE

When City Safety

* is activated, the informa-

tion in the head-up display is replaced by a
graphic for City Safety. This graphic is illumi-
nated even if the head-up display is switched
off.

The graphic for City Safety flashes in order to catch the

driver's attention.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

119

Activating/deactivating the head-up
display

Press the

Head-up display

button in the centre display
function view.

NOTE

Activation/deactivation and adjustment of the
head-up-display can only be performed when
it shows a projected image. The car's engine
must be running.

Settings for head-up display

Select the option and adjust the settings for the
head-up display's projection onto the windscreen.

Selecting display options

1. Tap on

Settings

 in the centre display's top

view.

2. Press

My Car

Displays

Head-Up

Display Options

.

3. Select which functions should be shown:

•

Show Navigation

•

Show Road Sign Information

•

Show Driver Support

•

Show Phone

.

The setting can be saved as a personal setting in
the driver profile.

Adjusting brightness and vertical position

1. Press the

Head-up display adjustments

button in the centre display function view.

2. Adjust the brightness and vertical position of

the projected image in the driver's field of
vision using the steering wheel's right-hand
keypad.

Reducing the brightness

Increasing the brightness

Raising the position

Lowering the position

Confirm

The brightness of the graphics is automatically
adapted to their background light conditions. The
brightness is also affected by the adjustment of
the brightness in the car's other displays.

The height position can be stored in the memory
function of the power

* front seat.

||

INSTRUMENTS AND CONTROLS

* Option/accessory.

120

Calibrate the horizontal position

The head-up display's horizontal position may
need to be calibrated if the windscreen or display
unit is replaced. Calibration means that the pro-
jected image is rotated clockwise or anticlock-
wise.

1. Tap on

Settings

 in the centre display's top

view.

2. Select

My Car

Displays

Head-Up

Display Options

Head-Up Display

Calibration

.

3. Calibrate the image's horizontal position with

the steering wheel's right keypad.

Rotate anticlockwise

Rotate clockwise

Confirm

Cleaning

Gently wipe the display's cover glass with a clean
and dry microfibre cloth. If necessary, lightly mois-
ten the microfibre cloth.

Never use strong stain removers. A special clean-
ing agent available from Volvo dealers can be
used for more difficult cleaning.

When replacing the windscreen

Cars with head-up display are equipped with a
special type of windscreen that meets the
requirements for displaying the projected image.

When replacing the windscreen - contact an
authorised workshop

2

. The correct version of the

windscreen must be fitted in order that the head-
up display's graphics shall be displayed correctly.

Related information

•

Function view with buttons for car functions
(p. 47)

•

Settings in the centre display (p. 172)

•

Steering wheel (p. 135)

•

Using the memory function in the power
front seat

* (p. 128)

•

Driver display (p. 96)

2

An authorised Volvo workshop is recommended.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

121

Voice recognition

3

The voice recognition system allows the driver to
use voice recognition to control certain functions
of the media player, Bluetooth-connected phone,
the climate system and Volvo's navigation sys-
tem

*.

Voice commands offer convenience and assist
the driver to not be distracted so that he or she
can concentrate on driving, the road and the traf-
fic situation.

WARNING

The driver always holds overall responsibility

for driving the vehicle in a safe manner and

complying with all applicable rules of the road.

Voice control system microphone

Voice control is done in dialogue form with the
user saying commands and receiving verbal
responses from the system. The voice recognition
system uses the same microphone as the
Bluetooth handsfree system and the voice recog-
nition system's replies come via the car's speak-
ers. In some cases, a text message is also shown
in the driver display. Functions are controlled
from the right-hand steering wheel keypad. Set-
tings are made via the centre display.

System updating

The voice recognition system is continuously
improved. Download updates for optimal perform-
ance, see support.volvocars.com.

Related information

•

Using voice recognition (p. 121)

•

Voice recognition control of the phone
(p. 123)

•

Voice recognition control of radio and media
(p. 124)

•

Voice recognition control of climate control
(p. 124)

•

Voice recognition and map navigation
(p. 125)

•

Settings for voice recognition (p. 122)

Using voice recognition

4

Basic instructions for using voice recognition
control.

Depress the steering wheel
button for voice recognition

 to activate the system and

initiate a dialogue using voice
commands.

Remember the following during communication:

•

For a command - speak after the tone in a
normal voice at normal speed.

•

Do not speak while the system is replying
(the system cannot understand commands
during this time).

•

Avoid background noise in the passenger
compartment by having the doors, windows
and panoramic roof

* closed.

Voice recognition can be deactivated as follows:

•

by saying "

Cancel

".

•

with a long press on the voice recognition
button on the steering wheel

.

To speed up communication and skip the
prompts from the system, press the steering
wheel button for voice recognition

 when the

system voice is speaking and say the next com-
mand.

3

Applies to certain markets.

||

INSTRUMENTS AND CONTROLS

122

Example of voice recognition control

Press

, say “

Call [Forename]



[Surname]

[number category]

" - calls the selected contact

from the phone book if the contact has more
than one phone number (e.g. home, mobile,
work), e.g.:

Press

, say "

Call Robin



Smith



Mobile

".

Commands/phrases

The following commands are always available for
use:

•

"

Repeat

" - repeats the last voice instruction

in the ongoing dialogue.

•

"

Cancel

" - discontinue the dialogue.

•

"

Help

" - starts a help dialogue. The system

replies with the commands available in the
current situation, a prompt or an example.

Commands for specific functions are described in
the corresponding sections, e.g. Voice recogni-
tion control of the phone.

Digits

The number commands are stated differently
depending on the function to be controlled:

•

Phone numbers and postcodes must be
spoken individually, number by number, e.g.

zero three one two two four four three
(03122443).

•

House numbers can be spoken individually
or in groups, e.g. two two or twenty-two (22).
For English and Dutch, several groups can
be said in sequence, e.g. twenty-two twenty-
two (22 22). For English, double or triple can
be used, e.g. double zero (00). Numbers can
be given within the range 0-2300.

•

Frequencies can be spoken as ninety eight
point eight (98.8), a hundred and four point
two or hundred four point two (104.2).

Related information

•

Voice recognition (p. 121)

•

Voice recognition control of the phone
(p. 123)

•

Voice recognition control of radio and media
(p. 124)

•

Voice recognition control of climate control
(p. 124)

•

Voice recognition and map navigation
(p. 125)

•

Settings for voice recognition (p. 122)

Settings for voice recognition

5

Several settings for the voice recognition system
can be made.

1. Press

Settings

 in top view.

2. Continue to

System

Voice Control

 and

select settings.

•

Repeat Voice Command

•

Gender

•

Speech Rate

Audio settings

1. Press

Settings

 in top view.

2. Continue to

Sound

System Volumes

Voice Control

 and select settings.

Change language

Voice recognition is not possible for all lan-
guages. Languages available for voice recogni-
tion are marked with an icon in the language list -

.

Changing the language also affects menu, mes-
sage and help texts.

1. Press

Settings

 in top view.

2. Continue to

System

System Language

and select language.

4

Applies to certain markets.

5

Applies to certain markets.

INSTRUMENTS AND CONTROLS

123

Related information

•

Voice recognition (p. 121)

•

Using voice recognition (p. 121)

•

Voice recognition control of the phone
(p. 123)

•

Voice recognition control of radio and media
(p. 124)

•

Voice recognition control of climate control
(p. 124)

•

Voice recognition and map navigation
(p. 125)

Voice recognition control of the
phone

6

Call a contact, have messages read aloud or
dictate brief messages with voice control com-
mands to a Bluetooth connected telephone.

To specify a contact in the phone book, the voice
recognition command must include contact infor-
mation that is entered in the phone book. If a
contact, e.g.

Robyn Smith

, has several phone

numbers then the number category can also be
stated, e.g.

Home

 or

Mobile

: "

Call Robin

Smith



Mobile

".

Tap on

 and say one of the following com-

mands:

•

"

Call [contact]

" - dials the selected contact

from the phone book.

•

"

Call



[phone number]

" - dials the phone

number.

•

"

Recent calls

" - displays the call list.

•

"

Read message

" - message is read out. If

there are several messages - select which
message should be read out.

•

"

Message to [contact]

" users are reques-

ted to say a brief message. The message is
then repeated aloud and the user can
choose to send

7

 or revise the message. For

this function to work, the car must be con-
nected to the Internet.

Related information

•

Voice recognition (p. 121)

•

Using voice recognition (p. 121)

•

Settings for voice recognition (p. 122)

•

Connecting the car (p. 502)

6

Applies to certain markets.

7

Only certain cars can broadcast messages from the car. For compatibility, see support.volvocars.com.

INSTRUMENTS AND CONTROLS

* Option/accessory.

124

Voice recognition control of radio
and media

8

Command for voice recognition control of radio
and media player.

Tap on

 and say one of the following com-

mands:

•

"

Media

" - starts a dialogue for media and

radio and shows examples of commands.

•

"

Play



[artist]

" - plays back music by the

selected artist.

•

"

Play



[song title]

" - plays back the selected

song.

•

"

Play



[song title]



from



[album]

" - plays

back the selected song from the selected
album.

•

"

Play



[TV channel name]

" - starts the

selected TV channel.

•

"

Play



[radio station]

" - starts playing back

the selected radio channel.

•

"

Tune to [frequency]

" - starts the selected

radio frequency in the current frequency
band. If no radio source is active, the FM
band is started by default.

•

"

Tune to [frequency]



[wavelength]

" -

starts the selected radio frequency in the
selected frequency band.

•

"

Radio

" - starts FM radio.

•

"

Radio FM

" - starts FM radio.

•

"

DAB

" - starts DAB radio.

•

"

TV

" - starts playback from TV

*.

•

"

CD

" - starts playback from CD

*.

•

"

USB

" - starts playback from USB.

•

"

iPod

" - starts playback from iPod.

•

"

Bluetooth

" - starts playback from a Blue-

tooth-connected media source.

•

"

Similar music

" — plays back music similar

to the music currently playing back from USB
devices.

Related information

•

Voice recognition (p. 121)

•

Using voice recognition (p. 121)

•

Settings for voice recognition (p. 122)

Voice recognition control of climate
control

9

Voice recognition commands for the climate
control system to e.g. change temperature, acti-
vate a heated seat

* or change fan level.

Press

 and say one of the following com-

mands:

•

"

Climate

" - starts a dialogue for climate

control and shows examples of commands.

•

"

Set temperature to X degrees

" - sets

the desired temperature.

•

"

Raise temperature

"/"

Lower

temperature

" - raise/lower the temperature

setting one step.

•

"

Sync temperature

" - synchronises the

temperature for all climate zones in the car
with the temperature set for the driver's side.

•

"

Air on feet

"/"

Air on body

" - opens the

desired air flow.

•

"

Air on feet off

"/"

Air on body off

" - closes

the desired air flow.

•

"

Set fan to max

"/"

Turn off fan

" - changes

the air flow to

Max

/

Off

.

•

"

Raise fan speed

"/"

Lower fan speed

" -

raises/lowers the fan level one step.

•

"

Turn on auto

" - activates automatic climate

regulation.

8

Applies to certain markets.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

125

•

"

Air condition on

"/"

Air condition off

" -

activates/deactivates the air conditioning.

•

"

Recirculation on

"/"

Recirculation off

" -

activates/deactivates the air circulation.

•

"

Turn on defroster

"/"

Turn off defroster

"

- activates/deactivates defrosting of windows
and door mirrors.

•

"

Turn on max defroster

"/"

Turn max

defroster off

" - activates/deactivates the

max defroster.

•

"

Turn on electric defroster

"/"

Turn off

electric defroster

" - activates/deactivates

the heated windscreen

*.

•

"

Turn on rear defroster

"/"

Turn off rear

defroster

" - activates/deactivates the

heated rear window and door mirrors.

•

"

Turn steering wheel heat on

"/"

Turn

steering wheel heat off

" - activates/deac-

tivates the heated steering wheel

*.

•

"

Raise steering wheel heat

"/"

Lower

steering wheel heat

" - raises/lowers the

setting for the heated steering wheel

* one

step.

•

"

Turn on seat heat

"/"

Turn off seat heat

"

- activates/deactivates the heated seat

*.

•

"

Raise seat heat

"/"

Lower seat heat

" -

raises/lowers the setting for the heated
seat

* one step.

•

"

Turn on seat ventilation

"/"

Turn off seat

ventilation

" - activates/deactivates the seat

ventilation

*.

•

"

Raise seat ventilation

"/"

Lower seat

ventilation

" - raises/lowers the setting for

the ventilated seat

* one step.

Related information

•

Voice recognition (p. 121)

•

Using voice recognition (p. 121)

•

Settings for voice recognition (p. 122)

•

Climate control (p. 182)

Voice recognition and map
navigation

10

Several navigation system functions can be acti-
vated with voice commands.

Tap on

 and say one of the following com-

mands:

•

“

Navigation

” - Initiates a navigation dialogue

and shows examples of commands.

•

"

Take me home

" - Guidance is given to the

Home

 position.

•

"

Go to



[City]

" - Specifies a city as a desti-

nation. Example "Drive to London".

•

"

Go to



[Address]

" - Specifies an address

as a destination. An address must contain
city and street. Example "Drive to 5 King
Street".

•

"

Add intersection

" - Starts a dialogue

where two streets must be specified. The
intersection point of the specified streets
then becomes the destination.

•

"

Go to



[Post code]

" - Specifies a post

code as a destination. Example "Drive to 1 2
3 4 5".

•

"

Go to



[contact]

" - Specifies an address

from the phone book as a destination. Exam-
ple "Drive to Robyn Smith".

9

Applies to certain markets.

||

INSTRUMENTS AND CONTROLS

* Option/accessory.

126

•

"

Search



[POI category]

" - Searches for

adjacent points of interest (POI) within a cer-
tain category (e.g. restaurants)

11

. To have the

list sorted along the route - say "

Along the

route

" when the results list is shown.

•

"

Search



[POI category]

 in

[City]

" -

Searches for points of interest (POI) within a
certain category and city. The results list is
sorted according to the city's centre point.
Example "Search for restaurant in London".

•

"

Search



[POI name]

". Example "Search

Hyde Park".

•

"

Change country

/

Change state

12,



13

" -

Changes the search area for navigation.

•

"

Show favourites

" - Shows favourited posi-

tions in the driver display.

•

"

Clear itinerary

" - Erases all the stored

intermediate destinations and final destina-
tion in an itinerary.

•

"

Repeat voice guidance

" - Repeats the

last spoken guidance.

•

"

Turn off voice guidance

" - Switches off

voice guidance.

•

"

Turn on voice guidance

" - Starts the

switched-off voice guidance.

Related information

•

Voice recognition (p. 121)

•

Using voice recognition (p. 121)

•

Settings for voice recognition (p. 122)

Manual front seat

The car's front seats have different setting
options for optimum seating comfort.

Raise/lower the front edge of the seat cush-
ion

* by pumping up/down.

Change the length

* of the seat cushion by

pulling the lever up and moving the seat
cushion forward/backward by hand.
Adjust the seat forward/backward by lifting
the handle and adjusting the distance to the
steering wheel and pedals. Check that the
seat is locked after the position has been
adjusted.

10

Applies to certain markets.

11

The user has the option of calling the POI or specifying it as a destination.

12

In European countries, “Country” is used instead of “State”.

13

For Brazil and India, the search area is changed via the centre display.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

127

Change the lumbar support

* by pressing the

button upward/downward/forward/back.
Raise/lower the seat by means of adjusting
the control up/down.
Change the backrest rake by turning the
control knob.

WARNING

Adjust the position of the driver's seat before

setting off, never while driving. Make sure that

the seat is in locked position in order to avoid

personal injury in the event of heavy braking

or an accident.

Related information

•

Power front seat

* (p. 127)

•

Multi-functional front seat

* (p. 129)

•

Activating/deactivating heating of the seats

*

(p. 202)

•

Seatbelt (p. 63)

Power front seat

*

The car's front seats have different setting
options for optimum seating comfort. The power
seat can be moved forward/backward and up/
down. The front edge of the seat cushion can be
raised/lowered and the backrest rake can be
changed. The lumbar support can be adjusted
upward/downward/forward/backward.

The power seats have overload protection which
is tripped if a seat is blocked by an object. If this
happens, remove the object and then operate the
seat again.

The seat can be adjusted for a period of time
after unlocking the door without the engine run-
ning. Seat adjustment can always be performed
when the engine is running. Adjustment can also
be performed for a period of time after the
engine has been switched off.

Related information

•

Multi-functional front seat

* (p. 129)

•

Adjusting the power front seat

* (p. 127)

•

Using the memory function in the power
front seat

* (p. 128)

•

Manual front seat (p. 126)

•

Activating/deactivating heating of the seats

*

(p. 202)

Adjusting the power front seat

*

Set to desired sitting position using the control
on the front seat's seating section.

Change the lumbar support by pressing the
button upward/downward/forward/back.
Raise/lower the seat cushion front edge by
adjusting the control up/down.
Raise/lower the seat by means of adjusting
the control up/down.
Move the seat forward/backward by adjust-
ing the control forward/backward.
Change the backrest rake by adjusting the
control forward/backward.

Only one movement (forward/back/up/down)
can be made at a time.

The backrests of the front seats cannot be low-
ered fully forward.

||

INSTRUMENTS AND CONTROLS

* Option/accessory.

128

Related information

•

Power front seat

* (p. 127)

•

Using the memory function in the power
front seat

* (p. 128)

•

Multi-functional front seat

* (p. 129)

•

Seatbelt (p. 63)

Using the memory function in the

power front seat

*

The memory function stores settings for the seat,
door mirrors, and head-up display

*.

It is possible to store two different settings with
the memory function. The memory function key-
pad is located either on one front door or both

*.

Button M for storing settings.

Memory button

Memory button

Store setting

1. Adjust seat, door mirrors and head-up display

to the desired position.

2. Push the M button and release. The light

indicator in the button illuminates.

3. Within three seconds, depress the 1 or 2

button.
> When the position has been stored in the

selected memory button an acoustic sig-
nal sounds and the light indicator in the M
button extinguishes.

If none of the memory buttons is depressed
within three seconds then the M button extin-
guishes and no storing takes place.

The seat must be adjusted again before a new
memory can be set.

Using a stored setting

A stored setting can be used with the front door
either open or closed:

Open front door
–

Depress one of the memory buttons 1 or 2
with a short press. Seat, door mirrors and
head-up display move and then stop at the
positions stored in the selected memory but-
ton.

INSTRUMENTS AND CONTROLS

* Option/accessory.

129

Closed front door
–

Hold one of the memory buttons 1 or 2
depressed until seat, door mirrors and head-
up display stop in the positions that are
stored in the selected memory button.

If the memory button is released, the movement
of the seat, door mirrors and head-up display will
be stopped.

WARNING

•

Because the driver's seat can be adjusted
with the ignition off, children should never
be left unattended in the vehicle.

•

Movement of the seat can be STOPPED
at any time by pressing any button on the
power seat control panel.

•

Do not adjust the seat while driving.

•

Make sure there is nothing under the
seats when they are being adjusted.

Related information

•

Power front seat

* (p. 127)

•

Adjusting the power front seat

* (p. 127)

Multi-functional front seat

*

Enhance the seating comfort using the multi-
function control.

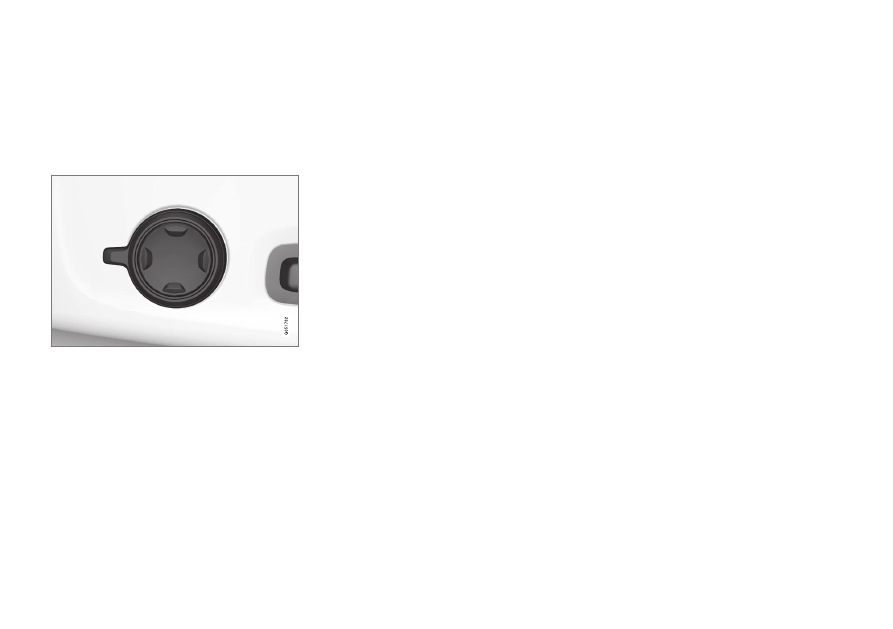

Multi-function control, located on the side of the seat's

seating section.

The multi-function control can, in some variants,
be used to adjust the lumbar support

*, side sup-

port

*, cushion length and massage settings*. Set-

tings made with the multi-function control are
shown in the centre display

*. Certain function

selections can also be made directly in the centre
display.

Centre display

The driver and the passenger seat settings that
are made with the multi-function control are
shown in the centre display. If the settings for
only one of the front seats are shown in the cen-
tre display, the settings are positioned centred in

the screen. When it is possible to show setting
options for both the front seats, the driver's set-
ting options are shown in the upper half and the
passenger's in the lower half.

To stop showing the seat settings view in the
centre display, press the home button, which is
located under the centre display.

Related information

•

Power front seat

* (p. 127)

•

Adjusting functions in the multi-functional
front seat

* (p. 130)

•

Activating/deactivating heating of the seats

*

(p. 202)

INSTRUMENTS AND CONTROLS

* Option/accessory.

130

Adjusting functions in the multi-

functional front seat

*

Both the multi-function control on the seat and
the centre display can be used in order to
change the settings. The range of settings is
shown in the centre display

*.

Multi-function control, located on the side of the seat's

seating section.

To activate the multi-function control, turn the
control upwards/downward.

Adjusting massage settings

* in the

front seat

The front seat has massage in the backrest. The
massage is performed by air cushions that can
massage with different settings.

1. Activate the multi-function control by turning

the control upward/downward. The seat set-
tings view will be shown on the centre dis-
play.

2. Select

Massage

 in the seat settings view.

3. To choose between the different massage

functions, select either directly in the touch
screen or by moving the cursor up/down
using the multi-function control's upper/
lower button. Change the setting in the
selected function by selecting directly in the
touch screen or by pressing the arrows, or by
using the multi-function control's front/rear
button.

Settings for massage

The following setting options are available for
massage:

•

On

/

Off

: Select

On

/

Off

 in order to switch

on/off the massage function.

•

Programs 1-5

: There are 5 preset massage

programs. Select between

Swell

,

Tread

,

Advanced

,

Lumbar

 and

Shoulder

.

•

Intensity

: Select between

Low

,

Normal

 and

High

.

•

Speed

: Select between

Slow

,

Normal

 and

Fast

.

Restarting massage

The massage function is deactivated automati-
cally after 20 minutes. The function is reactivated
manually.

–

Tap on

Restart

, which is shown in the centre

display, to restart the selected massage pro-
gram.
> The massage program restarts. If no

action is taken, the message remains
shown in the top view.

It is not possible to use the massage function
when the engine is switched off.

Adjusting side support

* in the front seat

backrests

The sides of the backrest can be adjusted to pro-
vide side support.

To adjust the side support:

1. Activate the multi-function control by turning

the control upward/downward. The seat set-
tings view will be shown on the centre dis-
play.

2. Select

Side bolsters

 in the seat settings

view.

•

Press the front seat button in order to
increase the side support.

•

Press the rear seat button in order to
reduce the side support.
