When a service message is shown, the

symbol and message are cleared using the

OK button, or disappear automatically

after a time.

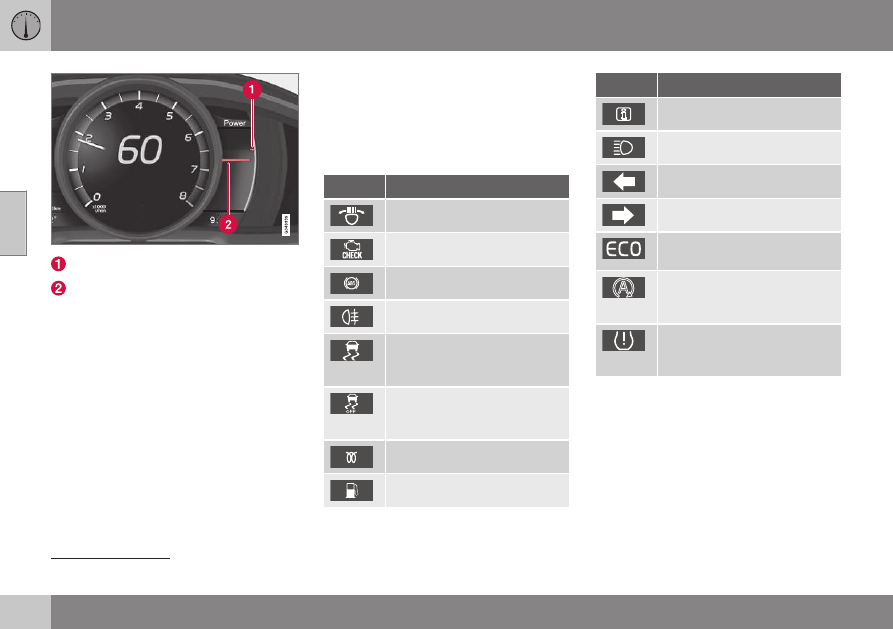

Main beam On

The symbol illuminates when main beam is on

and with main beam flash.

Left/right-hand direction indicator

Both direction indicator symbols flash when

the hazard warning flashers are used.

Eco function on

This symbol illuminates when the Eco func-

tion is activated.

Start/Stop

The symbol shines when the engine is auto-

stopped.

Tyre pressure system

The symbol illuminates in the event of low

tyre pressure, or if a fault arises in the tyre

pressure system.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Reminder – doors not closed

If one of the doors is not closed properly then

the information or warning symbol illuminates

together with an explanatory image in the

information display. Stop the car in a safe

place as soon as possible and close the door

that is open.

If the car is driven at a speed lower

than approx. 7 km/h then the informa-

tion symbol illuminates.

If the car is driven at a speed higher

than approx. 7 km/h then the warning

symbol illuminates.

If the bonnet

is not closed properly then the

warning symbol illuminates together with an

explanatory image in the information display.

Stop the car in a safe place as soon as possi-

ble and close the bonnet.
If the tailgate is not closed properly then the

information symbol illuminates together with

an explanatory image in the information dis-

play. Stop the car in a safe place as soon as

possible and close the tailgate.

Related information

•

Combined instrument cluster - meaning

•

of warning symbols (p. 72)

•

Digital combined instrument panel - over-

view (p. 66)

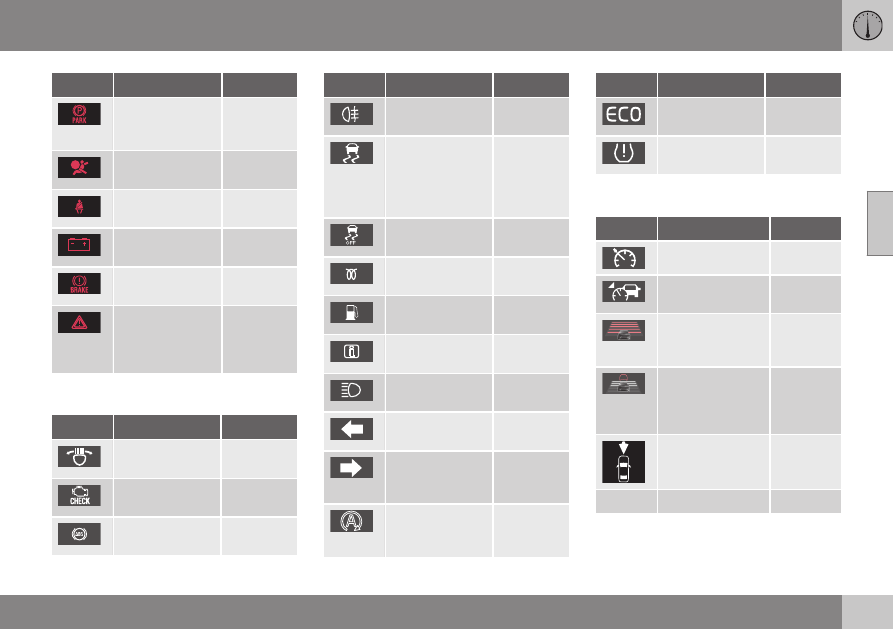

Combined instrument cluster -

meaning of warning symbols

The warning symbols alert the driver that an

important function is activated, or that a seri-

ous error or a serious failure has occurred.

Warning symbols

Symbol Specification

Low oil pressure

Parking brake applied, digital

instrument panel

Parking brake applied, ana-

logue instrument panel

Airbags – SRS

Seatbelt reminder

Alternator not charging

Fault in brake system

Warning

Certain engine variants do not have systems to warn of oil

pressure loss. In cars with these variants the symbol for

low oil pressure is not used. Warning for low oil level is via

display text. For more information, see Engine oil - general

(p. 362).

Low oil pressure

If this symbol illuminates during driving then

the engine's oil pressure is too low. Stop the

engine immediately and check the engine oil

level, top up if necessary. If the symbol illumi-

nates and the oil level is normal, contact a

workshop. Volvo recommends that you seek

assistance from an authorised Volvo work-

shop.

Parking brake applied

This symbol illuminates with a constant glow

when the parking brake is applied. The sym-

bol flashes during application, and then

changes over to a constant glow.
A flashing symbol in any other situation

means that a fault has arisen. Read the mes-

sage on the information display.
For more information, see Parking brake

(p. 295).

Airbags – SRS

If this symbol remains illuminated or illumi-

nates while driving, it means a fault has been

detected in the seatbelt buckle, SRS, SIPS, or

IC systems. Drive immediately to a workshop

to have the system checked. Volvo recom-

mends that you seek assistance from an

authorised Volvo workshop.

Seatbelt reminder

This symbol flashes if someone in a front seat

has not put on their seatbelt or if someone in

a rear seat has taken off their seatbelt.

Only cars with alarm*.

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Alternator not charging

This symbol illuminates during driving if a

fault has occurred in the electrical system.

Visit a workshop. Volvo recommends that you

seek assistance from an authorised Volvo

workshop.

Fault in brake system

If this symbol illuminates, the brake fluid level

may be too low. Stop the car in a safe place

and check the level in the brake fluid reser-

voir; see Brake and clutch fluid - level

(p. 367).
If the brake and ABS symbols illuminate at

the same time, there may be a fault in the

brake force distribution system.
1. Stop the car in a safe place and turn off

the engine.

2. Restart the engine.

•

If both symbols extinguish, continue

driving.

•

If the symbols remain illuminated,

check the level in the brake fluid reser-

voir; see Brake and clutch fluid - level

(p. 367). If the brake fluid level is nor-

mal but the symbols are still illumi-

nated, the car can be driven, with great

care, to a workshop to have the brake

system checked. Volvo recommends

that you seek assistance from an

authorised Volvo workshop.

WARNING

If the brake fluid is under the MIN level in

the brake fluid reservoir, do not drive fur-

ther before topping up the brake fluid.
The loss of brake fluid must be investiga-

ted by a workshop. Volvo recommends

that you contact an authorised Volvo

workshop.

WARNING

If the BRAKE and ABS symbols are lit at

the same time, there is a risk that the rear

end will skid during heavy braking.

Warning

The red warning symbol illuminates when a

fault has been indicated which could affect

the safety and/or driveability of the car. An

explanatory text is shown on the information

display at the same time. The symbol remains

visible until the fault has been rectified but the

text message can be cleared with the OK

button; see Menu navigation - combined

instrument panel (p. 113). The warning sym-

bol can also illuminate in conjunction with

other symbols.
Action:
1. Stop in a safe place. Do not drive the car

further.

2. Read the information on the information

display. Implement the action in accord-

ance with the message in the display.

Clear the message using the OK button.

Reminder – doors not closed

If one of the doors is not closed properly then

the information or warning symbol illuminates

together with an explanatory image in the

information display. Stop the car in a safe

place as soon as possible and close the door

that is open.

If the car is driven at a speed lower

than approx. 7 km/h then the informa-

tion symbol illuminates.

If the car is driven at a speed higher

than approx. 7 km/h then the warning

symbol illuminates.

If the bonnet

is not closed properly then the

warning symbol illuminates together with an

explanatory image in the information display.

Stop the car in a safe place as soon as possi-

ble and close the bonnet.
If the tailgate is not closed properly then the

information symbol illuminates together with

an explanatory image in the information dis-

play. Stop the car in a safe place as soon as

possible and close the tailgate.

Only cars with alarm*.

03 Instruments and controls

Related information

•

Combined instrument panel - meaning of

•

indicator symbols (p. 70)

•

Digital combined instrument panel - over-

view (p. 66)

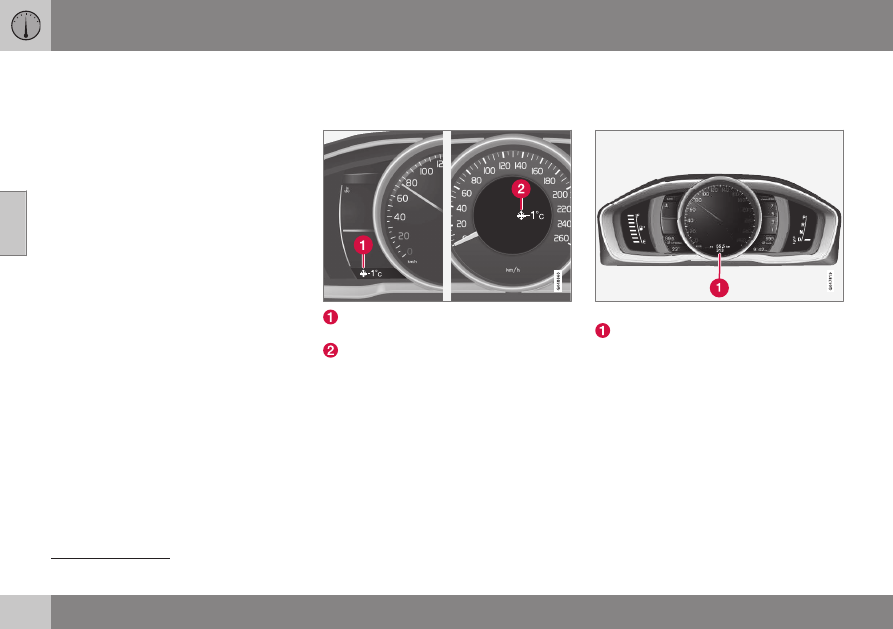

Outside temperature gauge

The display for the outside temperature gauge

appears in the combined instrument panel.

Display for outside temperature gauge,

digital instrument panel
Display for outside temperature gauge,

analogue instrument panel

When the temperature lies between +2 °C to

-5 °C a snowflake symbol illuminates in the

display. This warns of icy roads. If the car has

been stationary, the gauge may display a

reading that is too high.

Related information

•

see Trip computer - supplementary informa-

Trip meter

The trip meter display appears in the com-

bined instrument panel.

Trip meter, digital instrument panel.

Display for trip meter

Both trip meters

and

are used to meas-

ure short distances. The distance is shown in

the display.
Turn the left-hand stalk switch's thumbwheel

to show the required meter.
A long press (until the change occurs) on the

left-hand stalk switch RESET button resets

the trip meter shown. For more information,

tion (p. 127).

Related information

•

tem MY CAR, see MY CAR (p. 116).

Display appearance may differ depending on instrument variant.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

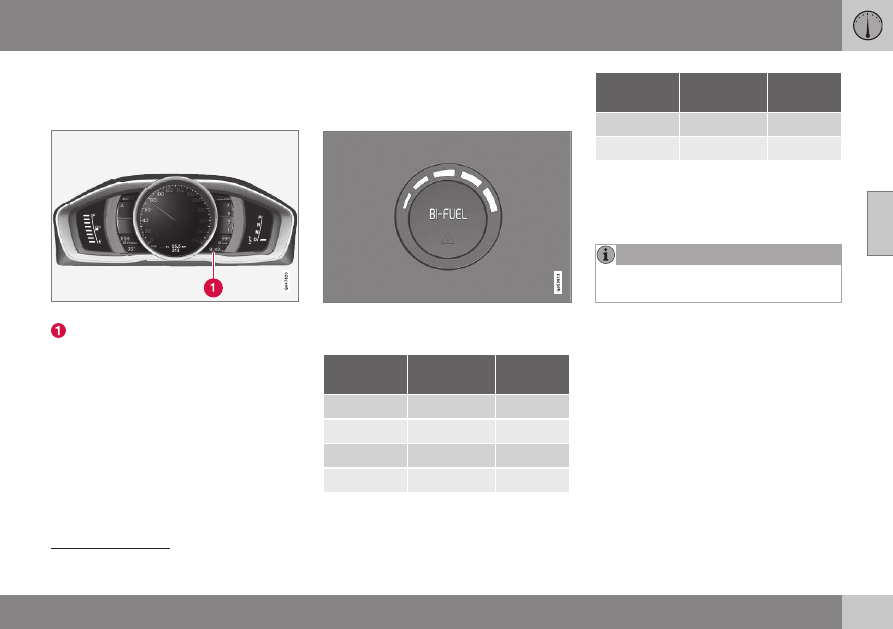

Clock

The clock display appears in the combined

instrument panel.

Clock, digital instrument panel.

Display for showing the time

Setting the clock
The clock can be adjusted in the menu sys-

Related information

•

Fuel gauge for vehicle gas*

The Bi-Fuel model variant has a separate fuel

gauge for vehicle gas.

Markings above the switch show the current

fuel level.

Number of

LEDs

Colour of

LEDs

Fuel

level (%)

Green

100

Green

Number of

LEDs

Colour of

LEDs

Fuel

level (%)

Green

Orange

When the vehicle gas tank is empty the

switch sounds 3 times. The level gauge extin-

guishes and the system automatically

changes over to petrol.

The FreeType Project License: http://

Ensure that the petrol tank never runs dry

because the car always starts on petrol.

The time is shown in the centre of an analogue instrument panel.

Applies to Bi-Fuel model variant.

03 Instruments and controls

Combined instrument panel - license

agreement

A license is an agreement for the right to

operate a certain activity or the right to use

someone else's entitlement according to the

terms and conditions in the agreement. The

following text is Volvo's agreement with the

manufacturer/developer.

Combined Instrument Panel Software
Open Source Software Notice
This product uses certain free / open source

and other software originating from third

parties, that is subject to the GNU Lesser

General Public License version 2 (LGPLv2),

The FreeType Project License ("FreeType

License") and other different and/or additional

copy right licenses, disclaimers and notices.

The links to access the exact terms of

LGPLv2, and the other open source software

licenses, disclaimers, acknowledgements and

notices are provided to you below. Please

refer to the exact terms of the relevant

License, regarding your rights under said

licenses. Volvo Car Corporation (VCC) offers

to provide the source code of said free/open

source software to you for a charge covering

the cost of performing such distribution, such

as the cost of media, shipping and handling,

upon written request. Please contact your

nearest Volvo Dealer.
The offer is valid for a period of at least three

(3) years from the date of the distribution of

this product by VCC / or for as long as VCC

offers spare parts or customer support.
Portions of this product uses software

copyrighted

(www.freetype.org). All rights reserved.
Portions of this product uses software with

(http://www.lua.org/)

This product includes software under

following licenses:
LGPL v2.1: http://www.gnu.org/licenses/old-

licenses/lgpl-2.1.html

•

GNU FriBidi

•

DevIL

git.savannah.gnu.org/cgit/freetype/

freetype2.git/tree/docs/FTL.TXT

•

FreeType 2

MIT License: http://opensource.org/licenses/

mit-license.html

•

Lua

Symbols in the display

There are a variety of different symbols in the

display in the car. The symbols are divided

into warning, indicator and information sym-

bols.

Shown below are the most common symbols

with their meanings and a reference to where

in the manual further information can be

found.

- Red warning symbol, illuminates

when a fault has been indicated which could

affect the safety and/or driveability of the car.

An explanatory text is shown in the informa-

tion display in the combined instrument panel

at the same time.

- Information symbol, illuminates in

combination with text in the information dis-

play in the combined instrument panel, when

a deviation in any of the car's systems has

occurred. The information symbol can also

illuminate in conjunction with other symbols.

Warning symbols in the combined
instrument panel

Symbol Specification

See

Low oil pressure

Parking brake

applied

(p. 72),

(p. 295)

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Symbol Specification

See

Parking brake

applied, alterna-

tive symbol

Airbags – SRS

(p. 30),

Seatbelt

reminder

(p. 27),

Alternator not

charging

Fault in brake

system

(p. 72),

(p. 292)

Warning, safety

mode

Control symbols in the combined
instrument panel

Symbol Specification

See

ABL fault*

(p. 95)

Emissions sys-

tem

ABS fault

(p. 292)

Symbol Specification

See

Rear fog lamp on

(p. 95)

Stability system,

ESC (Electronic

Stability Control),

Hill descent con-

trol

(p. 280),

(p. 198),

Stability system,

sport mode

(p. 198)

Engine preheater

(diesel)

Low level in fuel

tank

(p. 149)

Information, read

display text

Main beam On

(p. 92)

Left-hand direc-

tion indicators

Right-hand

direction indica-

tors

Start/Stop*,

engine auto-

stopped

(p. 288)

Symbol Specification

See

ECO function* on

(p. 290)

Tyre pressure

system*

Combined instrument panel - meaning of

(p. 334)

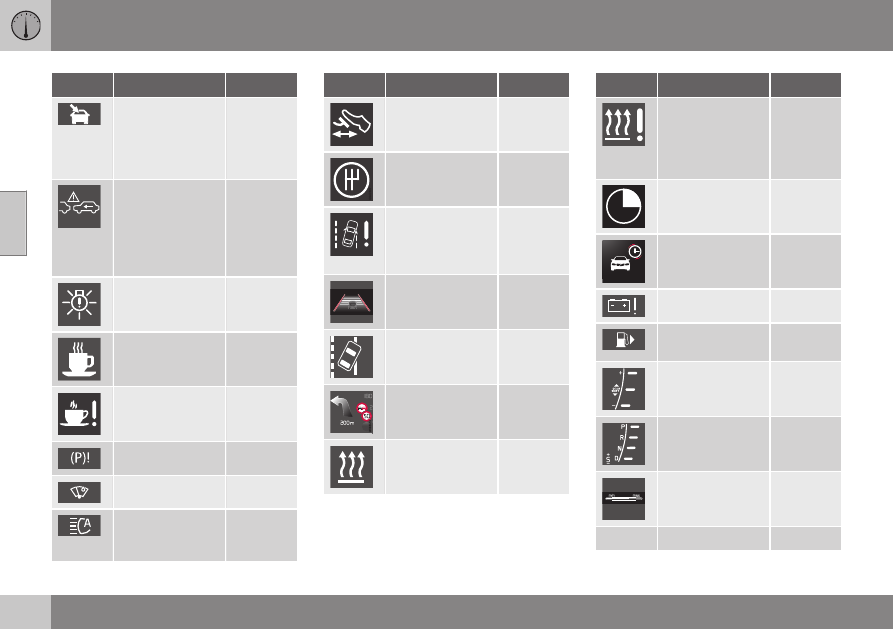

Information symbols in the combined
instrument panel

Symbol Specification

See

Cruise control*

(p. 203)

Adaptive cruise

control*

(p. 218)

Adaptive cruise

control*, time

interval

(p. 205),

(p. 208)

Adaptive cruise

control*, Distance

Warning* (Dis-

tance Alert)

Radar sensor*

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Symbol Specification

See

Windscreen sen-

sor*, Camera sen-

sor*, Laser sen-

sor*

Auto Brake*, Dis-

tance Warning*

(Distance Alert),
City Safety

Collision warning

system*

ABL system*

Driver Alert Sys-

tem*, Time for a

break

(p. 241)

Driver Alert Sys-

tem*, Time for a

break

(p. 242)

Parking brake

(p. 295)

Rain sensor*

(p. 104)

Active high beam,

AHB (Active High

Beam)*

(p. 93)

Symbol Specification

See

Start/Stop*

(p. 288)

Start/Stop*

(p. 288)

Driver Alert Sys-

tem*, Lane Depar-

ture Warning

(LDW)

(p. 242),

(p. 246)

Driver Alert Sys-

tem*, Lane Depar-

ture Warning*

(p. 244)

Driver Alert Sys-

tem*, Lane Depar-

ture Warning*

(p. 246)

Recorded speed

information*

(p. 200)

Engine block and

passenger com-

partment heater*

(p. 149)

Symbol Specification

See

Engine block

heater and pas-

senger compart-

ment heater*

Service required

Activated timer*

Activated timer*

Low battery

Fuel filler flap,

right-hand side

(p. 302)

Gear shift indica-

tor

(p. 272)

Gear positions

(p. 273)

Measuring the oil

level

(p. 363)

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Information symbols in the roof console
display

Symbol Specification

See

Seatbelt reminder

(p. 29)

Airbag, passenger

seat, activated

(p. 34)

Airbag, passenger

seat, deactivated

(p. 34)

Related information

•

indicator symbols (p. 70)

•

Combined instrument cluster - meaning

of warning symbols (p. 72)

•

Messages - handling (p. 116)

Volvo Sensus

Volvo Sensus is the heart of the personal

Volvo experience and connects you with the

car and outside world. Sensus provides infor-

mation, entertainment and assistance when it

is needed. Sensus consists of intuitive func-

tions that both enhance the car journey and

simplifies ownership of the car.

An intuitive navigation structure makes it pos-

sible to receive relevant support, information

and entertainment when it is necessary, with-

out distracting the driver.
Sensus covers all the car's solutions that

enable connection* to the outside world and

provides you with intuitive control over all the

car's capabilities.
Volvo Sensus combines and presents many

functions in several of the car's systems on

the centre console's display screen. With

Volvo Sensus the car can be personalised by

means of an intuitive user interface. Settings

can be made in Car settings, Audio and

media, Climate control, etc.
With the centre console buttons and controls

or the steering wheel's right-hand keypad*

functions can be activated or deactivated and

many different settings can be made.
With a press on MY CAR all settings related

to the driving and control of the car are pre-

sented, such as City Safety, locks and alarm,

automatic fan speed, setting the clock, etc.
With a press on the respective function
RADIO, MEDIA, TEL, *, NAV* and CAM*
other sources, systems and functions can be

activated, e.g. AM, FM, CD, DVD*, TV*,
Bluetooth

*, navigation* and park assist cam-

era*.
For more information about all functions/

systems, see the relevant section in the

owner's manual or its supplement.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

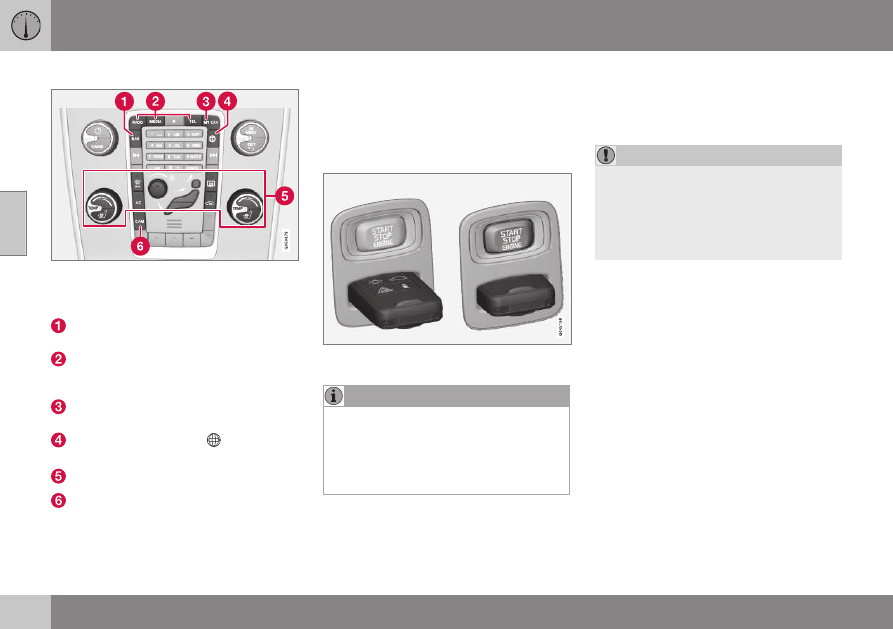

Overview

Control panel in centre console. The figure is

schematic - the number of functions and layout

of the buttons both vary, depending on the

equipment selected and the market.

Navigation* - NAV, see separate supple-

ment (Sensus Navigation).
Audio and media - RADIO, MEDIA, TEL*,

see separate supplement (Sensus Info-

tainment).
Function settings - MY CAR, see MY

CAR (p. 116).
Internet-connected car -

*, see sepa-

rate supplement (Sensus Infotainment).
Climate control system (p. 130).

Park assist camera* (p. 251) – CAM*.

Key positions

The remote control key can be used to set the

vehicle's electrical system in different modes/

levels so that different functions are available;

see Key positions - functions at different lev-

els (p. 81).

Ignition switch with remote control key extrac-

ted/inserted.

tion on Keyless functions, see Keyless

For cars with the Keyless* function the

remote control key does not need to be

inserted into the ignition switch but can be

stored in e.g. a pocket. For more informa-

drive* (p. 178).

Insert the remote control key
1. Hold the end of the remote control key

with the detachable key blade and insert

the remote control key in the ignition

switch.

2. Then press the remote control key in the

lock up to its end position.

IMPORTANT

Foreign objects in the ignition switch can

impair the function or destroy the lock.
Do not press in the remote control key

incorrectly turned - hold the end with the

detachable key blade, see Detachable key

blade - detaching/attaching (p. 174).

Remove the remote control key
Push the remote control key, allow it to eject,

then pull it out from the ignition switch.

03 Instruments and controls

}}

Key positions - functions at different

levels

To enable the use of a limited number of

functions with the engine switched off, the

car's electrical system can be set in 3 differ-

ent levels - 0, I and II - with the remote con-

trol key. This owner's manual describes these

levels throughout using the denomination

"key positions".

The following table shows the functions avail-

able in each key position/level.

Level Functions

•

Odometer, clock and tem-

perature gauge are illumi-

nated.

•

Electrically operated seats

can be adjusted.

•

The audio system can be

used for a limited time - see

the Sensus Infotainment sup-

plement.

•

Sunroof, power windows, 12

V socket in the passenger

compartment, navigation,

phone, ventilation fan and

windscreen wipers can be

used.

Level Functions

•

The headlamps come on.

•

Warning/indicator lamps illu-

minate for 5 seconds.

•

Several other systems are

activated. However, electric

heating in seat cushions and

the rear window can only be

activated after starting the

engine.

This key position consumes a

lot of current from the starter

battery and should therefore be

avoided!

Selecting key position/level

•

Key position 0 - Unlock the car - This

means that the car's electrical system is

at level 0.

engine, see Starting the engine (p. 265).

To reach level I or II without starting the

engine - do not depress the brake/clutch

pedal when these key positions are due to

be selected.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

•

Key position I - With the remote control
key fully inserted into the ignition switch

- Briefly press START/STOP ENGINE.

•

Key position II - With the remote control
key fully inserted into the ignition switch

- Give a long

press on START/STOP

ENGINE.

•

Back to key position 0 - To return to key

position 0 from position II and I - Briefly

press on START/STOP ENGINE.

Audio system
For information on audio system functions

with remote control key removed, see the

Sensus Infotainment supplement.

Starting and stopping the engine
For information about starting/stopping the

Towing
For important information about the remote

control key during towing, see Towing

(p. 316).

Related information

•

Key positions (p. 80)

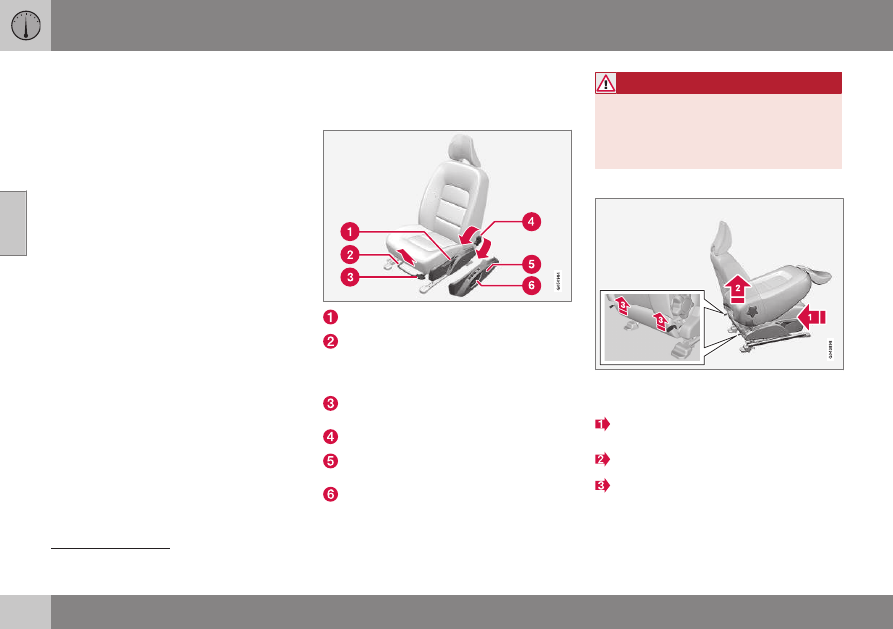

Seats, front

The car's front seats have different setting

options for optimum seating comfort.

Raise/lower the seat, pump up/down.

Forward/backward: lift the handle to

adjust the distance to the steering wheel

and pedals. Check that the seat is locked

after changing position.
Raise/lower* front edge of seat cushion,

pump up/down.
Adjust backrest rake, turn the wheel.

Change the lumbar support*, press the

button.

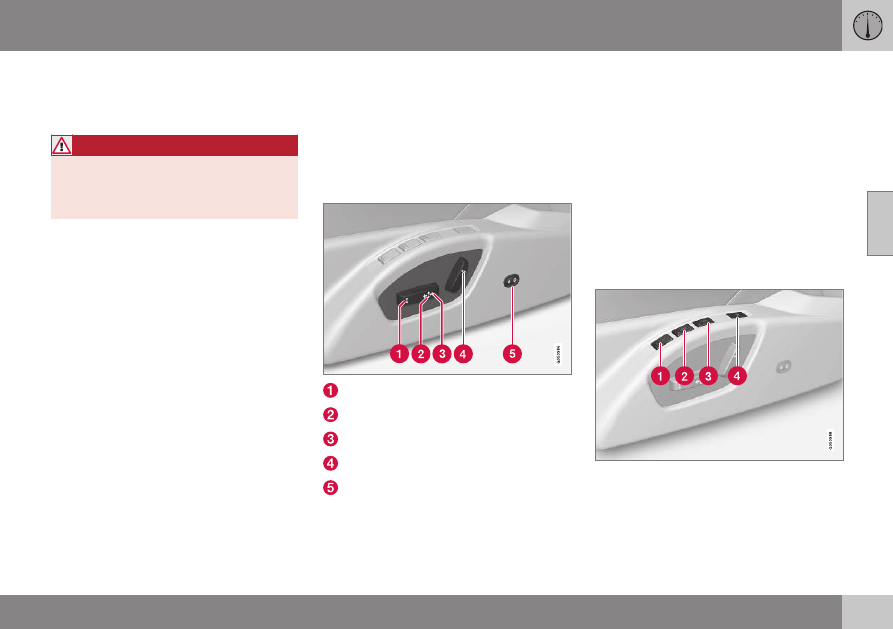

Control panel for power seat*, see Seats,

front - electrically operated* (p. 83).

WARNING

Adjust the position of the driver's seat

before setting off, never while driving.

Make sure that the seat is in locked posi-

tion in order to avoid personal injury in the

event of heavy braking or an accident.

Lowering the passenger seat backrest*

The passenger seat's backrest can be folded

forward to make room for long loads.

Move the seat as far back/down as possi-

ble.
Adjust the backrest to an upright position.

Lift the catches on the rear of the back-

rest and fold it forward.

Not required for cars with the Keyless* function.

Approx. 2 seconds.

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

4. Push the seat forward so that the head

restraint "locks" in under the glovebox.

Raising takes place in reverse order.

WARNING

Grasp the backrest and make sure that it

is properly locked after being folded up in

order to avoid personal injury in the event

of sudden braking or an accident.

Related information

•

Seats, front - electrically operated*

(p. 83)

•

Seats, rear (p. 84)

Seats, front - electrically operated*

The car's front seats have different setting

options for optimum seating comfort. The

power seat can be moved forward/backward

and up/down. The front edge of the seat

cushion can be raised/lowered. The backrest

angle and lumbar support* can be changed.

Power seat

Front edge of seat cushion up/down

Raise/lower seat

Seat, forward/backward

Backrest rake

Lumbar support* is adjusted inward and

outward

The power seats have overload protection

which is tripped if a seat is blocked by an

object. If this should happen, set the car's

electrical system in key position I or 0 and

wait a short time before adjusting the seat

again.
Only one movement (forward/back/up/down/

inward/outward) can be made at a time.

Preparations
The seat can be adjusted for a certain time

after unlocking the door with the remote con-

trol key without the key in the ignition switch.

Seat adjustment is normally made in key

position I and can always be made when the

engine is running.

Seat with memory function*

The memory function stores settings for the

seat and the door mirrors.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Store setting

Memory button

Button for storing settings

1. Adjust the seat and the door mirrors.
2. Press and hold button M while pressing

button 1, 2 or 3 simultaneously. Hold the

buttons depressed until the acoustic sig-

nal is heard and text is shown in the com-

bined instrument panel.

The seat must be adjusted again before a

new memory can be set.
The setting for lumbar support is not stored.

Using a stored setting
Press one of the memory buttons 1-3 until the

seat and the door mirrors stop. If the button

is released, the movement of the seat and

door mirrors will be interrupted.

Key memory* in remote control key
All remote control keys can be used by differ-

ent drivers to store the settings for the driv-
er's seat and door mirrors

, see Remote

control key - personalisation* (p. 168).

Emergency stop
If the seat accidentally begins to move, press

one of the setting buttons for the seat or

memory buttons in order to stop the seat.
Restarting to reach the seat position stored in

the key memory is performed by pressing the

unlock button on the remote control key. The

driver's door must then be open.

WARNING

Risk of crushing! Make sure that children

do not play with the controls. Check that

there are no objects in front of, behind or

under the seat during adjustment. Make

sure that none of the passengers in the

rear seat is in danger of becoming trap-

ped.

Heated/ventilated seats*
For heated seats/ventilated, see Heated front

seats* (p. 137) and Heated rear seat*

(p. 137).

Related information

•

Seats, front (p. 82)

•

Seats, rear (p. 84)

Seats, rear

The rear seat backrest and the outer seat

head restraints can be folded. The centre seat

head restraint can be adjusted to suit the

height of the passenger.

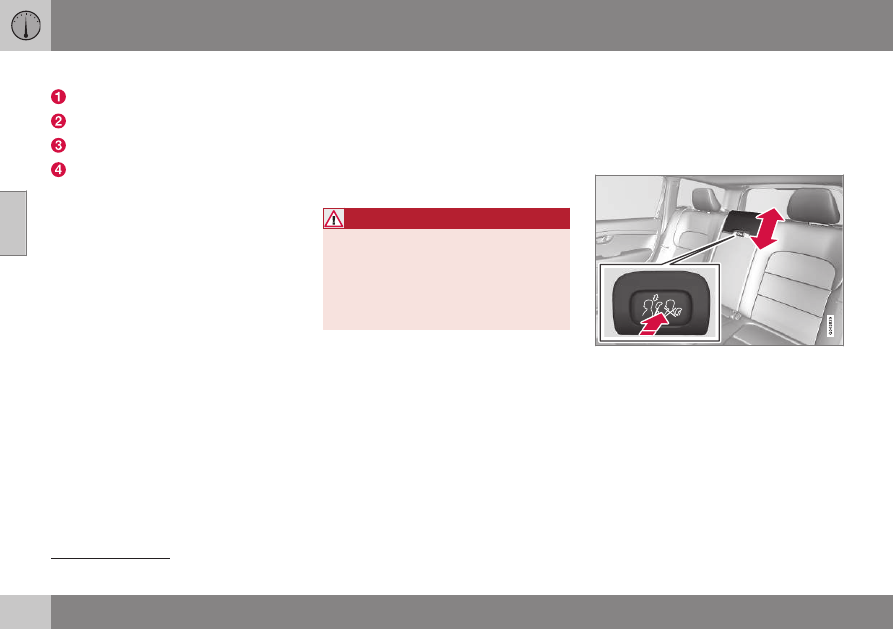

Head restraint, centre seat, rear

Adjust the head restraint according to pas-

senger height so that the whole of the back of

the head is covered if possible. Slide it up as

required.
To lower the head restraint again, the button

(located in the centre between the backrest

and head restraint, see illustration) must be

pressed in while the head restraint is pressed

down carefully.

Only if the car is equipped with power seat with memory and retractable power rearview and door mirrors. The setting for lumbar support is not stored.

03 Instruments and controls

}}

WARNING

The centre seat head restraint must be in

its lowest position when the centre seat is

not used. When the centre seat is used,

the head restraint must be correctly

adjusted to the height of the passenger so

that it covers the whole of the back of the

head if possible.

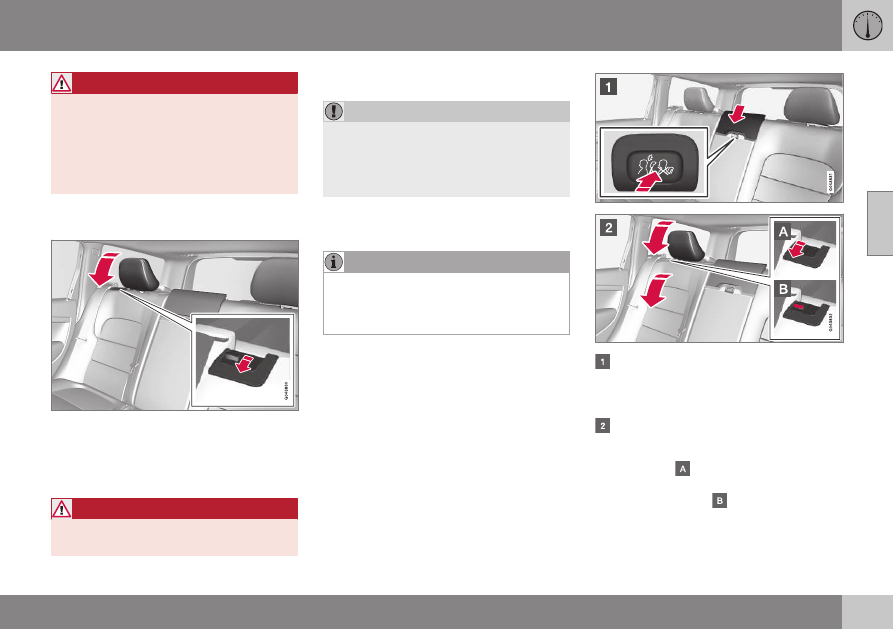

Manual lowering of the outer head
restraints, rear seat

Pull the locking handle closest to the head

restraint to fold the head restraint forward.
The head restraint is moved back manually

until a "click" can be heard.

WARNING

The head restraints must be in locked

position after being raised.

Lowering the rear seat backrest

IMPORTANT

There must be no objects on the rear seat

when the backrest is to be folded down.

The seat belts must not be connected

either. Otherwise there is a risk of damag-

ing the rear seat upholstery.

The triple-section backrest can be folded in

different ways.
