Volvo V60 (2019 year). Instruction

DISPLAYS AND VOICE CONTROL

* Option/accessory.

Instrument panel settings

Display settings for the instrument panel can be
set via the instrument panel's app menu and via
the center display's Settings menu.

Settings via instrument panel's app
menu

The illustration is generic – layout may vary.

The app menu will open and can be controlled
using the right-side steering wheel keypad.

The app menu can be used to set what informa-
tion will be displayed in the instrument panel:

•

trip computer

•

media player

•

phone

•

navigation system.

Settings via center display

Selecting type of information

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Displays

Driver Display

Information

3. Select a background:

•

Show no information in the
background

•

Show information for current playing
media

•

Show navigation even if no route is
set

Select theme

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the instru-

ment panel:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

Select language

1. Tap

Settings

in the center display's Top

view.

2. Tap

System

System Languages and

Units

System Language

to select lan-

guage.
> A change made here will affect the lan-

guage in all displays.

The settings are personal and saved automati-
cally in the active driver profile.

Related information

•

Instrument panel (p. 80)

•

Handling the App menu in the instrument
panel (p. 101)

•

Changing settings in the center display's Top
view (p. 130)

The map is only shown with the 12" instrument panel*. With the 8" instrument panel, only guidance is shown.

DISPLAYS AND VOICE CONTROL

}}

Fuel gauge

The fuel gauge in the instrument panel shows
the fuel level in the tank.

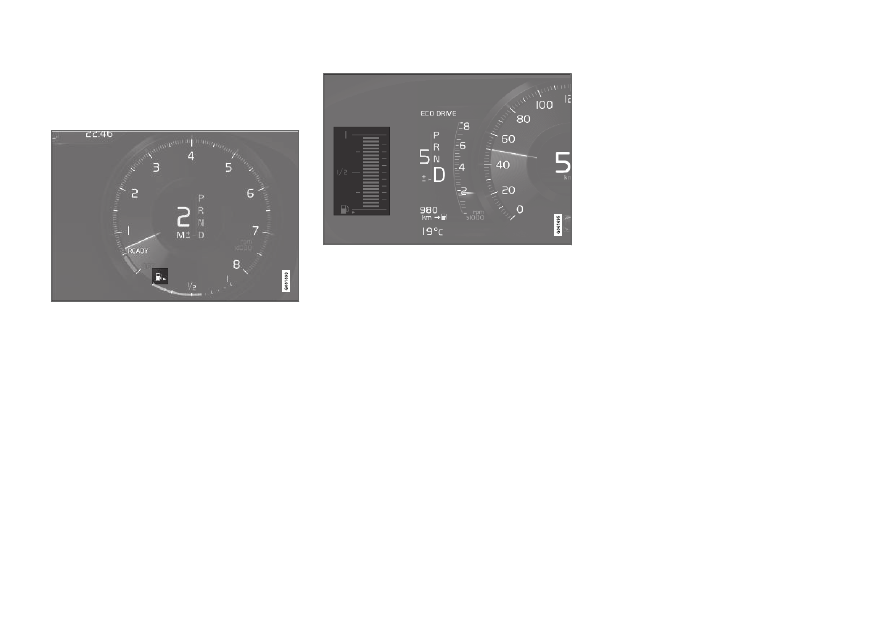

Fuel gauge in 12" instrument panel:

The beige area in the fuel gauge indicates the
amount of fuel left in the tank.

Fuel gauge in 8" instrument panel:

The bars in the fuel gauge indicate the amount of
fuel left in the tank.

When the fuel level is low and it is time to refuel,
the fuel pump symbol will illuminate with an
amber-colored light. The trip computer also indi-
cates the approximate distance driven on the fuel
remaining in the tank. When the fuel level is criti-
cally low, only an amber bar will be displayed.
Refuel as soon as possible.

Related information

•

Instrument panel (p. 80)

•

Refueling (p. 441)

•

Fuel tank volume (p. 640)

Trip computer

The vehicle's trip computer registers data while
driving such as mileage, fuel consumption and
average speed.

To help promote fuel-efficient driving, data is
recorded on both current and average fuel con-
sumption. Data from the trip computer can be
displayed in the instrument panel.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

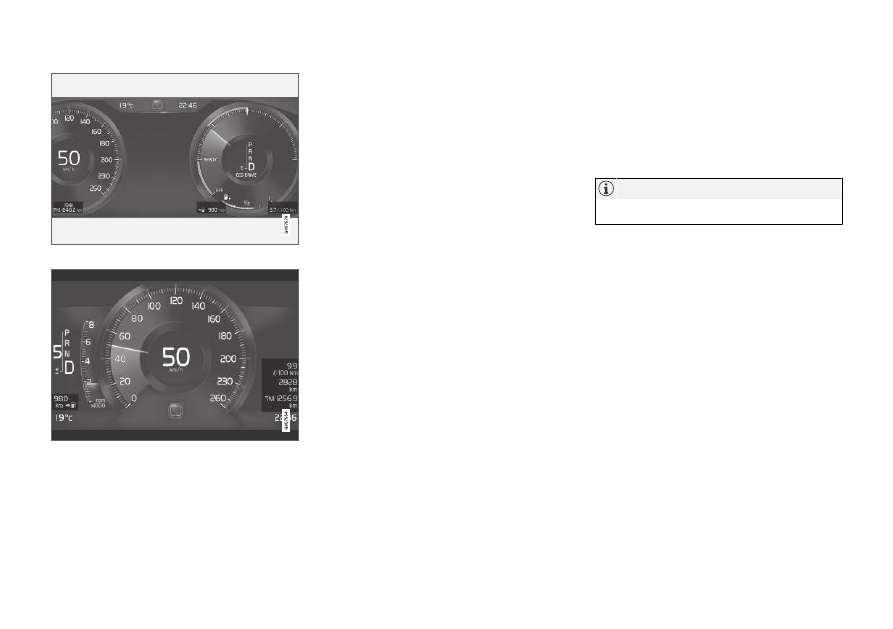

12" instrument panel*.

8-inch instrument panel.

The trip computer includes the following gauges:

•

Trip odometer

•

Odometer

•

Current fuel consumption

•

Distance to empty tank

•

Tourist - alternative speedometer

Unit standards for distance, speed, etc. can be
changed via system settings in the center display.

Trip odometer

There are two trip odometers: TM and TA.

TM can be reset manually and TA is reset auto-
matically if the vehicle is not used for four hours.

During a drive, the trip odometer registers data
on:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption

The readings since the trip odometer's last reset
are displayed.

Odometer

The odometer records the vehicle's total mileage.
This reading cannot be reset.

Current fuel consumption

This gauge shows the vehicle's fuel consumption
at that moment. The reading is updated about
once a second.

Distance to empty tank

The trip computer calculates the distance that
can be driven on the fuel remaining in the tank.

This calculation is based on average fuel con-
sumption during the last 30 km (20 miles) and
the amount of fuel remaining in the tank.

When the gauge displays "----", there is not
enough fuel remaining to calculate the remaining
mileage. Refuel as soon as possible.

NOTE

This may vary if your driving style changes.

An economical driving style will generally
increase how far you can drive on a certain
amount of fuel.

Tourist - alternative speedometer

The alternative digital speedometer makes it eas-
ier to drive in countries where speed limit signs
are shown in a different measurement unit than
the one shown in the vehicle's gauges.

When used, the digital speed is displayed in the
opposite unit to that shown in the analog speed-
ometer. If mph is used in the analog speedome-
ter, the equivalent speed in km/h will be shown
in the digital speedometer.

Related information

•

Displaying trip data in the instrument panel
(p. 87)

•

Resetting the trip odometer (p. 88)

•

Displaying trip statistics in the center display
(p. 88)

DISPLAYS AND VOICE CONTROL

}}

•

Instrument panel (p. 80)

•

Changing system units of measurement
(p. 130)

Displaying trip data in the

instrument panel

Data recorded and calculated by the trip com-
puter can be displayed on the instrument panel.

This data is stored in a trip computer app. You
can choose which information the instrument
panel will display in the app menu.

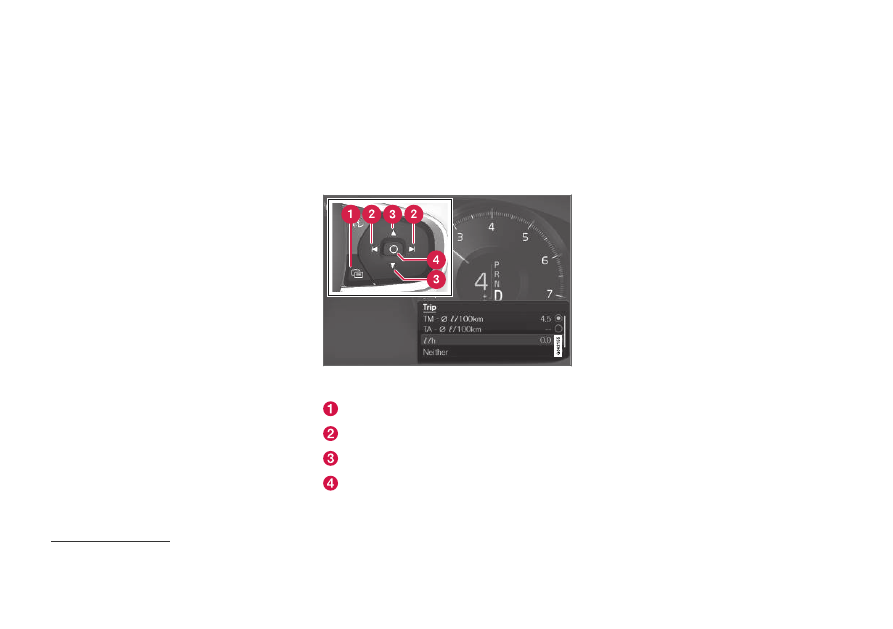

Open and navigate in the app menu

using the right-

hand steering wheel keypad.

App menu

Left/right

Up/down

Confirm

1. Open the app menu in the instrument panel

by pressing (1).

(The App menu cannot be opened while
there is an unacknowledged message in the
instrument panel. The message must be con-
firmed before the App menu can be opened.)

2. Navigate to the trip computer app by moving

left or right using (2).
> The top four menu rows show measured

values for trip odometer TM. The next four
menu rows show measured values for trip
odometer TA. Scroll up or down in the list
using (3).

3. Scroll down to the option buttons to choose

which information to show in the instrument
panel:

•

Distance to empty tank

•

Odometer

•

Mileage for trip odometer TM, TA or no
display of mileage

•

Current fuel consumption, average fuel
consumption for TM or TA, or no display
of fuel consumption

•

Tourist (alternative speedometer).

Select or clear a selection using the O but-
ton (4). The change will apply immediately.

The illustration is generic - details may vary according to vehicle model.

DISPLAYS AND VOICE CONTROL

Related information

•

Trip computer (p. 85)

•

Resetting the trip odometer (p. 88)

Resetting the trip odometer

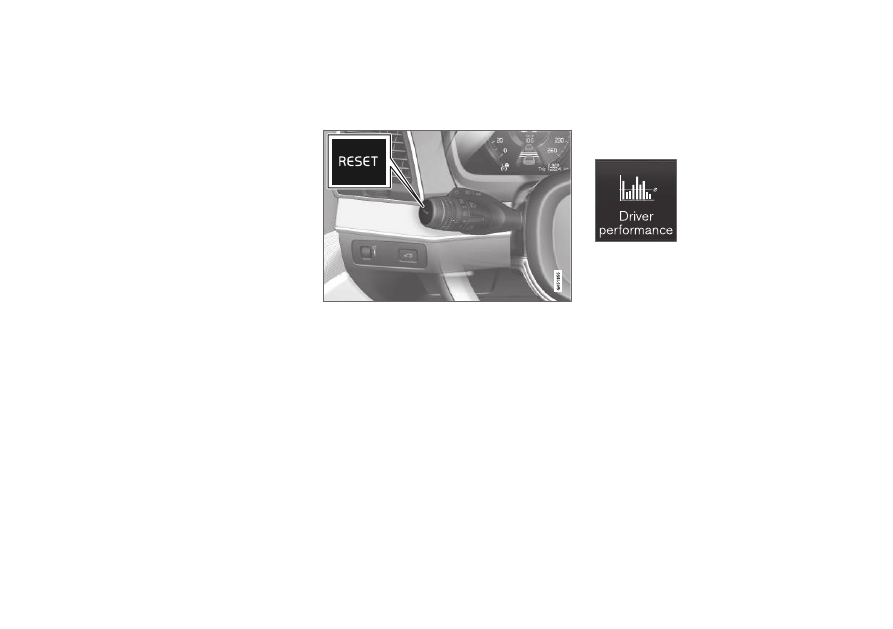

Resetting the trip odometer using the left-side
steering wheel lever.

–

Reset all information in trip odometer TM (i.e.
mileage, average fuel consumption, average
speed and driving time) by pressing and
holding the RESET button on the left-hand
steering wheel lever.

Tapping the RESET button only resets the
distance driven.

The TA trip odometer can not be manually reset.
It resets automatically if the vehicle is not used
for four hours or more.

Related information

•

Trip computer (p. 85)

Displaying trip statistics in the

center display

Trip computer statistics can be displayed graphi-
cally in the center display, providing an overview
that facilitates more fuel-efficient driving.

Open the

Driver performance

app in the App view to display
trip statistics.

Each bar in the graph repre-
sents a driving distance of 1
kilometers, 10 kilometers or

100 kilometers (or miles). The bars are added
from the right as you drive. The bar at the far right
shows the data for the current trip.

Average fuel consumption and total driving time
are calculated from the most recent reset of the
trip statistics.

DISPLAYS AND VOICE CONTROL

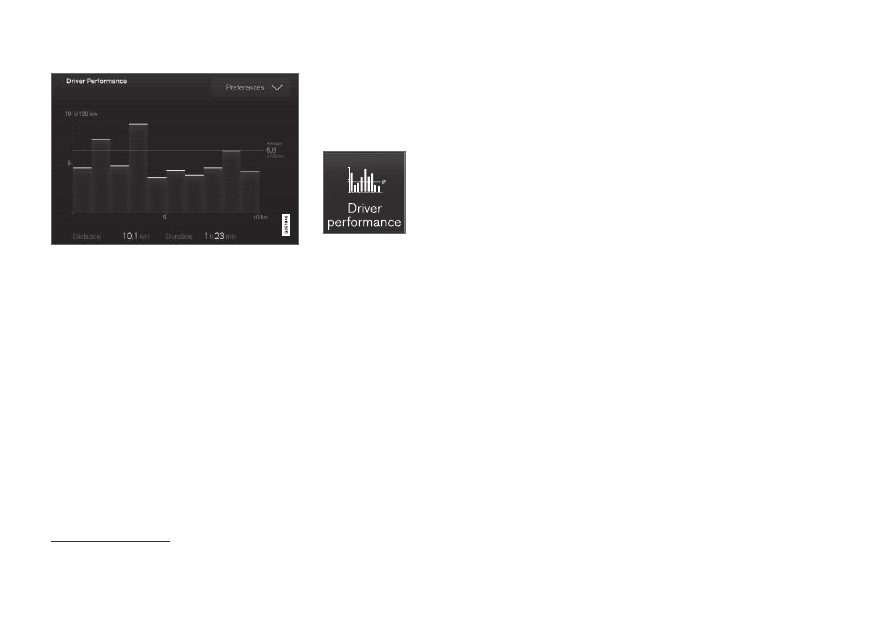

Trip computer statistics

Related information

•

Trip statistics settings (p. 89)

•

Trip computer (p. 85)

Trip statistics settings

Trip statistics settings can be reset or adjusted.

1. Open the

Driver performance

app in the

App view to display trip statistics.

2. Tap

Preferences

•

change the graph scale. Select 1, 10 or
100 km/miles for the bar.

•

reset data after each trip. Performed when
the vehicle remains stationary for more
than 4 hours.

•

reset data for current trip.

Trip statistics, calculated average consump-
tion, and total driving time are always reset
simultaneously.

Unit standards for distance, speed, etc. can be
changed via system settings in the center display.

Related information

•

Displaying trip statistics in the center display
(p. 88)

•

Trip computer (p. 85)

•

Resetting the trip odometer (p. 88)

The illustration is generic - details may vary according to vehicle model.

DISPLAYS AND VOICE CONTROL

Date and time

The clock is displayed in both the instrument
panel and the center display.

Location of clock

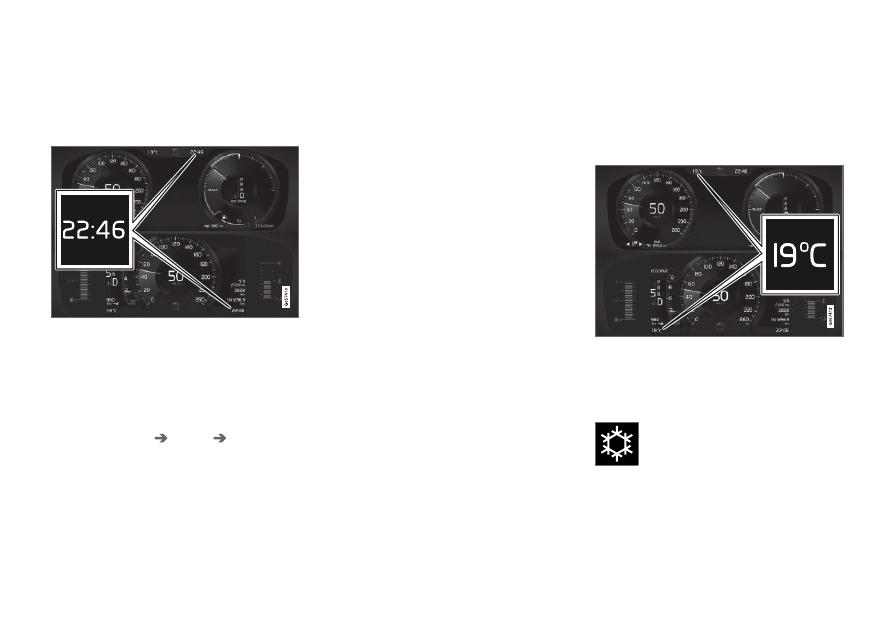

Location of clock in 12" and 8" instrument panels.

In the center display, the clock is located at the
top right of the status bar.

Certain messages and other information may
obscure the clock in the instrument panel.

Time and date settings

–

Select

Settings

System

Date and

Time

in the center display's Top view to

change settings for time and date format.

Adjust the time and date by tapping the up or
down arrows on the touchscreen.

Automatic time for vehicles with GPS

When the vehicle is equipped with a navigation
system,

Auto Time

is also available. The time

zone will then be automatically set to the vehi-
cle's location. In some navigation systems, the
current location must also be set to determine
the correct time zone. If

Auto Time

is not

selected, the time and date can be adjusted
using the up and down arrows on the
touchscreen.

Daylight savings time

In some countries, an automatic change to day-
light savings time can be selected by activating

Auto

. For other countries, daylight savings time

can be changed by selecting

Off

Related information

•

Instrument panel (p. 80)

•

Changing settings in the center display's Top
view (p. 130)

Ambient temperature sensor

The ambient temperature is shown in the instru-
ment panel.

The sensor detects the temperature outside the
vehicle.

Location of the ambient temperature sensor in 12" and
8" instrument panels.

If the vehicle has been stationary, the sensor
reading may be higher than the actual tempera-
ture.

When the ambient temperature is
between –5 °C and +2 °C (23

°F and

°F), a snowflake symbol will be dis-

played in the instrument panel as a

warning for possible slippery conditions.

The snowflake symbol is also temporarily lit in the
head-up display if the vehicle is equipped with
one.

DISPLAYS AND VOICE CONTROL

}}

Change the measurement standard for the tem-
perature sensor etc. via system settings in the
center display's Top view.

Related information

•

Instrument panel (p. 80)

•

Changing system units of measurement
(p. 130)

Indicator symbols in the instrument

panel

The indicator symbols alert the driver that a func-
tion has been activated, that a system is running,
or that a fault or error may have occurred.

Symbol

Meaning

Information, see the message in
the display

The information symbol illuminates
and a message is displayed in the
instrument panel if one of the vehi-
cle's systems requires the driver's
attention. The information symbol
may also illuminate in combination
with other symbols.

Fault in brake system

This symbol illuminates if there is a
problem with the parking brake.

Symbol

Meaning

Fault in ABS system

If this symbol is illuminated, the
ABS system is malfunctioning. The
vehicle's regular brakes will still
work, but without the ABS function.

Auto-brake on

This symbol illuminates when the
function is activated and the brakes
or parking brakes are being used.
The brakes hold the vehicle at a
standstill after it has stopped.

DISPLAYS AND VOICE CONTROL

Symbol

Meaning

Tire pressure system

This symbol illuminates to indicate
low tire pressure. If there is a fault
in the tire pressure system, the
symbol will first flash for approxi-
mately 1 minute and then glow
steadily. This may occur if the sys-
tem cannot detect or alert the
driver of low tire pressure as
intended.

Emission control system

If this symbol illuminates after star-
ting the engine, it could indicate a
fault in the vehicle's emission con-
trol system. Have the vehicle
checked by a workshop. Volvo rec-
ommends contacting an authorized
Volvo workshop.

Left/right turn signals

The symbol will flash when the turn
signals are in use.

Symbol

Meaning

Parking lights

This symbol illuminates when the
parking lights are on.

Fault in headlight system

This symbol illuminates if a fault
has been detected in the ABL
(Active Bending Lights) function or
another fault in the headlight sys-
tem.

Active high beams on

This symbol lights up in blue when
the active high beams are on.

Active high beams off

This symbol lights up in white when
the active high beams are off.

High beams on

This symbol illuminates when the
high beams are on or flashed.

Active high beams on

This symbol lights up in blue when
the active high beams are on. Park-
ing lights are on.

Symbol

Meaning

Active high beams off

This symbol lights up in white when
the active high beams are off.
Parking lights are on.

High beams on

This symbol illuminates when the
high beams and parking lights are
on.

Front fog lights on

This symbol illuminates when the
front fog lights are on.

Rear fog light on

This symbol illuminates when the
rear fog light is on.

Rain sensor on

This symbol illuminates when the
rain sensor is on.

Preconditioning on

This symbol illuminates when the
engine block/passenger compart-
ment heater or air conditioning are
preconditioning the vehicle.

DISPLAYS AND VOICE CONTROL

}}

Symbol

Meaning

Stability system

This symbol flashes when the sta-
bility system is actively working to
stabilize the vehicle. If the symbol
glows steadily, there is a fault in
the system.

Stability system, Sport mode

This symbol illuminates when Sport
mode is activated. Sport mode
offers a more active driving experi-
ence. If the system detects that
accelerator pedal, steering wheel
and cornering movements are
more active than in normal driving,
it allows a certain level of con-
trolled lateral movement of the rear
wheels before intervening and sta-
bilizing the vehicle.

Symbol

Meaning

Lane Keeping Aid

White symbol: Lane Keeping Aid is
on and lane marker lines are
detected.

Gray symbol: Lane Keeping Aid is
on but no lane marker lines are
detected.

Amber symbol: Lane Keeping Aid
is alerting/intervening.

Lane Keeping Aid and rain sen-
sor

White symbol: Lane Keeping Aid is
on and lane marker lines are
detected. The rain sensor is on.

Gray symbol: Lane Keeping Aid is
on but no lane marker lines are
detected. The rain sensor is on.

Canadian models.

US models.

Related information

•

Instrument panel (p. 80)

•

Warning symbols in the instrument panel
(p. 93)

Warning symbols in the instrument

panel

The warning symbols alert the driver that an
important function is activated or that a serious
fault or error has occurred.

Symbol

Meaning

WARNING

The red warning symbol illuminates
to indicate that a fault has been
detected that could affect safety
and/or driveability. An explanatory
message will be simultaneously
displayed in the instrument panel.
The warning symbol may also illu-
minate in combination with other
symbols.

Seat belt reminder

This symbol will glow steadily or
flash if the driver or front seat pas-
senger has not fastened their seat
belt or if anyone in the rear seat
has removed their seat belt.

DISPLAYS AND VOICE CONTROL

Symbol

Meaning

Airbags

If this symbol remains illuminated
or comes on while driving, a fault
has been detected in one of the
vehicle's safety systems. Read the
message in the instrument panel.
Volvo recommends contacting an
authorized Volvo workshop.

Fault in brake system

If this symbol illuminates, the brake
fluid level may be too low. Contact
your nearest authorized workshop
to have the brake fluid level
checked and adjusted.

Parking brake on

This symbol glows steadily when
the parking brake is applied.

A flashing symbol indicates that a
fault has occurred. Read the mes-
sage in the instrument panel.

Symbol

Meaning

Low oil pressure

If this symbol illuminates while driv-
ing, the engine oil level is too low.
Stop the engine immediately and
check the engine oil level. Add oil if
necessary. If the symbol illuminates
and the oil level is normal, contact
a workshop. Volvo recommends
contacting an authorized Volvo
workshop.

Generator not charging

This symbol illuminates during driv-
ing if a fault is detected in the elec-
trical system. Contact a workshop.
Volvo recommends contacting an
authorized Volvo workshop.

Collision risk

City Safety warns the driver if there
is a risk of a collision with another
vehicle, pedestrian, cyclist or large
animal.

Canadian models.

US models.

Related information

•

Indicator symbols in the instrument panel
(p. 91)

•

Instrument panel (p. 80)

Instrument panel licenses

A license is an agreement on the right to con-
duct a certain activity or the right to use some-
one else's right according to terms and condi-
tions specified in the agreement. The following
text is Volvo's agreement with the manufacturer
or developer.

DISPLAYS AND VOICE CONTROL

}}

Boost Software License 1.0

Permission is hereby granted, free of charge, to
any person or organization obtaining a copy of
the software and accompanying documentation
covered by this license (the "Software") to use,
reproduce, display, distribute, execute, and
transmit the Software, and to prepare derivative
works of the Software, and to permit third-parties
to whom the Software is furnished to do so, all
subject to the following: The copyright notices in
the Software and this entire statement, including
the above license grant, this restriction and the
following disclaimer, must be included in all
copies of the Software, in whole or in part, and all
derivative works of the Software, unless such
copies or derivative works are solely in the form
of machine-executable object code generated by
a source language processor.

THE SOFTWARE IS PROVIDED "AS IS",
WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE AND NON-
INFRINGEMENT. IN NO EVENT SHALL THE
COPYRIGHT HOLDERS OR ANYONE
DISTRIBUTING THE SOFTWARE BE LIABLE
FOR ANY DAMAGES OR OTHER LIABILITY,
WHETHER IN CONTRACT, TORT OR
OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE
USE OR OTHER DEALINGS IN THE
SOFTWARE.

BSD 4-clause "Original" or "Old" License

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

3. All advertising materials mentioning features

or use of this software must display the
following acknowledgement: This product
includes software developed by the
University of California, Berkeley and its
contributors.

4. Neither the name of the University nor the

names of its contributors may be used to
endorse or promote products derived from
this software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
REGENTS AND CONTRIBUTORS ``AS IS'' AND
ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
REGENTS OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

DISPLAYS AND VOICE CONTROL

BSD 3-clause "New" or "Revised" License

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

3. Neither the name of the organisation nor the

names of its contributors may be used to
endorse or promote products derive from this
software without specific prior written
permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
"AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE COPYRIGHT HOLDER
OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR

SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

BSD 2-clause “Simplified” license

<YEAR>, <OWNER> All rights

reserved.

Redistribution and use in source and binary
forms, with or without modification, are permitted
provided that the following conditions are met:

1. Redistributions of source code must retain

the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must

reproduce the above copyright notice, this list
of conditions and the following disclaimer in
the documentation and/or other materials
provided with the distribution.

OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS;
OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.

The views and conclusions contained in the
software and documentation are those of the
authors and should not be interpreted as
representing official policies, either expressed or
implied, of the FreeBSD Project.

DISPLAYS AND VOICE CONTROL

}}

FreeType Project License

Robert Wilhelm, and Werner Lemberg
Introduction The FreeType Project is
distributed in several archive packages; some
of them may contain, in addition to the
FreeType font engine, various tools and
contributions which rely on, or relate to, the
FreeType Project. This license applies to all
files found in such packages, and which do
not fall under their own explicit license. The
license affects thus the FreeType font
engine, the test programs, documentation
and makefiles, at the very least. This license
was inspired by the BSD, Artistic, and IJG
(Independent JPEG Group) licenses, which
all encourage inclusion and use of free
software in commercial and freeware
products alike. As a consequence, its main
points are that: o We don't promise that this
software works. However, we are be
interested in any kind of bug reports. (`as is'
distribution) o You can use this software for
whatever you want, in parts or full form,
without having to pay us. (`royalty-free'
usage) o You may not pretend that you wrote
this software. If you use it, or only parts of it,
in a program, you must acknowledge
somewhere in your documentation that
you've used the FreeType code. (`credits')
We specifically permit and encourage the
inclusion of this software, with or without
modifications, in commercial products,

provided that all warranty or liability claims
are assumed by the product vendor. Legal
Terms 0. Definitions Throughout this license,
the terms `package', `FreeType Project', and
`FreeType archive' refer to the set of files
originally distributed by the authors (David
Turner, Robert Wilhelm, and Werner
Lemberg) as the `FreeType project', be they
named as alpha, beta or final release. `You'
refers to the licensee, or person using the
project, where `using' is a generic term
including compiling the project's source code
as well as linking it to form a `program' or
`executable'. This program is referred to as `a
program using the FreeType engine'. This
license applies to all files distributed in the
original FreeType archive, including all source
code, binaries and documentation, unless
otherwise stated in the file in its original,
unmodified form as distributed in the original
archive. If you are unsure whether or not a
particular file is covered by this license, you
must contact us to verify this. The FreeType
project is copyright (C) 1996-1999 by David
Turner, Robert Wilhelm, and Werner
Lemberg. All rights reserved except as
specified below. 1. No Warranty THE
FREETYPE ARCHIVE IS PROVIDED `AS IS'
WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL ANY OF THE
AUTHORS OR COPYRIGHT HOLDERS BE
LIABLE FOR ANY DAMAGES CAUSED BY
THE USE OR THE INABILITY TO USE, OF
THE FREETYPE PROJECT. As you have not
signed this license, you are not required to
accept it. However, as the FreeType project
is copyrighted material, only this license, or
another one contracted with the authors,
grants you the right to use, distribute, and
modify it. Therefore, by using, distributing, or
modifying the FreeType project, you indicate
that you understand and accept all the terms
of this license.

2. Redistribution Redistribution and use in

source and binary forms, with or without
modification, are permitted provided that the
following conditions are met: o Redistribution
of source code must retain this license file
(`licence.txt') unaltered; any additions,
deletions or changes to the original files
must be clearly indicated in accompanying
documentation. The copyright notices of the
unaltered, original files must be preserved in
all copies of source files. o Redistribution in
binary form must provide a disclaimer that
states that the software is based in part of
the work of the FreeType Team, in the
distribution documentation. We also
encourage you to put an URL to the
FreeType web page in your documentation,
though this isn't mandatory. These conditions
apply to any software derived from or based

DISPLAYS AND VOICE CONTROL

on the FreeType code, not just the
unmodified files. If you use our work, you
must acknowledge us. However, no fee need
be paid to us.

3. Advertising The names of FreeType's authors

and contributors may not be used to endorse
or promote products derived from this
software without specific prior written
permission. We suggest, but do not require,
that you use one or more of the following
phrases to refer to this software in your
documentation or advertising materials:
`FreeType Project', `FreeType Engine',
`FreeType library', or `FreeType Distribution'.

4. Contacts There are two mailing lists related

to FreeType: o freetype@freetype.org
Discusses general use and applications of
FreeType, as well as future and wanted
additions to the library and distribution. If you
are looking for support, start in this list if you
haven't found anything to help you in the
documentation. o devel@freetype.org
Discusses bugs, as well as engine internals,
design issues, specific licenses, porting, etc.
o http://www.freetype.org Holds the current
FreeType web page, which will allow you to
download our latest development version and
read online documentation. You can also
contact us individually at: David Turner

<david.turner@freetype.org> Robert Wilhelm

<robert.wilhelm@freetype.org> Werner
Lemberg

<werner.lemberg@freetype.org>

Libpng License

This copy of the libpng notices is provided for
your convenience. In case of any discrepancy
between this copy and the notices in the file
png.h that is included in the libpng distribution,
the latter shall prevail.

If you modify libpng you may insert additional
notices immediately following this sentence.

libpng versions 1.0.7, July 1, 2000, through
1.0.13, April 15, 2002, are Copyright (c)
2000-2002 Glenn Randers-Pehrson and are
distributed according to the same disclaimer and
license as libpng-1.0.6 with the following
individuals added to the list of Contributing
Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with
your enjoyment of the library or against
infringement. There is no warranty that our efforts
or the library will fulfill any of your particular
purposes or needs. This library is provided with all
faults, and the entire risk of satisfactory quality,
performance, accuracy, and effort is with the user.

libpng versions 0.97, January 1998, through
1.0.6, March 20, 2000, are Copyright (c) 1998,
1999 Glenn Randers-Pehrson, and are
distributed according to the same disclaimer and
license as libpng-0.96, with the following
individuals added to the list of Contributing
Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96,
May 1997, are Copyright (c) 1996, 1997
Andreas Dilger Distributed according to the same
disclaimer and license as libpng-0.88, with the
following individuals added to the list of
Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88,
January 1996, are Copyright (c) 1995, 1996 Guy
Eric Schalnat, Group 42, Inc.

Volvo V60 (2019 year). Instruction - part 4
