11 Specifications

Electrical system

11

302

*



Option/accessory, for more information, see Introduction.

Lighting

Output (W)

Type

Position/Parking lamps, front (Dual Xenon/halogen), Side marker lamps, front

5

W5W LL

Fog lamps

35

H8

Side direction indicators, door mirrors

5

WY5W LL

Front courtesy lighting

3

T10 Socket W2.1x9.5d

Glovebox lighting

3

T10 Socket W2.1x9.5d

Vanity mirror lighting*

1.2

Socket SV5.5 Length 35 mm

Cargo area lighting

10

Socket SV8.5 Length 43 mm

Number plate lighting

5

C5W LL

Rear direction indicators

21

PY21W LL

Position/Side marker lamps, rear

5

P21/5W LL

Reversing lamp, Rear fog lamp

21

P21W LL

11 Specifications

 Type approval

11

303

Remote control key system

Country and
region

A, B, CY, CZ, D, DK,
E, EST, F, FIN, GB,
GR, H, I, IRL, L, LT,
LV, M, NL, P, PL, S,
SK, SLO

 Delphi hereby

certifies that this
remote control key
system conforms to
the essential char-
acteristic require-
ments and other rel-
evant regulations of
directive 1999/5/EC.

IS, LI, N, CH

HR

ROK

Delphi 2003-07-15,
Germany R-
LPD1-03-0151

BR

TW

ETC093LPD0155

Certification of the Keyless Drive
system

Siemens VDO Automotive A.G. hereby certifies
that this equipment type 5WK4 8952,
5WK48956, 5WK48812 conforms to the
essential characteristic requirements and other
relevant regulations of Directive 1999/5/EC.

11 Specifications

Symbols in the display

11

304

*



Option/accessory, for more information, see Introduction.

General

There are a variety of different symbols in the
display in the car. The symbols are divided into
warning, indicator and information symbols.
Shown below are the most common symbols
with their meanings and a reference to where
in the manual further information can be found.
For more information on symbols and text
messages, see pages 52 and 56.

 - Red warning symbol, illuminates when

a fault has been indicated which could affect
the safety and/or driveability of the car. An
explanatory text is shown on the information
display at the same time.

 - Yellow information symbol, illuminates

in combination with text in the information dis-
play, when a deviation in any of the car's sys-
tems has occurred. The yellow symbol infor-
mation can also illuminate in combination with
other symbols.

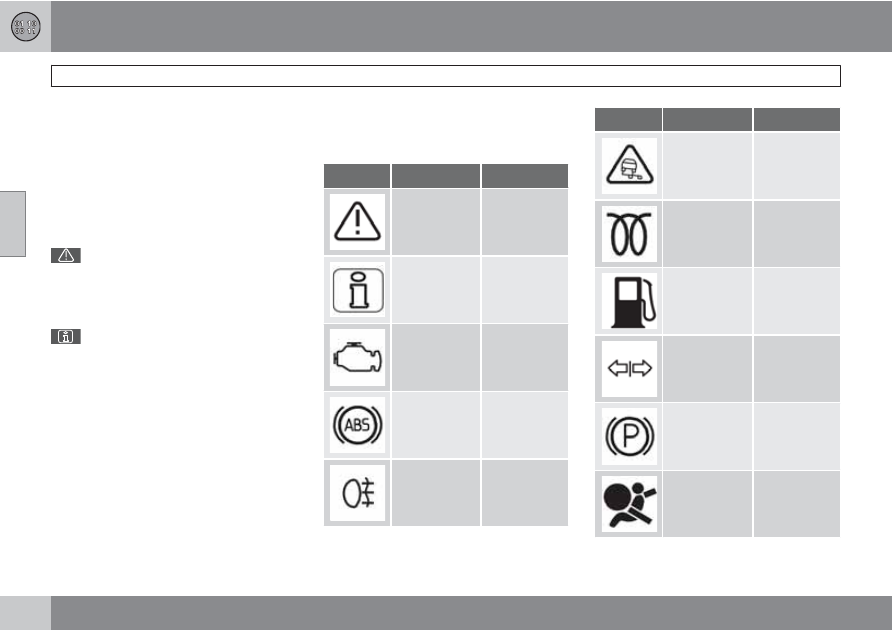

Symbols in the display

Indicator and warning symbols in the
combined instrument panel

Symbol

Meaning

Page

Warning

19, 30, 52, 55,
163

Information

52, 55, 163,
172, 174

Emissions
system

52, 53

Fault in the
ABS system

53, 54

Rear fog lamp

53

Symbol

Meaning

Page

Stability sys-
tem, DSTC*

53, 171, 172

Engine pre-
heater (diesel)

53

Low level in
fuel tank

53

Indicator
symbol for
trailer

54

Parking brake
applied

54

Airbags - SRS

19, 54

11 Specifications

 Symbols in the display

11

``

*



Option/accessory, for more information, see Introduction.

305

Symbol

Meaning

Page

Low oil pres-
sure

52, 54

Seatbelt
reminder

16, 54

Alternator not
charging

54

Fault in brake
system

54, 169

Main beam
indicator

51

Symbol

Meaning

Page

Left direction
indicators

51

Right direc-
tion indicators

51

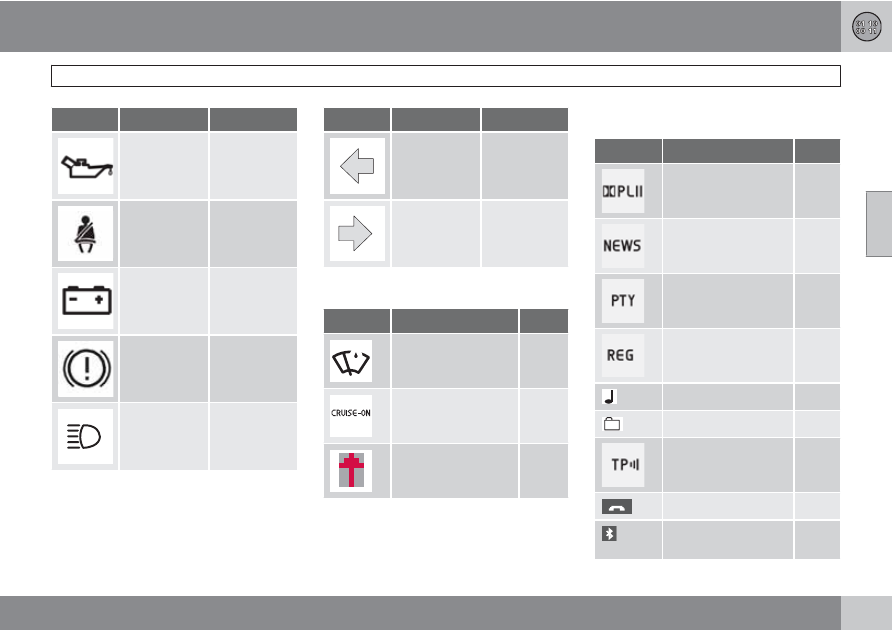

Other information symbols in the
combined instrument panel

Symbol

Meaning

Page

Rain sensor*

68

Cruise control*

70

Gear shift indicator*

159

Information symbols in the centre
console display

Symbol

Meaning

Page

G021216

Surround sound (only
Premium Sound)

257

G021221

News

261

G021222

Programme types

261

G021223

Regional radio pro-
grammes

262

Audio files

264

Directory in CD disc

264

G021220

Traffic information

261

Phone*

278

Bluetooth

TM

 hands-

free*

278

11 Specifications

Symbols in the display

11

306

Information symbols in the roof console
display

Symbol

Meaning

Page

Seatbelt reminder

17

Airbag, passenger
seat, activated

22, 23

Airbag, passenger
seat, deactivated

23
