Power windows

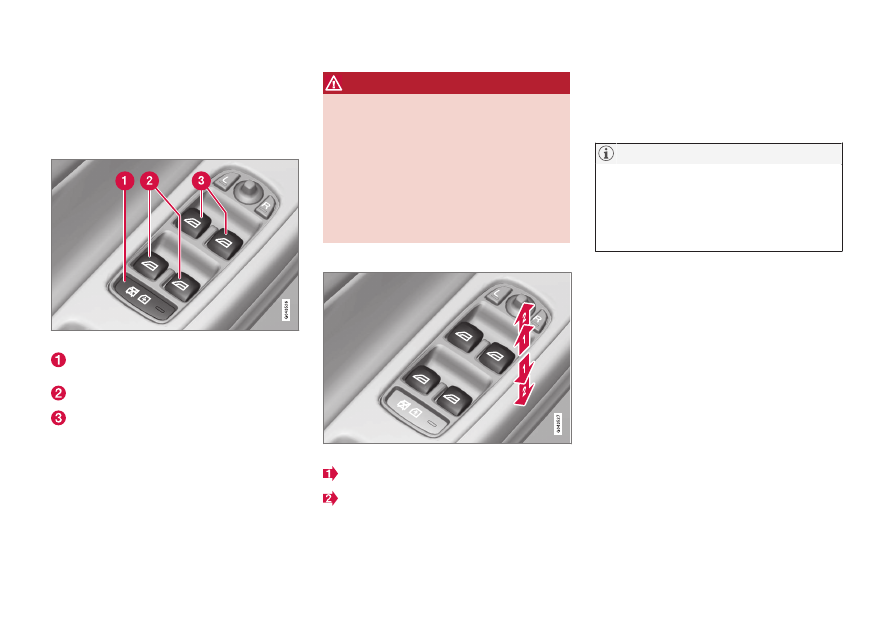

All power windows can be operated using the
control panel in the driver's door. The control
panels in the other doors only operate the win-
dow in the respective doors.

Driver's door control panel

Switch for disengaging rear door power win-
dow buttons
Rear door window controls

Front door window controls.

WARNING

•

Always remove the ignition key when the
vehicle is unattended to put the ignition in
mode 0 (see Ignition modes (p. 74) for
information about the ignition modes).

•

Never leave children unattended in the
vehicle.

•

Make sure that the windows are com-
pletely unobstructed before they are
operated.

Operating

Operating the power windows

Manual up/down

Auto up/down.

For the power windows to function, the ignition
must be in at least mode I. When the vehicle has

been running, the power windows can be oper-
ated for several minutes after the remote key has
been removed from the ignition slot, or until a
door has been opened.

NOTE

•

Movement of the windows will stop if they
are obstructed in any way.

•

To reduce buffeting wind noise if the rear
windows are opened, also open the front
windows slightly.

Manual up/down
–

Move one of the controls up/down slightly.
> The power windows move up/down as

long as the control is held in position.

Auto up/down
–

Move one of the controls up/down as far as
possible and release it.
> The window will open or close completely.

Resetting

If the battery has been disconnected, the auto
open function must be reset so that it will work
properly.

1. Gently raise the front section of the button to

close the window and hold it for one second.

2. Release the button briefly.

3. Raise the front section of the button again

for one second.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

Sun shades

A sun shade can be integrated into the rear par-
cel shelf.

Integrated rear sun shade

Integrated sun shade

–

Pull up the sun shade and attach its hooks to
the ceiling clips.
> The sun shade's spring-loading will pull it

taut.

When not in use, release the hooks and hold the
sun shade while it retracts.

Related information

•

Ignition modes (p. 74)

Power door mirrors

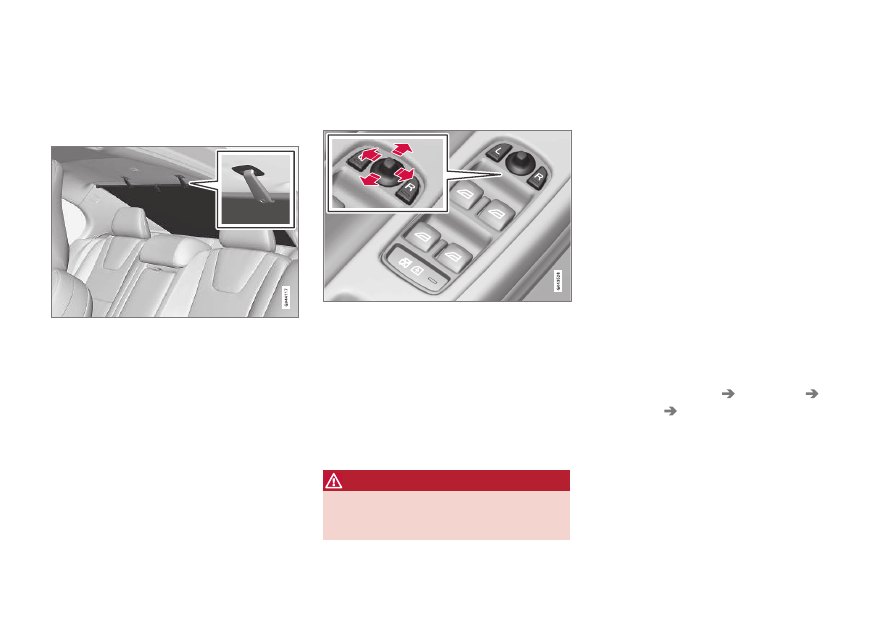

The control on the driver's door is used to adjust
the position of the door mirrors.

Door mirror controls

Adjusting

1. Press the L button for the left door mirror or

the R button for the right door mirror. The
light in the button comes on.

2. Adjust the position with the joystick in the

center.

3. Press the L or R button again. The light

should no longer be on.

WARNING

Objects seen in the wide-angle passenger's
side mirror may be closer than they appear to
be.

Retractable power door mirrors

The mirrors can be retracted for parking/driving
in narrow spaces:

1. Press down the L and R buttons at the same

time.

2. Release them after approximately one sec-

ond. The mirrors automatically stop in the
fully retracted position.

Fold out the mirrors by pressing down the L and
R buttons at the same time. The mirrors automat-
ically stop in the fully extended position.

Storing the position

The mirror positions are stored in the key mem-
ory when the vehicle has been locked with the
remote key. When the vehicle is unlocked with
the same remote control the mirrors and the driv-
er's seat adopt the stored positions when the
driver's door is opened.

The function can be activated/deactivated in
MY CAR under

Settings

Car settings

Car

key memory

Personal settings in key

memory

. See My Car – introduction (p. 71) for a

description of the menu system.

INSTRUMENTS AND CONTROLS

* Option/accessory.

Tilting the door mirrors when parking*

The door mirrors can be tilted down to help give
the driver a better view along the sides of the
vehicle, for example when parallel parking.

To activate this function, select reverse gear and
press the L or R mirror control button to tilt the
mirror down.

The function can be activated/deactivated in
MY CAR under

Settings

Car settings

Side mirror settings

Tilt left mirror

Tilt

right mirror

. See My Car – introduction (p. 71)

for a description of the menu system.

The door mirror will reset to its normal position:

•

after 10 seconds when reverse is disen-
gaged and the car remains stopped.

•

immediately when reverse is disengaged and
the vehicle's forward speed exceeds approxi-
mately 6 mph (10 km/h).

•

immediately if you press the corresponding L
or R button again.

•

when the engine is turned off.

•

when the side mirrors are folded in.

NOTE

Only one mirror can be tilted down at a time.

Home safe and approach lighting

The light on the door mirrors comes on when
approach lighting or home safe lighting is
selected, see Approach lighting (p. 92) and
Home safe lighting (p. 92).

Related information

•

Interior rearview mirror (p. 100)

•

Heated windshield

*, rear window and door

mirror defrosters (p. 99)

•

Power door mirrors – automatic tilting/
retraction (p. 98)

Power door mirrors – automatic

tilting/retraction

The control on the driver's door is used to adjust
the position of the door mirrors.

Automatically tilting the door mirrors
when parking

The door mirrors can tilt down automatically to
help give the driver a better view along the sides
of the vehicle, for example when parallel parking.
When the transmission is no longer in reverse,
the mirrors will automatically return to their origi-
nal position.

This function can be activated/deactivated in MY
CAR under

Settings

Car settings

Side

mirror settings

In reverse gear tilt left

mirror

In reverse gear tilt right mirror

. See

My Car – introduction (p. 71) for information
about the MY CAR menu system.

Automatic retraction when locking

When the vehicle is locked/unlocked with the
remote key the door mirrors are automatically
retracted/extended.

The function can be activated/deactivated in
MY CAR under

Settings

Car settings

Side mirror settings

Retract side mirrors

when locking

. See My Car – introduction (p. 71)

for a description of the menu system.

INSTRUMENTS AND CONTROLS

* Option/accessory.

Resetting to neutral

Mirrors that have been moved out of position by
an external force must be electrically reset to the
neutral position for electric retracting/extending
to work.

•

Retract the mirrors with the L and R buttons.

•

Fold them out again with the L and R but-
tons.

The mirrors are now reset in neutral position.

Related information

•

Interior rearview mirror (p. 100)

•

Heated windshield

*, rear window and door

mirror defrosters (p. 99)

Heated windshield*, rear window

and door mirror defrosters

The heating function is used to defrost/de-ice
the windshield and/or the rear window and door
mirrors.

Heated windshield

Heated rear window and door mirrors

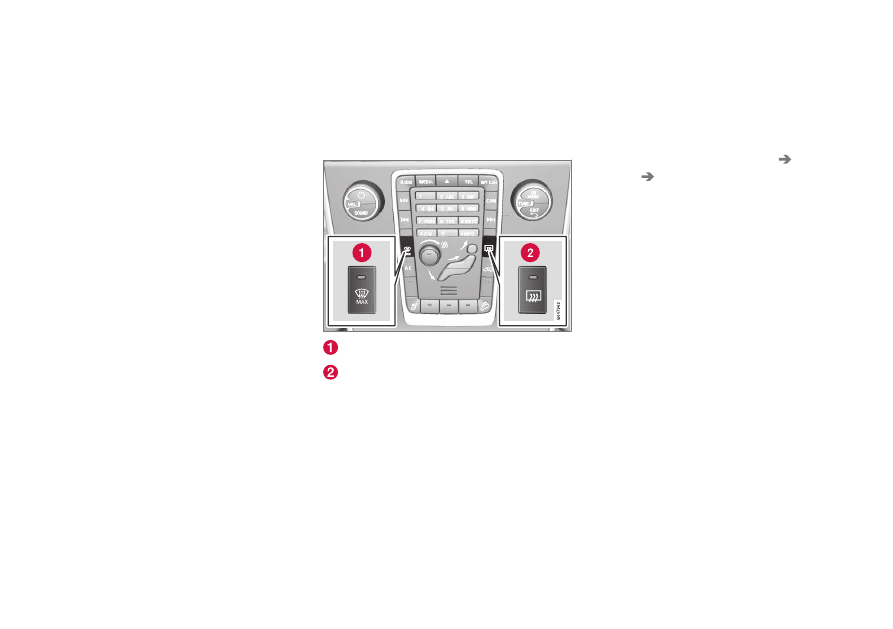

Press button (1) to defrost/de-ice the windshield
and/or button (2) to defrost the rear window and
door mirrors. The indicator lights in the respective
buttons indicate that the function is active. Switch
the function off when then windshield/rear win-
dow/mirrors have cleared to help avoid battery
drain. The heating function will also switch off
automatically after a certain amount of time.

The rear window is then defogged/de-iced (the
function will switch on and off automatically until

the ignition is switched off) if the ambient tem-
perature remains below 45 °F (7 °C).

Auto-defrosting for the rear window and door
mirrors (if the vehicle is started when the ambient
temperature is below 45 °F (7 °C) can be
selected in MY CAR under

Settings

Climate

settings

Automatic rear defroster

If the Engine Remote Start (ERS)

* function is

used, the electrically heated windshield function
will be activated automatically at temperatures
below approx. 40 °F (+5 °C) if auto-defrosting
has been selected in the MY CAR menu.

See My Car – introduction (p. 71) for a descrip-
tion of the menu system.

INSTRUMENTS AND CONTROLS

* Option/accessory.

100

Interior rearview mirror

The interior rearview mirror has an auto-dim
function that helps reduce glare from following
vehicle's headlights.

Auto-dim function

The interior rearview mirror’s auto-dim function is
controlled by two sensors: one pointing forward
(located on the forward-facing side of the mirror,
which monitors the amount of ambient light) and
one pointing rearward (located on the side of the
mirror facing the driver at the upper edge, which
senses the strength of following vehicles' head-
lights), and work together to help eliminate glare.

NOTE

Obstructing the forward sensor with e.g.,
parking stickers, transponders, etc., or the rear
sensor by placing objects on the parcel shelf
or the rear seat in such a way that light is pre-
vented from reaching the sensor will reduce
the auto-dim function in the interior rearview
mirror and optional auto-dim function in the
door mirrors.

Related information

•

Power door mirrors (p. 97)

Digital compass*

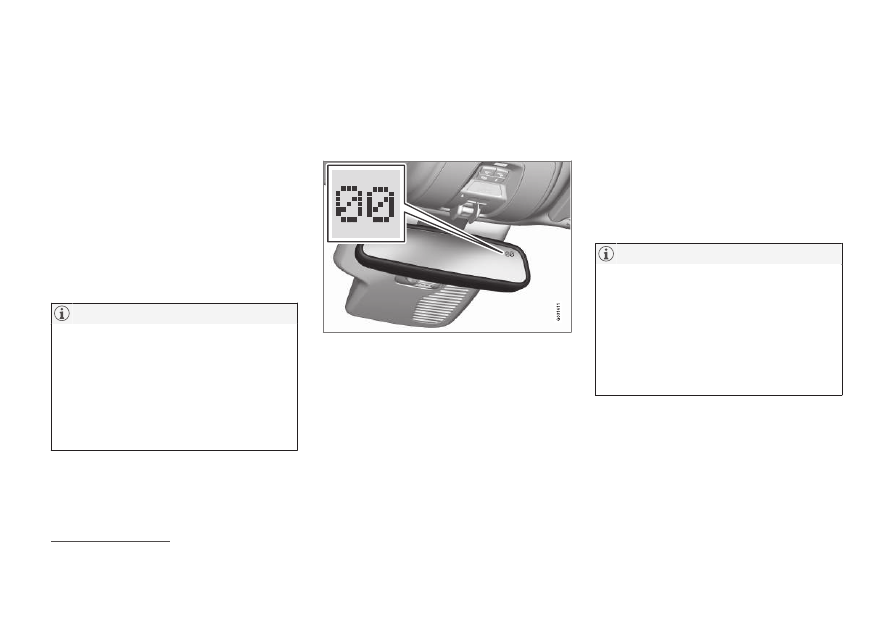

The rear-view mirror has an integrated display
that shows the compass direction in which the
vehicle is traveling.

Operation

Rearview mirror with compass.

Eight different directions are shown with the
abbreviations:

(north),

(north east),

(east),

(southeast),

(south),

(southwest),

(west) and

(northwest).

The compass is displayed automatically when the
vehicle is started or in ignition mode II. To switch
the compass on/off use a pen, paperclip or simi-
lar object and press in the button on the under-
side of the mirror.

Calibration

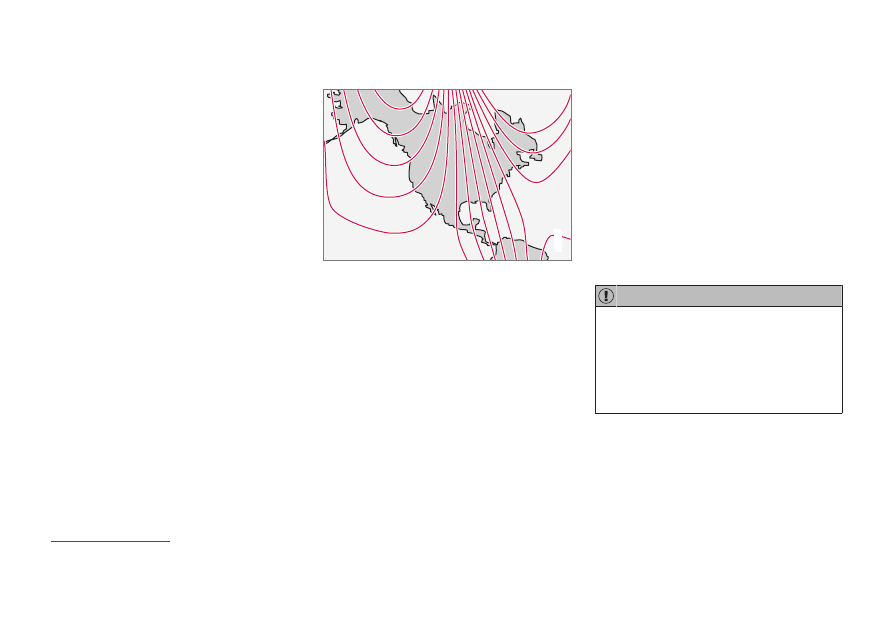

North America is divided into 15 magnetic zones
and the compass will need to be calibrated if the
vehicle is driven into a new one (see the mag-
netic zones on the map in the following section
"Selecting a magnetic zone"). To do so:

1. Stop the vehicle in a large open area, safely

out of traffic and away from steel structures
and high-tension electrical wires.

2. Start the vehicle.

NOTE

•

For best calibration results, switch off all
electrical equipment in the vehicle (climate
system, windshield wipers, audio system,
etc.) and make sure that all doors are
closed.

•

Calibration may not succeed or be incor-
rect if the vehicle's electrical equipment is
not switched off.

3. Using a pen, paperclip or similar object, press

and hold the button on the underside of mir-
ror for approx. 6 seconds until

is displayed

in the mirror.

4. Press and hold the button for 3 seconds until

the number of the current magnetic zone is
displayed.

The auto-dim function is also available as an option on the door mirrors.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

101

5. Press the button repeatedly until the number

of the desired magnetic zone (

1-15

) is dis-

played. See the magnetic zones on the map
in the following section "Selecting a mag-
netic zone").

6. Wait until

is again displayed in the mirror.

7. Drive slowly in a circle at a speed of no more

than 6 mph (10 km/h) until a direction is dis-
played. This indicates that calibration is com-
plete.

8. Drive around in a circle an additional two

times to fine-tune the calibration.

9. Vehicles with an electrically heated wind-

shield:

* if

is displayed when the heating

function is activated, perform step 7 with the
heating function on. See also Max. defroster
and electrically heated windshield

* (p. 128)

for additional information about the heated
windshield.

Repeat the calibration procedure if necessary.

Selecting a magnetic zone

G018632

Magnetic zones.

The earth is divided into 15 magnetic zones. The
correct zone must be selected for the compass
to work correctly.

1. Put the ignition in mode II.

2. Using a pen or similar object, press and hold

the button on the rear side of mirror for at
least 3 seconds. The number for the current
area will be shown.

3. Press the button repeatedly until the number

for the required geographic area (1 – 15) is
shown.

4. The display will revert to showing the com-

pass direction after several seconds.

Power moonroof – introduction

The moonroof controls are located in the ceiling
console near the rearview mirror.

The moonroof's sun visor opens automatically
but has to be closed manually.

There is a wind blocker in the moonroof's front
edge.

The moonroof

controls are located in the ceil-

ing console near the rearview mirror. The moon-
roof can be opened vertically and horizontally.
The vehicle's ignition must be in mode I or II for
the moonroof to be operated.

CAUTION

•

Remove ice and snow before opening the
moonroof.

•

Do not operate the moonroof if it is fro-
zen closed.

•

Never place heavy objects on the moon-
roof.

Visor

The moonroof features a sliding visor. The visor
slides open automatically when the moonroof is
opened, and must be closed manually.

Option on certain models

INSTRUMENTS AND CONTROLS

102

Wind blocker

The moonroof is equipped with a wind blocker
that folds up when the moonroof is open.

Power moonroof – operation

The moonroof controls are located in the ceiling
console near the rearview mirror.

The moonroof's sun visor opens automatically
but has to be closed manually.

There is a wind blocker in the moonroof's front
edge.

Sliding moonroof

G021343

Sliding moonroof, forward/rearward

Opening, automatic

Opening, manual

Closing, manual

Closing, automatic

Automatic opening
–

Pull the switch as far back as possible (to
the position for automatic opening) and
release it to automatically fully slide open the
moonroof.

Manual opening
–

Pull the switch back to the first stop (the
position for manual opening) and hold it until
the moonroof has opened to the position of
your choice.

Manual closing
–

Push the switch forward to the first stop (the
position for manual closing) and hold it until
the moonroof has closed to the position of
your choice, or has closed completely.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

103

Automatic closing
–

Push the switch as far forward as possible
(the position for automatic closing) and
release it to automatically close the moon-
roof.

WARNING

•

During manual closing, if the moonroof is
obstructed, immediately open it again.

•

Never open or close the moonroof if it is
obstructed in any way.

•

Never allow a child to operate the moon-
roof.

•

Never leave a child alone in a vehicle.

•

When leaving the vehicle, ensure that the
ignition is in mode 0 (see Ignition modes
(p. 74) for information about the various
ignition modes) to disable the moonroof.
Never leave the remote key in the vehicle.

•

Never extend any object or body part
though the open moonroof, even if the
vehicle's ignition is completely switched
off.

Tilt position

G028899

Tilt position, raised at the rear edge

Open by pressing the rear edge of the con-
trol upward.
Close by pulling the rear edge of the control
downward and hold it until the moonroof has
closed completely.

HomeLink

Wireless Control

System* – introduction

HomeLink

can be used to open garage doors,

gates, etc.

INSTRUMENTS AND CONTROLS

* Option/accessory.

104

WARNING

•

If you use HomeLink

to open a garage

door or gate, be sure no one is near the
gate or door while it is in motion.

•

When programming a garage door
opener, it is advised to park outside of the
garage.

•

Do not use HomeLink

with any garage

door opener that lacks safety stop and
reverse features as required by U.S. fed-
eral safety standards (this includes any
garage door opener model manufactured
before April 1, 1982). A garage door that
cannot detect an object - signaling the
door to stop and reverse - does not meet
current U.S. federal safety standards. For
more information, contact HomeLink at:
www.homelink.com.

The HomeLink

®19

Wireless Control System pro-

vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters used
to activate devices such as gate operators,
garage door openers, entry door locks, security
systems, even home lighting. Additional informa-
tion can be found on the Internet at,
www.homelink.com/www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.

Retain the original transmitter of the RF device
you are programming for use in other vehicles as
well as for future HomeLink programming. It is
also suggested that upon the sale of the vehicle,
the programmed HomeLink buttons be erased
for security purposes. Refer to “Resetting Home-
Link Buttons” in HomeLink

Wireless Control

System

* – programming (p. 104).

Using HomeLink

To operate, simply press and hold the pro-
grammed HomeLink button until the trained
device begins to operate (this may take several
seconds). Activation will now occur for the trained
device (i.e., garage door opener, gate operator,
security system, entry door lock, home/office
lighting, etc.). For convenience, the hand-held
transmitter of the device may also be used at any
time. In the event that there are still programming
difficulties or questions, contact HomeLink at:
www.homelink.com/www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.

NOTE

If the ignition is switched off, HomeLink will
function for 30 minutes after the driver's door
has been opened.

HomeLink

Wireless Control

System* – programming

The HomeLink Wireless Control System pro-
vides a convenient way to replace up to three
hand-held radio-frequency (RF) transmitters
used to activate devices such as gate operators,
garage door openers, entry door locks, security
systems, even home lighting. Additional informa-
tion can be found on the Internet
atwww.homelink.com/www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.

NOTE

Some vehicles may require the ignition to be
switched on or be in the “accessories” posi-
tion for programming and/or operation of
HomeLink. It is also recommended that a new
battery be placed in the hand-held transmitter
of the device being programmed to Home-
Link for quicker training and accurate trans-
mission of the radio-frequency signal. The
HomeLink buttons must be reset first. When
this has been completed, Homelink is in
learning mode so that you can perform pro-
gramming.

HomeLink and the HomeLink house are registered trademarks of Gentex Corporation.

INSTRUMENTS AND CONTROLS

}}

105

1. Position the end of your hand-held transmit-

ter 1–3 inches (5–14 cm) away from the
HomeLink button you wish to program while
keeping the indicator light in view.

2. Simultaneously press and hold both the

chosen HomeLink and hand-held transmitter
buttons until the HomeLink indicator light
changes from a slow to a rapidly blinking
light. Now you may release both the Home-
Link and hand-held transmitter buttons.

NOTE

Some devices may require you to replace this
Programming Step 2 with procedures noted
in the “Gate Operator / Canadian Program-
ming” section. If the HomeLink indicator light
does not change to a rapidly blinking light
after performing these steps, contact Home-
Link at www.homelink.com/
www.youtube.com/HomeLinkGentex or by
phoning the hotline at 1–800–355–3515.

3. Firmly press, hold for five seconds and

release the programmed HomeLink button
up to two separate times to activate the door.
If the door does not activate, press and hold
the just-trained HomeLink button and
observe the indicator light.

•

If the indicator light stays on constantly,
programming is complete and your
device should activate when the Home-
Link button is pressed and released.

•

If the indicator light blinks rapidly for two
seconds and then turns to a constant
light continue with “Programming”
steps 4-6 to complete the programming
of a rolling code equipped device (most
commonly a garage door opener).

4. At the garage door opener receiver (motor-

head unit) in the garage, locate the “learn” or
“smart” button. This can usually be found
where the hanging antenna wire is attached
to the motor-head unit.

5. Firmly press and release the “learn” or

“smart” button. (The name and color of the
button may vary by manufacturer.) There are
30 seconds to initiate step 6.

6. Return to the vehicle and firmly press, hold

for two seconds and release the pro-
grammed HomeLink button. Repeat the
“press/hold/release” sequence a second
time, and, depending on the brand of the
garage door opener (or other rolling code
equipped device), repeat this sequence a
third time to complete the programming
process.

HomeLink should now activate your rolling code
equipped device.

INSTRUMENTS AND CONTROLS

106

Gate Operator/Canadian Programming

Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink to pick up the signal dur-
ing programming. Similar to this Canadian law,
some U.S. gate operators are designed to “time-
out” in the same manner.

If you live in Canada or you are having difficulties
programming a gate operator or garage door
opener by using the “Programming” procedures,
replace “Programming HomeLink” step 2
with the following:

•

Continue to press and hold the HomeLink
button while you press and release - every
two seconds (“cycle”) your hand-held trans-
mitter until the HomeLink indicator light
changes from a slow to a rapidly blinking
light. Now you may release both the Home-
Link and hand-held transmitter buttons.

Proceed with “Programming” step 3 to complete.

Resetting HomeLink Buttons

Use the following procedure to reset (erase pro-
gramming) from the three HomeLink buttons
(individual buttons cannot be reset but can be
“reprogrammed” as outlined in the following sec-
tion):

1. Press and hold the two outer HomeLink but-

tons until the indicator light begins to flash.

2. Release both buttons.

> HomeLink is now in the training (or learn-

ing) mode and can be programmed at any
time beginning with “Programming” - step
1.

Reprogramming a Single HomeLink
Button

To program a device to HomeLink using a Home-
Link button previously trained, follow these steps:

1. Press and hold the desired HomeLink but-

ton. DO NOT release the button.

2. The indicator light will begin to flash after 20

seconds. Without releasing the HomeLink
button, proceed with “Programming” - step 1.

For questions or comments, contact HomeLink
at: www.homelink.com/www.youtube.com/
HomeLinkGentex or by phoning the hotline at 1–
800–355–3515.

This device complies with FCC rules part 15 and
Industry Canada (IC) RSS-210. Operation is sub-
ject to the following two conditions: (1) This
device may not cause harmful interference, and
(2) This device must accept any interference that
may be received including interference that may
cause undesired operation.

NOTE

The transmitter has been tested and complies
with FCC and IC rules. Changes or modifica-
tions not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the device.

The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met.

INSTRUMENTS AND CONTROLS

* Option/accessory.

107

Volvo Sensus

Volvo Sensus is the core of the contact interface
with your vehicle. Sensus provides information,
entertainment and offers access to functions
that make owning and operating a Volvo easier.

Volvo Sensus is the operating system in your
vehicle and it enables you to interact intuitively
with the vehicle’s various features and functions,
including accessing the Internet, when it suits
you.

Volvo Sensus uses the center console screen to
display information and menus, and to offer a
user interface that enables you to make person-
alized settings for e.g., vehicle, infotainment and
climate system functions.

The buttons on the center console or the steer-
ing wheel keypad are used to activate/deactivate
functions and change numerous settings.

Pressing the MY CAR button on the center con-
sole displays all of the settings related to driving
and operating the vehicle, such as City Safety,

lock and alarm functions, automatic blower
speed, setting the clock, etc.

Pressing the source buttons on the center con-
sole (RADIO, MEDIA, TEL,

, NAV

* and CAM*,

etc.) make it possible to select e.g., AM or FM
radio, play a CD or DVD, use the Bluetooth

hands-free feature, the navigation system

* or the

park assist camera

See your on-board owner’s manual or the sepa-
rate printed supplements for detailed information
about the functionality offered by Volvo Sensus.

Center console control panel

Volvo Navigation System (VNS)

* – NAV: see

the separate VNS manual for operating
instructions.
Infotainment (RADIO, MEDIA, TEL)

Vehicle-related settings - MY CAR.

Internet connected vehicle.

Climate system.

Park assist camera - CAM

Related information

•

My Car – introduction (p. 71)

•

Climate – general information (p. 120)

•

Rear Park Assist Camera (PAC) – introduc-
tion (p. 239)

INSTRUMENTS AND CONTROLS

* Option/accessory.

108

Information display – menu controls

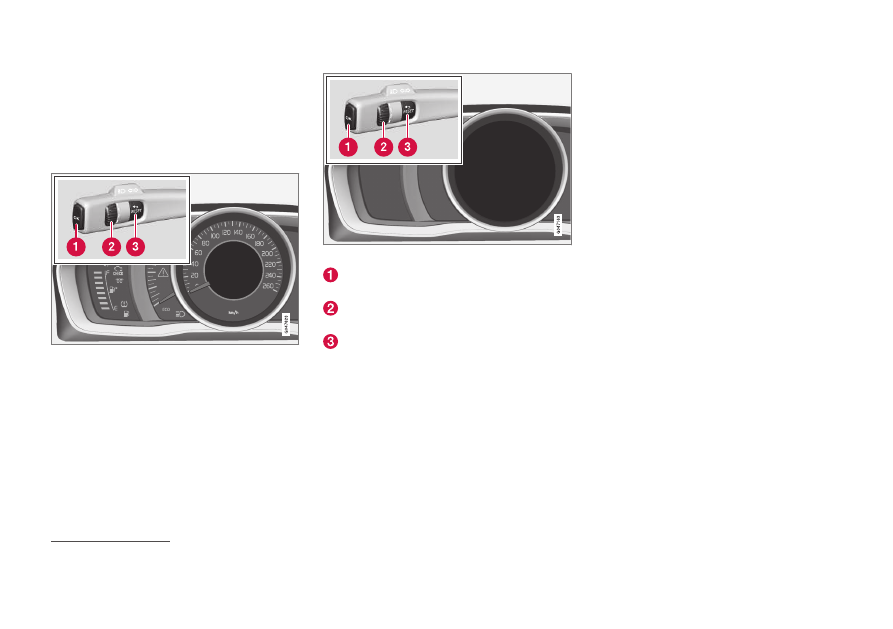

The controls on the left steering wheel lever are
used to access the menus (p. 108) that are dis-
played in the instrument panel (p. 63). The
menus displayed depend on the current ignition
mode (p. 74).

Analog Instrument panel and menu controls

Digital Instrument panel

* and menu controls

OK: access to the list of messages (p. 109)
and message confirmation.
Thumb wheel: browse among menus and
options in the list of functions.
RESET: reset the active function. Used in
certain cases to select/activate a function,
see the explanation under each respective
function.

The menus shown on the information displays in
the instrument panel are controlled with the left
lever. The menus displayed depend on ignition
mode. Press OK to erase a message and return
to the menus.

Information display – menu

overview

The menus displayed depend on the current
ignition mode (p. 74).

The following menu alternatives may vary,
depending on the equipment installed in the vehi-
cle.

Analog instrument panel

Digital speed

Trip comp. opt.

Service status

Messages (##)

Digital instrument panel

Settings

Themes

Contrast mode/Color mode

Service status

Messages

Trip computer reset

Related information

•

Information displays – introduction (p. 63)

•

Information display – menu controls (p. 108)

•

Information display – messages (p. 109)

Number of messages in parentheses

INSTRUMENTS AND CONTROLS

109

Information display – messages

The controls on the left steering wheel lever are
used to scroll among messages displayed in the
instrument panel and to confirm selections.

When information, indicator or warning symbols
illuminate, an explanatory message will be dis-
played in the instrument panel.

When a warning (p. 69), information (p. 67) or
indicator symbol (p. 67) comes on, a correspond-
ing message appears in the information panel. An
error message is stored in a memory list until the
fault is rectified.

Press OK to acknowledge and scroll among the
messages.

NOTE

If a warning message appears while you are
using the trip computer, the message must be
read and confirmed by pressing OK before
the previous activity can be resumed.

Message

Description

Stop engine

Stop and switch off the
engine as soon as possible.
Serious risk of damage. Con-
tact an authorized Volvo
workshop.

Stop safely

Stop and switch off the
engine. Serious risk of dam-
age. Contact an authorized
Volvo workshop.

Service
urgent

Have the vehicle checked by
an authorized Volvo work-
shop immediately.

Service
required

Have the vehicle checked by
an authorized Volvo work-
shop as soon as possible.

See manual

Read the owner's manual.

Book time
for mainte-
nance

Time to book service at an
authorized Volvo retailer.

Time for reg-
ular mainte-
nance

Time for regular service at an
authorized Volvo workshop.
The timing is determined by
the number of miles driven,
number of months since the
last service, engine running
time.

Message

Description

Maintenance
overdue

If the service intervals are not
followed, the warranty does
not cover any damaged parts.
Contact an authorized Volvo
workshop for service.

Temporarily
OFF

A function has been tempo-
rarily switched off and is
reset automatically while driv-
ing or after starting again.

Low battery
Power save
mode

The audio system is switched
off to save current. Charge
the battery.

There will also be a system-specific part of this message

Related information

•

Information displays – introduction (p. 63)

•

Information display – menu overview (p. 108)

•

Information display – menu controls (p. 108)

INSTRUMENTS AND CONTROLS

110

Trip computer – introduction

The content and appearance of the trip com-
puter varies depending on whether the vehicle is
equipped with an

Analog or Digital instrument

panel.

Analog information display and controls

Digital information displays and controls

The instrument panel illuminates as soon as the
vehicle is unlocked and trip computer settings
can be made. If none of the trip computer's con-
trols are used within 30 seconds after the driver's
door has been opened, the instrument panel
lighting will go out and the trip computer cannot
be used again until:

•

the ignition is put in mode II

•

the engine is started

NOTE

If a warning message appears while you are
using the trip computer, this message must
be acknowledged in order to return to the trip
computer function. Acknowledge a message
by pressing OK.

Related information

•

Trip computer – functions, analog instrument
panel (p. 111)

•

Trip computer – functions, digital instrument
panel (p. 114)

•

Trip computer – Supplementary information
(p. 116)

•

Trip computer – Trip statistics (p. 117)

See Ignition modes (p. 74) for information about the various ignition modes.

INSTRUMENTS AND CONTROLS

}}

111

Trip computer – functions, analog

instrument panel

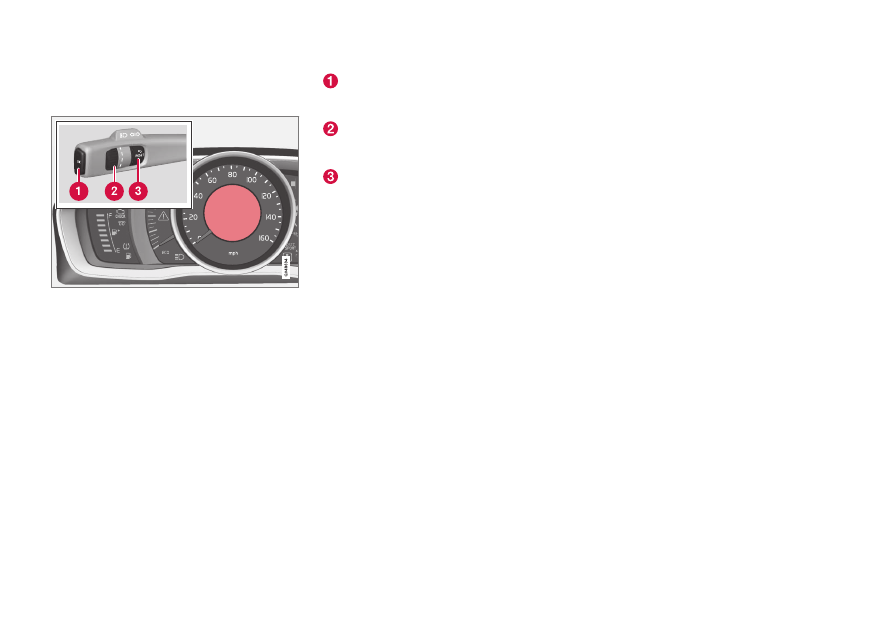

Information display and controls

OK–press to access the trip computer's
functions or acknowledge/confirm/erase a
message
Thumb wheel–turn to access the list of trip
computer information headings and to
scroll among the alternatives
RESET–press to cancel/reset/exit a function
after a selection has been made

The trip computer has two different menu groups:

•

Trip computer functions

•

Trip computer information headings in the
instrument panel

Functions

To open and make settings in the trip computer
functions:

1. Ensure that none of the trip computer con-

trols are being used in a command
sequence; reset them by pressing RESET
twice.

2. Press OK to open the list of functions.

3. Use the thumb wheel to scroll among the

functions and select/confirm your choice by
pressing OK.

4. After completing your selection, exit by

pressing RESET twice.

The following table lists the analog trip comput-
er's functions:

Volvo S60 (2018 year). Instruction - part 6
