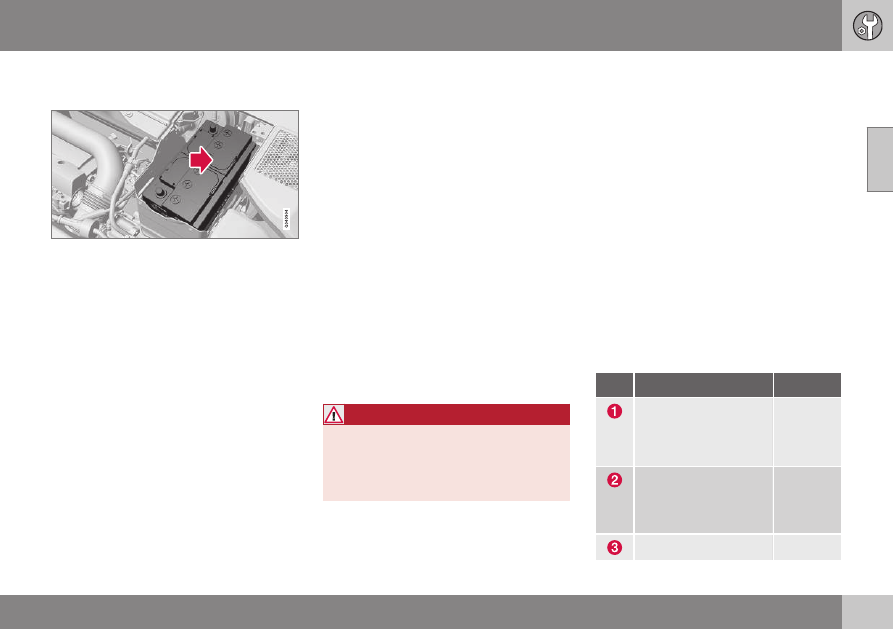

10 Maintenance and servicing 10 }} 299 Installation 1. Lower the battery into the battery box. 2. Move the battery inward and to the side until it reaches the rear edge of the box. 3. Tighten the clamp that secures the bat- tery. 4. Connect the ventilation hose. > Be sure that it is correctly connected to the battery and the vent in the vehi- cle's body. 5. Connect the red positive cable. the clips. (See Removal). Related information • • Fuses – introduction The fuses help protect the vehicle's electrical components from overloading. If an electrical component fails to function, this may be due to a blown fuse. The easiest way to see if a fuse is blown is to remove it. cult to remove, a special fuse removal tool is located on the inside of the engine compartment fusebox cover. 2. From the side, examine the curved metal wire in the fuse to see if it is intact. If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse). cal system inspected by a trained and quali- fied Volvo service technician. WARNING Never use metal objects or fuses with higher amperage than those stated on the following pages. Doing so could seriously damage or overload the vehicle's electrical system. Location of the fuseboxes Fuses – engine compartment The fuses in the engine compartment protect e.g., engine and brake functions. Positions partment box. Fuses in C are located under A. positions of the fuses. • Fuses 1 – 15, 34 and 42 – 44 are relays/ circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician. • Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary. There is a special fuse removal tool on the underside of the cover. Pos Function A Circuit breaker: central electrical module under the glove com- A 50 Circuit breaker: central electrical module under the glove com- partment 50 60 |
