Information displays – introduction (p. 58)

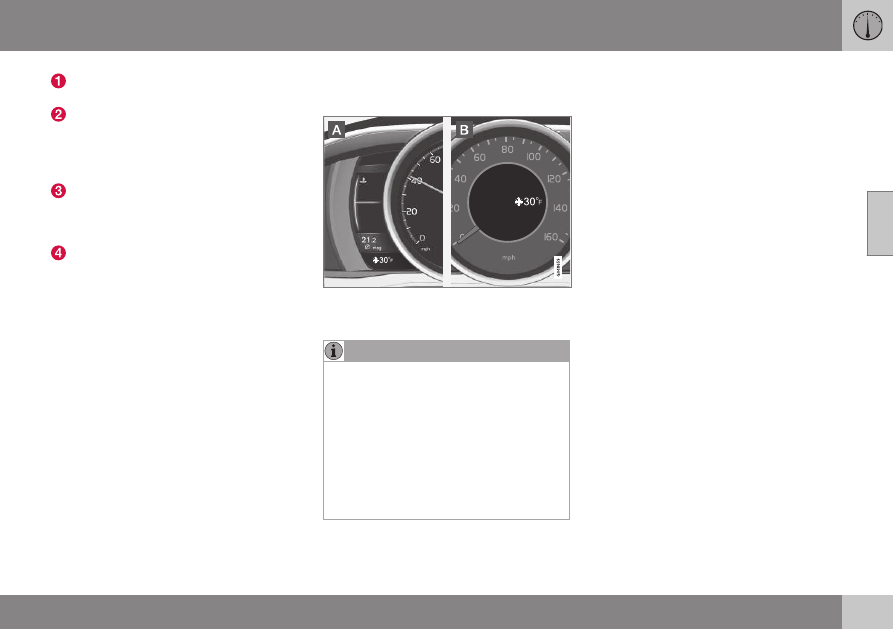

When the ambient temperature is between

23° and 36 °F (–5° and +2 °C), a snowflake

symbol will be displayed next to the tem-

perature. This symbol serves as a warning

for possible slippery road surfaces. Please

note that this symbol does not indicate a

fault with your vehicle.
At low speeds or when the vehicle is not

moving, the temperature readings may be

slightly higher than the actual ambient

temperature.

Related information

•

Information displays – trip odometer

and clock

The trip odometers

and

and clock are

displayed in the instrument panel.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Trip odometers

Trip odometer

Odometer display

Turn the thumb wheel on the left steering

wheel lever to display the desired trip odome-

ter.
Press and hold the RESET button on the left

steering wheel lever for at least 1 second to
reset the selected trip odometer

Clock

Clock, digital instrument panel*

Display

Setting the clock

The clock can be set in the MY CAR menu

system. See My Car – introduction (p. 66) for

additional information about these menus.

Go to

Settings

System options

Time

settings

. Set

Auto time

to ON (check the

box) and select the correct time zone under

Location

Related information

•

Information displays – introduction (p. 58)

Inserting/removing remote key

The remote key is used to start the engine or

to use various electrical functions without

starting the engine.

Inserting and removing the remote key

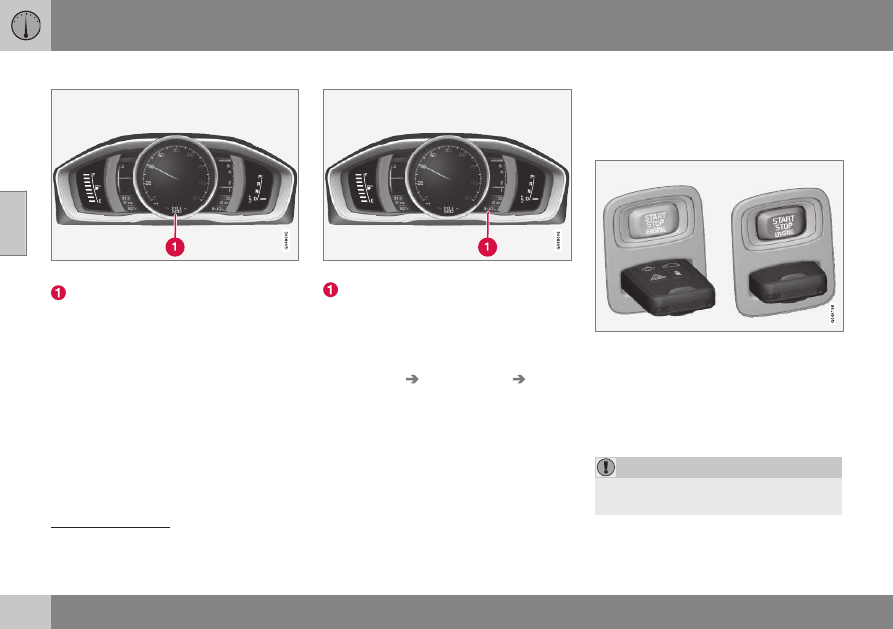

Ignition slot with remote key and START/STOP

ENGINE button.

Inserting the remote key

Holding the end of the remote key with the

base of the key blade, insert the remote key

into the ignition slot as shown in the illustra-

tion and press it in as far as possible.

CAUTION

Foreign objects in the ignition slot can

impair function or cause damage.

The trip odometer will be displayed differently in analog and digital instrument panels

Models with a digital information panel: press and hold RESET for more than approximately 4 seconds to reset all trip computer information

Models with an analog instrument panel: the time will be displayed in the center of the instrument panel

Not necessary in vehicles with the optional keyless drive.

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Removing the remote key
The remote key can be removed from the

ignition slot by pulling it out.

Related information

•

Ignition modes (p. 69)

Ignition modes

The vehicle's ignition has 3 modes: 0, I, and II

that can be used without starting the engine.

The following table shows examples of which

functions are available in the respective

modes.

ing off the engine (p. 213) for information on

To access ignition modes I or II without

starting the engine, the brake pedal must

not be depressed.

Mode Function

The odometer, clock and tem-

perature gauge are illuminated.

Power seats* can be adjusted

and the infotainment system can

be used for a limited time (to min-

imize battery drain, see the Sen-

sus Infotainment Supplement).

The headlights/taillights illumi-

nate. Warning/indicator lights illu-

minate for 5 seconds. Other sys-

tems are activated. However, the

heated seats* and heated rear

window function can only be acti-

vated when the engine is running.

Mode II should only be used for

very short periods to help avoid

draining the battery.

Ignition modes

Ignition mode 0

–

The vehicle is unlocked.

Ignition mode I

–

With the remote key fully pressed into the
ignition slot

, press START/STOP

ENGINE briefly.

Not necessary in vehicles with the optional keyless drive.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Ignition mode II

–

With the remote key fully pressed into the
ignition slot

, press START/STOP

ENGINE for approximately 2 seconds.

Returning to mode 0

To return to mode 0 from mode II or I, press

START/STOP ENGINE briefly.

Starting and stopping the engine
See Starting the engine (p. 211) and Switch-

starting the engine and switching it off.

Emergency towing
See Towing the vehicle (p. 245) for important

information about the remote key when the

vehicle is being towed.

Related information

•

Inserting/removing remote key (p. 68)

Front seats

The front seats can be adjusted in a number

of ways to help provide the most comfortable

seating position.

WARNING

•

Do not adjust the seat while driving.

The seat should be adjusted so that

the brake pedal can be depressed

fully. In addition, position the seat as

far rearward as comfort and control

allow.

•

Check that the seat is securely locked

into position after adjusting.

Related information

•

Rear seats – folding backrest (p. 74)

•

•

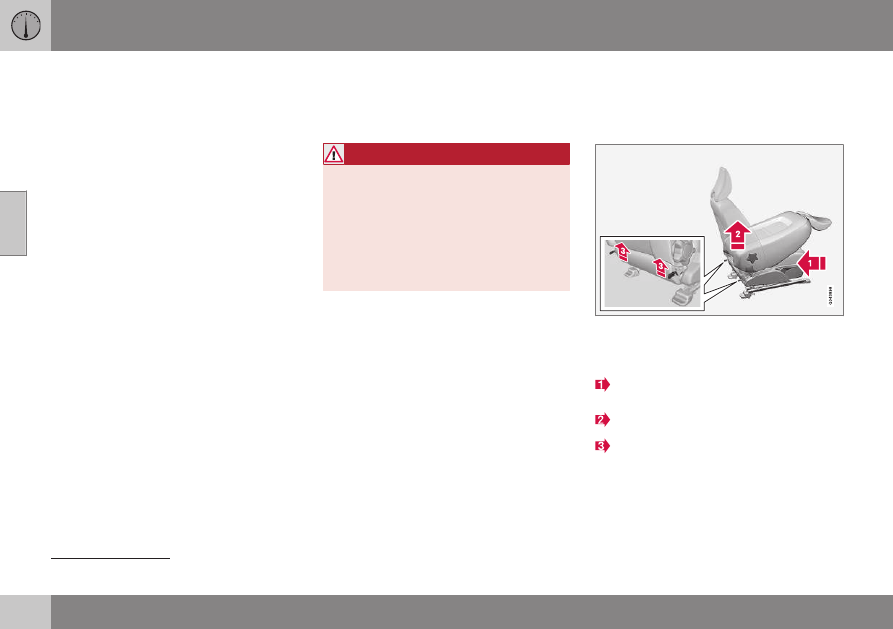

Front seats – folding backrest*

The front passenger's seat backrest can be

folded down to make it easier to transport

long objects.

The front passenger seat backrest can be

folded to a horizontal position to make room

for a long load. Fold the backrest as follows:

Move the seat as far back and down as

possible.
Adjust the backrest to an upright position.

Lift the catches on the rear of the back-

rest.

Not necessary in vehicles with the optional keyless drive.

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

Without releasing the catches, push the

backrest forward.
Move the seat as far forward as possible

so that the head restraint slides under the

glove compartment.

Return the seat to its upright position in the

reverse order.

WARNING

•

When transporting long objects, cover

sharp edges on the load to help pre-

vent injury to occupants. Secure the

load to help prevent shifting during

sudden stops.

•

When the seat's backrest is returned

to the upright position, push and pull it

to be sure that it is securely locked in

this position.

Related information

•

•

Rear seats – folding backrest (p. 74)

•

•

Front seats – power seat

The power seat(s) can be adjusted for a short

period after unlocking the door with the

remote control without the key in the ignition

slot. Seat adjustment is normally made when

the ignition is on and can always be made

when the engine is running.

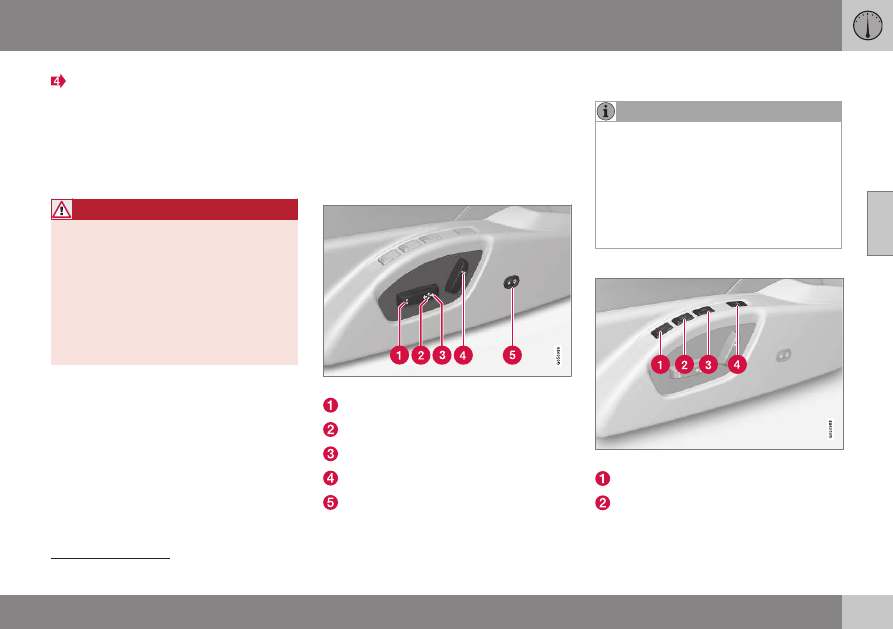

Power seat

Power seat adjustment controls

Front edge of seat cushion up/down

Raise/lower the seat

Seat forward/rearward

Backrest tilt

Electronic lumbar support*

Operation

•

Only one of the power seat's controls

can be used at the same time.

•

The power seats have an overload

protector that activates if a seat is

blocked by any object. If this occurs,

switch off the ignition (key in posi-

tion 0) and wait for a short period

before operating the seat again.

Power seat memory function

Power seat memory buttons

Button for storing a position

Optional on certain models

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Button for storing a position

M (memory) button

Programming the seat's memory

Three different seating and door mirror posi-

tions can be stored in the driver seat's mem-

ory.
The following example explains how button

(1) can be programmed. Buttons (2) and (3)

are programmed in the same way.
To program (store) a seat and door mirror

position in button (1):
1. Move the seat (and door mirrors) to the

desired positions using the seat and mir-

ror adjustment controls.

2. Press and hold down the M (memory)

button (4).

3. With the memory button depressed,

press button (1) briefly to store the cur-

rent position for the seat/mirrors.

To move the seat and mirrors to the posi-

tion that they were in when a button was

programmed:

–

Press and hold down button (1) until the

seat and mirrors stop moving.

As a safety precaution, the seat will stop

automatically if the button is released

before the seat has reached the preset

position.

Heated seats*
See Heated seats (p. 110).

Related information

•

Rear seats – folding backrest (p. 74)

•

•

Key memory – power driver's seat*

and door mirrors

Each remote key has a memory that enables it

to store (remember) the position of the power

driver's seat and door mirrors when the vehi-

cle is locked with that remote key.

Remote key memory and the power
driver's seat* and door mirrors

The key memory has to be activated for each

of the remote keys used in the vehicle as

follows:
1. Insert a remote key in the ignition slot.
2. Go into the MY CAR menu and go to

Settings

Car settings

Car key

memory

3. To activate the remote key memory fea-

ture, press ENTER (check the box).
> The remote key is now ready to store

the position of the power driver's seat

and door mirrors.

Repeat this procedure for each of the vehi-

cle's remote keys.
See My Car – introduction (p. 66) for a

description of the menu system.

This information also applies to vehicles with the optional keyless drive.

03 Instruments and controls

Storing the positions of the power
driver's seat/mirrors in the remote key

1. Move the seat and door mirrors to the

desired position using the seat and mirror

adjustment controls.

2. Exit the vehicle and lock the doors with

the remote key (or close the driver's door

and press the lock button on the door

handle with the remote key in your pos-

session on vehicles with the optional key-

less drive).
> The positions of the power driver's

seat and door mirrors are now stored

in the remote key's memory.

seat memory function" in Front seats –

The remote key's memory feature and the

power driver's seat memory function (the

settings made using the buttons on the

side of the seat, see the section "Power

power seat (p. 71)) work independently of

each other.

Returning the seat/mirrors to the stored
positions

To move the seat and door mirrors to the

position stored in the remote key:

1. Unlock the driver's door with the same

remote key (the one used to lock the

doors). For models equipped with the

optional keyless drive, you must have the

same remote key in your possession.

2. Open the driver's door within 2 minutes.
The driver's seat and door mirrors will auto-

matically move to the position in which you

left them (if the vehicle has been unlocked

with one of the other keys and new seat/

mirror adjustments have been made).

Remote key – functions (p. 127)

•

The seat will move to this position

even if someone else has moved it to a

different position and locked the vehi-

cle with a different remote key.

•

This feature will work in the same way

with all of the remote keys that you

use with your vehicle.

Emergency stop

WARNING

•

Because the driver's seat can be

adjusted with the ignition off, children

should never be left unattended in the

vehicle.

•

Movement of the seat can be STOP-

PED at any time by pressing any but-

ton on the power seat control panel.

•

Do not adjust the seat while driving.

The seat should be adjusted so that

the brake pedal can be depressed

fully. In addition, position the seat as

far rearward as comfort and control

allow.

•

The seat rails on the floor must not be

obstructed in any way when the seat is

in motion.

Related information

•

03 Instruments and controls

Rear seats – head restraints

The rear seat head restraints can be folded

down. The center head restraint can be

raised/lowered according to the passenger's

height.

Automatically folding down the rear
seat’s outboard head restraints
1. The ignition must be in mode II.
2. Press the button to lower the rear head

restraints for improved visibility.

•

The head restraint must be returned to

the upright position manually.

•

The outboard head restraints cannot

be folded down on models that are not

equipped with this button.

CAUTION

The rear head restraints should not be

kept folded down for prolonged periods.

This could result in pressure marks in

leather upholstery.

WARNING

For safety reasons, no one should be

allowed to sit in the outboard rear seat

positions if the head restraints are folded

down. If these positions are occupied, the

head restraints should be in the upright

(fixed) position.

Related information

•

•

•

Rear seats – folding backrest

The rear seat head restraints and backrests

can be folded down. The center head

restraint can be raised/lowered according to

the passenger's height.

Related information

•

•

•

adjusted, see Active chassis* (Four C)

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Steering wheel

The steering wheel can be adjusted to various

positions and has controls for the horn, cruise

control*, menus, the infotainment system and
Bluetooth

-connected cell phone.

Adjusting

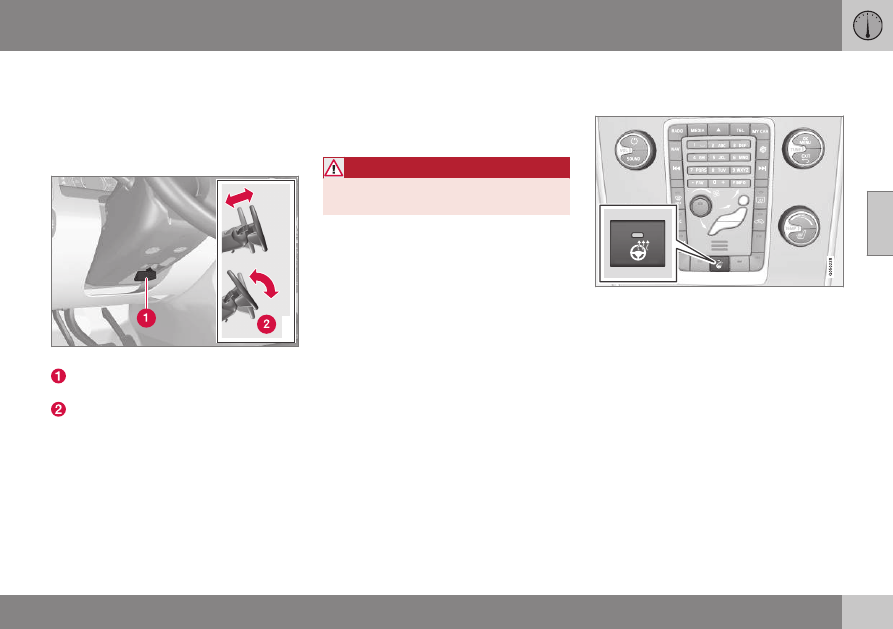

G021138

Adjusting the steering wheel

Lever for releasing/locking the steering

wheel
Possible positions

To adjust the steering wheel's height and

reach:
1. Pull the lever toward you to release the

steering wheel.

2. Adjust the steering wheel to the position

that suits you.

3. Push back the lever to lock the steering

wheel in place. If the lever is difficult to

push into place, press the steering wheel

lightly at the same time as you push the

lever.

WARNING

Never adjust the steering wheel while driv-

ing.

With the optional speed-dependent power

steering the level of steering force can be

(p. 141).

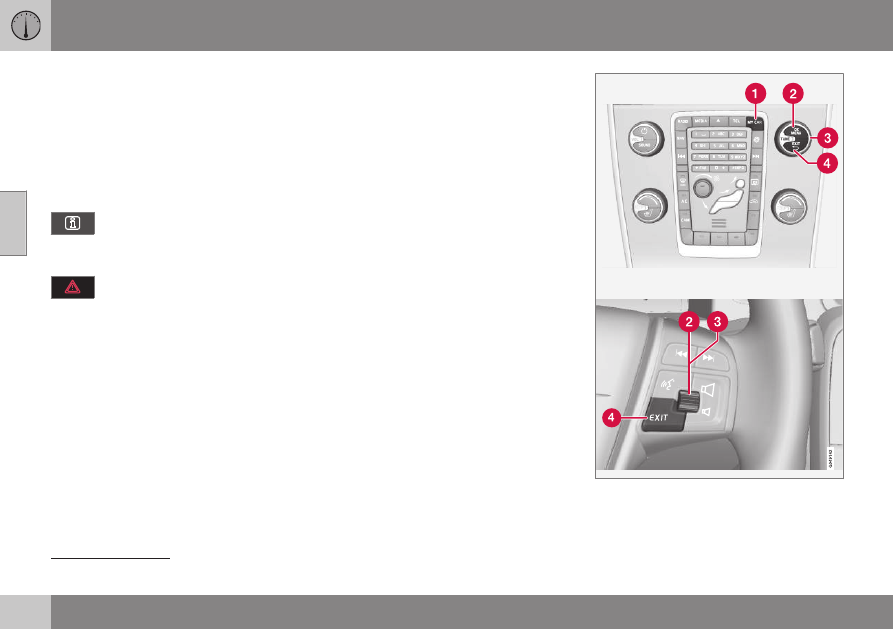

Keypads and steering wheel paddles*

Horn

–

Press the steering wheel hub to sound

the horn.

Related information

•

Electrically heated* steering wheel

(p. 75)

Electrically heated* steering wheel

The steering wheel can be heated electrically.

Button for steering wheel heating

With the engine running, press this button

once to begin warming the steering wheel

(press again to switch off). The indicator light

in the button will illuminate when the function

is active.
This function can also be started automati-

cally (the setting can be activated/deactivated

in the MY CAR menu) if the vehicle is cold

and the ambient temperature is below

approximately 50° F (10° C).

03 Instruments and controls

Lighting panel

The lighting panel is used to control the day-

time running lights, parking lights, etc., and to

adjust the instrument panel lighting and "the-

ater" lighting (p. 80).

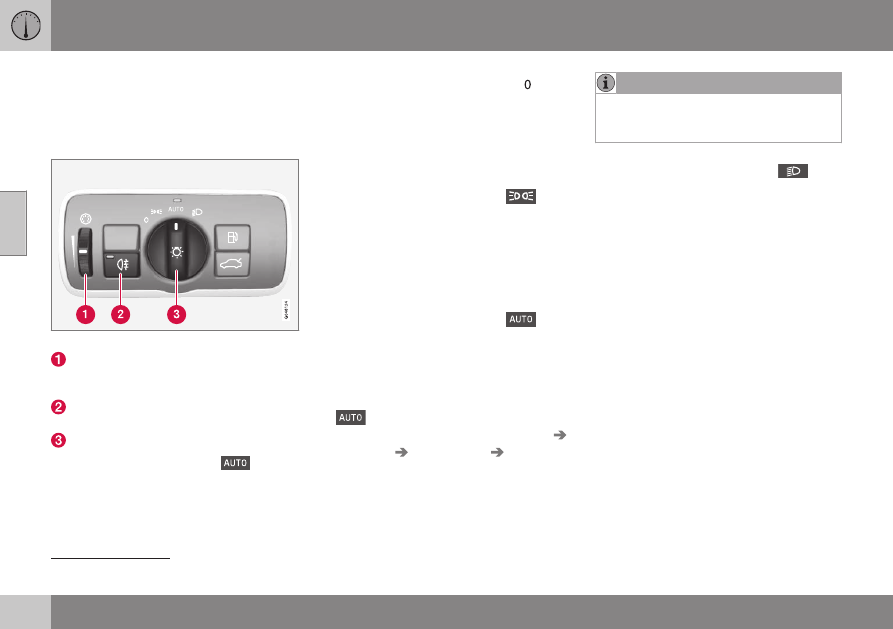

Lighting panel overview

Thumb wheel for adjusting display, instru-

ment and "theater" lighting (see Instru-

ment and "theater" lighting (p. 80))

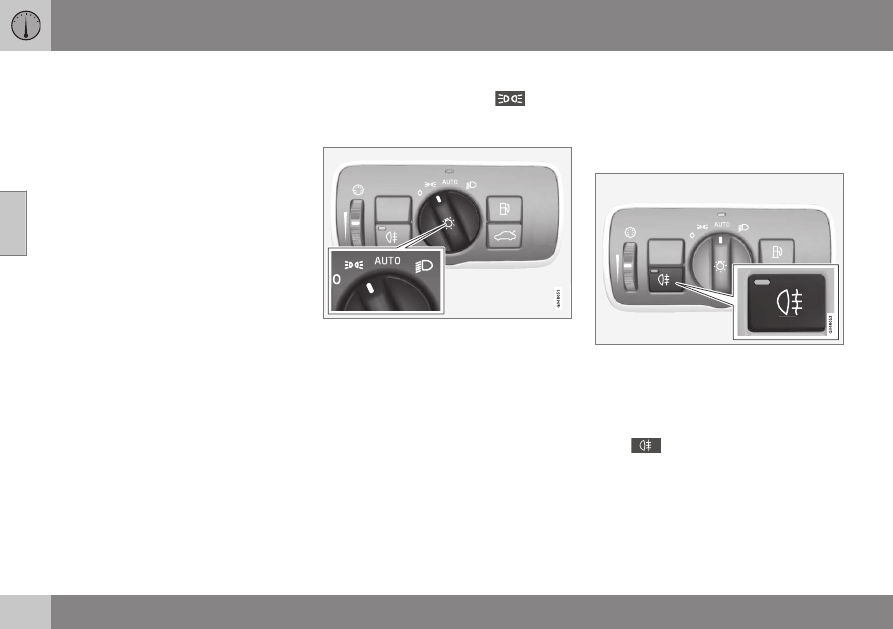

Rear fog lights (see Rear fog lights

(p. 80))
Headlight switch

Volvo recommends using the

posi-

tion whenever possible.

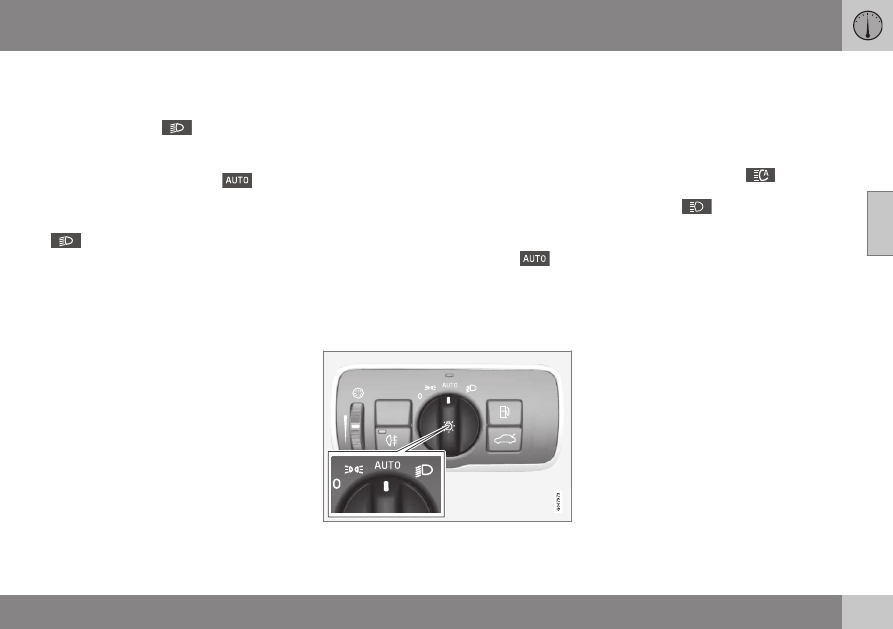

Headlight switch positions
Daytime running lights function as follows:

With the headlight switch in the
position:

•

In the US: the daytime running lights will

be off

•

In Canada: the daytime running lights will

be on

With the headlight switch in the

position and the ignition in mode II or if the

engine is running (see Ignition modes (p. 69))

•

In the US: the daytime running lights will

be off

•

In Canada: the daytime running lights will

be on

With the headlight switch in the

posi-

tion:

•

The daytime running lights will be on (the

low beam headlights will automatically

switch on in dark conditions)

US models only: The daytime running lights
in

mode can be switched on or off in

the MY CAR menu system under

Settings

Car settings

Light settings

Daytime

running lights

Active Bending Lights (ABL)* (p. 79)

The use of Daytime Running Lights is rec-

ommended in the United States and is

mandatory in Canada.

With the headlight switch in the

posi-

tion:

•

The daytime running lights will be off and

the low beam headlights will be on

The parking lights will be on in this position, even if the ignition is switched off.

03 Instruments and controls

}}

Option/accessory, for more information, see Introduction.

High/low beam headlights

When the engine is started, the low beams

are activated automatically if the headlight
control is in position

Continuous high beam headlights
With the headlight switch in the

(in dark

conditions only, when the daytime running

lights have automatically switched off and the

low beam headlights have switched on) or

position:

•

Pull the lever toward the steering wheel to

position 2 and release it to toggle

between low and high beams.

High beam flash
Pull the lever toward the steering wheel to

position 1. The high beams come on until the

lever is released.

Related information

•

•

Active high beams (AHB)* (p. 77)

•

Tunnel detection (models with the rain

•

sensor* only) (p. 78)

Active high beams (AHB)*

AHB uses a camera at the upper edge of the

windshield to detect the headlights of oncom-

ing vehicles or the taillights of a vehicle

directly ahead. When this happens, the head-

lights will automatically switch from high

beams to low beams. When the camera no

longer detects the headlights/taillights of

other vehicles, your headlights will switch

back to high beams after several seconds.

To activate AHB:

•

Turn the headlight control to the

position.

The feature will begin functioning if the engine

has been running for at least 20 seconds and

the vehicle's speed is at least 12 mph

(20 km/h).

Headlight switch in the AUTO position

Switch AHB on or off by pulling the left steer-

ing wheel lever rearward (toward the steering

wheel) as far as possible and releasing it. If

AHB is switched off while the high beams are

on, the headlights will change to low beams.

Models with an analog instrument panel

When AHB is activated, the

symbol will

illuminate in the instrument panel. The high
beam indicator (

) in the instrument panel

will also illuminate when the high beams are

on.

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Models with a digital instrument panel

When AHB is activated,

will illuminate

as a white symbol in the instrument panel.

When the high beams are on, the symbol will

change to blue.

See The camera’s limitations (p. 183) for

•

Keep the windshield in front of the

camera free of ice, snow, dirt, etc.

•

Do not mount or in any way attach

anything on the windshield that could

obstruct the camera.

Active high beam Temporary

unavailable Switch manually

is displayed in

the instrument panel, switching between high

and low beams will have to be done man-

ually. However, the light switch can remain in
the

position. The same applies if

Windscreen Sensors blocked

is displayed

and the

symbol is displayed. The

symbol will go out when these messages are

displayed.
AHB may be temporarily unavailable (e.g., in

heavy fog or rain). When AHB becomes active

again or if the sensors in the windshield are

no longer obscured, the messages will disap-
pear and the

symbol will illuminate.

CAUTION

In the following situations, it may be nec-

essary to switch between high and low

beams manually:

•

In heavy fog or rain

•

In blowing snow or slush

•

In bright moonlight

•

In freezing rain

•

In areas with dim street lighting

•

When oncoming vehicles have dim

front lighting

•

If there are pedestrians on or near the

road

•

If there are reflective objects, such as

signs, near the road

•

When oncoming vehicles' lights are

obscured by e.g., fences, bushes, etc.

•

When there are vehicles on connecting

roads

•

At the top of hills or in dips in the road

•

In sharp curves

more information about the camera's limita-

tions.

Related information

•

High/low beam headlights (p. 77)

•

Tunnel detection (models with the rain

sensor* only)

For models without automatic low beams,

tunnel detection activates the low beams

when the vehicle enters a tunnel. The low

beams are switched off approx. 20 seconds

after the vehicle leaves the tunnel.

The rain sensor reacts to the change in light-

ing conditions when, for example, the vehicle

enters a tunnel and the tunnel detection fea-

ture will then activate the low beam head-

lights. The low beams will be switched off

approx. 20 seconds after the vehicle leaves

the tunnel.
The rain sensor does not have to be activated

for tunnel detection to function.

Related information

•

High/low beam headlights (p. 77)

•

03 Instruments and controls

Option/accessory, for more information, see Introduction.

Active Bending Lights (ABL)*

With ABL activated, the headlight beams

adjust laterally to help light up a curve

according to movements of the steering

wheel (see the right-pointing beam in the fol-

lowing illustration).

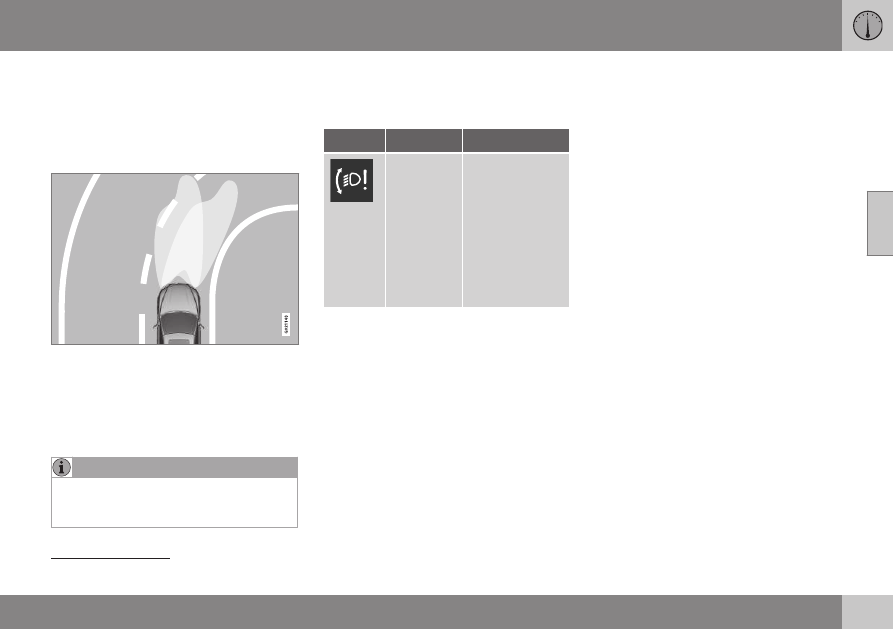

Headlight pattern with the Active Bending Light

function deactivated (left) and activated (right)

ABL is activated automatically

when the

engine is started.
See My Car – introduction (p. 66) for a

description of the menu system.

This function is only active in twilight or

dark conditions, and only when the vehicle

is in motion.

If a fault should occur in the system, the sym-

bol will illuminate and a message will be dis-

played as shown in the table.

Symbol Display

Explanation

Headlamp

failure

Service

required

The system is

not functioning

properly and

should be

inspected/

repaired by a

trained and

qualified Volvo

service techni-

cian.

Related information

•

High/low beam headlights (p. 77)

•

•

Active high beams (AHB)* (p. 77)

Auxiliary lights*

If the vehicle is fitted with auxiliary lights, the

driver can use the MY CAR menu system to

choose to deactivate and turn these lights on

and off along with the high beam headlights.

The auxiliary lights must be connected to the

vehicle's electrical system, which should only

be done by a trained and authorized Volvo

service technician. See My Car – introduction

(p. 66) for more information about the menu

system.

The factory default setting is on.

03 Instruments and controls

Instrument and "theater" lighting

Instrument lighting
Illumination of the display and instrument

lights will vary, depending on ignition mode.
The display lighting is automatically subdued

in darkness and the sensitivity is set with the

thumb wheel.
The intensity of the instrument lighting is

adjusted with the thumb wheel.

"Theater" lighting
When the overhead courtesy lighting has

gone out and the engine is running, several

LEDs located near the roof console illuminate

to provide faint lighting for the occupants of

the front seats. This lighting goes out just

after the overhead courtesy lighting when the

vehicle is locked.

Related information

•

Front interior lighting (p. 82)

•

•

Rear interior lighting (p. 83)

•

Ignition modes (p. 69)

Parking lights

Turn the headlight switch to the

posi-

tion (the license plate lighting comes on at the

same time).

Headlight switch in the parking light position

Canadian models: If the ignition is in position

II or the engine is running, the daytime run-

ning lights will also be on.
With the headlight switch in this position, the

parking lights will remain on even when the

ignition is switched off.

Related information

•

Rear fog lights

The rear fog lights are considerably brighter

than the normal taillights and should be used

only when conditions such as fog, rain, snow,

smoke or dust reduce visibility for other vehi-

cles to less than 500 ft. (150 meters).

The rear fog lights will only function in combi-

nation with the high/low beam headlights.

–

Press the button to switch the rear fog

lights on/off.
> The rear fog light indicator symbol

on the instrument panel and the

light in the button illuminate when the

rear fog lights are switched on.

03 Instruments and controls

•

The rear fog lights are considerably

brighter than the normal taillights and

should be used only when conditions

such as fog, rain, snow, smoke or dust

reduce visibility for other vehicles to

less than 500 ft. (150 meters).

•

Condensation may form temporarily on

the inside of the lenses of exterior

lights such as headlights, fog lights, or

taillights. This is normal and the lights

are designed to withstand moisture.

Normally, condensation will dissipate

after the lights have been on for a

short time.

Related information

•

Hazard warning flashers

The hazard warning flasher should be used to

indicate that the vehicle has become a traffic

hazard.
When the function is activated, both turn sig-

nal indicators in the instrument panel will

flash.

–

To activate the flashers, press the button

in the center dash. Press the button again

to turn off the flashers.

•

Regulations regarding the use of the

hazard warning flasher may vary,

depending on where you live.

•

The hazard warning flashers will be

activated automatically if an airbag

deploys.

Related information

•

Turn signals (p. 81)

Turn signals

The turn signals are controlled by the left

steering wheel lever.

When changing lanes

The driver can automatically flash the turn

signals 3 times by moving the turn signal

lever up or down to the first position and

releasing it.

When turning

Move the lever as far up or down as pos-

sible to start the turn signals. The turn signals

will be cancelled automatically by the move-

ment of the steering wheel, or the lever can

be returned to its initial position by hand.
