Volvo S40 (2012 year). Instruction

10 Infotainment system

Audio functions

250

Option/accessory, for more information, see Introduction.

Streaming audio via Bluetooth

General

If the car is equipped with Bluetooth

hands-

free* and a mobile phone is connected then the
audio system can wirelessly play back stream-
ing audio files from the mobile phone. Naviga-
tion and control of the sound can be carried out
via the centre console buttons or via the steer-
ing wheel keypad*. In some mobile phones it is
also possible to change tracks from the phone.

To be able to play back the audio a device must
first be paired and connected to the car. For
information about pairing and connection, see
page 272. BT must also be selected as audio
source, see page 248.

NOTE

The Bluetooth

mobile phone must support

the Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The phone should use
AVRCP version 1.3, A2DP 1.2. Otherwise
some functions may not work.

NOTE

Not all mobile phones available in the mar-
ket are fully compatible with the
Bluetooth

function in the car's audio sys-

tem. Volvo recommends that you contact an
authorised Volvo dealer or visit
www.volvocars.com for information on
compatible phones and external media
players.

Playback

Press the MODE button repeatedly in order to
select BT as audio source.

Audio file selection can take place in the fol-
lowing three ways:

•

Select TUNING (4) clockwise or anticlock-
wise.

•

Use the

button (6) of the naviga-

tion control to scroll to the desired audio
file.

•

With the

buttons on the steering

wheel keypad.

Audio settings

Adjusting audio settings

Press SOUND (5) repeatedly to browse among
the following options. Adjust by turning
TUNING.

•

BASS

- Bass level.

•

TREBLE

- Treble level.

•

FADER

– Balance between the front and

rear speakers.

•

BALANCE

– Balance between the left and

right-hand speakers.

•

SUBWOOFER

* - Bass speaker level. Sub-

woofer must be activated before adjust-
ment is possible, see under the heading
Activating/deactivating the subwoofer
below.

•

CENTRE

- Level for centre speaker.

Three channel stereo or Pro Logic II

must

be activated before adjustment is possible,
see under the heading Activating/deacti-
vating surround sound below.

•

SURROUND

- Level for surround. Pro

Logic II

must be activated before adjust-

ment is possible, see under the heading
Audio settings below.

Premium Sound.

10 Infotainment system

Audio functions

251

Activating/deactivating the subwoofer

•

Press MENU and then ENTER.

•

Scroll to

Audio settings…

and press

ENTER.

•

Scroll to

Subwoofer

and press ENTER.

Surround

Surround settings govern the spatial
perception of the sound. Settings
and activating/deactivating are sep-
arate for each audio source.

G021216

The Dolby

icon in the display indicates that

Dolby Pro Logic II

is active. There are three

different settings for surround sound:

•

Dolby Pro Logic II

•

3 channel

•

Off

- 2 channel stereo.

Activating/deactivating surround sound

Press MENU and then ENTER.

Scroll to

Audio settings…

and press

ENTER.

Scroll to

Surround FM…

Surround

AM…

Surround CD…

Surround

AUX…

and press ENTER.

Scroll to

Dolby Pro Logic II

3 channel

Off

and press ENTER.

Equalizer front/rear

The equalizer can be used to adjust different
frequency bands separately.

Adjusting equalizer

Press MENU and then ENTER.

Scroll to

Audio settings…

and press

ENTER.

Scroll to

Equalizer front…

Equalizer

rear…

and press ENTER.

The graphic on the display indicates the
audio level of the frequency in question.

Adjust the level with TUNING (4) or up/
down with the navigation button. Addi-
tional frequencies can be selected using
the left/right navigation button.

Save with ENTER or EXIT to exit without
saving the settings.

Automatic volume control

The auto volume control function allows the
audio volume to increase as the speed of the
car increases. There are three levels to choose
from:

Low

Medium

and

High

Adjusting automatic volume control

Press MENU and then ENTER.

Scroll to

Audio settings…

and press

ENTER.

Scroll to

Auto. volume control…

and

press ENTER.

Scroll to

Low

Medium

High

and press

ENTER.

Optimum sound reproduction

The audio system is calibrated for optimum
sound reproduction by means of digital signal
processing.

This calibration takes into account loudspeak-
ers, amplifiers, passenger compartment
acoustics, listener position etc. for each com-
bination of car model and audio system.

Premium Sound.

Not available in AM and FM mode.

Certain audio systems.

Not Performance

10 Infotainment system

Radio functions

253

Radio controls

G019806

FM/AM – Wavelength selection

Station presets

TUNING – Knob for station searches

SCAN – Scanning

Navigation button - Tuning and menus

EXIT - Cancel current function

AUTO – Automatic storage of stations

Tuning

Automatic tuning

Select wavelength using AM/FM (1).

Give a brief press on

The radio then automatically searches for the
next strong station.

Manual tuning

Select wavelength using AM/FM (1).

Adjust the frequency by turning TUNING
(3).

Tune into a station with a long press on

. Or by using the steering wheel keypad:

–

Hold in

on the navigation button

depressed until the desired frequency
appears on the display.

As long as the frequency graphic appears on
the display, searching can be resumed by
briefly pressing

Storing stations

Ten station presets can be stored per wave-
length. FM has two memories for presets:

FM1

and

FM2

. Preset stations are selected

using the preset buttons (2) or the steering
wheel keypad.

Storing stations manually

Tune into a station.

Hold a station preset button depressed
until the message

Station stored

appears

on the display.

Automatic storage of stations

AUTO (7) seeks out the ten strongest radio sta-
tions and stores them automatically in a sepa-
rate memory. The function is especially useful
in areas where the radio stations and their fre-
quencies are unfamiliar.

Starting automatic storage of stations

Select wavelength using AM/FM (1).

Hold AUTO (7) depressed until

Autostoring

appears on the display.

Once

Autostoring

disappears from the dis-

play, the stations are stored. The radio contin-
ues in Auto mode and

Auto

appears on the

display. The automatically stored presets can
now be selected using the preset buttons (2).

Cancelling automatic storage of stations

–

Press EXIT (6).

10 Infotainment system

Radio functions

254

Selecting an auto-stored preset

Allowing the radio to remain in Auto mode pro-
vides access to the autostored presets.

Briefly press AUTO (7).

Auto

appears on the display.

Press a preset button (2).

> The radio remains in Auto mode until it

is exited by a brief press on AUTO (7),
EXIT (6) or AM/FM (1) cancels Auto
mode.

Storing autostored presets in another
memory

An autostored preset can be transferred to the
FM or AM memory.

Briefly press AUTO (7).

Auto

appears on the display.

Press the preset button for the station you
want to move.

Press the button under which the station
will be stored and hold it depressed until
the message

Station stored

appears on

the display.

> The radio exits Auto mode and the

stored station can be selected as a pre-
set.

Scanning

SCAN (4) automatically searches through a
wavelength for strong stations. When a station
is found, it is played for approx. 8 seconds
before scanning is resumed.

Activating/deactivating Scan

Select wavelength using AM/FM.

Press SCAN to activate.

SCAN

appears on the display. Close

using SCAN or EXIT.

Storing a station

A selected station can be stored as a preset
while

SCAN

is active.

–

Press a station preset button and hold it
depressed until the message

Station

stored

appears on the display.

> Scanning is interrupted and the stored

station can be selected as a preset.

RDS functions

Radio Data System - RDS links FM transmitters
into a network. An FM transmitter in such a
network sends information that gives an
RDS radio the following functions:

•

Automatically switches to a stronger trans-
mitter if reception in the area is poor.

•

Searches for programme form, such as
traffic information or news.

•

Receives text information on current radio
programme.

Some radio stations do not use RDS or only
some if its functionality.

Programme functions

In FM mode, the radio can search for stations
with certain programme types. If a required
programme type is located the radio can
switch stations interrupting the audio source
currently in use. For example, if the CD player
is in use, it is paused. The interrupting trans-
mission is played at a preset audio volume, see
page 257. The radio returns to the previous
audio source and audio volume when the set
programme type is no longer broadcast.

The programme functions alarm (

ALARM!

traffic information (

), news (

News

), and pro-

The RDS functions available vary in the different markets.

10 Infotainment system

Radio functions

255

gramme types (

PTY

) interrupt one another in

order of priority, where alarm has the highest
priority and programme types has the lowest.

If you want to return to the interrupted audio
source before the message or programme type
has been completed, press EXIT.

For further programme interruption settings,
see EON and REG see page 256. The pro-
gramme functions are modified via the menu
system, see page 246.

Alarm

This function is used to warn of serious acci-
dents and catastrophes. The alarm cannot be
temporarily interrupted or deactivated. The
message

ALARM!

appears on the display

when an alarm message is transmitted.

Traffic information – TP

This function allows traffic informa-
tion broadcast within a set station's
RDS network to break through.

shows that the function has been

activated. If the set station can send traffic
information then

appears on the display.

G021220

Activating/deactivating TP

Press MENU and then ENTER.

Scroll to

and press ENTER.

TP from current station/all stations

The radio can interrupt with traffic information
from only the set (current) station or from all
stations.

Select an FM station.

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

and press ENTER.

Scroll to

TP station…

and press ENTER.

> Either

TP from current station

from all stations

is shown on the dis-

play.

Press ENTER.

Activating/deactivating TP search

TP search is useful during long journeys while
an audio source other than the radio is being
played. The function automatically searches
for traffic information within different
RDS networks.

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

and press ENTER.

Scroll to

TP search

and press ENTER.

News

This function allows news broad-
casts within a set station's
RDS network to break through. The
message

News

shows that the func-

tion is active.

G021221

Activating/deactivating News

Press MENU and then ENTER.

Scroll to

News

and press ENTER.

News from current station/all stations

The radio can interrupt with news from only the
set (current) station or from all stations.

Select an FM station.

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

News station…

and press

ENTER.

> Either

News from current station

News from all stations

is shown on the

display.

Press ENTER.

10 Infotainment system

Radio functions

256

Programme types – PTY

The PTY function can be used to
select different programme types,
such as

Pop music

and

Serious

classic

. The PTY symbol indicates

that the function is active. This function allows
programme types broadcast within a set sta-
tion's RDS network to break through.

G021222

Activating/deactivating PTY

Select

FM1

FM2

with FM/AM.

Press MENU and then ENTER.

Scroll to

PTY

and press ENTER.

Scroll to

Select PTY…

and press

ENTER.

> A list of programme types appears:

Current affairs

Information

etc. The

PTY function is activated by selecting
programme types and deactivated by
clearing all PTYs.

Select the desired programme types or

Clear all PTY…

Search PTY

This function searches the entire wavelength
for the selected programme type.

Activate PTY.

Press MENU and then ENTER.

Scroll to

PTY

and press ENTER.

Scroll to

Search PTY

and press ENTER.

If the radio finds any of the selected pro-
gramme types,

>| To seek

appears on the dis-

play. Press the navigation button

to con-

tinue searching for another broadcast of the
selected programme types.

Display of programme type

The programme type of the current station can
be shown on the display.

NOTE

Not all radio stations support this function.

Activating/deactivating display

Press MENU and then ENTER.

Scroll to

PTY

and press ENTER.

Scroll to

Show PTY

and press ENTER.

Radio text

Some RDS stations transmit information on
programme content, artists, etc. This informa-
tion can be shown on the display.

Activating/deactivating radio text

Press MENU and then ENTER.

Scroll to

Radio text

and press ENTER.

Automatic frequency update – AF

The AF function selects one of the strongest
transmitters for a set station. The radio may
sometimes need to search through the entire
FM wavelength to find a strong transmitter. If
this occurs, the radio mutes and

PI seekEXIT

to cancel

appears in the display.

Activating/deactivating AF

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

and press ENTER.

Regional radio programmes – REG

This function causes the radio to con-
tinue with a regional transmitter even
if its signal strength is low.

Regional

indicates that the function

is active. The regional function is normally
deactivated.

G021223

Activating/deactivating REG

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

Regional

and press ENTER.

10 Infotainment system

Radio functions

257

Enhanced Other Networks – EON

The EON function is especially useful in urban
areas with many regional radio stations. It
allows the distance between the car and the
radio station transmitter to determine when
programme functions should interrupt the cur-
rent audio source.

•

Local

– interrupts only if the radio station

transmitter is close.

•

Distant

– interrupts if the station transmit-

ter is far away, even if there is a lot of static.

•

Off

– no interruption for programmes from

other transmitters.

Activating/deactivating EON

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

EON…

and press ENTER.

Scroll to

Local

Distant

Off

and press

ENTER.

Resetting RDS functions

Resets all radio settings to the original factory
settings.

Press MENU and then ENTER.

Scroll to

Advanced radio settings…

and

press ENTER.

Scroll to

Reset all…

and press ENTER.

Volume control, programme types

The interrupting programme types are heard at
the volume selected for each programme type.
If the volume level is adjusted during the pro-
gramme interruption, the new level is saved
until the next programme interruption.

10 Infotainment system

CD functions

258

Option/accessory, for more information, see Introduction.

CD function controls

G019807

Navigation button – Fast forward/rewind,
track selection and menus

CD changer position selection*

CD insertion/eject

CD insertion/eject slot

MODE - Selection of audio source (CD,
AUX, USB*)

TUNING - Knob for track selection

Starting playback (CD player)

If a music CD is in the player when the audio
system is in CD mode then playback is started

automatically. Otherwise, load a disc and
change to CD mode by pressing MODE.

Start playback (CD changer*)

If a CD position with a music CD is already
selected when the audio system is activated
then playback starts automatically. Otherwise
change to CD changer mode using MODE and
select a disc with the number buttons 1–6 or
Up/Down on the navigation button.

Insert a CD

Select an empty position with buttons 1–
6 or Up/Down on the navigation button.

> An empty position is marked on the dis-

play. The text

Insert disc

shows that a

new disc can be inserted. The
CD changer can hold up to 6 CD discs.

Inserting a CD in the CD changer.

CD eject

A CD will stay in the ejected position for
approx. 12 seconds. Following which it is re-
inserted in the player and playback continues.

Eject individual discs by pressing the eject but-
ton (3).

Eject all discs with a long press on the eject
button. The entire magazine is emptied disc by
disc. The message

EJECT

ALL

is shown in the

display.

Pause

If the volume is turned down completely, the
CD player is stopped. The player is restarted
when volume is increased.

Audio files*

The CD player/CD changer* also supports MP3
and WMA format audio files.

NOTE

Certain types of copy-protected audio files
cannot be read by the player.

When a CD containing audio files is inserted
into the player the disc's folder structure is loa-
ded in. It may take a while before playback
starts due to the quality of the disc.

Navigation and playback

If a disc with audio files is inserted in the
CD player then the disc's folder structure is
shown by pressing ENTER. The folder struc-
ture is navigated in the same way as the audio
system's menu structure. Audio files have the
symbol

and folders have the symbol

Start audio file playback with ENTER.

When the playback of a file is finished the play-
back of the other files in the same folder con-
tinues. Folder change takes place automati-

10 Infotainment system

CD functions

259

cally when all files in the current folder have
been played back.

Press left/right on the navigation button if the
display is not wide enough to show the whole
audio file name.

Fast-wind/change CD tracks and audio
files

Short presses right/left on the navigation but-
ton are used to scroll between
CD tracks/audio files. Long presses are used
to fast-wind CD tracks/audio files. TUNING (or
the steering wheel keypad) can also be used
for this purpose.

Scan CD

This function plays the first 10 seconds of each
CD track/audio file. Press SCAN to activate.
Interrupt with EXIT or SCAN to continue play-
back of the current CD track/audio file.

Random

This function plays the tracks in random order.
The random CD tracks/audio files can be scrol-
led through in the normal way.

NOTE

It is only possible to scroll between random
CD tracks

on the current disc.

Different messages appear on the display
depending on which random function has been
selected:

•

RANDOM

means that the tracks from only

one music CD are played

•

RND ALL

means that all tracks on all

music CDs in the CD changer are played.

•

RND

FLD

means that the audio files in a

folder on the current CD are played.

Activating/deactivating, random (CD
player)

If a normal music CD is being played:

Press MENU and then ENTER.

Scroll to

Random

and press ENTER.

If a disc with audio files is being played:

Press MENU and then ENTER.

Scroll to

Random

and press ENTER.

Scroll to

Folder

Disc

and press

ENTER.

Activating/deactivating, random (CD
changer)

If a normal music CD is being played:

Press MENU and then ENTER.

Scroll to

Random

and press ENTER.

Scroll to

Single disc

All discs

and press

ENTER.

The option

All discs

only applies to the music

CDs in the changer.

If a CD with audio files is being played:

Press MENU and then ENTER.

Scroll to

Random

and press ENTER.

Scroll to

Single disc

Folder

and press

ENTER.

The function is deactivated when another CD
is selected.

Disc text

If title information is stored on a music CD then
it can be shown on the display

Activate/deactivate

Start CD playback.

Press MENU and then ENTER.

Scroll to

Disc text

and press ENTER.

Applies to the CD changer.

Applies to CD changer.

10 Infotainment system

Menu structure – audio system

Option/accessory, for more information, see Introduction.

261

Overview

FM MENU

News

PTY…

Radio text

Advanced radio settings…

6.*

Audio settings…

AM MENU

1.*

Audio settings…

CD MENU

For CD player with CD disc.

Random

News

Disc text

5.*

Audio settings…

CD MENU

For CD player with MP3 disc.

Playlist

Random…

News

Disc text

6.*

Audio settings…

CD MENU

For CD changer* with CD disc
selected.

Random…

News

Disc text

5.*

Audio settings…

CD MENU

For CD changer* with MP3 disc
selected.

Playlist

Random…

News

Disc text

6.*

Audio settings…

AUX MENU

AUX input volume…

News

4.*

Audio settings…

USB MENU

Playlist

Random…

News

Track information

Audio settings…

The RDS functions available vary in the different markets.

10 Infotainment system

Phone functions*

Option/accessory, for more information, see Introduction.

263

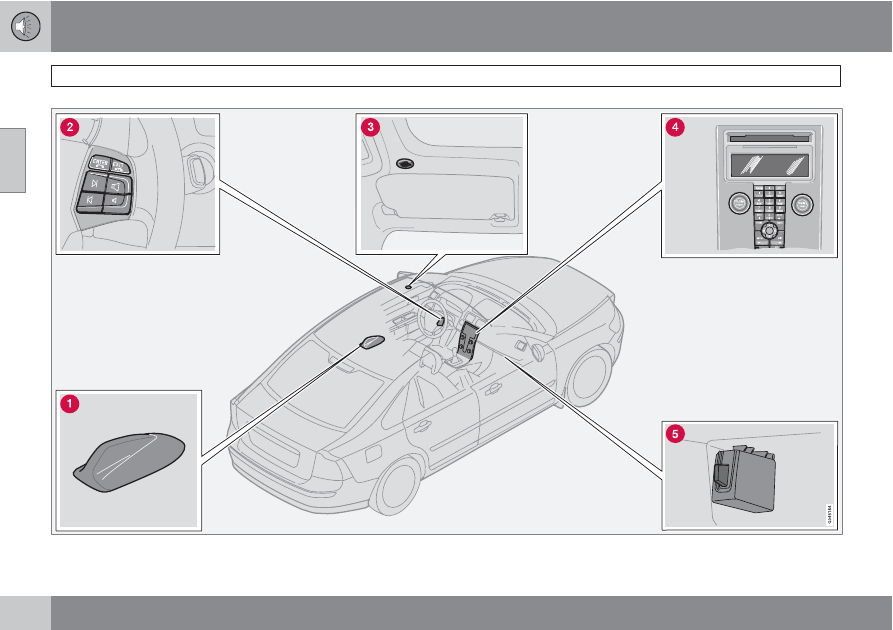

Phone system components

Antenna

Steering wheel keypad. Most phone sys-
tem functions can be accessed via the key-
pad. see page 264.

Microphone. The microphone for hands-
free is fitted in the roof by the sun visor.

Centre console control panel. All phone
functions (except call volume) can be regu-
lated via the control panel.

SIM card reader

General

•

Always put traffic safety first.

•

Switch off the phone system when refuel-
ling the car.

•

Switch off the system near blasting work.

•

Volvo recommends that an authorised
Volvo workshop carries out phone system
servicing.

Emergency calls

Emergency calls to alarm centres can be made
without a SIM card as long as there is coverage
by a network operator.

Making an emergency call

Activate the phone.

Ring the emergency number that applies to
your region (within EU: 112).

Press ENTER.

IDIS

With the IDIS system (Intelligent Driver
Information System), incoming phone calls and
SMS messages can be delayed so that con-
centration can be focused on driving when IDIS
determines that the traffic situation requires a
high level of attention.

Incoming calls and SMS messages can be
delayed 5 seconds before they are diverted. If
the current traffic situation still requires a high
level of attention from the driver then the
incoming call is diverted to the voice mail.
Missed calls are shown in the display.

IDIS be disconnected using menu function 6.5,
see page 269.

SIM card

G020244

The phone can only be used with a valid SIM
card Subscriber Identity Module. Cards are
available from various network operators. Con-
tact your network operator if you experience
difficulties with the SIM card.

NOTE

The built-in phone cannot read 3G type SIM
cards (3G only). Combined 3G/GSM cards
work. Contact your network operator if a
replacement SIM card is required.

Available only for built-in phone or RTI.

10 Infotainment system

Phone functions*

264

Option/accessory, for more information, see Introduction.

Extra SIM card

Many network operators offer two SIM cards
for the same phone number. The extra SIM
card can be used in the car.

Inserting the SIM card

Switch off the phone and open the glove-
box.

Pull out the SIM card holder from the SIM
card reader, see illustration on page 263.

Position the SIM card in the holder with the
metal surface visible. The bevelled edge of
the SIM card should align with the bevel of
the SIM card holder.

Carefully press in the SIM card holder.

Menus

Page 269 describes how to control phone
functions with the menu system.

Traffic safety

For safety reasons, parts of the phone menu
system cannot be accessed at speeds in
excess of 8 km/h.

Phone controls

G019809

Centre console control panel.

VOLUME - Control the background vol-
ume from the radio, for example, during a
call

Number and letter buttons

MENU - Opens the main menu

EXIT - End/refuse calls, clear entered char-
acters

Navigation button – Scroll in menus and
character rows

ENTER – Accept calls. A press of the but-
ton reveals latest dialled numbers

PHONE - On/off and standby mode

Steering wheel keypad

G020243

When the phone is active, the steering wheel
keypad is locked to phone functions. To con-
trol the audio system, the phone must be in
standby mode (standby).

ENTER – Accept calls. A press of the but-
ton reveals latest dialled numbers.

EXIT - End/refuse calls, clear entered char-
acters. Changes between the audio menu
and the phone menu.

Call volume – Increase/decrease

Navigation buttons – Scroll in menus

10 Infotainment system

Phone functions*

Option/accessory, for more information, see Introduction.

265

On/Off

A handset appears in the display when the
phone system is active or in standby mode
(standby). If the remote control key is turned to
position 0 when the phone is in one of these
modes, the phone automatically resumes this
mode the next time the remote control key is
turned to position I or II.

Activating the phone system

Phone system functions can only be used
when the phone is in active mode.

Press PHONE.

Enter the PIN code (if necessary) and press
ENTER.

Deactivating the phone system

No calls can be received when the phone sys-
tem is deactivated.

–

Hold PHONE depressed until the phone is
deactivated.

Standby mode (standby)

In standby mode, the audio system can be in
use while calls are received. However, it is not
possible to make calls when in standby mode.

Putting the phone in standby mode

The phone must first be in active mode before
it can be put in standby mode.

–

Press PHONE.

Activating from standby mode

–

Press PHONE.

Making and receiving calls

To call

Activate the phone system (if necessary).

Dial the number or use the phone book,
see page 267.

Press ENTER.

Receiving a call

For Auto answer, see menu option 4.3, see
page 269.

–

Press ENTER.

Ending a call

–

Press EXIT.

Refusing a call

–

Press EXIT.

Call waiting

A two-tone signal during a phone call indicates
that there is another incoming call.

Answer?

shown in the display. The call can be refused
or taken in the normal manner. If the incoming
call is taken, the previous call is put on hold.

Putting a call on hold/resuming a call

Press MENU or ENTER.

Scroll to

Hold

Resume

and press

ENTER.

Dialling a third party

Put the call on hold.

Dial the number of the third party.

Switching between calls

Press MENU or ENTER.

Scroll to

Swap

and press ENTER.

Starting a conference call

A conference call consists of three parties that
can talk to one another. Once a conference call
has been initiated, no more parties can be con-
nected. All calls are ended when a conference
call is ended.

Start two phone calls.

Press MENU or ENTER.

Scroll to

Join

and press ENTER.

Volvo S40 (2012 year). Instruction - part 14
