Volvo S40 (2012 year). Instruction - part 6

03 Climate control

Fuel-driven auxiliary heater* (diesel)

102

Option/accessory, for more information, see Introduction.

Auxiliary heater (diesel)

In diesel-engined cars the auxiliary heater may
be required for achieving the correct tempera-
ture in the engine and passenger compartment
during cold weather.

The heater starts automatically when extra
heat is required when the engine is running.

The heater is switched off automatically when
the correct temperature is reached or when the
engine is switched off.

NOTE

The auxiliary heater cannot be switched on
or off manually but is only controlled by the
car's electronics.

When the auxiliary heater is active there may
be smoke from underneath the car, which is
perfectly normal.

04 Interior

Front seats

106

Option/accessory, for more information, see Introduction.

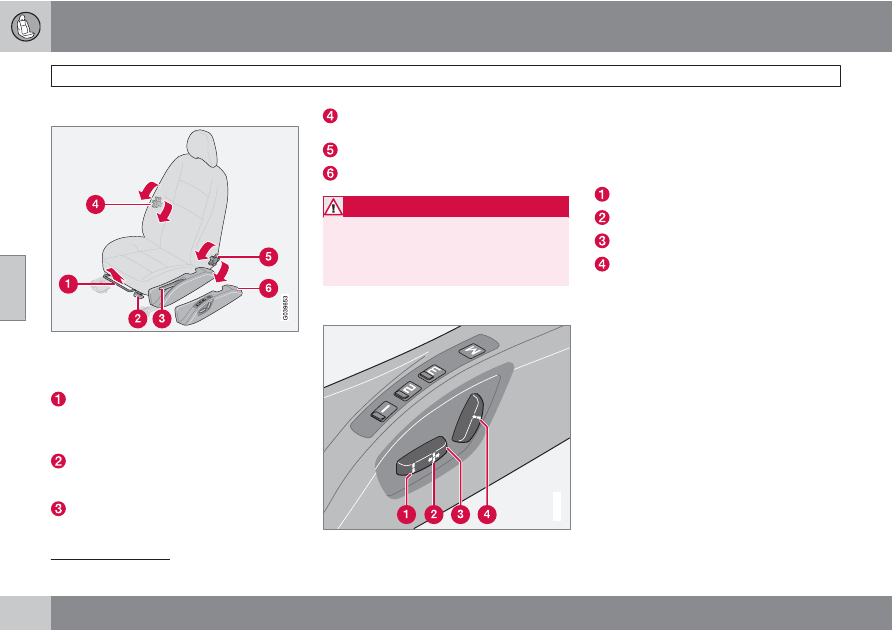

Seating position, manual seat

The driver's and passenger seats can be
adjusted to the optimum sitting and driving
positions.

Forward/backward: lift the handle to adjust
the distance to the steering wheel and ped-
als. Check that the seat is locked after
changing the position setting.

Raise/lower the front of the seat cushion
(driver's and passenger seat*), pump up/
down.

Raise/lower the seat (driver's and passen-
ger seat*), pump up/down.

Lumbar support

(driver's and passenger

seat*), turn the wheel.

Backrest rake: turn the wheel.

Control panel for power seat*.

WARNING

Adjust the position of the driver's seat and
adjust the seatbelt, see page 16, before set-
ting off, never while driving.

Check that the seat is locked in position.

Seating position, power seat*

G020199

The seats can be adjusted for a certain time
after unlocking the door with the remote con-
trol key without the key being inserted into the
ignition switch. The seat can always be
adjusted in key position I or II.

Front edge of seat cushion up/down

Seat, forwards/backwards

Seat, up/down

Backrest rake

An overload protection is deployed if one of the
seats is blocked. If this happens, turn off the
ignition and wait a short time before adjusting
the seat again. Only one of the seat's settings
can be adjusted at a time.

Also applies to power seat.

04 Interior

Front seats

Option/accessory, for more information, see Introduction.

107

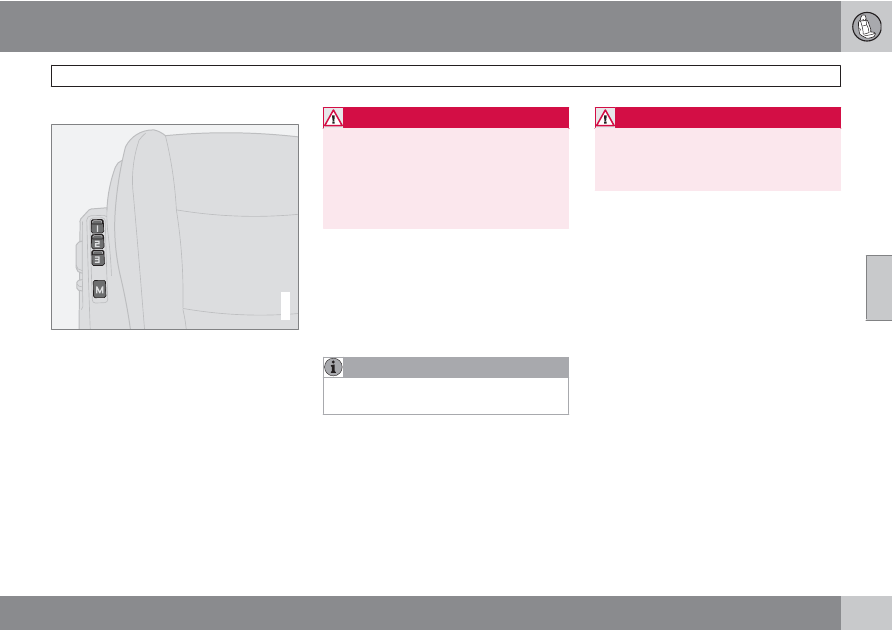

Memory function

G020200

Buttons for memory function.

Store setting

Adjust seat.

Press and hold button M while pressing
button 1, 2 or 3 simultaneously.

Using a stored setting

Press one of the memory buttons 1–3 until the
seat stops. If you release the button then the
movement of the seat will stop.

Emergency stop

If the seat accidentally begins to move, press
one of the setting buttons for the seat or mem-
ory buttons in order to stop the seat.

WARNING

Risk of crushing. Make sure that children do
not play with the controls.

Check that there are no objects in front of,
behind or under the seat during adjustment.

Ensure that none of the rear seat passen-
gers is in danger of becoming trapped.

Memory in remote control key

The settings for the driver's seat are stored in
the memory for the remote control key with
which the car is locked. When the car is
unlocked with the same remote control key the
driver's seat adopts the stored settings when
the driver's door is opened.

NOTE

The remote control key memory is inde-
pendent of seat memory.

Inlaid mats*

Volvo supplies inlay mats which are especially
produced for your car.

WARNING

Before setting off check that the inlaid mat
in the driver area is firmly affixed and
secured in the pins in order to avoid getting
caught adjacent to and under the pedals.

04 Interior

Interior lighting

108

Option/accessory, for more information, see Introduction.

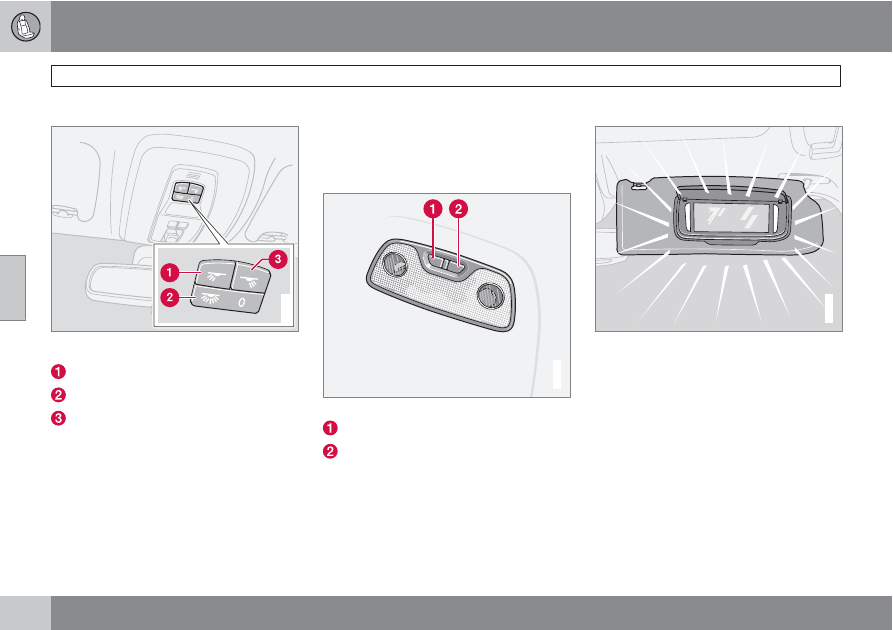

Reading lamps and interior lighting

G020201

Controls in roof console for front reading lamps
and passenger compartment lighting.

Reading lamp left-hand, On/Off

Interior lighting

Reading lamp right-hand, On/Off

All lighting in the passenger compartment can
be switched on in key position I and II as well
as when the engine is running. The lighting can
also be activated within 30 minutes after:

•

the engine has been switched off and the
remote control key is in position 0

•

the car has been unlocked but the engine
has not been started.

Front roof lighting

The front reading lamps are switched on or off
by pressing the relevant button in the roof con-
sole.

Rear roof lighting

G030855

Reading lamps, rear.

Reading lamp left-hand rear, On/Off

Reading lamp right-hand rear, On/Off

The lamps are switched on or off by pressing
the relevant button.

Courtesy lighting

Courtesy lighting (and passenger compart-
ment lighting) is switched on and off respec-
tively when a side door is opened or closed.

Vanity mirror*

G020210

The lamp is automatically switched on and off
respectively when the cover is opened or
closed.

Glovebox lighting

Glovebox lighting is switched on and off
respectively when the lid is opened or closed.

04 Interior

Interior lighting

109

Automatic lighting

Using the switch (2), see page 108, three posi-
tions can be selected for the lighting the pas-
senger compartment:

•

Off – right-hand side (marked with 0)
depressed, automatic lighting switched
off.

•

Neutral position – automatic lighting acti-
vated. The dimmer function is active.

•

On – left-hand side depressed, passenger
compartment lighting on.

Neutral position

When the switch (2) is in neutral position pas-
senger compartment lighting is switched on
and off automatically in accordance with the
below.

The passenger compartment lighting is
switched on and remains on for 30 seconds if:

•

the car is unlocked with the remote control
key or key blade.

•

the engine is stopped and the remote con-
trol key is turned to position 0.

Passenger compartment lighting is switched
off when:

•

the engine is started

•

the car is locked with the key or remote
control key.

Passenger compartment lighting comes on
and remains on for 5 minutes if one of the doors
is open.

If any lighting is switched on manually and the
car is locked then it will be switched off auto-
matically after 5 minutes.

04 Interior

Storage spaces in the passenger compartment

110

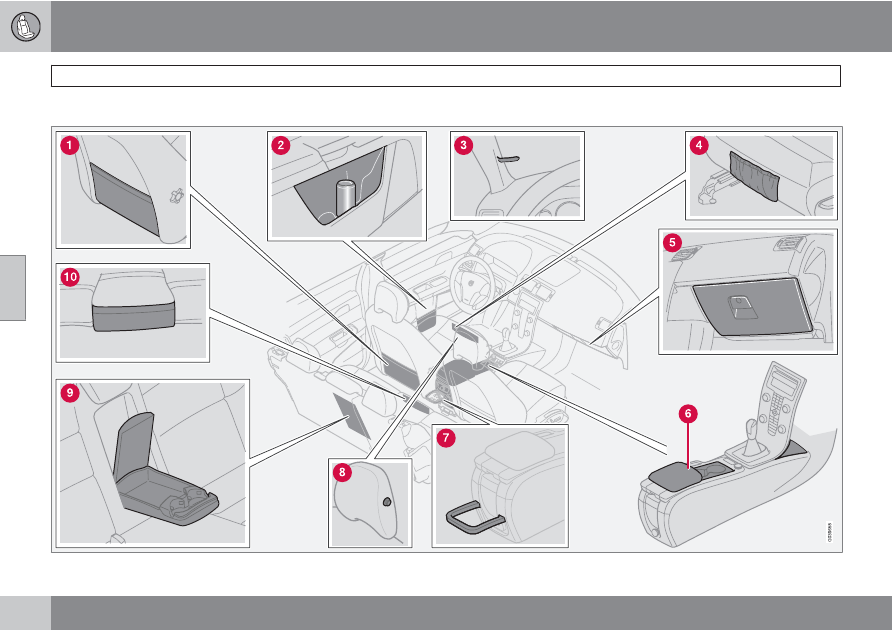

Storage spaces

04 Interior

Storage spaces in the passenger compartment

Option/accessory, for more information, see Introduction.

111

Storage pocket on rear of front seats.

Storage compartment in door panel with
cup holder.

Ticket clip

Storage pocket on front edge of front seat
cushions.

Glovebox

Storage compartment (e.g. for CD discs
and cup holder,*) and storage compart-
ment behind the centre console.

Bottle holder*

Coat hanger, only for light garments.

Storage compartment and cup holder.

Storage pocket* on front edge of centre
rear seat cushion.

WARNING

Ensure that no hard, sharp or heavy objects
lie or protrude in such a way that they could
cause injury during heavy braking.

Always secure large and heavy objects with
a seatbelt or cargo retaining straps.

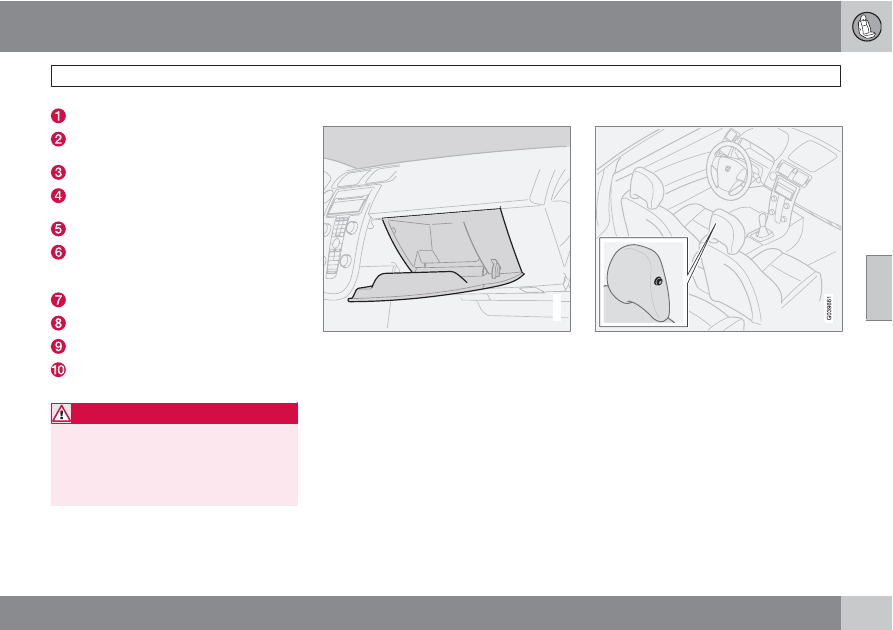

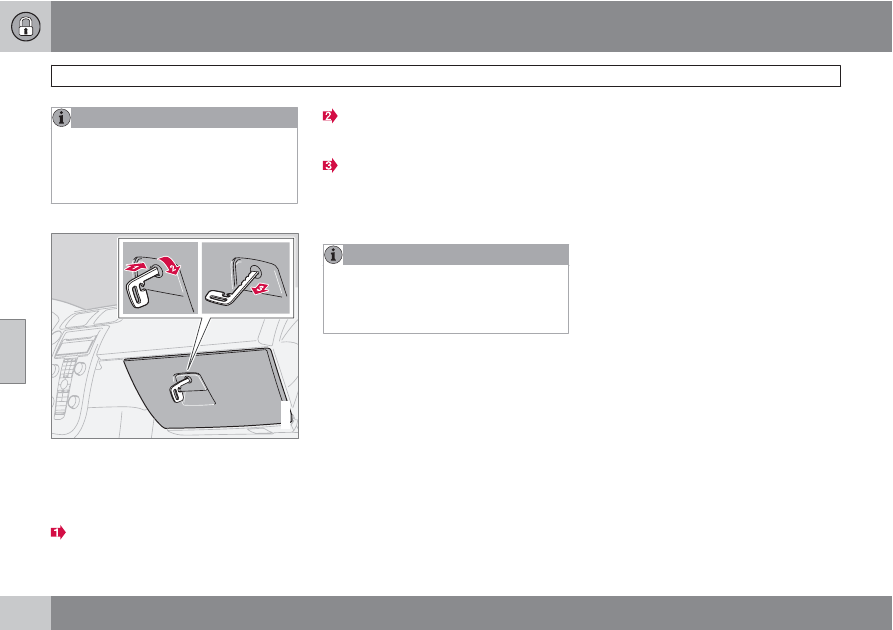

Glovebox

G024208

The owner's manual and maps can be kept
here for example. There are also holders for
coins, pens and fuel cards.

The glovebox can be locked with the remote
control key's detachable key blade. Further
information is available on page 121.

Coat hanger

The coat hanger is located on the passenger
seat head restraint. Only hang light garments
on the hanger.

04 Interior

Storage spaces in the passenger compartment

112

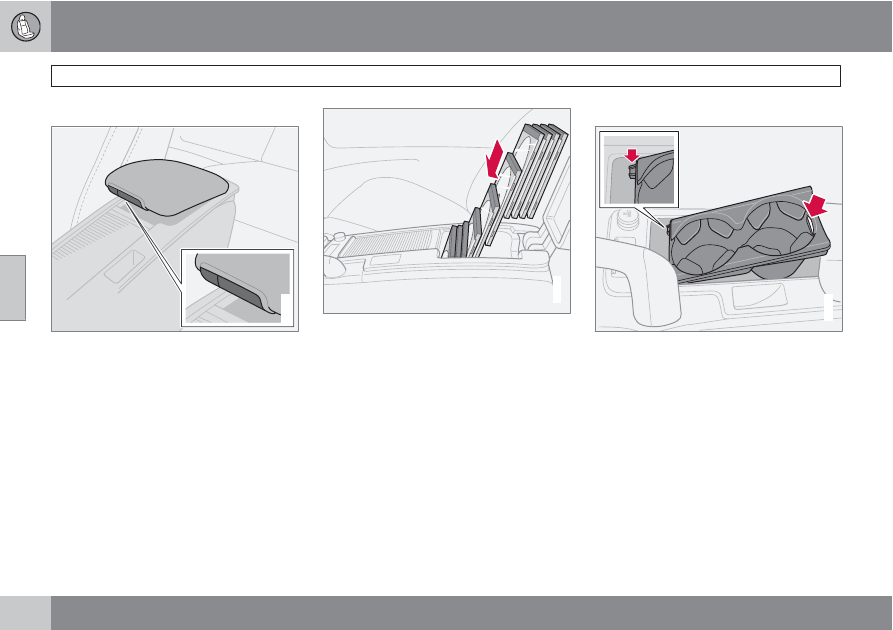

Storage under the front armrest

G018371

There is a storage space under the armrest.
There is also a smaller storage space in the
detachable armrest. Press the small button
and lift the armrest to open the shallow com-
partment. Press the large button and lift the
armrest to open the deeper compartment.

G026704

In the deeper compartment there is space for
10 normal CD cases. The cases must be stored
vertically on the top edge for all 10 to have
space.

Cup holder in centre console

G018372

There is space for a double cup holder under
the roller cover. The space can be used for
storage by lifting out the cup holder. Lift at the
rear edge of the cup holder where there is a
recess.

If the cup holder is being fitted - first align its
two guide lugs in the two recesses in the front
edge of the space and then press down the
rear edge of the cup holder.

Close the roller cover by gripping its front edge
from below and pulling forward.

04 Interior

Storage spaces in the passenger compartment

Option/accessory, for more information, see Introduction.

113

Storage compartment behind the gear
lever

When there are no buttons for parking assis-
tance and BLIS, see page 169 and page
171, the space can be used as a storage com-
partment.

WARNING

Objects placed in the storage compart-
ments must not obstruct the parking brake
lever when it is applied.

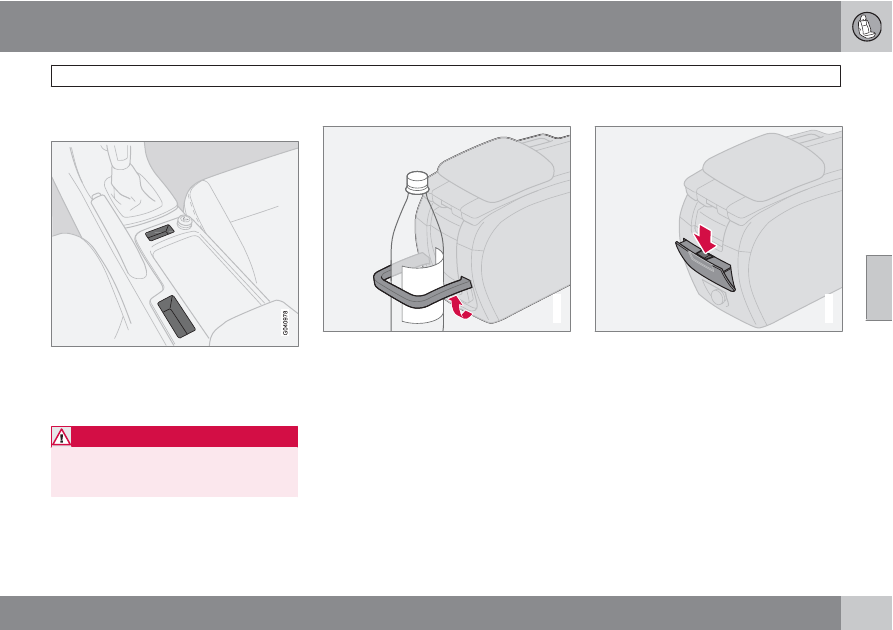

Bottle holder*

G017441

A bottle holder for larger bottles is located on
the rear of the tunnel console.

Ashtray*

G019622

An ashtray is located towards the rear of the
tunnel console.

Open the ashtray by pulling the top edge of the
cover.

Emptying the ashtray:

Press in the catch, see preceding illustra-
tion, and tilt the cover up.

Then lift the ashtray out.

04 Interior

Rear seat

114

Head restraint, rear

All head restraints can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be aligned
with middle of the back of the head. Raise the
head restraint as necessary.

To lower the head restraint, press the button by
the right-hand pillar at the same time as push-
ing down the head restraint. To remove the
head restraint, the button by the right-hand pil-
lar must be pressed while lifting out the head
restraint.

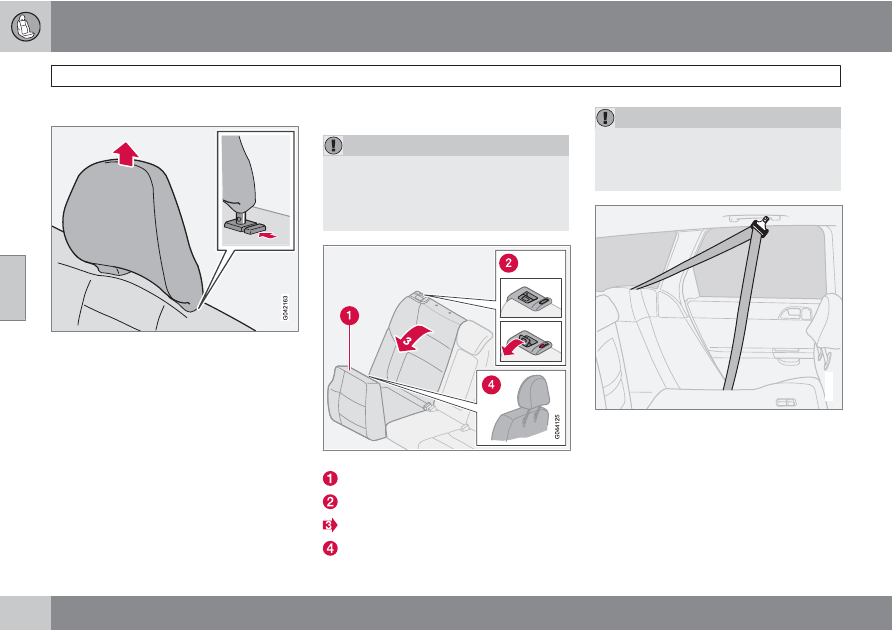

Tipping the rear seat backrest

IMPORTANT

There must be no objects on the rear seat
when the backrest is to be folded down. The
seat belts must not be connected either.
Otherwise there is a risk of damaging the
rear seat upholstery.

Lowering the backrest.

Rear edge of seat cushion

Lock catch

Lowering the backrest

Location of head restraint under seat cush-
ion

IMPORTANT

The head restraints could be damaged if
they are not removed for loading. The head
restraint in the centre must also be removed
for heavy loads.

G020790

The rear seat backrests can be tipped forwards
together, or individually, to make it easier to
transport long objects. To avoid damaging the
seatbelts when folding the backrests up or
down, these should be hooked onto the grab
handles.

Hang the seatbelts on the hooks before
lowering or raising the backrests.

04 Interior

Rear seat

115

Lift the rear edge of the seat cushion (1) to
fold the seat cushions forward.

Pull the lock (2) catch up and forward to
release the backrest. A red indicator on the
lock catch shows that the backrest is no
longer locked in place.

Fold the backrests (3) forward halfway and
remove the head restraints on the outside
seats. The centre seat's head restraint
must be removed for a fully level floor.

Place the head restraints in the plastic
sleeves on the undersides (4) of the raised
seat cushions.

NOTE

When the backrest has been raised, the red
indicator should no longer be showing. If it
is still showing then the backrest is not
locked in place.

WARNING

Remember to take down the seatbelts once
you have raised the backrest.

04 Interior

Cargo area

116

Option/accessory, for more information, see Introduction.

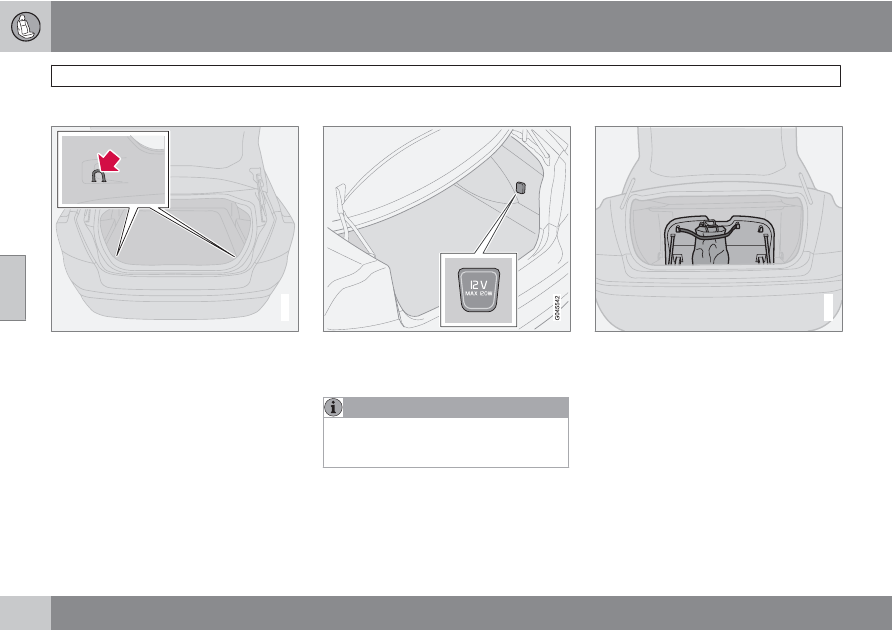

Load retaining eyelets

G018099

The load retaining eyelets are used to fasten
straps or nets to anchor items in the cargo
area.

Electrical socket in cargo area*

Fold down the cover to access the electrical
socket. This socket works regardless of
whether or not the ignition is on.

NOTE

Remember that using the electrical socket
with the engine switched off involves the
risk of discharging the car's battery.

Bag holder*

G020902

The bag holder holds shopping bags in place
and prevents them tipping over and spilling
their contents.

Open the hatch in the cargo area.

Secure the shopping bags with the strap.

05 Locks and alarm

Remote control key with key blade

120

Remote control key

The car is supplied with 2 remote control keys.

The remote control keys contain detachable
metal key blades for mechanical locking/
unlocking of the driver's door and glovebox.

The key blades' unique code is available at
authorised Volvo workshops, which are rec-
ommended for ordering new key blades.

A maximum of 6 remote control keys/key
blades can be programmed and used for one
single car.

Turn signal indication during locking/
unlocking

When the car is unlocked using the remote
control key or Keyless drive system, two short
flashes of the direction indicators serve to indi-
cate that unlocking was correctly performed.

For locking, the indication takes place with one
long flash and only if all locks have been
locked, after the doors and the boot lid have
been closed.

Personal preferences in the menu system can
be used to the deactivate indication via the
direction indicators. There will then be no visual
indication as to whether the lock status is cor-
rect, see page 83.

Loss of a remote control key

If you lose a remote control key, take the car
and the other remote control keys to a Volvo
workshop - an authorised Volvo workshop is
recommended. The code of the missing
remote control key must be erased from the
system as a theft prevention measure.

Immobiliser

The remote control keys are fitted with coded
chips. The code must be accepted by the
reader (receiver) in the ignition switch. The
engine can only be started if the correct remote
control key with the correct code is used.

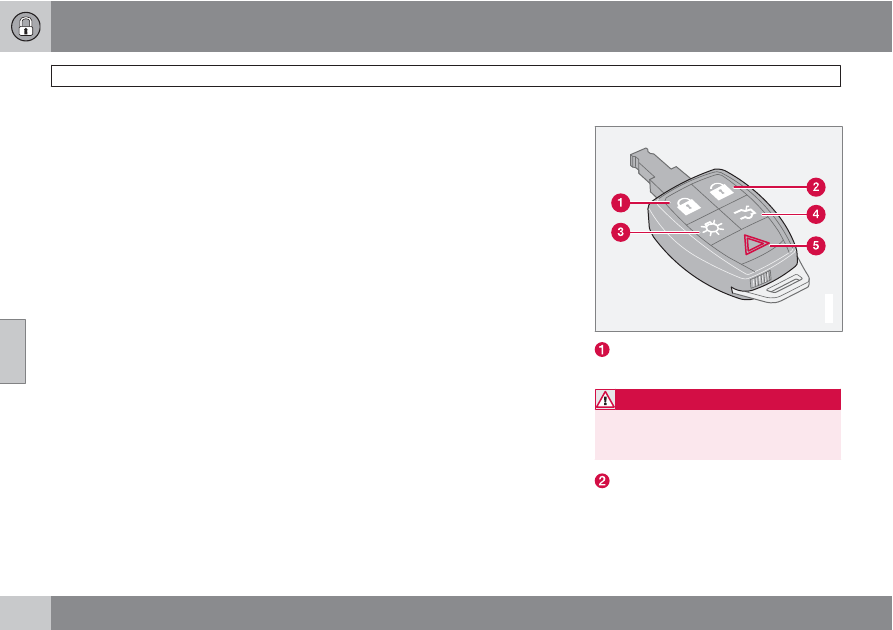

Remote control key functions

G019402

Locking – Locks all doors and the boot lid.
Press and hold (at least 2 seconds) to also
close the side windows and the sunroof.

WARNING

If the sunroof and windows are closed using
the remote control key, check that no one is
in danger of getting hands caught.

Unlocking – Unlocks the doors and the
boot lid. Press and hold (at least 4 seconds)
to also open the side windows.

05 Locks and alarm

Remote control key with key blade

Option/accessory, for more information, see Introduction.

121

Approach lighting – Switches on the light-
ing at a distance – lights up the area around
a car parked in a dark location. Press the
button once to switch on the interior light-
ing, position/parking lamps, number plate
lighting and door mirror lamps (option). The
lighting is switched off automatically after
30, 60 or 90 seconds. For information on
setting the delay time, see page 83.

Boot lid - Press the button once to unlock
the boot lid only

Panic function – Used to attract attention
in an emergency. Press and hold the red
button for at least 3 seconds or press i
t twice within 3 seconds to activate the
direction indicators and the horn. The
alarm can be deactivated with the same
button, after having been armed for at least
5 seconds. Otherwise the function
switches off automatically after 30 sec-
onds.

IMPORTANT

The narrow section of the remote control
key is particularly sensitive - this contains
the chip. The engine cannot be started if the
chip is damaged.

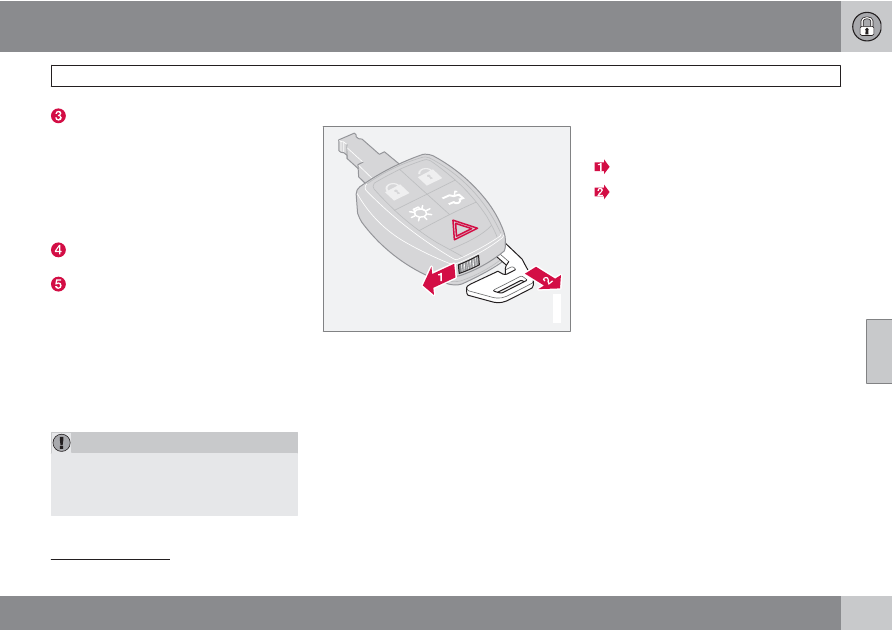

Detachable key blade

G019403

Using the remote control key's detachable key
blade:

•

the driver's door can be opened manually
if central locking cannot be activated with
the remote control key, see page 127.

•

access to the glovebox and cargo area
(privacy locking) is blocked, see pages
122 and 124.

•

the rear doors' mechanical child safety
locks can be activated/deactivated, see
page 133.

•

PACOS* activated/deactivated, see
page 22.

Removing the key blade

To remove the key blade from the remote con-
trol key:

Slide the spring-loaded catch to the side.

Pull out the key blade at the same time.

Attaching the key blade

Be careful when inserting the key blade into the
remote control key.

Hold the remote control key with the nar-
row end pointing down and lower the key
blade into its slot.

Lightly press the key blade to lock it in
position. You should hear a "click".

Unlocking doors with the key blade

If central locking cannot be activated with the
remote control key, e.g. if the batteries are dis-
charged, then the driver's door can be
unlocked and opened as follows:

Insert the key blade in the driver's door
keyhole.

Turn the blade 45 degrees clockwise and
open the door.

See also the figure and further information on
page 127.

The function unlocks the boot lid – it does not open.

05 Locks and alarm

Remote control key with key blade

122

NOTE

When the driver's door is unlocked using the
key blade and is opened, the alarm is trig-
gered. It is switched off by inserting the
remote control key in the ignition switch, see
page 135.

Locking the glovebox

G020034

The glovebox is locked.

The glovebox can only be locked/unlocked
using the remote control key's detachable key
blade. (For information on the key blade, see
page 121.)

Insert the key blade in the glovebox lock.

Turn the key blade 90 degrees clockwise.
The keyhole is horizontal in the locked
position.

Pull out the key blade.

–

Unlocking takes place in reverse order.

For information on privacy locking, see
page 124.

NOTE

The remote control key cannot unlock the
glovebox without the key blade.

This function is particularly useful for when
the car is left for service, at a hotel or similar.

05 Locks and alarm

Active locks

123

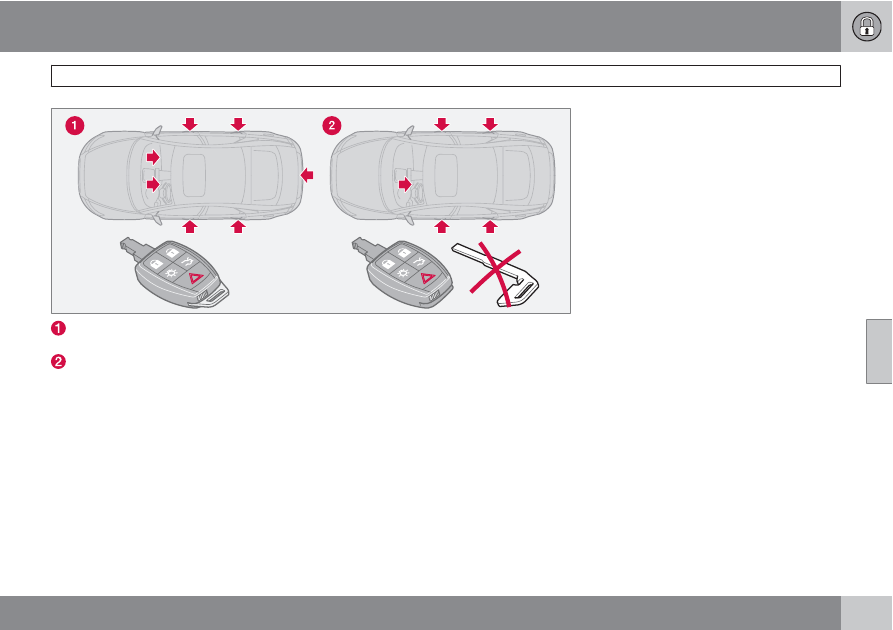

G019422

Active locks for remote control key with
key blade.

Active locks for remote control key with-
out key blade and with privacy locking
activated.

Content .. 4 5 6 7 ..
