Park Assist front, rear and sides (p. 348)

•

Acoustic warnings are only given for
objects directly in front of the vehicle's
path.

WARNING

•

The Parking Assist function is supple-
mentary driver support intended to facili-
tate driving and help make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.

•

The parking sensors have dead/blind
spots where objects cannot be detected.

•

Pay particular attention to people and
animals near the vehicle.

•

Parking Assist is not a substitute for the
driver's attention and judgment. The driver
is always responsible for ensuring the
vehicle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.

Related information

•

•

Activating/deactivating Park Assist (p. 349)

•

Park Assist limitations (p. 349)

•

Park Assist symbols and messages (p. 351)

DRIVER SUPPORT

348

Park Assist front, rear and sides

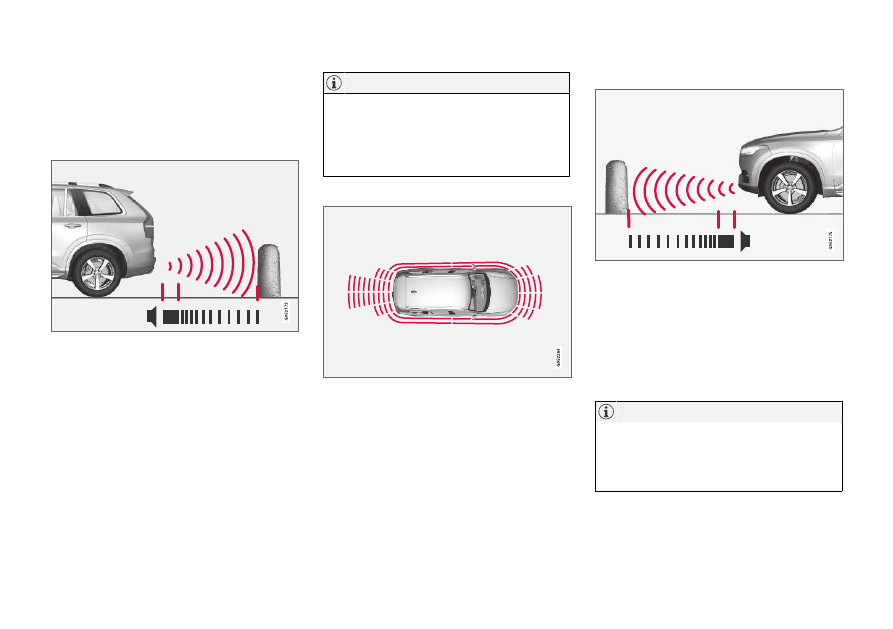

Park Assist has different parameters depending
on which part of the vehicle is approaching an
obstacle.

Back

Note: This illustration is general and details may vary
depending on model.

The rear sensors will be activated if the vehicle
begins rolling backward or if reverse gear is
engaged.

The distance monitored begins
approx. 1.5 meters (5 feet) behind the vehicle.

The rear sensors will be automatically deactivated
if the vehicle is backing up with a trailer attached.

When reversing with e.g. a trailer or bike car-
rier on the trailer hitch – without Volvo original
trailer cables – the Parking Assist system may
have to be turned off manually to prevent the
sensors from reacting to these.

Side sensors

Park Assist's side sensors are automatically acti-
vated when the engine is started. They are active
at speeds below 10 km/h (6 mph).

The distance monitored begins approx. 30 cm
(1 ft) from the sides. The audible signal for obsta-
cles along the sides of the vehicle is emitted
from the side speakers.

Front camera

Note: This illustration is general and details may vary
depending on model.

Park Assist's front sensors are automatically acti-
vated when the engine is started. The front sen-
sors are active at speeds below 10 km/h
(6 mph).

The distance monitored begins approx. 80 cm
(2.5 ft) in front of the vehicle.

The Parking Assist system is deactivated
when the parking brake is applied or when P
is selected on vehicles with automatic trans-
mission.

DRIVER SUPPORT

}}

* Option/accessory.

349

When installing auxiliary lights: Make sure
these do not obscure the sensors – the auxili-
ary lights could be perceived as an obstacle.

Related information

•

Activating/deactivating Park Assist

The Park Assist Pilot function can be activated/
deactivated.

On/Off

Park Assist's front and side sensors are automat-
ically activated when the engine is started. The
rear sensors are activated if the vehicle is moving
backward or reverse gear is engaged.

The function can be activated/
deactivated in the center dis-
play's Function view.

–

Tap the

Park Assist

button in Function view.

> The Park Assist Pilot indicator light shows

the status of the function: GREEN (on) or
GRAY (off).

In vehicles equipped with Park Assist Camera,
Park Assist can also be activated/deactivated
from the relevant camera view.

Related information

•

Park Assist limitations

Park Assist may not be able to detect all condi-
tions in all situations and functionality may there-
fore be limited in certain cases.

The driver should be aware of the following limi-
tations for Park Assist:

WARNING

Be extra cautious when

reversing if this symbol is

shown when a trailer, bike

carrier or similar is attached

and electrically connected

to the vehicle.
The symbol indicates that

the rear parking assist sensors are deacti-

vated and will not warn of any obstacles.

DRIVER SUPPORT

* Option/accessory.

350

Objects such as chains, thin and glossy poles
or low obstacles may end up in the "signal
shadow" and then go temporarily undetected
by the sensors – the pulsating tone may then
unexpectedly stop instead of becoming a
constant tone as expected.

The sensors cannot detect high objects, such
as protruding ramps.

•

In such situations, pay extra attention and
maneuver/drive the vehicle very slowly or
stop the current parking maneuver –
there may be a high risk of damage to
the vehicle or other objects since infor-
mation from the sensors is not always
reliable in such situations.

In some circumstances, the Park Assist Sys-
tem may produce false warnings due to exter-
nal sound sources with the same ultrasonic
frequencies as those the system works with.

Examples of such sources are horns, wet tires
on asphalt, pneumatic brakes, exhaust noise
from motorcycles, etc.

When a trailer hitch is configured with the
vehicle electrical system, the trailer hitch pro-
trusion is included when the function meas-
ures the distance to objects behind the vehi-
cle.

Related information

•

Recommended maintenance for

Park Assist

For Park Assist to function optimally, its sensors
must be cleaned regularly with water and car
washing detergent.

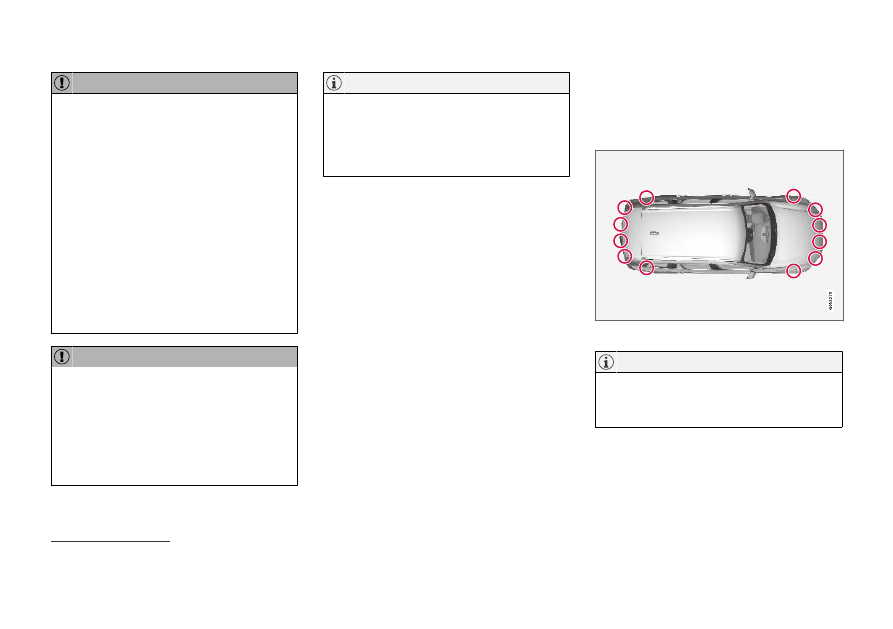

Location of the Park Assist sensors

109

Dirt, ice and snow covering the sensors could
cause false warnings, reduced function, or no
function.

Related information

•

109

Note: This illustration is general and details may vary depending on model.

DRIVER SUPPORT

* Option/accessory.

351

Park Assist symbols and messages

Symbols and messages for the Park Assist may
be displayed in the instrument panel and/or the
center display.

Some examples of symbols and messages are shown in the table below.

Symbol

Message

Meaning

The rear Park Assist sensors are turned off and no acoustic warnings for obstacles/objects will
be provided.

Park Assist System

Sensors blocked, cleaning nee-
ded

One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as pos-
sible.

Park Assist System

Unavailable Service required

The system is not functioning as intended. Contact a workshop

‒ an authorized Volvo workshop

is recommended.

A text message can be erased by briefly pressing
the

button in the center of the right-side

steering wheel keypad.

If the message persists: Contact a workshop

‒ an

authorized Volvo workshop is recommended.

Related information

•

Park Assist Camera views (p. 353)

DRIVER SUPPORT

* Option/accessory.

352

Park Assist Camera

The Park Assist Camera can help provide the
driver when maneuvering in tight spaces by alert-
ing the driver to obstacles using the camera
screen and graphics in the center display.

The Park Assist Camera is a support function
that is automatically activated when reverse gear
is engaged. It can also be started manually from
the center display.

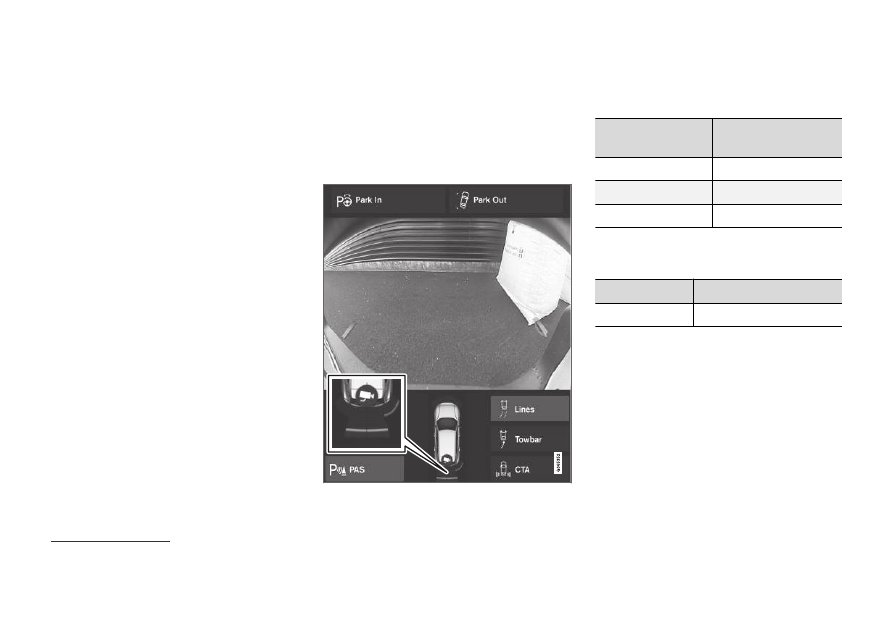

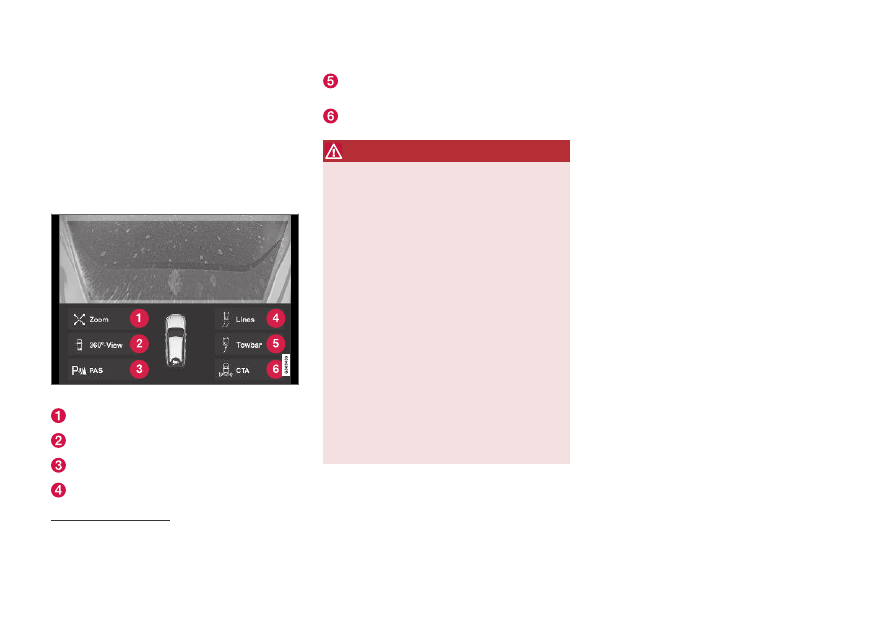

Example camera view

110

Zoom

111

- zoom in/out

360° view

* - activate/deactivate all cameras

PAS

* - activate/deactivate Parking Assist

Lines

- activate/deactivate trajectory lines

Towbar

* - activate/deactivate trajectory lines

for towbar

112

CTA

* - activate/deactivate Cross Traffic Alert

WARNING

•

The Parking Camera function is supple-
mentary driver support intended to facili-
tate driving and help make it safer – it
cannot handle all situations in all traffic,
weather and road conditions.

•

The parking cameras have dead/blind
spots where objects cannot be detected.

•

Pay particular attention to people and
animals near the vehicle.

•

Objects/obstacles may be closer to the
vehicle than they appear on the screen.

•

The parking cameras are not a substitute
for the driver's attention and judgment.
The driver is always responsible for
ensuring the vehicle is driven in a safe
manner, at the appropriate speed, with an
appropriate distance to other vehicles,
and in accordance with current traffic
rules and regulations.

Related information

•

•

Park Assist Camera trajectory lines (p. 354)

•

Sensor field from Park Assist for Park Assist
Camera (p. 356)

•

Starting the Park Assist Camera (p. 357)

•

Park Assist Camera limitations (p. 357)

•

Park Assist Camera symbols and messages
(p. 360)

110

The illustration is generic - details may vary according to vehicle model.

111

The trajectory lines will not be displayed when zooming in.

112

Not available in all markets.

DRIVER SUPPORT

}}

* Option/accessory.

353

Park Assist Camera views

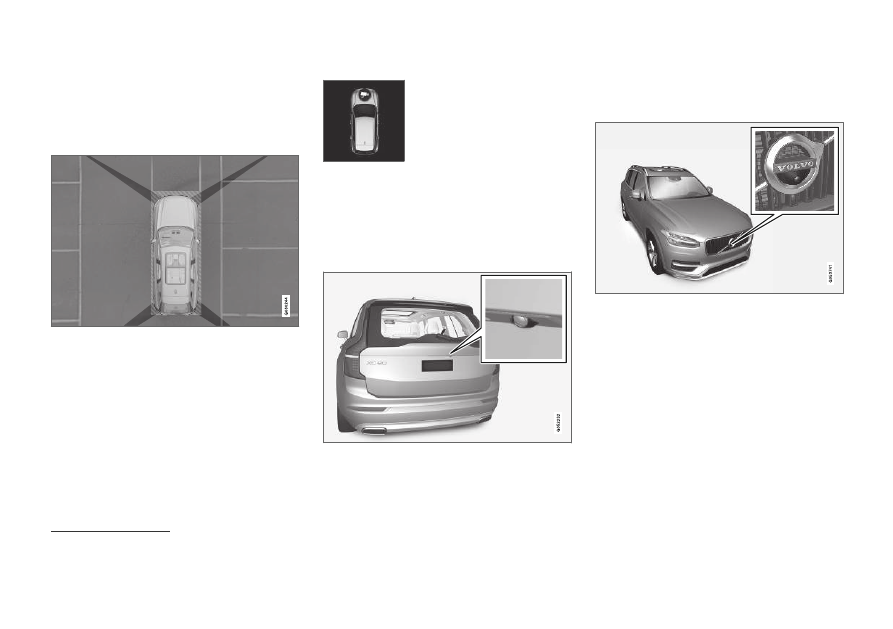

PAC can display a 360° panoramic view as well
as separate views for each of the other cameras:
rear, front, left and right.

360° view

The location of the cameras and their approximate fields
of vision.

The

360° view

function activates all Park Assist

Cameras and all four sides of the vehicle are
shown in the center display at once to help the
driver see what is around the vehicle while
maneuvering at low speeds.

From the 360° view, each camera view can be
activated separately:

•

Tap the screen to select the camera's field of
vision, e.g. in the area in front/above the front
camera.

The active cameras will be indi-
cated by a camera symbol on
the vehicle symbol in the center
display.

If the vehicle is equipped with

Park Assist System

*, the dis-

tance to detected obstacles will be illustrated by
fields in different colors.

The cameras can be activated automatically or
manually. See "Starting the Park Assist Camera"
for more information.

Back

The rear camera

113

is located above the license plate.

The rear camera shows a wide area behind the
vehicle. On certain models, part of the bumper
and the towbar (if installed) may be visible.

Objects on the center display may appear to be
leaning slightly. This is normal.

Front camera

The front Park Assist Camera

114

is located in the grille.

The front camera can be useful when pulling out
from areas with limited visibility, such as a drive-
way surrounded by a hedge. The front camera is
active at speeds up to 25 km/h (16 mph) and is
automatically turned off when the vehicle
exceeds this speed.

If the vehicle does not reach a speed of 50 km/h
(30 mph) and speed falls below 22 km/h
(14 mph) within 1 minute after the front camera
turns off, the camera will be reactivated.

113

Note: This illustration is general and details may vary depending on model.

114

Note: This illustration is general and details may vary depending on model.

DRIVER SUPPORT

* Option/accessory.

354

Side cameras

The side cameras

114

are located in the rearview mirrors.

The side cameras can show views along each
side of the vehicle.

Related information

•

Park Assist Camera trajectory lines

The Park Assist Camera uses trajectory lines
and fields on the screen to indicate the vehicle's
position in relation to its immediate surround-
ings.

Example

115

of trajectory lines.

The trajectory lines show the anticipated trajec-
tory for the vehicle's outermost dimensions based
on the current position of the steering wheel to

help simplify parallel parking, backing into tight
spaces or attaching a trailer.

The lines on the screen are projected as if they
were painted lines on the ground behind the
vehicle and are directly affected by the way in
which the steering wheel is turned. This enables
the driver to see path the vehicle will take, even if
he/she turns the steering wheel.

These lines also indicate the outermost limits that
any object (towbar, rearview mirrors, corners of
the body, etc.) extends out from the vehicle.

•

When reversing with a trailer that is not
electrically connected to the vehicle, the
screen guide lines show the path the
vehicle will take – not the trailer.

•

The screen does not show guide lines
when a trailer is electrically connected to
the vehicle's electrical system.

•

Guide lines are not shown when zooming
in.

114

Note: This illustration is general and details may vary depending on model.

115

The illustration is generic - details may vary according to vehicle model.

DRIVER SUPPORT

}}

* Option/accessory.

355

•

Bear in mind that when the rearward
camera view is selected, the screen only
shows the area behind the vehicle – pay
attention to the sides and front of the
vehicle when steering while reversing.

•

The same applies to the reverse – pay
attention to what is happening with the
rear parts of the vehicle when the front
camera view is selected.

•

Note that the guide lines show the short-
est path – pay extra attention to ensure
that the vehicle sides do not come in
contact with/travel over anything when
steering while driving forward or that the
vehicle front moves toward/over anything
when steering while reversing.

Trajectory lines in 360° view

360° view with trajectory lines

115

In the 360° view, trajectory lines are shown
behind, in front of, or to the sides of the vehicle,
depending on the direction of travel.

•

When driving forward: Front lines

•

When backing up: Side lines and rear lines.

When the front or rear camera is selected, the
trajectory lines will be shown regardless of the
vehicle's direction of travel.

With a side camera selected, the trajectory lines
will only be shown if the vehicle is backing up.

Trajectory lines for a towbar

Towbar with trajectory line

115

Towbar

- activate trajectory lines for towbar.

Zoom

- zoom in/out.

The camera can help make hitching a trailer eas-
ier by showing an anticipated trajectory line for
the towbar's path toward the trailer.

115

The illustration is generic - details may vary according to vehicle model.

DRIVER SUPPORT

* Option/accessory.

356

1. Tap

Towbar

(1).

> The trajectory line for the towbar's antici-

pated path toward the vehicle will appear
and the vehicle's trajectory lines will dis-
appear.

Trajectory lines cannot be displayed for
both the vehicle and the towbar at the
same time.

2. Tap

Zoom

(2) for a close-up view for more

precise maneuvering.
> The camera will zoom in.

Related information

•

Sensor field from Park Assist for

Park Assist Camera

If the vehicle is equipped with Park Assist, dis-
tances will be shown in the 360° view with col-
ored fields for each sensor that has detected an
obstacle.

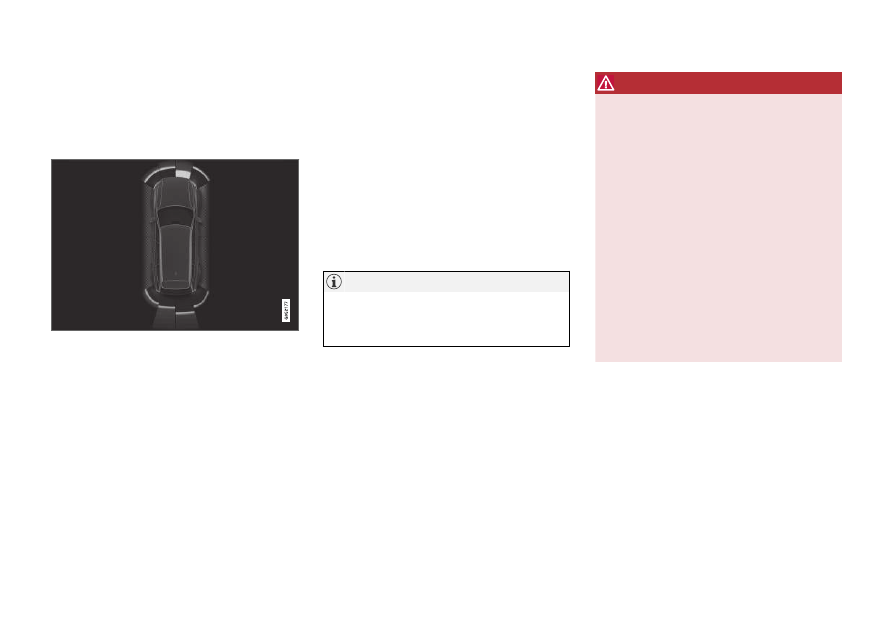

Front and rear sensors

The screen can display colored sensor fields on the
vehicle symbol

116

The front and rear fields change colors (from yel-
low to orange to red) as the vehicle moves closer
to an obstacle.

Front and rear field

colors

Distance in meters

(feet)

Yellow

0.6-1.5 (2.0-4.9)

Orange

0.4-0.6 (1.3-2.0)

Red

0-0.4 (0-1.3)

Side sensor fields

The side sensor fields will only be shown in
orange.

Side field color

Distance in meters (feet)

Orange

0-0.3 (0-1.0)

Related information

•

116

The illustration is generic - details may vary according to vehicle model.

DRIVER SUPPORT

}}

* Option/accessory.

357

Starting the Park Assist Camera

The Park Assist Camera starts automatically
when reverse gear is engaged or can be started
manually using one of the center display's func-
tion buttons.

Camera view when backing up

When reverse gear is engaged, the screen shows
the rear view

117

Camera view when manually starting
the camera

Start the Park Assist Camera
using this button in the center
display's Function view.

The screen will first show the
most recently used camera
view. However, each time the

engine is started, the previous side view will be
replaced by the 360° view and a previously dis-
played zoomed-in rear view will be replaced by
the regular rear view.

Automatically deactivating the camera

Front view switches off when the vehicle's speed
reaches 25 km/h (16 mph) to help avoid dis-
tracting the driver. It will be automatically reactiva-
ted if the vehicle's speed falls below 22 km/h
(14 mph) within 1 minute as long as the vehicle's
speed has not exceeded 50 km/h (31 mph).

Other camera views switch off at 15 km/h
(9 mph) and are not reactivated.

Related information

•

Park Assist Camera limitations

The Park Assist Camera may not be able to
detect all conditions in all situations and func-
tionality may therefore be limited.

The driver should be aware of the following limi-
tations for the Park Assist Camera:

WARNING

Be extra cautious when

reversing if this symbol is

shown when a trailer, bike

carrier or similar is attached

and electrically connected

to the vehicle.
The symbol indicates that

the rear parking assist sensors are deacti-

vated and will not warn of any obstacles.

A bike carrier and other accessories mounted
on the rear of the vehicle can obscure the
camera's view.

117

In Canada, it is also possible to select the 360° view.

DRIVER SUPPORT

* Option/accessory.

358

Blind sectors

There are "blind" sectors between the cameras' fields of
vision.

With 360° view selected, objects/obstacles may
not be detected if they are located in the "joints"
where the edges of the individual camera views
meet.

WARNING

Even if it seems as though only a fairly small

section of the screen image is obstructed, this

may mean that a relatively large sector is hid-

den and obstacles there may not be detected

until they are very near the vehicle.

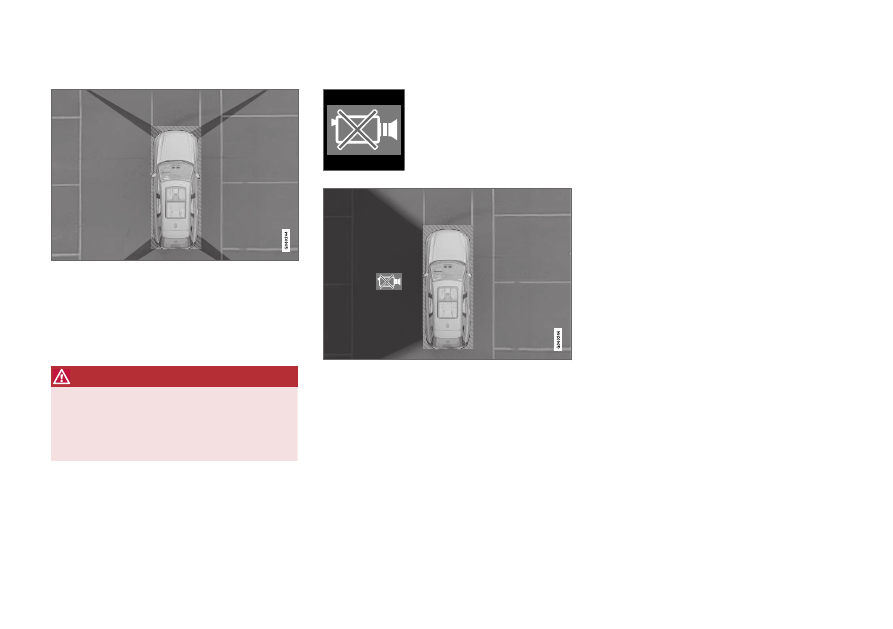

Defective camera

If a camera sector is dark and
contains this symbol, this indi-
cates that the camera is not
functioning properly.

See the following illustration for
an example.

The vehicle's left-side camera is malfunctioning.

Dark camera sector

A dark camera sector may also be displayed in
the following situations, but without the defective
camera symbol:

•

a door is open

•

the tailgate is open

•

a rearview mirror is folded in

Lighting conditions

The camera image is automatically adjusted
according to the current lighting conditions. This

means that the brightness and quality of the
image may vary slightly. Poor lighting conditions
may result in reduced image quality.

Related information

•

DRIVER SUPPORT

* Option/accessory.

359

Recommended maintenance of the

Park Assist Camera

Each of the Park Assist Cameras, located above
the license plate, the grille and in both door mir-
rors, require a certain degree of maintenance.

Clean the camera lenses regularly using luke-
warm water and car washing detergent. Wash
gently to avoid scratching the lens.

Keep the camera lens free of dirt, snow and
ice to help ensure the best functionality. This
is particularly important in poor light condi-
tions.

Related information

•

DRIVER SUPPORT

* Option/accessory.

360

Park Assist Camera symbols and

messages

Symbols and messages for the Park Assist
Camera may be displayed in the instrument
panel and/or the center display.

Some examples of symbols and messages are shown in the table below.

Symbol

Message

Meaning

The rear Park Assist sensors are turned off and no acoustic warnings or field markings for obsta-
cles/objects will be provided.

The camera is not functioning properly.

Park Assist System

Sensors blocked, cleaning
needed

One or more of the sensors are blocked. Check and clean/remove the obstacle as soon as possible.

Park Assist System

Unavailable Service required

The system is not functioning as intended. Contact a workshop

‒ an authorized Volvo workshop is

recommended.

A text message can be erased by briefly pressing
the

button in the center of the right-side

steering wheel keypad.

If the message persists: Contact a workshop

‒ an

authorized Volvo workshop is recommended.

Related information

•

DRIVER SUPPORT

}}

* Option/accessory.

361

Park Assist Pilot

Park Assist Pilot (PAP

118

) helps the driver pull

into and out of parking spaces.

PAP first checks whether there is sufficient
space and then steers the car into the space.

The center display uses symbols, graphics and
messages to inform the driver of what steps need
to be taken and when.

WARNING

•

The PAP function is supplementary driver
support intended to facilitate driving and
help make it safer – it cannot handle all
situations in all traffic, weather and road
conditions.

•

Pay particular attention to people and
animals near the vehicle.

•

PAP is not a substitute for the driver's
attention and judgment. The driver is
always responsible for ensuring the vehi-
cle is driven in a safe manner, at the
appropriate speed, with an appropriate
distance to other vehicles, and in accord-
ance with current traffic rules and regula-
tions.
