09 Maintenance and servicing

 Replacing bulbs

09

``

231

2.

Remove the screws with a screw driver.

3.

Detach the lens (bulb housing) carefully.

4.

Replace the defective bulb.

5.

Reinstall the entire bulb housing and screw
it into place.

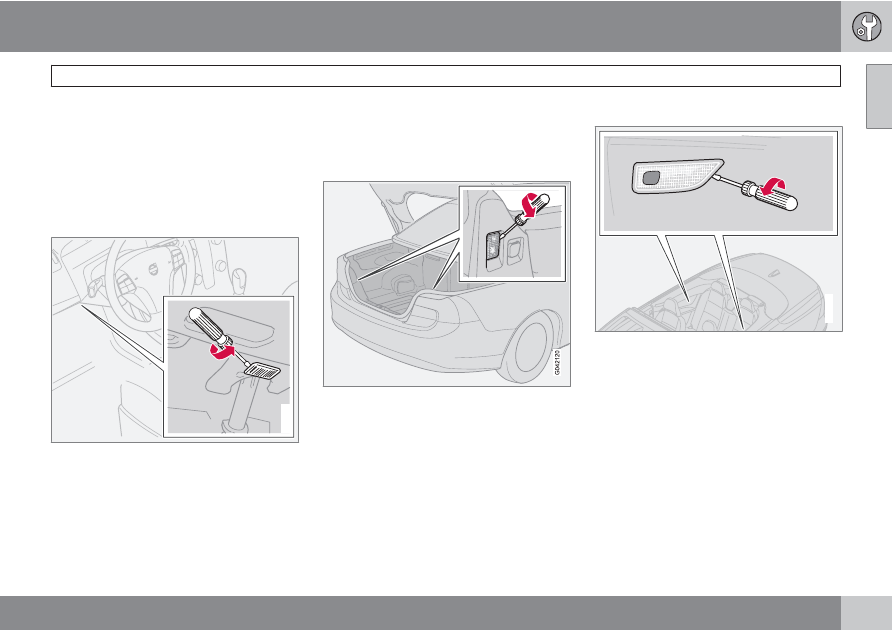

Footwell lighting

G020795

The footwell lighting is located under the dash-
board on the driver's and passenger's sides.
To replace a bulb:

1.

Insert a screwdriver under the edge of the
lens. Turn the screwdriver gently to detach
the lens.

2.

Remove the defective bulb.

3.

Install a new bulb.

4.

Press the lens back into place.

Trunk lighting

1.

Insert a screwdriver and turn it gently to
detach the bulb housing.

2.

Remove the defective bulb.

3.

Install a new bulb.

4.

Press the bulb housing back into place.

Rear reading light bulbs

G020969

1.

Insert a screwdriver and turn it gently to
detach the bulb housing.

2.

Remove the defective bulb.

3.

Install a new bulb.

4.

Press the bulb housing back into place.

09 Maintenance and servicing

Replacing bulbs

09

232

*



Option/accessory, for more information, see Introduction.

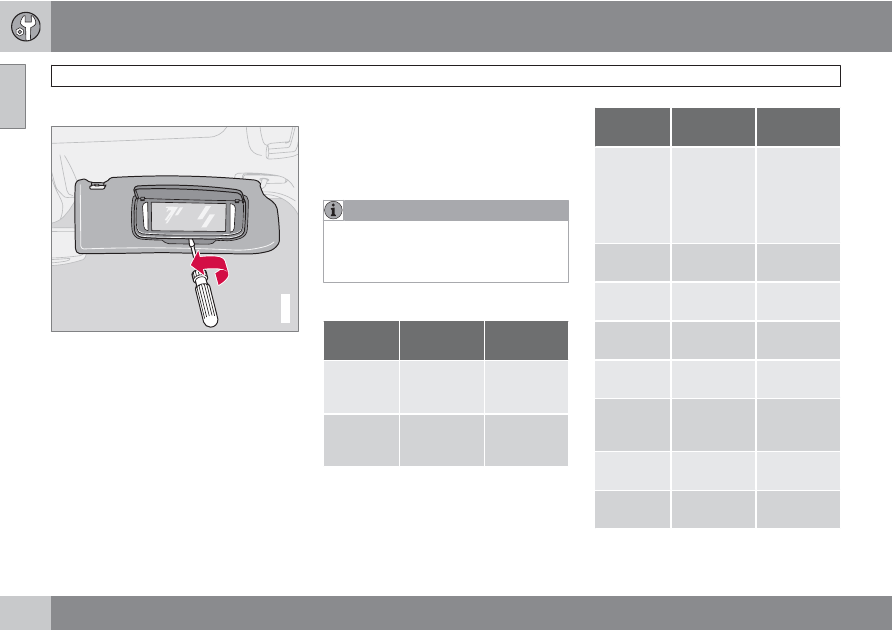

Vanity mirror lighting

G020253

Removing the lens

1.

Insert a flat screwdriver under the center of
the mirror housing and twist it to release
the retaining clip.

2.

Move the screwdriver under the lens to the
left and right (at the black rubber points)
and carefully exert pressure so that the
lower edge of the glass releases.

3.

Carefully lift out the entire mirror housing.

4.

Replace the defective bulb.

Reinserting the lens

1.

Press the mirror housing's three upper
retaining clips into place.

2.

Press the three lower retaining clips into
place.

NOTE

For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.

Bulb specifications

Lighting
function

Wattage

Bulb

Low beam
headlights
(halogen)

55

H11 LL

High beam
headlights
(halogen)

60

HB3

Lighting
function

Wattage

Bulb

High beam
headlights
(models
with Active
Bending
Lights*)

55

H7 LL

Back-up
lights

6

H6W

Rear fog
light

21

P21W LL

Rear turn
signals

21

PY21W SV

Front turn
signals

24

PY24W SV

License
plate light-
ing

5

C5W LL

Vanity mir-
ror

1.2

SV5.5 (length
35mm)

Front park-
ing lights

5

W5W LL BV

09 Maintenance and servicing

 Replacing bulbs

09

*



Option/accessory, for more information, see Introduction.

233

Lighting
function

Wattage

Bulb

Front side
marker
lights

5

W5W LL

Front fog
lights*

35

H8

Glove com-
partment
light

3

W2.1x9.5d
type T10

Trunk light-
ing

5

SV8.5 (length
38mm)

Footwell
lighting

3

W2.1x9.5d
type T10

NOTE

Please consult a Volvo retailer’s Parts
department for the most up-to-date speci-
fications.

09 Maintenance and servicing

Fuses

09

234

Replacing fuses

There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.

If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.

To do so:

1.

Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.

2.

From the side, examine the curved metal
wire in the fuse to see if it is intact.

3.

If the wire is broken, insert a new fuse of
the same color and amperage (written on
the fuse).

If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.

WARNING

Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing

 Fuses

09

``

235

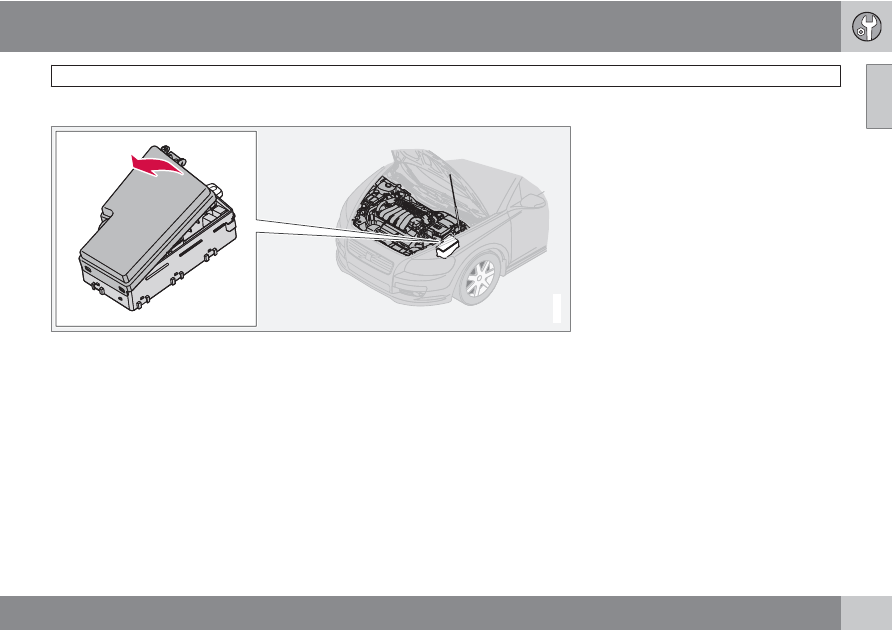

Fuse box in the engine compartment

G007446

The fuse box in the engine compartment has
positions for 36 fuses.

•

Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.

•

Fuses 19–36 may be changed at any time
when necessary.

Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing

Fuses

09

236

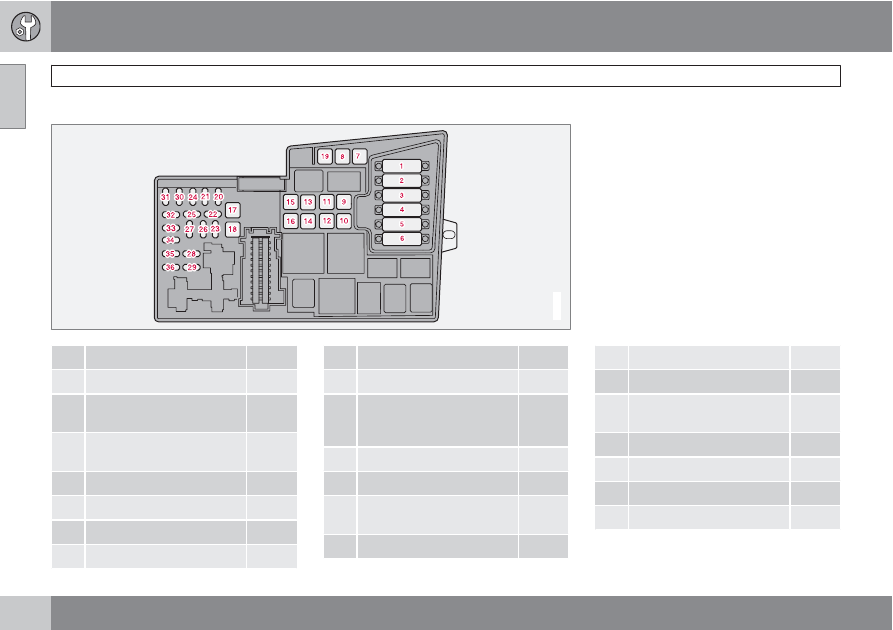

Fuses in the engine compartment

G020250

1.

Coolant fan (radiator)

50A

2.

Power steering

80A

3.

Feed to passenger com-
partment fuse box

60A

4.

Feed to passenger com-
partment fuse box

60A

5.

Element, climate unit

80A

6.

Not in use

7.

ABS pump

30A

8.

ABS valves

20A

9.

Engine functions

30A

10.

Climate system blower

40A

11.

Headlight washers, climate
system blower, power
retractable hard top

20A

12.

Feed to heated rear window

30A

13.

Starter motor relay

30A

14.

Trailer connector (acces-
sory)

40A

15.

Power retractable hard top

30A

16.

Feed to audio system

40A

17.

Windshield wipers

30A

18.

Feed to passenger com-
partment fuse box

40A

19.

Not in use

20.

Horn

15A

21.

Not in use

22.

Subwoofer

25A

09 Maintenance and servicing

 Fuses

09

``

*



Option/accessory, for more information, see Introduction.

237

23.

Engine control module
(ECM)/transmission control
module (TCM)

10A

24.

Not in use

25.

Not in use

26.

Ignition switch

15A

27.

A/C compressor

10A

28.

Not in use

29.

Front fog lights*

15A

30.

Not in use

31.

Not in use

32.

Fuel injectors

10A

33.

Heated oxygen sensor, vac-
uum pump

20A

34.

Ignition coils, climate unit
pressure sensor

10A

35.

Engine sensor valves, A/C
relay, relay coil, PTC ele-
ment oil trap, canister, mass
air meter

15A

36.

Engine control module
(ECM), throttle sensor

10A

09 Maintenance and servicing

Fuses

09

238

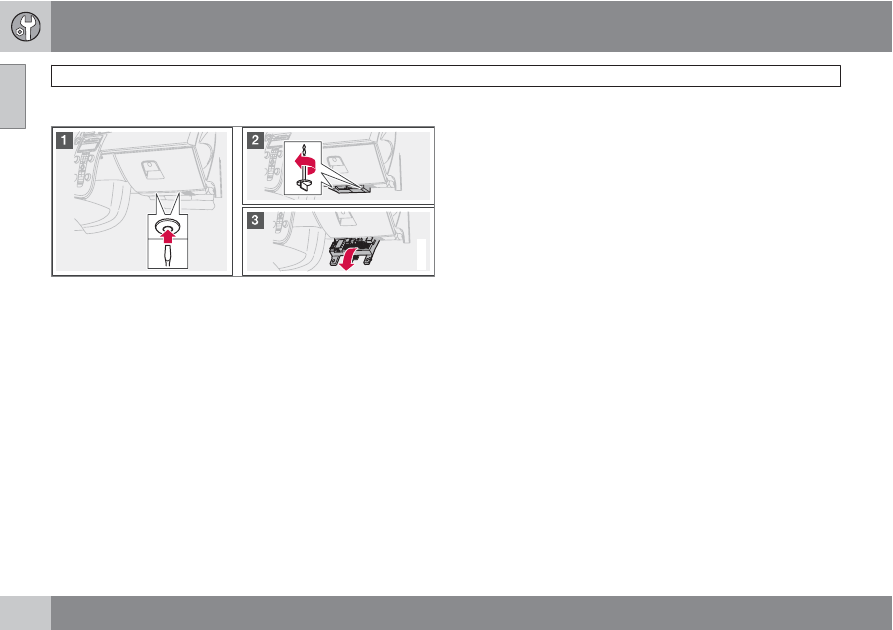

Fuse box in the passenger compartment

G020601

The fuse box in the passenger compartment is
located under the glove compartment.

To access the fuses:

1.

Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the clips out.

2.

Turn both retaining screws (2) counter-
clockwise until they release.

3.

Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.

4.

Replace the blown fuse.

5.

Close the fuse box in reverse order.

6.

Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.

09 Maintenance and servicing

 Fuses

09

``

*



Option/accessory, for more information, see Introduction.

239

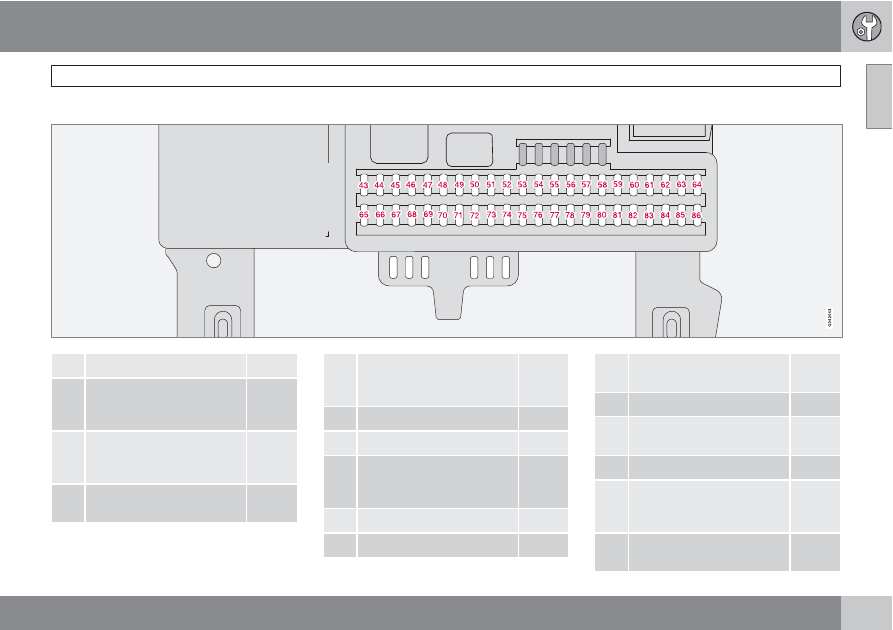

Fuses in the passenger compartment

-

Fuse 37-42, not in use

-

43.

Audio system, Blue-
tooth,Volvo Navigation sys-
tem*

15A

44.

Supplemental Restrain Sys-
tem (SRS), engine control
module

10A

45.

12-volt sockets in passeng-
er's compartment

15A

46.

Lighting – glove compart-
ment, instrument panel, and
footwells

5A

47.

Interior lighting

5A

48.

Windshield washers

15A

49.

Supplemental Restrain Sys-
tem (SRS), Occupant
Weight Sensor (OWS)

10A

50.

Not in use

51.

Fuel filter relay

10A

52.

Transmission control mod-
ule (TCM), ABS

5A

53.

Power steering

10A

54.

Park assist*, Active Bending
Lights*

10A

55.

Not in use

56.

Volvo Navigation System
remote key module, alarm
siren control module

10A

57.

On-board diagnostic
socket, brake light switch

15A

09 Maintenance and servicing

Fuses

09

240

*



Option/accessory, for more information, see Introduction.

58.

Right high beam, auxiliary
lights relay

7.5A

59.

Left high beam

7.5A

60.

Heated driver's seat*

15A

61.

Heated passenger's seat*

15A

62.

Not in use

63.

Power window – rear pas-
senger's side

20A

64.

SiriusXM

൅ satellite radio*

5A

65.

Audio system

5A

66.

Audio system control mod-
ule (ICM), climate system

10A

67.

Not in use

68.

Cruise control

5A

69.

Climate system, rain sen-
sor*, BLIS button*

5A

70.

Not in use

71.

Not in use

72.

Not in use

73.

Front ceiling lighting

5A

74.

Fuel pump relay

15A

75.

Not in use

76.

Not in use

77.

12-volt socket in trunk

Auxiliary equipment control
module (AEM)

15A

78.

Not in use

79.

Back-up lights

5A

80.

Not in use

81.

Power window – rear driv-
er's side

20A

82.

Power window – front pas-
senger's side door

25A

83.

Power window and door
lock – front driver's side
door

25A

84.

Power passenger's seat

25A

85.

Power driver's seat

25A

86.

Interior lighting relay, trunk
lighting, power seats

5A

10 Audio

Introduction

10

244

*



Option/accessory, for more information, see Introduction.

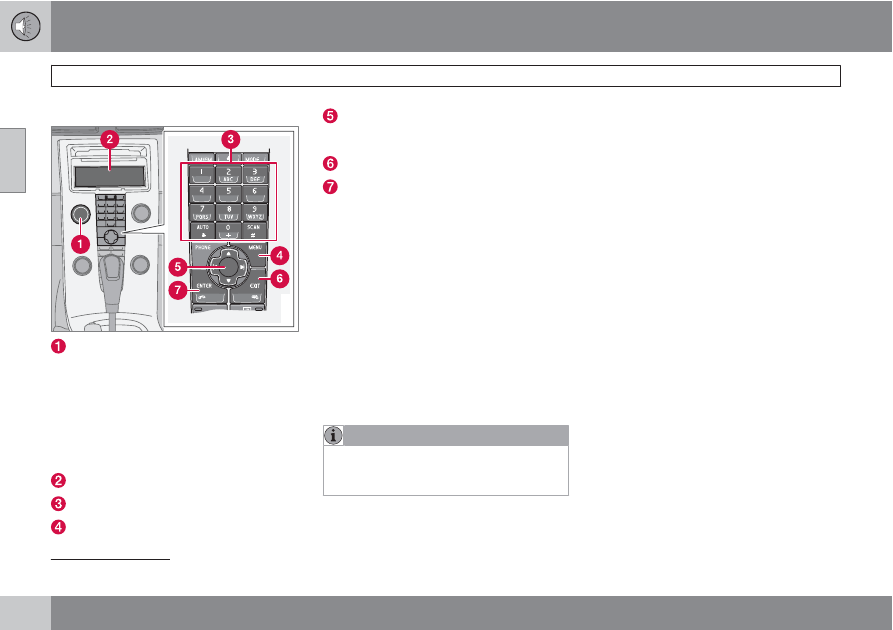

Controls

G020245

POWER: press for on/off. If the audio sys-
tem is on when the remote key is turned to
position 0, it will continue to play until the
key is removed from the ignition slot (or the
driver's door is opened on vehicles with the
optional keyless drive). The system will
start automatically the next time the key is
turned to position I. See page 146 for infor-
mation about the ignition switch positions.

Display

Keypad

MENU: opens the menu system

Navigation control: Use the up/down
arrows to navigate among menu alterna-
tives.

EXIT: press to exit the menu system

ENTER: press to confirm a selection or
activate/deactivate a function

The audio system's functions can also be con-
trolled from the steering wheel keypad.

The menu alternatives are numbered and can
be selected directly from the keypad. Press
MENU and then the number(s) of the desired
menu alternative.

Audio levels

The audio systems is available in three levels:

•

Performance

1

•

High Performance

•

Premium Sound*

NOTE

The audio system features and equipment
described in this chapter may not be avail-
able on all audio levels.

1

Certain Canadian models

10 Audio

 Audio functions

10

``

245

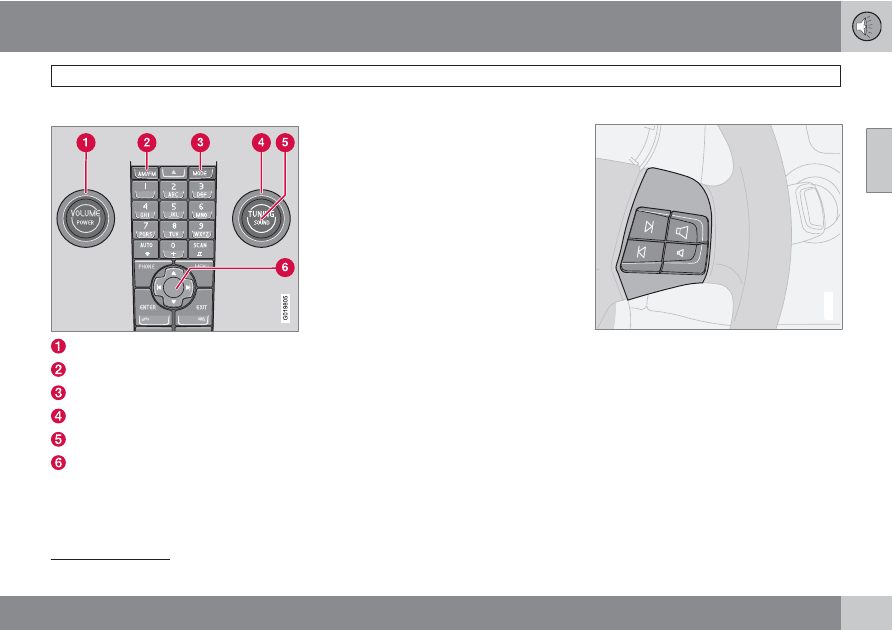

Audio system controls

VOLUME dial

AM/FM – select a radio band

MODE – select a sound source

TUNING dial

SOUND button

Navigation controls/menu selections

Volume

Use the volume dial (1) or the buttons in the
steering wheel keypad to adjust the volume
level. The volume level is also adjusted auto-

matically according to the vehicle's speed, see
page 249 for more information on this func-
tion.

Selecting a sound source

–

Press AM/FM (2) repeatedly to toggle
between FM1, FM2, and AM.

–

Press MODE (3) repeatedly to toggle
between the CD player and the external
sound source AUX, USB, the optional Sir-
iusXM

൅ satellite radio or BT

1

.

The currently selected sound source will be
shown in the display.

Daytime/twilight display

In daylight the information in the center console
screen is displayed against a light background.
In darkness it is displayed against a dark back-
ground.

Steering wheel keypad

G026424

Steering wheel keypad

The four buttons on the steering wheel keypad
can also be used to control the audio system.
These buttons can be used to adjust volume,
shift between preset stations and change CD
tracks. Press one of the two left-hand buttons
briefly to change to the next/previous preset
radio station, or to go to the next/previous track
on a CD. Press and hold down these buttons
to search within a track on a CD.

1

Bluetooth

Ÿ

 streaming audio

10 Audio

Audio functions

10

246

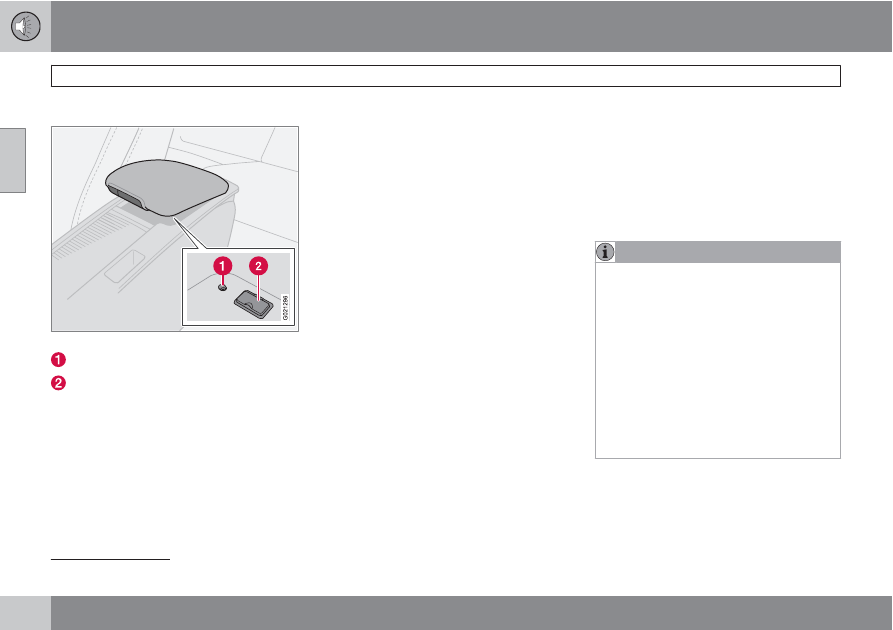

USB/AUX connector

Connectors in the center console

AUX socket

USB connector

An auxiliary device, such as an iPod

Ÿ

2

, MP3

player or a USB flash drive can be connected
to the audio system via the connectors in the
center console storage compartment. A stand-
ard cable from an iPod

Ÿ or MP3 player can be

routed under the cover to the connector(s) in
the storage compartment.

If the device is being charged through a 12-volt
socket while it is connected to the AUX or port,
sound quality may be impaired.

A sound source must be chosen, depending on
the device that has been connected:

1.

Use MODE to select

iPod

 or

USB

. The text

Connect device

 will be displayed.

2.

Connect the device to the connector in the
center console storage compartment (see
the illustration).

The text

LOADING

 will be displayed while the

system loads the files (folder structure) on the
device. This may take a short time.

When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.

To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.

Tracks can be selected in two ways:

–

Turn the Tuning knob (no. 4 in the illustra-
tion on page 251) clockwise or counter-
clockwise.

–

Use the right or left arrow keys on the nav-
igation control (no. 5 in the illustration on
page 251) to select the desired track. The
arrow keys on the steering wheel keypad
can also be used in the same way.

NOTE

•

The system supports a number of
iPod

Ÿ

 models produced in 2005 or later.

•

In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.

USB flash drive

To simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system

2

Registered trademark of Apple Computer Inc.

10 Audio

 Audio functions

10

247

to index the files on the drive if it contains any-
thing other than compatible music files.

NOTE

•

The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system. It can index up to
1,000 folders and a maximum of 254
sub-folders/files for each folder. How-
ever, the highest folder level can sup-
port up to 1,000 sub-folders/files.

•

When using a longer type of USB
device, connecting it with a USB
adapter cable will help reduce mechan-
ical wear on the USB socket and on the
device.

MP3 player

Many MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.

iPod

Ÿ

An iPod

Ÿ receives current and its battery is

charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPod

Ÿ is connected to the audio system.

NOTE

When an iPod

Ÿ

 is used as a sound source,

the vehicle's audio system has a menu
structure similar to the one in the iPod

Ÿ

. See

the iPod's manual for detailed information.

For further information, refer to the accessory
manual USB/iPod

Ÿ Music Interface.

Adjusting volume for an external device

The volume of an external device may be dif-
ferent from the volume of the internal sound
sources such as the CD player or the radio. It
the external device's volume is too high, the
quality of the sound may be impaired. To help
prevent this, adjust the external device's input
volume as follows:

1.

While playing the radio or a CD, lower the
audio volume to about one-quarter.

2.

Switch to

AUX

 mode on the audio system

by pressing the MODE button.

3.

Connect the headphone output from your
music player to the AUX input using a cable
with a stereo 3.5 mm miniplug at both
ends.

4.

Set your music player's headphone vol-
ume to three-quarters using the player's
volume controls.

5.

Press MENU on the audio system, and
navigate to

AUX input volume

.

6.

Turn the volume knob to raise or lower the

AUX input volume

 until you hear music at

a comfortable level.

7.

If there is distortion, lower your music play-
er's headphone volume until the distortion
goes away.

8.

Finally, exit the menu and adjust the audio
volume to a comfortable level.

Bluetooth

Ÿ

 streaming audio (BT)

The vehicle's audio system is equipped with
Bluetooth

Ÿ

, which makes it possible to play

streaming audio files from a Bluetooth

Ÿ

con-

nected cell phone. Navigation and control of
the phone can be done through the vehicle's
center console control panel or the steering
wheel keypad. On certain cell phones, it is also
possible to change tracks from the phone
itself.

In order to listen streaming audio, BT must be
selected as a sound source (see page 245) and
a Bluetooth

Ÿ

 cell phone must be connected

(paired) with the audio system. See page 263
for more information.

10 Audio

Audio functions

10

248

NOTE

Any Bluetooth cell phones used must sup-
port Audio/Video Remote Control Profile
(AVRCP) and Advanced Audio Distribution
Profile (A2DP). The phone must use AVRCP
version 1.3 and A2DP 1.2. If older versions
of these standards are used, certain fea-
tures (e.g., scan or random) may not func-
tion.

Not all cell phones are fully compatible with
the vehicle's Bluetooth system. A list of
compatible phones is available at you Volvo
retailer or at www.volvocars.us.

Listening to streaming audio

Press MODE several times to select BT as a
sound source.

Audio files on the connected device can be
selected in three ways:

•

Turn the TUNING dial (4) in either direction.

•

Use the navigation buttons

 /

 (6) to

select an audio file.

•

Use the

 /

 buttons on the steering

wheel keypads.

Sound settings

Optimal sound reproduction

The audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as

BASS

,

TREBLE

, and

Equalizer front…

/

Equalizer rear…

 are only intended to enable

the user to adapt sound reproduction to his/her
personal preferences.

1.

Press SOUND (5). Press this button
repeatedly until you come to the setting
that you wish to change.

2.

Turn the TUNING dial (4) to make the
desired setting.

The following settings can be made:

BASS

–set the bass level

TREBLE

–set the treble level

BALANCE

–set the left/right sound balance

FADER

–set the front/rear sound balance

Subwoofer

 (accessory)–set the level for the

subwoofer (bass speaker)

CENTER

–make settings for the center speaker

SURROUND

–make settings for surround

sound

Subwoofer (accessory)

To switch the subwoofer on or off:

1.

Press MENU followed by ENTER.

2.

Select

AUDIO SETTINGS

 and press

ENTER.

3.

Select

SUBWOOFER

 and press ENTER.

Surround sound

Surround sound settings are used to
balance sound levels throughout the
vehicle. Surround settings for the var-
ious sound sources are made sepa-

rately.

G021216

10 Audio

 Audio functions

10

249

NOTE

•

Dolby Surround Pro Logic II is only
available on the Premium Sound sys-
tem.

•

When listening to FM radio stations,
Dolby Surround Pro Logic II functions
best in areas with strong reception. If
reception is weak, selecting 2 or 3-
channel stereo may provide better
sound quality.

The Dolby symbol will appear in the display
when Dolby Pro Logic II is activated.

There are three alternative settings:

•

Pro Logic II

•

3-channel

•

Off (normal 2-channel stereo)

Dolby Surround Pro Logic II

Ÿ

 distributes the

stereo sound's two channels to the left, center,
right and rear speakers, making sound repro-
duction more authentic than ordinary two-
channel stereo.

Dolby Surround Pro Logic II

Ÿ

 and the Dolby

symbol

 are trademarks of Dolby

Laboratories Licensing Corporation.

The Dolby Surround Pro Logic II System

Ÿ

 is

manufactured under licence from Dolby
Laboratories Licensing Corporation.

Activating/deactivating Surround sound

1.

Press MENU followed by ENTER.

2.

Select

SUBWOOFER

 in the menu and

press ENTER.

3.

Select Surround

SURROUND AM

/

SURROUND FM

/

SURROUND CD

/

SURROUND AUX

 and press ENTER.

4.

Select

Dolby Pro Logic II

, 3-channel

stereo or

Off

 and press ENTER.

Equalizer Front/Rear

This function is used to fine-tune the sound
level for different frequencies separately.

NOTE

This function is only available on certain
sound systems.

To adjust the equalizer settings:

1.

Press MENU followed by ENTER.

2.

Select

AUDIO SETTINGS

 in the menu and

press ENTER.

3.

Select

Equalizer front…

/

Equalizer

rear…

 and press ENTER.

The column in the display indicates the sound
level for the current frequency.

•

Adjust the level with the TUNING dial (4),
or use the Up/Down arrows. Additional fre-
quencies can be selected with the Right/
Left arrows.

•

Save the settings by pressing ENTER or
exit without saving by pressing EXIT.

Automatic sound control

The audio system's volume is adjusted auto-
matically according to the speed of the vehicle.
There are three settings available, which deter-
mine the level of volume compensation:

•

Low

•

Medium

3

•

High

To set the automatic sound level:

1.

Press MENU followed by ENTER.

2.

Select

AUDIO SETTINGS

 in the menu and

press ENTER.

3.

Select

Auto. volume control…

 in the

menu and press ENTER.

3

Default setting.
