INTRODUCTION

Navigating in the centre display's

views

There are five different basic views in the centre
display: home view, top view, climate view, appli-
cation view (app view) and function view. The
screen is started automatically when the driver's
door is opened.

Home view

Home view is the view that is shown when the
screen is started. It consists of four subviews:

Navigation

Media

Phone

and an extra sub-

view.

An app/car function selected from the app/func-
tion view starts in the respective subview of the
home view. For example

FM radio

starts in the

Media

subview.

The extra subview contains the last used app/car
function that is not associated with any of the
other three areas.

The subviews show brief information about each
different app.

NOTE

The first time the car is used, some of the
home view's subviews have no content.

NOTE

In home view standard mode - briefly press
the home button. An animation that describes
access to the different views is shown on the
screen.

INTRODUCTION

}}

Expanding a subview from default mode

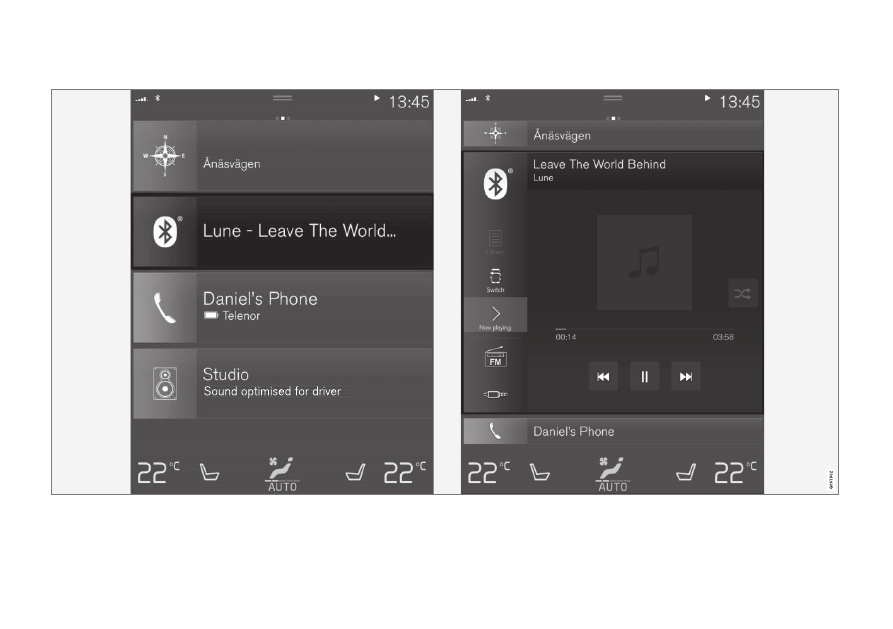

Standard mode and expanded mode of a subview in the centre display.

INTRODUCTION

Expanding a subview:

–

For subview one, two and three: Press any-
where on the subview. When a subview is
expanded, the fourth subview in the home
view is temporarily forced away. The other
two are minimised and only certain informa-
tion is shown. When the fourth sub view is
pressed, the other three subviews are mini-
mised and only certain information is dis-
played.

The expanded view provides access to the
basic functions of the app.

Closing an expanded subview:

–

The subview can be closed in three different
ways.

•

Tap on the upper part of the expanded
subview.

•

Tap on another subview (that subview will
then open in expanded mode instead).

•

Briefly press the physical home button
below the centre display.

Opening/closing a subview in full screen
mode

The extra subview and the subview for

Navigation

can be opened out in full screen

mode, with even more information and more set-
ting options.

When a new subview is opened in full-screen
mode, no information from the other subviews is
shown.

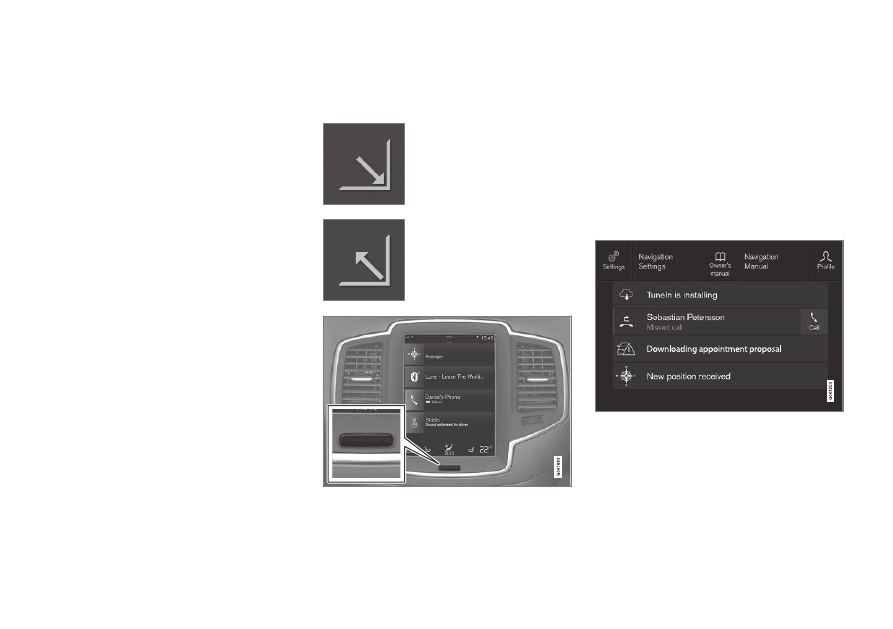

In expanded mode, open the
app in full screen - press on
the symbol.

Press on the symbol to go back
to the expanded mode, or press
the home button at the bottom
of the screen.

Home button for the centre display.

There is always the option to go back to home
view by pressing the home button. Go back to the

home view's standard view from full screen mode
- press twice on the home button.

Status bar

The activities in the car are shown at the top of
the screen. Network/connection information is
shown on the left-hand side of the status bar,
while media-related information, the clock and
indication that background activity is in progress
are shown on the right.

Top view

Top view dragged down.

A tab is located in the centre of the status bar at
the top of the screen. Open the top view by
pressing on the tab or by dragging/swiping from
the top downwards across the screen.

INTRODUCTION

}}

In the top view, access is always available to:

•

Settings

•

Owner's manual

•

Profile

•

The car's saved messages.

In the top view, access is given to the following in
some cases:

•

Contextual setting (e.g.

Navigation

Settings

)

•

Contextual owner's manual (e.g.

Navigation

Manual

Exit the top view - press outside the top view, on
the home button or at the bottom of the top view
and drag upward. The underlying view is then visi-
ble and available for use again.

NOTE

The top view is not available during starting/
shutdown or when a message is shown on
the screen. It is also not available when cli-
mate view is shown.

Contextual setting and owner's manual

Drag the top view down when an app (e.g. navi-
gation) is running:

•

When contextual setting is available, it is
shown to the right of

Settings

in the top

view. Press on the contextual setting to
access settings that are related to the con-
tent that is shown on the screen. E.g. press

Navigation Settings

- settings that are

related to navigation are shown.

•

When the contextual owner's manual is avail-
able, it is shown to the right of

Owner's

manual

in the top view. Press on the con-

textual owner's manual to access articles in
the digital owner's manual that are related to
the content that is shown on the screen. E.g.
press

Navigation Manual

- an article that is

related to navigation opens.

This only applies to some of the apps in the car.
For third party apps that are downloaded, it is not
possible to access app-specific articles or set-
tings, for example.

Climate view

The climate row is always visible at the bottom of
the screen. The most common climate settings
can be made directly there, such as setting tem-
perature, seat heating and fan.

Press the symbol in the centre of the
climate row to open the climate view
and gain access to more climate set-
tings.

Press the symbol to close the climate
view and return to the previous view.

Application view

Application view with the car's apps.

Swipe from right to left

across the screen in

order to access the application view (app view)
from the home view. Apps that have been down-
loaded (third-party apps) and apps for embedded
functions, such as

FM radio

, are found here. Cer-

tain apps show brief information directly in the

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

INTRODUCTION

* Option/accessory.

app view, such as the number of unread text
messages for

Messages

Tap on an app to open it. It then opens in the
subview to which it belongs, such as

Media

Depending on the amount of apps, it is possible
to scroll downward in the app view. Do this by
swiping/dragging from the bottom and up.

To move an app:

1. Tap on the app and hold depressed.

> The app becomes slightly transparent and

larger when it is ready to be moved.

2. Drag the app to the desired location.

NOTE

Apps and car function buttons cannot be
added to locations that are already occupied.

Go back to the home view again by swiping from
left to right

across the screen, or by pressing

the home button.

Function view

The function view with buttons for different car func-

tions.

Swipe from left to right

across the screen in

order to access the function view from the home
view. From here you can activate/deactivate dif-
ferent car functions, e.g.

Lane Departure

Warning

Lane Keeping Aid

* and

Park Assist

Depending on the amount of functions, it is also
possible here to scroll downward in the view. Do
this by swiping/dragging from the bottom and up.

Unlike in app view, where an app is opened with
a press, a function is activated/deactivated by
pressing the relevant function button. Some func-
tions (trigger functions) open in a new window
when pressed.

Just as in app view, it is possible to move the
function buttons around and arrange them in the
desired order.

Related information

•

Operating the centre display (p. 36)

•

Overview of the centre display (p. 33)

•

Digital owner's manual in the car (p. 15)

•

Function view with buttons for car functions
(p. 47)

•

Changing settings for apps (p. 183)

•

Symbols in the centre display's status bar
(p. 45)

•

Climate controls in the centre display
(p. 190)

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

INTRODUCTION

Symbols in the centre display's

status bar

Overview of the symbols that can be shown in
the centre display's status bar.

The status bar shows activities in progress and, in
some cases, their status. Not all symbols are
shown all the time due to the limited space in the
status bar.

Symbol

Specification

Connected to the Internet.

Connection to the Internet failed.

Roaming activated.

Signal strength in mobile phone net-
work.

Bluetooth device connected.

Bluetooth activated but no device
connected.

Information sent to and from GPS.

Connected to Wi-Fi network.

Tethering activated (Wi-Fi hotspot).
The car then shares the available
connection.

Symbol

Specification

Car modem activated.

USB sharing active.

Process in progress.

Timer for preconditioning active.

Audio source being played back.

Audio source stopped.

Phone call in progress.

Audio source muted.

News is received from the radio
channel.

Traffic information is received.

Clock.

Related information

•

Messages in the driver display and the centre
display (p. 114)

•

Navigating in the centre display's views
(p. 40)

•

Messages in the driver display and the centre
display (p. 114)

INTRODUCTION

Change settings for the centre

display

The centre display is started automatically when
the driver's door is opened. The settings can be
changed for the centre display to personalise
sound and themes. The screen can be switched
off so as not to be disruptive whilst driving.

Switching off/changing the system
sounds volume in the centre display.

The system sounds volume in the centre display
can be adjusted or switched off:

1. Press

Settings

in the top view in the centre

display.

2. Press

Sound

System Volumes

3. Under

Touch Sounds

, drag the control to

change the volume/switch off screen touch
sounds. Drag the control to the desired vol-
ume.

Changing the appearance of the screen

1. Press

Settings

in the top view.

2. Press

My Car

Displays

Display

Themes

3. Then select theme, e.g.

Minimalistic

Chrome Rings

As a supplement to these appearances, it is pos-
sible to choose between

Normal

and

Bright

With

Normal

, the screen background is dark and

the text is light. This alternative is the default for

all themes. A light variant can also be selected, in
which the background is light and the text is dark.
This alternative can be useful in e.g. strong day-
light.

This alternative is always available for the user
and is not affected by the surrounding lighting.

Related information

•

Settings in the centre display (p. 175)

•

Sensus - online connectivity and entertain-
ment (p. 29)

•

Cleaning the centre display (p. 592)

•

Operating the centre display (p. 36)

INTRODUCTION

}}

Function view with buttons for car

functions

All the buttons for car functions are located in
the function view, one of the centre display's

basic views. Navigate to the function view from
home view by swiping from left to right across
the screen

Different types of buttons

There are three different types of buttons for car
functions; see below:

Type of button

Property

Affects car function

Function buttons Have on/off positions.

When a function is running, an LED indicator illuminates to the left of the icon for the button.
Press the button to activate/deactivate a function.

Most buttons in function view are
function buttons.

Trigger buttons

Do not have on/off positions.

When a trigger button is pressed, a window for the function opens. For example, it may be a
window for changing a seat's position.

•

Camera

•

Headrest fold

•

Head-up display adjustments

Parking buttons

Have on, off and scan modes.

Similar to the function buttons but with an extra position for parking scanning.

•

Park In

•

Park Out

Applies to left-hand drive cars. For right-hand drive cars - swipe in the opposite direction.

INTRODUCTION

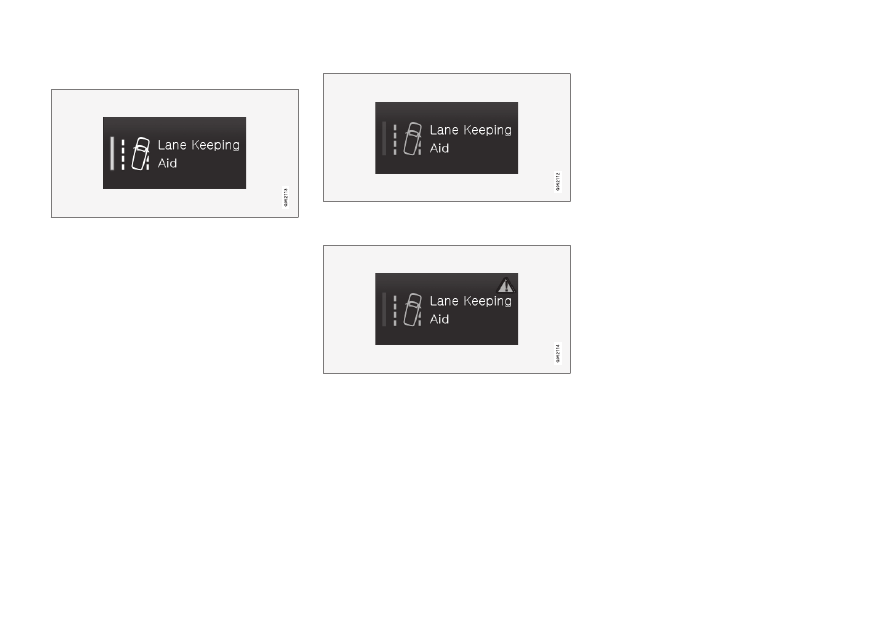

The buttons' different modes

When the LED indicator illuminates in green on a
function or parking button, the function is acti-
vated. When a function is activated, extra text
with an explanation for certain functions is
shown. The text is shown for a few seconds and
then the button is shown with the LED indicator
illuminated.

For

Lane Keeping Aid

, the text

Works only at

certain speeds

is shown, for example, when the

button is depressed.

Briefly tap on the button once in order to acti-
vate/deactivate the function.

The function is deactivated when the LED indica-
tor is extinguished.

When a warning triangle is shown in the right-
hand section of the button there is something not
working as intended.

Related information

•

Overview of the centre display (p. 33)

•

Navigating in the centre display's views
(p. 40)

•

Categories in the settings menu (p. 176)

INTRODUCTION

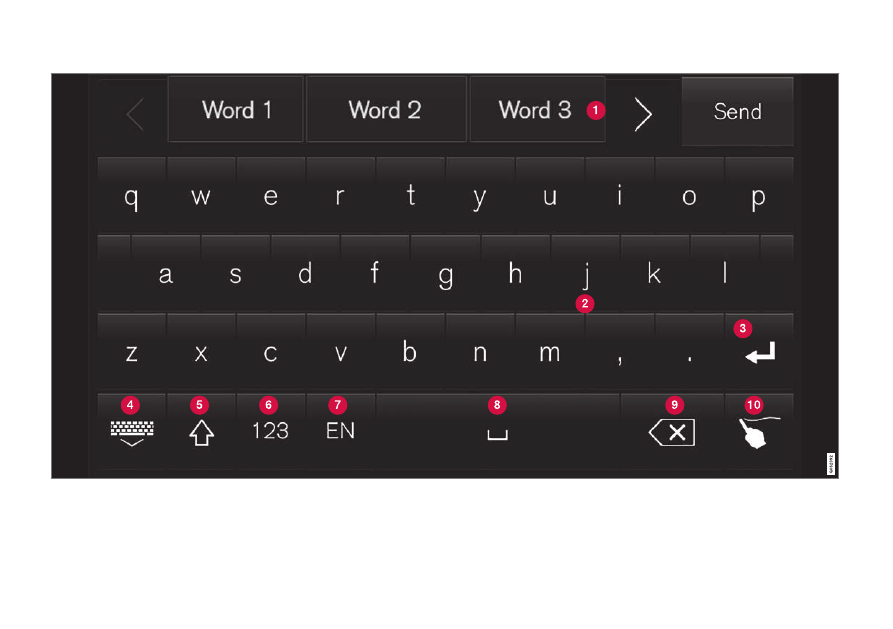

The image shows an overview of some of the buttons which may be shown in the keyboard. The appearance varies depending on language settings and the context in which the

keyboard is being used.

INTRODUCTION

}}

Row of suggested words or characters

The suggested words are adjusted as new
letters are being entered. Browse among the
suggestions by pressing on the right and left
arrows. Tap on a suggestion to select it. Note
that this function is not supported by all lan-
guage selections. If not available, the row will
not be shown on the keyboard.
The characters available on the keyboard
depend on which language was selected
(see point 7). Tap on a character to enter it.
The button works in different ways, depend-
ing on the context in which the keyboard is
used - either to enter @ (when an email
address is entered) or to create a new row
(for normal text input).
Hides the keyboard. If this is not possible, the
button is not shown.
Used to enter capital letters. Press again to
enter one capital letter and then continue
with lower-case letters. Another press makes
all letters capital letters. The next press
restores the keyboard to lower-case letters.
In this mode, the first letter after a full stop,
exclamation mark or question mark is a capi-
tal letter. The first letter in the text field is
also a capital letter. In text fields intended for
names or addresses, each word automatically
starts with a capital letter. In text fields for
password, web address or email address

entry, all letters are automatically lower case
unless otherwise set with the button.
Number entry. The keyboard (2) is then
shown with numbers. Press

, which in

number mode is shown instead of

, to

return to the letter keyboard, or

open the keyboard with special characters.
Changes text input language, e.g.

. The

available characters and word suggestions
(1) vary depending on the selected language.
One long press opens a list of languages
and then tap on the language to be used. A
short press changes to the next language on
the list without showing the list. To add addi-
tional languages in the keyboard - see the
heading "Changing keyboard language"
below.
Space.

Undoes entered text. Press briefly to delete
one character at a time. Hold the button
depressed to delete characters more quickly.
Changes keyboard mode to write letters and
characters by hand instead. Read more in the
section "Writing characters/letters by hand
on the screen".

Press the confirmation button above the key-
board (not visible in the image) to confirm the
entered text. The appearance of the button dif-
fers depending on context.

Changing the keyboard language

To make it possible to switch between different
languages for the keyboard, the languages must
first be added under

Settings

Adding/deleting languages in settings

The keyboard is automatically set to the same
languages as the system language. The keyboard
language can be manually adapted without
affecting the system language.

1. Press

Settings

in the top view.

2. Press

System

System Languages and

Units

Keyboard Layouts

3. Select one or more languages from the list.

> It is now possible to switch between the

selected languages directly from the key-
board for text input.

If no languages have been actively selected
under

Settings

, the keyboard uses the same lan-

guage as the car's system language; see the
section "Changing system settings in the set-
tings menu".

Applies to Asiatic languages.

INTRODUCTION

Switching between different languages in
the keyboard

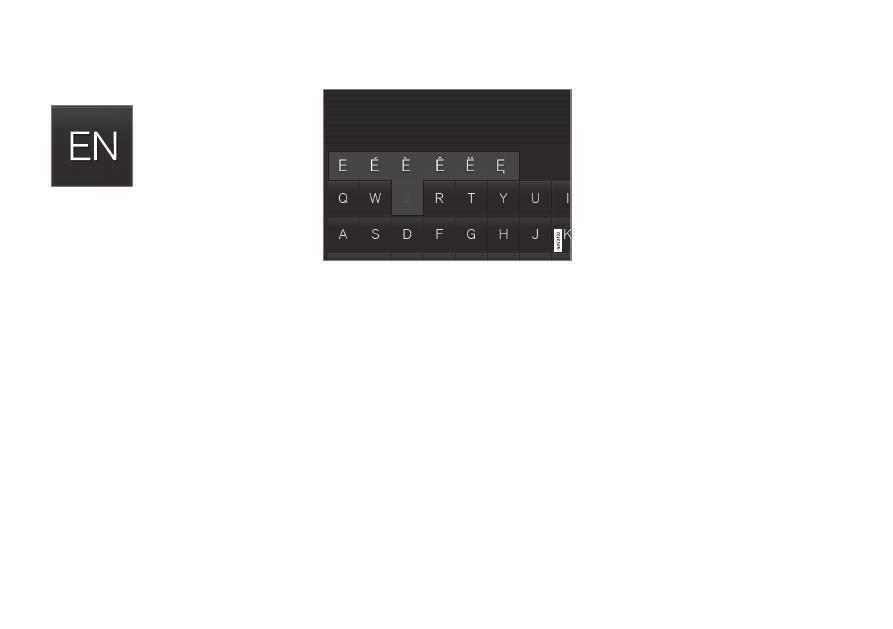

When a number of languages
have been selected in

Settings

, the keyboard button

(shown in context as number 7
in the illustration above) is used
to switch between different lan-
guages.

To change keyboard language with list:

1. One long press on the button (see image

above).
> A list opens.

2. Select the required language. If more than

four languages have been selected under

Settings

, it is possible to scroll in the list

from the keyboard.
> The keyboard is adapted to the selected

language and other word suggestions are
given.

To change the keyboard language without dis-
playing the list:

–

One short press of the button.
> The keyboard is adapted to the next lan-

guage in the list without displaying the list.

Variants of a letter or character

To enter a variant of a letter/character, e.g. é or
è:

1. Press and hold the letter/character.

> A box with possible variants of the letter/

character opens.

2. Press the required variant. If none of the vari-

ants are selected, the original letter/charac-
ter is entered.

Related information

•

Writing characters/words by hand on the
screen (p. 53)

•

Settings in the centre display (p. 175)

•

Operating the centre display (p. 36)

•

Managing text messages (p. 505)

•

Changing system settings in the settings
menu (p. 178)

INTRODUCTION

}}

Writing characters/words by hand

on the screen

The centre display keyboard allows you to enter
characters, letters and words on the screen by
"drawing" by hand.

Press the button on the key-
board to change from typing
with the keys to entering letters
and characters by hand.

Area for writing characters/letters/words/
parts of word.
The text field where the characters or word
suggestions appear as they are written on
screen (1).

Suggestions for characters/letters/word/
part of word. It is possible to scroll through
the list.
Space. A space can also be created by
entering a dash (-) in the area for hand-writ-
ten letters (1). See the heading "Entering a
space in the free text field with handwriting
recognition" below.
Undo entered text. Press briefly to delete
one character/one letter at a time. Wait a
moment before pressing again to delete the
next character/letter, etc.
Return to the keyboard with regular charac-
ter input.
Switch off/on sound when entering.

Hide the keyboard. If this is not possible, the
button is not shown.
Change text input language.

Writing characters/letters/words by hand

1. Write a character, a letter, a word or parts of

a word in the area for hand-written letters
(1). Write a word or parts of a word above
each other or on a line.
> A number of suggested characters, letters

or words is shown (3). The most likely
choice is found at the top of the list.

IMPORTANT

Do not use sharp objects on the screen as
they may scratch it.

2. Enter the character/letters/word by waiting a

moment.
> The character/letter/word at the top of

the list is entered. It is also possible to
select a different character by pressing
the required character, letter or word in
the list.

INTRODUCTION

Deleting/changing characters/letters written
by hand

Delete all characters in the text field (2) by swiping

across the handwriting field (1).

–

There are several options for deleting/
changing characters/letters:

•

Press the intended letter or word in the
list (3).

•

Press the text undo button (5) to delete
the letter and begin again.

•

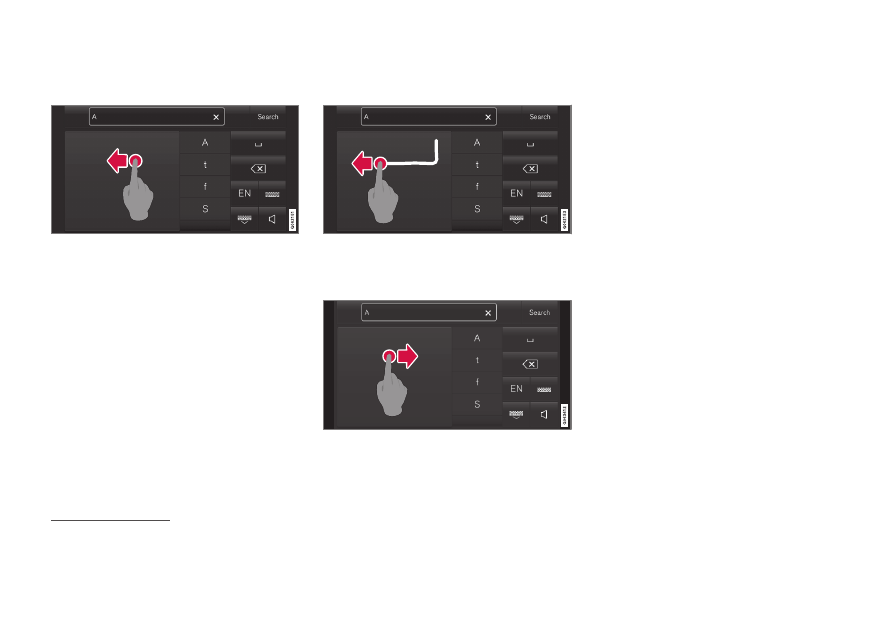

Swipe horizontally from right to left

over

the area for handwritten letters (1). Delete
multiple letters by swiping over the area
several times.

•

Pressing the X in the text field (2) deletes
all of the entered text.

Changing row in the free text field with
handwriting

Change row by hand by drawing the above character in
the handwriting field

Entering a space in the free text field with
handwriting recognition

Enter a space by drawing a dash from left to right

Related information

•

Using the keyboard in the centre display
(p. 49)

•

Managing text messages (p. 505)

•

Changing system settings in the settings
menu (p. 178)

For Arabic keyboard - swipe in the opposite direction. Swiping from right to left creates a space.

For Arabic keyboards - draw the same character, but reversed.

For Arabic keyboard - draw the dash from right to left.

INTRODUCTION

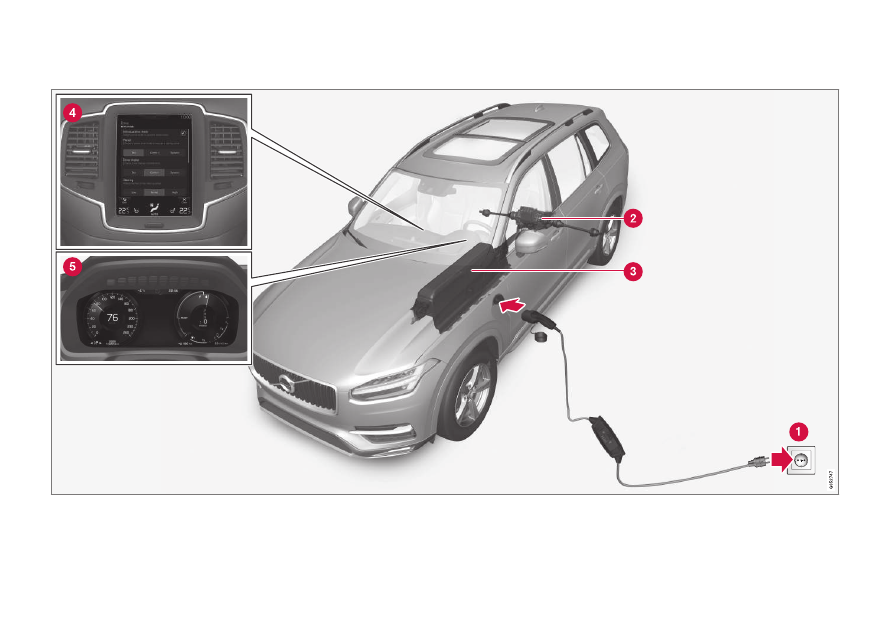

Overview

INTRODUCTION

}}

Charging the hybrid battery, see section
"Preparation for charging the hybrid battery".
Electric motor with rear-wheel drive, see sec-
tion "Starting the engine".
Hybrid battery, see section "Hybrid battery".

Drive modes, change with the drive mode
control in the tunnel console and in the cen-
tre display, see section "Drive modes".
Driver display with information unique to the
Twin Engine, see section "Hybrid related
symbols and messages" and "Hybrid related
information in the driver display".

Important to know

Car without power

Bear in mind that important functions such as the
brakes and power steering are inoperable when
the car is without power.

WARNING

In a de-energised car with the electric motor

and fuel-driven engine switched off it is not

possible to brake the car.

Towing not permitted

Towing the Twin Engine is not permitted since
this damages the electric motor. When moving
the car it must be transported raised up with all
the wheels on a recovery vehicle's platform.

Exterior engine noise

WARNING

Remember that the car does not emit any

engine noise when it is only powered by the

electric motor and may therefore be difficult

to notice by children, pedestrians, cyclists and

animals. This is especially true at low speeds,

such as in car parks.

High-voltage current

WARNING

Several components in the car work with

high-voltage current that could be dangerous

in the event of incorrect intervention. These

components, and all orange-coloured cables,

must only be handled by qualified personnel.

Do not touch anything that is not clearly descri-
bed in the owner's manual, see section "Engine
compartment overview" for an overview of the
engine compartment's components.

Unique functions

Drive modes

It is possible to set the car in different drive
modes while driving, e.g. electric operation only
or, when power is required, both electric motor
and petrol engine. The car calculates an optimal
combination of driveability, driving experience,
environmental impact and fuel economy accord-
ing to the drive mode selected. Read more in the
section "Drive modes".

Driver display

The driver display shows some information that is
unique to the Twin Engine - charging information,
selected drive mode, distance to empty battery as
well as the hybrid battery's charge level. Read
more in the sections "Hybrid related information
in the driver display" and "Drive modes".

Preconditioning

In order that the car should have optimal function
it is important that the hybrid battery with associ-
ated electrical drive systems, as well as the petrol
engine and its drive systems, have the correct
operating temperature. Battery capacity may be
reduced considerably if the battery is too cold or
too hot. Preconditioning prepares the car's drive
systems and the passenger compartment before
departure so that both wear and energy needs
during the journey are reduced. The range for the
hybrid battery increases. Read more in the sec-
tion "Starting/stopping preconditioning".

Content .. 1 2 3 ..
