MAINTENANCE AND SERVICING

534

Replacing High Beam headlight

bulbs

On models with halogen headlights, the High
Beam headlight bulb can be replaced by the
owner.

Before the bulb can be accessed, the headlight
housing's rectangular cover must be removed,
see the article "Removing the rectangular head-
light cover."

CAUTION

Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which will damage it.

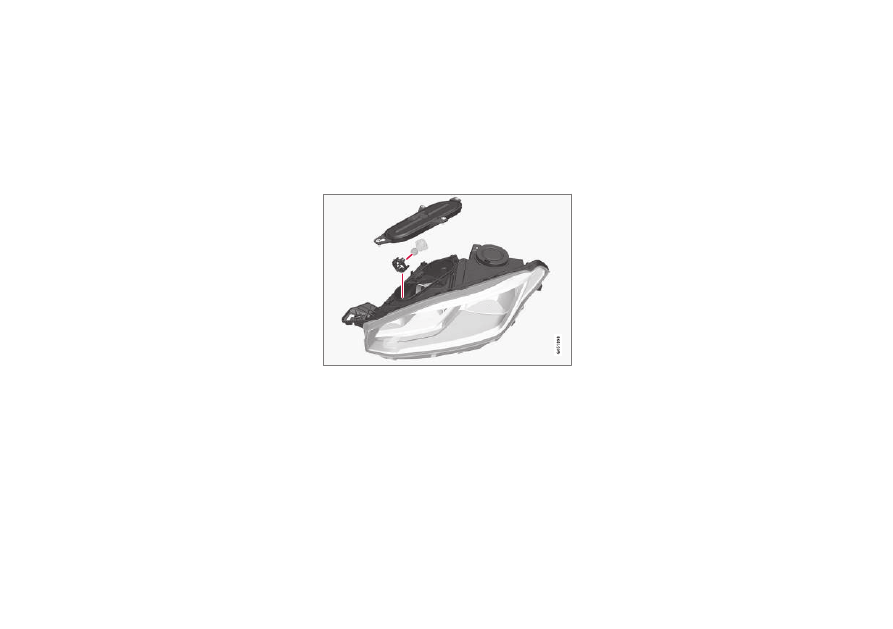

Driver's side bulb housing shown

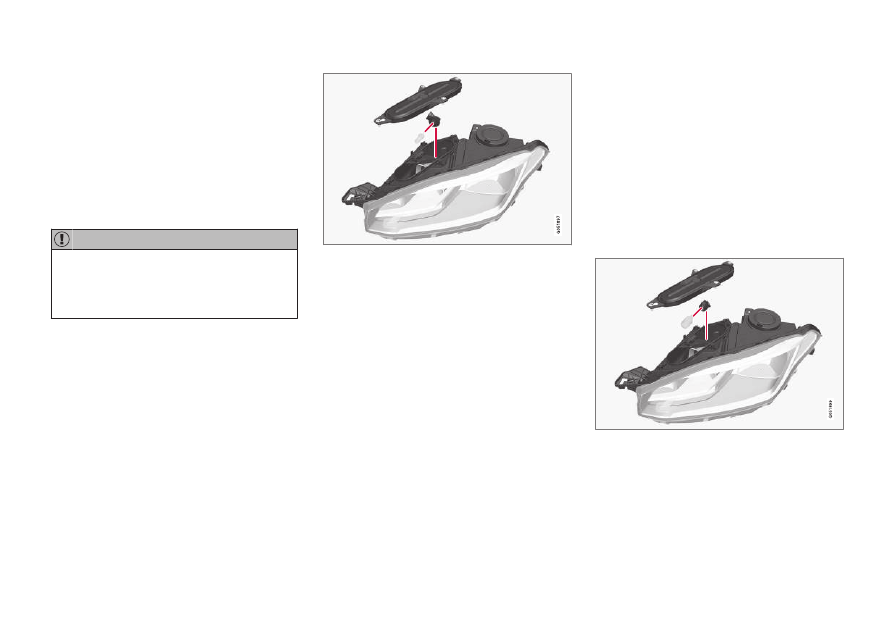

1. Remove the bulb by turning the bulb holder

upward and then pulling it straight out.

2. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

3. Remove the connector from the bulb.

4. Insert a new bulb.

5. Insert the bulb in the socket and turn it

downward.

Related information

•

Removing the rectangular headlight cover
(p. 532)

•

Bulb specifications (p. 536)

•

Replacing bulbs (p. 530)

Replacing parking light bulbs

On models with halogen headlights, the front
parking light bulb can be replaced by the owner.

Before the bulb can be accessed, the headlight
housing's rectangular cover must be removed,
see the article "Removing the rectangular head-
light cover."

Remove the high beam bulb first by turning the
bulb holder upward and then pulling it straight
out. This makes it easier to access the parking
light bulb.

Driver's side bulb housing shown

1. Pull the bulb holder straight out.

2. Remove the bulb by pulling it straight out.

3. Insert a new bulb.

4. Insert the bulb holder in the socket and

press it into place.

MAINTENANCE AND SERVICING

535

5. If the high beam bulb was removed, insert

the bulb in the socket and turn downward.

Related information

•

Replacing bulbs (p. 530)

•

Bulb specifications (p. 536)

•

Removing the rectangular headlight cover
(p. 532)

Replacing front turn signal bulbs

On models with halogen headlights, the front
turn signal bulb can be replaced by the owner.

Before the bulb can be accessed, the headlight
housing's rectangular cover must be removed,
see the article "Removing the rectangular head-
light cover".

Driver's side headlight housing shown

1. Press the retaining catches together and pull

the bulb holder straight out.

2. The bulb holder and bulb must be replaced

as one unit.

3. Press the new bulb holder into the socket.

Related information

•

Removing the rectangular headlight cover
(p. 532)

•

Replacing bulbs (p. 530)

•

Bulb specifications (p. 536)

MAINTENANCE AND SERVICING

536

Bulb specifications

The following specifications apply to models
equipped with halogen

5

 headlights. If other

bulbs need to be replaced, contact a trained
and qualified Volvo service technician.

Function

[W]

A

Type

Low beam

55

H11

High Beam

65

H9

Front turn signal

24

PY24W

Daytime running light/
parking light

21/5

W21/5W

A

Watt

Related information

•

Replacing bulbs (p. 530)

5

Halogen headlights are not available on all models.

MAINTENANCE AND SERVICING

}}

* Option/accessory, for more information, see Introduction.

537

Hoisting the vehicle

When the vehicle is hoisted, the jack or garage
lift must be positioned correctly under the vehi-
cle.

For vehicles equipped with leveling control

*, if it is

also equipped with the optional pneumatic sus-
pension, this must be deactivated before the
vehicle is hoisted. This is done from the center
display:

1. Tap

Settings

 in Top view.

2. Tap

My Car

Suspension

.

3. Select

Deactivate Suspension & Leveling

Control

.

||

MAINTENANCE AND SERVICING

538

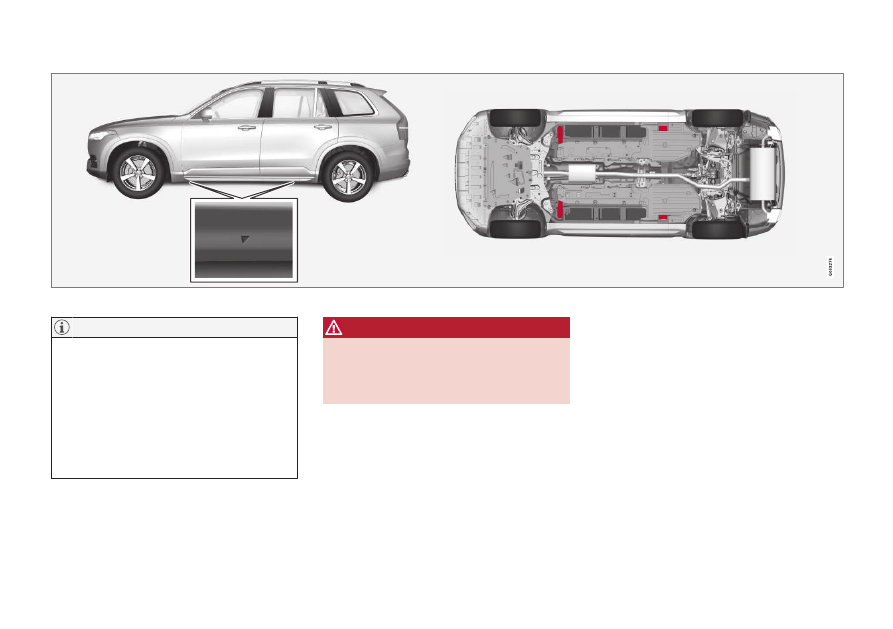

Location of the jack attachment points (triangles)/lifting points (red areas)

NOTE

The jack provided with your vehicle is
intended to be used only in temporary situa-
tions such as changing wheels in the event of
a flat tire. Only the jack that came with your
particular model should be used to lift the
vehicle. If the vehicle needs to be lifted more
frequently or for a prolonged period, using a
garage jack or hoist is recommended. Always
follow this device’s instructions for use.

WARNING

•

Ensure that the jack is positioned so that
the vehicle cannot slide off it.

•

Always use axle stands or similar struc-
tures.

Related information

•

Removing a wheel (p. 489)

•

Installing a wheel (p. 491)

•

Jack (p. 488)

MAINTENANCE AND SERVICING

}}

539

Opening and closing the hood

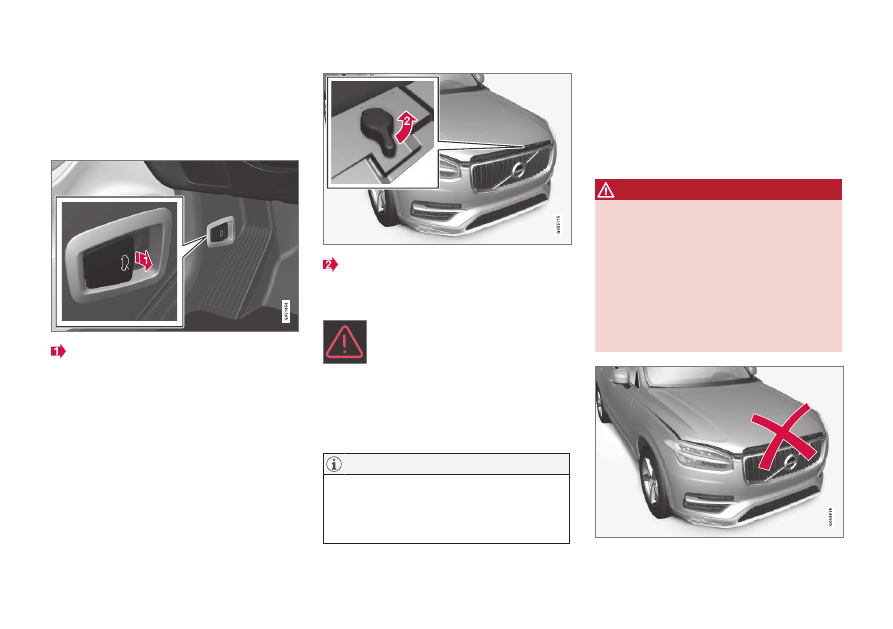

The hood is opened by releasing it from the pas-
senger compartment and then by using the han-
dle under the front edge of the hood.

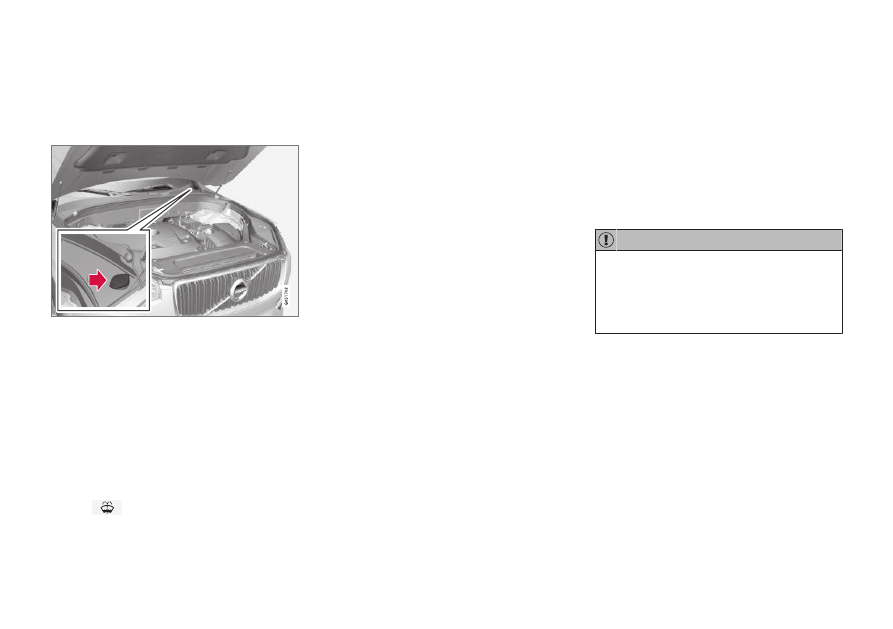

Opening

With the hood completely closed, pull the
control (located to the left of the brake
pedal).

Turn the handle under the front edge of the
hood counterclockwise to release it from the
lock and lift.

Warning–hood not closed

When the hood lock has been com-
pletely released, this symbol and a
graphic will illuminate in the instrument
panel and an audible signal will be

given. If the vehicle begins to roll, the audible sig-
nal will be repeated several times.

For additional information about this symbol, see
also the article "Door and seat belt reminders."

NOTE

If the warning symbol remains on or if the
audible signal is given even if the hood is
completely closed and locked, consult a
trained and qualified Volvo service technician.

Closing

1. Press down the hood until it begins to close

due to its own weight.

2. When the handle under the front edge of the

hood is in the lock, press down on the hood
to close it completely.

WARNING

•

Be sure the hood is completely unob-
structed while it is being closed.

•

Check that the hood locks properly when
closed. It must audibly lock on both sides.

•

Never drive if the hood is not completely
closed and locked.

•

While driving, if there are any indications
that the hood is not locked in the closed
position, stop safely as soon as possible
and close it completely.

||

MAINTENANCE AND SERVICING

540

Hood completely closed

Related information

•

Engine compartment overview (p. 540)

•

Door and seat belt reminders (p. 70)

Engine compartment overview

The engine compartment overview shows some
maintenance points.

Some of the components in the vehicle's electri-
cal drive system are located in the engine com-
partment.

WARNING

•

Orange cables should only be handled by
a trained and qualified Volvo service tech-
nician.

•

A number of the vehicle's components
use high voltage and can be very danger-
ous if handled improperly.

•

Do not touch any components that have
not been clearly described/explained in
this manual.

•

Use caution when checking/refilling flu-
ids in the engine compartment.

•

The cooling fan (located at the front of
the engine compartment, behind the radi-
ator) may start or continue to operate (for
up to 6 minutes) after the engine has
been switched off.

•

Engine cleaning should only be done by a
workshop. If engine cleaning agents are
used when the engine has been running,
there may a fire risk.

•

Before performing any operations in the
engine compartment, the ignition should
always be completely switched off (in
mode 0) and there should be no remote
keys in the passenger compartment. The
gear selector should be in the P (park)
position. If the engine has been running,
wait until it has cooled before touching
any components in the engine compart-
ment.

•

The distributor ignition system operates
at very high voltages. Special safety pre-

MAINTENANCE AND SERVICING

}}

541

cautions must be followed to prevent
injury. Always turn the ignition off when
replacing distributor ignition components
e.g. plugs, coil, etc.

•

Do not touch any part of the distributor
ignition system while the engine is run-
ning. This may result in unintended move-
ments and body injury.

The layout of the engine compartment may differ slightly
from model to model

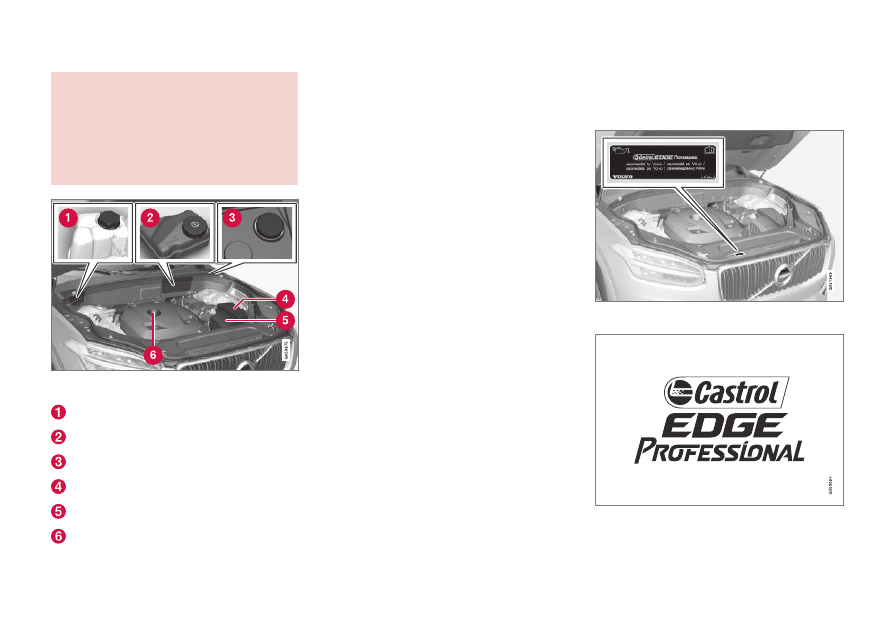

Coolant expansion tank

Brake fluid reservoir

Washer fluid reservoir

Relay/fuse box

Air cleaner

Engine oil filler cap

Related information

•

Ignition modes (p. 400)

•

Opening and closing the hood (p. 539)

•

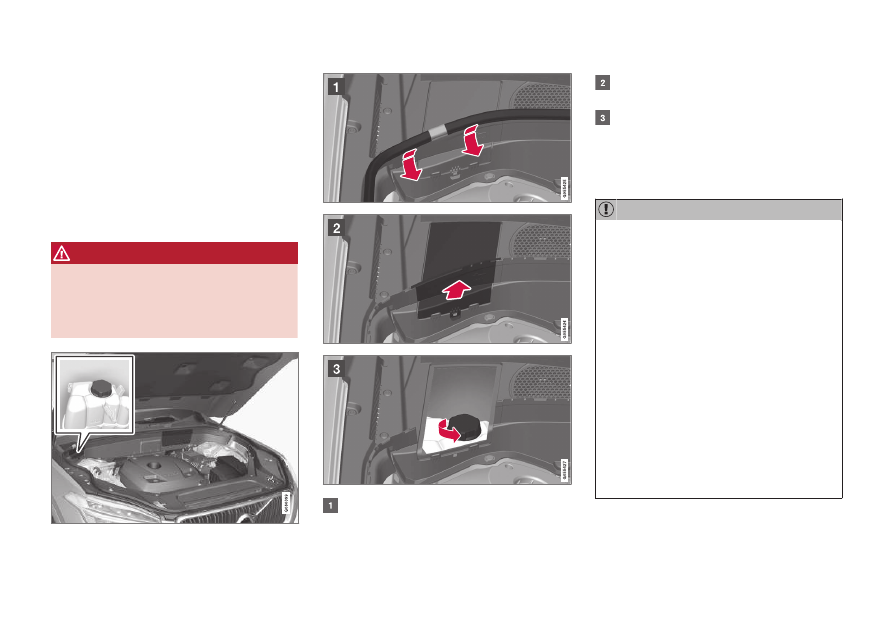

Refilling the windshield washer fluid reservoir
(p. 547)

Engine oil

The correct oil must be used for the stated oil
change (service) intervals to apply.

Volvo recommends:

||

MAINTENANCE AND SERVICING

542

CAUTION

•

Not checking the oil level regularly can
result in serious engine damage if the oil
level becomes too low.

•

Oil that is lower than the specified quality
can damage the engine.

•

Volvo does not recommend the use of oil
additives.

•

Always add oil of the same type and vis-
cosity as already used.

•

Oil changes should be carried out by a
trained and qualified Volvo service techni-
cian.

•

Using oil of higher than the specified
quality is permitted and may be neces-
sary for demanding driving.

Also, refer to the Warranty and Service Records
information booklet for information on oil change
intervals and oil specifications.

Related information

•

Checking and refilling engine oil (p. 542)

Checking and refilling engine oil

The oil level is checked electronically.

Oil filler cap

6

It may be necessary to top up engine oil between
regularly scheduled services.

No action is necessary until a message is dis-
played in the instrument panel.

WARNING

•

Do not allow oil to spill onto or come into
contact with hot exhaust pipe surfaces.

•

If

Engine oil level



Service required

 is

displayed, have the vehicle checked by a
trained and qualified Volvo service techni-
cian. The oil level may be too high.

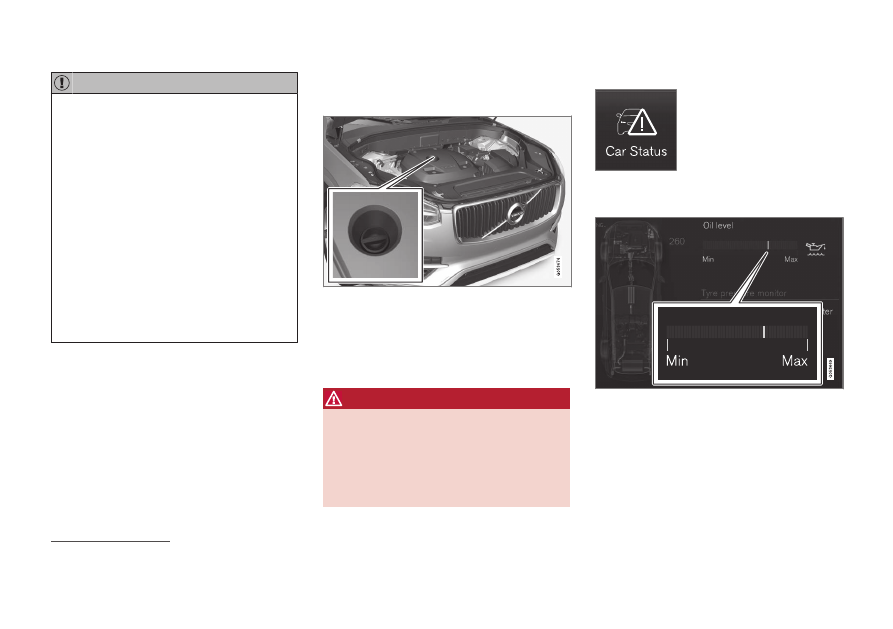

Checking the oil level

The oil level can be checked in
the center display when the
engine is not running.

From the center display's
Home view, swipe the screen
from right to left to open App

view. Tap

Car status

 and then tap

Status

 to

show the oil level.

Oil level graphic in the center display

The oil level should be checked at regular inter-
vals, particularly during the period up to the first
scheduled maintenance service.

If the oil level sensor indicates that the level is
too low, using the correct oil, top up with the
amount of oil indicated as soon as possible.

6

Models with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICING

}}

543

NOTE

•

The system cannot detect changes in the
oil level immediately. The vehicle must be
driven approximately 20 miles (30 km) or
have been parked on level ground with
the engine off for 5 minutes before the
oil level reading will be correct.

•

If the necessary conditions are not met
for checking the oil level electronically
(time interval after the engine was
switched off, if the vehicle is parked on
an incline, etc.),

No values available

 will

be displayed. This does not indicate a
problem with the oil level sensor.

Related information

•

Engine oil (p. 541)

•

Ignition modes (p. 400)

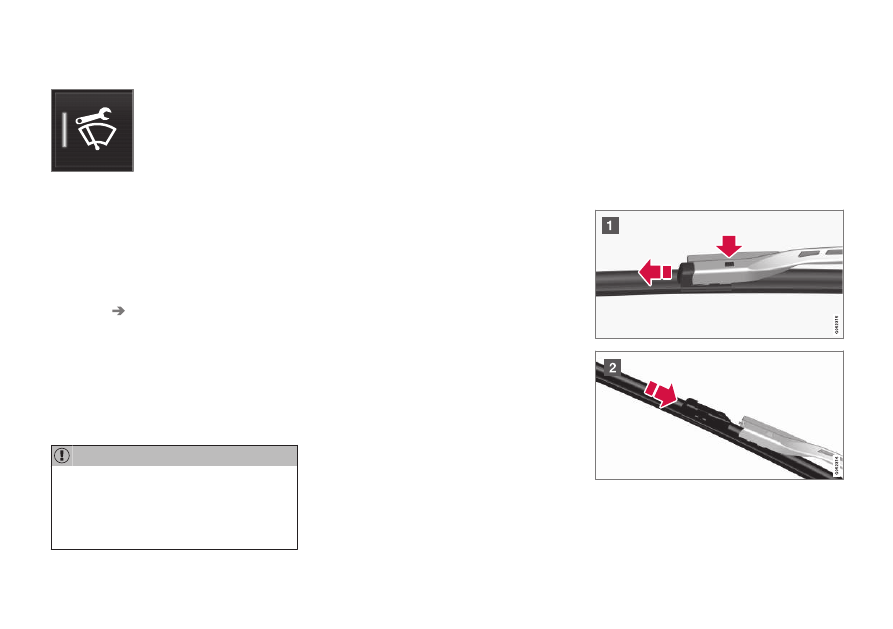

Windshield wipers in the service

position

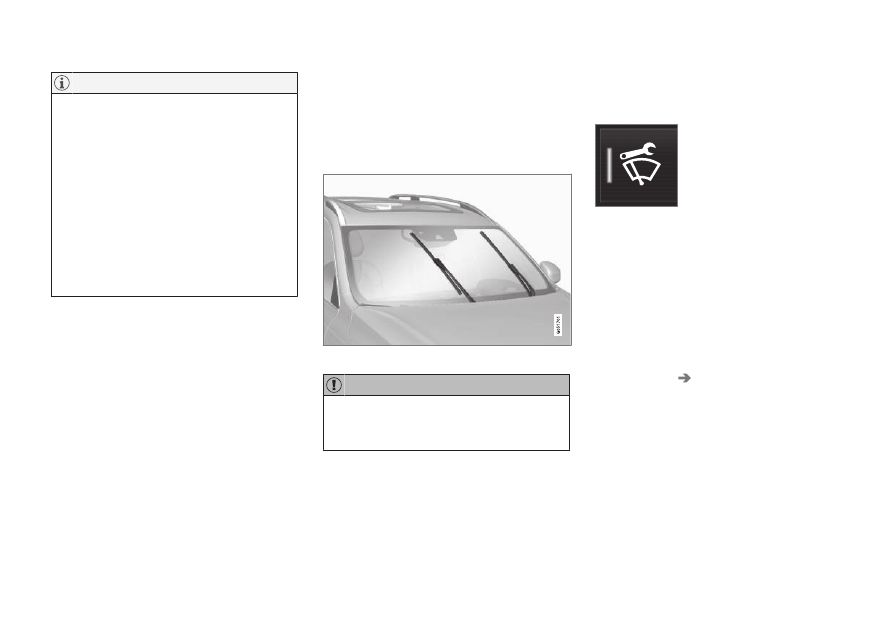

The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.

Wipers in the service position

CAUTION

Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.

Putting the windshield wipers in the
service position

The service position can be activated while the
vehicle is stationary and the wipers are not acti-
vated.

The service position can be activated in two ways
from the center display:

Via Function view

–

From Function view, tap the

Wiper Service

Position

 button. The indicator light in the

button will illuminate when the service posi-
tion is activated.
> The windshield wipers will move to the

vertical position.

Via Settings

1. Tap

Settings

 in the center display's Top

view.

2. Tap

My Car

Wipers

3. Tap the

Wiper Service Position

 box.

> The windshield wipers will move to the

vertical position.

Deactivating service position

The service position can be deactivated in two
ways from the center display:

||

MAINTENANCE AND SERVICING

544

Via Function view

–

From Function view, tap the

Wiper Service

Position

 button. The indicator light in the

button will go out when the service position
is deactivated.

Via Settings

1. Tap

Settings

 in the center display's Top

view.

2.

My Car

Wipers

3. Tap the

Wiper Service Position

 to deselect

the box.

The wipers will also leave the service position if:

•

The wipers are activated.

•

The windshield washers are activated.

•

The rain sensor is activated.

CAUTION

If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield before
returning the wipers to the normal position to
help avoid scratching the paint on the hood.

Related information

•

Replacing wiper blades (p. 544)

•

Using the windshield wipers (p. 161)

Replacing wiper blades

The wiper blades should be replaced regularly
for best effect.

The windshield wiper blades must be in the verti-
cal (service) position for replacement, washing
or to lift them away from the windshield when
e.g., removing ice or snow.

Replacing the windshield wiper blades

MAINTENANCE AND SERVICING

545

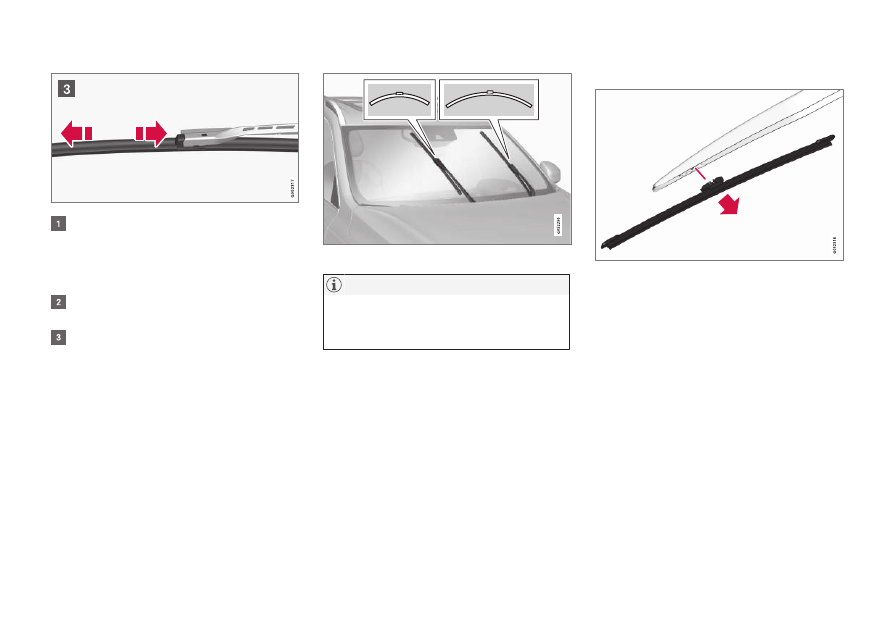

With the wipers in the service position, fold
out the wiper arm from the windshield. Press
the button on the wiper blade attachment
and pull the wiper blade straight out, parallel
with the wiper arm.

Slide in the new wiper blade until it clicks
into place.

Check that the blade is securely in place.

4. Press the wipers back against the wind-

shield.

The windshield wiper blades are different lengths

NOTE

The windshield wiper blades are different
lengths. The blade on the driver’s side is
longer than the one on the passenger side.

Cleaning

Keeping the windshield/rear window and wiper
blades clean helps improve visibility and prolongs
the service life of the wiper blades. Clean the
wiper blades with a stiff-bristle brush and luke-
warm soap solution or car washing detergent.

Replacing the tailgate wiper blade

1. Fold the wiper arm outward.

2. Grasp the inner section of wiper blade (at the

arrow).

3. Use one end of the wiper blade as a lever to

help release it from the wiper arm.

4. Press the new wiper blade until it clicks into

place and check that it seats securely.

5. Fold the wiper arm back toward the tailgate

window.

Related information

•

Windshield wipers in the service position
(p. 543)

•

Refilling the windshield washer fluid reservoir
(p. 547)

MAINTENANCE AND SERVICING

546

Refilling coolant

Coolant helps keep the gasoline engine at the
proper operating temperature. The heat transfer-
red from the engine to the coolant can be used
to warm the passenger compartment.

When refilling coolant, follow the instructions on
the package and use the recommended amount
of coolant. Never fill the cooling system with
water only; this could lead to freezing, corrosion
and engine damage.

WARNING

If the engine has been running, the coolant
will be very hot. Allow the engine to cool
before opening the coolant expansion tank. If
this is not possible, open the cap very slowly
to allow pressure to dissipate.

Coolant expansion tank

Lift the rubber strip by pressing it inward in
the engine compartment.

Remove the plastic cover by folding out the
catch and lifting the cover upward.

Unscrew the expansion tank cap and add
coolant. The level should be between the
MIN and MAX marks on the tank.

Put the other components back in place in the
reverse order.

CAUTION

•

High levels of chlorine, chlorides and
other salts may cause corrosion in the
cooling system.

•

Only use coolants with corrosion protec-
tion recommended by Volvo.

•

The ratio of coolant to water is 50/50.

•

Mix the coolant with tap water of drinka-
ble quality.

•

If maintenance is performed on the cool-
ing system or if the coolant is replaced,
flush the cooling system with clean water
before adding new a new coolant/water
mixture.

•

The engine may only be operated with a
properly filled cooling system. Otherwise,
high temperatures and cracks in the cyl-
inders may occur.

Related information

•

Coolant specifications and volumes
(p. 566)

MAINTENANCE AND SERVICING

}}

* Option/accessory, for more information, see Introduction.

547

Refilling the windshield washer fluid

reservoir

Washer fluid helps keep the windshield and
headlights clean.

The windshield and headlight washers

* share a

common reservoir. Open the blue cap to refill
washer fluid (see the illustration for the location
of the reservoir).

During cold weather, the reservoir should be filled
with windshield washer solvent containing anti-
freeze. Use Volvo Original Washer Fluid or the
equivalent with a recommended pH value
between 6 and 8 in a 1:1 solution.

When there is approx. 1 qt (1 liter) of washer
fluid remaining in the reservoir, a text message
and the

 symbol will be displayed in the

instrument panel.

Related information

•

Opening and closing the hood (p. 539)

•

Engine compartment overview (p. 540)

Cleaning the exterior

The vehicle should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause damage. To
help prevent corrosion, it is particularly important
to wash the car frequently in the wintertime.

Hand washing

The following points should be kept in mind when
washing and cleaning the car:

CAUTION

Avoid using car washing detergents with a pH
value lower than 3.5 or higher than 11.5.
Doing so could result in discoloring of ano-
dized aluminum surfaces on e.g., roof rails or
the frames around the side windows.

•

Avoid washing your car in direct sunlight.
Doing so may cause detergents and wax to
dry out and become abrasive. To avoid
scratching, use lukewarm water to soften the
dirt before you wash with a soft sponge, and
plenty of sudsy water.

•

Bird droppings: Remove from paintwork as
soon as possible. Otherwise the finish may
be permanently damaged.

•

A car washing detergent can be used to
facilitate the softening of dirt and oil.

||

MAINTENANCE AND SERVICING

548

•

Dry the car with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.

•

Tar spots can be removed with tar remover
after the car has been washed.

•

A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper blades.
Frequent cleaning of the windshield and
wiper blades improves visibility considerably
and also helps prolong the service life of the
wiper blades.

•

Wash off the dirt from the underside (wheel
housings, fenders, etc).

•

In areas of high industrial fallout, more fre-
quent washing is recommended.

CAUTION

•

During high pressure washing, the spray
mouthpiece must never be closer to the
vehicle than 13" (30 cm). Do not spray
into the locks.

•

Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for exam-
ple when refueling.

Special laminated panoramic roof cau-
tions:

•

Always close the laminated panoramic
roof and sun shade before washing your
vehicle.

•

Never use abrasive cleaning agents on
the laminated panoramic roof.

•

Never use wax on the rubber seals
around the laminated panoramic roof.

NOTE

When washing the car, remember to remove
dirt from the drain holes in the doors and sills.

Automatic car washes

•

We do NOT recommend washing your car in
an automatic wash during the first few

months (because the paint will not have
hardened sufficiently).

•

An automatic wash is a simple and quick way
to clean your car, but it is worth remembering
that it may not be as thorough as when you
yourself go over the car with sponge and
water. Keeping the underbody clean is most
important, especially in the winter. Some
automatic washers do not have facilities for
washing the underbody.

NOTE

Condensation may form temporarily on the
inside of the lenses of exterior lights such as
headlights or taillights. This is normal and the
lights are designed to withstand moisture.
Normally, condensation will dissipate after the
lights have been on for a short time.

MAINTENANCE AND SERVICING

549

CAUTION

When using an automatic car wash in which
the vehicle has to be able to roll freely, the
auto-hold brake function must be deactivated.
If this is not done, the brakes will automati-
cally be applied when the vehicle is stationary.

To deactivate this function:

1. Drive the vehicle into the car wash
2. Turn off the auto-hold function using the

control on the center console

3. Turn off the parking brake's automatic

function in the center display's Top view
(tap

Settings

, tap

My Car

Electric

Parking Brake

 and deselect

Auto

Activate Parking Brake

)

4. Put the gear selector in N
5. Switch off the ignition by turning the start

knob to STOP and holding it in this posi-
tion for at least 4 seconds

The vehicle will then be able to roll freely.

CAUTION

•

Before driving into an automatic car
wash, turn off the optional rain sensor to
avoid damaging the windshield wipers.

•

Make sure that side view mirrors, auxiliary
lamps, etc, are secure, and that any
antenna(s) are retracted or removed. Oth-
erwise there is risk of the machine dis-
lodging them.

•

Chromed wheels: Clean chrome-plated
wheels using the same detergents used
for the body of the vehicle. Aggressive
wheel-cleaning agents can permanently
stain chrome-plated wheels.

WARNING

•

When the vehicle is driven immediately
after being washed, apply the brakes,
including the parking brake, several times
in order to remove any moisture from the
brake linings.

•

Engine cleaning agents should not be
used when the engine is warm. This con-
stitutes a fire risk.

Exterior components

Volvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the exte-

rior of your vehicle. The instructions for using
these products should be followed carefully. Sol-
vents or stain removers should not be used.

CAUTION

•

Avoid waxing or polishing plastic or rub-
ber components

•

Polishing chromed strips can wear away
or damage the surface

•

Polishes containing abrasive substances
should not be used

Related information

•

Paint damage (p. 553)

•

Corrosion protection (p. 552)

•

Polishing and waxing (p. 554)

•

Windshield wipers in the service position
(p. 543)
