Volvo 850. Manual - part 65



   2



 Digital Timer (Parking Heater)



 12 Volts (On);













 0 Volts (Off)







   3



 Rheostat



 12 Volts (On);













 0 Volts (Off)







   5



 Power Supply To Power Stage



 Battery Voltage







   6



 Power Ground



 0 Volts







   8



 Damper Motor Position Sensors



 5 Volts







   9



 Signal Ground



 0 Volts







   10



 Signal Ground



 0 Volts







   12



 Driver’s Side Temp. Sensor



 About 2.5 Volts













 At Room













 Temperature







   13



 Passenger’s Side Temp. Sensor



 About 2.5 Volts













 At Room













 Temperature







   14



 Outside Temperature Sensor



 About 2.5 Volts













 At Room













 Temperature







   17



 Driver’s Side Damper Motor Position



 About 0.5-5.0









 Sensor



 Volts







   18



 Passenger’s Side Damper Motor Position



 About 0.5-5.0









 Sensor



 Volts







   19



 Floor/Defrost Damper Motor Position



 About 0.5-5.0









 Sensor



 Volts







   20



 Ventilation Damper Motor Position



 About 0.5-5.0









 Sensor



 Volts







   21



 Recirculation Damper Motor Position



 About 0.5-5.0









 Sensor



 Volts







   23



 Engine Coolant Temperature



 5 Volts (Square













 Wave) Variable













 Frequency







   24



 Vehicle Speed Signal



 12 Volts (Square













 Wave) Variable













 Frequency







   25



 A/C Relay Control Signal (From



 0-2 Volts (On);









 Ignition System)



 About 12 Volts













 (Off)







   27



 Diagnostic Signal From Power Stage



 3 Volts (Normal);













 4 Volts













 (Overcurrent);













 1 Volt (No













 Signal)







   28



 Logic Signal



 Open (Left);













 0 Volts (Right)







   30



 Signal To/From Diagnostic Unit



 Battery Voltage



































































 (1) - Pin assignments not listed are not used.





ECC CONTROL MODULE PIN ASSIGNMENTS CONNECTOR "B"









































































 (1)



  Function/Description



           Voltage Value





Pin No.















   31



 Driver’s Side Damper



About 0.4 Volts (Off), Zero Volts









 Motor Positive



Or Battery Voltage (On With









 Control Signal



Control)







   32



 Driver’s Side Damper



About 0.4 Volts (Off), Zero Volts









 Motor Negative Control



Or Battery Voltage (On With









 Signal



Control)







   33



 Passenger Side Damper



About 0.4 Volts (Off), Zero Volts









 Motor Positive Control



Or Battery Voltage (On With









 Signal



Control)







   34



 Passenger Side Damper



About 0.4 Volts (Off), Zero Volts









 Motor Negative Control



Or Battery Voltage (On With









 Signal



Control)







   35



 Floor/Defrost Damper



About 0.4 Volts (Off), Zero Volts









 Motor Positive Control



Or Battery Voltage (On With









 Signal



Control)







   36



 Floor/Defrost Damper



About 0.4 Volts (Off), Zero Volts









 Motor Negative Control



Or Battery Voltage (On With









 Signal



Control)







   37



 Ventilation Damper



About 0.4 Volts (Off), Zero Volts









 Motor Positive Control



Or Battery Voltage (On With









 Signal



Control)







   38



 Ventilation Damper



About 0.4 Volts (Off), Zero Volts









 Motor Negative Control



Or Battery Voltage (On With









 Signal



Control)







   39



 Recirculation Damper



About 0.4 Volts (Off), Zero Volts









 Motor Positive Control



Or Battery Voltage (On With









 Signal



Control)







   40



 Recirculation Damper



About 0.4 Volts (Off), Zero Volts









 Motor Negative Control



Or Battery Voltage (On With









 Signal



Control)







   41



 Control Signal To A/C



About 0 Volts Or Battery Voltage









 Relay











   42



 Control Signal To Power



12 Volts (Square Wave) Constant









 Stage



Frequency With Varying Duty Cycle







   45



 Driver’s Side Passenger



0 Volts Or Battery Voltage Temp.









 Compartment



Sensor Intake Fan Control Signal







   46



 Passenger’s Side



0 Volts Or Battery Voltage Temp.









 Passenger Compartment



Sensor Intake Fan Control Signal



































































 (1) - Pin assignments not listed are not used.





ECC CONTROL MODULE PIN ASSIGNMENTS CONNECTOR "C"









































































 (1)



  Function/Description



        Voltage Value





Pin No.















   47



 Driver’s Side Duct Temp.



 About 2.5 Volts At Room









 Sensor Signal



 Temperature







   48



 Passenger’s Side Duct Temp.



 About 2.5 Volts At Room









 Sensor Signal



 Temperature







   51



 Signal From Solar Sensor



 2-40 Millivolts







   56



 Signal Ground



 0 Volts



































































 (1) - Pin assignments not listed are not used.





         SOLAR SENSOR

         1) Connect test unit to ECC control module. Check ground

circuits. See DTC 1-2-1, OUTSIDE TEMP. SENSOR CIRCUIT SHORTED TO

GROUND. If ground circuits are okay, go to next step.

         2) Turn ignition on. Aim a light source at solar sensor.

Connect voltmeter between test unit pins No. 51 and 56 and record

voltage. Cover solar sensor and read voltage again. See  Fig. 16.

Voltage should vary by a few millivolts. The higher the intensity, the

lower the voltage. If sensor does not operate as specified, there is

an open circuit or short to ground in wire or solar sensor.

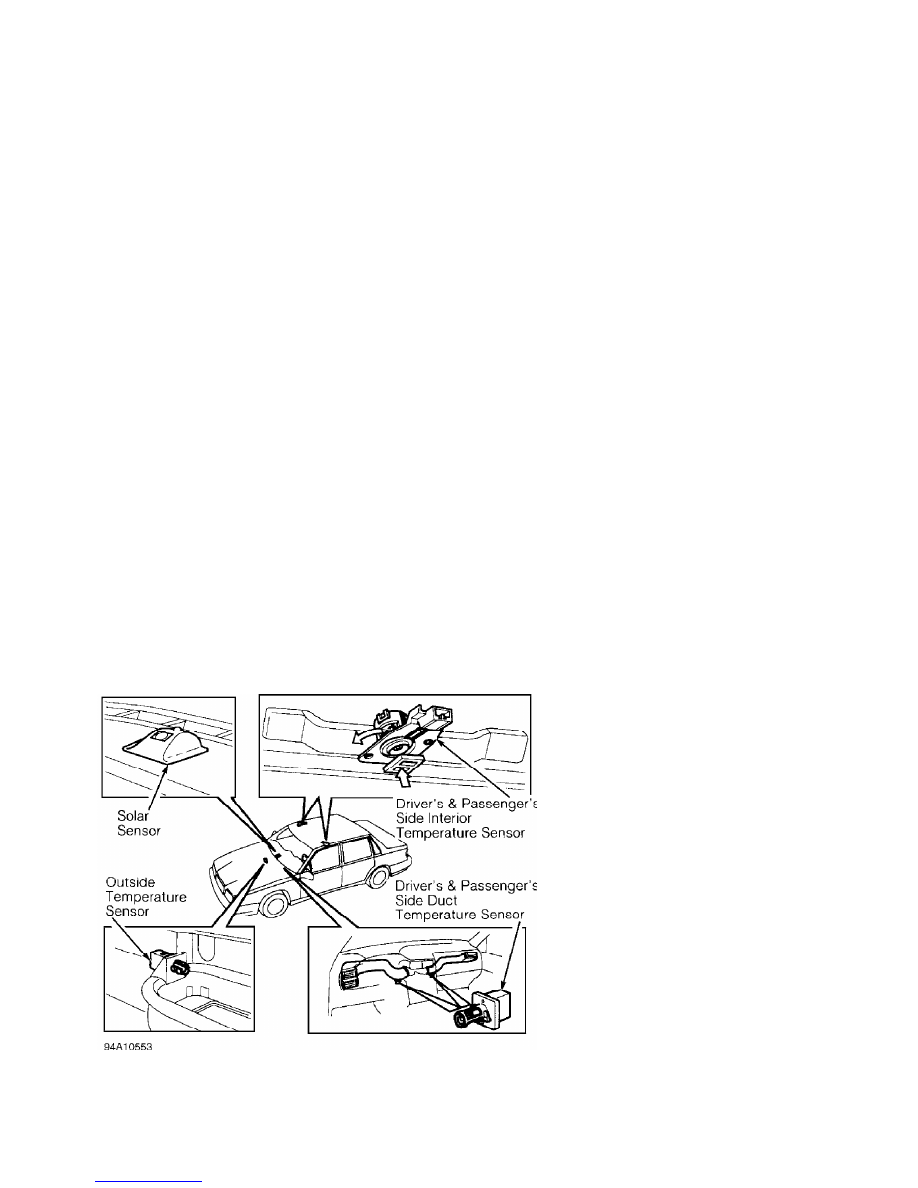

Fig. 16:  Locating ECC System Sensors

Courtesy of Volvo Cars of North America.

         SPEEDOMETER SIGNAL

         1) Raise and support front of vehicle. Perform  TEST MODE 2

under TROUBLE SHOOTING. ECC control module should respond to vehicle

speed signal with Code 1-1-3. ECC control module will continue to

flash code even once TEST MODE 2 is activated. If Code 1-1-3 does not

appear, turn ignition off. Cover solar sensor. Turn ignition on. Start

TEST MODE 2. Let car wheels turn freely. Open throttle.

         2) If no acknowledgment code appears after several attempts,

there may be a problem with vehicle speed signal impulse sensor in

ignition system, instrument panel, or wiring.

         3) Check if speedometer operates. If speedometer does not

operate, a fault may be present in vehicle speed signal impulse

sensor, ignition system, instrument cluster, or wiring. If speedometer

does operate, check for open circuit in instrument cluster wiring.

         REMOVAL & INSTALLATION

WARNING: To avoid injury from accidental air bag deployment, read and

         carefully follow all SERVICE PRECAUTIONS and DISABLING &

         ACTIVATING AIR BAG SYSTEM procedures in the AIR BAG RESTRAINT

         SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section.

         A/C RELAY & POWER STAGE

         Removal & Installation

         Turn ignition off. The A/C relay and power stage are located

on A/C climate control unit, behind glove compartment. Remove glove

compartment. Remove A/C relay. Disconnect connector from power stage.

Hold catches in and pull connector straight out from power stage. See

Fig. 15. To install, reverse removal procedure.

         CLIMATE CONTROL UNIT

         Removal & Installation

         1) Disconnect negative battery cable. Remove dashboard

assembly. See DASHBOARD. Discharge A/C system, using approved

refrigerant recovery/recycling equipment. Disconnect evaporator inlet

and outlet pipes, and cap both ends. Remove evaporator cover plate and

gasket from firewall. See Fig. 17.

         2) Disconnect heater hose quick-disconnect couplings. Remove

heater hose cover plate and gasket from firewall. Inside vehicle,

disconnect A/C-heater control cables and all electrical connectors

from climate control unit. Remove relay shelf. See  Fig. 15.

         3) Remove tunnel console. Remove kick panels next to tunnel.

Remove rear floor ducts connection hose. Remove radio amplifier

bracket. Disconnect cruise control vacuum cylinder, if equipped.

Remove climate control unit. To install, reverse removal procedure.

Lubricate NEW "O" rings with compressor oil. Evacuate and charge

system.
