Volvo Trucks FM Electrical system Manual - part 44

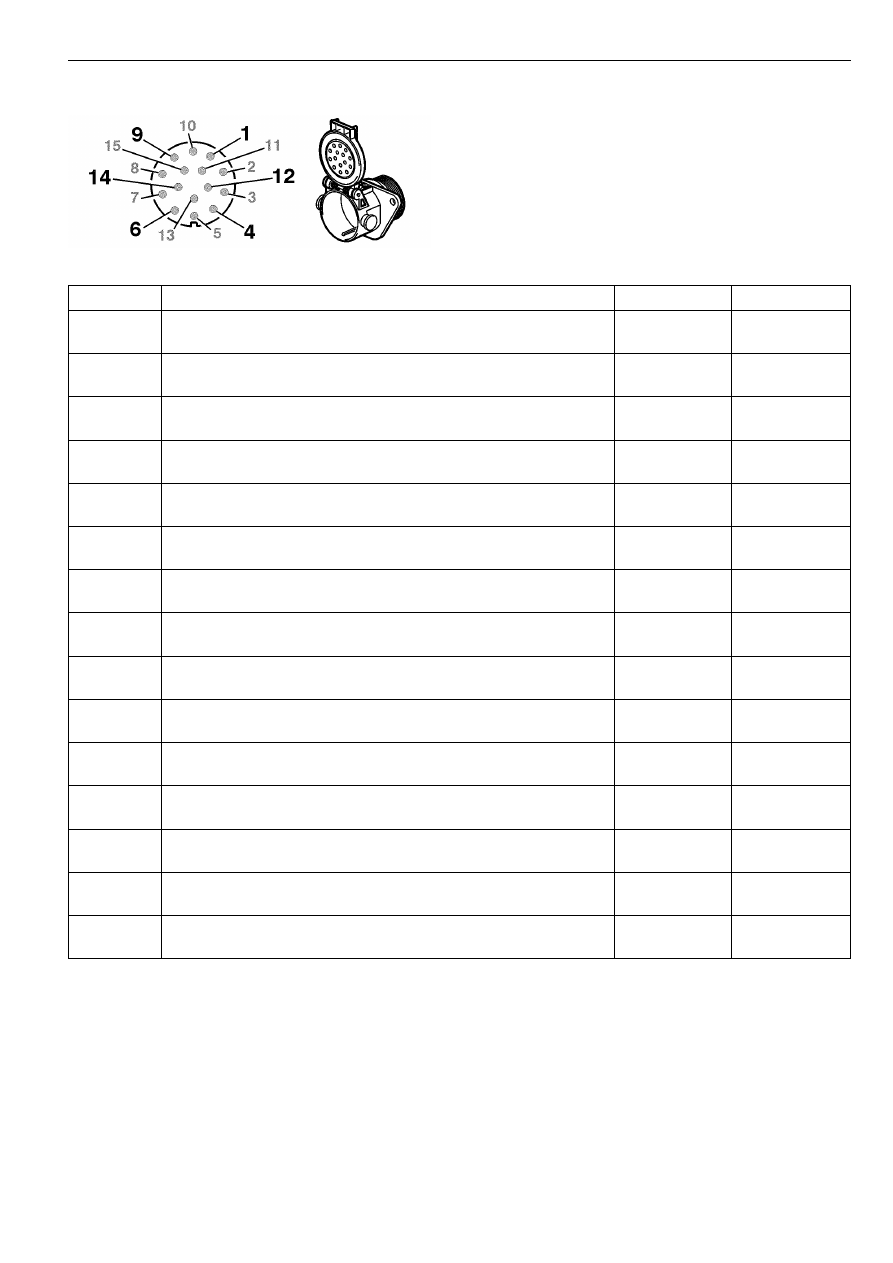

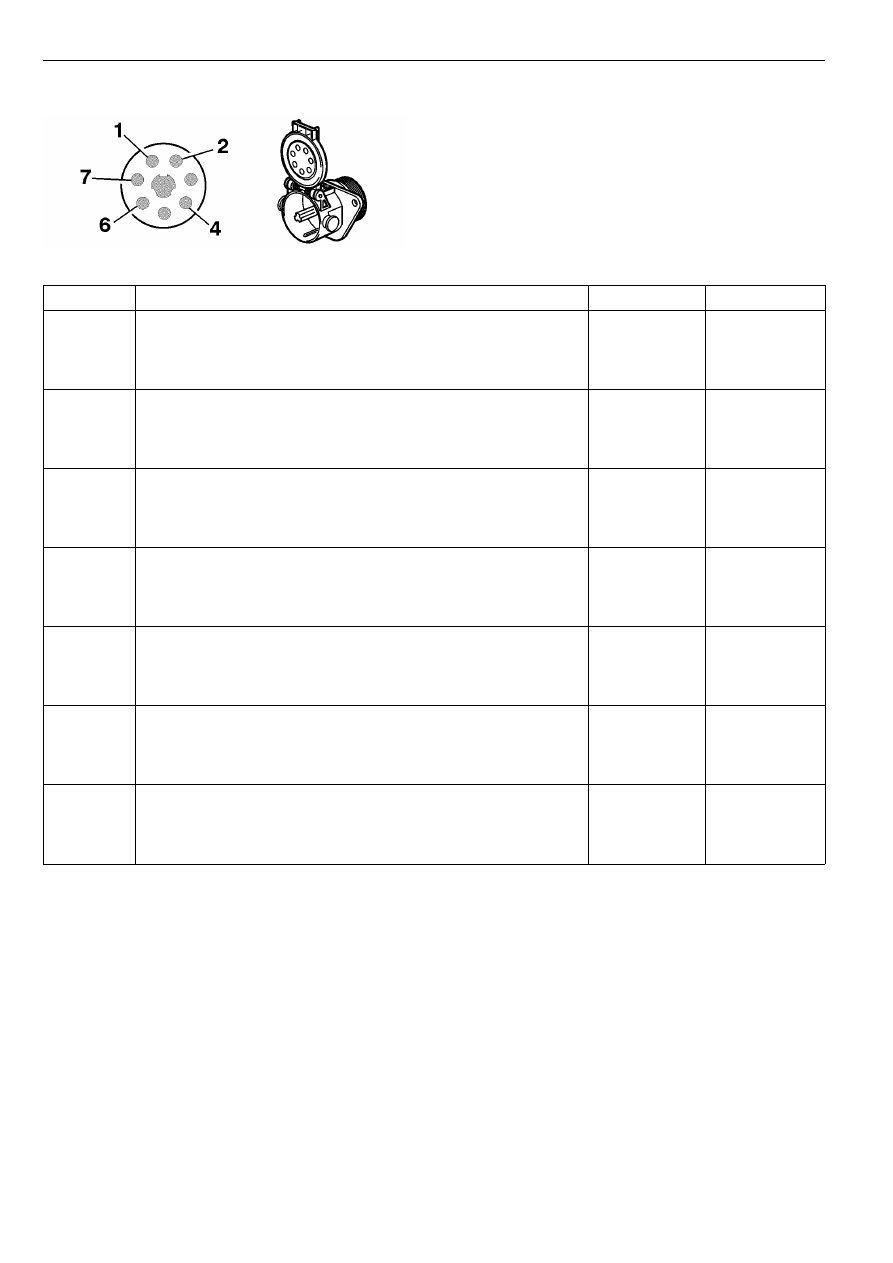

X02
T3019932
Pin no:
Circuit function
Colour
Diagram
1
Power supply kl. 30
OR
GG:4 E/
GH:3 D/
GK:3 E/
GR:3 E
2
Power supply kl. 15
GR
GG:3 E/
GH:3 D/
GK:3 E/
GR:2 E
3
Ground
W
GG:3 E/
GH:3 D/
GK:3 E/
GR:2 E
4
Ground
W
GG:3 E/
GH:3 D/
GK:3 E/
GR:2 E
5
ABS trailer status
BN
GG:3 E/
GH:3 D/
GK:3 E/
GR:3 E
6
Trailer CAN bus A
P
GG:3 E/
GH:3 D/
GK:4 E/
GR:3 E
7
Trailer CAN bus B
VO
GG:3 E/
GH:3 D/
GK:4 E/
GR:3 E

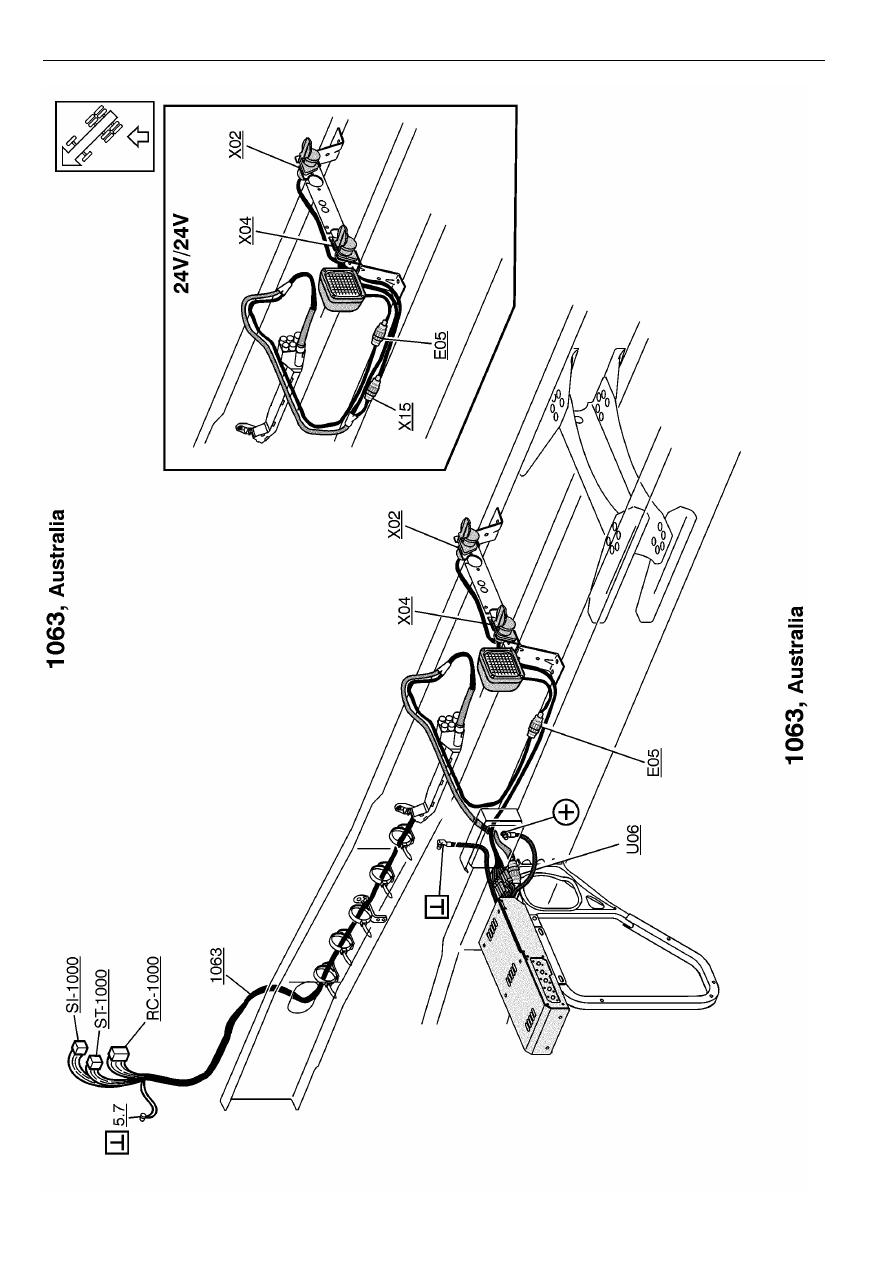

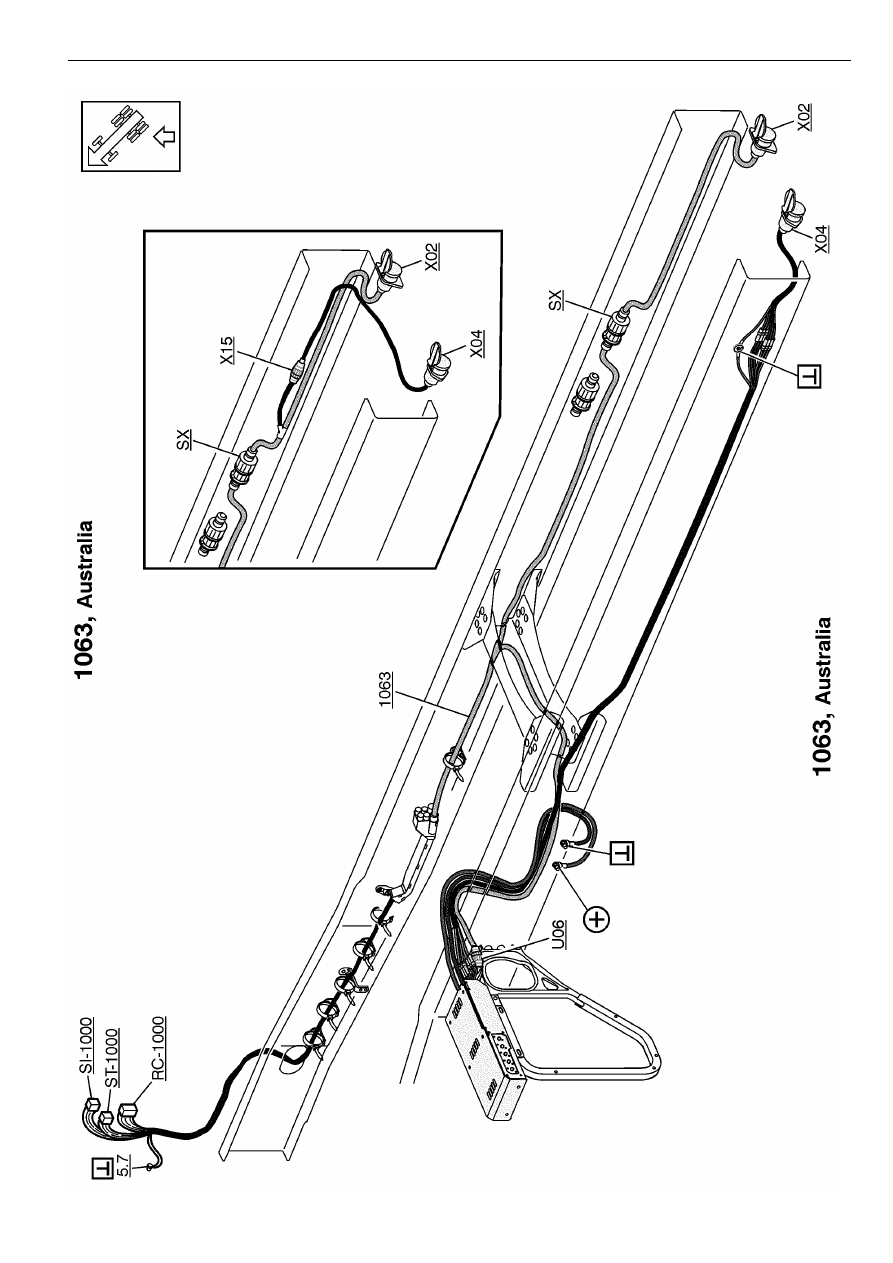

174
