Sun visor adjustment:

Flip the sun visor down toward the windshield.

Lift out of mounting and move toward the doors

⇒

fig. 87

(1)

Rotate the sun visor toward the door.

Vanity mirror and lighting

A vanity mirror is behind a cover in the sun visor. When the cover is slid open

(2)

, the light comes on.

The light goes out when you shut the cover or if you flip the sun visor up again.

The vanity mirror light goes out after several minutes. This helps to prevent unnecessary drain on

the vehicle battery.

Windshield made of heat-insulating glass

Fig. 89 Heat-reflective windshield with communications window (blue shaded area).

Please first read and note the introductory information and heed the WARNINGS

Windshields made of insulating glass have a transparent metallic infrared-reflecting coating. There is

an uncoated area (communications window) just above the inside rear view mirror

⇒

fig. 89

. This

serves as a communications window for transmitting signals to and from electronic components and
accessories.

The uncoated area must not be blocked on the inside or outside or covered with stickers because this
can cause the electronic components to malfunction.

Rear side window sunshade

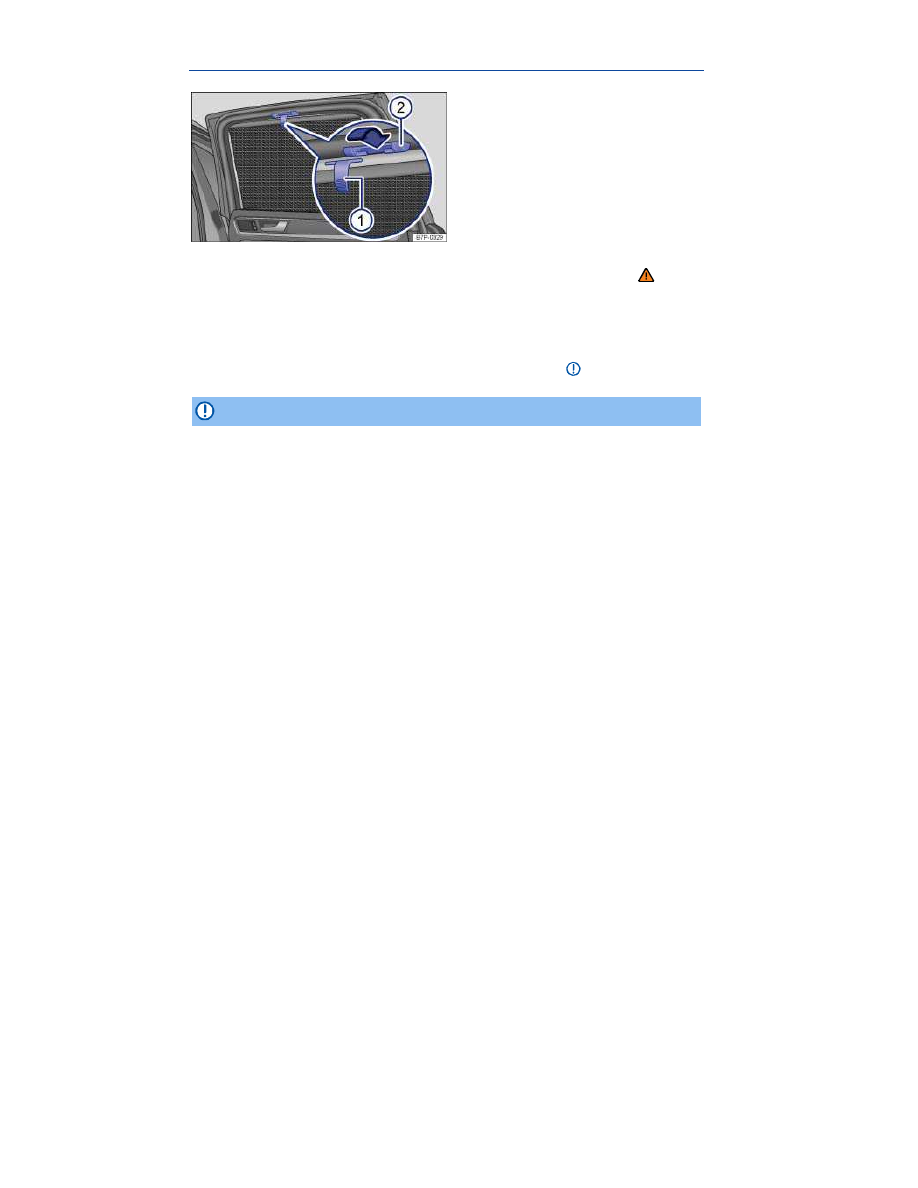

Fig. 90 Sunshade in the rear right window.

Please first read and note the introductory information and heed the WARNINGS

The sunshades for the rear side windows are integrated into the side trim of the respective window.

Pull the sunshade all the way up by the projecting handle

⇒

fig. 90

(1)

Insert each eye of the handle into the corresponding mount

(2)

. Make sure that the extended

sunshade is safely hooked into both mounts

(2)

Unhook the sunshade at the top and guide it down to retract the blind

⇒ .

NOTICE

To help prevent damage to the shade or the interior rim, do not let the sunshade retract “quick-
ly.”

Windshield wiper and washer

Introduction

In this section you’ll find information about:

Indicator lights

Windshield wiper lever

Windshield wiper functions

Windshield wiper service position

Rain sensor

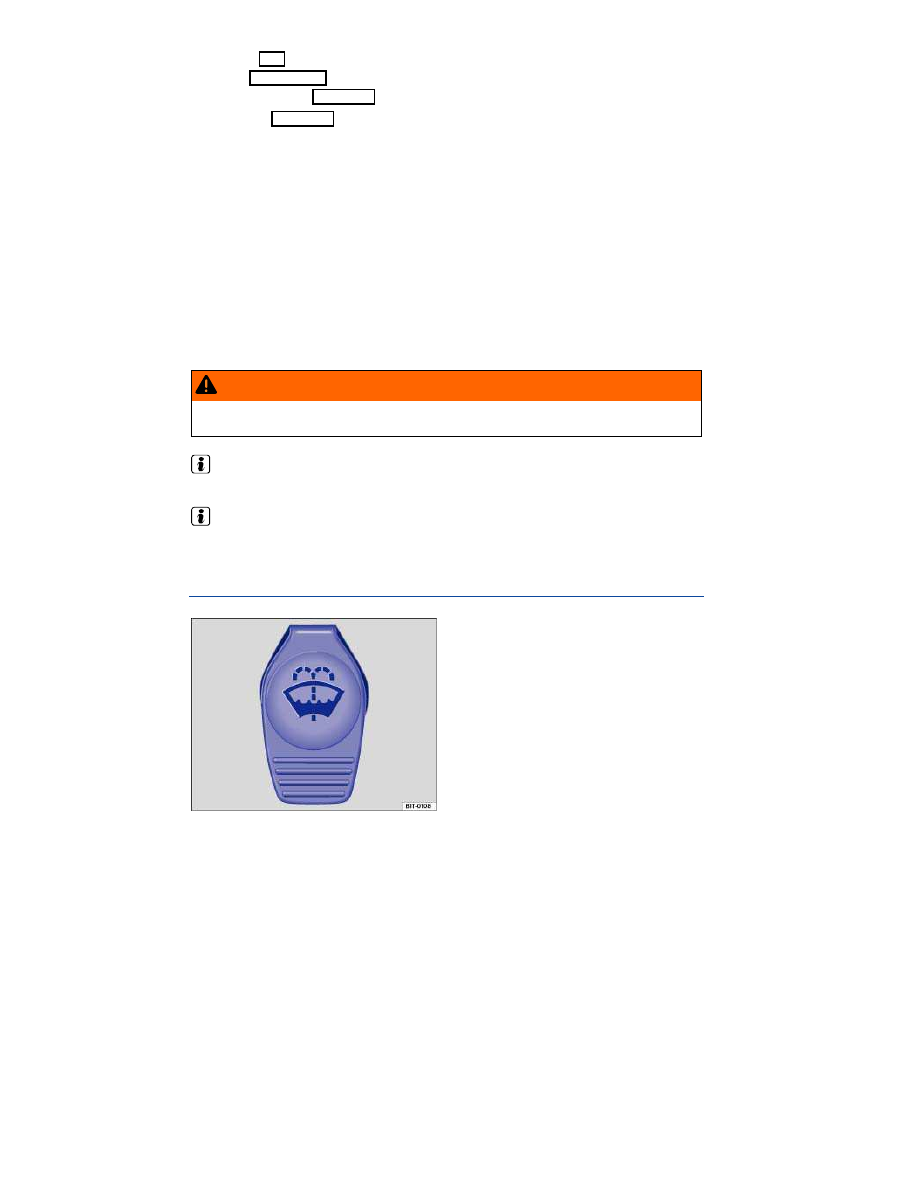

Checking and refilling windshield washer fluid

More information:

  Exterior views
  Climate control
  Working in the engine compartment
  Exterior care and cleaning

WARNING

Windshield washer fluid without enough frost protection can freeze on the windshield and
reduce visibility.

Use the windshield washer system with enough frost protection for winter temperatures.
Never use the windshield wipers/washers when it is freezing without first defrosting the

windshield. The washer solution may freeze on the windshield and reduce visibility.

WARNING

Worn or dirty wiper blades reduce visibility and increase the risk of accidents and severe
injuries.

Always replace wiper blades that are worn, damaged, or do not keep the windshield clear.

NOTICE

To help prevent damage to the wiper blades and the wiper motor when it is cold outside, al-
ways make sure that blades are not frozen to the windshield before operating the wipers. Using
the windshield wiper service position can be helpful in cold weather, so the wipers do not

freeze to the windshield

⇒ Windshield wiper service position.

Indicator lights

Please first read and note the introductory information and heed the WARNINGS

Lights

Possible cause

Proper response

Rain sensor malfunction.

Switch ignition off and on again.
If the indicator light comes on
again and stays on, contact an
authorized Volkswagen dealer or
an authorized Volkswagen Ser-
vice Facility

Windshield and/or rear win-
dow wiper malfunction.

Switch ignition off and on again.
If the indicator light comes on
again and stays on, contact an
authorized Volkswagen dealer or
an authorized Volkswagen Ser-
vice Facility

Windshield and rear window
washer fluid level too low.

Refill windshield washer reservoir
at the next opportunity

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.

NOTICE

Failure to heed warning lights or text WARNINGS can result in vehicle damage.

Windshield wiper lever

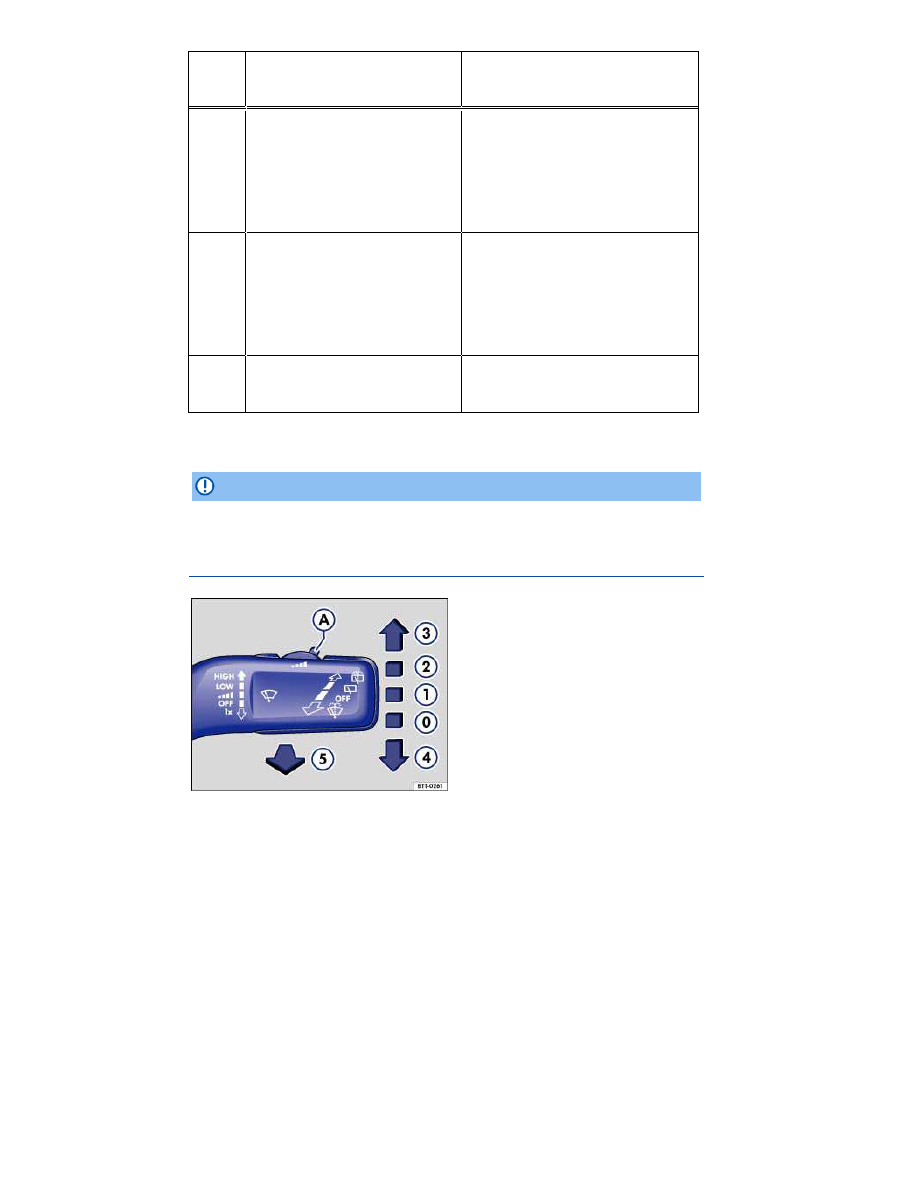

Fig. 91 Operating the front windshield wiper.

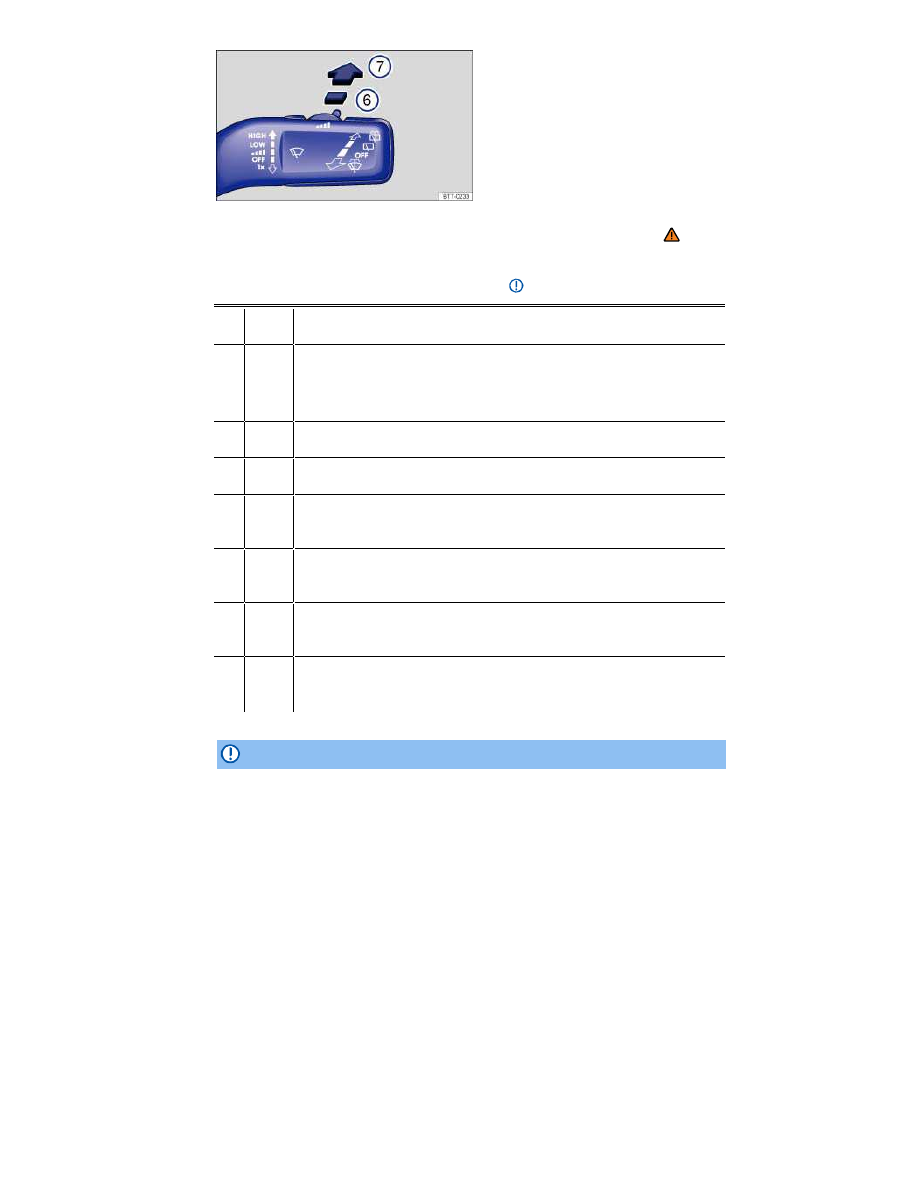

Fig. 92 Operating the rear wiper.

Please first read and note the introductory information and heed the WARNINGS

Move the lever to the desired position

⇒ :

(0)

OFF Wiper switched off.

(1)

Intermittent wiping for the windshield. Adjust the interval set-

tings with switch

⇒

fig. 91

(A)

(vehicles without rain sensors) or

the sensitivity of the rain sensor (vehicles with rain sensors).

(2)

LOW Slow wiper speed (speed 1).

(3)

HIGH Fast wiper speed (speed 2).

(4)

Tap and release lever for one wipe cycle at speed 1. Push
lever down longer for speed 2 wipe cycle.

(5)

Pull the lever toward the steering wheel to activate the wind-

shield washers, then release.

(6)

Intermittent wiping for the rear window. The wiper wipes about

every 6 seconds.

(7)

Press the lever forward as far as it will go to activate the rear
window washers, then release.

NOTICE

To help prevent damage to the wiper blades and the wiper motor when it is cold outside,

always make sure that blades are not frozen to the windshield before operating the wipers.
Using the service position can be helpful in cold weather so the wipers do not freeze to the

windshield

⇒ Windshield wiper service position.

If the ignition is switched off while the wipers are running, the wipers will continue at the

same wiping speed when the ignition is switched on again. Frost, ice, snow, leaves, and other
objects on the windshield can damage the wipers and the wiper motor.

Remove snow and ice from the wipers before you begin driving.
If the wiper blades freeze to the windshield, loosen them carefully. Volkswagen recom-

mends using a deicing spray.

NOTICE

Never switch on the windshield wipers when the windshield is dry because the windshield can
be scratched.

The windshield wipers work only if the ignition is switched on and the engine hood is closed. The

windshield wipers turn off automatically when the engine hood is opened. The rear windshield wipers
turn off automatically when the rear hatch is opened.

If the front wipers are on, the rear wiper is switched on automatically whenever the car is put into

reverse.

If the windshield wiper lever is in the rear window intermittent wiping position

⇒

fig. 92

(6)

when

the ignition is switched off and back on or the engine is started, rear window wiper action does not
resume until the windshield wipers are activated. This is to keep the wiper from working when the
window is dry. By switching rear window intermittent wiping off and then back on, you can override this
feature and activate the rear window wiper immediately.

The intermittent wiping for the front windshield depends on the driving speed. The higher the

speed, the faster the wipers move.

If the wiper blades freeze to the windshield, loosen them carefully. Volkswagen recommends

using a deicing spray.

If the front wipers are on, the rear wiper is switched on automatically when backing up.

Windshield wiper functions

Please first read and note the introductory information and heed the WARNINGS

Wiper performance in different situations:

When the vehicle is not
moving:

The wiper speed changes temporarily to the
next lower speed.

Wiper performance in different situations:

During automatic
wipe/wash:

While the washer system is working, the
climate control system switches to recircula-
tion for about 30 seconds to help prevent the
washer fluid odor from entering the vehicle
interior.

During intermittent wiping: Speed-dependent interval control: The high-

er the vehicle speed, the faster the wipers
move.

Heated washer nozzles

The heating thaws frozen washer nozzles, but not the fluid supply hoses. When the ignition is switched
on, the heat applied to the washer nozzles is automatically regulated depending on the outside air
temperature.

Headlight washer system

The headlight washer system cleans the headlight lens.

If the ignition and the headlights (high or low beams) are switched on, the headlights are cleaned the
first time and every fifth time the front windshield washers are activated. This happens only when the
low or high beams are on when the windshield wiper lever is pulled towards the steering wheel. How-
ever, the headlights must still be washed by hand periodically (for instance, during fueling) in order to
get rid of hard-to-remove dirt (like insect splatter).

To help make sure that the headlight washer system works during winter weather, always keep the
headlight washer nozzles free of snow and remove any ice with a deicer spray before driving. Use a
deicer spray to remove any ice.

If there is something on the windshield, the wiper will try to wipe it away. If it continues to block

the wiper, the wiper will stop moving. Remove the obstacle and switch the wiper on again.

Windshield wiper service position

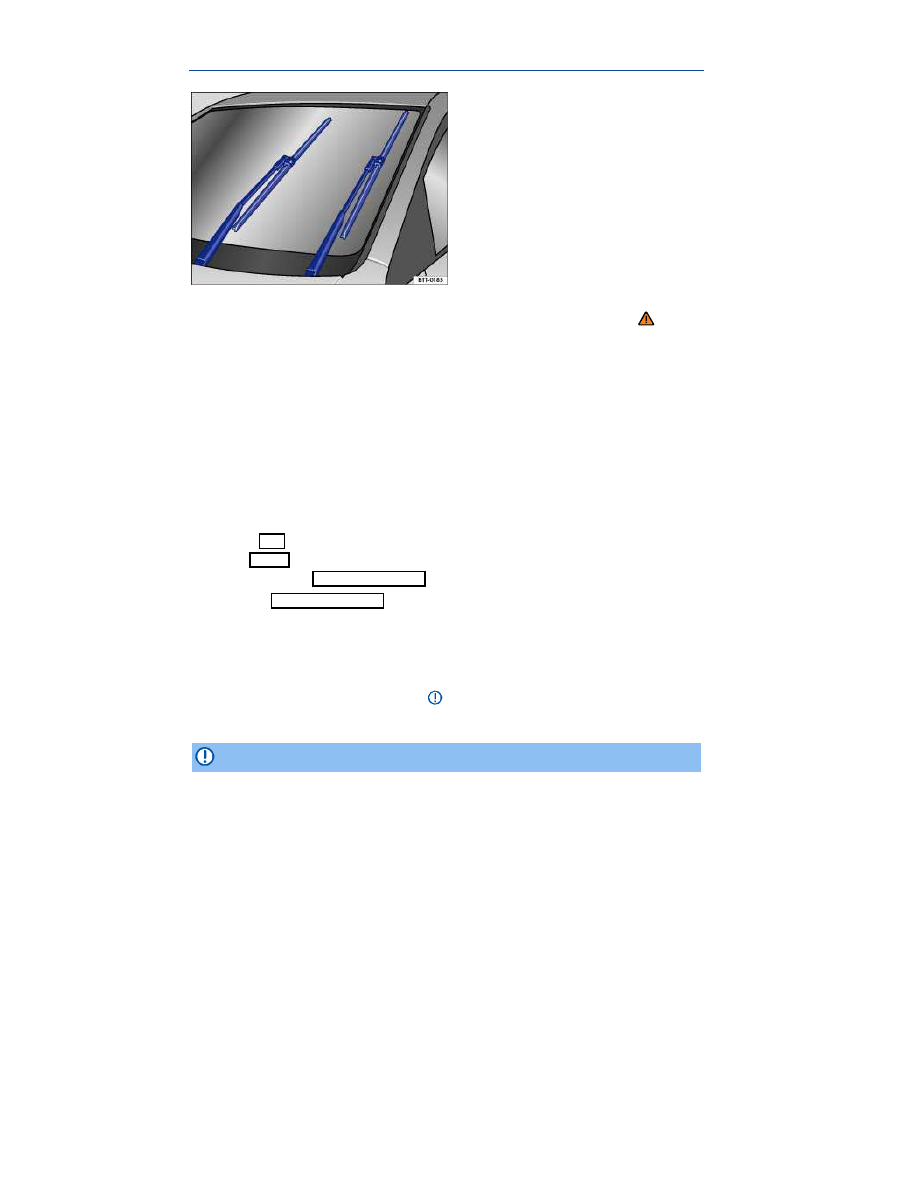

Fig. 93 Windshield wiper in service position.

Please first read and note the introductory information and heed the WARNINGS

In the service position, the wiper arms can be lifted away from the windshield

⇒

fig. 93

. The wipers are

moved to the service position as follows:

Manual activation of service position

The engine hood must be closed

⇒ Working in the engine compartment.

Switch the ignition off, turn it on briefly, and then off again.

Press the windshield wiper lever down briefly

⇒

fig. 91

(4)

when the ignition is off.

Wipers move into service position.

Activating service position in the Infotainment System

The engine hood must be closed

⇒ Working in the engine compartment.

Switch on the ignition.

Press the

CAR

Infotainment button.

Tap the Service function key on the screen.

Tap the function key Wipers in service pos. to activate or deactivate the service position.

If the box in the Wipers in service pos. function key is checked , the feature is switched on
⇒

fig. 316

Fold the wiper arms back onto the windshield before driving! The wiper arms will move back to their
original position after driving off or when the windshield wiper lever is activated.

Lifting and the wiper blades and tilting them away from the windshield

Put the wiper arms to the service position

⇒ .

Do not touch the wiper blades; grasp the wiper arms only at the bracket above the wiper blades.

NOTICE

To help prevent damage to the engine hood and the windshield wiper arms, lift the wiper

arms away from the windshield only when they are in the service position.

Always carefully fold the windshield wiper arms down against the windshield before driving

the vehicle

Rain sensor

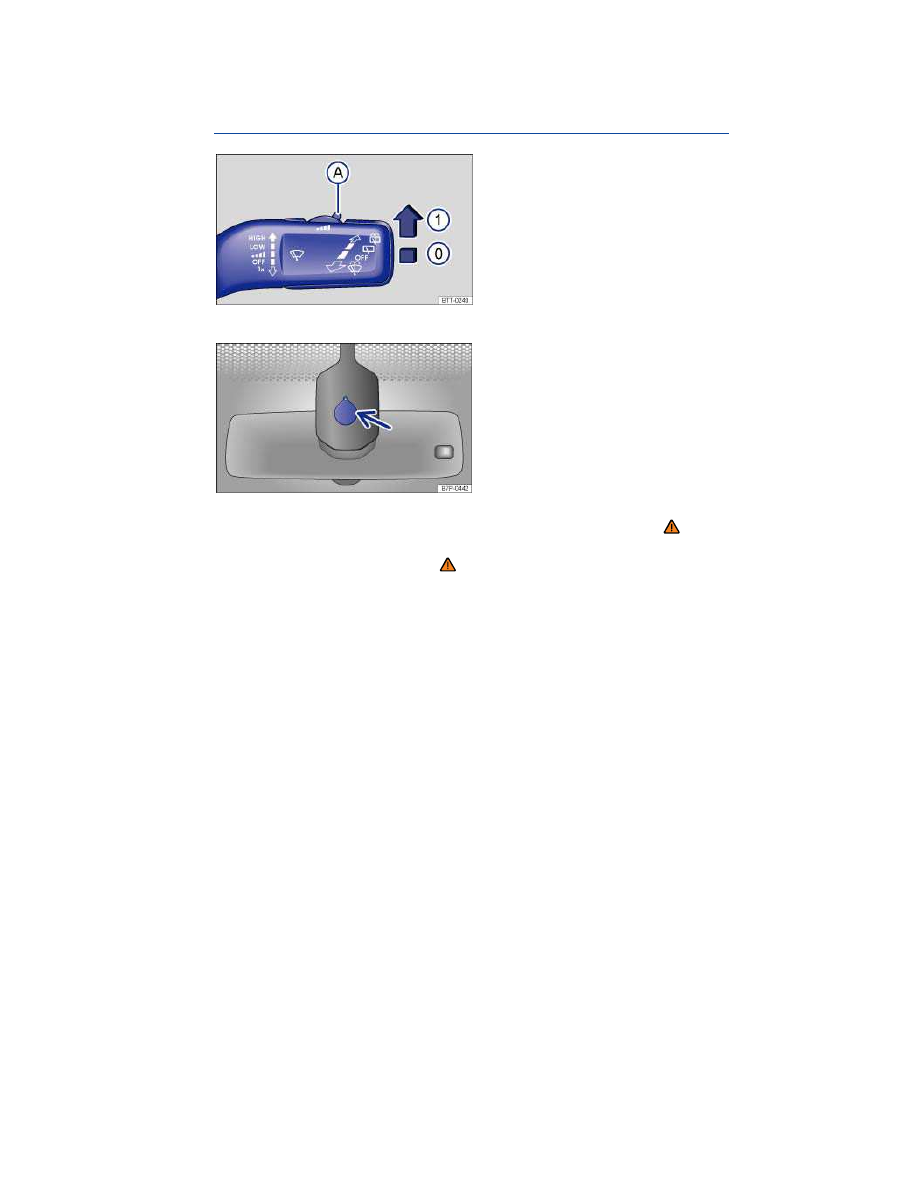

Fig. 94 Windshield wiper lever: Adjusting rain sensor A.

Fig. 95 Sensitive rain sensor surface.

Please first read and note the introductory information and heed the WARNINGS

When switched on, the rain sensor automatically shortens or lengthens the delay between wiping

cycles depending on how hard it is raining

⇒ . The rain sensor's sensitivity can be adjusted manual-

ly. Manual wiping (vehicles without rain sensors)

⇒ Windshield wiper lever.

The rain sensor has to be enabled in the Infotainment System.

Push the lever into the desired position

⇒

fig. 94

(0)

Rain sensor off (windshield wiper lever home position).

(1)

Rain sensor active – automatic wiping as needed.

(A)

Adjusting the sensitivity of the rain sensor:

Move switch to the right – high sensitivity.

Move switch to the left – low sensitivity.

After switching the ignition off and back on again, the rain sensor stays on and works again with the
wiper lever in position

(1)

when the vehicle speed is over 10 mph (16 km/h).

Even if the rain sensor is disabled, it is still necessary to reach this speed to reactivate the wipers
when the windshield wiper lever is in the intermittent wiping position. The wipers then wipe at fixed
intervals instead of wiping as needed, as they do in rain sensor mode.

Enabling and disabling the rain sensor in the Infotainment System

Switch on the ignition.

Press the

CAR

Infotainment button.

Tap the Assist systems function key on the screen.

Tap the function key Rain sensor to enable or disable the rain sensor.

If the box in the Rain sensor function key is checked , the feature is enabled.

Possible reasons for changes in the way the rain sensor works

The rain sensor may misread what is happening in the detection zone of its sensitive rain-sensor

surface

⇒

fig. 95

(arrow) and not work for a number of reasons, which include:

Worn out wiper blades: Worn out wiper blades may leave a film of water or wiping streaks; this can

cause the wipers to run longer, to wipe more often, or to wipe continuously at high speed.

Insects: Insects hitting the sensor cause wiping.
Salt streaks: Salt streaks on the windshield from winter driving can cause wiping more often or

continuously on glass that is almost dry.

Dirt: Caked-on dust, wax, any other buildup on the windshield (lotus effect), or car-wash detergent

residue can lower the rain sensor's sensitivity and cause it to react too slowly or not at all.

Crack in the windshield: If a stone hits and chips the sensitive surface while the rain sensor is on,

this will trigger a wiper cycle. After that, the rain sensor will recognize the change and recalibrate itself
to respond to the smaller detection zone. Depending on the size of the chip, the sensor's reaction
pattern may or may not change.

WARNING

The rain sensor cannot always recognize rain and activate the wipers.

Switch the wipers on manually when water on the windshield reduces visibility.

Clean the sensitive area of the rain sensor regularly and check the wiper blades for wear or

damage.

To remove wax and coats of polish safely, we recommend using an alcohol-based windshield

cleaner.

Checking and refilling windshield washer fluid

Fig. 96 In the engine compartment: Cap of the windshield washer fluid reservoir.

Please first read and note the introductory information and heed the WARNINGS

Check the windshield washer fluid level regularly and refill as necessary.

There is a filter screen in the filler neck of the windshield washer fluid reservoir. The screen helps to
keep large particles and debris from getting into and clogging the windshield washer nozzles when
adding windshield washer fluid. Take the screen out only to clean it. If the screen is damaged or
missing, have it replaced immediately, otherwise the system may become clogged and not work
properly.

Open the engine hood

The windshield washer fluid reservoir can be identified by the symbol on its cap

⇒

fig. 96

Check if there is still enough windshield washer fluid in the reservoir.

Refill with an appropriate windshield washer fluid that is recommended by Volkswagen

⇒ .

Follow the directions on the container.

In cold weather, always use a special windshield washer antifreeze solution that will help keep the

water from freezing

⇒ .

Recommended cleaners

For the warmer months, Windscreen Clear SummerG 052 184 A1 or equivalent. Mixing ratio

1:100 (1 part concentrate to 100 parts water) in the windshield washer reservoir.

All-season Windscreen ClearG 052 164 A2 or equivalent. the mixing ratio in winter to 0 °F (-18 °C)

about 1:2 (1 part concentrate to 2 parts water), otherwise, mixing ratio 1:4 in the windshield washer
reservoir.

Filling capacity

The windshield washer fluid reservoir holds about 4.5 liters; in vehicles with a headlight washer system
about 8 qts (7.5 liters).

WARNING

Never mix antifreeze or similar additives into the windshield washer reservoir. This could
produce an oily film on the windshield, which would considerably reduce visibility.

Use clear water with a cleaning solution recommended by Volkswagen.

If necessary, blend with a suitable windshield washer fluid antifreeze agent.

NOTICE

Never mix cleaning solutions recommended by Volkswagen with other cleaning agents. If

you do, this could cause sediments or other by-products that can clog the windshield wiper
nozzles.

When refilling, do not confuse one type of operating liquid with another! Otherwise serious

malfunctions and engine damage can occur!

Mirrors

Introduction

In this section you’ll find information about:

Inside mirror

Outside mirrors

For your driving safety, it is important that you properly adjust the outside mirrors and the inside mirror

before you start driving

⇒ .

The outside mirrors and the inside mirror help you see and adapt your driving to traffic behind you.
Remember that the inside and outside rearview mirrors will not show everything behind you. There
can be blind spots. Blind spots can be significantly larger if the mirrors are not properly adjusted.

More information:

  Exterior views
  Volkswagen Information System
  Adjusting the seating position
  Memory seats
  Shifting gears
  Braking and parking

WARNING

Adjusting mirrors when the vehicle is moving can cause driver distraction, accidents, and
serious personal injury.

Always adjust the rearview mirrors when the vehicle is not moving.
Always be aware of what is happening around the vehicle when changing lanes, passing,

turning, or parking. Another vehicle, pedestrian, or object could be in your blind spot.

Always make sure mirrors are properly adjusted and the view to the rear is not reduced by

moisture, ice, snow, or other things.

WARNING

Auto-dimming mirrors contain an electrolyte fluid which can leak if the mirror glass is broken.
Electrolyte fluid can irritate the skin, eyes, and respiratory system.

Repeated or prolonged exposure to electrolyte fluid can irritate the respiratory system,

especially among people with asthma or other respiratory conditions. Get fresh air immedi-
ately by leaving the vehicle or, if that is not possible, open windows and doors all the way.

If electrolyte fluid gets into the eyes, flush them thoroughly with large amounts of clean

water for at least 15 minutes; medical attention is recommended.

If electrolyte fluid contacts skin, flush affected area with clean water for at least 15

minutes and then wash affected area with soap and water; medical attention is recommend-
ed. Thoroughly wash affected clothing and shoes before reuse.

If swallowed, and the person is conscious, rinse mouth with water for at least 15 minutes.

Get medical attention immediately. Do not induce vomiting unless instructed to do so by a
medical professional.

NOTICE

Broken glass in the auto dimming mirrors can cause electrolyte fluid leakage. Liquid electro-
lyte leaked from a broken mirror glass will damage any plastic surfaces it comes in contact
with. Clean up spilled electrolyte fluid immediately with clear water and a sponge.

Inside mirror

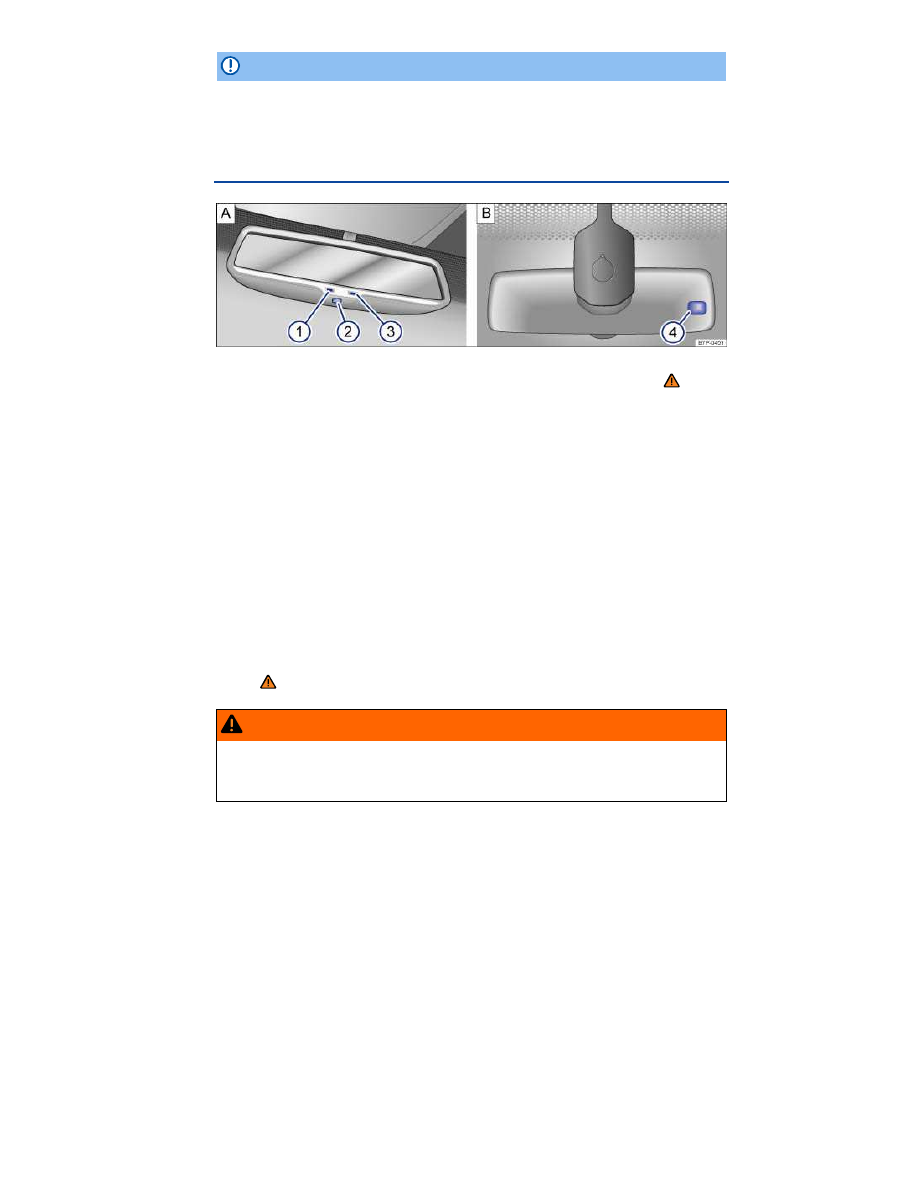

Fig. 97 Auto-dimming inside mirror (if applicable).

Please first read and note the introductory information and heed the WARNINGS

Adjust the inside mirror to make sure that there is good visibility through the rear window.

For example, visibility through the rear window could be impaired if there is a sunshade on the rear
window or clothing on the luggage compartment cover, or if the rear window is covered with ice, snow,
or dirt.

Auto-dimming inside mirror (if applicable)

Key to

fig. 97

(1)

Indicator light

(2)

Switch

(3)

Sensor for recognizing entry of light from rear

(4)

Sensor for recognizing entry of light from front

The auto-dimming feature can be switched on and off with the switch on the inside mirror

(2)

. When

auto-dimming is activated, the indicator light

(1)

is on.

If the ignition is switched on, the sensor

(3)

automatically darkens the inside mirror depending on the

amount of light shining into the vehicle from the rear.

The auto-dimming feature is deactivated when you shift the transmission into reverse or switch on the
interior lights or the reading light.

Do not attach external navigation devices to the windshield or in the vicinity of the auto-dimming inside

mirror

⇒ .

WARNING

The illuminated display on an external navigation device can cause the auto-dimming inside
mirror to malfunction, which can result in crashes and serious injuries.

Malfunctions in the auto-dimming function can result in the rearview mirror being unable

to evaluate the exact distance of vehicles in the rear or other objects.

If the light striking the sensor is filtered or blocked (such as by a sunshade), the auto-dimming

inside mirror will not work properly or may not work at all.

Outside mirrors

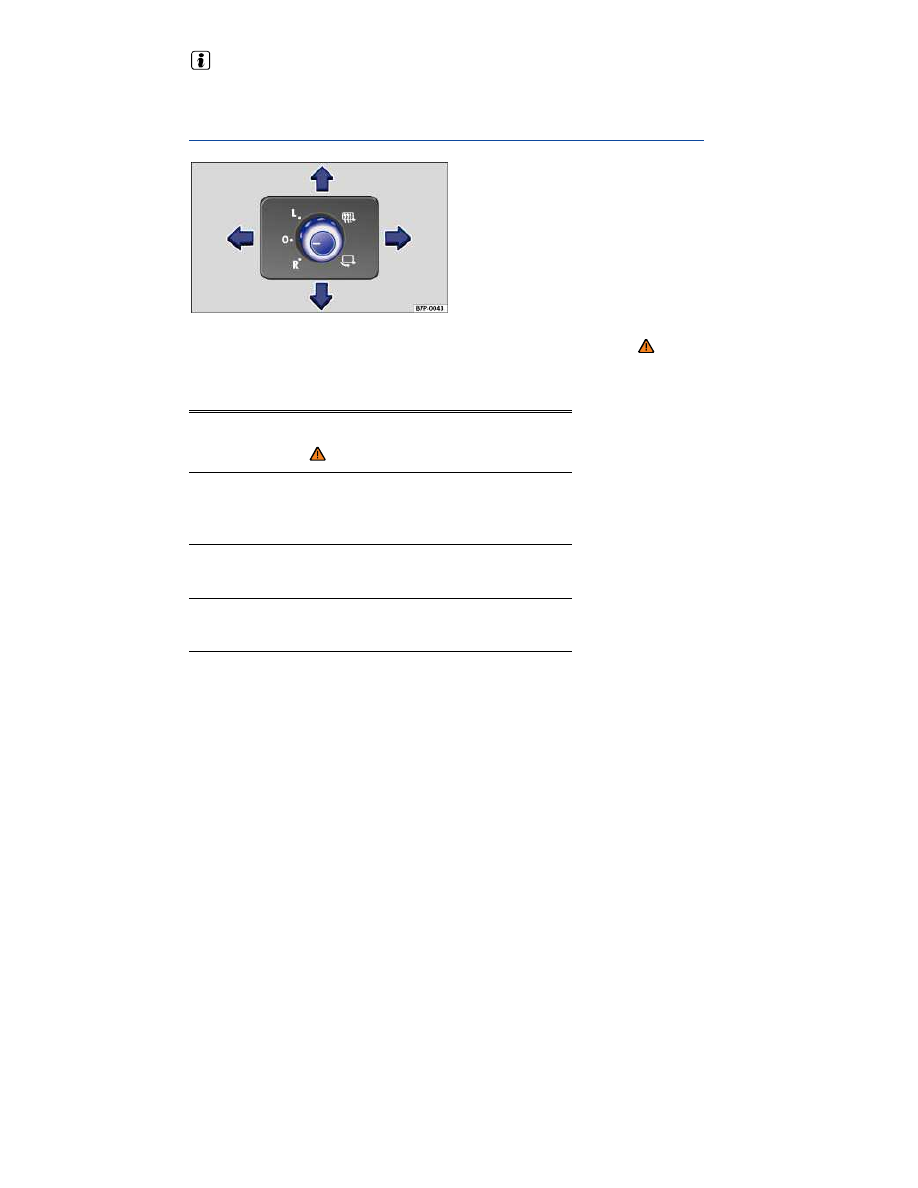

Fig. 98 In the driver door: Adjusting knob for outside mirrors.

Please first read and note the introductory information and heed the WARNINGS

Turn the rotary knob to the desired position:

Fold the outside mirror in toward the vehicle

body

⇒ .

Switch on outside mirror heating. Heats only
at outside air temperatures below +68 °F
(+20 °C).

Adjust the left outside mirror by pressing the
knob to left/right and up/down.

Adjust the right outside mirror by pressing the
knob to left/right and up/down.

Neutral position. Outside mirror folded out, no
heating or adjustment possible.

Memory for front passenger side mirror (when backing up)

  Choose the remote control vehicle key that will be used with the settings about to be made.
  Unlock the vehicle with that remote control key.
  Set the electronic parking brake.
  Shift the transmission into neutral.
  Switch on the ignition.

Press the

CAR

Infotainment button.

Tap the Settings function key on the screen.

Select Seat settings from the list.

Check the check box in the Driver seat remote control key function key.

  Shift the transmission into reverse.
  Adjust the passenger outside mirror for a clear view of the curb, for example.
  The adjusted mirror position is automatically stored and assigned to the vehicle key that used to

unlock the vehicle. The preselected position will be recalled when the key assigned to that mirror
adjustment position is used again. For vehicles with memory seat

Recalling passenger side mirror settings

Turn the adjusting knob for the side mirrors to the R position.

Shift the transmission into reverse gear with the ignition switched on.
The mirror moves back to the regular position when the vehicle moves forwards faster than about

10 mph (15 km/h) or the adjusting knob is turned to the O or L position.

WARNING

Improper use of the folding outside mirrors can cause personal injury.

Always make sure that nobody is in the way when folding the mirrors in or out.
Make sure that you do not get your finger caught between the mirror and the mirror base

when moving the mirrors.

WARNING

Incorrectly estimating distances with the right outside mirror can cause collisions and seri-
ous injury.

The right outside mirror has a convex (curved) surface. This widens your field of vision.

But vehicles or other objects seen in a convex mirror will look smaller and farther away than
they really are.

If you use the right outside mirror to judge distances from vehicles behind you when

changing lanes, you could estimate incorrectly and cause a crash and serious injuries.

Whenever possible, use the inside mirror to more accurately judge distance and size of

vehicles or other objects seen in the convex mirror.

Always make sure you have a clear view to the rear of the vehicle.

NOTICE

Always fold in the outside mirrors when taking the vehicle through an automatic car wash.
Never fold power mirrors in manually because doing so could damage the electrical drive.

To reduce fuel consumption, use outside mirror heating only when needed.

When first switched on, outside mirror heating works with maximum heat for about 2 minutes.

If power mirror adjustment does not work, the outside mirrors can be adjusted by hand by press-

ing on the edges of the mirror surface.

Driving tips

Introduction

In this section you’ll find information about:

Stowing luggage

Driving with an open rear hatch

Driving a loaded vehicle

Weights and axle weights

Always stow heavy objects in the luggage compartment and make sure that the rear seat backrests
are securely latched. Always use the tie-downs in the luggage compartment and secure the objects
with suitable straps. Never overload the vehicle. Remember that the vehicle load, as well as how it is

distributed, can affect vehicle handling and braking

⇒ .

More information:

  Rear hatch
  Lights
  Luggage compartment
  Folding down the passenger seat backrest
  Roof rack
  Trailer towing
  Tires and wheels

WARNING

Unsecured or incorrectly stowed items can fly through the vehicle, causing serious personal
injury during hard braking or sharp steering or in an accident. Loose items can also be struck
and thrown through the passenger compartment by the front airbags if they inflate. To help
reduce the risk of serious personal injury:

  Always stow all objects securely in the vehicle.
  Always keep storage compartments closed while driving.
  Do not stow hard, heavy, or sharp objects in open bins in the vehicle or on top of the in-

strument panel.

Remove hard, heavy, and sharp objects from clothing and bags in the vehicle interior and

stow securely. Always put heavy items in the luggage compartment.

Always secure objects in the passenger compartment properly with suitable straps so that

they cannot move into the deployment area of a side or front airbag during braking in a sud-
den maneuver, or in a collision.

Always make sure that there is nothing on the front passenger seat when the backrest is

folded forward. When the backrest is folded forward, even light objects could be pushed into
the seat cushion and cause the weight-sensing mat in the seat to register enough weight to
turn the airbag on.

Always make sure that the PASSENGER AIR BAG

light is on and stays on whenever

the backrest of the front passenger seat is folded forward

Passengers must never ride in an incorrect seating position because objects are being

transported in the vehicle.

Never let anybody sit in a seat that is blocked by objects being carried in the vehicle.

Volkswagen Touareg (2015 year). Instruction - part 9
