Volkswagen Tiguan (2015 year). Instruction

6. Have all passengers exit and go to a safe place, such as behind a guard rail.

7. Block the diagonally opposite wheel with chocks from vehicle tool kit or other suitable things.

8. If towing a trailer: Unhitch the trailer from the vehicle and park the trailer properly.

9. If the luggage compartment is loaded: Remove the luggage.

10. Raise and secure the luggage compartment floor.

11. If applicable: Remove the Fender Premium Audio subwoofer

⇒ Removing Fender Premium Audio

subwoofer.

12. Unscrew the fastening screw with washer counterclockwise and remove.

13. Take the compact spare wheel out of the luggage compartment.

14. If applicable: Take off the wheel covers

⇒ Wheel trim.

WARNING

Disregarding the safety-related checklist may lead to accidents and serious personal injuries.

Always review and follow the checklist. Follow accepted safety practices and use common

sense.

Wheel bolts

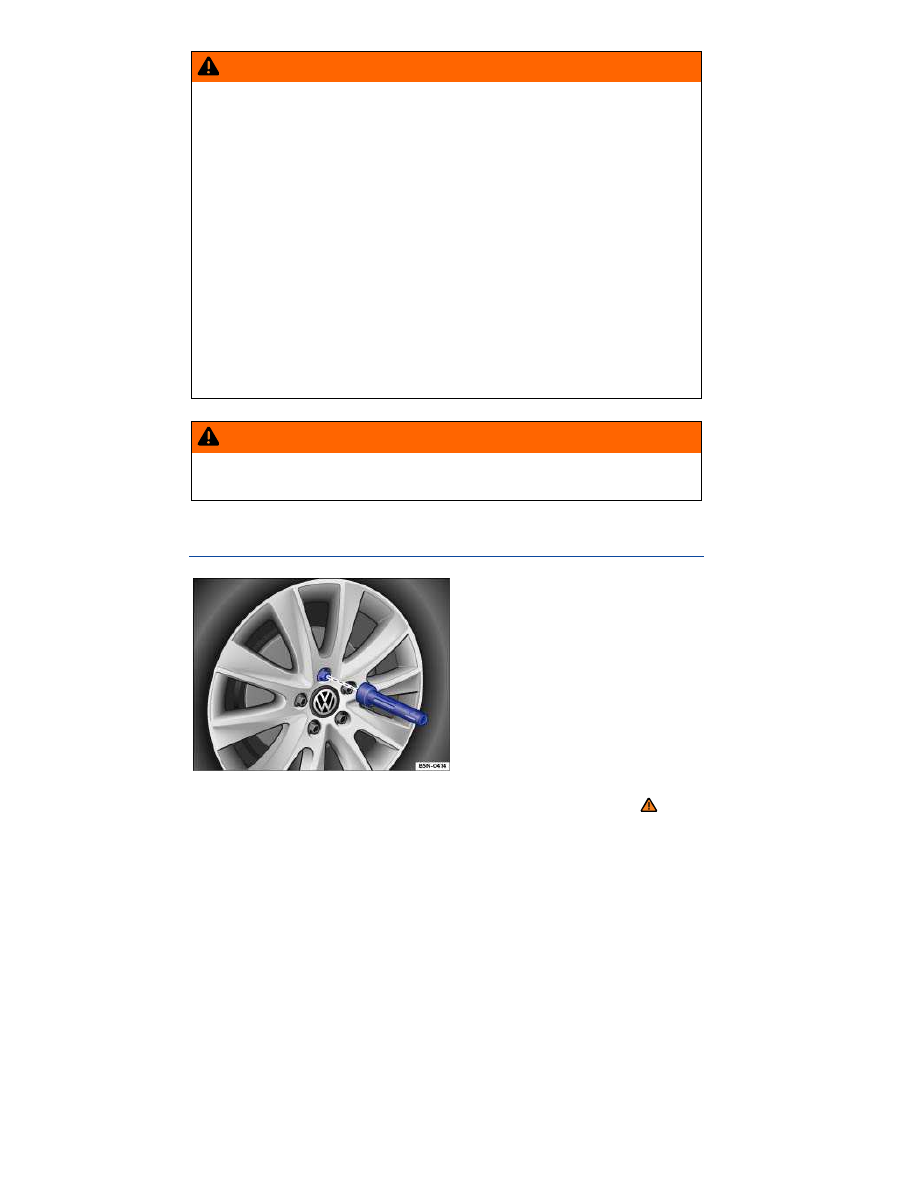

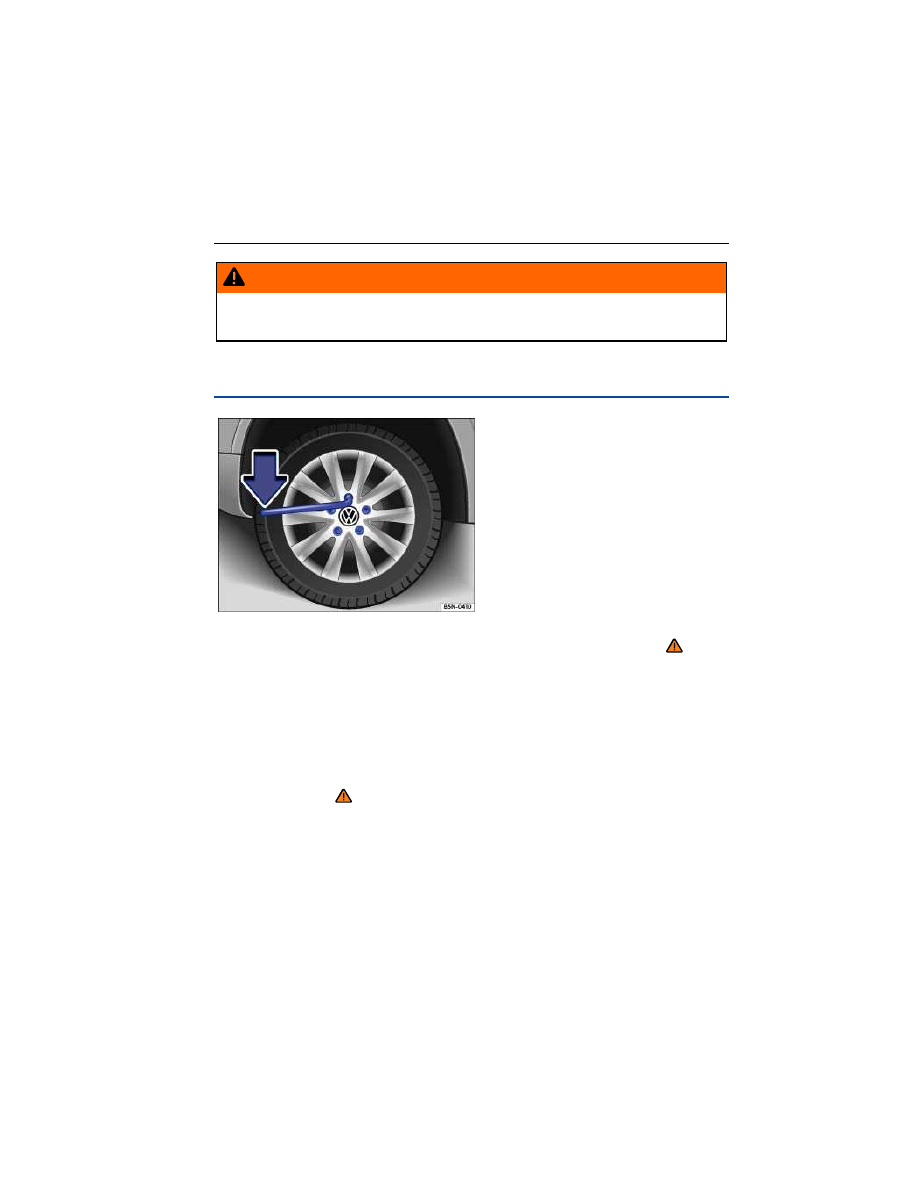

Fig. 195 Changing a wheel: Loosening wheel bolts.

Please first read and note the introductory information and heed the WARNINGS

Loosen the wheel bolts only with the lug wrench that was supplied with the vehicle.

Loosen the wheel bolts only about 1 turn before lifting the vehicle with the jack.

If a wheel bolt does not come loose, carefully push the end of the lug wrench with your foot. Make sure
you are standing firmly on the ground and hold on to the vehicle for support.

Loosening the wheel bolts

Push the lug wrench over the wheel bolt all the way

⇒

fig. 195

Holding the lug wrench at the end, loosen the wheel bolt by turning it counterclockwise about 1

complete turn (360°)

⇒

Important information regarding wheel bolts

The design of rims and wheel bolts is matched to the factory-installed wheels. If different wheels are
installed, wheel bolts with the right length and bolt head shape must be used. The attachment of the
wheels and function of the brake system depend on this.

It may not be possible to use wheel bolts from different vehicles of the same model.

Wheel bolt tightening torque

Correctly tightened bolts for steel and alloy wheel rims should have a torque of 103 ft lbs (140 Nm) for
front-wheel drive vehicles and 88 ft lbs (120 Nm) for vehicles with four-wheel drive (4MOTION). After
changing a wheel, have the wheel bolt tightening torque checked right away with an accurate torque
wrench.

Before you check the tightening torque, replace corroded and difficult-to-turn wheel bolts and clean
the threads in the wheel hub.

Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while
driving if greased or oiled, even if tightened to the required torque.

WARNING

Improperly tightened wheel bolts can come loose while driving and cause you to lose control
over the vehicle, resulting in accidents and serious injuries.

  Only use wheel bolts that belong your vehicle and to the wheel being installed.
  Never use different wheel bolts.
  Wheel bolts and wheel hub threads must always be clean, easy-to-turn and free of oil and

grease.

  Only use the lug wrench that is supplied with the vehicle to loosen the wheel bolts.
  Loosen the wheel bolts only about one turn before lifting the vehicle with the jack.
  Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come

loose while driving if greased or oiled, even if tightened to the required torque.

Never loosen bolted connections on wheel rims with bolted rim rings.
If the wheel bolts are not tightened to the proper torque, the wheel can come off the

vehicle when it is moving. Extremely high torque can damage the wheel bolts and/or their
threads.

Lifting the vehicle with the vehicle jack

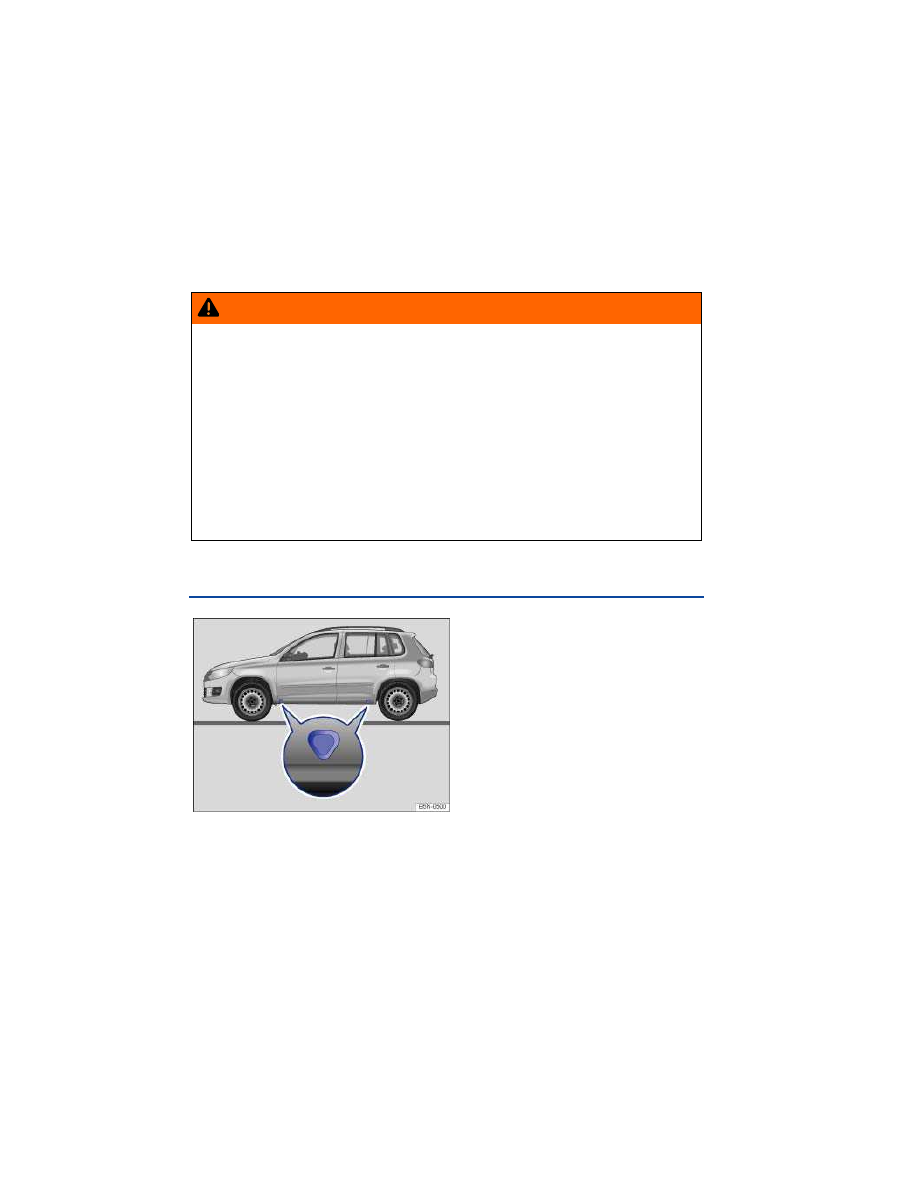

Fig. 196 Lift points for the jack.

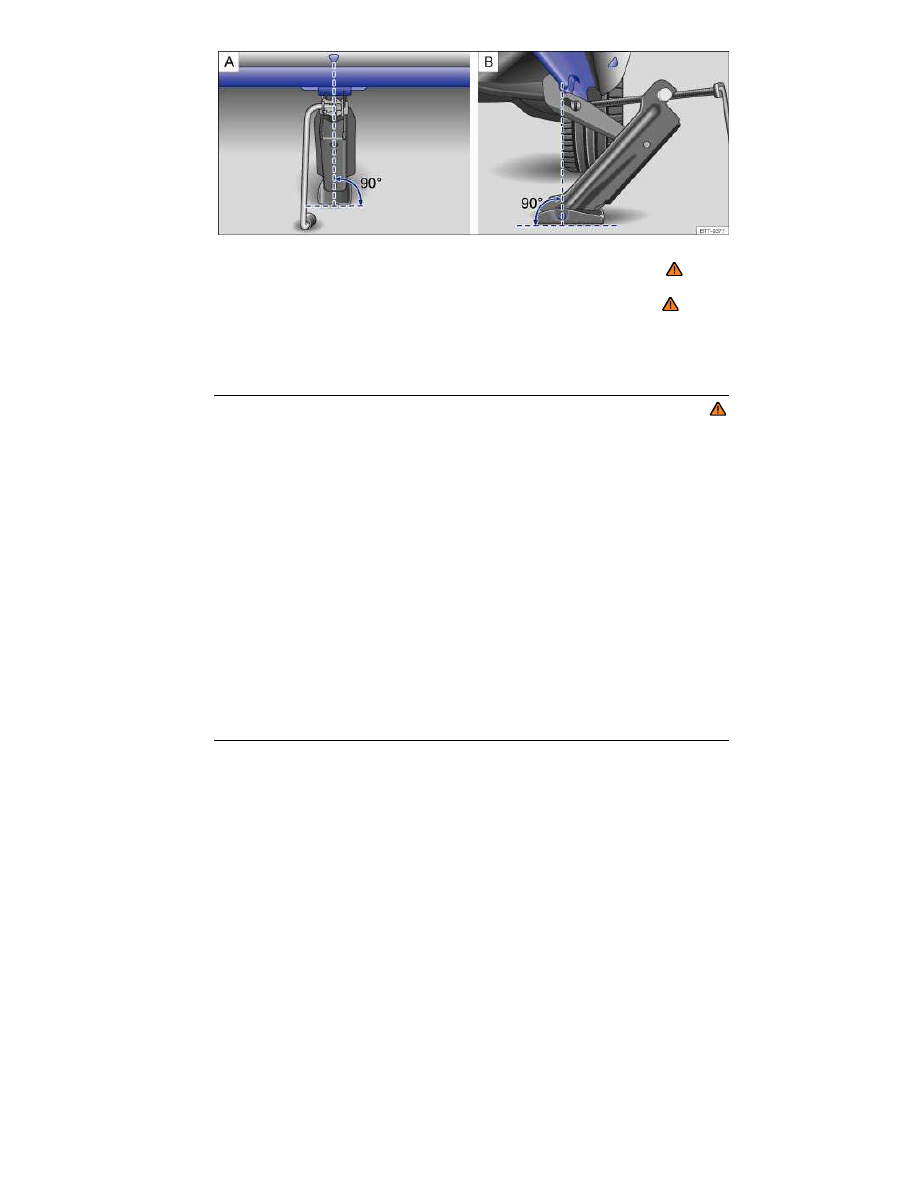

Fig. 197 Jack in position at the left rear lift point.

Please first read and note the introductory information and heed the WARNINGS

The jack must be positioned at one of the four lift points marked on the vehicle body (2 on each side

as shown in

⇒

fig. 196

). You must use the lift point closest to the wheel being changed

⇒

The vehicle may only be lifted by a jack positioned at 1 of the 4 jack lift points.

Do not jack up the vehicle until all the wheel bolts on the wheel being changed have been loosened

⇒

Wheel bolts.

Checklist

For your own safety and that of your passengers, carry out the following steps in the order listed

⇒

1. Find a level spot on firm ground for lifting the vehicle.

2. Switch off the engine. Automatic transmission: shift the transmission into Park (P), Manual

transmission only: shift into a gear

⇒ Shifting. Then apply the parking brake to help prevent the

vehicle from moving

⇒ Braking and parking.

3. If towing a trailer: Unhitch the trailer from the vehicle and park the trailer properly.

4. Straighten the steering wheel so that the front wheels point straight forward.

5. Block the diagonally opposite wheel with chocks or other suitable things.

6. Loosen the wheel bolts of the wheel to be changed

7. Remove the jack and tools from the vehicle.

8. Find the jack lift point

⇒

fig. 196

on the vehicle frame that is closest to the wheel to be changed.

9. Crank up the jack so that it still just fits underneath the lift point.

10. Position the jack so that its base is directly underneath the lift point

⇒

fig. 197

, making sure that the

entire base of the jack rests securely on the ground.

11. Align the jack and wind up the jack claw at the same time, until the claw cradles the vertical rib

underneath the vehicle

⇒

fig. 197

A / B.

12. Continue cranking up the jack until the wheel is just a little off the ground.

WARNING

Improper use of your vehicle jack can cause the vehicle to fall off the jack leading to serious
personal injury. To help reduce the risk of serious personal injury:

Use only jacks approved by Volkswagen for the vehicle. Other jacks might slip, even those

approved for other Volkswagen models, but not for your vehicle.

Always set up the jack on firm and level ground. The vehicle may slip off the jack if the

jack is resting on soft or sloping ground. If necessary place a sturdy board under the jack.

On a hard, slippery surface (such as a tiled floor), use an anti-skid rubber mat or

something similar to prevent the jack from slipping.

Position the jack only at the described vehicle lift points. Before you raise your vehicle,

always make sure the jack claw properly grips the vertical rib under the sill so that the jack

does not slip off when you are raising the vehicle

⇒

fig. 197

Never have any part of your body (such as your arm or leg) under the vehicle when it is

supported by the jack. Never let other persons have any part of their body under the vehicle,
either!

If you must work under a vehicle raised on a floor jack, always make sure that the vehicle

is safely supported on safety stands intended for that purpose that are strong enough to
support the weight of the vehicle.

  Never lift the vehicle when it is tilted or inclined to one side or the engine is running.
  Never lift the vehicle when more than one tire is flat or damaged.
  Do not start the engine while the vehicle is supported by a jack. Engine vibrations may

cause the vehicle to slip off the jack.

WARNING

Disregarding the safety-related checklist may lead to accidents and serious personal injuries.

Always review and follow the checklist. Follow accepted safety practices and use common

sense.

Changing a wheel

Fig. 198 Changing a wheel: Remove previously loosened wheel bolts using the screwdriver handle.

Please first read and note the introductory information and heed the WARNINGS

Removing the wheel

Review the checklist

⇒ Preparations for changing a wheel.

Loosen the wheel bolts

⇒ Wheel bolts.

Lift the vehicle

⇒ Lifting the vehicle with the vehicle jack.

Completely unscrew and remove the previously loosened wheel bolts using the hexagonal socket

in the screwdriver handle

⇒

fig. 198

. Place the wheel bolts on a clean surface.

Remove the wheel.

Installing a spare tire or a compact spare wheel

If the tire is a unidirectional tire, be sure to install it in the proper rolling direction

⇒ Unidirectional tires.

Place the spare tire or compact spare into place on the vehicle.
Screw in all wheel bolts clockwise and tighten them slightly using the hexagonal socket in the

screwdriver handle.

Lower the vehicle with the jack.

Use the lug wrench to firmly tighten all wheel bolts (turn clockwise)

⇒

. Do not tighten them in

sequence! Tighten any wheel bolt to begin, then tighten the wheel bolt diagonally opposite the first
bolt, and so forth.

Install the wheel bolt caps, center wheel hubcap, or wheel cover, if any

⇒ Wheel trim.

WARNING

Wheel bolts that are tightened or installed improperly can come loose, causing loss of
vehicle control, a crash, and serious personal injury.

Always keep wheel bolts and threads in the wheel hub clean and free of oil and grease.

The wheel bolts must turn easily and must be tightened with the right torque.

Use the hexagonal socket in the screwdriver handle only to turn the wheel bolts when they

are loose, never to loosen them or tighten them firmly.

WARNING

Improper use of a compact spare wheel can cause loss of vehicle control, a crash or other
accident, and serious personal injury.

Never use a compact spare tire if it is damaged or worn down to the wear indicators.
Never drive faster than 50 mph (80 km/h) with a compact spare wheel. Avoid full-throttle

acceleration, heavy braking, and fast cornering!

Never drive more than 125 miles (200 km) with a compact spare wheel that is installed on

the front axle (drive axle).

Replace the compact spare with a normal wheel and tire as soon as possible. compact

spare wheels are designed for brief use only.

After changing a wheel

Please first read and note the introductory information and heed the WARNINGS

Clean the tools in the vehicle tool kit if necessary and stow them in the left storage compartment in

the luggage compartment

⇒ Vehicle tool kit.

Securely store the compact spare wheel or the wheel you took off the vehicle in the luggage

compartment.

Have the wheel bolt tightening torque immediately checked with a torque wrench

⇒ Wheel bolts.

Have the damaged wheel replaced as soon as possible.

The Tire Pressure Monitoring System (TPMS) must be “recalibrated” after each tire change

⇒

Tire Pressure Monitoring System (TPMS).

Removing Fender Premium Audio subwoofer

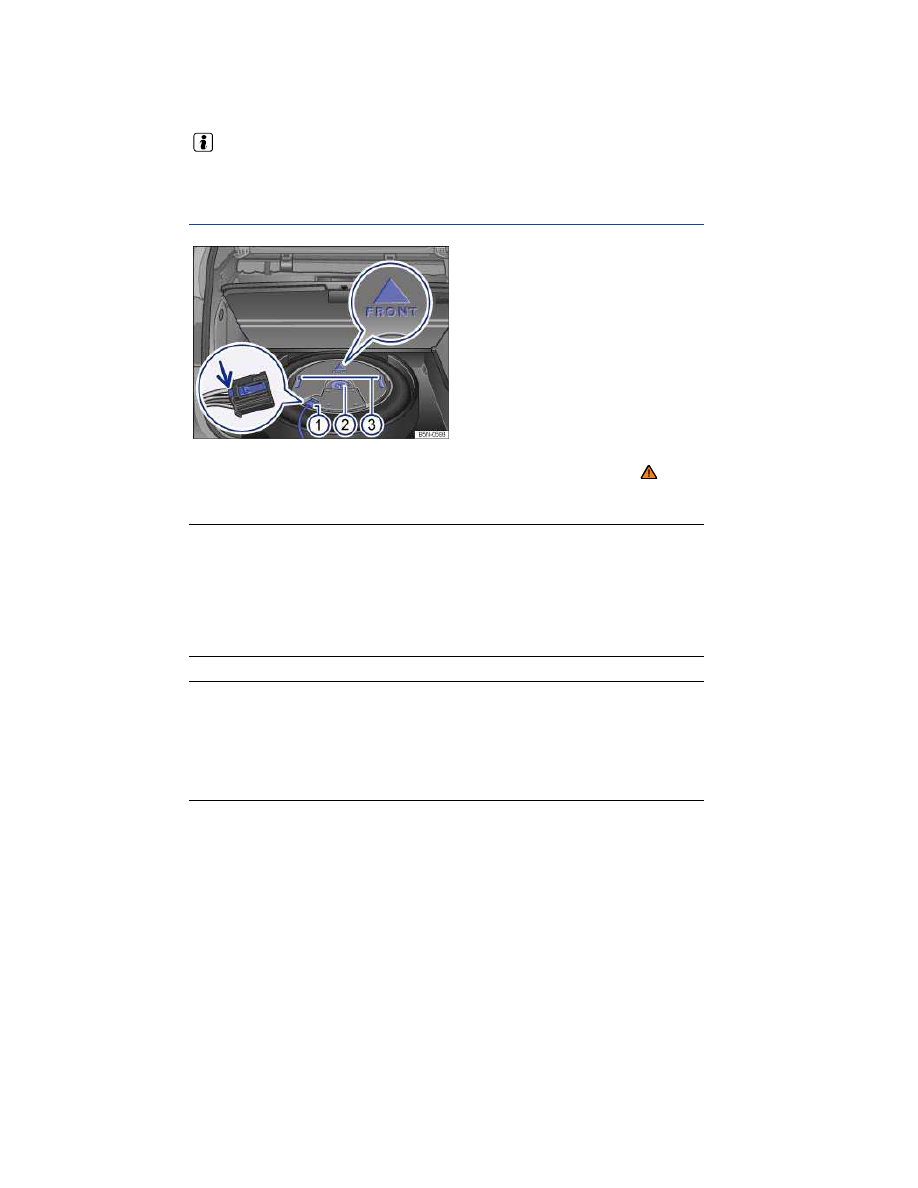

Fig. 199 Under the luggage compartment floor: Fender Premium Audio subwoofer.

Please first read and note the introductory information and heed the WARNINGS

The subwoofer is located under the luggage compartment floor.

Removing the subwoofer

Follow these steps in the order listed here:

1. Completely unscrew the fastening screw

⇒

fig. 199

(2)

counterclockwise and remove with metal

cap.

2. Grasp the subwoofer by the handles

(3)

and partially remove it from the recess.

3. Disconnect the electrical connector

(1)

from the subwoofer by pressing the release tab in the

direction of the arrow (close-up), then pulling the connector out of the socket.

4. Place the subwoofer in a clean storage location.

Reinstalling the subwoofer

1. Grasp the subwoofer by the handles

(3)

and put it down close enough to allow the electrical

connector

(1)

to be reconnected.

2. Reinstall the subwoofer and put it back into the recess.

3. The arrow must be pointing toward the front of the vehicle

⇒

fig. 199

(close-up).

4. Reinstall the fastening screw with metal cap and tighten it

(2)

clockwise.

5. Lower the luggage compartment floor and guide it downwards back into place.

Fuses

Introduction

In this section you’ll find information about:

Fuses in the vehicle

Replacing blown fuses

Due to ongoing development of the vehicle, configuration-dependent allocation of fuses and the
combined fuse protection of multiple loads with one fuse, an up-to-date overview of the fuse location
per load is not possible at the time of printing. Detailed information regarding fuse box layout is
available from authorized Volkswagen dealers and authorized Volkswagen Service Facilities.

In general, one fuse can protect several loads. One load can also be protected by several fuses.

Find out why the fuse blew and correct the problem before replacing a blown fuse. If a newly replaced
fuse blows again after a short time, the electrical system should be checked by an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility.

More information:

Working in the engine compartment

WARNING

High voltage systems in the engine compartment can cause electrical shocks, severe burns,
and even death!

Never touch ignition cables. Never touch other components of the high voltage electronic

ignition system.

Avoid short circuits in the electrical system.

WARNING

Using the wrong fuse, using a blown fuse that has been repaired, and using metal objects in
place of fuses to complete the electrical connection in the circuit can cause fires and serious
personal injury.

Never replace a fuse with one that has a higher amp rating. Replace a blown fuse only with

a fuse of the same amperage (same color and same imprint) and same overall size.

Never repair fuses.
Never replace fuses with a metal strip, a paper clip, or a similar object.

NOTICE

To help prevent damage to the electrical system, switch off all lights and accessories,

switch off the ignition, and remove the key from the ignition switch before replacing a fuse.

If a fuse is replaced with a fuse with higher amperage, this can also cause damage at

different locations in the electrical system.

Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes

can cause damage to the electrical system.

Color

Current strength in amps

Yellow

White or clear

Green

Orange

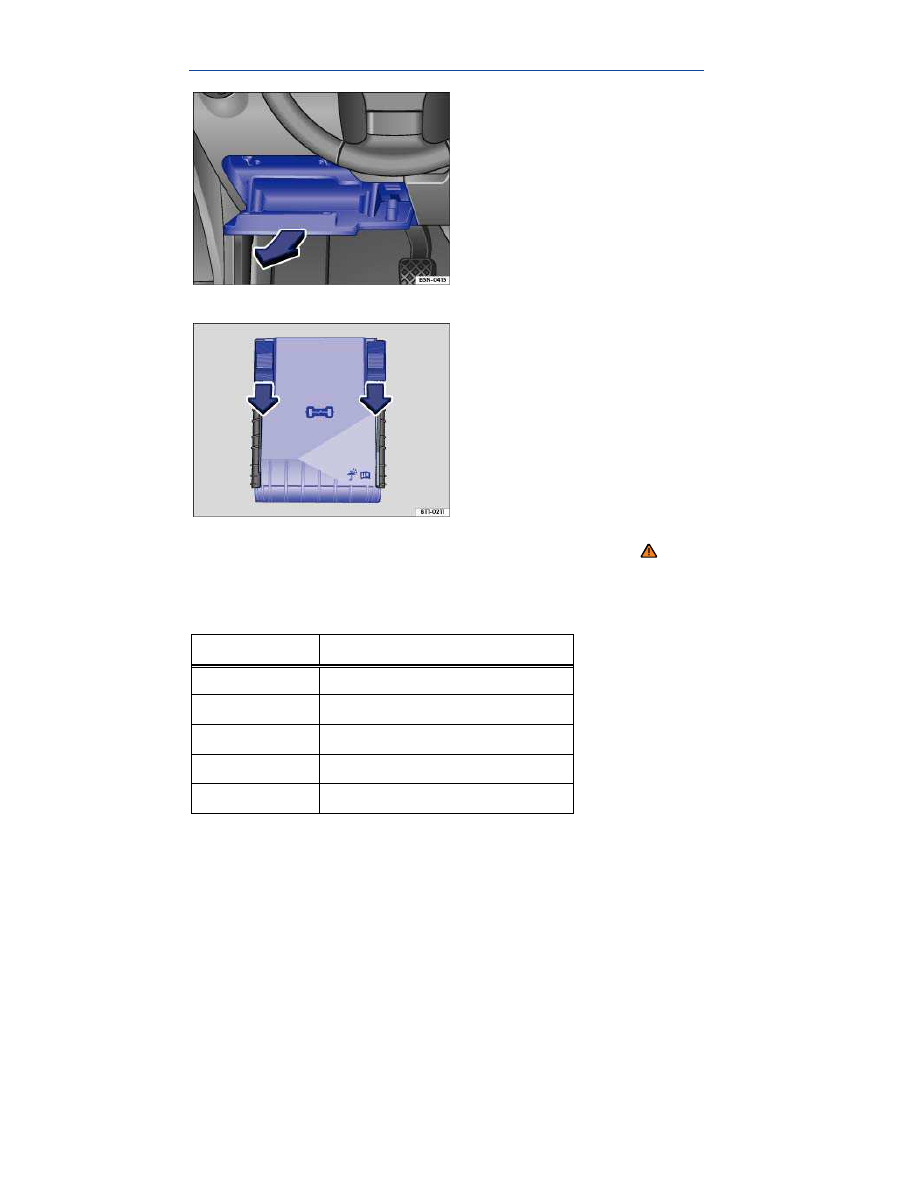

Opening the fuse box in the instrument panel

Open storage compartment and pull back firmly in the direction of the arrow

⇒

fig. 200

Opening the fuse box in the engine compartment

Open the engine hood

Move the release tabs in the direction of the arrows to unlock the fuse box cover

⇒

fig. 201

Remove the cover upward.
To install push the cover onto the fuse box. Move release buttons back opposite the direction of

the arrows, until they audibly latch.

NOTICE

To help prevent vehicle damage, be careful when removing fuse box covers and be sure to

reinstall them properly.

Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes

can cause damage to the electrical system.

The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses

replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.

Replacing blown fuses

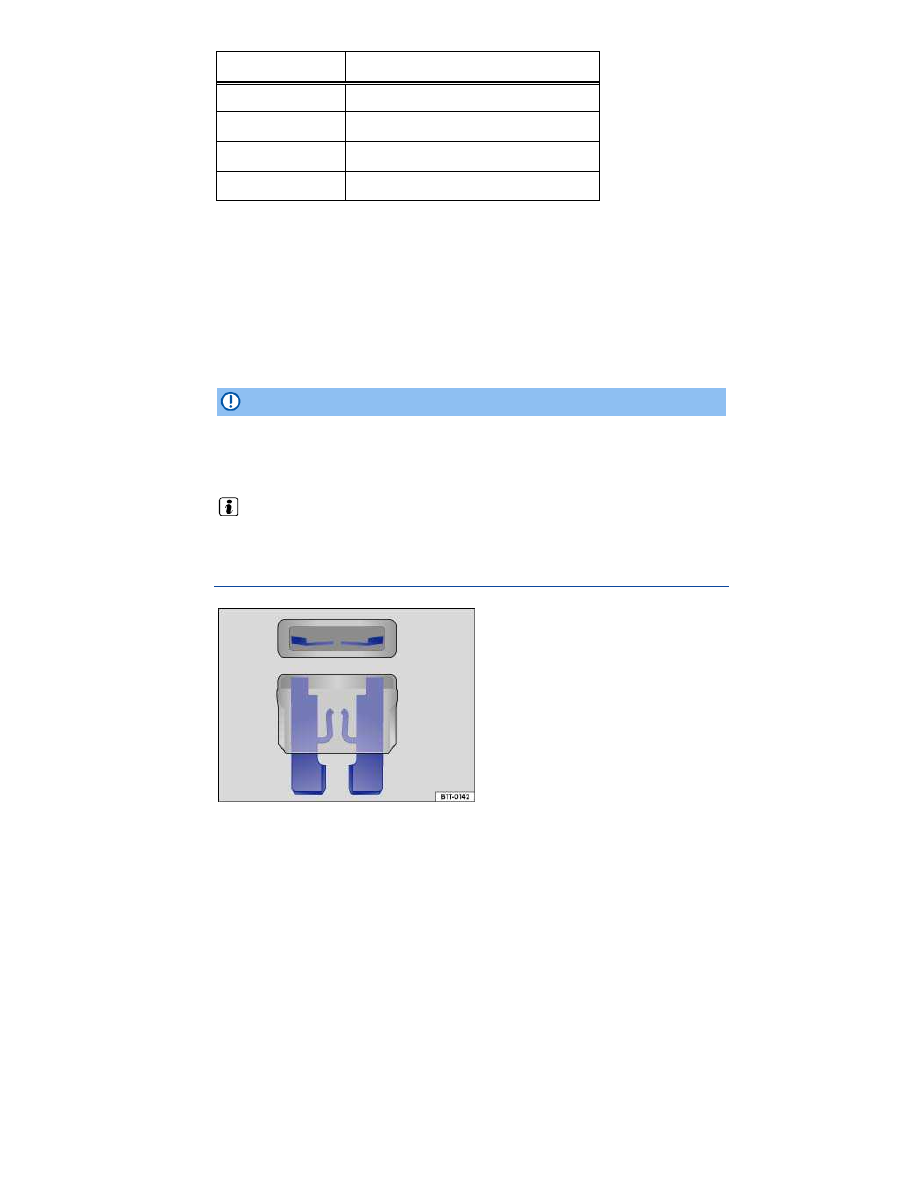

Fig. 202 Illustration of a blown fuse.

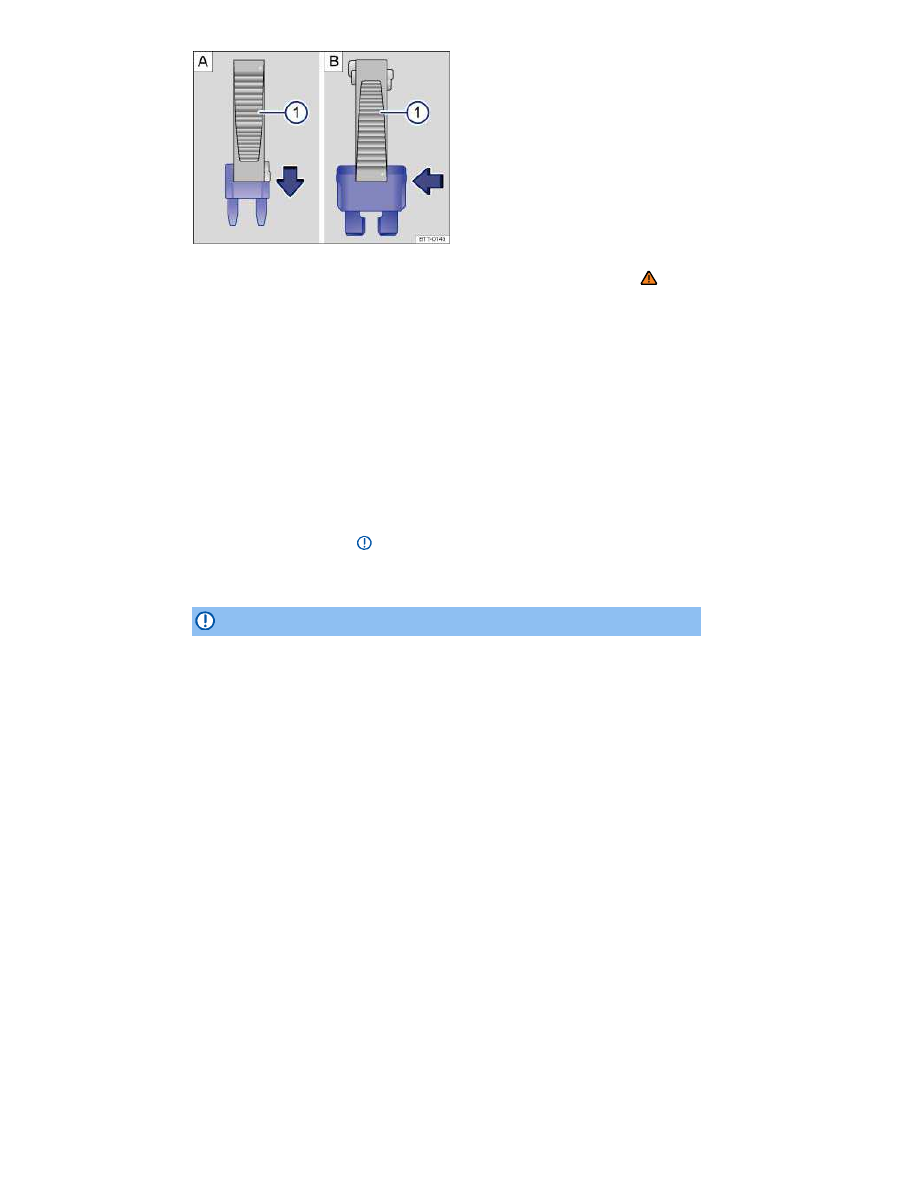

Fig. 203 Removing or inserting a fuse using the plastic tweezers.

Please first read and note the introductory information and heed the WARNINGS

Preparations

Switch off the headlights, the ignition, and all electrical consumers.

Open the appropriate fuse box

⇒Fuses in the vehicle.

Identifying blown fuses

A blown fuse can be recognized by the burned metal strip

⇒

fig. 202

Shine a flashlight on the fuse. This makes it easier to tell if the fuse has blown.

Replacing the fuse

If needed, remove the plastic tweezers from the fuse box cover.

For small fuses, slide the tweezers

⇒

fig. 203

(1)

onto the fuse from the top A.

For larger fuses, slide the tweezers

⇒

fig. 203

(1)

onto the fuse from the side B.

Pull out the blown fuse.
If the fuse is blown, replace the fuse with a new fuse of the same amperage (same color and same

imprint) and same overall size

⇒

If necessary, replace the plastic tweezers in the fuse box cover.
Replace the cover.

NOTICE

If a fuse is replaced with a fuse with higher amperage, then damage can occur at various
places in the electrical system.

Replacing light bulbs

Introduction

In this section you’ll find information about:

Indicator light

Information on light bulb replacement

Replacing light bulbs in the Halogen headlight

Replacing light bulbs in the HID-High Intensity Discharge (Xenon) headlight

Replacing light bulbs in the front bumper

Replacing light bulbs in the rear hatch

Replacing light bulbs in the vehicle body

Replacing license plate lights

Replacing the light bulb in the backup lamp

Replacing a light bulb requires a certain amount of skill. If you are uncertain about how to proceed,
Volkswagen recommends having the light bulb changed by an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility. Special training and knowledge are generally required when
other vehicle parts must be disassembled to replace a bulb, or when HID – High Intensity Discharge
(Xenon) lamps must be replaced.

You should always keep a box in the vehicle with all the replacement bulbs required for traffic safety.
Replacement bulbs are available from your authorized Volkswagen dealer or Authorized Volkswagen
Service Facility. The laws of some countries explicitly require you to have replacement bulbs in the
vehicle.

Driving with outside lights that do not work may be against the law.

Additional light bulb specifications

Some factory-installed light bulbs in the headlights or the rear lights may have different specifications
than conventional light bulbs. Specifications are on the glass bulb or on the metal base.

More information:

  Exterior views
  Lights and vision
  Working in the engine compartment
  Vehicle tool kit
  Fuses

WARNING

Crashes and other accidents can happen when you cannot see the road ahead and when you
cannot be seen by other motorists.

WARNING

Improper replacement of burned out headlights and other light bulbs can cause serious
personal injury.

Stop! Always read and heed the WARNINGS before doing any work in the engine

compartment

⇒ Working in the engine compartment. The engine compartment of any motor

vehicle is a potentially dangerous area, and work in this area can lead to serious personal
injury.

HID – High Intensity Discharge (Xenon) get power from a high voltage source that can

cause severe personal injury and even death if handled improperly.

H7/H15 bulbs and HID – High Intensity Discharge (Xenon) are under high pressure and can

explode if handled improperly.

Always let a burned out light bulb cool down before replacing it.
Never replace a light bulb unless you are familiar with all of the necessary procedures. In

particular, never remove a headlight unless you know exactly how to carry out the job and
have the correct tools and light bulbs.

If you are uncertain about what to do, have the work performed by an authorized

Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified
workshop. Serious personal injury may result from improperly performed work.

We strongly recommend that you always have HID – High Intensity Discharge (Xenon)

lamps and H7/H15 bulbs replaced by a qualified technician.

Do not touch the glass of light bulbs with your bare hands. Fingerprints left on the bulb

evaporate due to the heat when the bulb is switched on and cause the reflector to “cloud”.

There are sharp edges on and around the headlight housing in the engine compartment

and the rear light housing. Wear hand protection if you replace bulbs.

NOTICE

After replacing a headlight bulb or other light bulb, always make sure that the rubber covers or
plastic caps have been properly and securely reinstalled to help prevent water from getting
into the electrical connections and headlight housing and damaging the electrical system.

Indicator light

Please first read and note the introductory information and heed the WARNINGS

Lights

Possible cause

Proper response

Light bulb of the exterior vehicle lighting

not working.

Replace the light bulb that isn't working.

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.

WARNING

Failure to heed warning lights and instrument cluster text messages can cause the vehicle to
break down in traffic and result in a collision and serious personal injury.

Never ignore warning lights or text WARNINGS.

Always stop the vehicle as soon as it is safe to do so.

NOTICE

Failure to heed warning lights or text WARNINGS can result in vehicle damage.

Failure of a single LED within a taillight is not indicated. However, the indicator light will come

on if all LEDs fail.

Information on light bulb replacement

Please first read and note the introductory information and heed the WARNINGS

Checklist

Steps for replacing a light bulb. Please carry out these steps only in the order listed

⇒

1. Stop the vehicle in a safe place on level and firm ground at a safe distance from traffic.

2. Luggage compartment cover

3. Set the electronic parking brake to help prevent the vehicle from moving

⇒ Braking and parking.

4. Turn the light switch to 0 position

⇒ Lights.

5. Move the turn signal lever to neutral position

⇒ Lights.

6. Automatic transmission: Shift the transmission into Park (P)

⇒ Shifting.

7. Stop the engine and remove the key from the ignition switch

⇒ Starting and stopping the engine.

8. Manual transmission: Engage a gear

⇒ Shifting.

9. Let orientation lighting go out

⇒ Lights.

10. Let the burned out light bulb cool down.

11. Check if the fuse is blown

⇒ Fuses.

12. Replace the burned out light bulb according to instructions

⇒

. Always replace a burned-out

light bulb with a good bulb with the same specifications. Specifications are on the glass bulb or on
the metal base.

13. Never touch the glass of the light bulb with your bare hands. Fingerprints can cloud the outer

surface of the light bulb when heated, affecting the lighting power, clouding the reflector, and
reducing the brightness.

14. Always make sure that the new bulb works. If the bulb does not work, it may not be installed

correctly; the connection plug may not be completely seated; the corresponding fuse may be
burned out; or the bulb may be bad.

15. Always have the headlights adjusted by an authorized Volkswagen dealer or an authorized

Volkswagen Service Facility after a headlight bulb has been replaced.

WARNING

Disregarding the safety-related checklist may lead to accidents and serious personal injuries.

Always review and follow the checklist. Follow accepted safety practices and use common

sense.

NOTICE

Always insert and remove lamps carefully to avoid damage to the vehicle paint or to other
parts of the vehicle.

Replacing light bulbs in the Halogen headlight

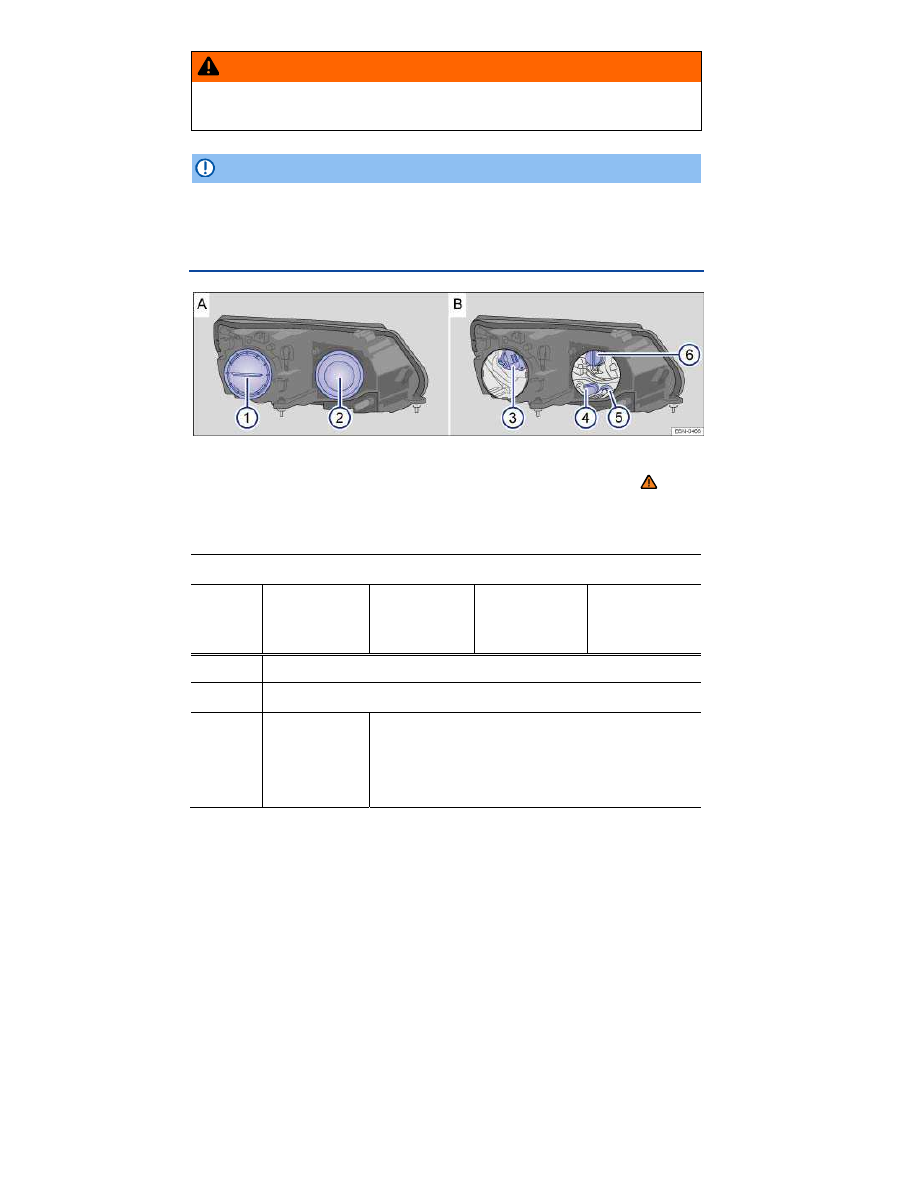

Fig. 204 In the engine compartment: Cover 1 on the left headlight for the low beam bulb holder 3 and cover 2
for the parking light bulb holder 4, turn signal bulb holder 5 and high beam or daytime running light bulb 6.

Please first read and note the introductory information and heed the WARNINGS

The following instructions only apply to vehicles with halogen headlight bulbs. Contact your authorized
Volkswagen dealer or an authorized Volkswagen Service Facility for assistance with HID headlight
replacement.

Only perform these steps in the specified order:

fig. 204

Low beam

headlight

Parking light

Turn signal

High beam

headlight or

daytime running

light

Please review and follow the checklist

Open the engine hood

Turn the cover

(1)

A on the back of

the headlight

counterclockwise

until it stops and

remove the cover.

Remove the rubber cover

(2)

A on the back of the headlight.

Only perform these steps in the specified order:

fig. 204

Low beam

headlight

Parking light

Turn signal

High beam

headlight or

daytime running

light

Turn the bulb

holder

(3)

counterclockwise

until it stops and

remove it toward

the rear with the

bulb.

Unclip the bulb

holder

(4)

upward out of the

guide and remove

it toward the rear

with the bulb.

Unclip the parking

light bulb holder

(4)

B upward out of the
guide and remove it
toward the rear with

the bulb.

Turn the turn signal

bulb holder

(5)

counterclockwise

until it stops and

remove it toward the

rear with the bulb.

Turn the bulb

(6)

counterclockwise

until it stops and

remove it toward the

rear.

If necessary, press the locking mechanism on the bulb holder

and pull the bulb straight out of the bulb holder.

Replace the burned out light bulb with a new bulb of the same type.

Reinsert the bulb

holder

(3)

B into

the headlight and

turn it clockwise

until it stops.

Reinsert the bulb

holder

(4)

B into

the headlight and

clip it into the

guide.

Reinsert the turn

signal bulb holder

(5)

B into the

headlight and turn it

clockwise until it

stop.

Insert the parking

light bulb holder

(4)

B into the headlight

and clip it into the

guide.

Reinsert the bulb

(6)

B into the headlight

and turn it clockwise

until it stops.

Install the cover

(1)

A on the back of

the headlight

(retainer vertical)

and turn it

clockwise until it

stops.

Install the rubber cover

(2)

The illustrations show the left headlight assembly from the rear. The right headlight assembly is

the mirror image of the left headlight assembly.

Different models may have different lights, and the location and design of covers, bulb holders,

and bulbs may be in a different location than shown in the illustrations.

You cannot replace the LEDs in LED daytime running lights. Contact your authorized

Volkswagen dealer or an authorized Volkswagen Service Facility for assistance.

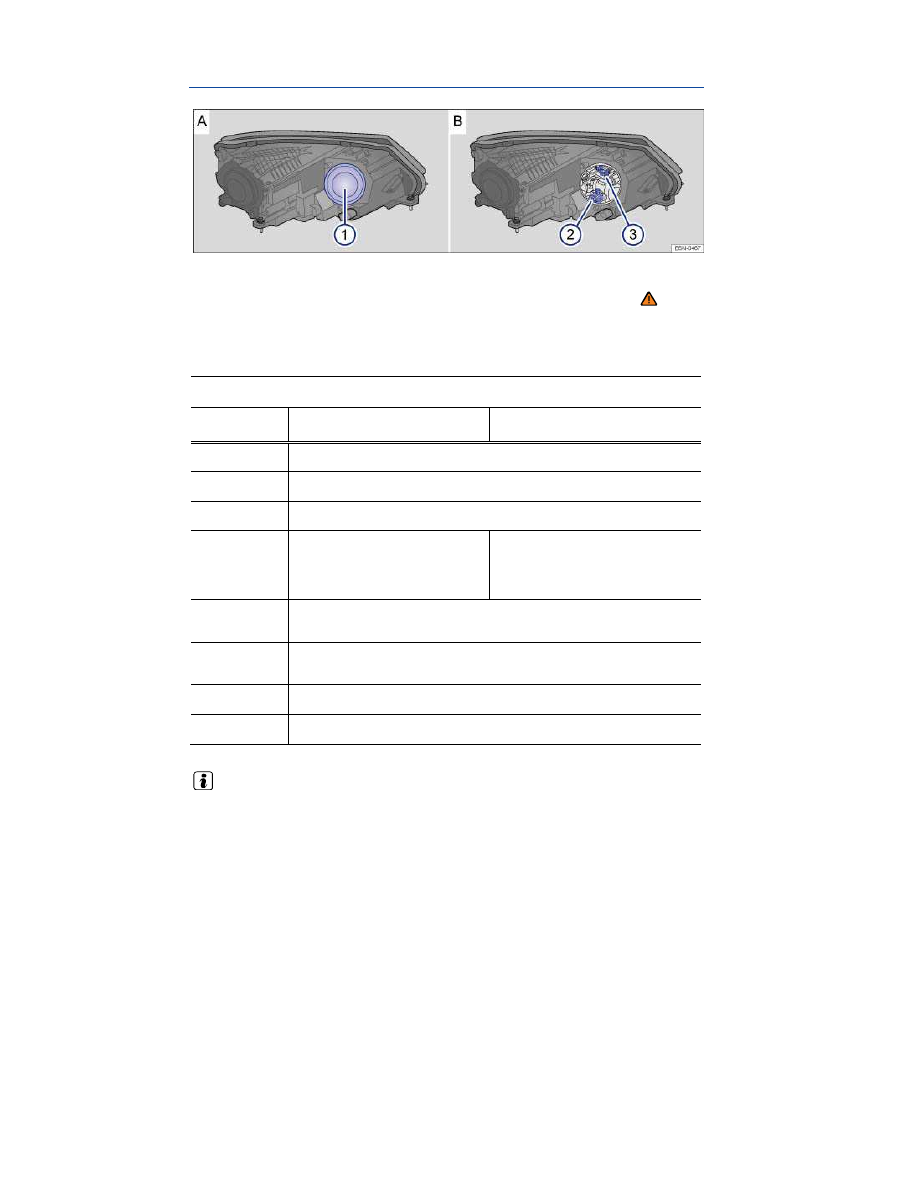

Replacing light bulbs in the HID-High Intensity Discharge (Xenon)
headlight

Fig. 205 In the engine compartment: Cover 1 on the left headlight for the turn signal bulb holder 2 and the
cornering light bulb holder 3.

Please first read and note the introductory information and heed the WARNINGS

The headlight does not need to removed in order to replace the bulb.

Contact your authorized Volkswagen dealer or an authorized Volkswagen Service Facility for
assistance with HID headlight replacement.

Only perform these steps in the specified order:

⇒

fig. 205

Turn signal

Cornering light

Follow the checklist and perform the steps

Open the hood

Remove the rubber cover

(1)

A on the side of the headlight.

Turn the bulb holder

(2)

counterclockwise until it stops and

remove it toward the rear with the

bulb.

Turn the bulb holder

(3)

counterclockwise until it stops and

remove it toward the rear with the bulb.

If necessary, press the locking mechanism on the bulb holder and pull the bulb

straight out of the bulb holder.

Replace burned out bulbs with new bulbs that are identical to the ones being

replaced.

Reinsert the bulb holder in the headlight and turn it clockwise until it stops.

Install the rubber cover

(1)

The illustrations show the left headlight assembly from the rear. The right headlight assembly is

the mirror image of the left headlight assembly.

Volkswagen Tiguan (2015 year). Instruction - part 26
