2) Examples of optical distortion by the camera:

Objects or another vehicle may seem closer or farther away on the screen than they really are:

– When driving from a level surface onto an upward or downward slope.

– When driving up or down a slope onto a level surface.

– If the rear of the vehicle is heavily loaded.

– When approaching protruding objects. These objects can disappear from the field of view when

backing up.

Cleaning the camera lens

Keep the camera lens clean and free of snow and ice:

Engage the parking brake.
Wet the camera lens with a commercially available alcohol-based glass cleaner and clean with a

dry cloth

⇒ .

Remove snow with a brush.

Remove ice with deicer spray

⇒ .

NOTICE

Never use abrasive cleaning agents to clean the camera lens.
Never remove snow or ice on the camera lens with warm or hot water. This can damage the

camera lens.

Volkswagen recommends practicing parking with Rear Assist in a safe place with little or no

traffic or in a parking lot under good visibility and weather conditions in order to familiarize yourself
with the system, the orientation lines and the way they work.

Rear Assist does not work when the rear hatch is open.

Parking

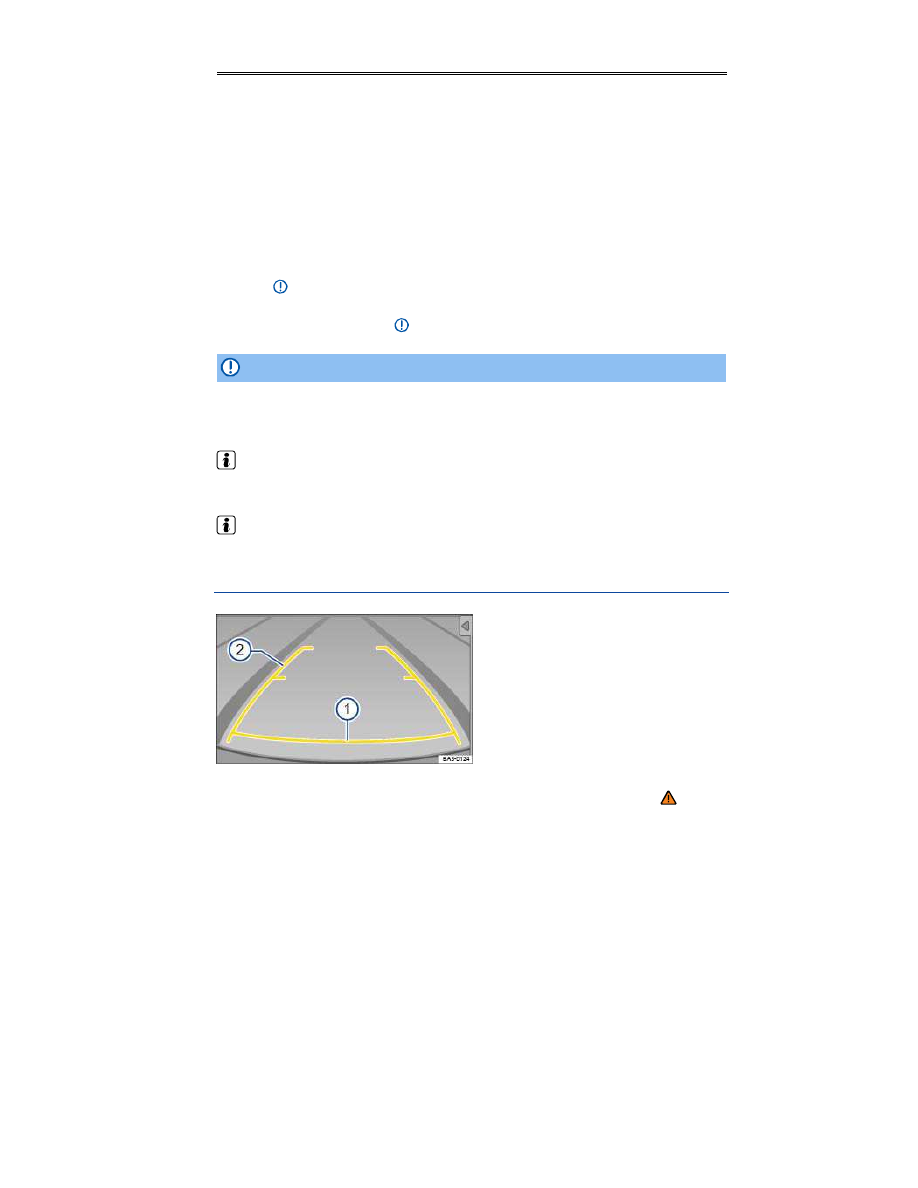

Fig. 153 On the screen: Static orientation lines for the parking space behind the vehicle.

Please first read and note the introductory information and heed the WARNINGS

Orientation lines overview

The yellow area displayed stops about 2 yards (meters) behind the vehicle on the road.

Meaning of the orientation lines on the screen

⇒

fig. 153

(1)

Safety distance: area up to about 16 inches (40 cm) behind the vehicle on the road.

(2)

Projection of the vehicle (widened somewhat) toward the rear. The middle markers are about
40 inches (1 meter) behind the vehicle on the road.

Parking

Position the vehicle in front of a parking space and shift into Reverse.
Slowly back up and steer so that the yellow orientation lines lead into the parking space

(2)

Align the vehicle in the parking place so that the yellow orientation lines are parallel with the

parking space.

All distances of the orientation lines refer to a vehicle that is on a level surface.

Heating and air conditioning

Introduction

In this section you’ll find information about:

Manual controls

Climatronic controls

Operation

Air vents

Air recirculation

Manual air conditioning (AC)

Your vehicle is equipped with a Manual A/C climate control system.

The temperature units (Fahrenheit or Celsius) in the factory-installed Radio system or Radio &
Navigation system screen can be changed in the Settings menu in the Premium instrument cluster
display on appropriately equipped vehicles.

The dust and pollen filter

The dust and pollen filter with an activated carbon insert reduces the entry of pollutants into the
passenger compartment.

The dust and pollen filter must be replaced at the intervals recommended in

⇒ Booklet

Warranty and

Maintenance so that the air conditioner can work properly.
If the effectiveness of the filter decreases prematurely due to operating the vehicle where the outside
air is heavily polluted, the dust and pollen filter should be replaced more frequently than indicated.

More information:

  Exterior views
  Passenger compartment
  Volkswagen Information System
  Seat functions
  Windshield wipers and washer
  Starting and stopping the engine
  Exterior care and cleaning

WARNING

Poor visibility increases the risk of collisions and other accidents that cause serious
personal injuries.

Always make sure all windows are clear of ice, snow and condensation for good visibility

to the front, sides, and rear.

Maximum heating output and defrosting performance are not possible until the engine has

reached operating temperature. Wait until you have good visibility before driving off.

Always make sure you know how to properly use the climate control system as well as the

rear window defroster that you will need for good visibility.

Never use air recirculation for long periods of time. When the air conditioner is off and

recirculation mode is on, condensation can quickly form on the windows and greatly reduce
visibility.

Always switch off recirculation mode when it is not needed.

WARNING

Stale air causes driver fatigue and reduces driver alertness, which can cause accidents,
collisions and serious personal injury.

Never switch off the fan for a long period of time and never use air recirculation for a long

period of time because no fresh air will enter the passenger compartment.

NOTICE

If you think the air conditioner is not working properly or may be damaged, switch it off to

help prevent more damage. Have the air conditioner checked by an authorized Volkswagen
dealer or an authorized Volkswagen Service Facility.

Air conditioner repair requires specialized knowledge and special tools. Volkswagen

recommends that you see an authorized Volkswagen dealer or an authorized Volkswagen
Service Facility.

Do not smoke when air recirculation is switched on. Smoke drawn into the ventilation

system can leave residue on the evaporator and on the dust and pollen active carbon filter,
resulting in permanent odors whenever the air conditioner is switched on.

If the air conditioner is switched off, the fresh outside air will not be dehumidified. To help keep

the windows from fogging over, Volkswagen recommends leaving the air conditioner (compressor)
switched on. Press the button. The indicator light in the button must come on.

When it is very hot and humid outside, water condensation can drip from the air conditioner

evaporator and form a puddle under the vehicle. This is normal and does not indicate a leak.

Keep the air intake slots in front of the windshield free of ice, snow, and leaves in order to

maintain proper functioning of the heating and ventilation systems.

Maximum heating output and defrosting performance are not possible until the engine has

reached operating temperature.

Emergency starting and starting the engine with a very weak vehicle battery or after the vehicle

battery has been replaced may change or delete system settings (including time, date, personal
convenience settings, and programming). Check the settings and correct as necessary once the
vehicle battery has built up a sufficient charge.

Manual controls

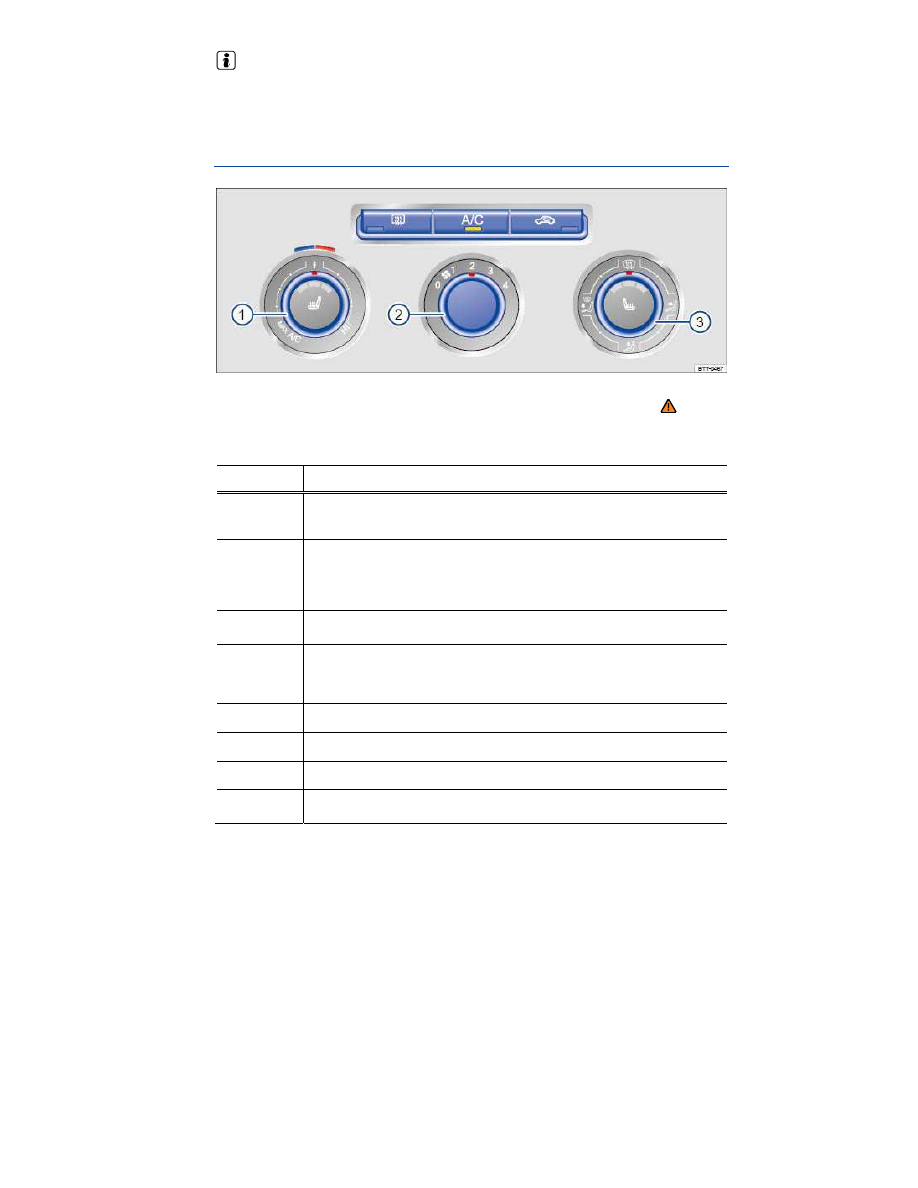

Fig. 154 In the center console: Manual A/C controls.

Please first read and note the introductory information and heed the WARNINGS

Press the corresponding button to switch a function on or off. If a function is switched on, an indicator
light in the button comes on. To switch off a function, press the button again.

Button/Knob

More information: Manual A/C

⇒

fig. 154

Temperature

(1)

...

Turn knob to set the desired temperature. The

position provides maximum

cooling output. Recirculation mode and the cooling system switch on automatically.

Fan

(2)

...

Setting 0: the fan and manual A/C are switched off.

Setting 4: highest fan speed.

Air distribution

(3)

Direct airflow by turning knob to any setting (continuously adjustable).

Defog/defrost: Airflow is directed to the windshield. Recirculation mode switches off

automatically in this position. Increases the fan speed to clear the windshield as

quickly as possible. The cooling system switches on automatically to dehumidify

the air.

Air distribution to the upper instrument panel outlets.

Air distribution to the footwells.

Air distribution to the windshield and footwells.

Rear window defroster: Works only when the engine is running and switches off

automatically after 10 minutes or less.

Button/Knob

More information: Manual A/C

⇒

fig. 154

Air recirculation mode

Buttons for seat heating

Press the button to switch the air conditioner on or off.

Switching off

Turn the fan switch to position 0.

WARNING

Stale air causes driver fatigue and reduces alertness, which can cause accidents, collisions,
and serious personal injury.

Never switch off the fan for a long time because no fresh air will enter the passenger

compartment.

Operation

Please first read and note the introductory information and heed the WARNINGS

The air conditioner works only when the ignition is switched on. The cooling system for the passenger
compartment works only when the engine is running and the fan is on.

The air conditioner is most efficient when the windows and the power sunroof are closed. If the vehicle
is stationary and the passenger compartment becomes very hot due to sunlight, briefly opening the
windows and the power sunroof may speed up the cooling process.

Keep the air intake slots in front of the windshield free of ice, snow, and leaves so that the heating and
ventilation systems can work properly.

Settings for optimum visibility

When you switch on the cooling system, both the temperature and humidity in the vehicle are reduced.
This will help make passengers feel more comfortable and help keep the windows from fogging up.

  Switch off the air recirculation, Air recirculation.
  Set the fan to the desired speed.
  Turn the temperature knob to the center position.
  Open and adjust all air vents in the instrument panel, Air vents.
  Turn the air distribution knob to the desired setting.
  Push the   button to turn on the air conditioner. The indicator light in the button lights up.

Heating

Maximum heating output and defrosting performance are not possible until the engine has reached
operating temperature.

Air conditioner does not work

The air conditioner may not switch on for one of the following reasons:

  The engine is not running.
  The fan is switched off.
  The air conditioner fuse has blown.
  The outside air temperature is colder than about +38 °F (+3 °C).

The air conditioner compressor has been temporarily switched off due to excessive engine coolant

temperature.

There is another malfunction in the vehicle. Have the air conditioner checked by an authorized

Volkswagen dealer or authorized Volkswagen Service Facility.

Special considerations

When it is very hot and humid outside, water condensation can drip from the air conditioner
evaporator and form a puddle under the vehicle. This is normal and does not indicate a leak.

The climate control system adjusts the passenger compartment temperature as fast as possible

considering the outside temperature.

Due to residual moisture in the air conditioner, the windshield may fog up after the engine is

started. Switch on the windshield defroster to help evaporate the condensation as quickly as possible.

The air coming out of the vents flows through the passenger compartment and through the air

vents below the rear side windows. Do not cover these slots with clothing or other things.

Air vents

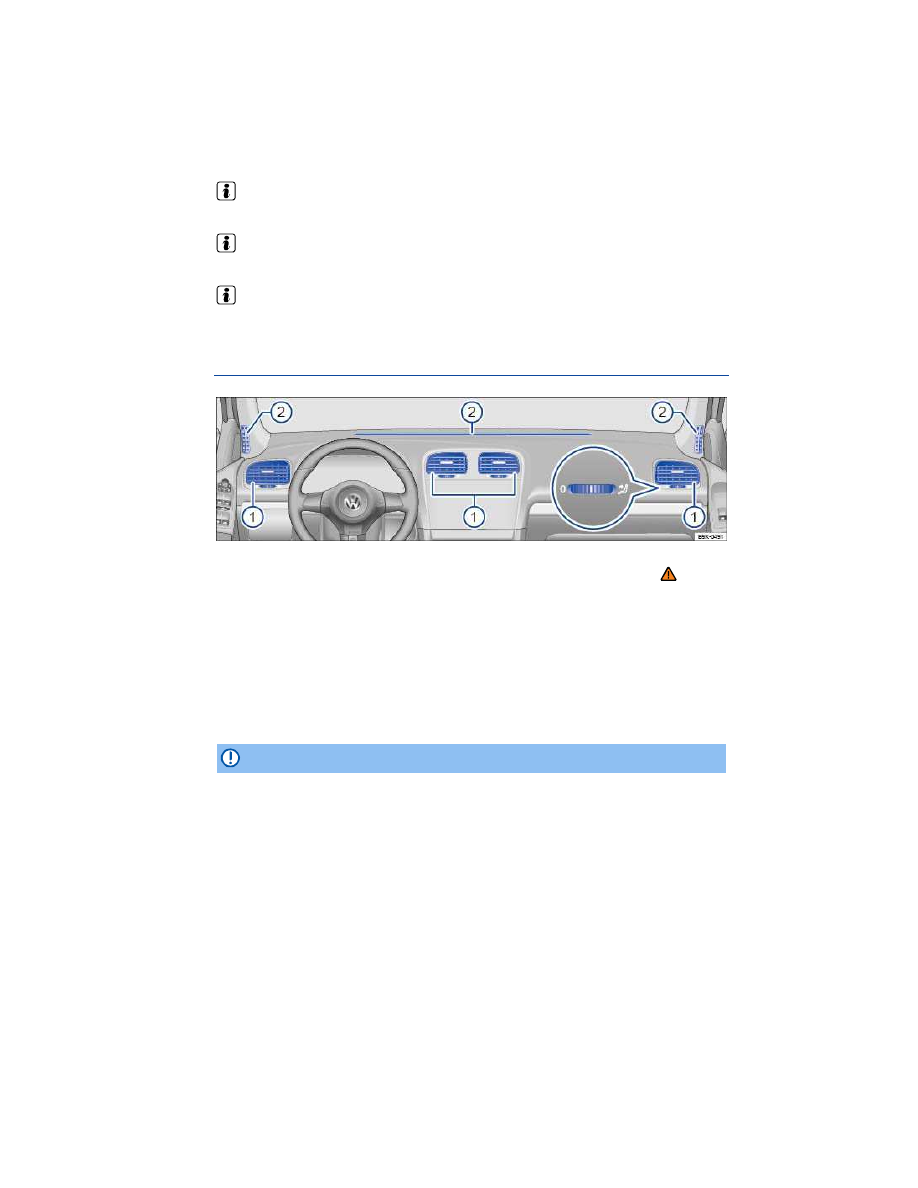

Fig. 156 In the instrument panel: Air vents.

Please first read and note the introductory information and heed the WARNINGS

Air vents

To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close

the air vents completely

⇒

fig. 156

(1)

To open and close the air vents, turn the respective thumbwheel (magnified view) in the desired

direction. When the thumbwheel is turned all the way toward the

, the air vent is closed.

Use the lever on the vent grille to adjust the airflow direction.

Additional, non-adjustable air vents are located in the front door pillars and the instrument panel

(2)

, in

the footwells, as well as in the rear area of the passenger compartment.

NOTICE

Do not place food, medications, or other heat-sensitive things in front of the air vents. Food,
medications, and other things that are sensitive to heat or cold can be damaged or made
unusable by the air flow from the vents.

The air coming out of the vents flows through the passenger compartment and through the air

vents below the rear side windows. Do not cover these slots with clothing or other things.

Air recirculation

Please first read and note the introductory information and heed the WARNINGS

General information

Manual air recirculation.

The air recirculation mode helps prevent outside air from entering the vehicle interior.

In very hot outside temperatures, temporarily switch to manual air recirculation in order to cool the
vehicle interior faster.

For safety reasons, air recirculation is switched off when the air distribution switch is turned to

⇒ .

Switching air recirculation on and off

Switching on: Press the button. The indicator light in the button comes on.

Switching off: Press the button. The indicator light in the button goes out.

WARNING

Stale air causes driver fatigue and reduces driver alertness, which can cause accidents,
collisions and serious personal injury.

Never use air recirculation mode over an extended period of time, since no fresh air will

enter the passenger compartment.

When the air conditioner is off and recirculation mode is on, condensation can quickly

form on the windows and greatly reduce visibility.

Always switch off recirculation mode when it is not needed.

NOTICE

Do not smoke when air recirculation is switched on. Smoke drawn into the ventilation system
can leave residue on the evaporator and on the dust and pollen active carbon filter, resulting in
permanent odors whenever the air conditioner is switched on.

Refueling

Introduction

In this section you’ll find information about:

Indicator lights and fuel gauge

Refueling

Misfueling guard for diesel vehicles

Fuel capacities

Refueling checklist

The fuel filler flap is located on the rear right side of the vehicle.

More information:

  Exterior views
  Fuel
  Working in the engine compartment

WARNING

Improper refueling or handling of fuel is dangerous and can cause fire, explosion, and severe
burns.

Always make sure that the fuel filler cap is screwed on all the way. This helps keep fuel

from spilling out or evaporating.

Fuel is highly flammable and explosive; it can cause severe burns and other severe

injuries.

Failure to shut the engine off while refueling and/or to insert the pump nozzle all the way

into the fuel filler neck can cause fuel to overflow and to spray out. Fuel spray and
overflowing fuel are dangerous because they can cause fire and serious personal injury.

During refueling, the engine and the ignition must be switched off for safety reasons.
Never use a mobile telephone, CB radio, or other radio equipment while refueling. The

electromagnetic radiation can cause sparks that can ignite fuel vapors and cause a fire.

Never get back into your vehicle while refueling. If in exceptional circumstances you must

get back in your vehicle while refueling, make certain that you close the door and touch metal
to discharge static electricity before touching the filler nozzle again. This helps avoid the
buildup of static electricity, which can cause sparks that can ignite fuel vapors released
during refueling.

Never smoke or have an open flame (or sparks, cigarettes, or other smoldering objects)

anywhere in or near your vehicle when refueling or filling a portable fuel container.

Follow all safety instructions and procedures that apply at the service station where you

refuel.

Never spill fuel in the vehicle or the luggage compartment.

WARNING

Even if empty, portable fuel containers can leak and cause a fire and serious personal
injuries, especially in a crash.

For your safety, we strongly recommend that you do not travel with a portable fuel

container in your vehicle.

If, under exceptional circumstances, you must transport a portable fuel container, please

observe the following:

– Never fill a portable fuel container while it is anywhere in or on the vehicle (for
example, in the luggage compartment). Static electricity can build up while filling and can
ignite fuel vapors, causing a fire.

– Always place a portable fuel container on the ground before filling. Never spill fuel
inside the vehicle or luggage compartment. Fuel vapors are highly flammable.

– Always keep the filler nozzle completely inside the portable container before and
during filling.

– If filling a portable container made of metal, the filler nozzle must always be in contact
with the container. This will help prevent static electricity from discharging and causing a
fire.

– Always observe local and state or provincial laws about the use, storage, and
transportation of portable fuel containers.

– Make certain that the portable fuel container meets industry standards, such as
ANSI/ASTM F852-86.

NOTICE

Remove fuel spills from the vehicle immediately to help prevent damage to the paint, tires,

and wheel housings.

Refueling with gasoline when your vehicle has a diesel engine or refueling with diesel fuel

when your vehicle has a gasoline engine can cause very serious and expensive engine and
fuel system damage that is not covered by any Volkswagen Limited Warranty.

If you put any amount of incorrect fuel in the fuel tank, do not start the engine under any

circumstances. Immediately contact the nearest authorized Volkswagen dealer or authorized
Volkswagen Service Facility for assistance. These fuels contain substances that can severely
damage the fuel system and the engine if the engine is started.

Vehicles with diesel engines must never be refueled or driven with gasoline, kerosene,

heating oil, or other non-specified fuels that have not been expressly approved for use with the
diesel engine. Other kinds of fuel will cause serious damage to the fuel system and the engine
that is not covered by any Volkswagen Limited Warranty.

Fuels can pollute the environment. Spilled fuel must be collected and disposed of properly,

following all applicable environmental regulations.

There is no emergency release for the fuel filler flap. Contact an authorized Volkswagen dealer or

an authorized Volkswagen Service Facility for assistance.

Indicator lights and fuel gauge

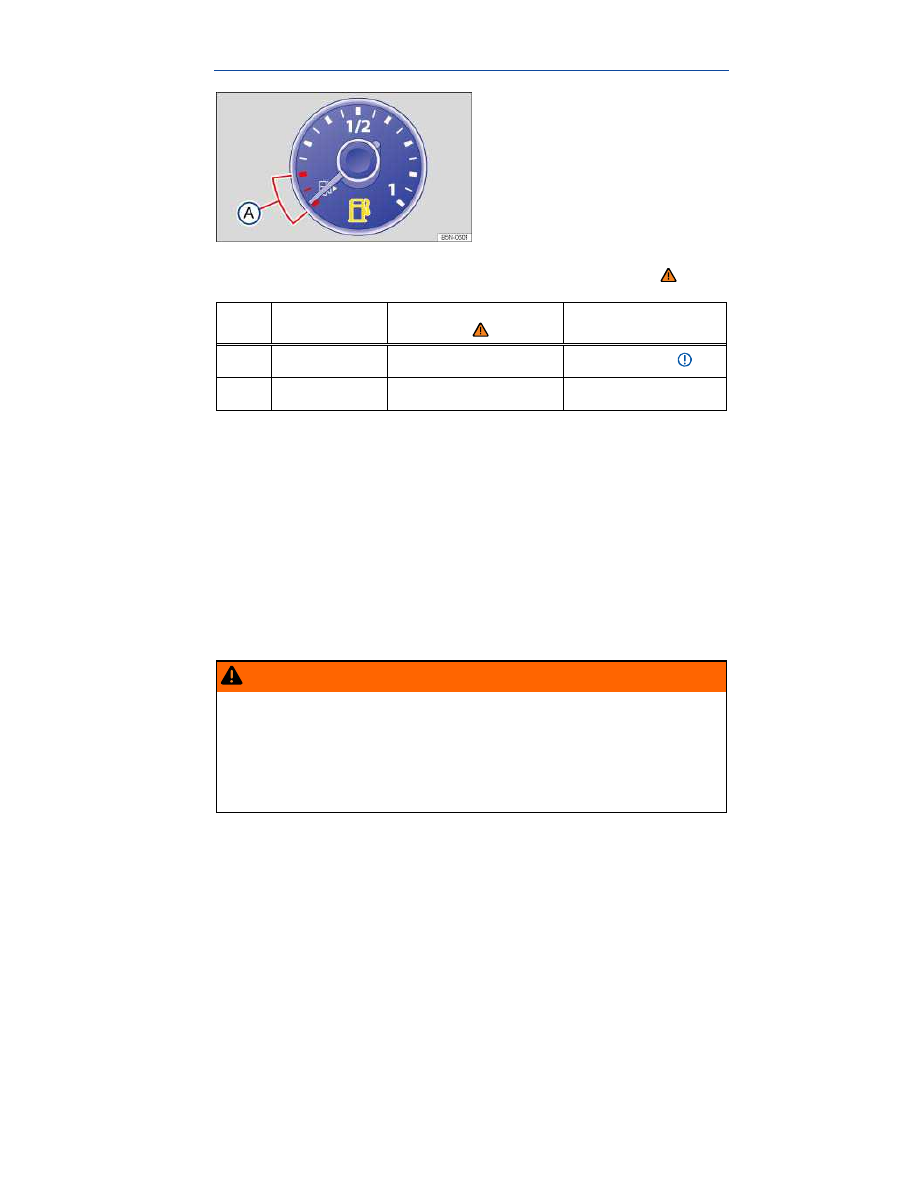

Fig. 157 In the instrument cluster: Fuel gauge.

Please first read and note the introductory information and heed the WARNINGS

Lights

Gauge position

⇒

fig. 157

Possible cause or meaning

⇒

Proper response

Red range

(A)

Fuel tank almost empty.

Running on reserve.

Time to refuel

⇒ .

–

Fuel filler cap not properly

closed.

Stop and close the fuel filler

cap properly.

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.

Fuel filler cap not properly closed

If the indicator light

comes on or you see a text message in the instrument cluster display indicating

that the fuel filler cap is not properly closed, stop the vehicle in a safe place and switch off the engine
and the ignition.

Open the fuel filler flap and take the fuel filler cap off the filler neck. Then put the fuel filler cap back on
the filler neck and screw it on clockwise until you clearly hear a clicking sound. Close the fuel filler flap.

After switching on the ignition, the indicator light

may stay on or the text message may still appear

in the instrument cluster display, even if the fuel filler cap is now properly closed. This is normal and no
reason to take your vehicle in for service.

If, however, the malfunction indicator light

also comes on, drive to your nearest authorized

Volkswagen dealer or authorized Volkswagen Service Facility and have the fuel system and the
engine checked.

WARNING

Driving with a fuel tank that is almost empty can lead to stalling in traffic, a collision, and
serious personal injuries.

When the fuel tank is almost empty, fuel supply to the engine can be interrupted,

especially when driving over bumps, across slopes, and up and down hills.

Steering and braking assistance as well as ESC and related systems will not work if the

engine “sputters” or stalls due to lack of fuel.

Always refuel when the tank is 1/4 full to reduce the risk of running out of fuel and stalling

in traffic.

NOTICE

Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Never drive until the fuel tank is completely empty. The irregular fuel supply can cause the

engine to misfire. This allows unburned fuel to get into the exhaust system and damage the
catalytic converter or the diesel particulate filter.

The small arrow next to the gas pump symbol in the fuel gauge shows the side of the vehicle with

the fuel filler flap.

Refueling

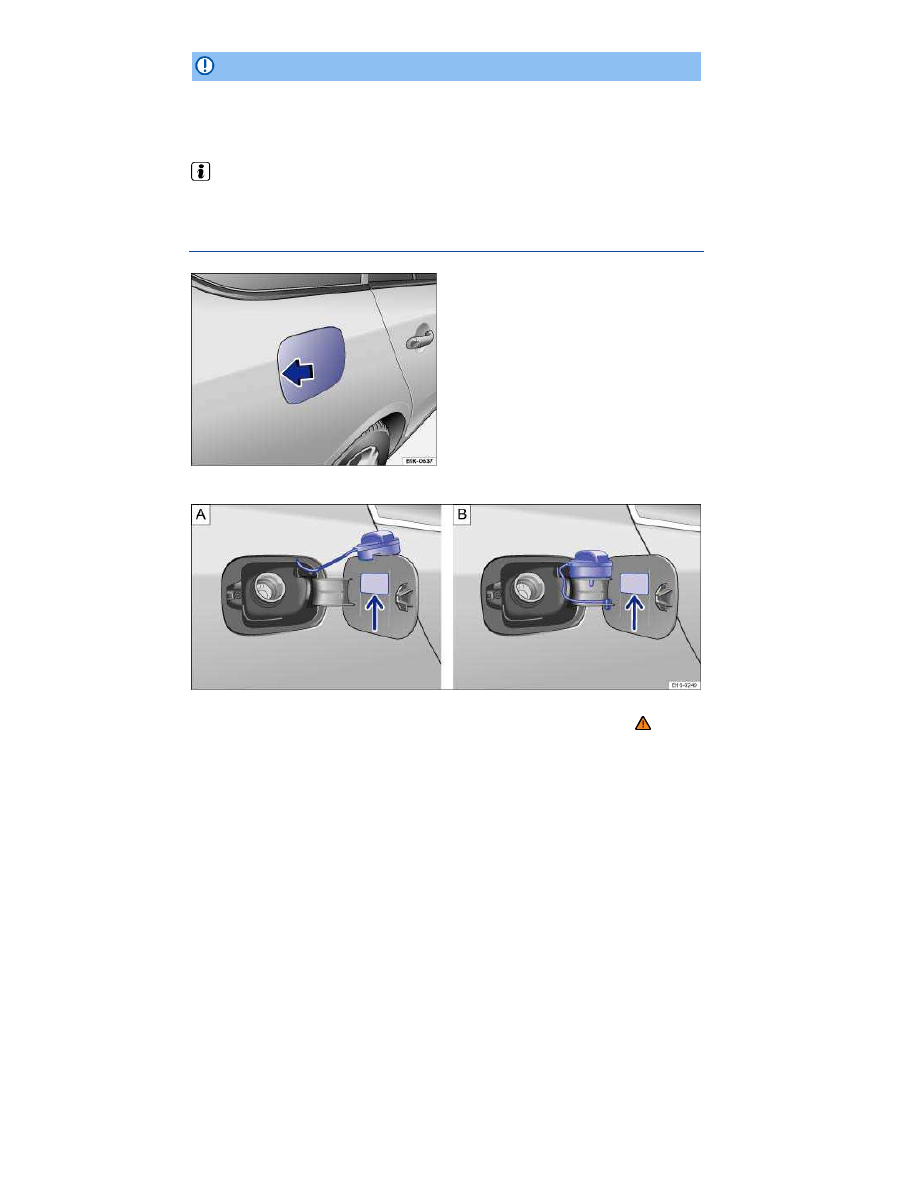

Fig. 158 Right rear side of vehicle: Opening the fuel filler flap.

Fig. 159 Fuel cap placed on the open fuel filler flap: Versions A and B.

Please first read and note the introductory information and heed the WARNINGS

Before refueling, always switch off the engine, the ignition, and all mobile phones, and leave them
switched off until refueling is complete.

Opening the fuel filler cap

Unlock the vehicle from the outside with the vehicle key or press the central locking button in driver

door to unlock the vehicle from the inside, Power locking and closing system.

The fuel filler flap is located at the right rear of the vehicle.

Press on the back part of the fuel filler flap

⇒

fig. 158

(arrow) and fold open.

Unscrew the fuel cap counterclockwise and remove. Depending on the type of fuel cap, use either

the edge of the fuel filler flap

⇒

fig. 159

A or the slot on the fuel filler flap hinge B to hold the cap while

refueling.

Refueling

The correct fuel grade for your vehicle, Fuel is listed on a sticker on the inside of the fuel filler flap
(arrow).

The fuel tank is full when the automatic filler nozzle pump switches off the first time

⇒ .

Do not try to add fuel after the pump stops! Topping off the tank in this way may fill the expansion

space that the tank needs and cause fuel to overflow, for example, if it gets warmer outside.

Closing the fuel filler cap

Screw the fuel cap clockwise onto the fuel filler neck until you hear it click into place.
Close the fuel filler flap until you hear it latch shut. The fuel filler flap must be flush with the vehicle

body.

WARNING

Spilled fuel can cause fires, explosions, burns, and other severe injuries.

Always stop refueling once the pump nozzle switches off so that the tank does not

overflow.

NOTICE

Remove fuel spills from all vehicle surfaces immediately to help prevent damage to the paint,
tires, and wheel housings.

Fuel spills may pollute the environment.

Misfueling guard for diesel vehicles

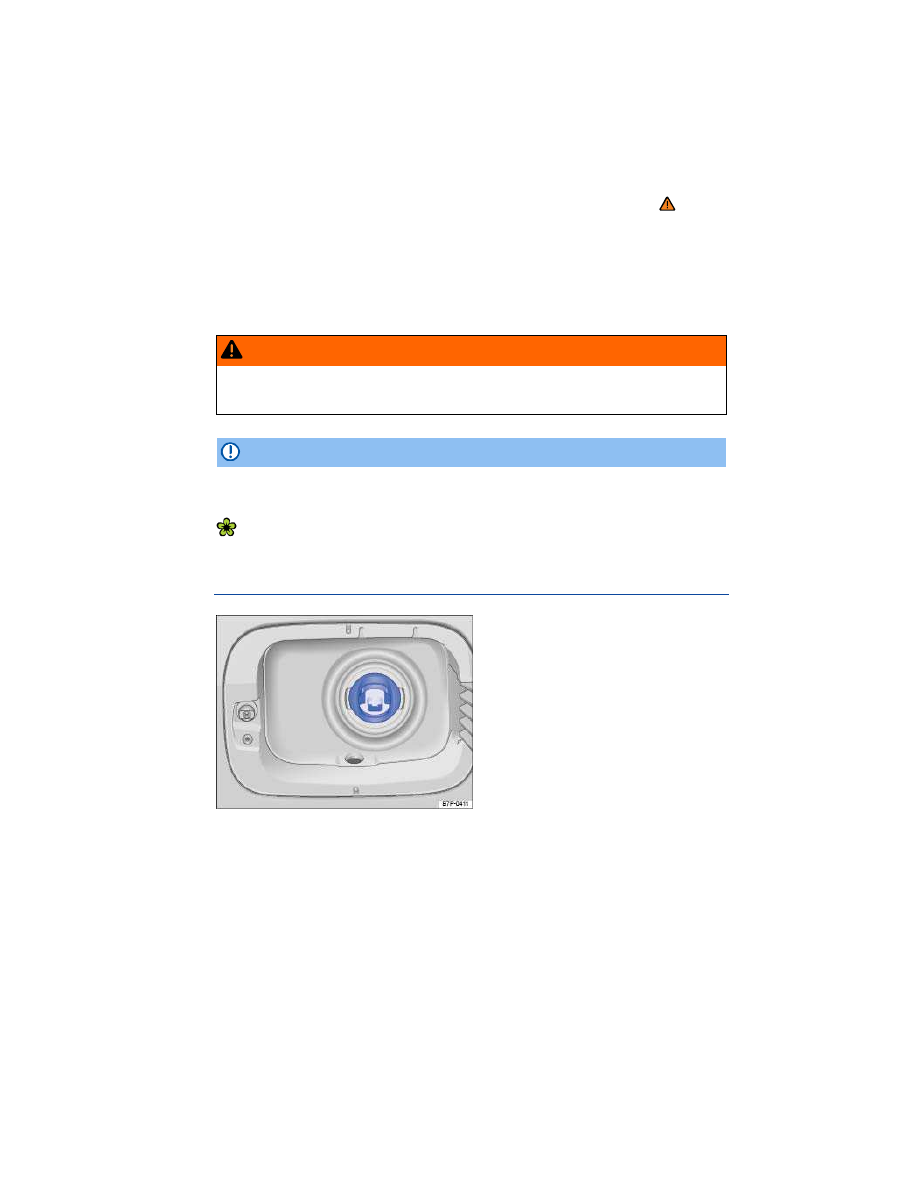

Fig. 160 With open fuel cap: Misfueling guard in the fuel filler neck.

Please first read and note the introductory information and heed the WARNINGS

The fuel filler neck of diesel vehicles is equipped with a misfueling guard

⇒

fig. 160

. The misfueling

guard helps prevent filling the fuel tank of a diesel vehicle with gasoline, because the guard makes it
difficult to insert any type of filler nozzle other than the type commonly used for diesel fuel.

Damaged, worn out, or incorrect nozzles, as well as other means of refueling (portable fuel containers,
for example) will generally not open the misfueling guard and fuel from these sources cannot easily
flow into the tank. Using these incorrect or non-standard nozzles to refuel your diesel vehicle can
cause fuel spills, which can cause fires, explosions, burns, and other severe injuries.

The misfueling guard can generally only be properly opened with a correct nozzle from a standard
diesel fuel pump. Under certain circumstances it may be necessary to turn the nozzle back and forth
slightly with light pressure to open the misfueling guard. If the misfueling guard cannot be opened this
way, see the nearest authorized Volkswagen dealer or authorized Volkswagen Service Facility and
have the fuel system checked.

WARNING

Spilled fuel can cause fires, explosions, burns, and other severe injuries.

Do not refuel from devices other than correct, undamaged standard diesel fuel pump

nozzles.

Always stop refueling once the pump nozzle switches off so that the tank does not

overflow.

NOTICE

It is your responsibility to put the right fuel in your vehicle and any damage that results

from using the wrong fuel is not covered under the Emissions warranties or any other
Volkswagen Limited Warranty.

If you put any amount of the wrong fuel in the fuel tank, do not start the engine under any

circumstances. Immediately contact the nearest authorized Volkswagen dealer or authorized
Volkswagen Service Facility for assistance.

If diesel fuel should get on any rubber hose, it must be wiped off immediately. The same

applies if diesel fuel gets onto other parts of the vehicle, especially paint, tires, or a plastic
part. Wash the contaminated vehicle parts right away with soap and warm water to help
prevent leaks and serious damage.

NOTICE

Never force a fuel nozzle in the diesel misfueling guard. Forcing a fuel nozzle in the misfueling
guard can damage it so that it can no longer help prevent misfueling.

If you have problems inserting a diesel fuel nozzle, please check to make sure you are

using the right kind of diesel fuel.

If you must refuel with a non-standard diesel fuel nozzle, an adapter is available from

Volkswagen to allow refueling. Contact an authorized Volkswagen dealer or authorized
Volkswagen Service Facility for assistance. Only use an adapter approved by Volkswagen for
your vehicle.

Fuel capacities

Please first read and note the introductory information and heed the WARNINGS

Engine

Fuel tank capacity

Gasoline and diesel engines

About 14.5 gallons (55.0 liters),

including about 2 gallons (7.0 liters) reserve.

Refueling checklist

Please first read and note the introductory information and heed the WARNINGS

The engine compartment of any motor vehicle is a hazardous area. Never do any work on the engine
or in the engine compartment unless you

  know exactly how to carry out the job,
  have the correct technical information and the proper tools and supplies, and
  are familiar with the necessary safety precautions, Working in the engine compartment.

Checklist

If you are uncertain in any way, have the work done by an authorized Volkswagen dealer or
authorized Volkswagen Service Facility. Serious personal injury may result from improperly performed
work. Make sure that you check the following items regularly. The best thing is to check them every
time you refuel:

Windshield washer fluid level, Windshield wipers and washer

Engine oil level, Engine oil

Engine coolant level, Engine coolant

Brake fluid level, Braking and parking

Tire pressure, Tires and wheels

Vehicle lighting necessary for driving safety:

–  Turn signals
–  Low beams and high beams
–  Taillights
–  Brake lights
–  License plate lights

Information on replacing light bulbs: Replacing light bulbs.

WARNING

Disregarding the safety-related checklist may lead to accidents and injuries.

Please note and follow the points listed in the checklist.

Fuel

Introduction

In this section you’ll find information about:

Gasoline

Gasoline additives

Diesel fuel

The correct fuel grade for your engine is shown on a sticker located on the inside of the fuel filler flap
⇒

fig. 159

Bad or poor quality fuel reduces operating performance, efficiency and service life of the engine. If you
notice any symptoms like rough engine idle or performance or “bucking,” immediately reduce the
vehicle speed, accelerate slowly, and keep the engine speed in the middle of the rpm range. Avoid
high rpm and rapid acceleration. If these symptoms should appear right after refueling, switch off the
engine. In both cases contact an authorized Volkswagen dealer or an authorized Volkswagen Service
Facility to have the engine checked.

More information:

⇒ booklet

Warranty and Maintenance

Refueling
Engine control and exhaust system

WARNING

Improper refueling or handling of fuel can cause fire, explosion, and severe burns.

  Fuel is highly explosive and flammable and can cause severe burns and other injuries.
  Heed applicable safety warnings and obey local fuel handling regulations.
  Always make sure the fuel cap is screwed on all the way. This keeps fuel from spilling out

and from evaporating.

Failure to shut the engine off while refueling and/or to insert the pump nozzle fully into the

vehicle's filler neck could cause fuel overflow and fuel spray. Fuel spray and overflowing fuel
are dangerous because they can cause fire or serious injury.

For safety reasons, the engine must be turned off when refueling.
Never get back into your vehicle while refueling. If in exceptional circumstances you must

get back in your vehicle while refueling, make certain that you close the door and touch metal
to discharge static electricity before touching the filler nozzle again. Static electricity can
cause sparks that can ignite fuel vapors released during refueling.

Gasoline

Please first read and note the introductory information and heed the WARNINGS

Octane rating

Octane rating indicates a gasoline's ability to resist engine-damaging “knock” caused by pre-ignition.
Using the correct grade of gasoline is very important to help prevent engine damage and loss of
engine performance.

Volkswagen Jetta SportWagen (2014 year). Instruction - part 16
