Turn signal lever and high beam switch

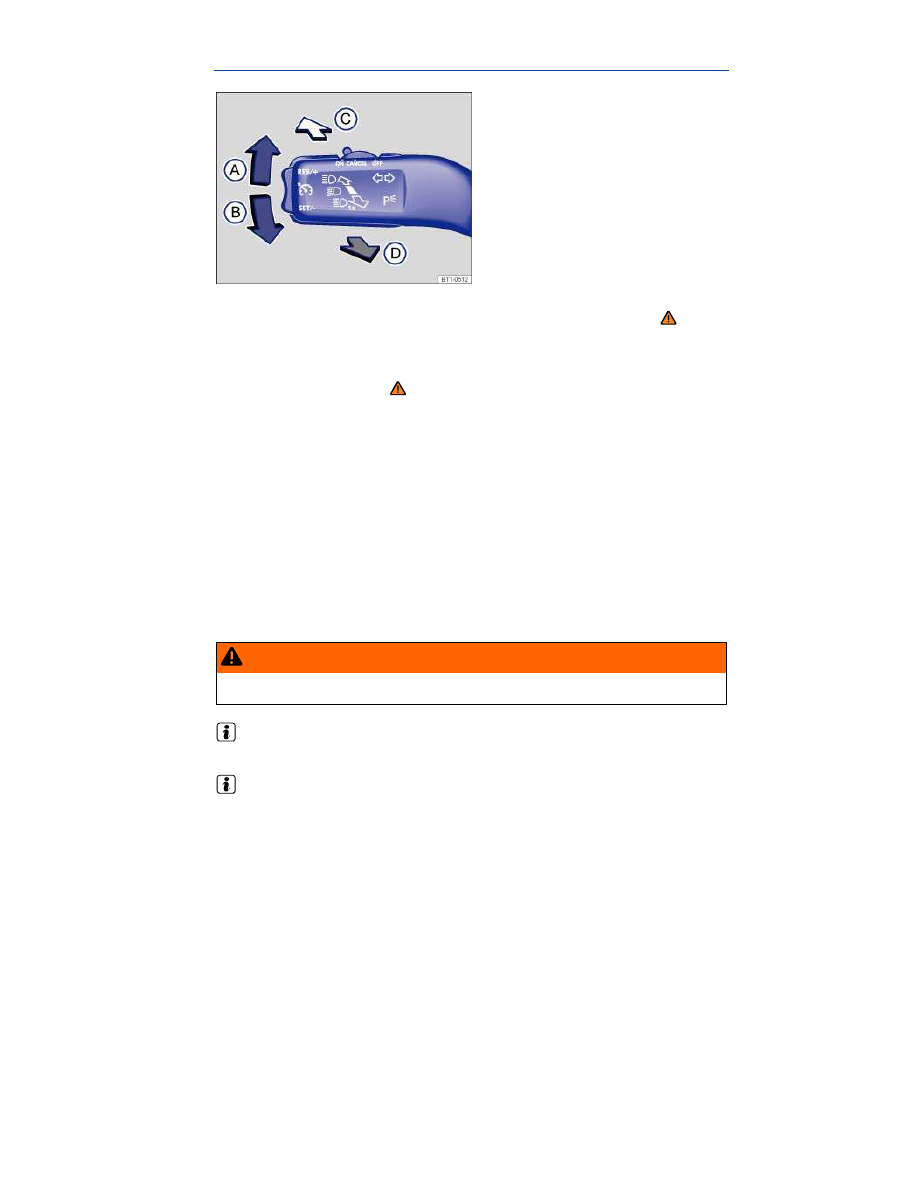

Fig. 83 Turn signal lever and high beam switch.

Please first read and note the introductory information and heed the WARNINGS

Move the lever to the desired position.

(A)

Right turn signal.

(B)

Left turn signal.

(C)

Switching high beams on

⇒ . An indicator light comes on in the instrument cluster when

the high beams are switched on.

(D)

Switching the high beams off and operating the headlight flasher. The headlight flasher turns on
the high beams as long as the lever is pulled and manually held in the pulled position. The
indicator light

lights up. When released, the lever moves back to the home position and turns

off the high beams. The indicator light

goes out.

Move the lever back to the home position to turn the selected feature off.

Convenience turn signal (lane change feature)

To use the convenience turn signal, move the lever up or down slightly, just to the point of resistance
and then release it. If you have the convenience turn signal (Conv. turn sig.) switched on, the
turn signals and the turn signal indicator flash 3 times. If it is switched off, they flash as long as you
hold the lever up or down, and go out when you release the lever.

The convenience turn signal is switched on and off in the Lights & Vision menu in the instrument
cluster display, Volkswagen Information System. If your vehicle is not equipped with the Lights &

Vision menu, the convenience turn signal feature can be deactivated by an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.

WARNING

Improper use of high beams can distract and blind others, causing accidents and serious
injuries.

The turn signal light works only when the ignition is switched on. The emergency flasher works

even when the ignition is switched off, In an emergency.

The indicator light flashes twice as fast if a turn signal bulb is burned out.

High beams can only be switched on when the low beams are on.

Switching lights on and off

Fig. 84 Headlight switch next to the steering wheel.

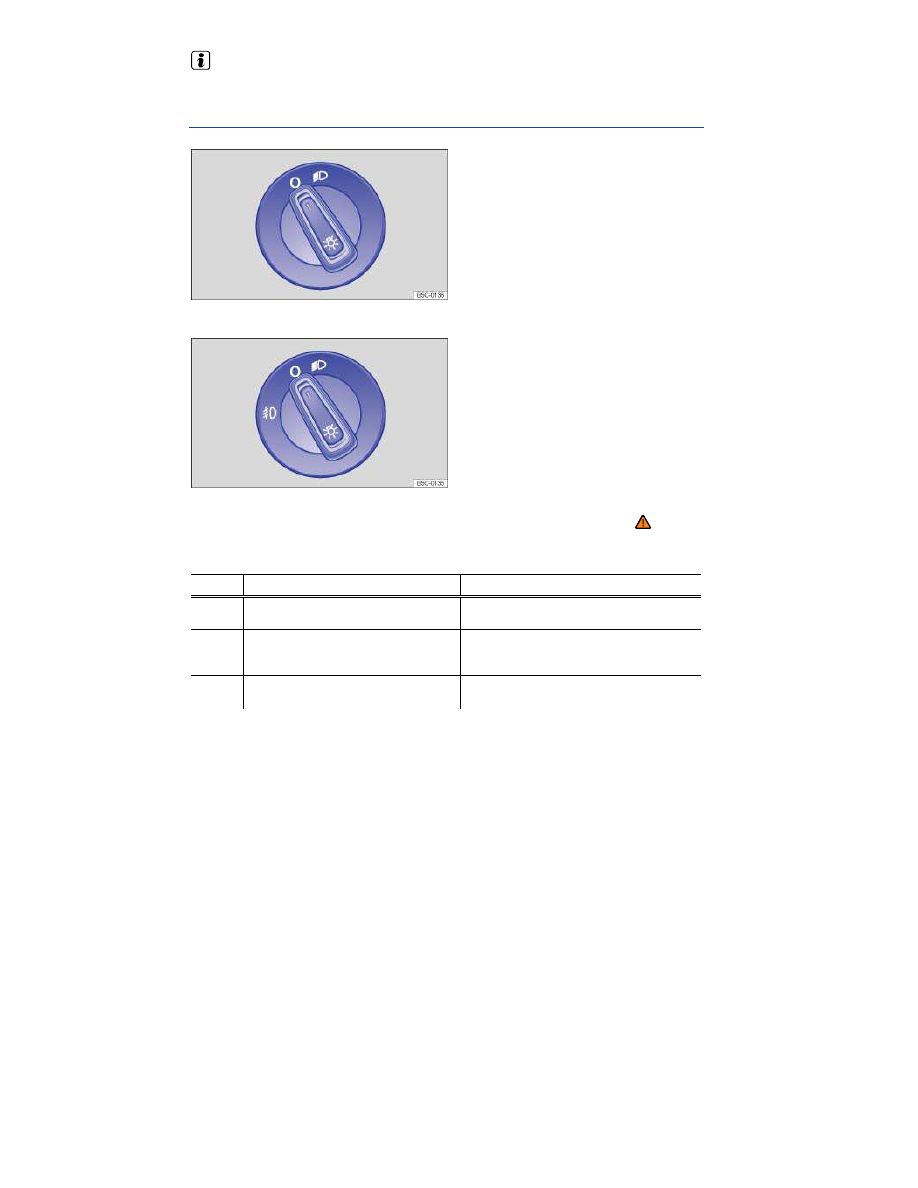

Fig. 85 Headlight switch next to the steering wheel (with fog lights).

Please first read and note the introductory information and heed the WARNINGS

Adjust the light switch to the desired position

⇒

fig. 84

⇒

fig. 85

Symbol When the ignition is switched off

When the ignition is switched on

Fog lights and low beams switched off.

Headlights off, daytime running lights (DRL)
on.

Low beams switched off. The DRL may
stay on. The length of time they stay on
depends on the vehicle battery charge.

Low beams switched on.

Fog lights switched off. The DRL may
stay on for some time.

Headlights and fog lights switched on.

Fog lights

The indicator light in the headlight switch or the instrument cluster shows that the fog lights are
switched on.

To switch on the fog lights : first turn the light switch to position

, then pull the light switch out to

the first detent.

To switch off the fog lights, push the switch back in from the first detent. To then turn off the

headlights, turn the switch to position

Acoustic warning when lights are not switched off

In the following situation, a warning chime will sound if you take the key out of the ignition and open
the driver door. This is to remind you that lights are still on.

Light switch in position

WARNING

Daytime running lights are not bright enough to let you see ahead or be seen by others when
it is dark.

Always switch on the low-beam headlights at dusk or when it is dark and whenever the

weather is bad or visibility is poor.

Never use the daytime running lights to see where you are going. They are not bright

enough and will not let you see far enough ahead for safety, especially at dusk or when it is
dark. Always switch on the low-beam headlights at dusk or when it is dark.

The taillights do not come on with the daytime running lights. Unless the taillights are on,

a vehicle cannot be seen by others in bad weather, at dusk, or when it is dark.

In cool or humid weather, the insides of the headlights, the rear lights, and turn signals can

temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.

Lights and vision features

Please first read and note the introductory information and heed the WARNINGS

Daytime running lights (DRL)

Separate lamps are installed in the headlights or in the front bumper for the daytime running lights
(DRL).

When the daytime running lights are switched on, only these separate lamps come on

⇒ .

The daytime running lights are switched on whenever the ignition is switched on and the light switch is
in position

. The indicator light

DRL

may come on in the instrument cluster to indicate that the

feature is active, Indicator lights.

Daytime running lights (DRL) parking feature

Some models are equipped with a daytime running lights (DRL) parking feature that switches the
daytime running lights off when the vehicle is parked and the ignition is switched on.

Function

Action

Switching the DRL off:

– Switch the ignition on.
– Turn the light switch to the

position.

– Set the parking brake.

Switching the DRL back on:

– Release the parking brake.

Static cornering lights

Your vehicle may have fog lights under the front bumper, which on some models are also static
cornering lights. On some models the static cornering lights may be integrated in the headlights. At
speeds below about 25 mph (40 km/h), the light on one side of the vehicle will come on automatically
when you turn a corner. If you turn to the right, the right fog light comes on; turn left and the left fog
light comes on. The light dims and goes out when the steering wheel is straightened out again.

When you move the selector lever to Reverse (R), the static cornering lights on both sides of the
vehicle may come on so that you can see the area around the vehicle better when backing up.

The static cornering lights work only when the headlights are on. The static cornering lights do not
come on when the headlight switch is in the

position or when the fog lights themselves have been

switched on, Switching lights on and off.

WARNING

Crashes and other accidents can happen when you cannot see the road ahead and when you
cannot be seen by other motorists.

Never use daytime running lights (DRL) to see where you are going. DRL are not bright

enough to light up the roadway and be seen by other motorists. You will not be able to see far
enough ahead for safety, especially at dusk or when it is dark. Always switch on the low-
beam headlights at dusk or when it is dark.

The taillights do not come on when the daytime running lights are switched on. A vehicle

without taillights on cannot be seen by others in bad weather, at dusk, or when it is dark.

In cool or humid weather, the insides of the headlights, the rear lights, and turn signals can

temporarily fog up. This is normal and does not affect the service life of the vehicle's lighting system.

Instrument panel lighting and headlight range adjustment

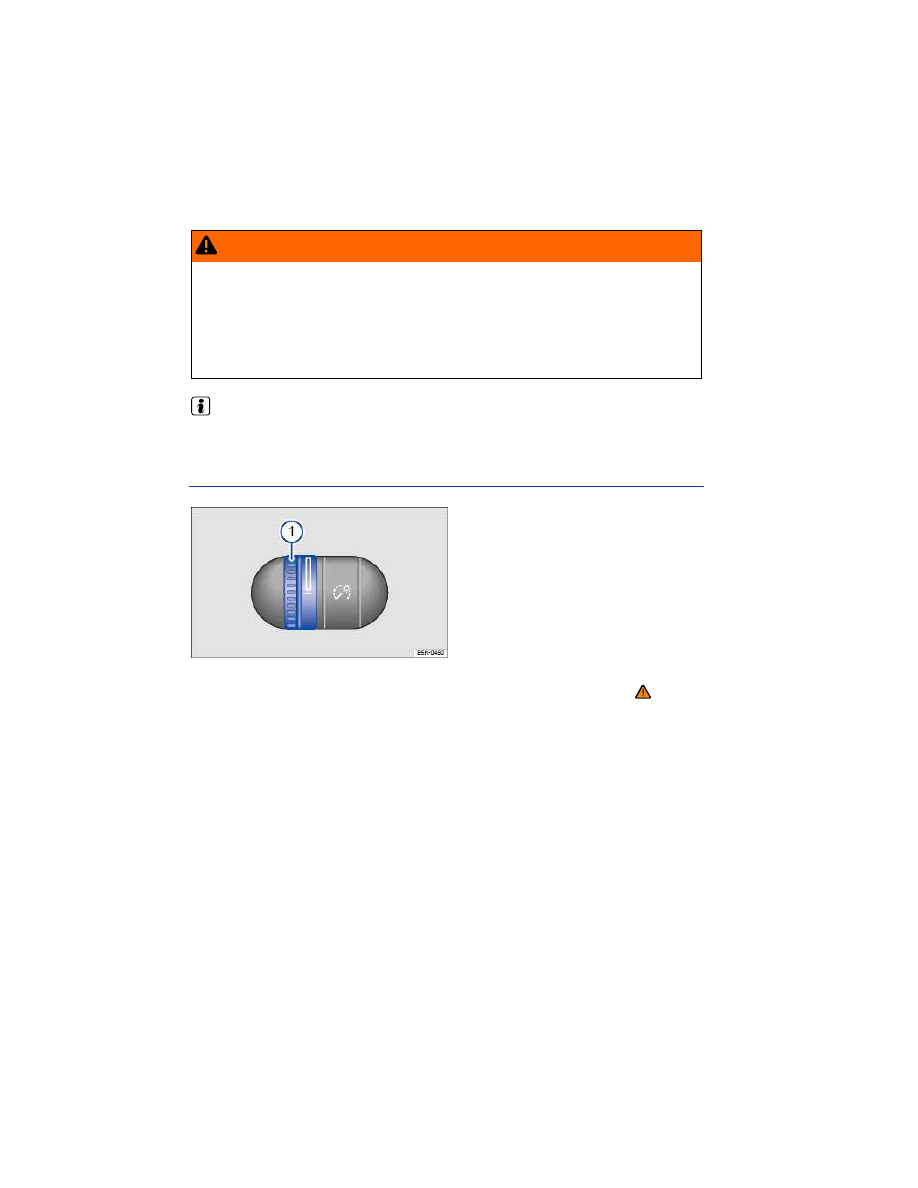

Fig. 86 To the left of the steering wheel: Thumbwheel to adjust instrument panel lighting 1.

Please first read and note the introductory information and heed the WARNINGS

Instrument panel lighting

When the lights are on, the brightness of the instrument panel lighting is adjusted by turning the

thumbwheel

⇒

fig. 86

(1)

Instrument cluster brightness

When the lights are on, the brightness of the instrument cluster lighting is adjusted by turning the
thumbwheel

(1)

In some vehicles with daytime running lights (DRL), the instrument cluster lighting switches on
automatically when it is dark outside or when driving through tunnels, for example. You will need to
switch the headlights on manually when this happens, so that the vehicle's taillights will turn on,

Daytime running lights (DRL),

⇒ page Error! Bookmark not defined., Daytime running lights (DRL).

Dynamic headlight range adjustment

In vehicles equipped with HID (Xenon) headlights, the headlight range is automatically adjusted to the

vehicle loading condition once the low beams are switched on

⇒ .

WARNING

Headlights that are aimed too high because of the way the vehicle is loaded can blind and
distract other drivers. This can lead to a crash and serious personal injuries.

Always make sure the headlights are adjusted to loading conditions so that they do not

blind others.

WARNING

If dynamic headlight range adjustment does not work properly or at all, the headlights could
blind and distract other drivers. This can lead to a crash and serious personal injuries.

Have headlight range adjustment checked immediately by an authorized Volkswagen

dealer or an authorized Volkswagen Service Facility.

Interior and reading lights

Please first read and note the introductory information and heed the WARNINGS

Button

Function

Interior lights off.

Interior lights on.

Door contact switch - center position.
Interior lights go on automatically when the vehicle is unlocked, a door is opened, or
the vehicle key is removed from the ignition.
The lights go out about 20 seconds after you close the doors. They also go out when
you lock the vehicle or switch on the ignition.

Reading light on or off.

Glove and luggage compartment lights

The glove and luggage compartments may have lights that come on automatically when they are
opened and go off when they are closed.

Background lighting

When the ignition and headlights are switched on, the background lighting in the roof console lights
up.

Sun protection

Introduction

In this section you’ll find information about:

Sun visors

Windshield made of heat-insulating glass

WARNING

Sun visors can reduce visibility.

Always stow sun visors when not needed to block sun glare.

Sun visors

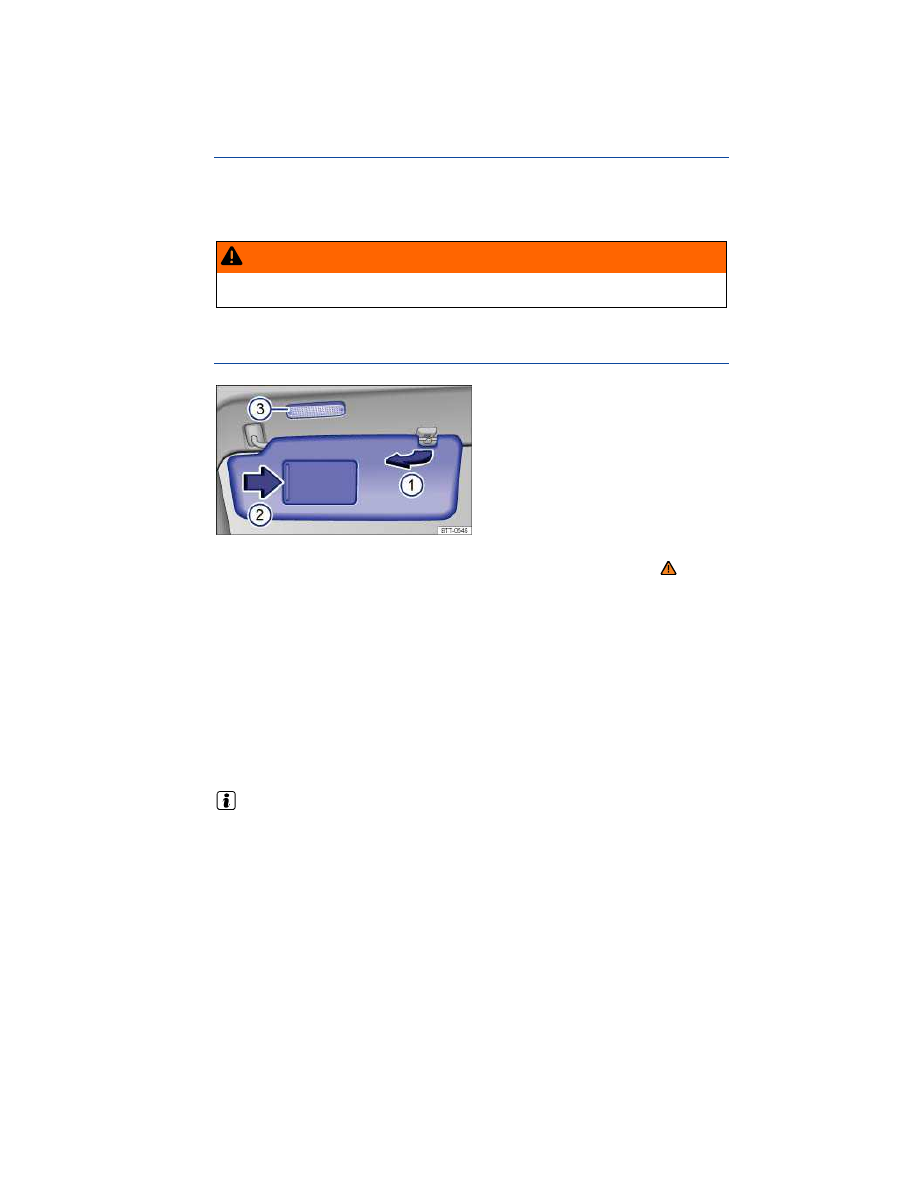

Fig. 87 In the headliner: Sun visor.

Please first read and note the introductory information and heed the WARNINGS

Sun visor adjustment:

Flip the sun visor down toward the windshield.

Lift it out of the retaining clip

⇒

fig. 87

(1)

and swivel it over toward the door.

Additional sun visor positions:

On some vehicles, you can slide the sun visor towards the rear of the vehicle after swiveling it over to
the door.

Vanity mirror and lighting

A vanity mirror is behind a cover in the sun visor. A light

(3)

may come on when you slide the cover

(2)

open.

The light goes out when you shut the cover or if you flip the sun visor up again.

The vanity mirror light and the interior light above the sun visor go out after several minutes. This

helps to prevent unnecessary drain on the vehicle battery.

Windshield made of heat-insulating glass

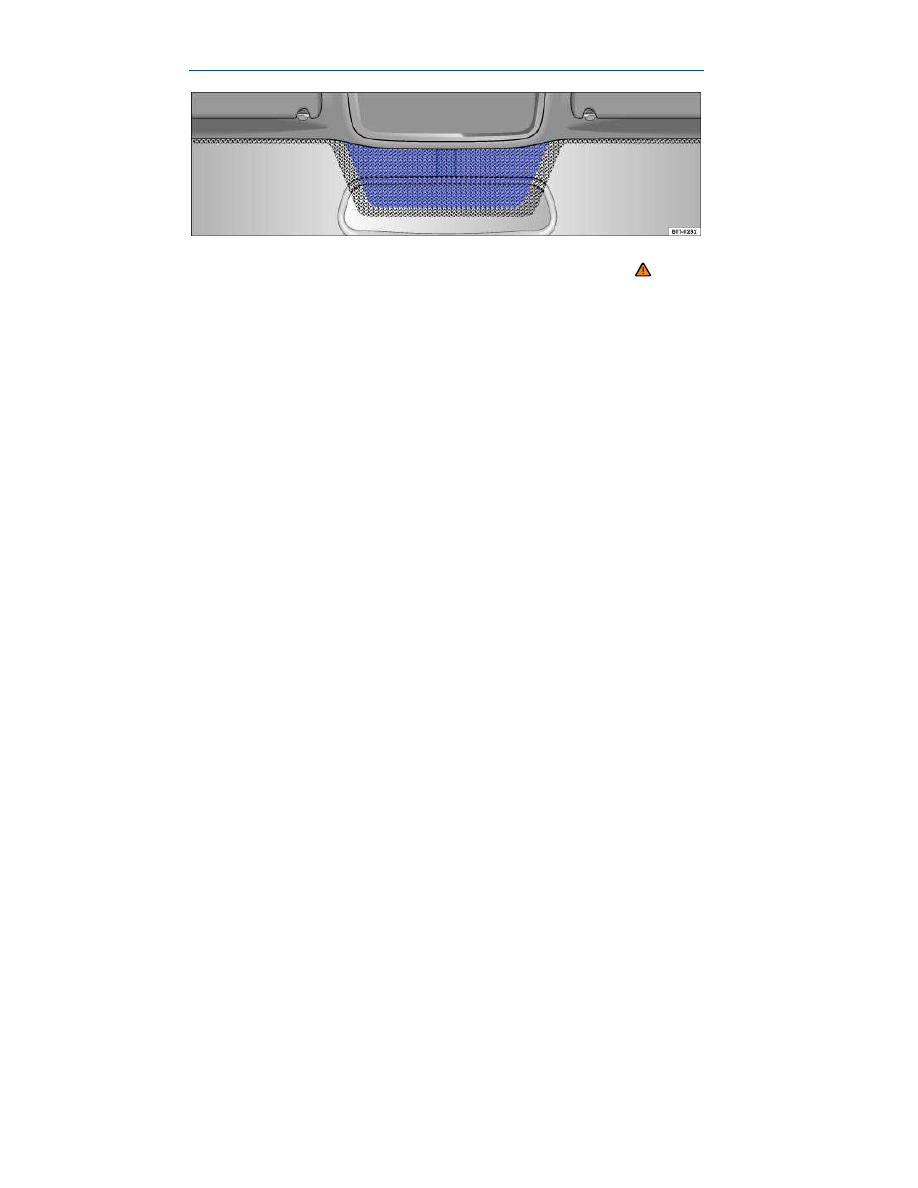

Fig. 88 Heat-reflective windshield with communications window (blue shaded area).

Please first read and note the introductory information and heed the WARNINGS

Windshields made of insulating glass have a transparent metallic infrared-reflecting coating. There is

an uncoated area (communications window) just above the inside rearview mirror

⇒

fig. 88

. This

serves as a communications window for transmitting signals to and from electronic components and
accessories.

The uncoated area must not be blocked on the inside or outside or covered with stickers because this
can cause the electronic components to malfunction.

Windshield wipers and washer

Introduction

In this section you’ll find information about:

Indicator light

Windshield wiper lever

Windshield wiper functions

Windshield wiper service position

Checking and refilling windshield washer fluid

More information:

  Exterior views
  Shifting
  Climate control
  Working in the engine compartment
  Exterior care and cleaning

WARNING

Windshield washer fluid without enough frost protection can freeze on the windshield and
reduce visibility.

Use the windshield washer system with enough frost protection for winter temperatures.
Never use the windshield wipers/washers when it is freezing without first defrosting the

windshield. The washer solution may freeze on the windshield and reduce visibility.

WARNING

Worn or dirty wiper blades reduce visibility and increase the risk of accidents and severe
injuries.

Always replace wiper blades that are worn, damaged, or do not keep the windshield clear.

NOTICE

To help prevent damage to the wiper blades and the wiper motor when it is cold outside,
always make sure that blades are not frozen to the windshield before operating the wipers.
Using the windshield wiper service position can be helpful in cold weather so the wipers do not
freeze to the windshield, Windshield wiper service position.

Indicator light

Please first read and note the introductory information and heed the WARNINGS

Lights

Possible cause

Proper response

Not enough windshield washer fluid for
the front and rear windshield washers.

Refill windshield washer reservoir at the next
opportunity

When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.

NOTICE

Failure to heed warning lights or text WARNINGS can result in vehicle damage.

Windshield wiper lever

Fig. 89 Operating the front windshield wipers.

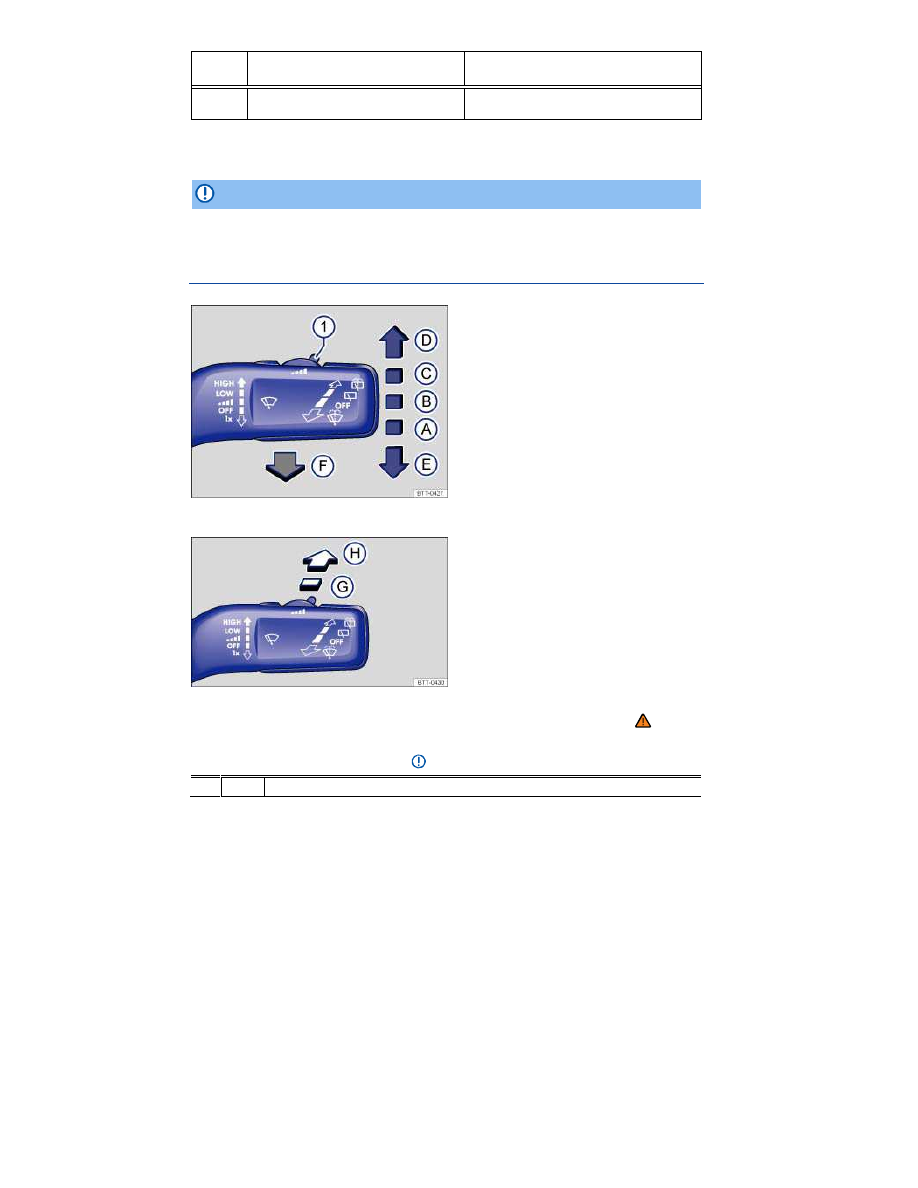

Fig. 90 Operating the rear wiper.

Please first read and note the introductory information and heed the WARNINGS

Move the lever to the desired position

⇒ :

(A)

OFF

Wiper switched off.

Move the lever to the desired position

⇒ :

(B)

Intermittent wiping for the windshield.

Adjust the interval settings with switch

⇒

fig. 89

(1)

(C)

LOW

Slow wiper speed.

(D)

HI GH

Fast wiper speed.

(E)

One-tap wiping – brief wiping. Hold the lever pressed down longer to wipe more often.

(F)

Pull the lever toward the steering wheel to activate the front windshield washers, then
release.

(G)

Intermittent wiping for the rear window. The wiper wipes about every 6 seconds.

(H)

Press the lever forward as far as it will go to activate the rear window washers, then
release.

NOTICE

To help prevent damage to the wiper blades and the wiper motor when it is cold outside,
always make sure that blades are not frozen to the windshield before operating the wipers.
Using the service position can be helpful in cold weather so the wipers do not freeze to the
windshield, Windshield wiper service position.

If the ignition is switched off while the wipers are running, the wipers will continue at the

same wiping speed when the ignition is switched on again. Frost, ice, snow, leaves, and other
objects on the windshield can damage the wipers and the wiper motor.

Remove snow and ice from the wipers before you begin driving.
If the wiper blades freeze to the windshield, loosen them carefully. Volkswagen

recommends using a deicing spray.

NOTICE

Never switch on the windshield wipers when the windshield is dry because the windshield can
be scratched.

On some vehicles, the windshield wipers work only if the ignition is switched on and the engine

hood is closed. The windshield wipers turn off automatically when the engine hood is opened. The
rear window wiper turns off when the rear hatch is opened.

The intermittent wiping for the front windshield depends on the driving speed. The higher the

speed, the faster the wipers move.

If the front wipers are on, the rear wiper is switched on automatically when backing up.

If the wiper blades freeze to the windshield, loosen them carefully. Volkswagen recommends

using a deicing spray.

Windshield wiper functions

Please first read and note the introductory information and heed the WARNINGS

Wiper performance in different situations:

When the vehicle is not moving:

The wiper speed changes temporarily to the next lower
speed.

During automatic wipe/wash:

While the washer system is working, the Climatronic
switches to recirculation for about 30 seconds to help
prevent the washer fluid odor from entering the vehicle
interior.

During intermittent wiping:

Speed-dependent interval control: The higher the vehicle
speed, the faster the wipers move.

Heated washer nozzles

The heating thaws frozen washer nozzles, but not the fluid supply hoses. When the ignition is switched
on, the heat applied to the washer nozzles is automatically regulated depending on the outside air
temperature.

If there is something on the windshield, the wiper will try to wipe it away. If it continues to block

the wiper, the wiper will stop moving. Remove the obstacle and switch the wiper on again.

Windshield wiper service position

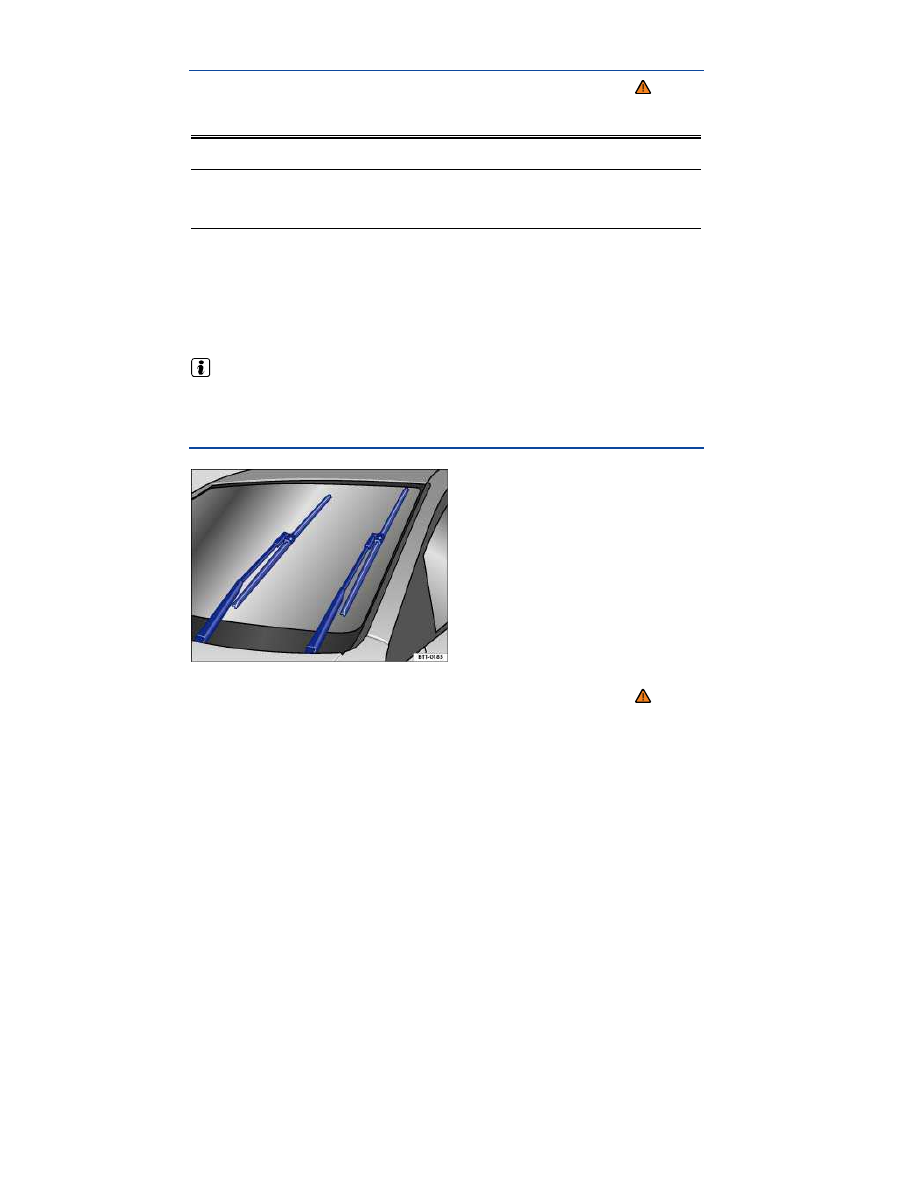

Fig. 91 Windshield wiper in service position.

Please first read and note the introductory information and heed the WARNINGS

In the service position, the wiper arms can be lifted away from the windshield

⇒

fig. 91

. The wipers are

moved to the service position as follows:

On some vehicles, the engine hood must be closed, Working in the engine compartment.
Switch the ignition off, turn it on briefly, and then off again.

Press the windshield wiper lever down briefly

⇒

fig. 89

(E)

when the ignition is off.

Wipers move into service position.

Carefully fold the wiper arms back onto the windshield before driving! Switch the ignition on and press

the windshield wiper lever down briefly

⇒

fig. 89

(E)

. The wiper arms move back to their original

position.

Lifting the wiper blades and tilting them away from the windshield

Put the wiper arms in service position

⇒ .

Do not handle the wiper blades, handle the wiper arms only at the attachment above the wiper

blades.

NOTICE

To help prevent damage to the engine hood and the windshield wiper arms, lift the wiper

arms away from the windshield only when they are in the service position.

Always carefully fold the windshield wiper arms down against the windshield before driving

the vehicle.

Checking and refilling windshield washer fluid

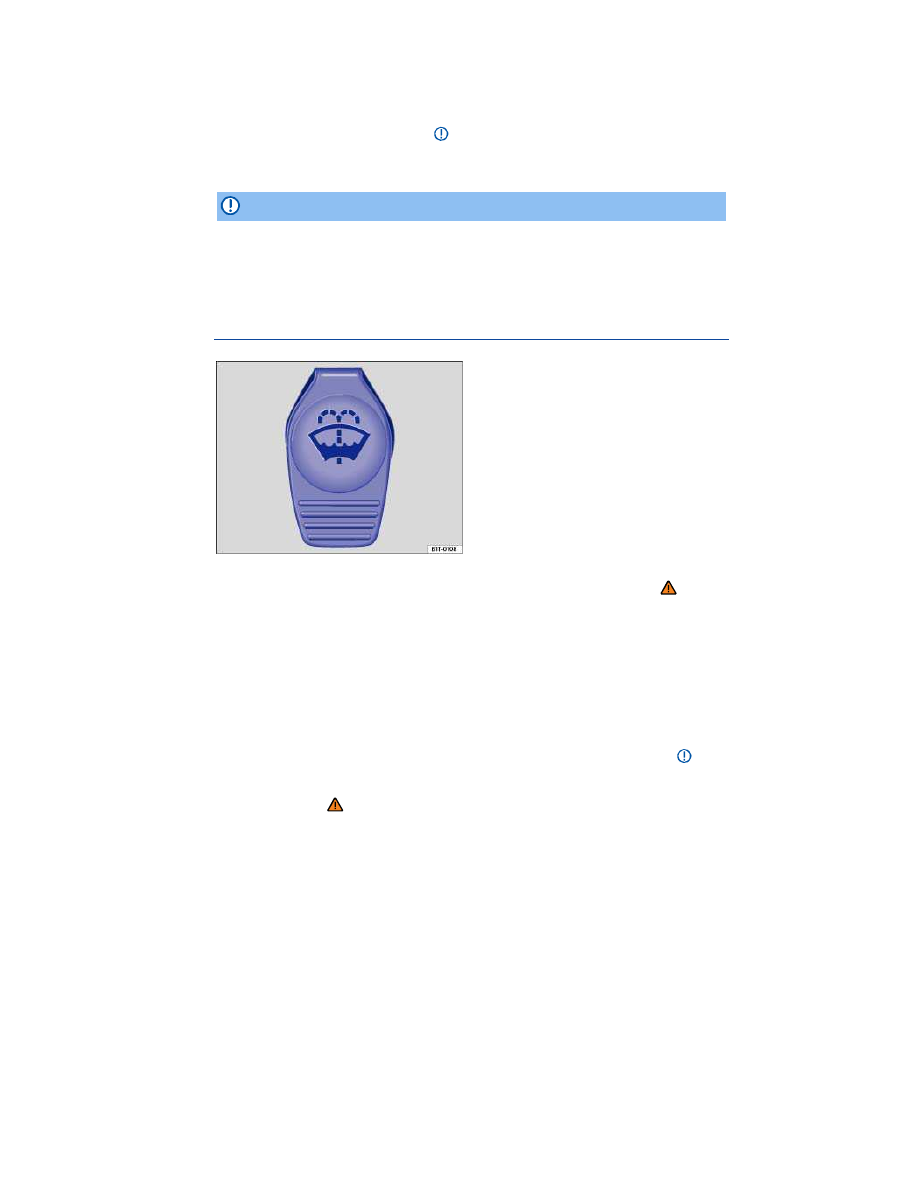

Fig. 92 In the engine compartment: Cap of the windshield washer fluid reservoir.

Please first read and note the introductory information and heed the WARNINGS

Check the windshield washer fluid level regularly and refill as necessary.

There is a filter screen in the filler neck of the windshield washer fluid reservoir. The screen helps to
keep large particles and debris from getting into and clogging the windshield washer nozzles when
adding windshield washer fluid. Take the screen out only to clean it. If the screen is damaged or
missing, have it replaced immediately, otherwise the system may become clogged and not work
properly.

Open the engine hood , Working in the engine compartment.

The windshield washer fluid reservoir can be identified by the symbol on its cap

⇒

fig. 92

Check if there is still enough windshield washer fluid in the reservoir.

Refill with an appropriate windshield washer fluid that is recommended by Volkswagen

⇒ .

Follow the directions on the container.

In cold weather, always use a special windshield washer antifreeze solution that will help keep the

water from freezing

⇒ .

Recommended cleaners

For the warmer months, Windscreen Clear SummerG 052 184 A1 or equivalent. Mixing ratio 1:100

(1 part concentrate to 100 parts water) in the windshield washer reservoir.

All-season Windscreen ClearG 052 164 A2 or equivalent. Mixing ratio in winter to 0 °F (-18 °C)

about 1:2 (1 part concentrate to 2 parts water), otherwise, mixing ratio 1:4 in the windshield washer
reservoir.

Filling capacity

The windshield washer fluid reservoir holds 3.1 – 4.2 quarts (about 3 to 4 liters).

WARNING

Never mix antifreeze or similar additives into the windshield washer reservoir. This could
produce an oily film on the windshield, which would considerably reduce visibility.

Use clear water with a cleaning solution recommended by Volkswagen.
If necessary, blend with a suitable windshield washer fluid antifreeze agent.

NOTICE

Never mix cleaning solutions recommended by Volkswagen with other cleaning agents. If

you do, this could cause sediments or other by-products that can clog the windshield washer
nozzles.

When refilling, do not confuse one type of operating liquid with another! Otherwise serious

malfunctions and engine damage can occur!

Mirrors

Introduction

In this section you’ll find information about:

Inside mirror

Outside mirrors

For your driving safety, it is important that you properly adjust the outside mirrors and the inside mirror

before you start driving

⇒ .

The outside mirrors and the inside mirror help you see and adapt your driving to traffic behind you.
Remember that the inside and outside rearview mirrors will not show everything behind you. There
can be blind spots. Blind spots can be significantly larger if the mirrors are not properly adjusted.

More information:

  Exterior views
  Volkswagen Information System
  Adjusting the seating position
  Shifting
  Braking and parking

WARNING

Adjusting mirrors when the vehicle is moving can cause driver distraction, accidents, and
serious personal injury.

Always adjust the rearview mirrors when the vehicle is not moving.
Always be aware of what is happening around the vehicle when changing lanes, passing,

turning, or parking. Another vehicle, pedestrian, or object could be in your blind spot.

Always make sure mirrors are properly adjusted and the view to the rear is not reduced by

moisture, ice, snow, or other things.

Inside mirror

Fig. 93 Manually adjustable inside mirror.

Please first read and note the introductory information and heed the WARNINGS

Adjust the inside mirror to make sure that there is good visibility through the rear window.

For example, visibility through the rear window could be impaired if there is a sunshade on the rear
window or clothing on the luggage compartment cover, or if the rear window is covered with ice, snow,
or dirt.

Manually adjustable inside mirror

Home position: Lever on the bottom edge of the mirror points forward.

To adjust to non-glare visibility, move the lever so that it points backward

⇒

fig. 93

Outside mirrors

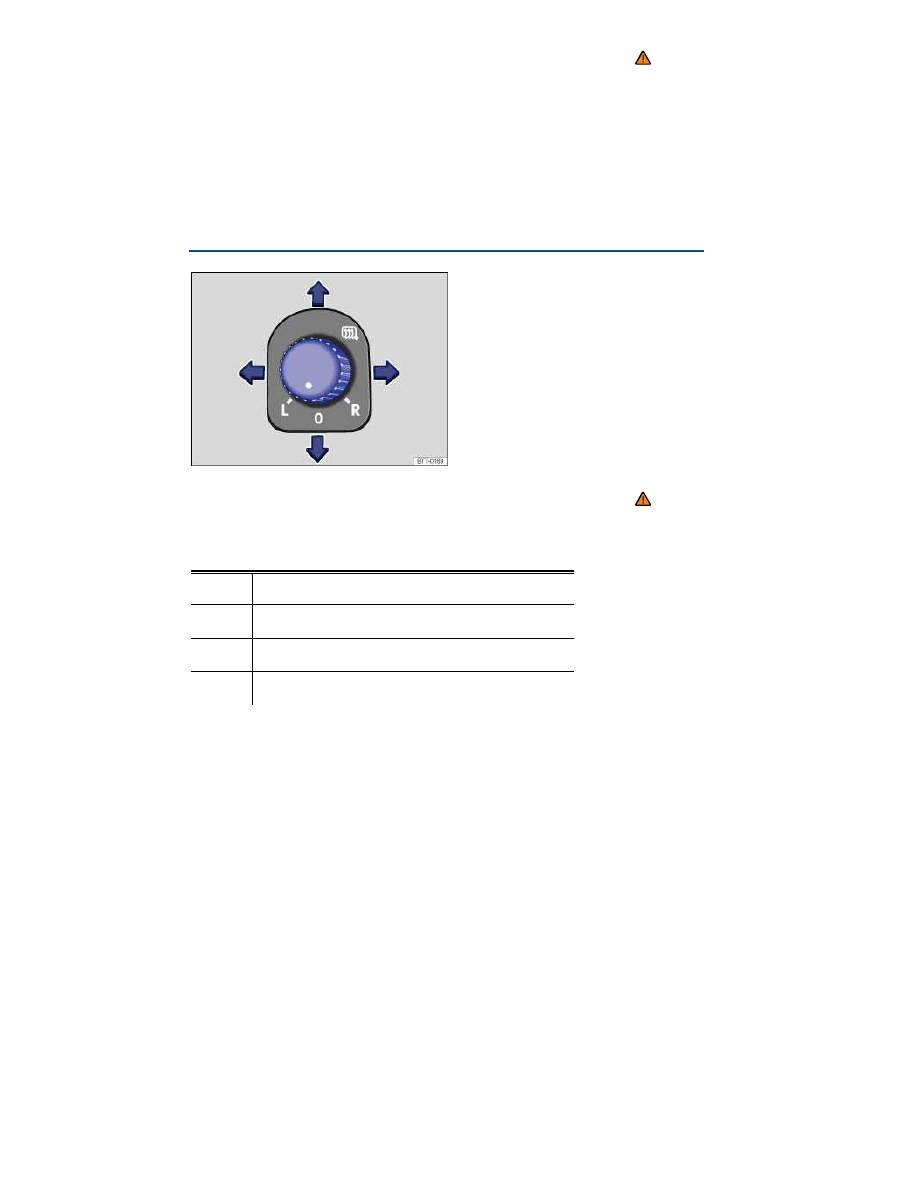

Fig. 94 In the driver door: Adjusting knob for the outside mirrors.

Please first read and note the introductory information and heed the WARNINGS

Turn the rotary knob in the driver door

⇒

fig. 94

to adjust the outside mirrors.

Turn the rotary knob to the desired position:

Switch on outside mirror heating. Heats only at outside air
temperatures below +68 °F (+20 °C).

Adjust the left outside mirror by pressing the knob to left/right
and up/down.

Adjust the right outside mirror by pressing the knob to left/right
and up/down.

Neutral position. Outside mirror folded out, no heating or
adjustment possible.

Synchronous mirror adjustment

In the Settings - Convenience menu, select Mirror adjust - Both mirrors for

synchronous outside mirror adjustment, Volkswagen Information System.

Turn the adjusting knob to the L position.

Adjust the left outside mirror. The right (passenger) outside mirror will automatically adjust at the

same time.

Volkswagen Jetta SportWagen (2014 year). Instruction - part 7
