Introduction

In this section you’ll find information about:
Menu structure – overview

Menu structure – overview

Using the instrument cluster menus

Main menu

MFI menu (Multi-Function Indicator)

Settings menu

Convenience submenu

Lights & Vision submenu

When the ignition is switched on, you can display different types of information in the instrument
cluster and control certain vehicle features.

The control buttons are on the right side of the multi-function steering wheel.

The number of menus in the instrument cluster display depends on the electronics and equipment on
the vehicle.

An authorized Volkswagen dealer or an authorized Volkswagen Service Facility may be able to add or
modify functions depending on your vehicle's equipment.

Some menu items can only be accessed when the vehicle is not moving.

As long as a priority 1 warning message is displayed, no menus can be accessed. In order to display
menus, acknowledge the warning by pressing the

button on the multi-function steering wheel

⇒

fig. 14

More information:

Outside mirrors
Driver assistance systems

Radio or Navigation system

⇒ booklet

Radio or ⇒ booklet Navigation system

Mobile phone package

⇒ booklet

Mobile Phone Package

WARNING

Driving on today's roads demands the full attention of the driver at all times. Driver distrac-
tion causes accidents, collisions and serious personal injury!

Never access menus when the vehicle is moving.

Emergency starting and starting the engine with a very weak vehicle battery or after the vehicle

battery has been replaced may change or delete system settings (including time, date, and program-
ming). Check the settings and correct as necessary once the vehicle battery has built up a sufficient
charge.

Menu structure – overview

Please first read and note the introductory information and heed the WARNINGS

The instrument cluster display is divided into 3 parts. The time (digital clock) is displayed in the top
part. The bottom part contains the odometer and the trip odometer (“trip”). You can select the following
displays for the middle part:

Multi-Function Indicator (MFI)
▪  Travel time
▪  Consumption --.- mpg (current fuel consumption)
▪  Av. consumption --.- mpg (average fuel consumption)
▪  Range -- mi
▪  Route -- mi
▪  Average speed --- mph
▪  --- mph (digital speed display)
▪  Speed warning --- mph

Audio

⇒ booklet

Radio or ⇒ booklet Navigation system

Navigation

⇒ booklet

Navigation system

Phone

⇒ booklet

Mobile Phone Package

Assistants (if equipped)
▪  AFS
Vehicle status
Settings
▪  Language
▪  MFI data

–  Travel time
–  Curr. consum. (current fuel consumption)
–  Av. consum. (average fuel consumption)
–  Route
–  Av. speed
–  Digit. speed (digital speed display)
–  Speed warn. (speed warning)
–  Back

▪ Convenience

– ATA confirm
– Central locking

Auto unlock
Unlock doors
Back

– Window op. (window operation)

Off
All
Driver
Back

– Mirror adjust

Individually
Both mirrors

Back

– Factory setting
– Back

▪ Lights & Vision

–  Conv. turn sig. (convenience turn signal)
–  Factory setting
–  Back

▪ Time

–  Hours
–  Minutes
–  24 hr. mode
–  Daylight save
–  Back

▪ Snow tires (winter tires)

–  On
–  + 5 mph
–  - 5 mph
–  Back

▪ Compass (vehicles without navigation system)

–  Zone
–  Calibrate
–  Back

▪ Units

–  Temperature
–  Consump./dist.
–  Back

▪ Service

– Info
– Back

▪ Factory setting

Using the instrument cluster menus

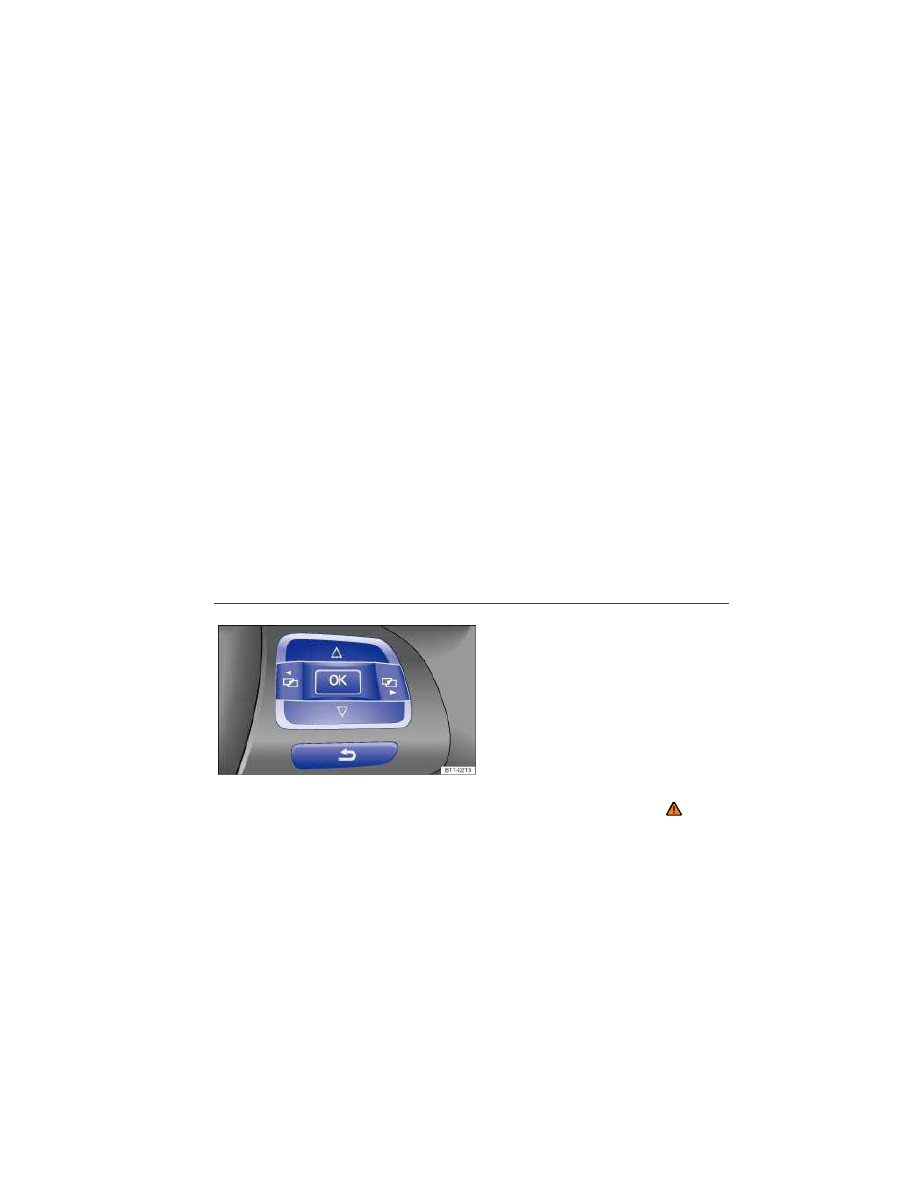

Fig. 14 Right side of the multi-function steering wheel: Controls for menus in the instrument cluster.

Please first read and note the introductory information and heed the WARNINGS

The instrument cluster menus are controlled with buttons on the right side of the steering wheel
⇒

fig. 14

Accessing the instrument cluster menus

Switch on the ignition. You will see the vehicle icon or a message in the instrument cluster display.
Push the

button on the right side of the multi-function steering wheel until a main menu appears

in the instrument cluster display. For a list of main menus, see Menu structure – overview, Menu
structure – overview.

Push buttons

∃

to move to another main menu, and push the arrow up and down buttons

and to navigate inside the current main menu. For example, in the Settings main menu, press the
arrow down button to navigate to the MFI data submenu.

Displaying a submenu

Press the

button to display submenu items. For instance, after scrolling to MFI data in the

Settings main menu, press the

button to display items available under the MFI data submenu.

Selecting a setting

Some menus are used to select settings for certain features. Push the

button to select a setting.

Use the arrow up and down buttons and on the multi-function steering wheel to navigate

through the available options.

The selected menu item is located between the 2 horizontal lines. There may also be a triangle (

)

on the right.

Push the

button to select the setting.

Returning to the main menu

Via menu: Use the arrow down button to select Back and then press the

button .

For operation with multi-function steering wheel: Press

Main menu

Please first read and note the introductory information and heed the WARNINGS

Menu

Function

See

MFI

Multi-Function Indicator (MFI) information.

Audio

Station indicator in radio mode.
Track display in CD mode.
Track display in media mode.

⇒ booklet

Radio or

⇒ booklet

Navigation

system

Navigation

Information displays on the navigation system (if equipped):
When destination guidance is active, turn arrows and prox-
imity bars are shown. The illustration is similar to the sym-
bol display in the navigation system.
If destination guidance is inactive, driving direction (com-
pass function) and the current street name are displayed.

⇒ booklet

Navigation

system

Phone

Information and settings of the mobile phone package.

⇒booklet

Mobile

Phone Package

Assistants

Turn the Adaptive Front Lighting System (AFS) on and off
(if equipped).

Menu

Function

See

Vehicle
status

Current warning and information messages.
This menu item is only displayed when warning or infor-
mation messages are available. The number of available
messages is shown in the display. Example: 1/1 or 2/2.

Settings

Includes the Convenience and Lights & Vision submenus,
as well as many settings such as time, speed warning for
winter tires, language, and units.

MFI menu (Multi-Function Indicator)

Please first read and note the introductory information and heed the WARNINGS

The MFI display has 2 automatic memories: 1 – single trip memory and 2 – total trip memory. The
number of the trip memory is shown at the upper right of the display.

The trip memories are in addition to the trip odometer, which is displayed in the bottom part of the
instrument cluster and controlled using the

button on the right of the instrument panel

⇒

fig. 10

(4)

To display the distance driven on trips 1 and 2, select the Route item in the MFI menu. Press the

button

⇒

fig. 14

to toggle between Route 1 and Route 2 (trip 1 and trip 2). Push and hold the

button

to manually reset a trip memory to zero.

Single trip memory

The memory accumulates and stores information about distance driven
and fuel used from the time the ignition was switched on until the time it
was switched off.
If the ignition stays off for 2 hours or more, stored information is auto-
matically deleted. If the trip is continued within 2 hours after the ignition
was switched off, the new values are added.

Total trip memory

The memory displays and stores the accumulated driving and fuel con-
sumption data of any number of single trips up to a total driving time of
99 hours and 59 minutes, and up to a total distance of 9,999 miles
(9,999 km). If one of the maximum values is exceeded, then the memory
is automatically cleared and starts again from 0.

Possible MFI menu displays

The following displays can be accessed in the MFI menu if enabled under Settings > MFI data.
Displays that are not enabled will not appear.

Display

Function

Travel time

Driving time in hours (h) and minutes (min) corresponding to trip memo-
ries 1 and 2 (toggle).

Consumption
--.- mpg

Current fuel consumption in miles per gallon (l/100 km) while driving.
When units are set to miles, dashes appear instead of a number when
the engine is running and the vehicle is standing still.
When units are set to kilometers, the display shows liters consumed per
hour when the engine is running and the vehicle is standing still.

Consumption

--.- l/100 km

Av. consumption
--.- mpg

Average fuel consumption in miles per gallon (l/100 km) on trips per trip
memories 1 and 2 (toggle) is displayed once the vehicle has been driven

Display

Function

Av. consumption

--.- l/100 km

about 330 feet (100 m). Until then, dashes appear instead of a number.
The value displayed is updated every 5 seconds.

Range -- mi

Estimated distance in miles (km) that the vehicle can go with the fuel left
in the tank the way you are currently driving. Takes account of the cur-
rent fuel consumption, among other things.

Range -- km

Route -- mi

Distance driven in miles (km) per trip memories 1 and 2 (toggle).

Route -- km

Average speed

-- mph

Average speed on trips per trip memories 1 and 2 (toggle). Displayed
once the vehicle has been driven about 300 feet (100 m). Until then,
dashes may appear instead of a number. The value displayed is updated
every 5 seconds.

Average speed
-- km/h

-- mph

Digital display of the current vehicle speed.

-- km/h

Speed warning

--- mph

When the set speed (from 20–155 mph or 30–250 km/h) is exceeded, an
acoustic warning sounds and a visual message may also appear in the
instrument cluster display.

Speed warning
--- km/h

Switching between the displays

Use the arrow up and down buttons ( and ) on the multi-function steering wheel.

Storing speed for the speed warning

Select the Speed warning -- mph or Speed warning -- km/h display.
Press the

button to save the current speed and to activate the warning.

If the speed is not right, press buttons or on the multi-function steering wheel to set a different

speed within about 5 seconds. Then press the

button a second time or just wait a few seconds.

The speed is saved and the warning is activated.

To deactivate, toggle to --- mph or --- km/h and press the

button. The set speed is deleted.

Manually erasing trip memory 1 or 2

  Navigate to MFI > Route.
  Select the memory to be erased.
  Press the

button for about 2 seconds.

Enabling and disabling displays

Use the Settings menu, submenu MFI data to enable displays you want to be available under the
MFI menu in the instrument cluster display. The units in which data is displayed can also be changed,
Settings menu, Settings menu.

Settings menu

Please first read and note the introductory information and heed the WARNINGS

Settings menu

Function

Language

Set the language for messages in the display and navigation system.

MFI data

Select the features you want to have displayed in the MFI menu in the
instrument cluster display

Convenience

Convenience function settings.

Lights & Vision

Vehicle lighting settings

Time

Set hours and minutes for the instrument cluster clock and the Radio &
Navigation System clock. The time can be displayed in 12 or 24 hour
format, and can also be set to daylight savings time.

Snow tires

Set up a visual and acoustic speed warning. Use the feature only when
winter tires are installed that have a speed rating less than top vehicle
speed.

Compass

Calibrate the compass on vehicles without a factory-installed navigation
system. To calibrate, follow the instructions in the instrument cluster
display

Units

Set the units in which temperature, fuel consumption, and distances
should be displayed (for example, whether to show distance driven in
miles or kilometers).

Service

View the service reminder display

Factory setting

Reset the functions in the Settings menu back to the factory settings.

Convenience submenu

Please first read and note the introductory information and heed the WARNINGS

Convenience
menu

Function

ATA confirm

The horn beeps once when the vehicle is locked with the remote control vehicle
key if ATA confirm is checked

Central
locking

Auto unlock

You can enable or disable Auto unlock. If Auto unlock is
enabled (box checked), the doors automatically unlock
when you switch off the ignition and open a door from
inside the vehicle. On vehicles with automatic transmis-
sion, the doors will also unlock when the selector lever is in
Park (P) and the ignition is switched off.
Auto unlock works only if the vehicle has been automati-
cally locked after reaching a speed of 10 mph (15 km/h).
Auto unlock always unlocks all the doors.

Convenience
menu

Function

Unlock doors

Doors are unlocked as follows depending on the option
selected:
– All doors: Pushing the unlock button   on the remote
control vehicle key unlocks all doors and the luggage
compartment lid.
– Single door: Pushing the unlock button   on the
remote control vehicle key unlocks only the driver door. To
unlock all doors and the luggage compartment, push the
unlock button   on the key a second time within about
5 seconds.
On vehicles with Keyless Access, touching the sensor
surface of the door handle on the side where the valid
vehicle key is located unlocks the respective door
– Vehicle side: Pushing the unlock button   on the
remote control vehicle key unlocks the doors on the driver
side of the vehicle.
On vehicles with Keyless Access, touching the sensor
surface of a door handle on the side where the valid vehi-
cle key is located unlocks the doors on that side of the
vehicle.

Window op.

Off

Manual unlocking/locking: No windows open or close when
the key is held in the unlocking or locking position
Keyless Access: No windows close when the locking
sensor on the door handle is pressed and held (conven-
ience closing)

All

Manual unlocking/locking: All windows open or close when
the key is held in the unlocking or locking position.
Keyless Access: All windows and the sunroof close when
the locking sensor on the door handle is pressed and held.

Driver

Manual unlocking: The driver window opens when the key
is held in the unlocking position.
Manual locking: All windows close when the key is held in
the locking position.
Keyless Access: All windows and the sunroof close when
the locking sensor on the door handle is pressed and held.

Back

The display switches back to the Convenience menu.

Mirror adjust
⇒ page 169.

Individually

Both outside mirrors are adjusted separately.

Both mirrors

The front passenger outside mirror is adjusted at the same
time as the driver outside mirror.

Back

The display returns to the Convenience menu.

Factory

setting

Resets the features in the Convenience submenu back to the factory settings.

Back

The display returns to the Settings menu.

Lights & Vision submenu

Please first read and note the introductory information and heed the WARNINGS

Driving checklists and warnings

Introduction

In this section you’ll find information about:

Getting ready and driving safely

Driving in other countries

Driving through water on roads

More information:

  Sitting properly and safely
  Transporting
  Starting and stopping the engine
  Saving fuel and helping the environment
  Consumer information

WARNING

Driving under the influence of alcohol, illegal drugs, narcotics and some medications may
cause collisions and other accidents, severe personal injuries and even death.

Alcohol, illegal drugs, narcotics and some medications may severely affect perception,

reaction times and safe driving, which may result in the loss of vehicle control.

Getting ready and driving safely

Please first read and note the introductory information and heed the WARNINGS

Checklist

Observe the following points before and during every drive for your own safety, the safety of all pas-

sengers and others

⇒

Check proper function of lights and turn signals.

Check tire pressure (Tires and wheels) and fuel level (Refueling).

Make sure that all windows are clean.

Store items and all luggage safely in the storage compartments, in the luggage compartment and,

if necessary, on the roof, Roof rack.

Always make sure that nothing keeps the pedals from moving freely.

Make sure that children are properly secured by a restraint system appropriate for their size and

weight, Child safety and child restraints.

Properly adjust front seats, all head restraints and mirrors to the correct height , Adjusting the

seating position.

Wear shoes that give your feet a good grip, and that give you a feel for the pedals.

Make sure that the floormat on the driver side is properly fastened and cannot interfere with the

pedals.

Assume a proper seating position before the vehicle starts to move and keep this position while

driving. Make sure that all passengers do the same, Adjusting the seating position.

Properly fasten your safety belt before driving the vehicle and wear your safety belt properly at all

times while driving. Make sure that all passengers do the same, Safety belts.

Only transport as many passengers as there are seats and safety belts available.

Never drive if your driving ability has been impaired, for example by medication, alcohol or illegal

drugs.

Never let passengers or phone calls distract you while driving, and never take your attention off the

road while using vehicle software or adjusting vehicle equipment or accessories.

Always adapt your speed and driving style to visibility, weather, road, and traffic conditions.

Always obey traffic laws and speed limits.

On long trips make frequent rest stops – at least once every 2 hours.

Secure animals in the vehicle with a system that corresponds to weight and size.

WARNING

Always observe traffic rules and posted speed limits and use common sense. Your good
judgment can mean the difference between arriving safely at your destination and being seri-
ously injured in a crash or other kind of accident.

Regular service and maintenance of your vehicle is important both for operational and driving

safety and to help prolong your vehicle's service life. Always follow the scheduled maintenance inter-

vals in the

⇒ Booklet

Warranty and Maintenance, especially for changing the brake fluid. Hard use,

frequent stop-and-go driving, driving in very dusty areas, trailer towing, and other factors may make it
necessary to have the vehicle serviced more frequently. Ask an authorized Volkswagen dealer or an
authorized Volkswagen Service Facility for more information.

Driving in other countries

Please first read and note the introductory information and heed the WARNINGS

Checklist

Some countries have special safety standards and emissions requirements that your vehicle may not
meet. Before taking your vehicle to another country, Volkswagen therefore recommends that you ask
your authorized Volkswagen dealer or authorized Volkswagen Service Facility about the following
issues with regard to the country to which you would like to travel:

Should the vehicle be technically prepared for the trip abroad, such as masking or adjusting head-

lights?

Are maintenance, repair facilities, necessary tools and testing equipment as well as spare parts

readily available for your vehicle?

Are there authorized Volkswagen dealers and authorized Volkswagen Service Facilities in the

countries where you will be driving?

For gasoline engines: Is unleaded fuel with the right octane rating readily available?

Are engine oil (Engine oil) and other operating fluids that meet Volkswagen quality and perfor-

mance requirements available where you will be driving? For more information, please see
⇒ Booklet

Warranty and Maintenance.

Does the factory-installed navigation system work in the countries where you will be driving, and is

navigation data available?

Are special or heavy-duty tires necessary for the kind of driving expected?

NOTICE

Volkswagen is not responsible for mechanical damage that may result from substandard fuel
or service or the unavailability of Genuine Volkswagen parts.

Driving through water on roads

Please first read and note the introductory information and heed the WARNINGS

page 32.

Note the following to help prevent vehicle damage when driving through water, for example on flooded
roads:

Check the depth of the water before driving through it. The water must not be any higher than

the bottom of the vehicle body

⇒

Do not drive faster than walking speed.
Never stop the vehicle, and do not drive in reverse or switch the engine off when driving through

water.

Oncoming vehicles may create waves that raise the water level and make it too deep for your

vehicle to drive through safely.

WARNING

After driving through water, mud, sludge, etc., the brakes react slower and need longer stop-
ping distances.

Always dry the brakes and clean off any ice coatings with a few careful applications of the

brake. Make sure not to endanger other motorists or cyclists or disobey legal requirements.

Avoid abrupt or sudden braking maneuvers immediately after driving through water.

NOTICE

Vehicle components such as the engine, transmission, suspension or electrical system may

be severely damaged by driving through water.

Never drive through salt water. Salt causes vehicle corrosion. Thoroughly rinse with fresh

water all vehicle parts that were exposed to salt water.

Technical data

Introduction

In this section you’ll find information about:

Important vehicle labels

Engine data

Dimensions

Your vehicle's engine type is shown on the vehicle identification label.

The specifications in this Manual refer to the base model. The stated values may vary, depending
upon different equipment or models, as well as with respect to special vehicles and vehicles exported
to different countries.

More information:

  Transporting
  Tires and wheels
  Saving fuel and helping the environment
  Fuel
  Engine oil
  Engine coolant
  Consumer information

WARNING

Disregarding or exceeding stated values for weights, loads, dimensions and maximum speed
may result in accidents and serious personal injuries.

Important vehicle labels

Fig. 15 Vehicle identification label: Shown in the example with engine identification code CBFA 3.

Fig. 16 Vehicle identification number (VIN).

Please first read and note the introductory information and heed the WARNINGS

Factory-installed safety certificates, stickers, and signs containing important information regarding
vehicle operation can be found in the engine compartment and on certain vehicle components, such
as inside the fuel filler flap, on the passenger sun visor, in the driver door jamb, or on the luggage
compartment floor.

Do not remove, alter, or render unusable or illegible any safety certificates, stickers, and labels.
If vehicle components bearing safety certificates, stickers, or labels are replaced, make certain that

the firm doing the work attaches new conforming certificates, stickers, or labels to the same part of the
new components.

Vehicle identification number

The vehicle identification number is on a plate on top of the instrument panel on the driver side, and is

visible from the outside through the windshield

⇒

fig. 16

(arrow). The view window is on the side at the

bottom of the windshield. The vehicle identification number is also stamped into the top of the right drip
channel in the engine compartment. The drip channel is between the spring strut tower and the right
fender. Open the engine hood to read the vehicle identification number , Working in the engine
compartment.

Vehicle identification label

The vehicle identification label

⇒

fig. 15

is affixed to the area of the spare wheel well in the luggage

compartment and contains the following information:

(1)

Vehicle identification number (VIN)

(2)

Vehicle type, engine output, transmission

(3)

Engine and transmission classification code, paint number, interior. In the example, the engine
classification code is “CBFA” .

(4)

Optional equipment, part numbers

Safety Compliance Certification Label

A safety certificate affixed to the door jamb in the driver door confirms that at time of production all
necessary safety standards and requirements of the traffic safety agency of the respective country
were met. The month and year of production as well as the vehicle identification number may be listed
as well.

Radiator fan and high voltage warning sticker

A warning sticker about the radiator fan and the high voltage of the electrical system is located in the
engine compartment next to the engine hood release. The vehicle ignition system complies with the
Canadian standard ICES-002.

Tire inflation pressure label

A tire inflation pressure label is on the driver door jamb, Tires and wheels.

Fuel grade sticker

An information sticker listing the correct fuel grade for your vehicle, Refueling.

Engine data

Please first read and note the introductory information and heed the WARNINGS

Gasoline engines

Maximum power output

Injection

technology

Engine

ID code

Maximum torque

No. of cylinders

Displacement

210 hp at 5300 rpm
(155 kW at 5300 rpm)

TSI

CPLA,

CPPA

2.0T

207 lb-ft at 1700 rpm

(280 Nm at 1700 rpm)

4 cylinder

121 CID

(1984 ccm)

Dimensions

Please first read and note the introductory information and heed the WARNINGS

Length

182.2–186.8 in. (4628–4744 mm)

Width

about 70.0 in. (1778 mm)

Height (unloaded)

56.6–58.3 in. (1438–1482 mm)

Wheelbase

104.4 in. (2651 mm)

Minimum turning circle diameter (wall to wall)

about 36.4 ft (about 11.1 m)

Track

, front

60.1–60.7 in. (1527–1541 mm)

Track

, rear

59.9–60.6 in. (1523–1538 mm)

Ground clearance (unloaded)

about 3.7–5.5 in. (about 94–139 mm)

NOTICE

Please be careful when parking your vehicle in areas with parking barriers or curbs. These

vary in height and could damage your bumper and related parts if the front of your vehicle hits
a barrier or curb that is too high while you are getting into or out of a parking spot.

Always be careful when you enter a driveway or drive up or down steep ramps or over

curbs or other obstacles. Parts of the vehicle close to the ground may be damaged (such as
bumper covers, spoilers, and parts of the engine, suspension, and exhaust systems).

Slight differences to these figures are possible, depending on wheel and tire size fitted and the level

selected.

Varies depending on your vehicle's equipment (engine, tires, wheels, tire inflation pressure, driving

situation and other factors).

Volkswagen Jetta GLI (2014 year). Instruction - part 2
