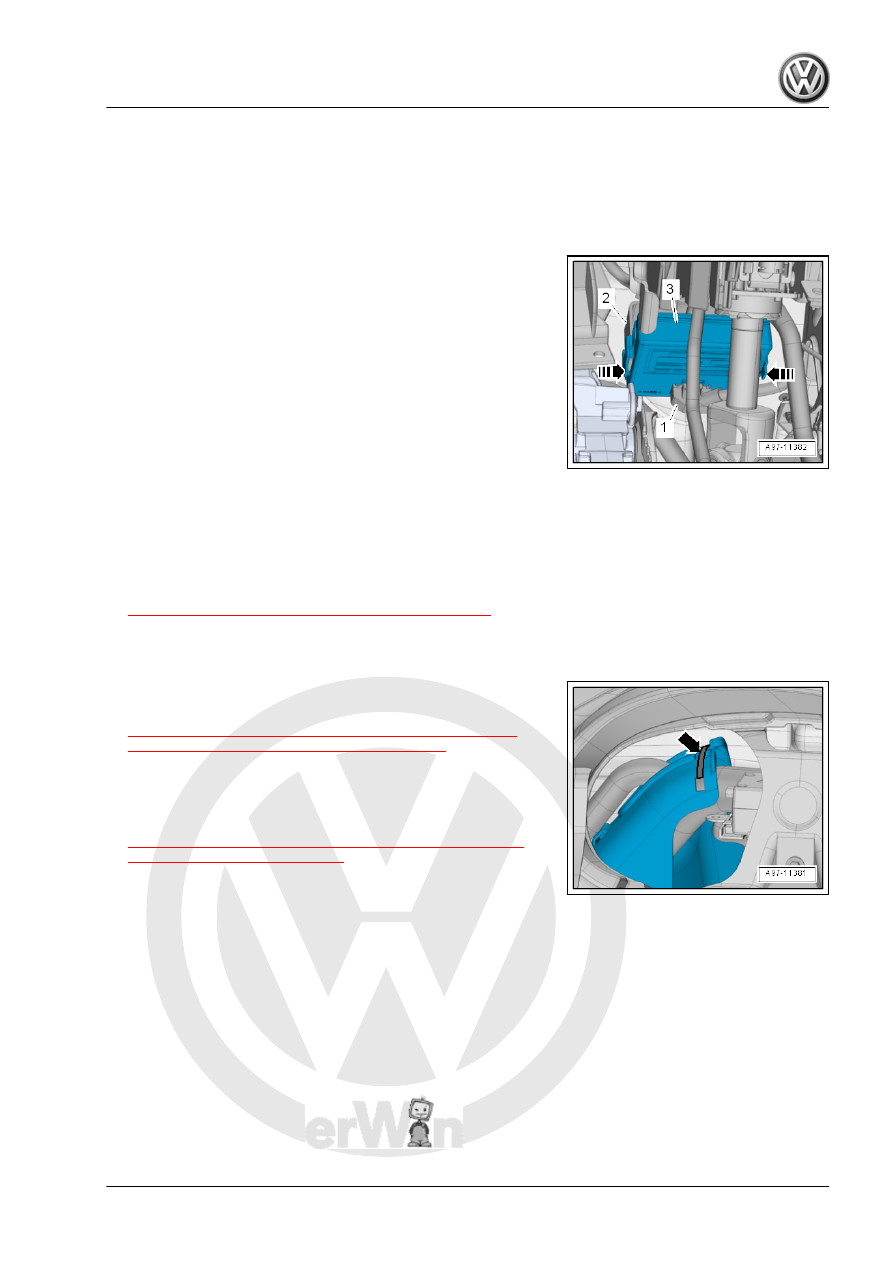

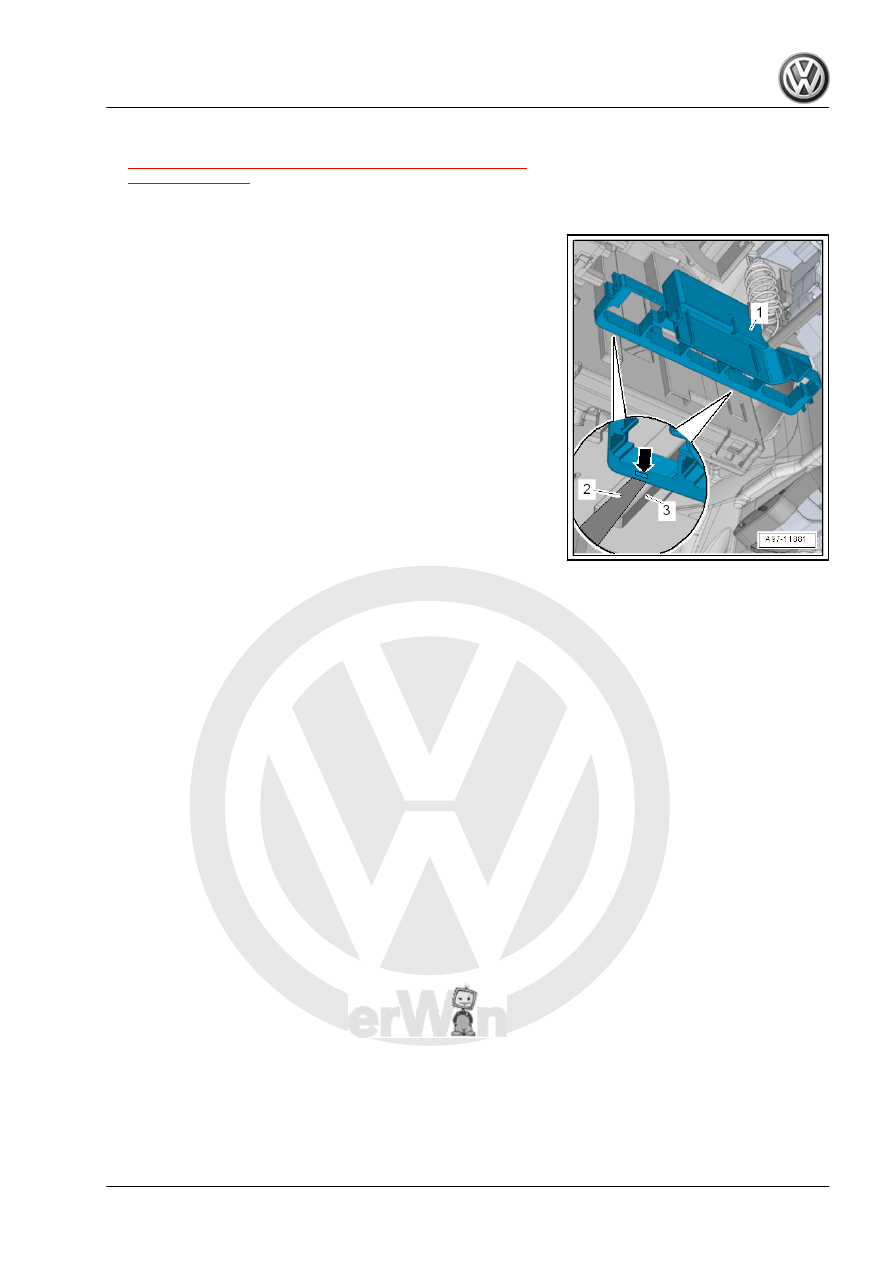

Removing Interior; Rep. Gr. 68 ; Storage Compartments and Covers; Driver Side Footwell Cover, Removing and Installing . – Release the connector -1- and disconnect, to do this grasp upward behind the pedal bracket. – To disconnect the connector press the circlip and remove the connector. – Release the retainers in direction of -arrows-. -3- downward from the bracket -2-. Installing 2.6 Vehicle Electrical System Control Mod‐ ule - J519- Bracket, Removing and In‐ stalling Removing ⇒ “1.3 Battery, Disconnecting and Connecting”, page 9 – Remove the instrument panel. Refer to ⇒ Body Interior; Rep. Gr. 70 ; Instrument Panel; Instrument Panel, Removing and Installing . – Cut the cable tie -arrow-. ⇒ “1.4 Relay and Fuse Carrier Behind Instrument Panel on Driver Side, Removing and Installing”, page 294 . – Release and disconnect the connector from the Front Parking Aid Warning Buzzer - H22- . – Release and disconnect the connector on the Vehicle Electri‐ cal System Control Module - J519- . Refer to ⇒ “2.4 Vehicle Electrical System Control Module J519 , Re‐ moving and Installing”, page 299 . – Release and disconnect the connector on the Parking Aid Control Module - J446- / Parallel Parking Assistance Control Module - J791- . – Remove the diagnostic connector, to do this release the lock‐ ing mechanism on the bracket and remove the bracket out‐ ward. |
