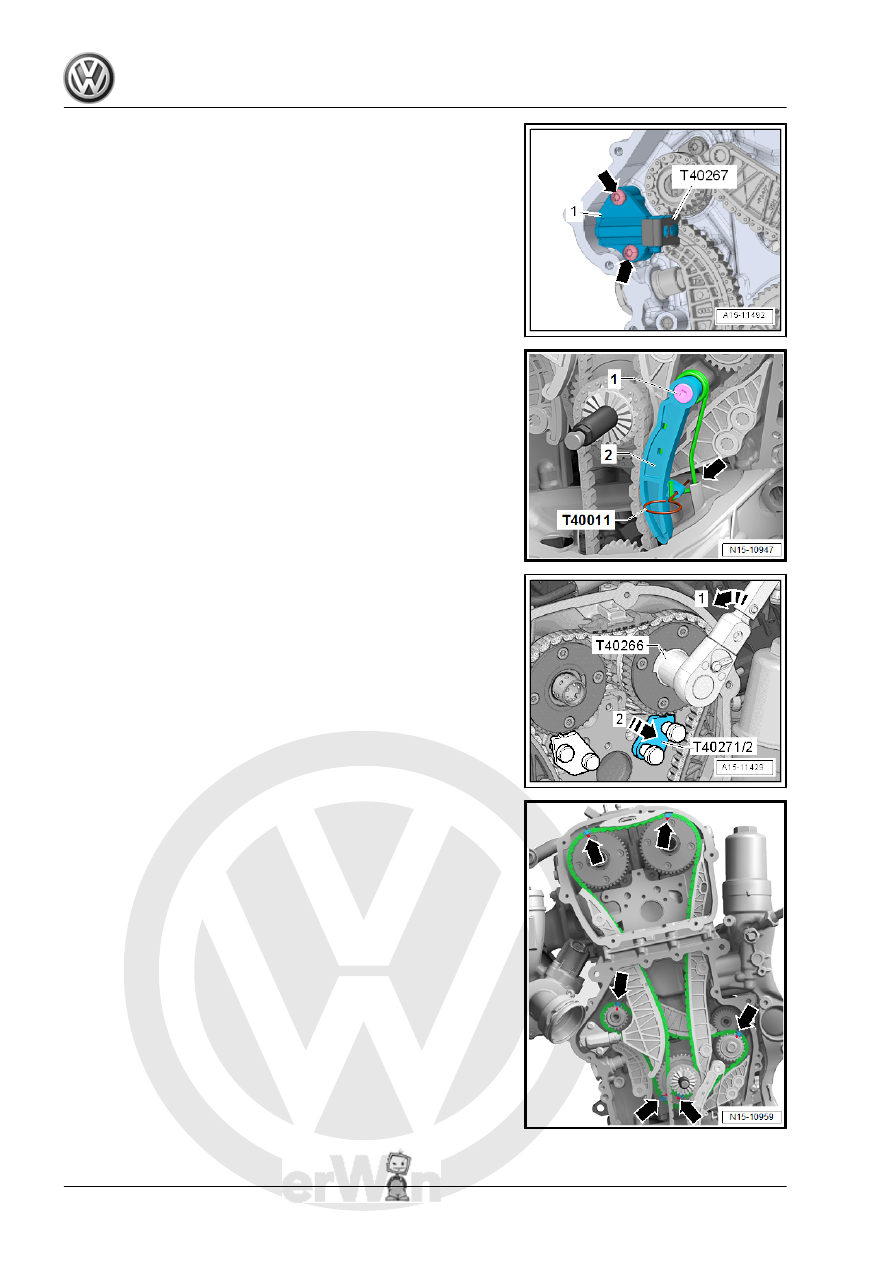

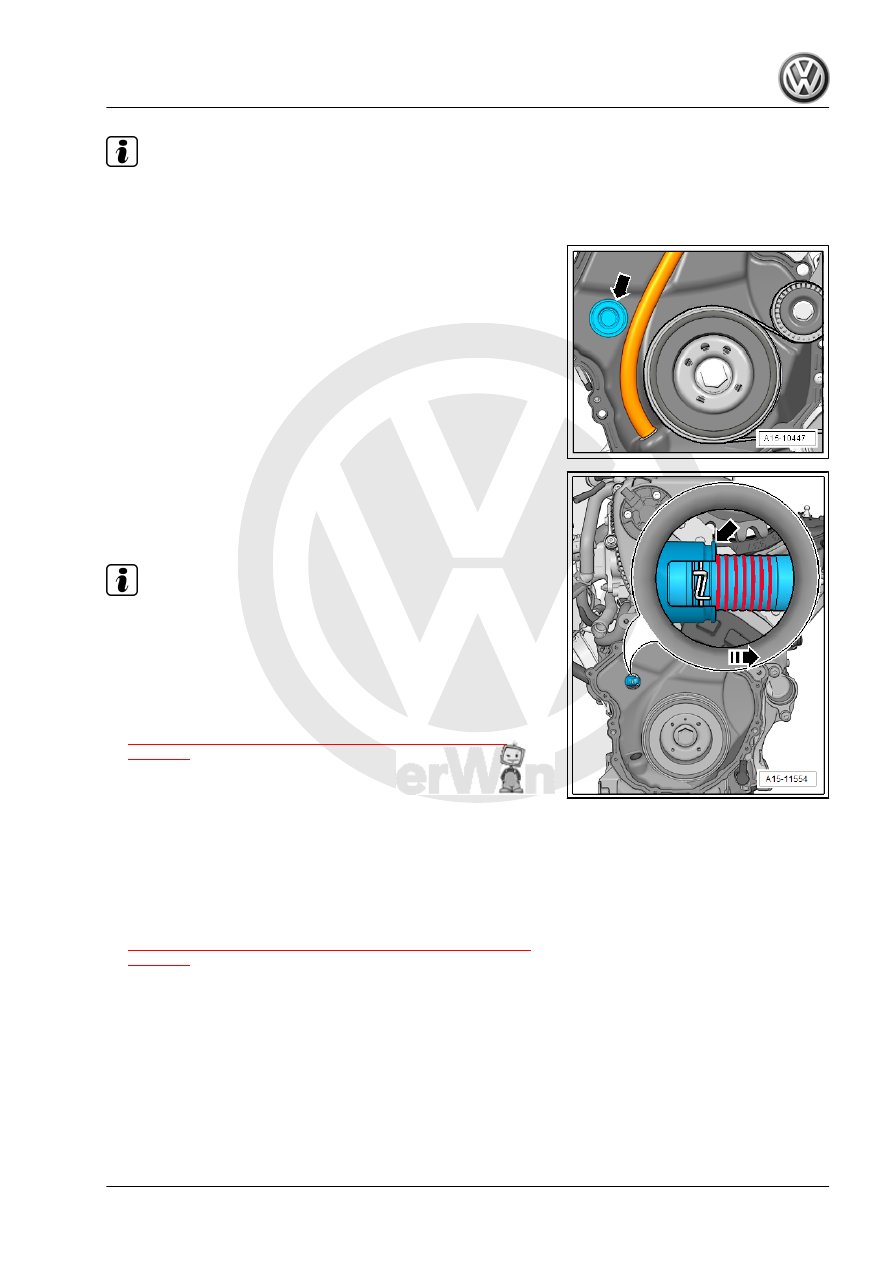

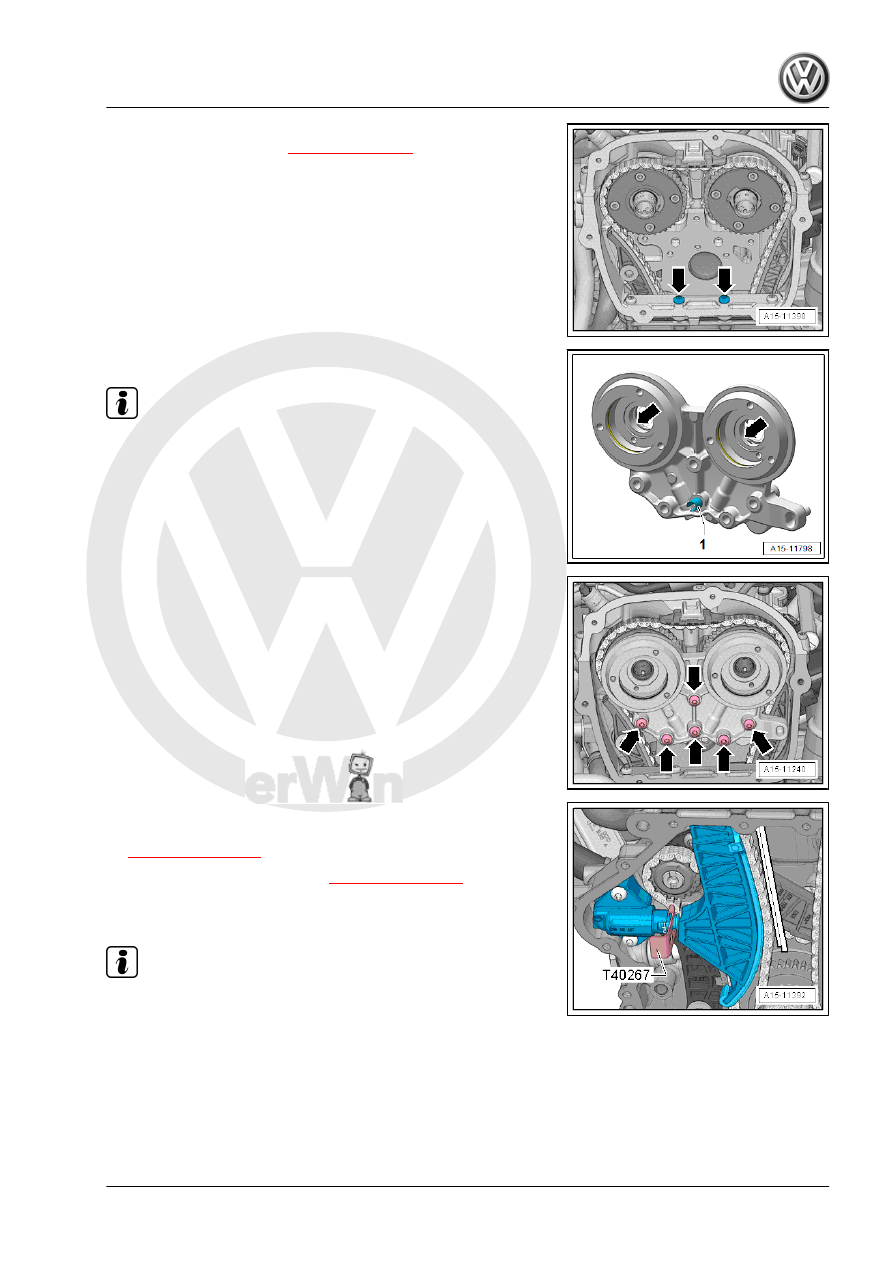

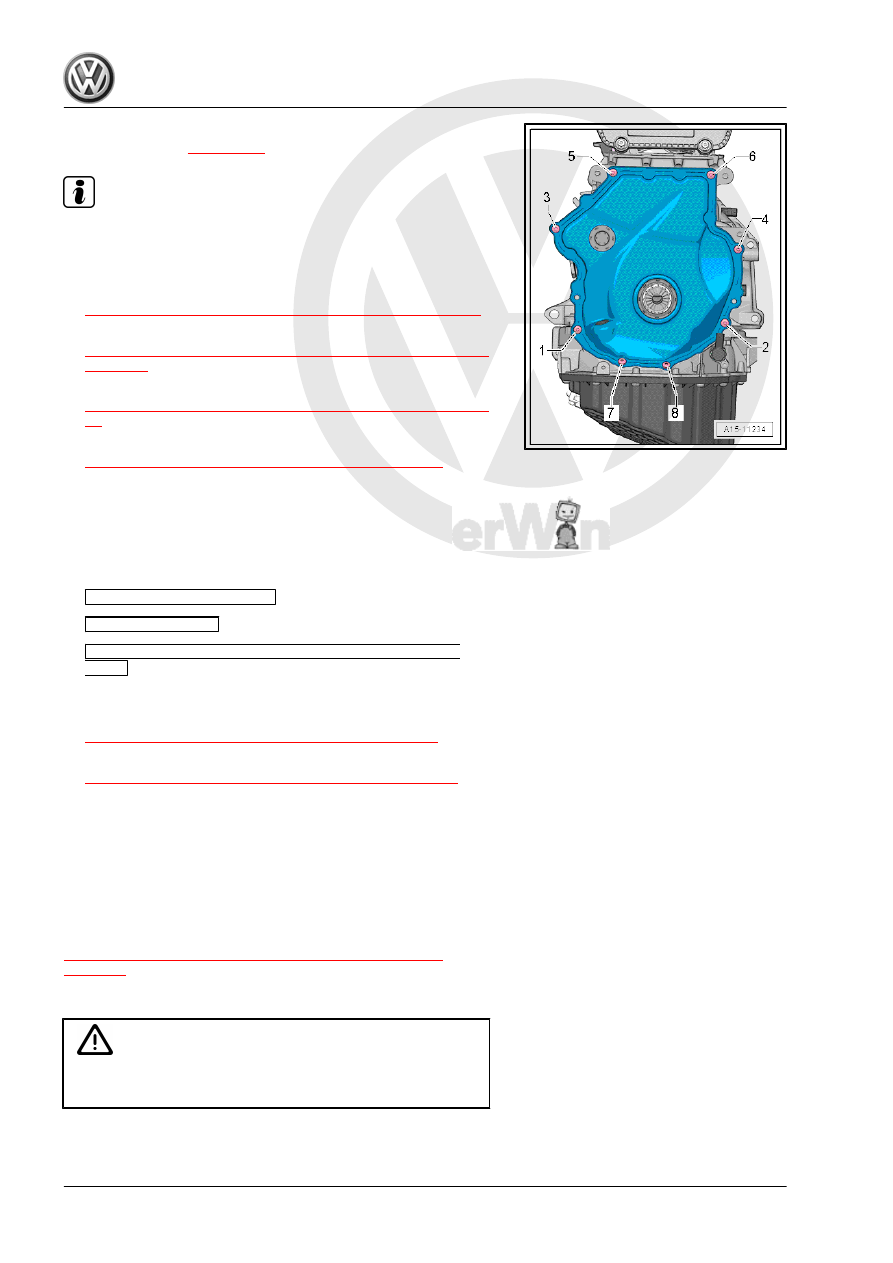

– Install the chain tensioner -1- and tighten the bolts -arrows-. – Install the chain tensioner -2-. The wire clip -arrow- must come in to contact with the oil pan upper section opening. Tighten the bolt -1- and remove the Locking Pin (3 pc.) - T40011- . – Turn the intake camshaft in the direction of the arrow -1- using the Adapter - T40266- until the Camshaft Lock - T40271/2- -2- can be pushed out of the chain sprocket splines. Release the camshaft. – Remove the Camshaft Lock - Component 1 - T40271/1- and Camshaft Lock - Component 2 - T40271/2- . – Check the adjustment. The painted chain links -arrows- must line up with the markings on the chain sprockets. |
