1.3.5

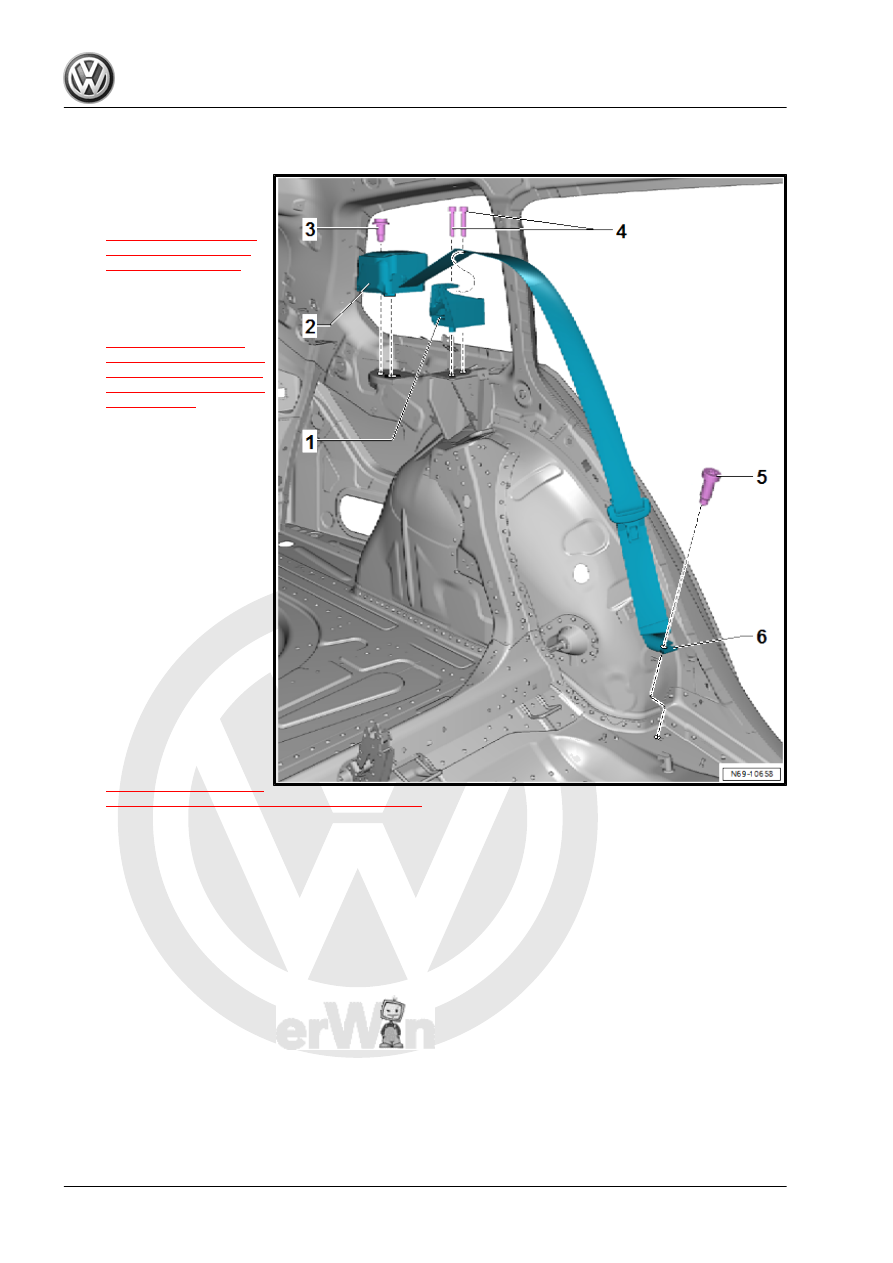

Overview - Three-Point Seat Belt, Wagon without Belt Tensioner

1 - Seat Belt Guide

❑ Removing and instal‐

ling. Refer to

⇒ “1.10 Rear Seat Belt

Guide, Removing and

Installing”, page 115

 .

2 - Automatic Belt Retractor

❑ Removing and instal‐

ling. Refer to

⇒ “1.8.5 Rear Three-

Point Seat Belt, Remov‐

ing and Installing, Wag‐

on without Belt Tension‐

er”, page 110

 .

3 - Screw

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

4 - Screws

❑ 8 Nm
❑ Quantity: 2

5 - Bolt for Outer Rear Belt End

Fitting

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

6 - Outer Rear Belt End Fitting

❑ Removing and instal‐

ling. Refer to

⇒ “1.12 Rear Outer Belt

End Fitting, Removing and Installing”, page 117

 .

1.3.6

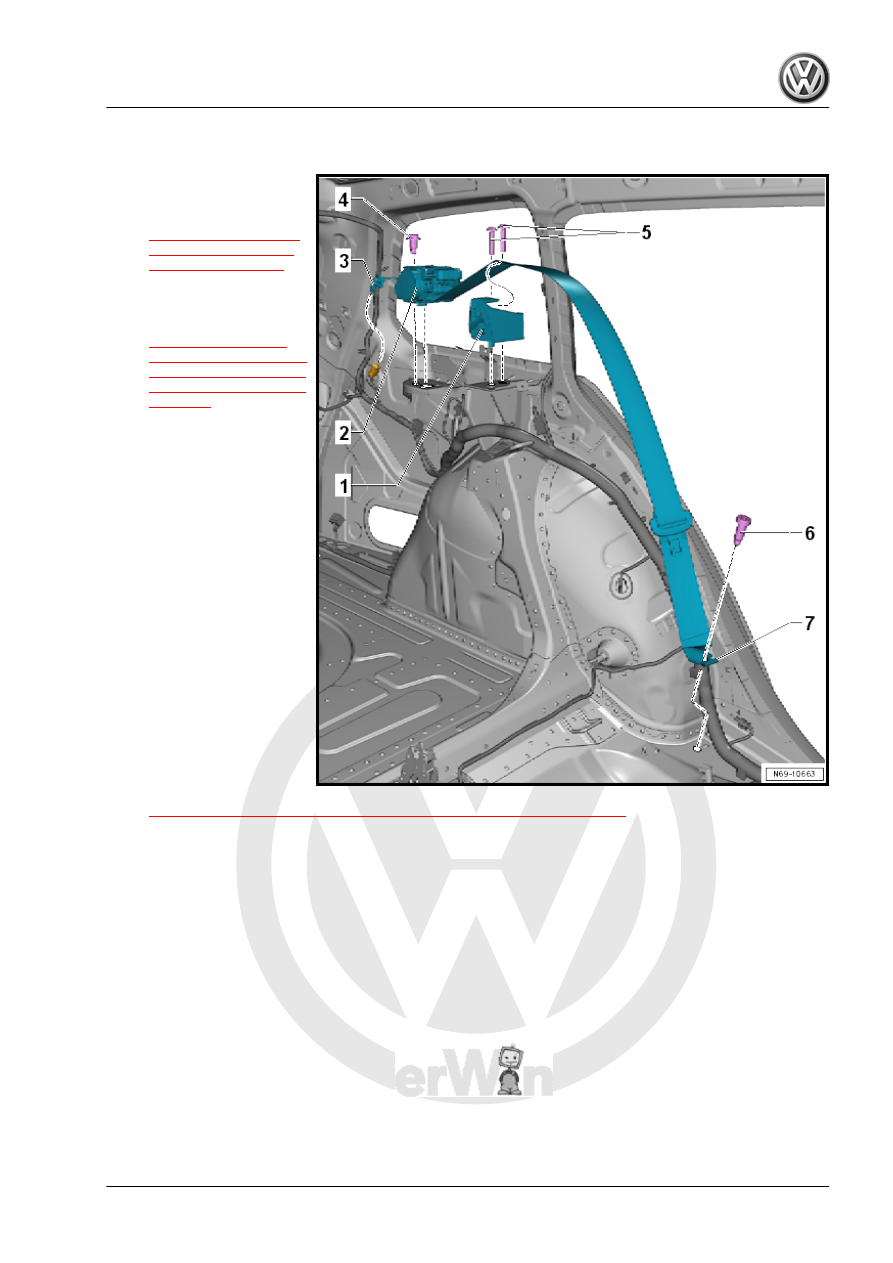

Overview - Three-Point Seat Belt, Wagon with Belt Tensioner

1 - Seat Belt Guide

❑ Removing and instal‐

ling. Refer to

⇒ “1.10 Rear Seat Belt

Guide, Removing and

Installing”, page 115

 .

2 - Automatic Belt Retractor

❑ Removing and instal‐

ling. Refer to

⇒ “1.8.6 Rear Three-

Point Seat Belt, Remov‐

ing and Installing, Wag‐

on with Belt Tensioner”,

page 111

 .

3 - Wiring Harness
4 - Screw

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

5 - Screws

❑ 8 Nm
❑ Quantity: 2

6 - Bolt for Outer Rear Belt End

Fitting

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

7 - Outer Rear Belt End Fitting

❑ Removing and instal‐

ling. Refer to

⇒ “1.12 Rear Outer Belt End Fitting, Removing and Installing”, page 117

 .

1.4

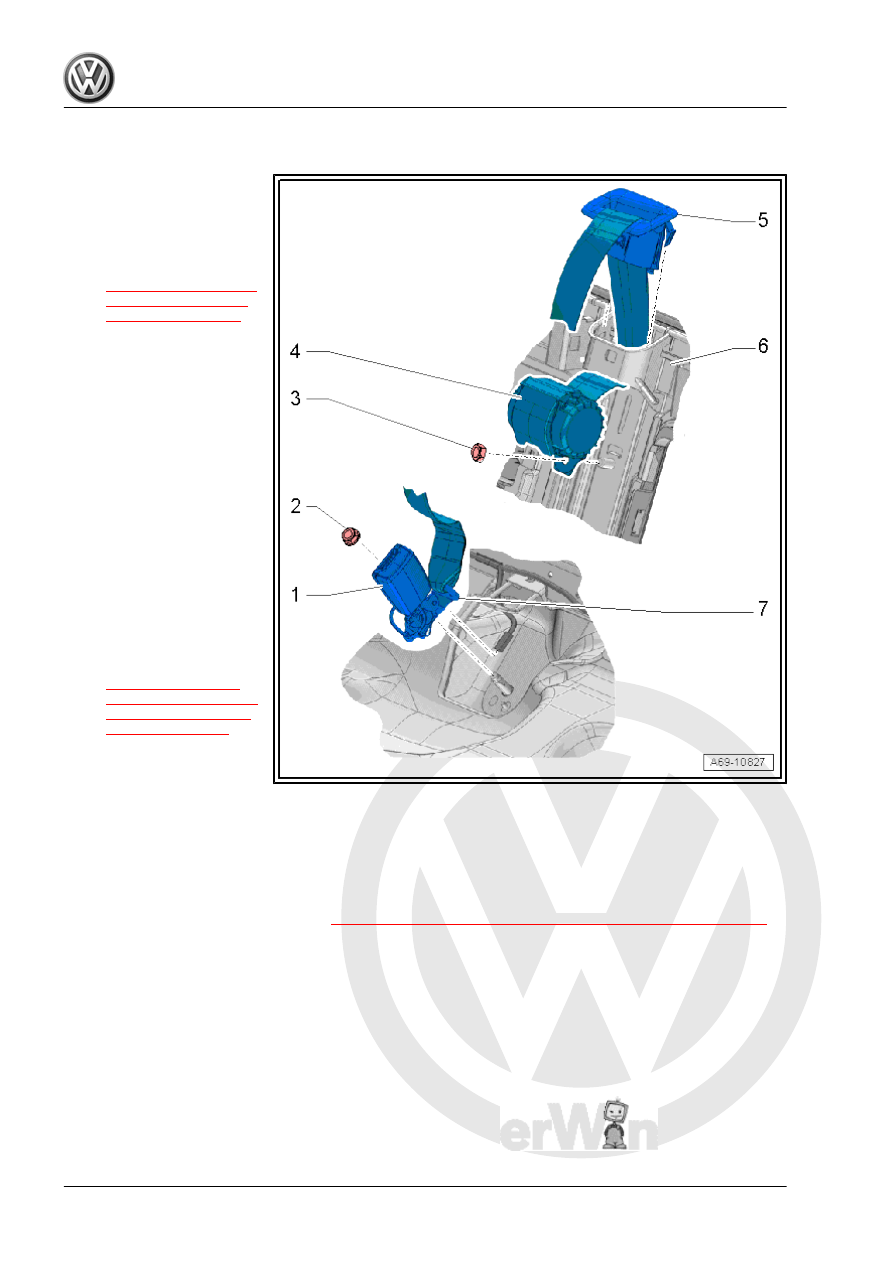

Overview - Rear Center Three-Point Seat Belt

1 - Seat Belt Latch

❑ With Passenger Side

Rear Seat Belt Switch -

E259-

❑ Removing and instal‐

ling. Refer to

⇒ “1.15 Rear Seat Belt

Latch, Removing and

Installing”, page 121

 .

❑ Always replace if the

belt tensioner has de‐

ployed with the seat belt

was buckled.

❑ Must lie on stop when

tightening the nut.

2 - Nut

❑ Tightening specifica‐

tion: 40 Nm

3 - Nut

❑ Tightening specifica‐

tion: 40 Nm

❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.

4 - Automatic Belt Retractor

❑ Removing and instal‐

ling. Refer to

⇒ “1.8.7 Rear Three

Point Seat Belt in Cen‐

ter, Removing and In‐

stalling”, page 113

 .

5 - Rear Center Seat Belt

Guide

❑ Replace the entire seat

belt guide if damaged.

❑ To remove, press the two side tabs inward and remove the seat belt guide
❑ When installing, press on until it engages audibly.

6 - Right 2/3 Rear Seat Backrest
7 - Center Rear Belt End Fitting

❑ Removing and installing. Refer to

⇒ “1.15 Rear Seat Belt Latch, Removing and Installing”, page 121

 .

1.5

Overview - Front Seat Belt Latch

⇒ “1.5.1 Overview - Front Seat Belt Latch, 2-Door Sedan”,

page 95
⇒ “1.5.2 Overview - Front Seat Belt Latch, 4-Door Sedan and

Wagon”, page 96

1.5.1

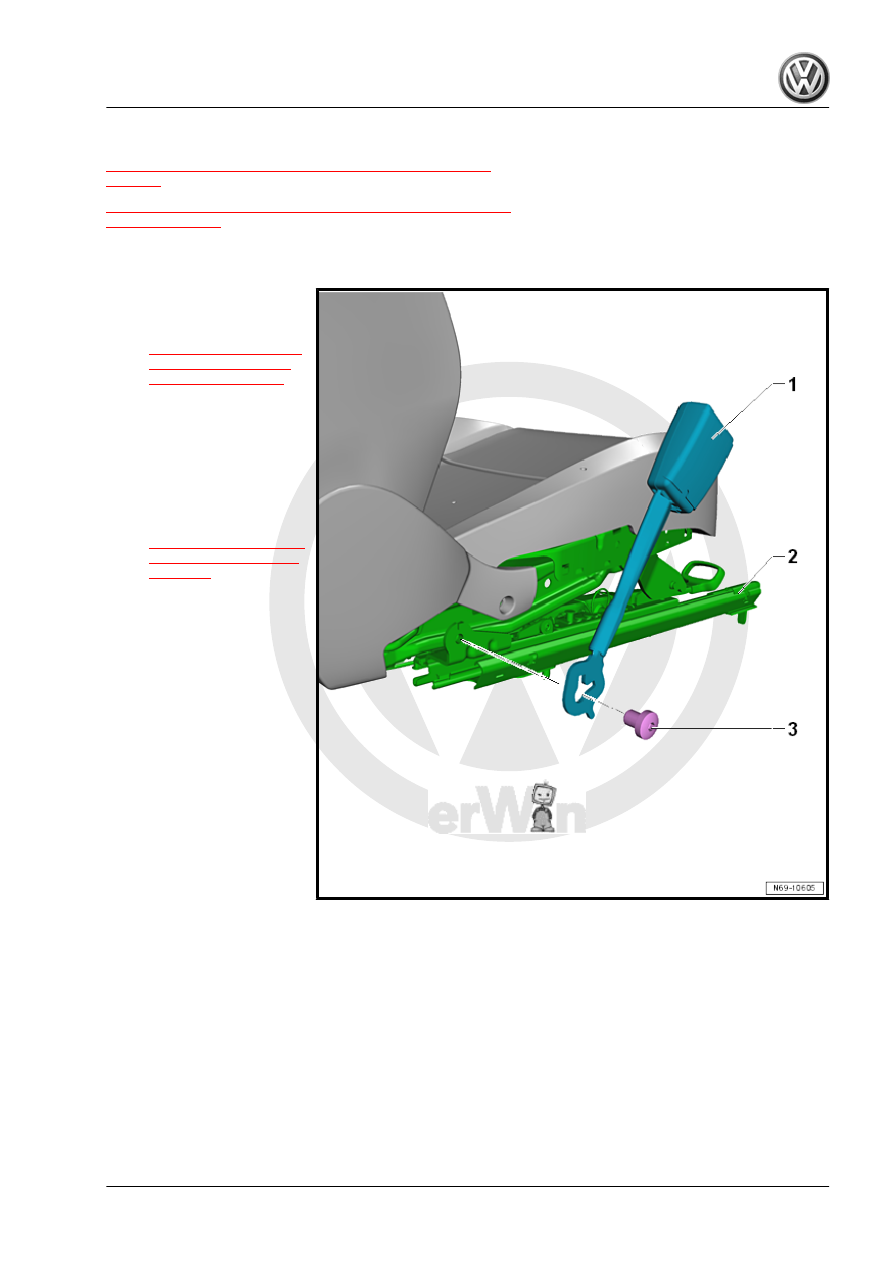

Overview - Front Seat Belt Latch, 2-Door Sedan

1 - Front Seat Belt Latch

❑ Removing and instal‐

ling. Refer to

⇒ “1.14 Front Seat Belt

Latch, Removing and

Installing”, page 120

 .

2 - Front Seat

❑ Driver side: with Driver

Seat Belt Switch - E24-

❑ Front passenger side:

with Front Passenger

Seat Belt Switch - E25-

❑ Removing and instal‐

ling. Refer to

⇒ “2.10 Front Seat, Re‐

moving and Installing”,

page 335

 .

❑ Always replaced if the

belt tensioner has de‐

ployed when the seat

belt was buckled.

3 - Screw

❑ 40 Nm
❑ Replace the bolt if it was

removed because of an

accident when the seat

belt was buckled.
