Interior Rearview Mirror

⇒ “5.1 Overview - Interior Rearview Mirror”, page 64
⇒ “5.2 Interior Rearview Mirror, Removing and Installing”,

page 68
⇒ “5.3 Retaining Plate, Removing and Installing”, page 70

5.1

Overview - Interior Rearview Mirror

⇒ “5.1.1 Overview - Interior Rearview Mirror with Manual Dim‐

ming, without Rain/Light Recognition Sensor G397 and Driver

Assistance Systems Front Camera R242 ”, page 64
⇒ “5.1.2 Overview - Interior Rearview Mirror with Manual or Au‐

tomatic Dimming, with Rain/Light Recognition Sensor G397 and

without Driver Assistance Systems Front Camera R242 ”,

page 66
⇒ “5.1.3 Overview - Interior Rearview Mirror with Automatic Dim‐

ming, with Rain/Light Recognition Sensor G397 and Driver As‐

sistance Systems Front Camera R242 ”, page 67

5.1.1

Overview - Interior Rearview Mirror with Manual Dimming, without Rain/

Light Recognition Sensor - G397- and Driver Assistance Systems Front

Camera - R242-

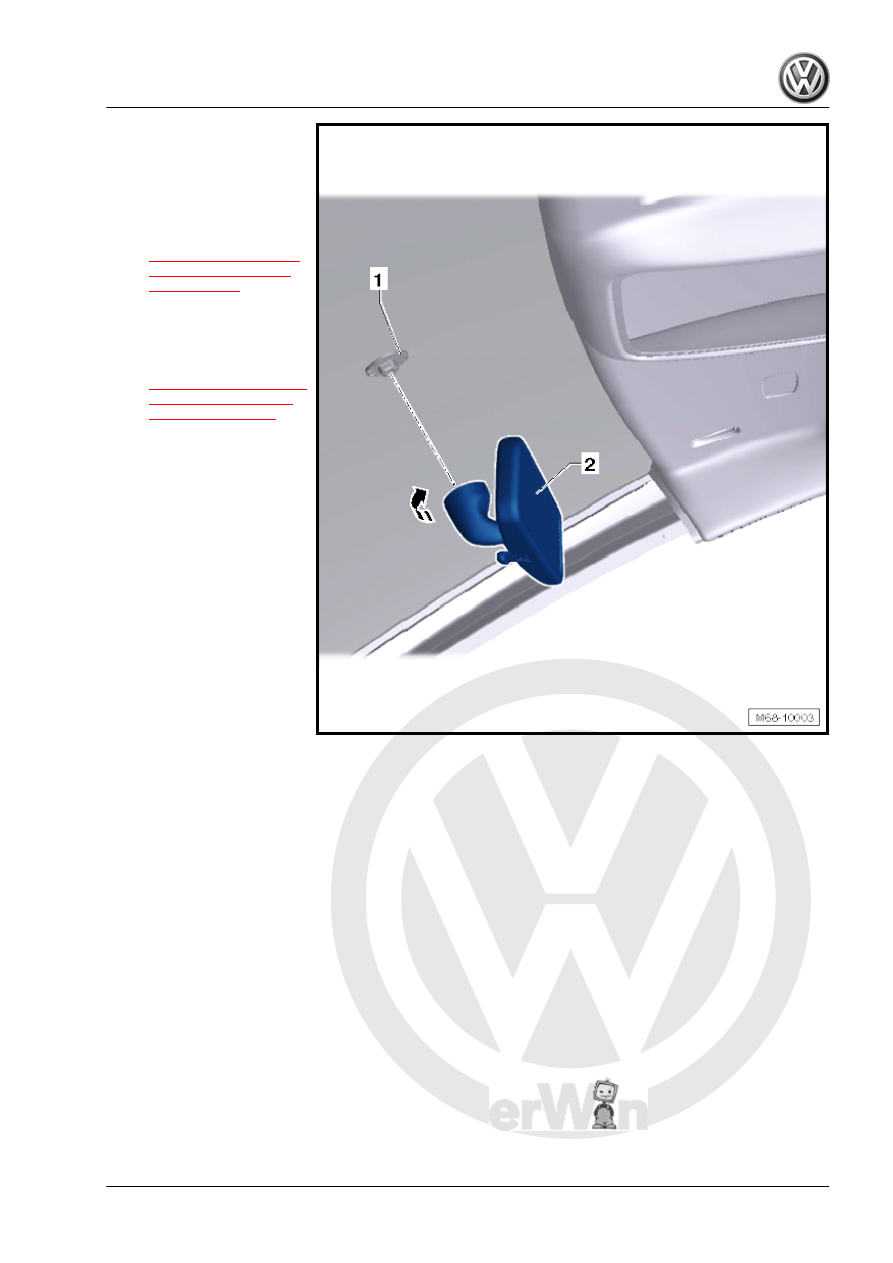

1 - Baseplate

❑ Baseplate for mirror

base

❑ Bonded to the wind‐

shield

❑ Removing and instal‐

ling. Refer to

⇒ “5.3 Retaining Plate,

Removing and Instal‐

ling”, page 70

 .

2 - Interior Rearview Mirror

❑ Manual dimming
❑ Removing and instal‐

ling. Refer to

⇒ “5.2 Interior Rearview

Mirror, Removing and

Installing”, page 68

 .

5.1.2

Overview - Interior Rearview Mirror with Manual or Automatic Dimming, with

Rain/Light Recognition Sensor - G397- and without Driver Assistance Sys‐

tems Front Camera - R242-

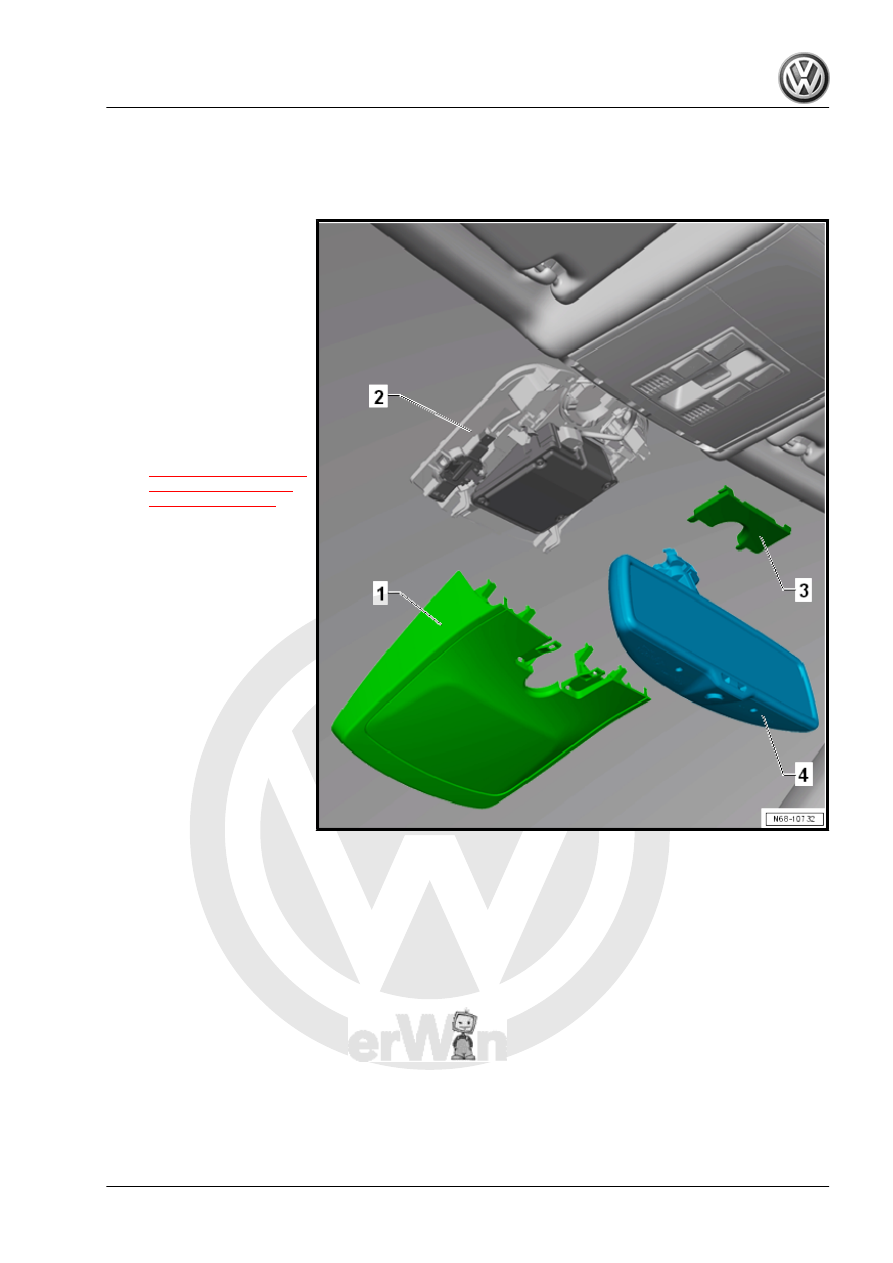

1 - Front Cover

❑ for the mirror base

2 - Automatic High Beam As‐

sist Control Module - J844-

❑ Equipment levels
❑ Not available separate‐

ly.

3 - Baseplate

❑ For the interior rearview

mirror

❑ Bonded to the wind‐

shield

❑ Removing and instal‐

ling. Refer to

⇒ “5.3 Retaining Plate,

Removing and Instal‐

ling”, page 70

 .

4 - Trim

❑ Clipped into the headlin‐

er frame

❑ To remove, first remove

the rear cover -5-

5 - Rear Cover

❑ For the mirror base

6 - Interior Rearview Mirror

❑ Allocation. Refer to the

Parts Catalog.

❑ Removing and instal‐

ling. Refer to

⇒ “5.2 Interior Rearview

Mirror, Removing and

Installing”, page 68

 .

5.1.3

Overview - Interior Rearview Mirror with Automatic Dimming, with Rain/

Light Recognition Sensor - G397- and Driver Assistance Systems Front

Camera - R242-

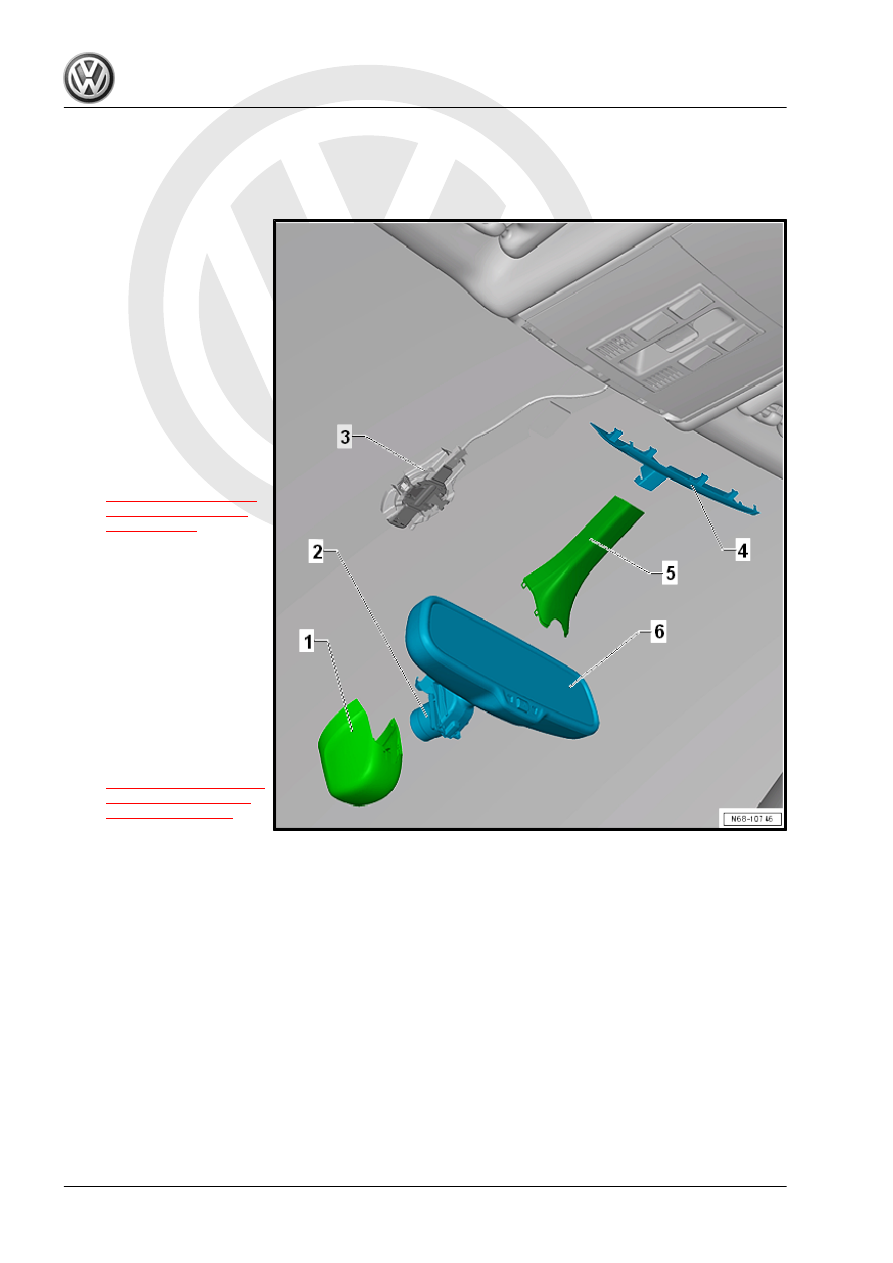

1 - Front Cover

❑ For the mirror base

2 - Baseplate

❑ For the interior rearview

mirror

❑ Bonded to the wind‐

shield

3 - Rear Cover

❑ For the mirror base

4 - Interior Rearview Mirror

❑ Removing and instal‐

ling. Refer to

⇒ “5.2 Interior Rearview

Mirror, Removing and

Installing”, page 68

 .
