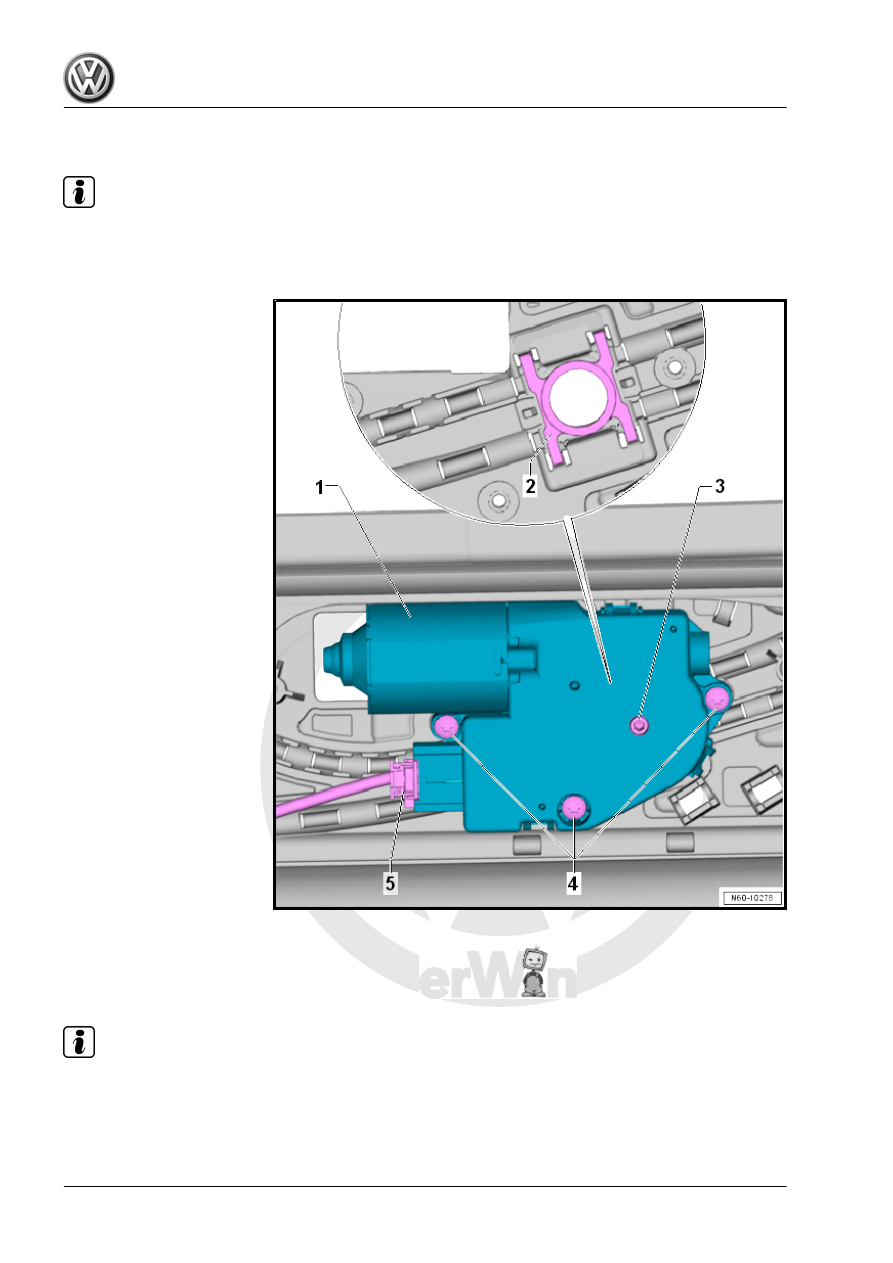

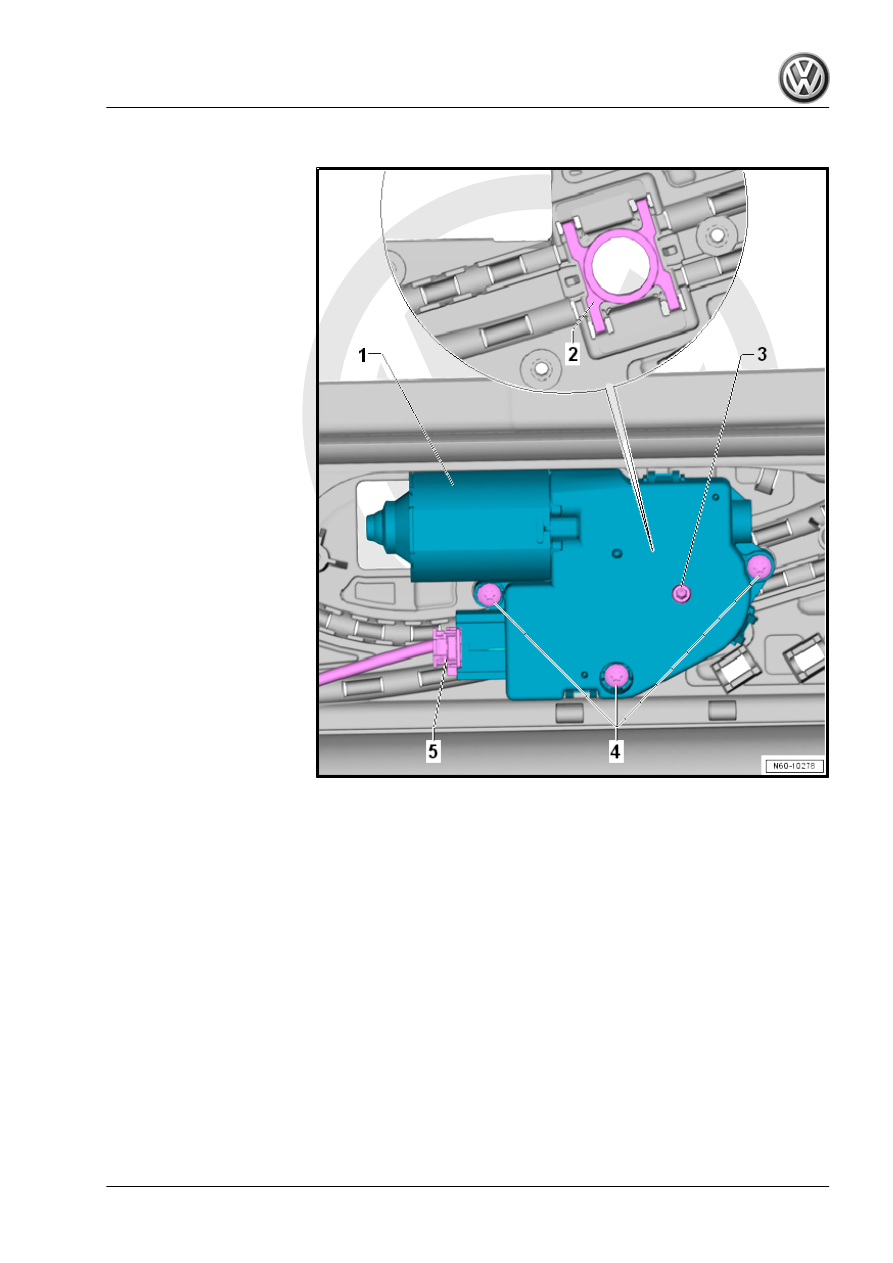

– Remove the cover -1- upward at an angle in direction of -arrows-. Note More force will be needed to turn, since the drive motor it is not disengaged from the gear mechanism – Guide the hex wrench into the drive motor -1- screw -3-. – Close the glass panel slider and tilting mechanism by turning the bolt -3-. 1.19.2 Operating without Electricity, Wagon Note ♦ If there is a malfunction in the electrical system, the sunroof with the glass panel can be moved at the drive motor using a commercially available hex wrench. ♦ More force will be needed to turn, since the drive motor it is not disengaged from the gear mechanism |
