9 - Operating Cable with Button

❑ Component location: bolted into the rear lid
❑ Removing and installing. Refer to

⇒ “2.7 Actuator, Removing and Installing”, page 60

 .

10 - Rear Lid Latch

❑ Component location: bolted to the rear lid
❑ Removing and installing. Refer to

⇒ “2.6 Latch, Removing and Installing”, page 58

 .

11 - Left Rear Lid Connector Station

❑ Component location: behind the D-pillar trim panel
❑ Removing and installing. Refer to ⇒  Body Interior; Rep. Gr.  70 ; Passenger Compartment Trim; D-Pillar

Trim Panel, Removing and Installing .

12 - Left Rear Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 179

 .

13 - Driver Side Rear Window Regulator Motor Control Module - J1016-

❑ Removing and installing. Refer to

⇒ “3.3  Driver Side Rear Window Regulator Motor Control Module J1016 and Front Passenger Side Rear

Window Regulator Motor Control Module J1017 , Removing and Installing”, page 137

 .

14 - Connector Station

❑ Component location: left B-pillar
❑ Loosen the boot on the pillar to disconnect the connector

15 - Left Front Door Lock

❑ The door lock is attached to the door inner panel
❑ The power central locking system is integrated in the door lock
❑ Removing and installing. Refer to

⇒ “2.13 Door Lock, Removing and Installing”, page 119

 .

16 - Driver Door Control Module - J386-

❑ Installed separately from the window regulator motor in the door.
❑ Removing and installing. Refer to

⇒ “3.2  Driver Door Control Module J386 and Front Passenger Door Control Module J387 , Removing

and Installing”, page 137

 .

17 - Window Regulator Central Switch

❑ Component location: installed in the door trim panel
❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  96 ; Controls; Component Location

Overview - Controls in Front Doors .

18 - Central Locking Button

❑ Component location: installed in the door trim panel
❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  96 ; Controls; Component Location

Overview - Controls in Front Doors .

19 - Connector Station

❑ Component location: left A-pillar
❑ Loosen the boot on the pillar to disconnect the connector

20 - Alarm Horn - H12-

❑ Removing and installing. Refer to ⇒  Electrical Equipment; Rep. Gr.  96 ; Anti-theft Alarm System; Alarm

Horn H12, Removing and Installing .

21 - Engine Hood Contact Switch - F266-

❑ Contact switch for anti-theft alarm system
❑ Component location: on the latch
❑ Removing and installing. Refer to

⇒ “1.5 Latch, Removing and Installing”, page 31

 .

3.2

Driver Door Control Module - J386- and

Front Passenger Door Control Module -

J387- , Removing and Installing

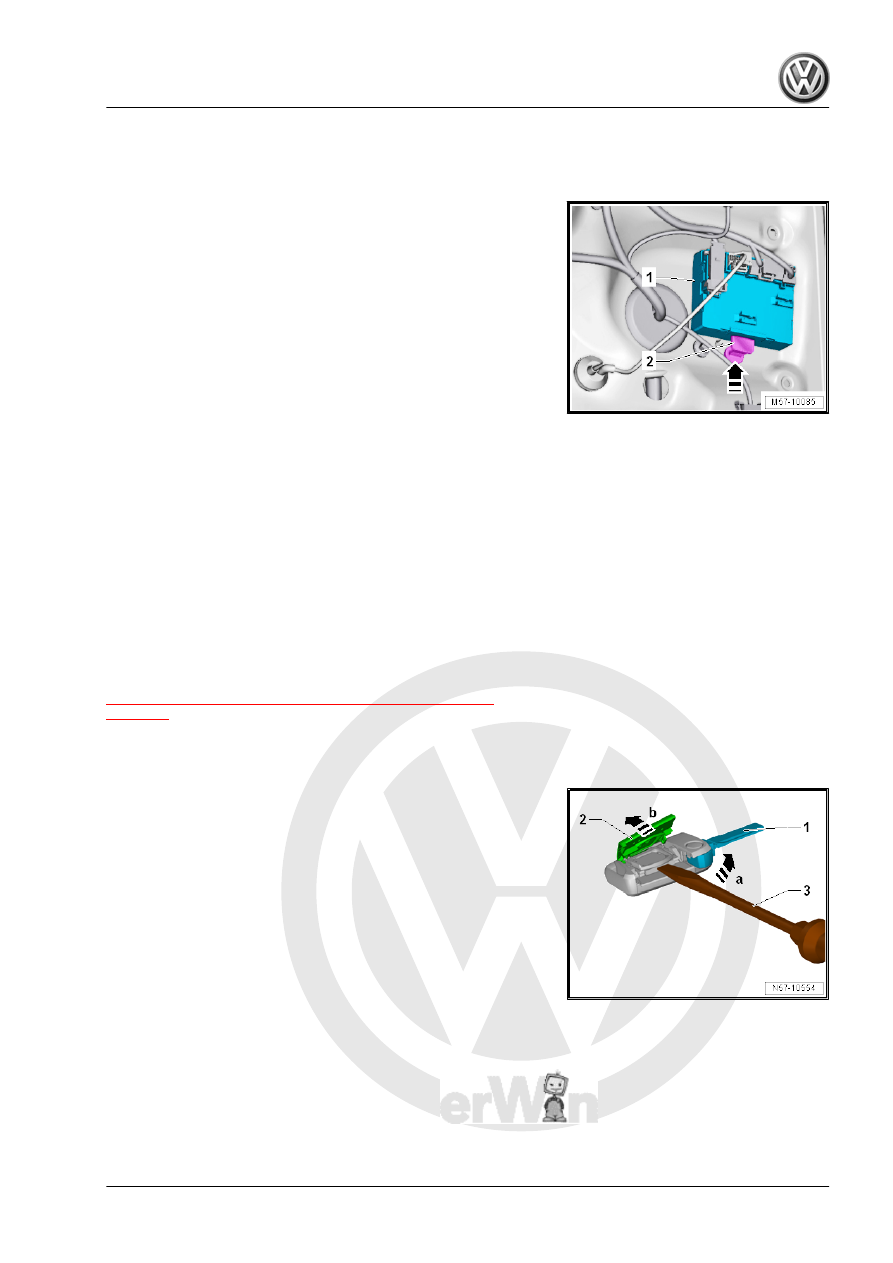

Removing
– Remove the front door trim panel. Refer to ⇒  Body Interior;

Rep. Gr.  70 ; Front Door Trim Panels; Front Door Trim Panel,

Removing and Installing .

– Release and disconnect all existing connectors on the door

control module -1-.

– Release the tabs -2- in the direction of -arrow- and remove

door control module -1- from the inner door panel.

Installing
Install in reverse order of removal while paying attention to the

following:
– Perform a function test before installing the front door trim

panel.

3.3

Driver Side Rear Window Regulator Mo‐

tor Control Module - J1016- and Front

Passenger Side Rear Window Regula‐

tor Motor Control Module - J1017- , Re‐

moving and Installing

The procedure for removing and installing the Driver Side Rear

Window Regulator Motor Control Module - J1016- / Front Pas‐

senger Side Rear Window Regulator Motor Control Module -

J1017- follows the procedure for removing and installing the rear

window regulator motor. Refer to

⇒ “2.4 Window Regulator Motor, Removing and Installing”,

page 163

 .

3.4

Key Battery, Removing and Installing

Removing
– Fold out the key blade -1- in direction of -arrow a-.
– Using a small screwdriver -3-, lift up the battery compartment

cover -2- in direction of -arrow b-.

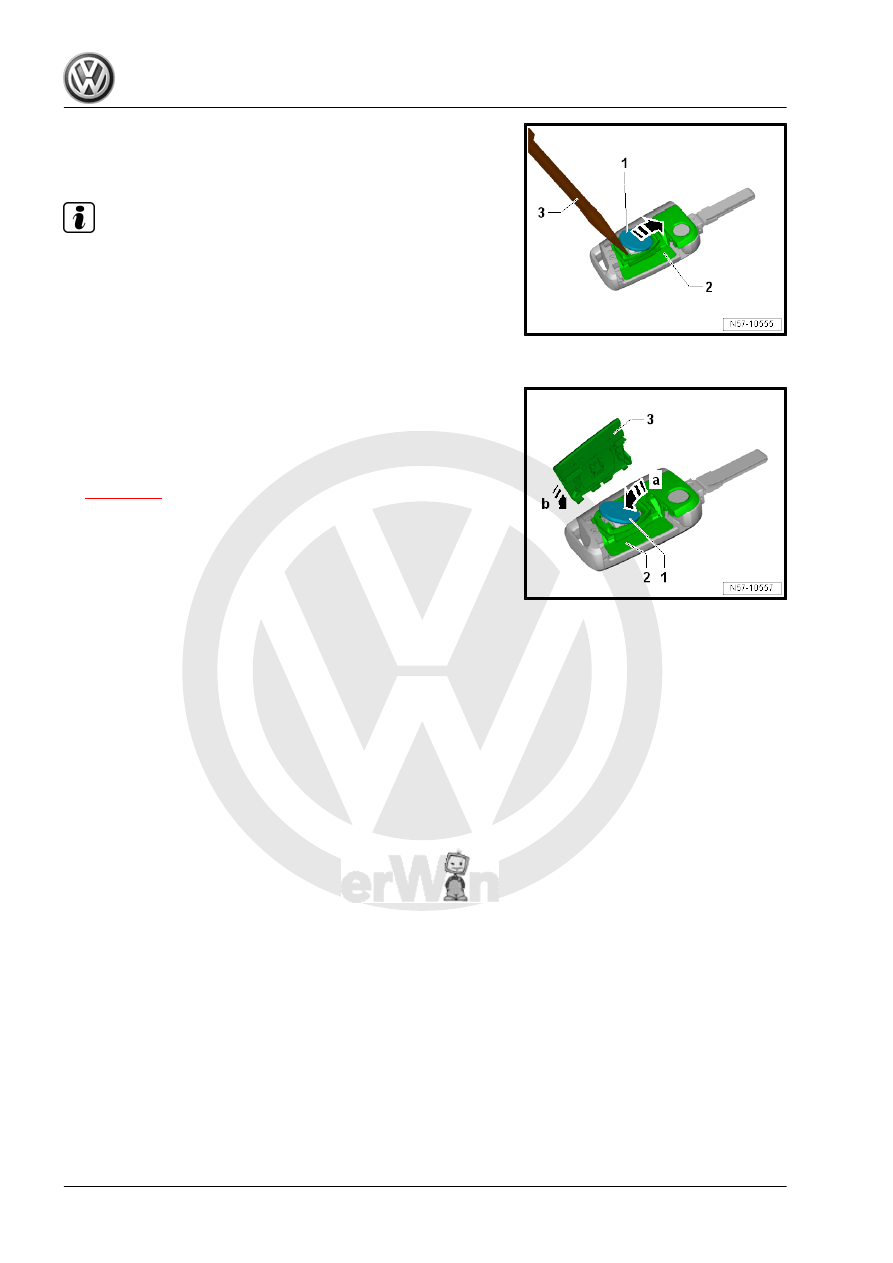

– Using a small screwdriver -3-, lift up the battery -1- from the

battery compartment -2- in direction of -arrow-.

Installing

Note

♦

Before installing the battery, one of the buttons must be push‐

ed.

♦

This resets the radio-frequency unit, and it can now recognize

the new battery.

Note the polarity and installation position when installing the bat‐

tery. The positive terminal is marked.

– Insert the battery -1- by pressing it lightly in direction of

-arrow a- into the battery compartment -2-.

– Push the battery compartment cover -3- and the radio-fre‐

quency unit together in direction of -arrow b-.

– The ignition key must now be synchronized. Refer to

⇒ page 138

 .

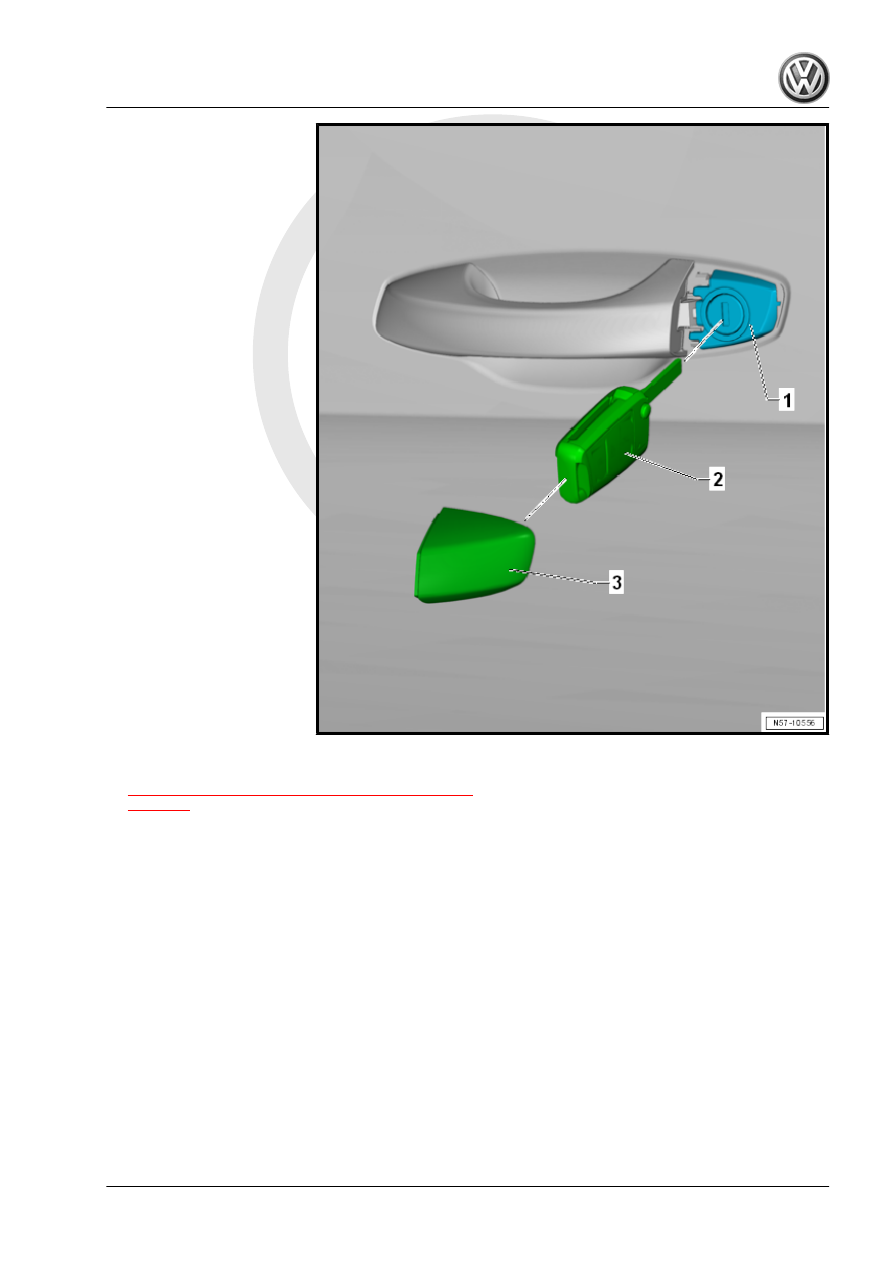

Ignition Key, Synchronizing

– Remove the lock cylinder cap -3-. Refer to

⇒ “2.8 Lock Cylinder Cap, Removing and Installing”,

page 106

 .

– Hold the ignition key -2- at the lock cylinder -1- and push the

“open” button.

– Unlock the vehicle using the ignition key -2- within one minute

via the lock cylinder -1-.
