Volkswagen Golf / Golf GTI / Jetta. Manual - part 938

80-26

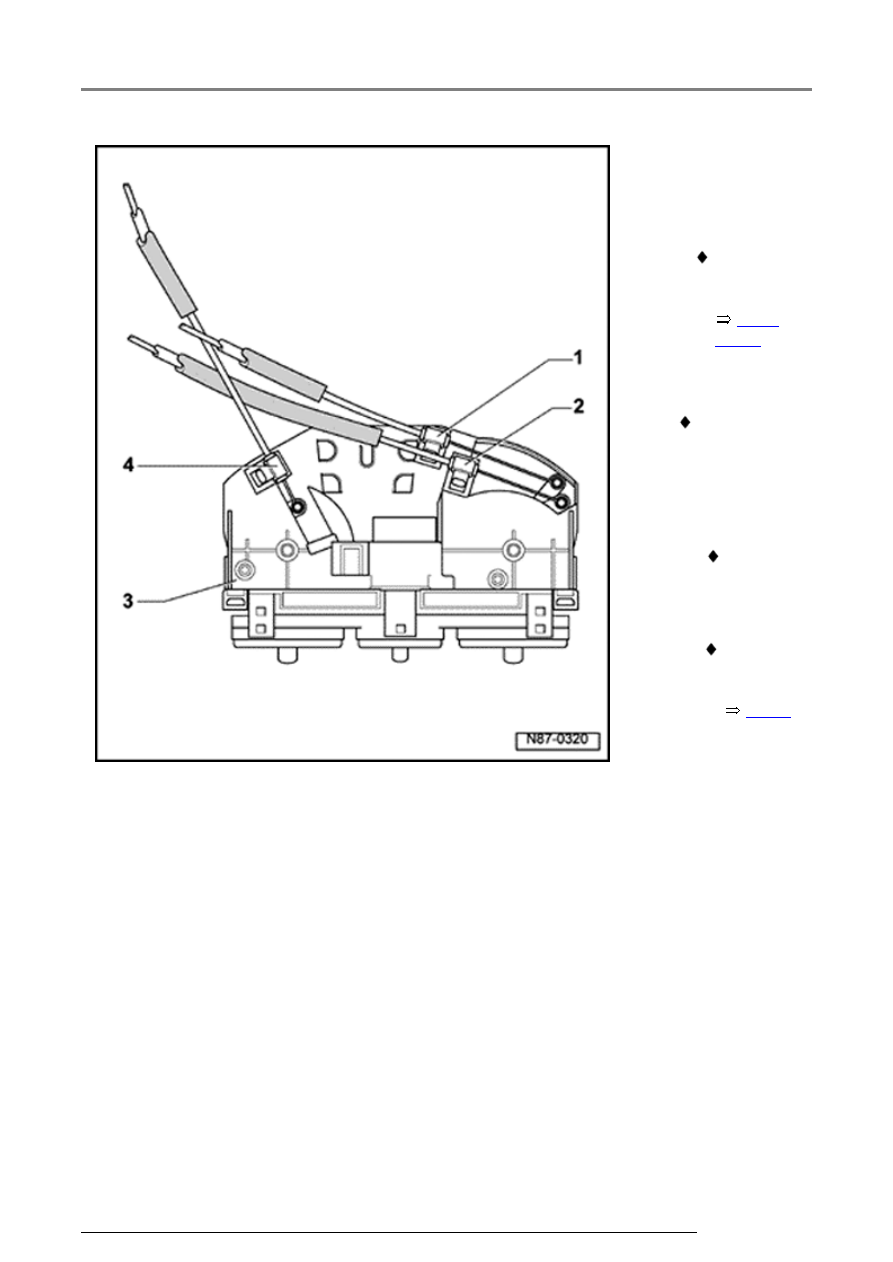

1 - Central flap

cable

From air

distribution
rotary control
to central flap

Cable sleeve

marking:
yellow

Installing and

adjusting

Fig. 3

Footwell/defroster
flap cable

From air

distribution
rotary control
to
footwell/defrost
flap

Cable sleeve

marking:
green

Installing and

adjusting

Fig. 2

Heating and ventilation system, servicing

13/2/2005

80-27

3 - Heating

and
ventilation
controls

Removing

and
installing

Page

80-15

Temperature
flap cable

From

temperature
rotary
control to
temperature
flap

Cable

sleeve
marking:
beige

Installing

and
adjusting

Fig. 1

Heating and ventilation system, servicing

13/2/2005

80-28

Prerequisites:

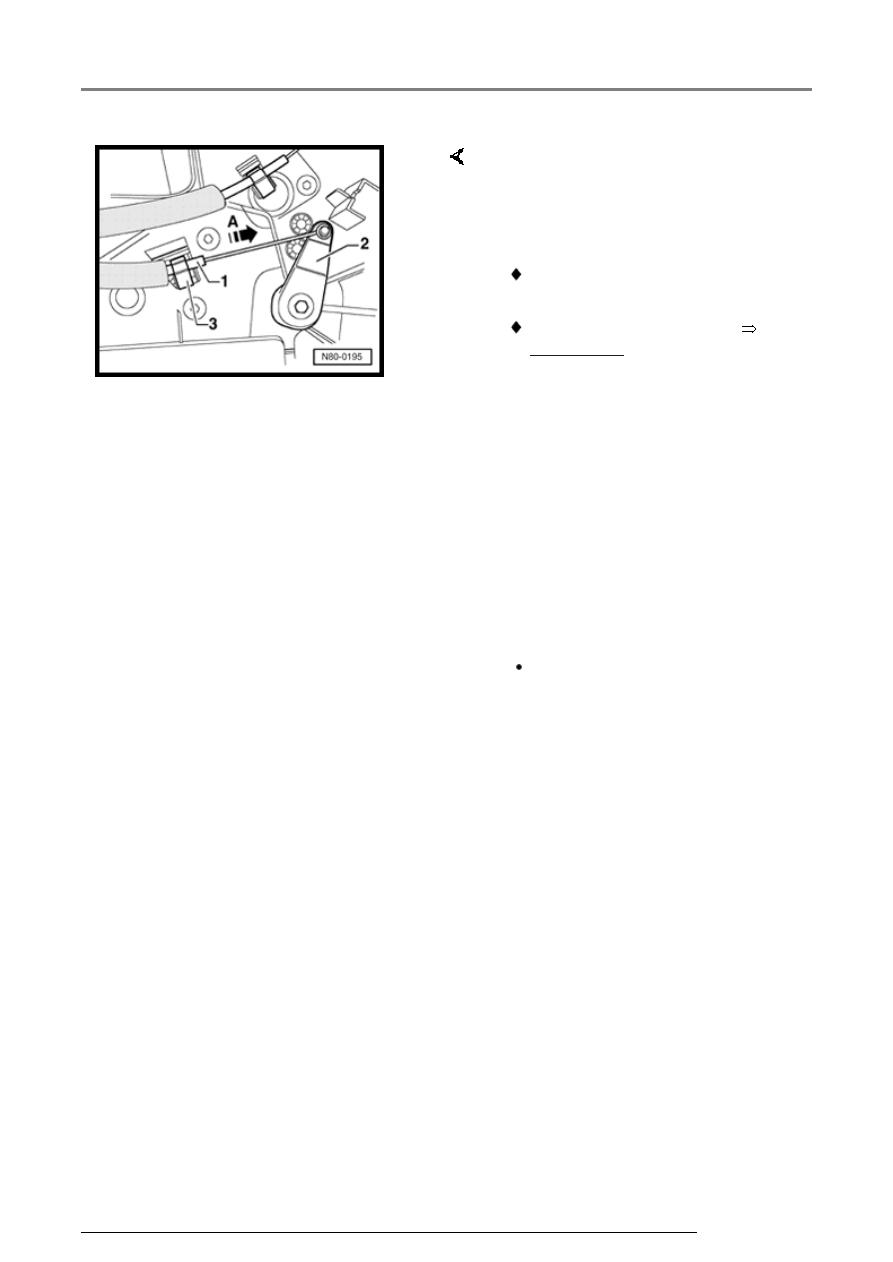

Adjusting

Fig. 1

Temperature flap cable,
installing and adjusting

Heating and ventilation controls

are installed.

Connecting duct removed

Page 80-10

- Turn temperature rotary control

knob to left onto stop.

- Attach center wire of cable -1- to

the temperature flap lever -2-.

- Push temperature flap lever -2- to

stop -arrow A- and secure outer
cable -1- with clip -3-.

- Turn temperature rotary control

knob to left and right onto stops.

When turning the rotary control

knob, both end stops must be
reached.

Heating and ventilation system, servicing

13/2/2005

80-29

Prerequisite:

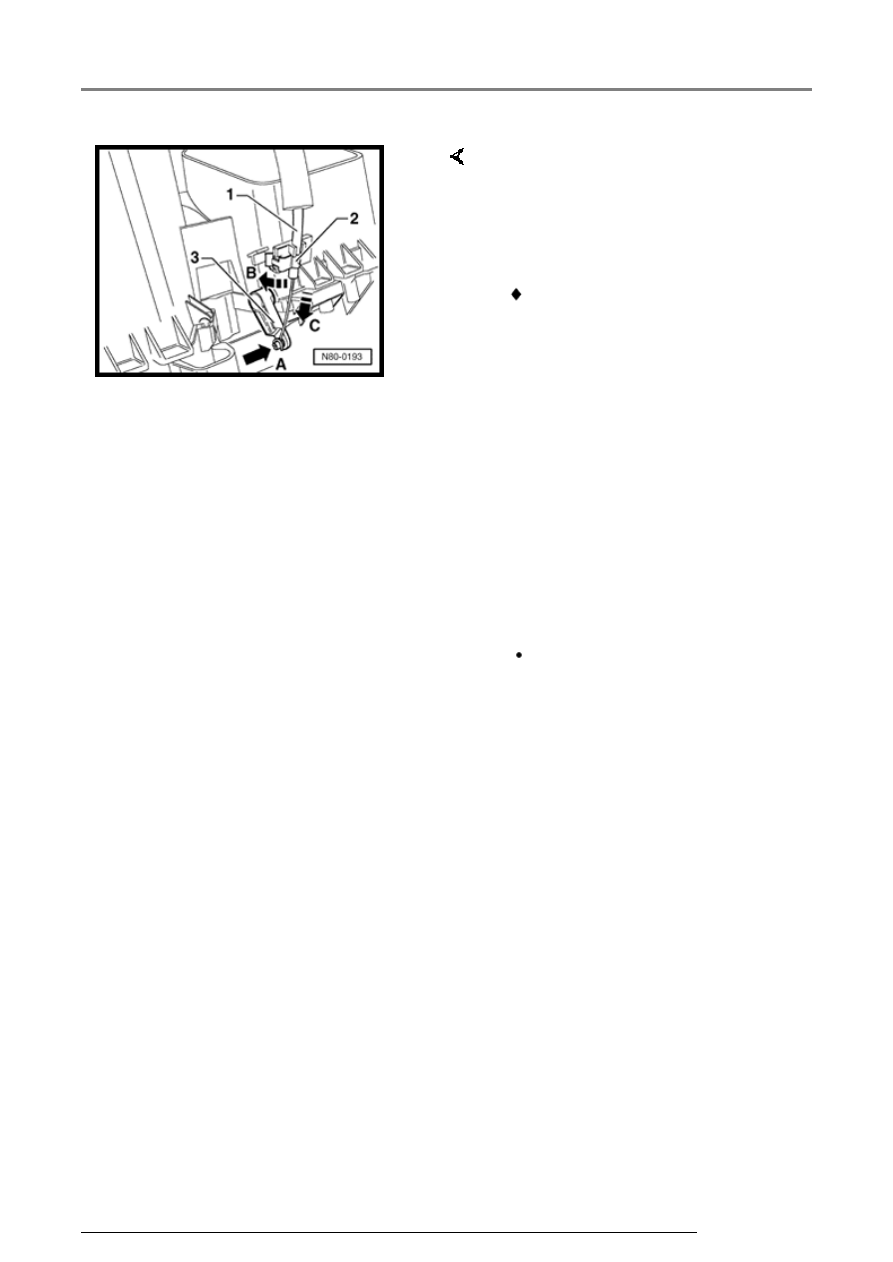

Adjusting

Fig. 2

Footwell/defroster flap
cable, installing and
adjusting

Heating and ventilation controls

are installed.

- Turn air distribution rotary knob to

left to stop.

- Attach wire end of cable -1- to

temperature flap lever -3-, arrow -
A-.

- Push footwell/defroster flap lever

to stop -arrow C- and attach outer
cable -1- with clip -2-, -arrow B-.

- Turn air distribution rotary control

knob to left and right to stops.

When turning the rotary control

knob, both end stops must be
reached.

Heating and ventilation system, servicing

13/2/2005
