Volkswagen Golf / Golf GTI / Jetta. Manual - part 762

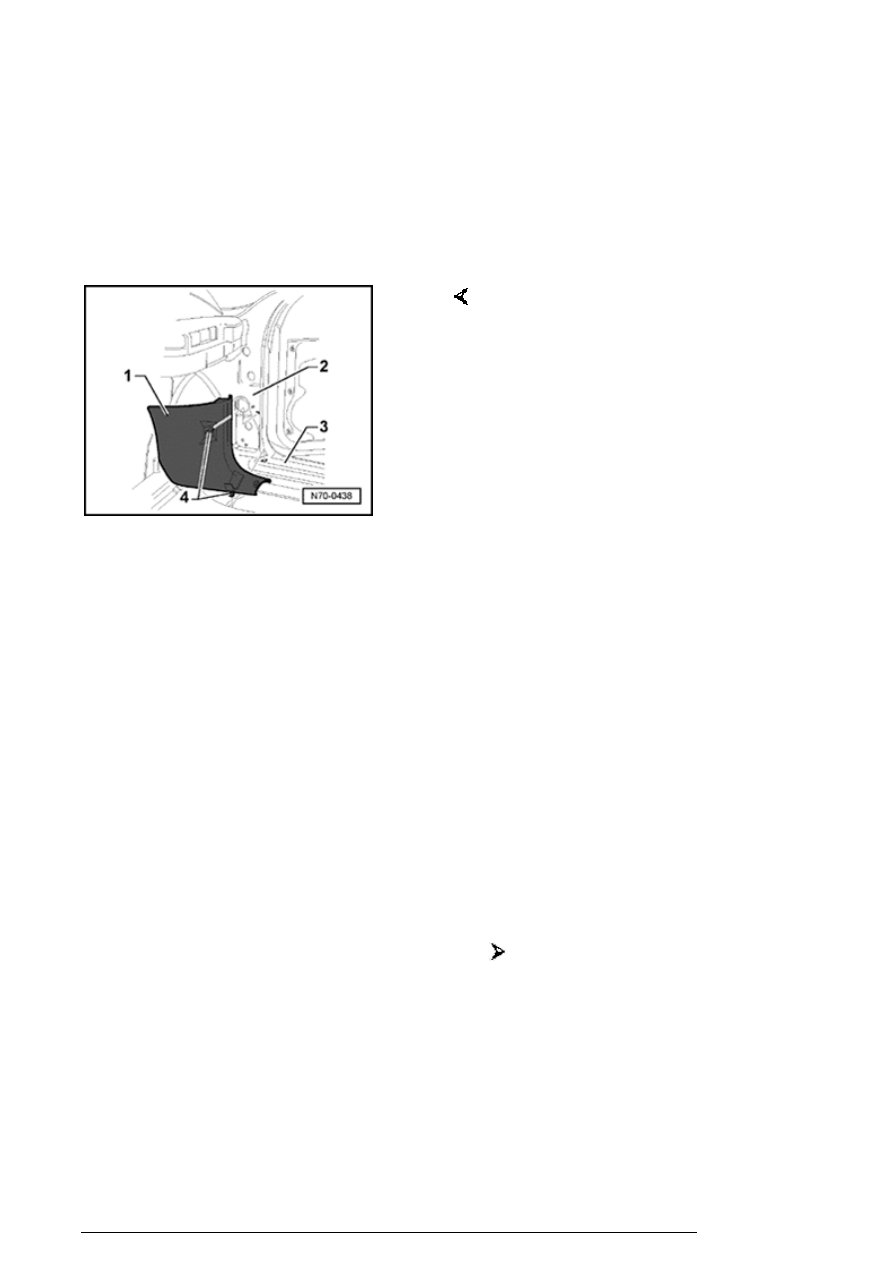

- Unclip trim - 1 - at top from A-pillar - 2 - and loosen from
sill panel trim - 3 - at bottom.

Note:

Trim - 1 - is secured with two metal clips - 4 - .

Installing

- Installation is reverse of removal.

Note:

Before installation, securing clips and retaining clips
must be checked for damage and replaced if
necessary.

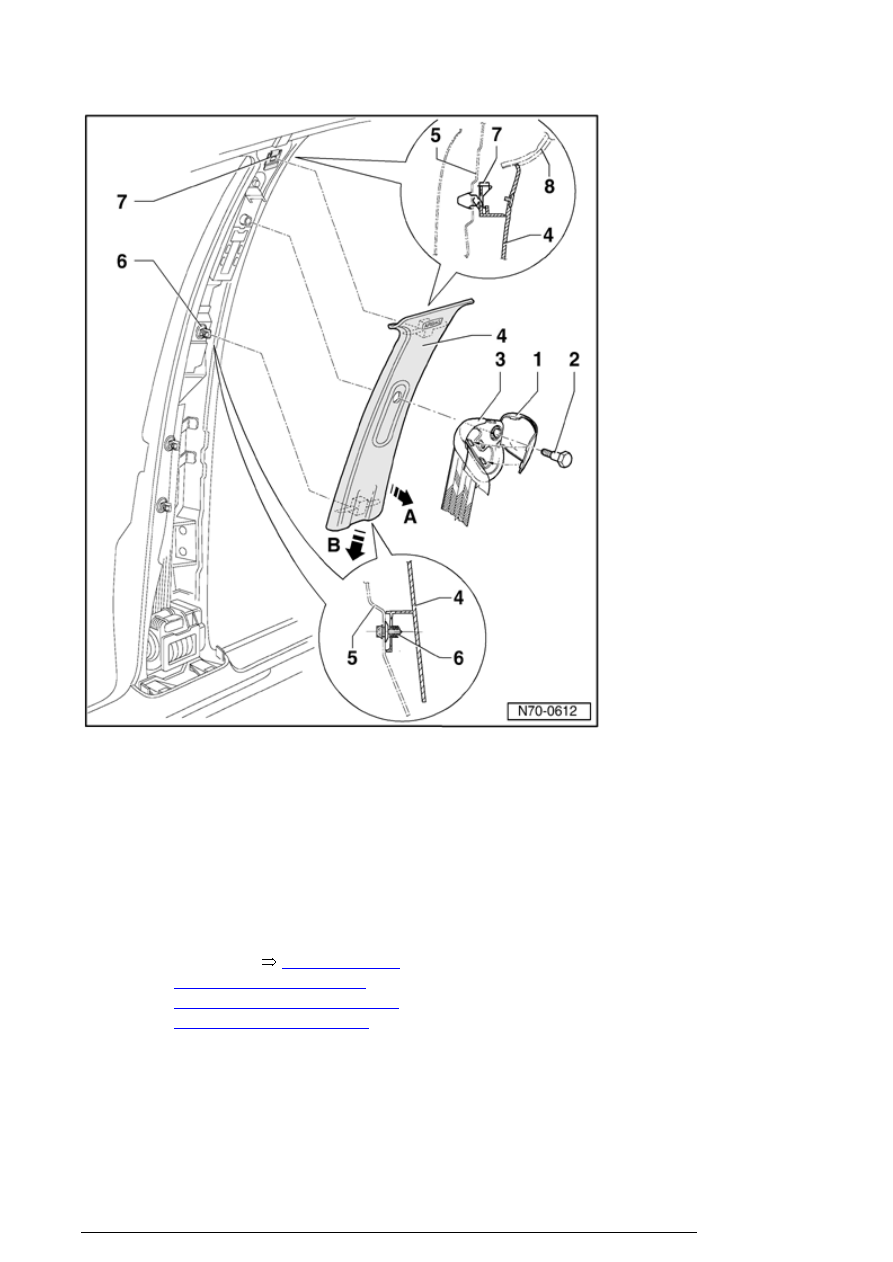

Upper B-pillar trim, assembly overview
(Vehicles with side curtain protection
04.01)

Pillar and side trim

13/2/2005

1. Cover cap

2. Bolt

40 Nm

3. Belt relay

4. B-pillar trim

Removing

70-3, Upper B-

pillar trim, removing and
installing (Vehicles with side
curtain protection 04.01)

5. B-pillar

6. Mounting clip

7. Steel clip

Pillar and side trim

13/2/2005

8. Molded headliner

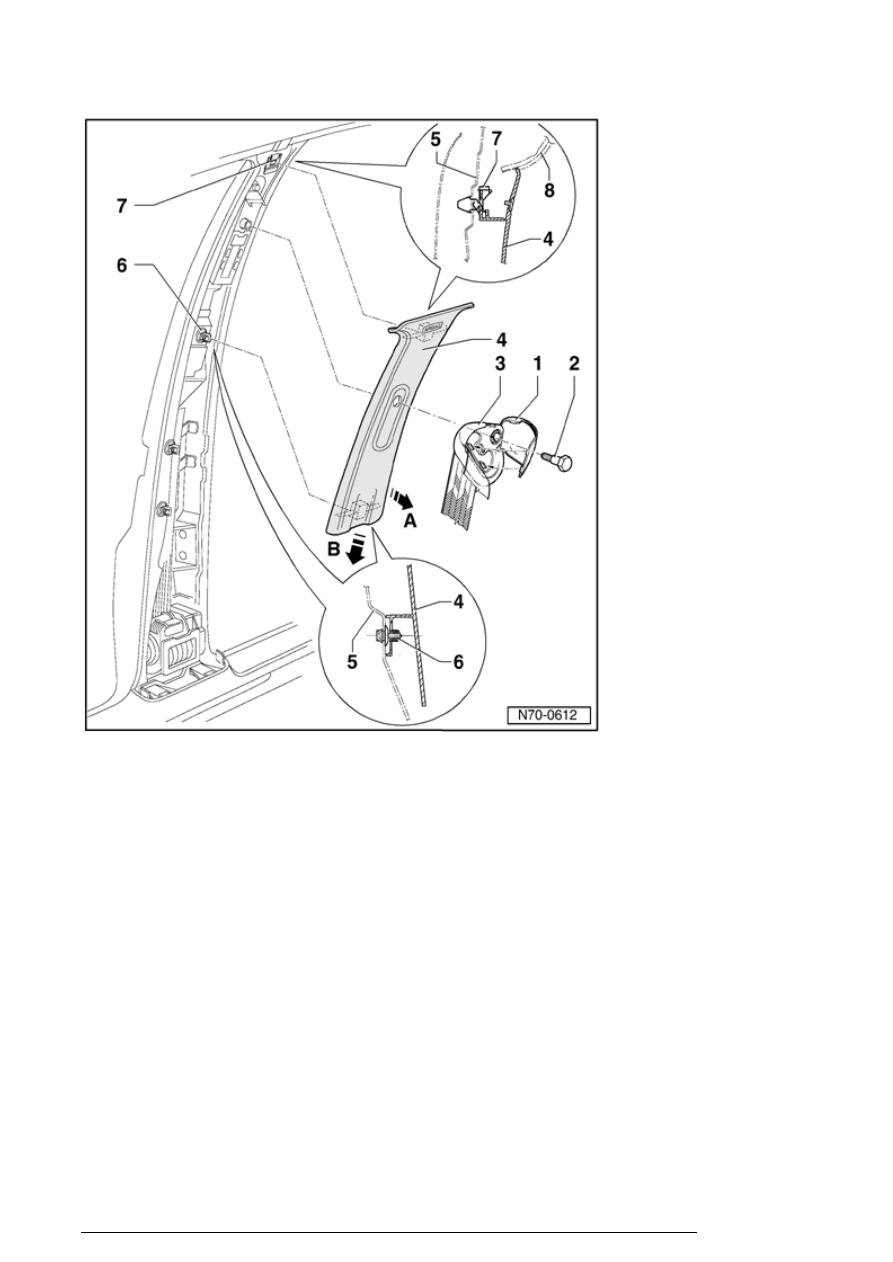

Upper B-pillar trim, removing and installing
(Vehicles with side curtain protection
04.01)

Note:

Removal and installation is described for right side of
vehicle. same instructions apply for removal and
installation for left-hand side.

Removing

- Remove lower B-pillar trim

70-3, Lower B-pillar trim,

removing and installing

- Remove cap - 1 - .

- Remove screw - 2 - (40 Nm) and remove
belt relay - 3 - .

- Loosen B-pillar trim - 4 - in lower area -
arrowA - .

Pillar and side trim

13/2/2005

- Pull B-pillar trim - 4 - downward - arrow
B - .

- Position standard needle-nose pliers at
side between B-pillar - 1 - and steel clip -
2 - .

- Disengage locking mechanism of steel
clip - 2 - by forcefully pushing toger using
needle-nose pliers - arrows - .

- Remove steel clip - 2 - from B-pillar - 1 -
.

Note:

It is not possible to remove steel clip
- 2 - without destroying it, it must be
replaced
