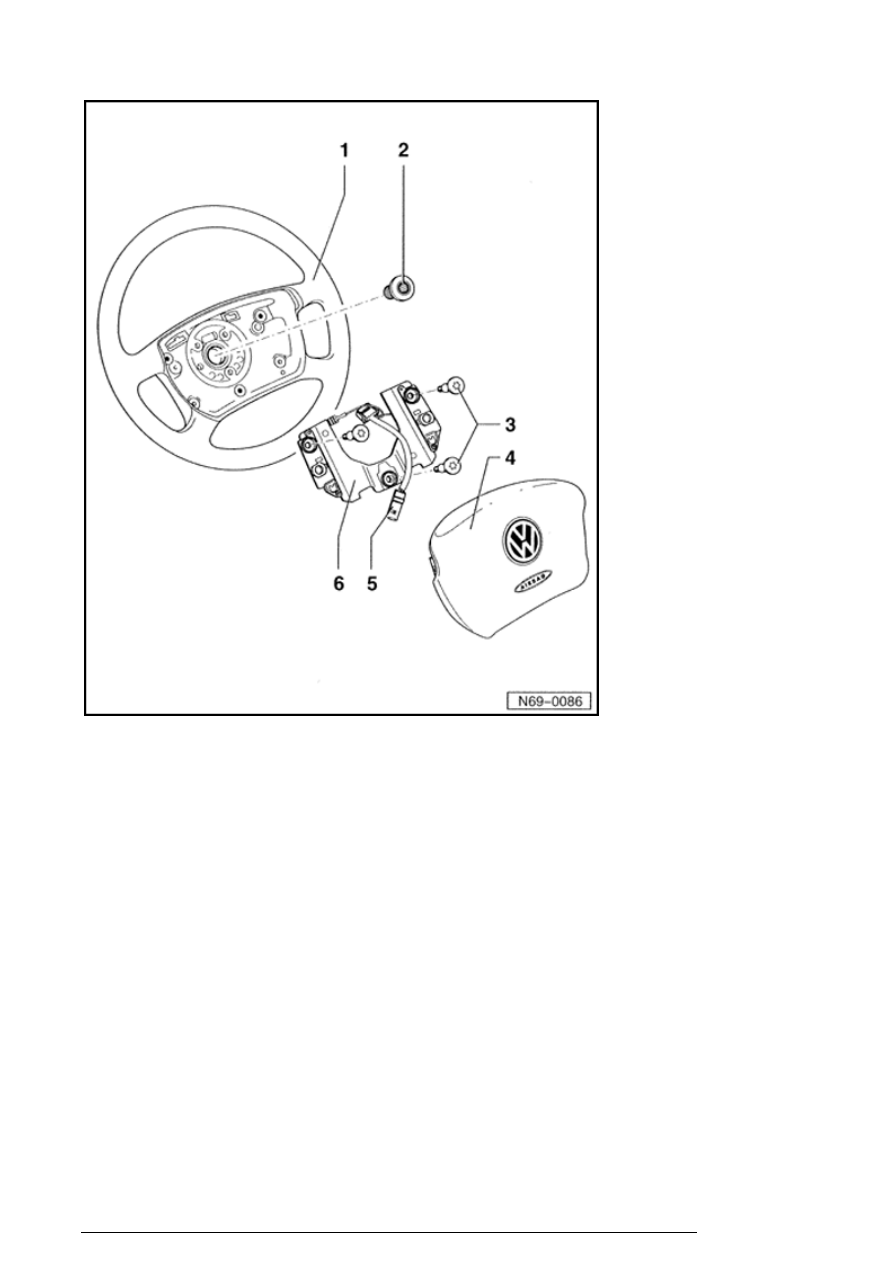

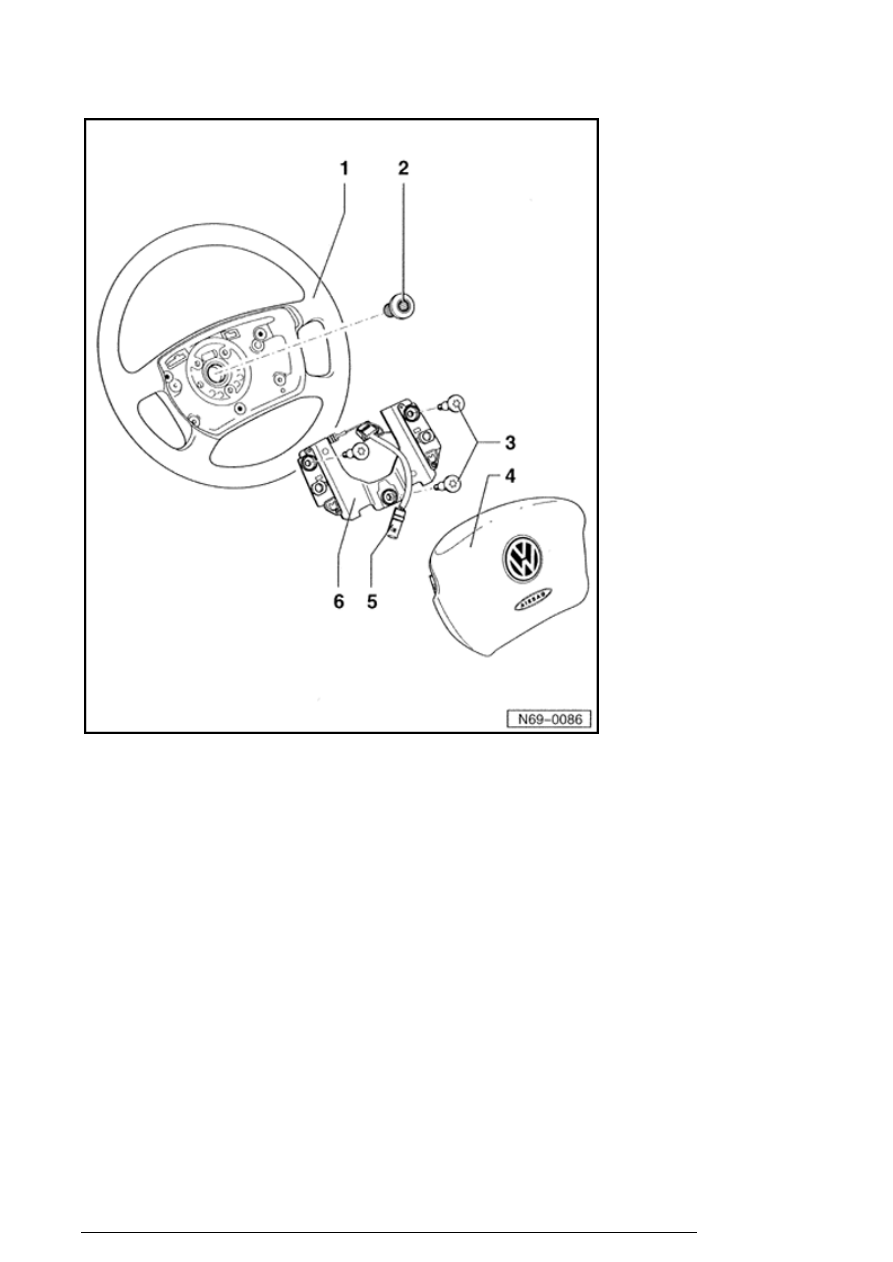

4. Airbag unit with driver side airbag

igniter -N95-

¡

Because of differing engaging
mechanisms, only steering
wheels and airbag units from
same supplier can be installed.

¡

Removing, three-spoke
steering wheel



69-4, Driver

side airbag unit , removing and
installing (Three-spoke
steering wheel)



¡

Removing, four-spoke steering
wheel



69-4, Driver side

airbag unit , removing and
installing (Four-spoke steering
wheel)





5. Connector

6. Securing plate

Steering wheel, removing and installing



Removing



- Remove driver side airbag unit.

n

Three-spoke steering wheel



69-4, Driver side

airbag unit , removing and installing (Three -spoke
steering wheel)

 .



n

Four-spoke steering wheel



69-4, Driver side airbag

unit , removing and installing (Four -spoke steering
wheel)

 .



- Turn steering wheel - 1 - to center
position (wheels in straight-ahead
position).

Airbag

13/2/2005



- Remove bolt - 2 - and pull steering
wheel off steering column.

Installing



- Set steering wheel - 1 - on steering
column.

- Center markings for steering wheel and
steering column must align.

- Spiral spring connecting socket and
studs must be positioned into designated
holes in steering wheel base.

- Secure steering wheel with bolt - 2 - ,
tightening torque is 55 Nm.

- Mark bolt with punch indentation after
each loosening procedure.

Airbag

13/2/2005



- If five punch indentations are on bolt, it
must be replaced with a new one.

Airbag spiral spring/return spring with slip
ring -F138-, removing and installing

Note:

n

When removing and installing Airbag spiral
spring/return spring with slip ring -F138- , make sure
that Airbag spiral spring/return spring is set in center
position.



n

A new return ring with slip ring is secured in centered
position with a tie wrap.



Removing



- Remove driver side airbag unit.

Airbag

13/2/2005









n

Three-spoke steering wheel



69-4, Driver side

airbag unit , removing and installing (Three -spoke
steering wheel)

 .



n

Four-spoke steering wheel



69-4, Driver side airbag

unit , removing and installing (Four -spoke steering
wheel)

 .



- Put wheels in straight-ahead position.

- Remove steering wheel



69-4, Steering wheel, removing

and installing

 .

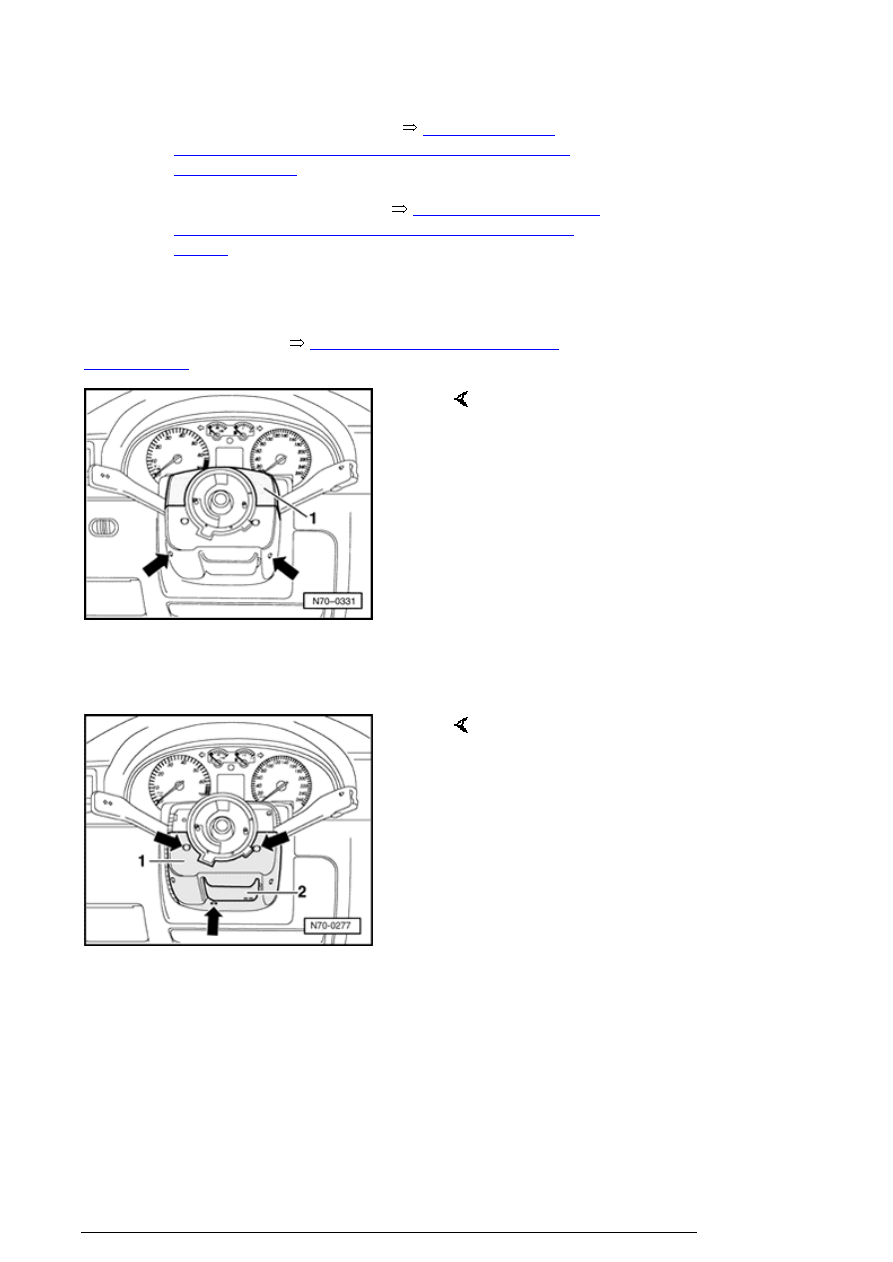

- Remove bolts (Qty. 2) - arrows - .

- Remove upper trim - 1 - for steering column switches.

- Remove bolts (Qty. 3) - arrows - .

- Loosen height adjustment - 2 - for steering wheel.

- Remove lower trim for steering wheel switch - 1 - .

Vehicles with Electronic Stability Program (ESP):

In vehicles with ESP, return spring is a component of
"Steering Angle Sensor -G85-"

Airbag

13/2/2005
