4. Spacer



5. Rear shelf



6. Rear shelf sheet metal



7. Washer nut



8. Rivet



n

Qty. 1



n

Removing and installing



n

Holes for anchorage points are
pre-drilled (3 locations) and
covered by rear shelf.



n

Locate predrilled holes and cut
material off in circular shape to
allow installation of anchorage
components.



n

With pre-drilled holes for
anchorage points.



n

Qty. 1



n

Install from below.



n

Two for washer nut - 7 - .



n

Install from below.



Seatbelts

13/2/2005













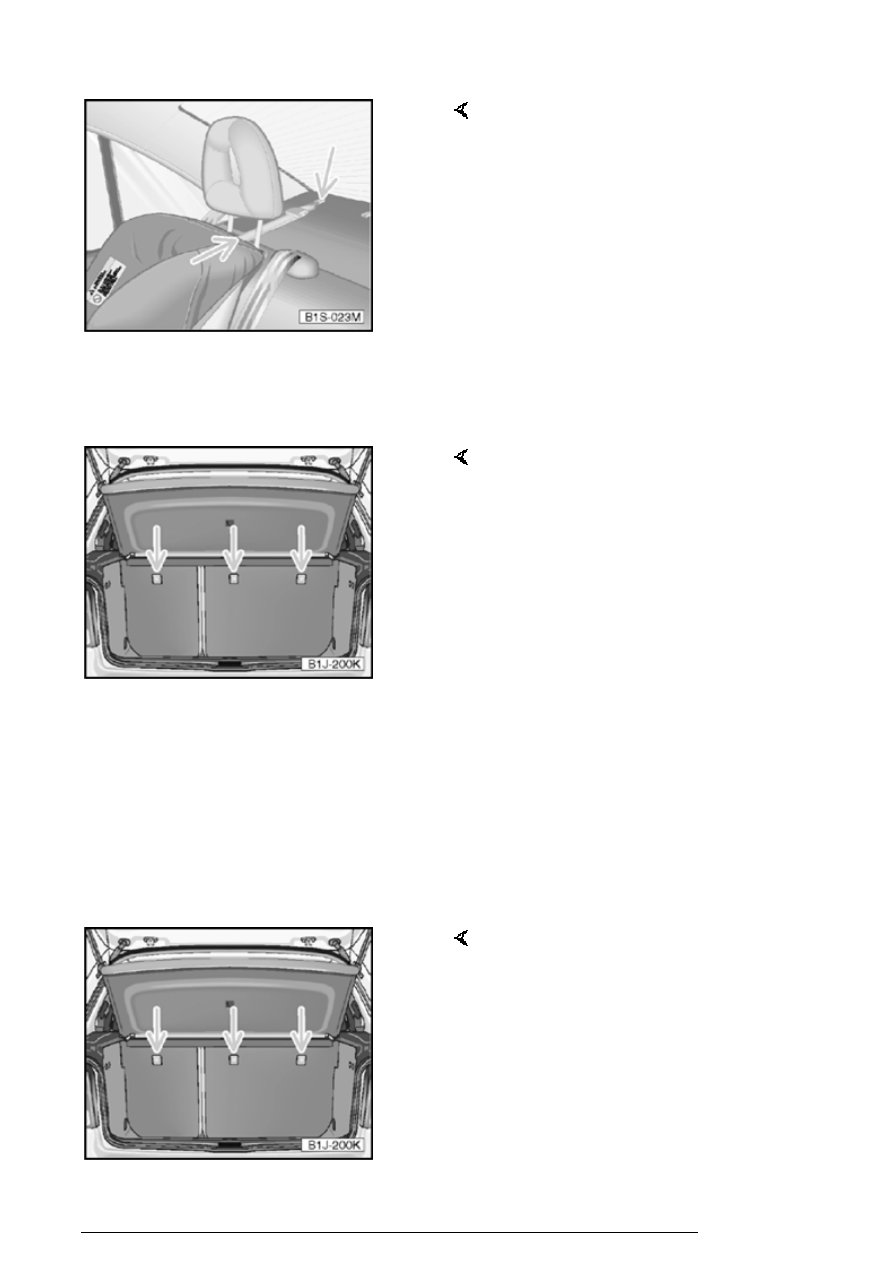

Illustration shows rear top ter strap attached to anchor in a
sedan model.

Rear top ter (Jetta Wagon)

Illustration shows approximate locations for rear top ter
anchorage points for Jetta Wagon.

Note:

n

Inside anchors are not recommended for attaching
rear lower anchors of a LATCH seat in middle
position. three-point lap/shoulder belt should be used.



Rear top ter (Golf)

Seatbelts

13/2/2005

Illustration shows approximate locations for rear top ter
anchorage points for Golf.

Note:

n

For MY 1999 vehicles only, rear top ters are not
installed in seatback. Vehicles for this model year may
require a seatback change for rear top ter installation.



Rear lower anchors (Golf)

Note:

n

Inside anchors are not recommended for attaching
rear lower anchors of a LATCH seat in middle
position. three-point lap/shoulder belt should be used.



Front belt tensioning unit, deploying
(disposal)

Caution!

n

It is dangerous to scrap an unignited gas
generator.



n

Belt tensioner unit gas generator must be made
unusable before scrapping. This is important
because gas generator is a pyrotechnic device
that can cause injury if activated improperly (for
instance when using a cutting torch).



- Remove seat belt with belt tensioning unit NO PAGE

Use Deployment Fixture J-44210 and refer to Airbag
Pyrotechnic Deployment Device Instruction Booklet for
proper deployment procedure.

Seatbelts

13/2/2005

69 - 2

Seatbelts, inspecting



Caution!

seatbelt system is to be systematically checked after
every accident! If damage has been found according to
check points, customer is to be notified of necessity of
a seatbelt replacement.

Check points



n

Check belt webbing



n

Check automatic retraction (locking effect)



n

Visual check of belt latch



n

Function check of belt latch



n

Checking guide stops and seatbelt lock tongue



n

Check anchoring components and anchoring points



n

Checking lap belt automatic retractor.



Note:

n

Make a note if customer refuses to allow replacement
of damaged seatbelt.



Belt webbing, checking

- Check belt webbing for soiling, wash with mild soap
solution if necessary.

⇒ Also refer to Owners Manual.

n

If one kind of damage (belt webbing cut, torn or
chafed) or (webbing loops on belt edge torn) shown in
following is detected on a vehicle which has been in
an accident, replace seatbelt complete with belt lock.



n

If one kind of damage described in following is
detected on a vehicle which has not been in an
accident, only damaged seatbelt needs to be
replaced.



Possible damage

Seatbelts, inspecting
