All lights in door trim will flash for approx. 15 seconds after
switching on ignition.

Overcoming resistance with excess force
limitation (Pinch protection)



Requirement: Automatic opening and closing is OK.

Ignition switched on.


- Close door window with window regulator switch
(automatic opening).



If a window is hindered by resistance or by an obstacle
during closing sequence, window opens again immediately
(PP has been activated).

- After window has opened, lift/press and hold switch of
corresponding window again within 5 seconds.



If window still cannot be closed by resistance or by an
obstacle, window immediately remains standing (PP has
been activated).

- After window remains standing, switch must be operated
again within 5 seconds in order to close window.



Window now closes over obstruction without force
limitation.

Ignition switched off.




If a window is hindered by resistance or by an obstacle
during closing sequence, window opens again immediately
(PP) has been activated).



Operating window regulator switch from inside has now
been locked.



If ignition is switched on within 1 minute after opening
window and then switch is pressed (close window), window
is closed without automatic run-up.

Window regulator motor or carrier assembly
with window regulator, removing and
installing



Removing





Illustration shows removal and installation of window
regulator motor/carrier assembly with window regulator for

Door windows

13/2/2005







rear doors. Removing and installing for front doors is
performed in same way.

Removing front or rear carrier assembly



64-2, Carrier

assembly, removing and installing

 or



64-2, Carrier

assembly, rear door window and quarter window, removing
and installing

 .

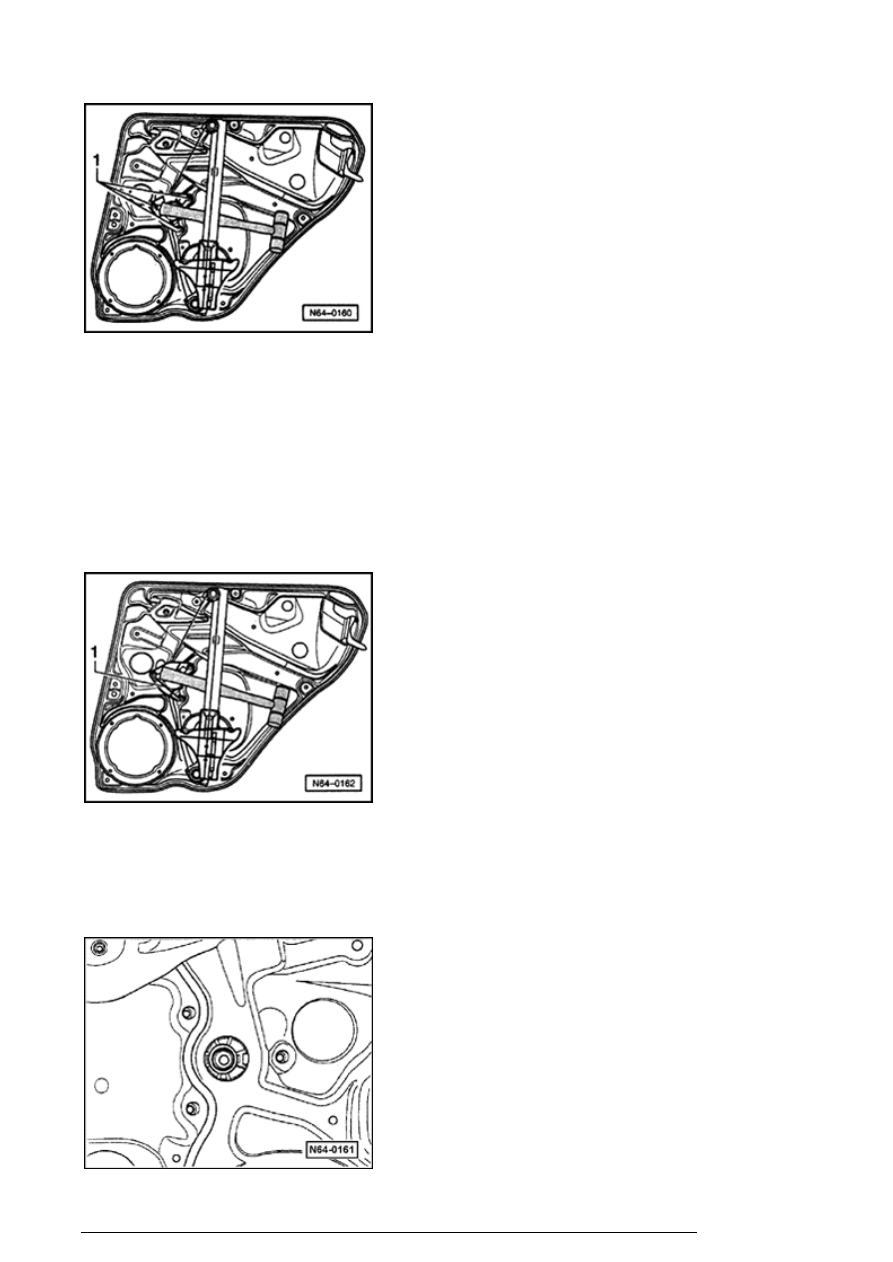

- Slide a hammer handle between window guide and carrier
assembly so far until hammer handle end presses on gears
of carrier assembly.

- Remove bolts - 1 - and remove window regulator.

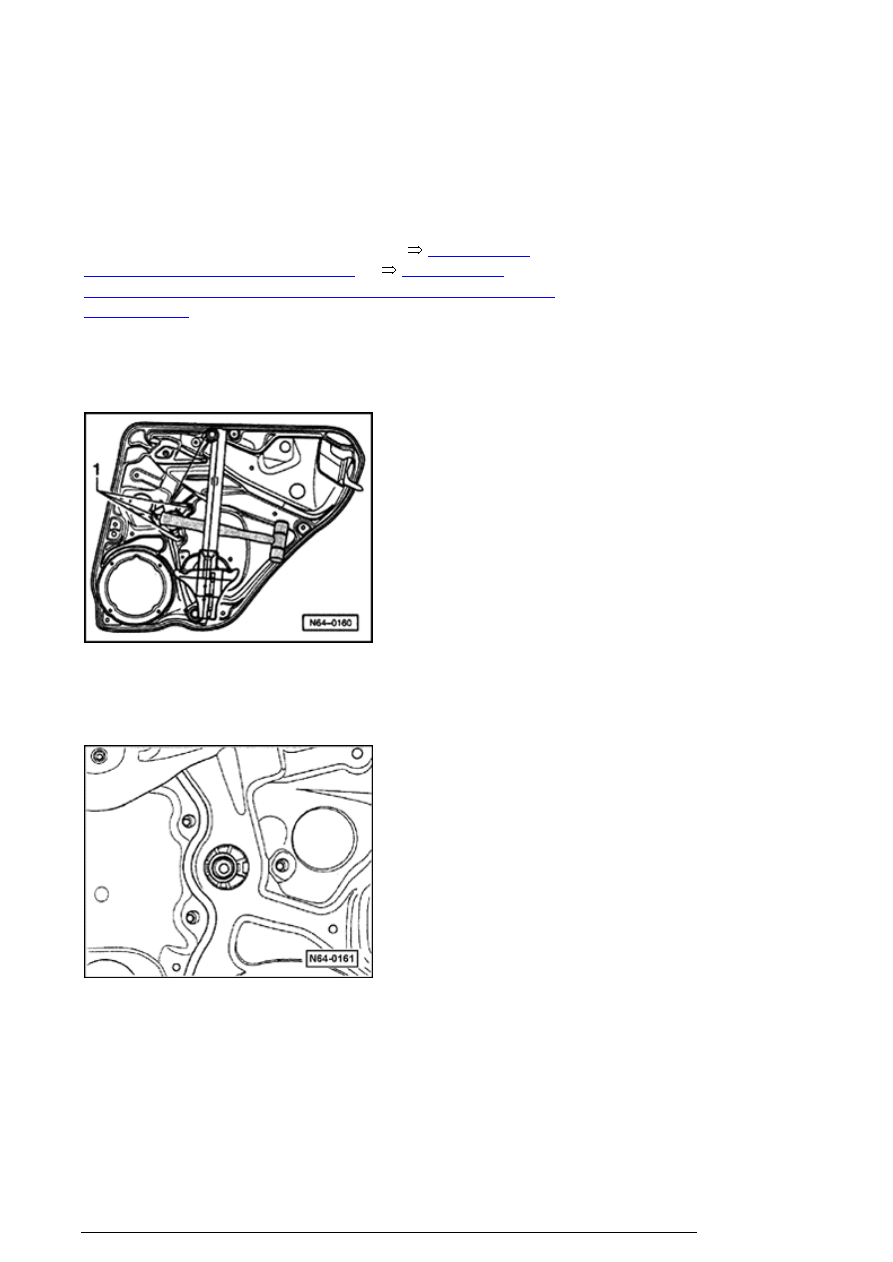

Window regulator motor, installing

- By removing window regulator motor, gearing shifts, it is
not centered.

- When installing window regulator motor, gears must be
aligned until window regulator motor is centered again.

Door windows

13/2/2005







- Attach and tighten bolts - 1 - .



Tightening torque: 3.5 Nm



Tightening torque must always be observed since
otherwise damage to plastic sleeve on window regulator
motor can result.

Carrier assembly with window regulator,
installing

For replacement part carrier assemblys, gearing is secured
against slipping and falling by a cable tie - 1 - .

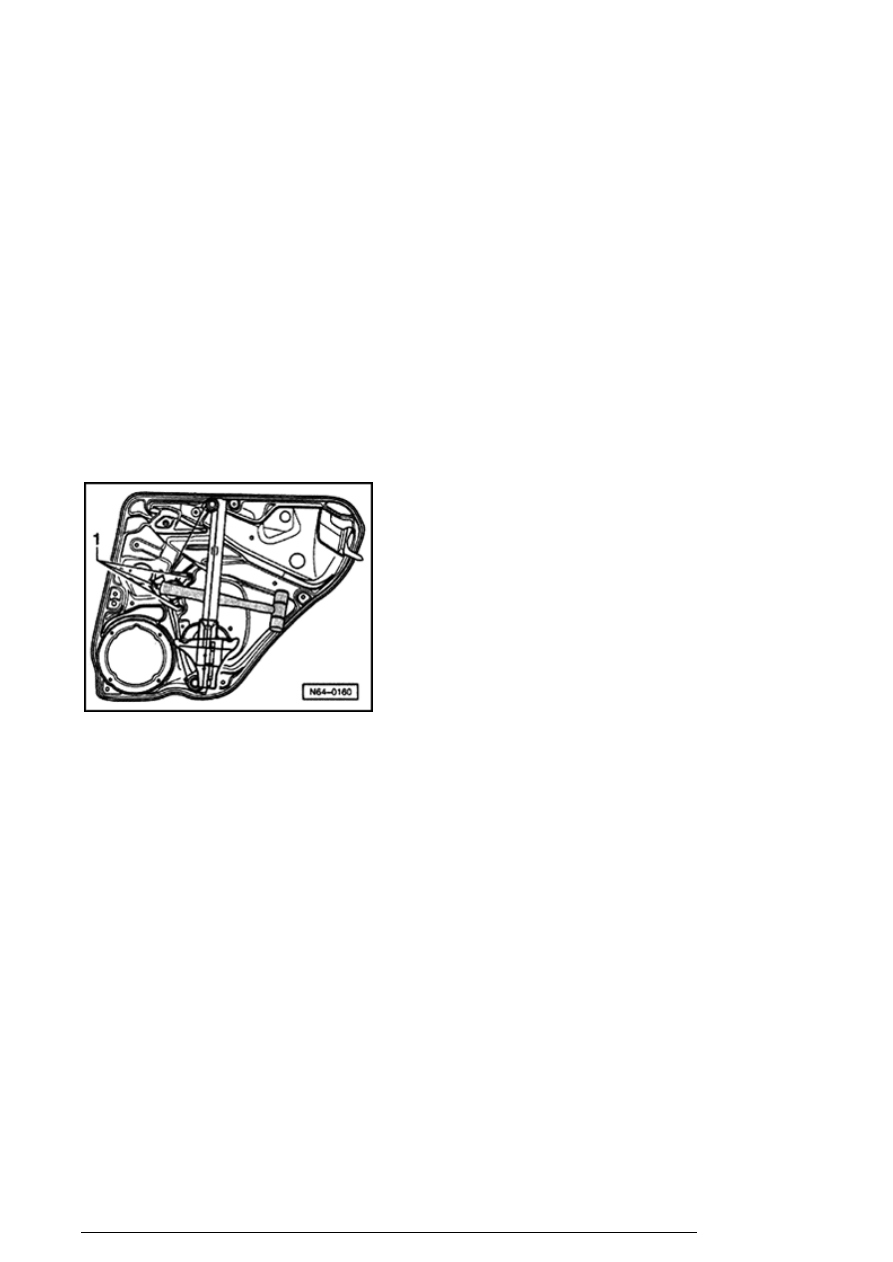

- Slide a hammer handle between window guide and SF so
far until hammer handle end presses on gears of SF.

Door windows

13/2/2005



- Remove cable tie - 1 - .

- By removing window regulator motor, gearing shifts, it is
not centered.

- When installing window regulator motor, gears must be
aligned until window regulator motor is centered again.

- Attach and tighten bolts - 1 - .



Tightening torque: 3.5 Nm



Tightening torque must always be observed since
otherwise damage to plastic sleeve on window regulator
motor can result.

Carrier assembly with window regulator,
assembly overview
