Minimum curing time



64-1,

Minimum curing time





5. Gap dimension - b - = 6.5 mm

¡

Check gap dimension using
Adjustment gauge 3371



6. Window adjuster

¡

443,845,631 A



7. Gap dimension - c - = 3 mm



Undamaged rear window, removing



- Disconnect connectors for heated rear window and press
connector tabs onto window.

- Remove parcel shelf




.



Repair Manual, Body Interior, Repair Group 70, Pillar

and side trim; removing and installing parcel shelf



- Removing upper C-pillar trim




.



Repair Manual, Body Interior, Repair Group 70, Pillar

and side trim; removing and installing upper C -pillar trim
(Jetta)



- Loosen sealing lip from window flange using plastic
wedge and spray in Cleaning solution D 009 401 04 (as a
substitute for lubricant).

- Insert cutting cord into window flange using small tube.

Note:

Press in cutting cord far enough to prevent damage to
lip/spacer.


Flush-bonded windows

13/2/2005





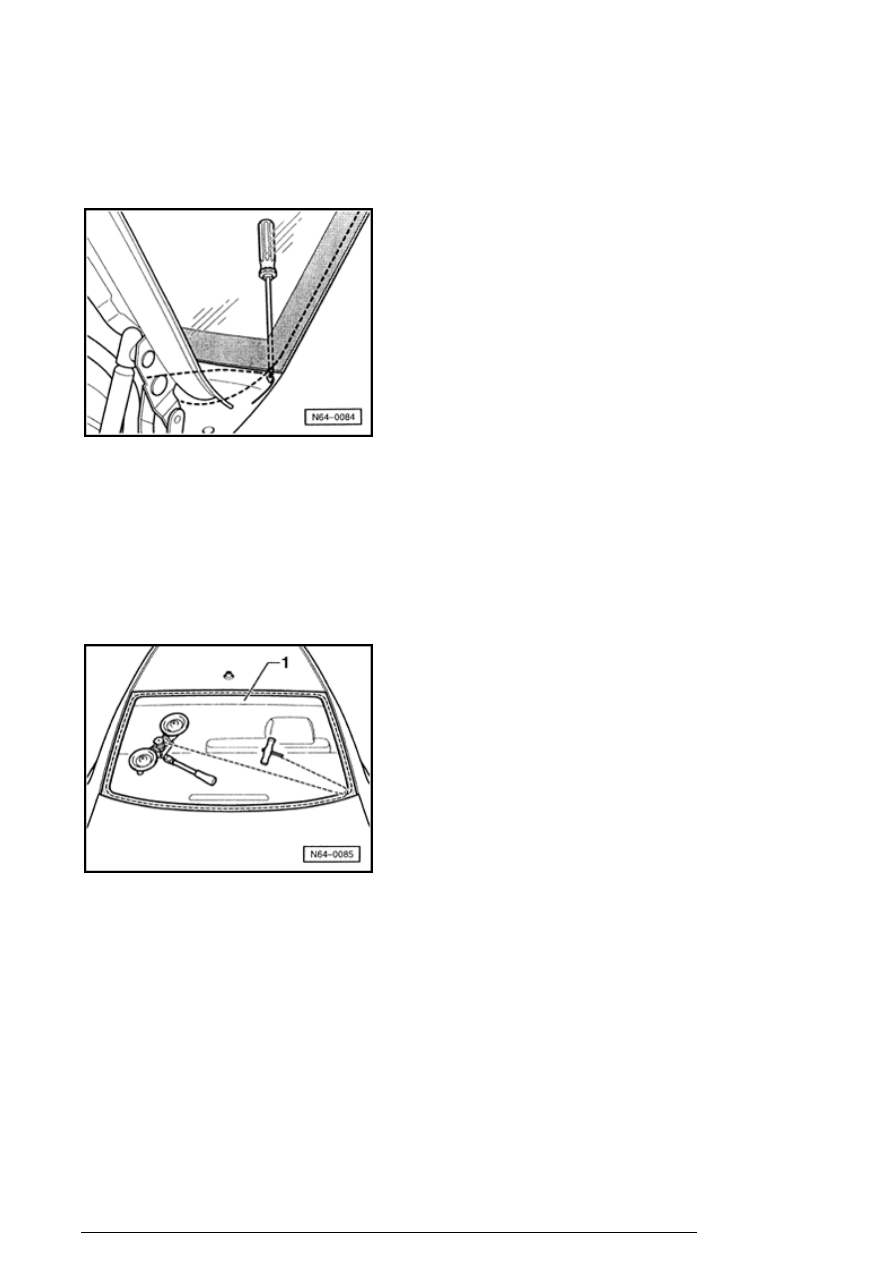

- Push cutting cord through adhesive sealant into vehicle
interior using awl (from V.A.G1474A ).

- Pull through outer cord end inward and counterhold using
Pulling grip V.A.G1351/1 .

- Secure inner cord end to spooling tool.

- Position Spooling tool V.A.G1654 .

- Insert protective foil - 1 - ( V.A.G 1474/14 ) between rear
window and headliner.

- Move spooling tool according to position required and cut
windshield free.

- While cutting free, press cutting cord against window
using plastic wedge in order to have clearance from
window flange.

Flush-bonded windows

13/2/2005







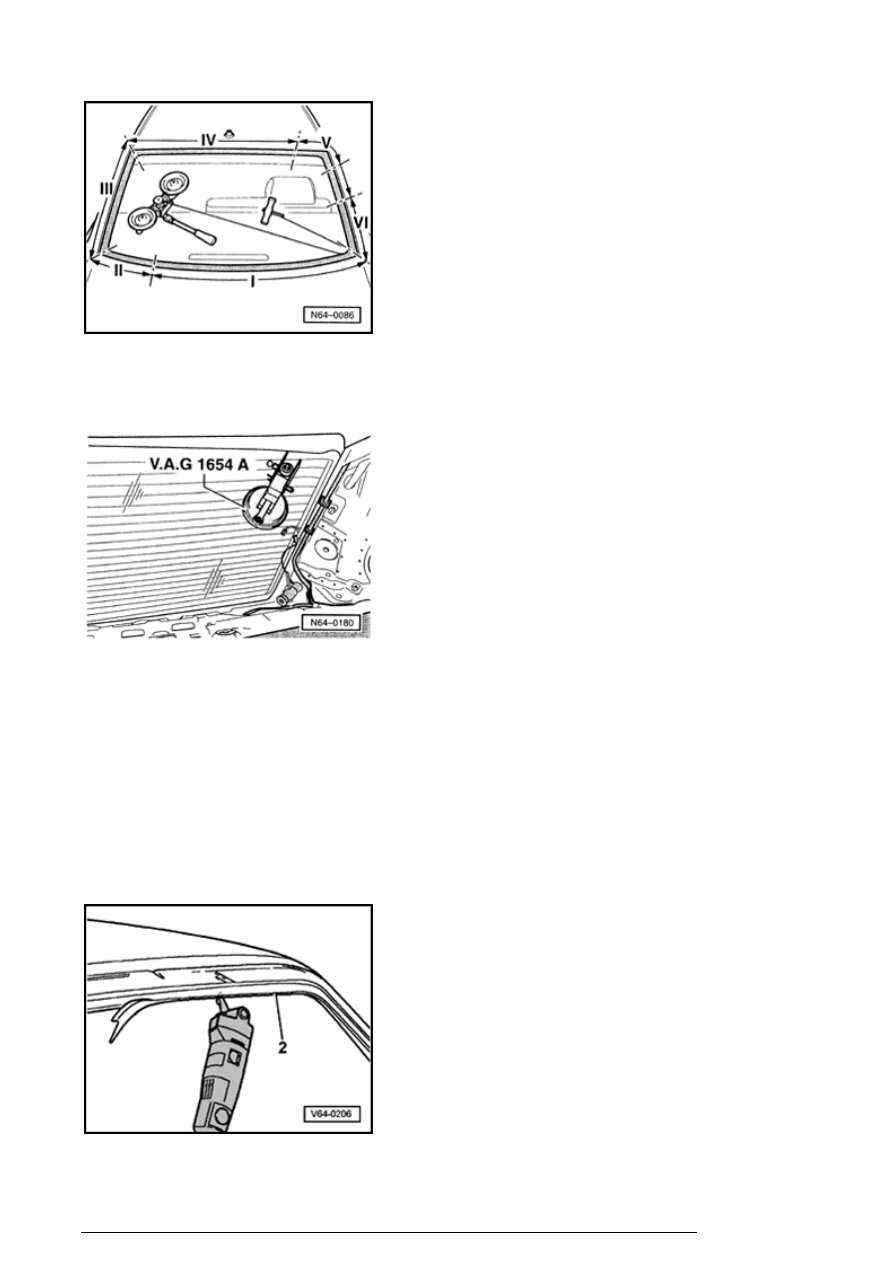

- In place of Spooling tool V.A.G1654 , spooling tool
V.A.G1654A can also be used.

- As shown in illustration, one suction cup can be removed
from spooling tool. By doing this, roller of spooling tool can
be placed closer to window flange.

Damaged rear window, removing



- Protect body and interior from glass splinters.

- Remove glass pieces up to adhesive material.

- Remove connectors for glass defroster and antenna.

- Bond flange - 2 - all around with fabric reinforced

Flush-bonded windows

13/2/2005



adhesive tape.

- Remove adhesive material (with glass residue) from
window opening using electric cutter and  Knife
V.A.G1561/10 (with stopper roll).

Warning!



Always wear protective goggles and leather gloves.

Rear window, installing

Preparing undamaged window for glazing



64-1,

Preparing undamaged window for glazing

 .

Preparing new window for glazing



64-1, Preparing new

window for glazing

 .

Preparing window flange for glazing



64-1, Preparing

window flange for glazing

 .

Installation notes



64-1, Installation notes

 .

Minimum curing time



64-1, Minimum curing time

 .

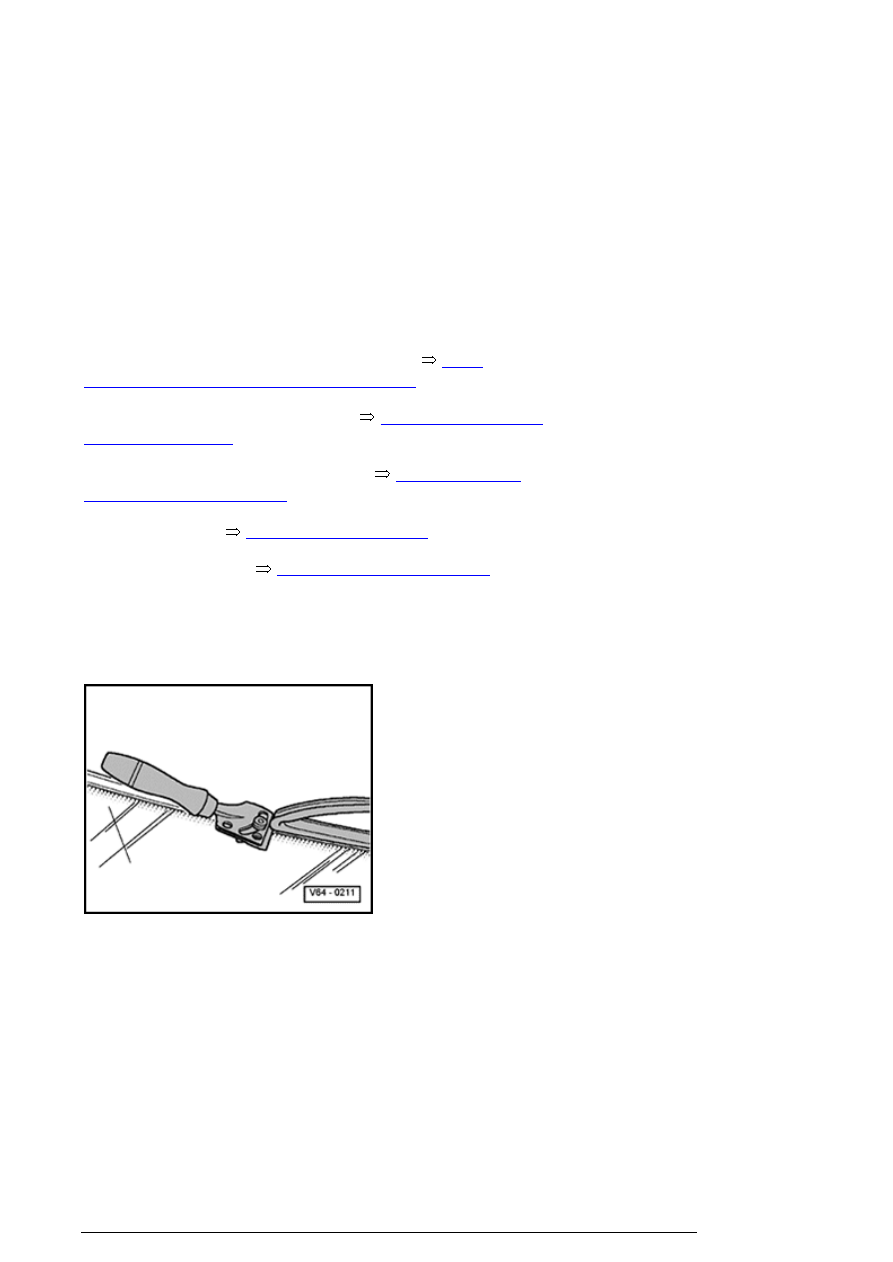

Preparing undamaged window for glazing



Note:

When re-using an undamaged window, cut back remaining
adhesive sealant to 1 - 2 mm shortly before re-adhering, do
not damage primer and ceramic coating.

Residual material acts as a base for new adhesive sealing
material.


Warning!



Do not prime or use a cleaning solution on adhesive
surface. Keep adhesive surface free of dirt and grease.
