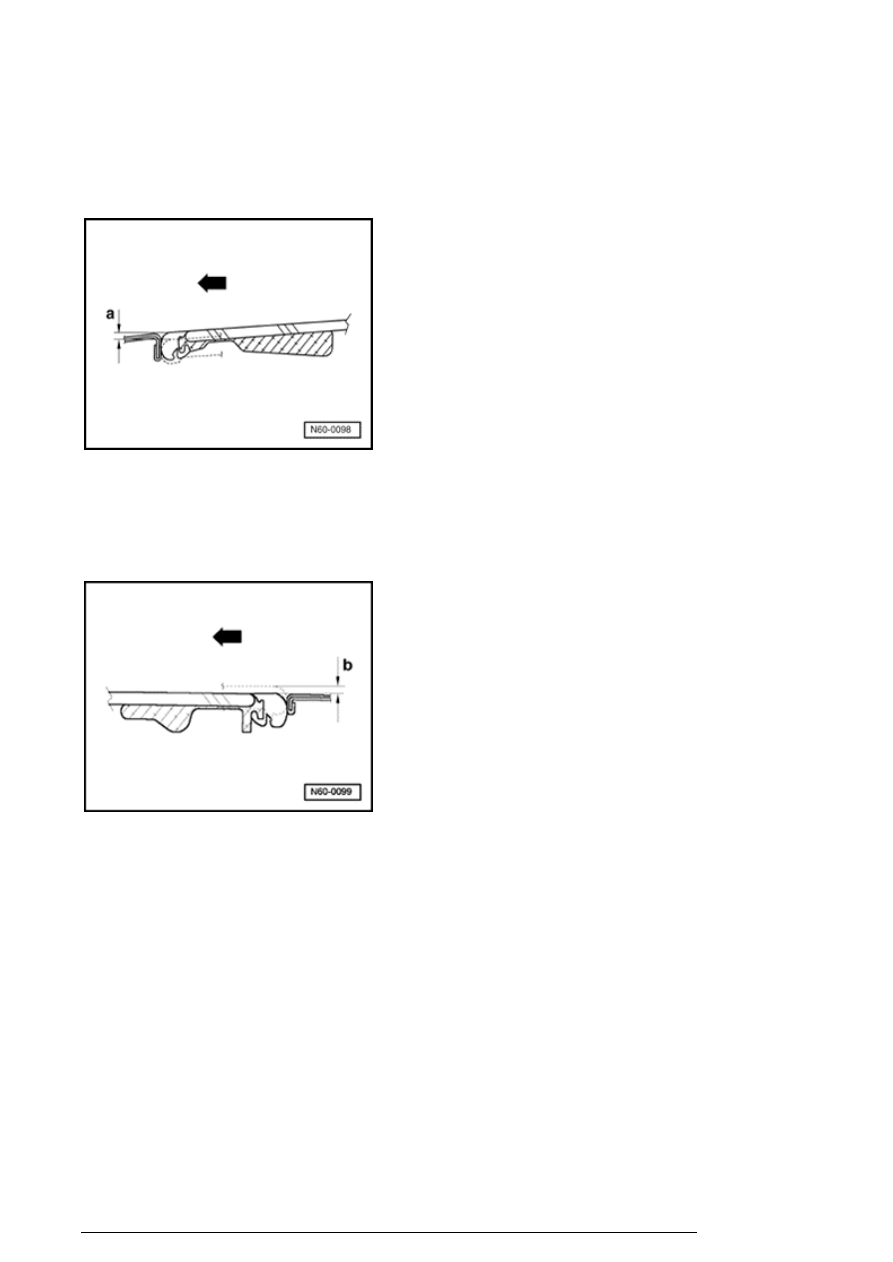

- a - = 0 - 1 mm lower than roof

- arrow - = direction of travel



Panel adjustment at rear:

- b - = 0 - 1 mm higher than roof

- arrow - = direction of travel

- Tighten glass panel bolts (4.5 Nm).



Always adjust left and right-hand glass panel sides
symmetrically.

- Tilt sunroof open.



Vehicles up to calender week 35 2002 (CW 35/02)

Sunroof with glass panel (Meritor)

13/2/2005





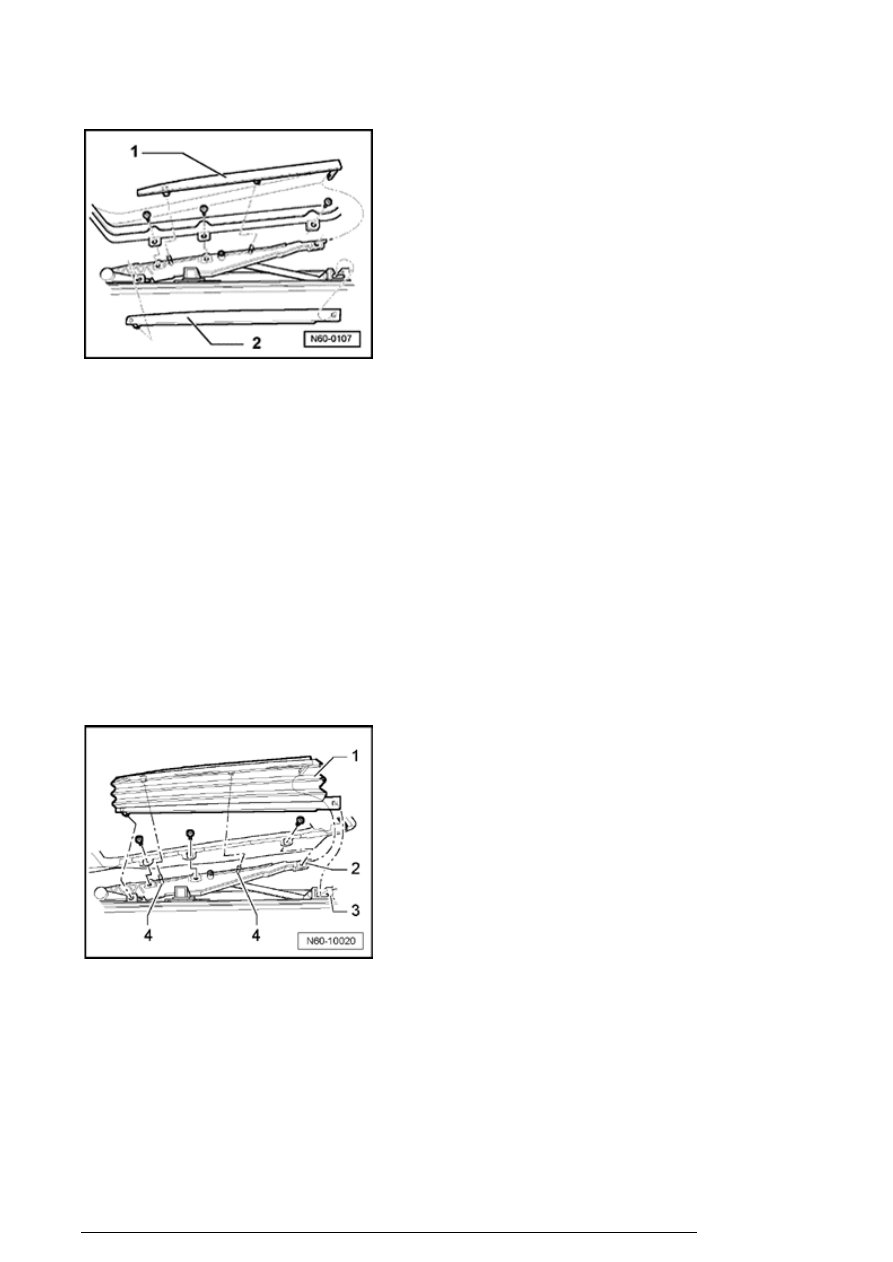

- Hook upper trim - 1 - at rear and clip on in center and at
front.

- Hook in lower trim - 2 - at rear and clip in at front.



Vehicles from calender week 36 2002 (CW 36/02) on

Note:

In vehicles from calender week 36 2002 (CW 36/02) on, a
trim piece is installed in place of a lower trim and an upper
trim.

Trim piece and trim must not be replaced against each
other. Clearance for mechanical components is otherwise
not guaranteed.


- First hook in trim piece - 1 - at top, rear - 2 - .

- Engage trim piece - 1 - with securing pins - - 4 - .

- Engage trim piece - 1 - in lower part of slotted guide rail -
3 - .

Panel seal, adjusting

Sunroof with glass panel (Meritor)

13/2/2005







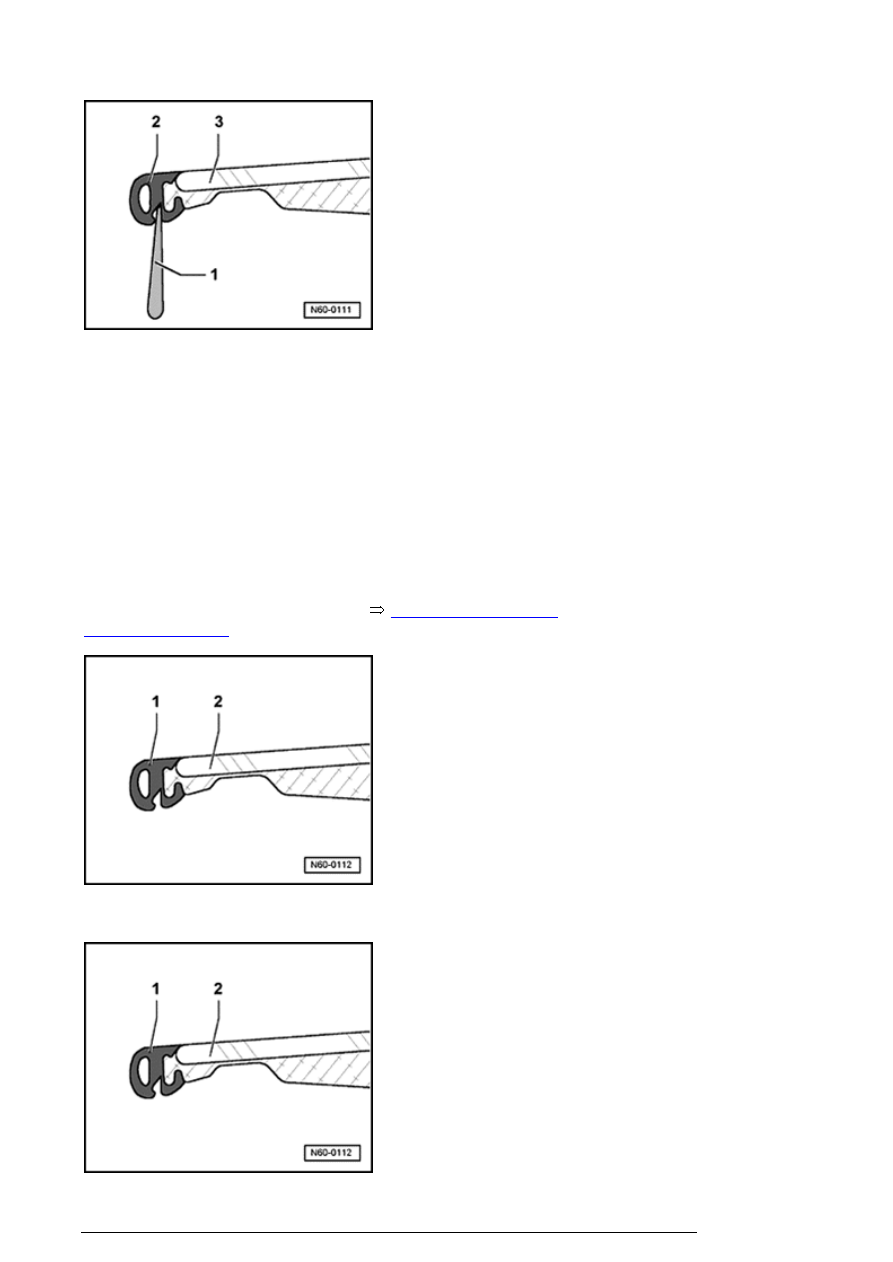

- Using a strip of cardboard about 0.3 mm thick (e.g.
business card), check if pretension between panel seal  - 2 -
and body is even all around. Cardboard should slide
through gap with firm resistance.

- If pre-tension is insufficient, press seal reinforcement
(inside rubber) open with a wedge  - 1 - or, if pre-tension is
excessive, close seal reinforcement slightly. Glass panel -
3 - must be removed before adjusting seal.

Panel seal, replacing



- Removing glass panel for sunroof



60-3, Glass panel for

sunroof, removing

 .

- Pull off seal - 1 - from glass panel.

Sunroof with glass panel (Meritor)

13/2/2005



- Apply new seal on lower panel edge, begin in center and
move from bottom to top of glass panel  - 2 - .

Note:

Coat edge of panel with soapy water to facilitate installation
of seal.

If seal is not correctly installed, seal surface is wavy.

Panel seal must be shortened corresponding to panel
circumference.


Wind deflector, removing



- Open sunroof completely.

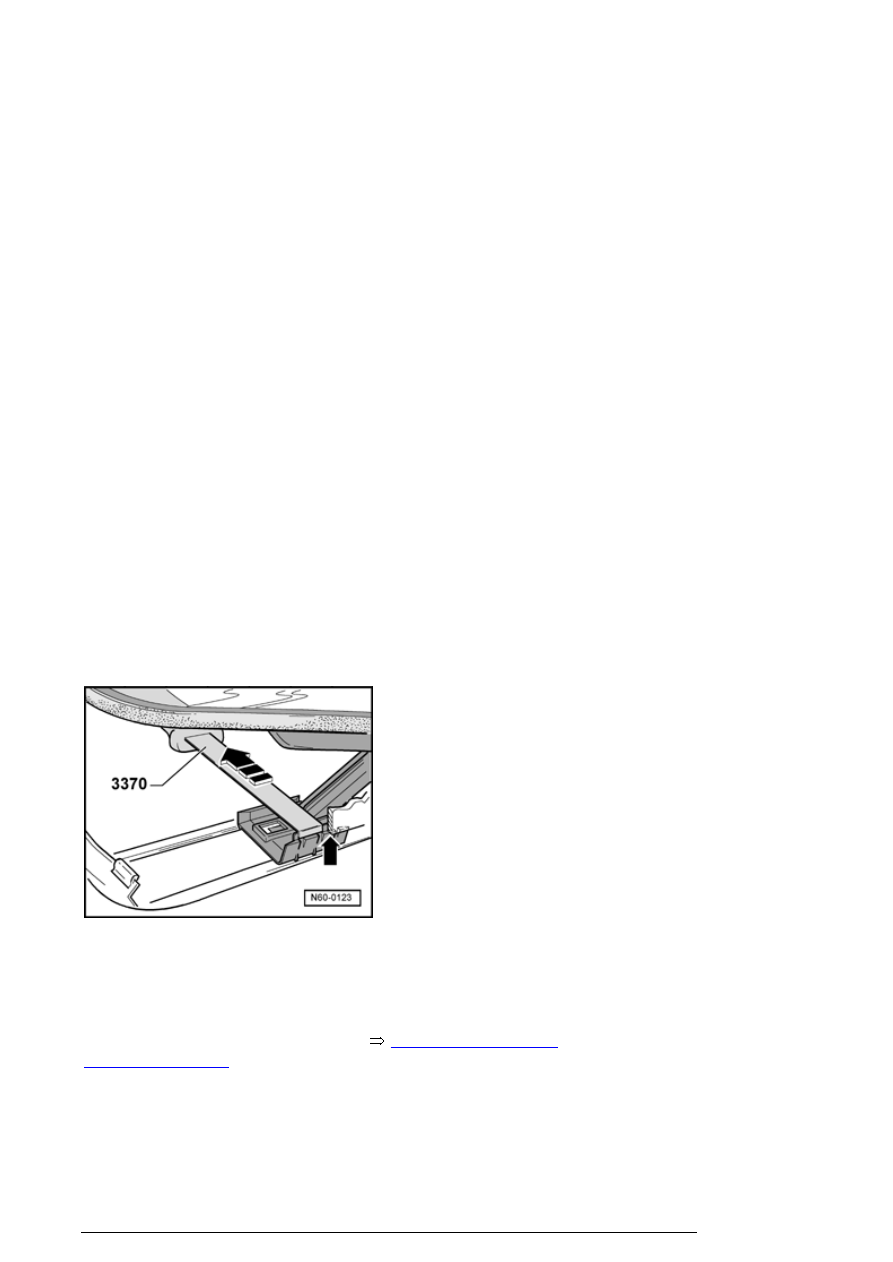

- Insert special tool 3370 between roof edge and wind
deflector bearing and release wind deflector bearing from
side locking tab (left and right sides) by pulling on special
tool 3370.

- Using a screwdriver, pry out wind deflector from guide rail
(left and right sides).

- Remove wind deflector.

Sliding headliner, removing



- Removing glass panel for sunroof



60-3, Glass panel for

sunroof, removing

 .

- Slide sliding headliner toward rear.

Sunroof with glass panel (Meritor)

13/2/2005
