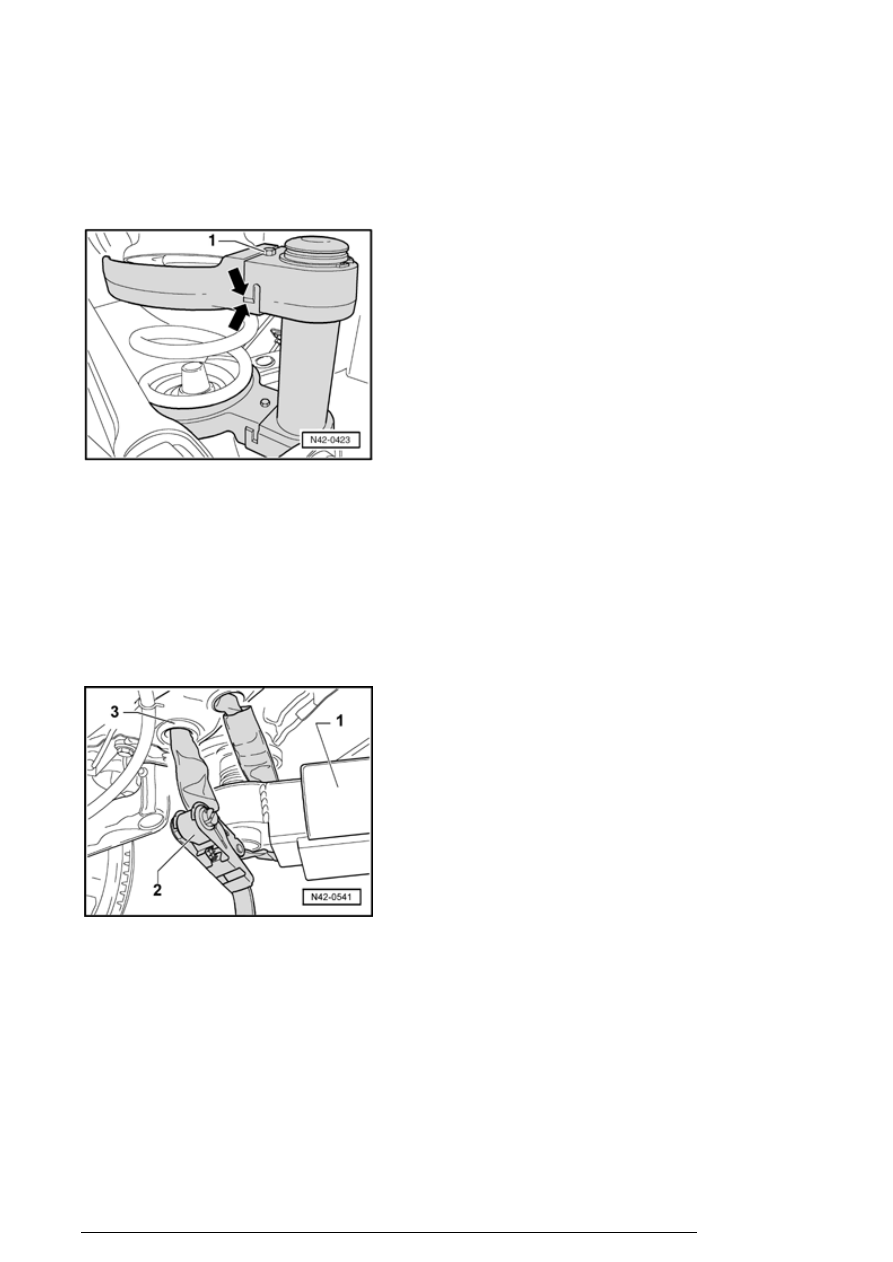

- Compress coil spring until it can be removed.

1 - Spring holder V.A.G1752/15R. O.

2 - Spring tensioner V.A.G1752/1

3 - Spring holder V.A.G1752/15R. U.

- Stop clamping action, if spring coils touch themselves!

- Take spring with spring compressor from vehicle.

If a shim is under stop buffer, you must take this out
together with spring.

- Placing spring with spring compressor.

Installing right spring



Rear axle, servicing (all wheel drive vehicles)



- Install spring into spring holder.

The beginning of the spring coil must be positioned in
spring holder - arrow - , as represented.

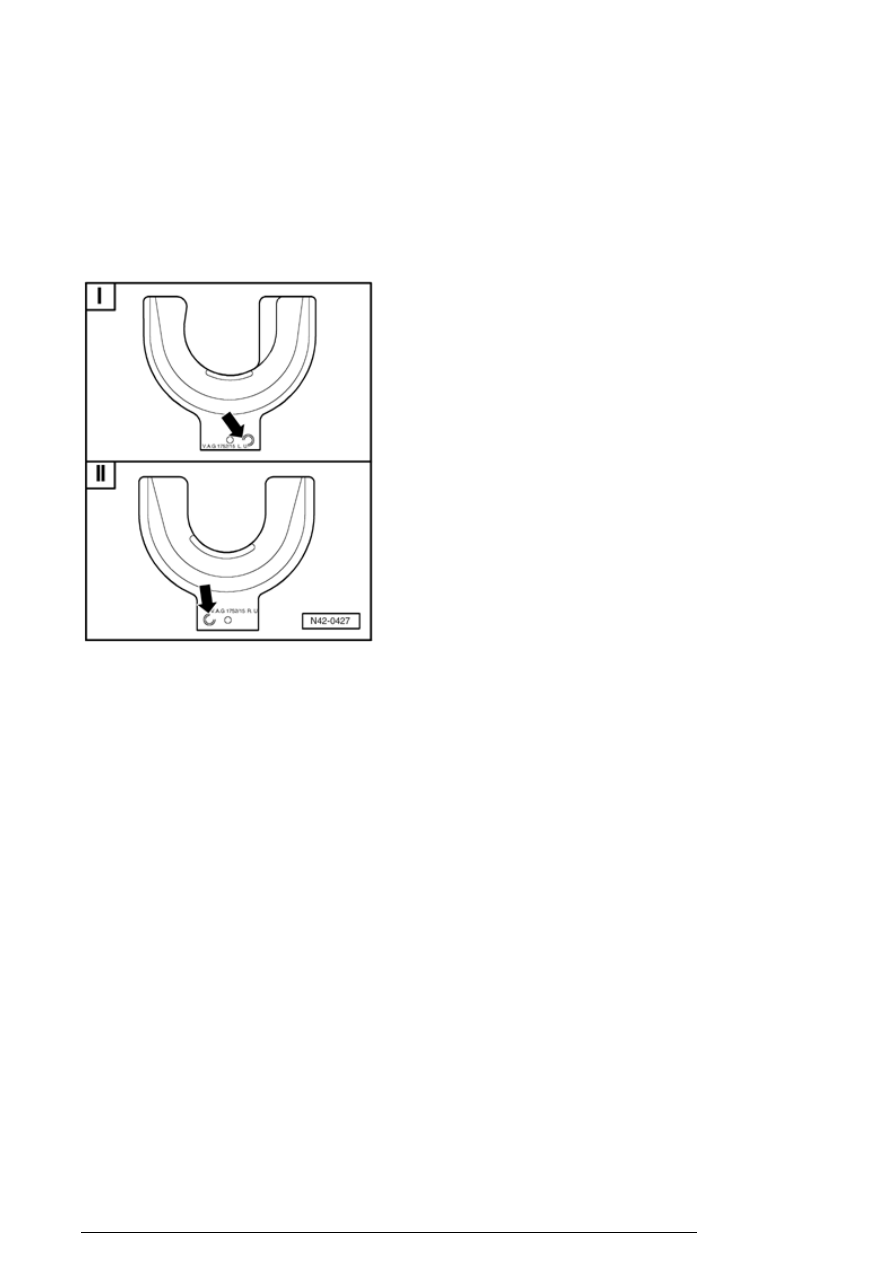

I - Spring holder left bottom (L.U.)

II - Spring holder right bottom (L.U.)

- Turn spindle of spring compressor until spring is slightly
tightened.

- Check whether spring holders rest correctly against spring
coils.

- Compress coil spring until it can be install into vehicle.

- Stop clamping action, if spring coils touch themselves!

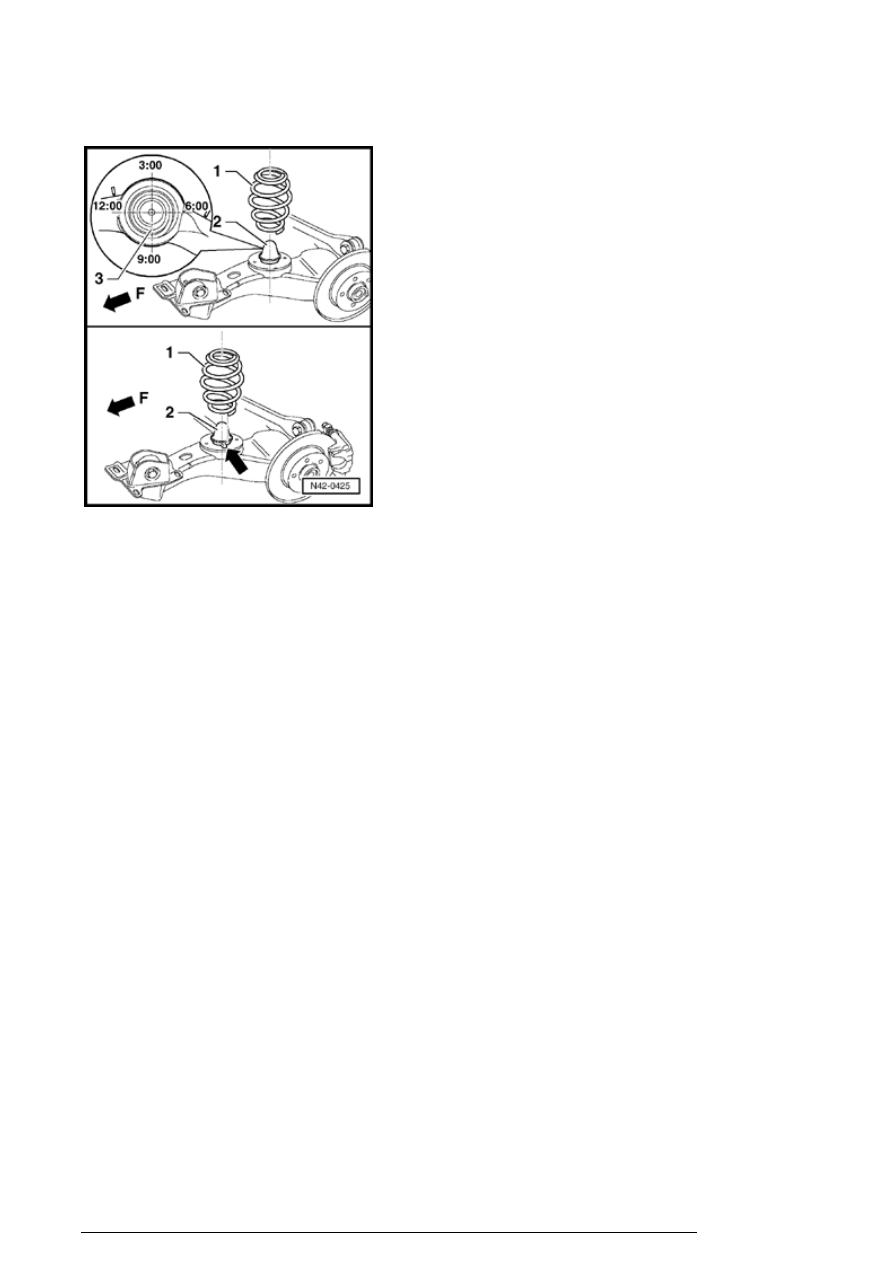

Installation position of spring

For vehicles without stop buffer - 2 - .

The beginning of spring coil - 3 - must be located in 9:00
o'clock position.

1 - Spring

2 - Bump stop

F - Driving direction

Installation position of spring

Rear axle, servicing (all wheel drive vehicles)





For vehicles with stop buffer - 2 - .

The end of coil spring must lie against stop - arrow - .

- Release tension of spring by turning spindle clockwise.

- Do not use an impact wrench or similar!

If spindle is turned too far, the spring holders block
themselves!

- Remove nut - 1 - off and remove screw with spring holder.

- Take spring compressor off spring.

Spring R32, removing and installing



Rear axle, servicing (all wheel drive vehicles)

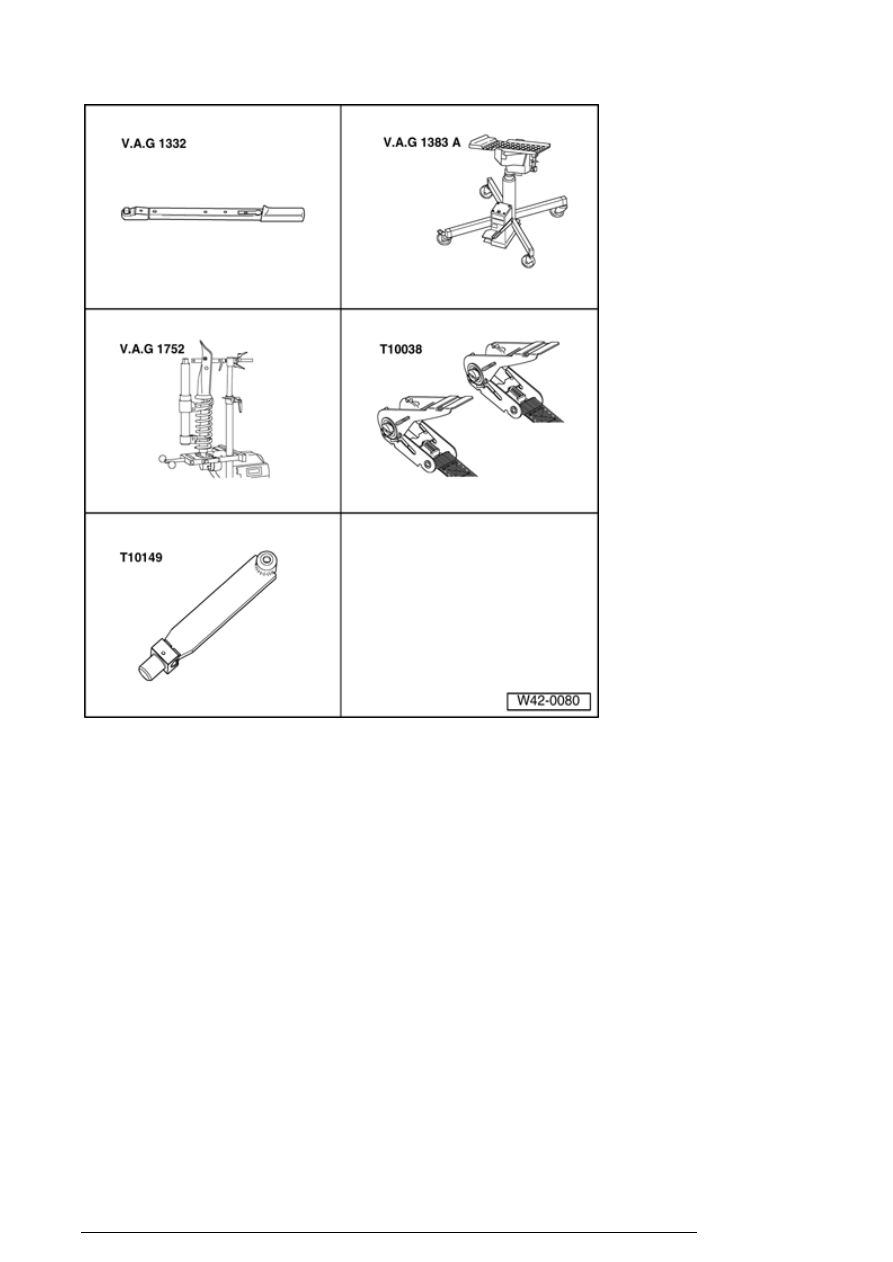

Special tools, testers and auxiliary items
required

n

Torque wrench V.A.G1332



n

Engine/transmission jack
V.A.G1383A



n

Spring compressor V.A.G1752/1



n

Spring holder V.A.G1752/7



n

Spring holder V.A.G1752/15



n

Tensioning strap T10038



n

Wheel hub support T10149



The Spring holder V.A.G1752/15 developed for 4 Motion
vehicles. Thus the safe removing and installing of springs
