Volkswagen Golf / Golf GTI / Jetta. Manual - part 499

and including 92 kW

With SDI/TDI engine

11. Ball joint

Checking

40-3, Ball joint,

checking

Removing and installing

40-

3, Ball joint, removing and
installing

12. Self-locking hex nut, 45 Nm

Always replace

13. Shield plate

14. Hex bolt, 10 Nm

15. Hex bolt

For special model "Golf GTI
132 kW"

Fastening

40-5, Installing

Always replace

16. Self-locking 12-point nut

Fastening

Always replace

17. Phillips-head screw, 4 Nm

18. Ventilated brake disc

19. Wheel hub with speed sensor

rotor

Rotor is welded to wheel hub

Removing and installing when
the wheel bearing housing is
installed

40-3, Front wheel

bearing, pressing out and in
with wheel bearing housing
installed

Front suspension, servicing

20. Circlip

Make sure it is seated properly

21. Wheel bearing

Pressing out

40-3, Pressing

wheel bearing out of wheel
bearing housing

Replace, as it is destroyed
during pressing out

Pressing in

40-3, Pressing

wheel bearing into wheel
bearing housing

Removing and installing when
the wheel bearing housing is
installed

40-3, Front wheel

bearing, pressing out and in
with wheel bearing housing
installed

22. Wheel bearing housing

With gasoline engines from
110 kW

For vehicles:

Pressing wheel hub out of wheel bearing housing

Front suspension, servicing

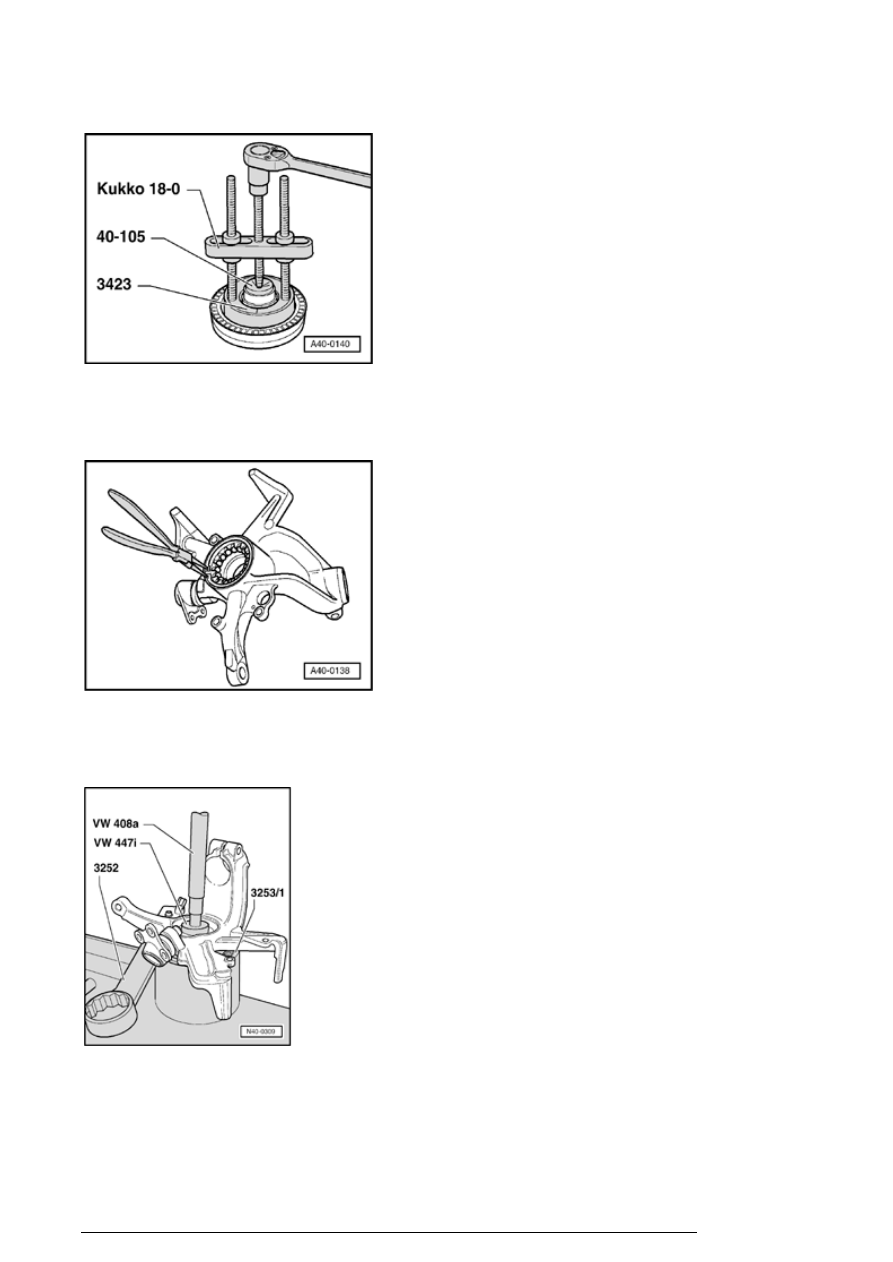

Pulling bearing inner race out of hub

Removing circlip

Pressing wheel bearing out of wheel bearing housing

Front suspension, servicing

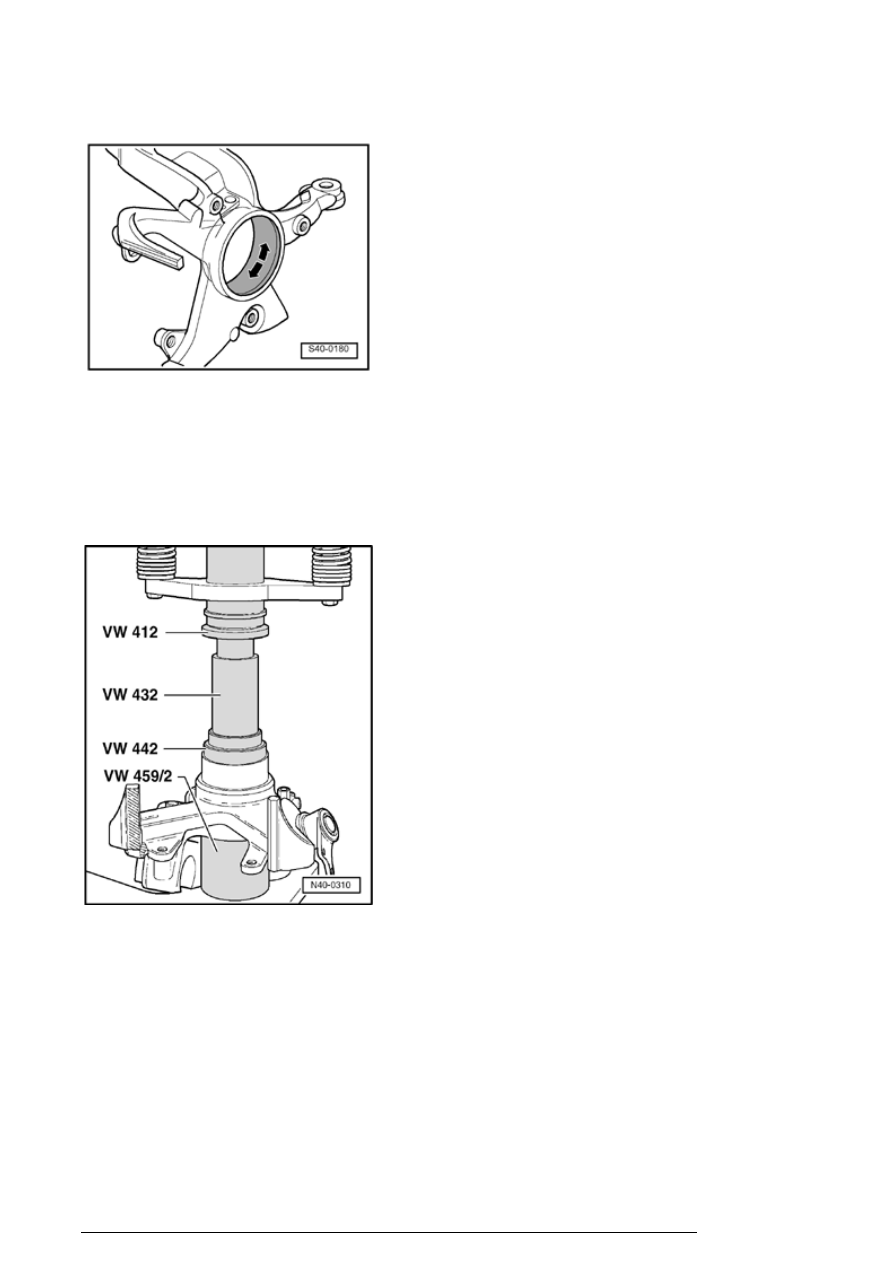

Greasing hole completely with Molikote grease

Molykote grease, G 052 723 A2

Use grease packet from repair kit

Pressing wheel bearing into wheel bearing housing

- Install circlip.

Note:

Make sure the circlip is seated correctly. The opening
of the circlip must point downward.

Front suspension, servicing
