If the specification is not obtained:





-  Check delivery rate of fuel pump:







Repair Manual, 2.8 Liter VR6 4V Engine

Mechanical, Engine Code(s): BDF; Repair Group
20







If the specification is obtained:





-  Now check for leaks and holding pressure.

Watch pressure drop on gauge.





   After 10 minutes there must be a residual

pressure of at least 2.0 bar





If the holding pressure drops below 2 bar:





-  Start engine and run at idle.





When the fuel pump has built up the pressure
again:



-  Switch ignition off after the pressure has built

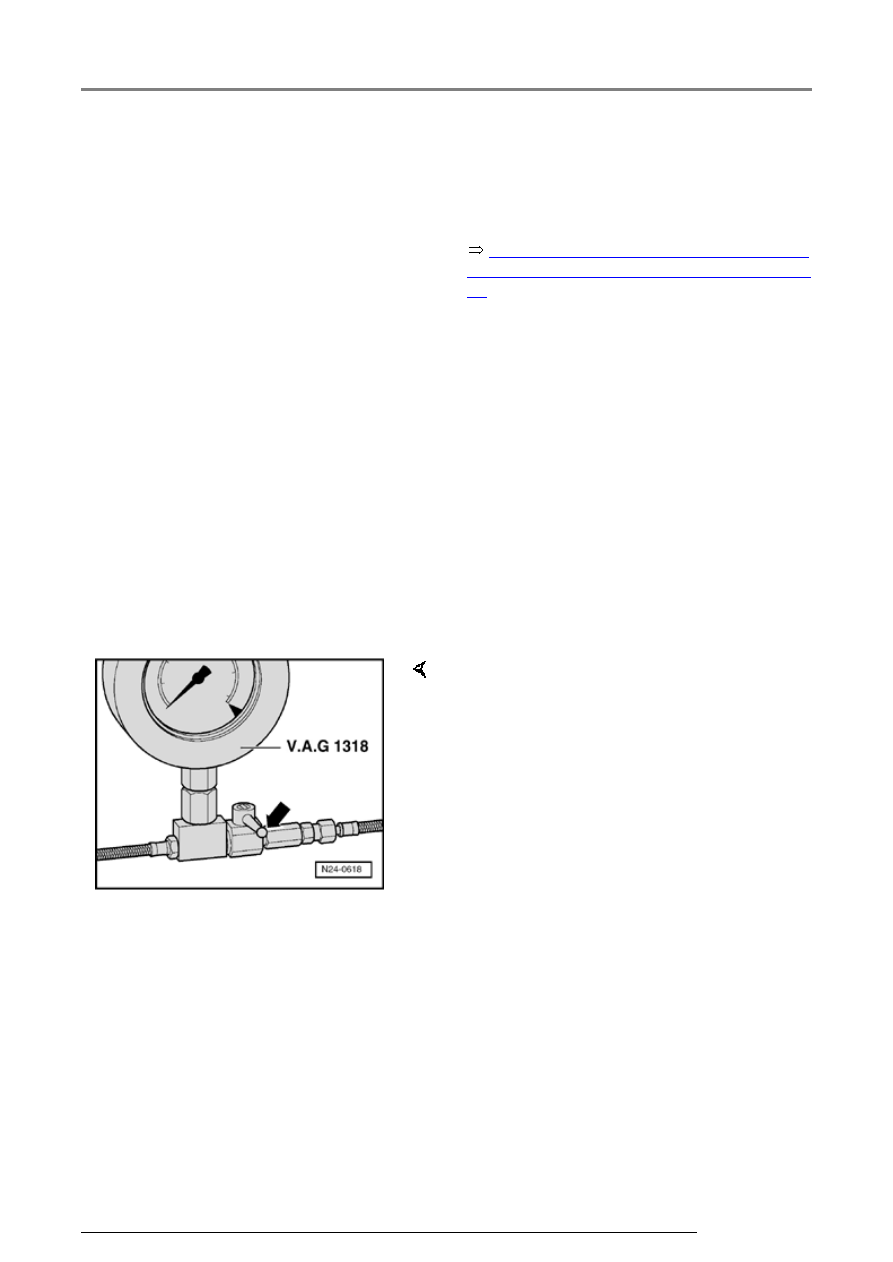

up. Simultaneouslyclose pressure gauge VAG
1318 cut-off tap (handle across through- flow
direction -arrow-).

-  Watch pressure drop on gauge again.

Components, checking

24-115







If the pressure does not drop:





-  Check fuel pump non-return

valve:







Repair Manual, 2.8 Liter VR6 4V

Engine Mechanical, Engine Code(s):
BDF; Repair Group 20







If the pressure drops again:



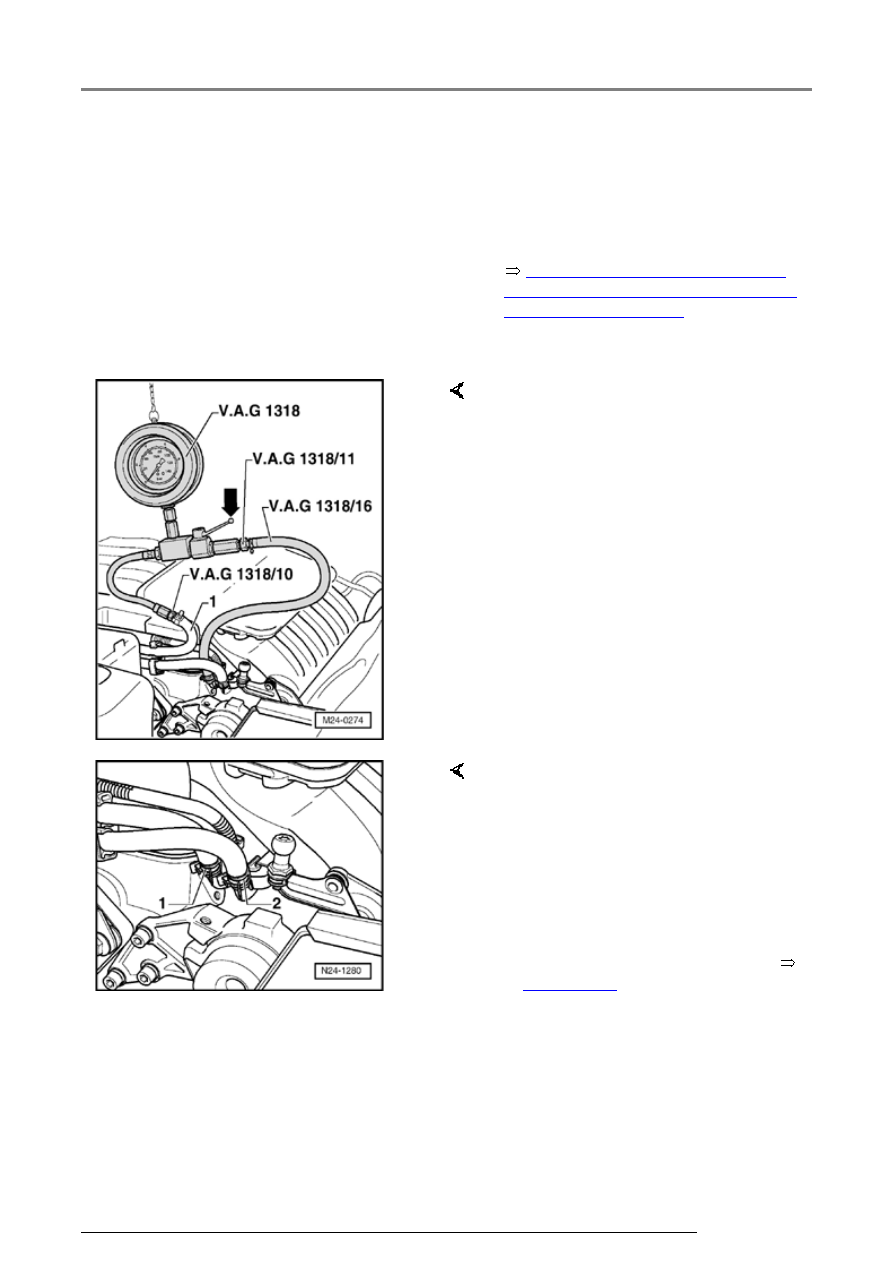

-  Open pressure gauge VAG 1318

shut-off tap (handle in direction of
flow -arrow-).

-  Start engine and run at idle

speed.



If the pressure does not drop:

-  Switch ignition off after pressure

has built-up. Simultaneously
clamp-off return supply hose (with
blue marking) -2-.

-  Switch off ignition.

-  Replace fuel pressure regulator



Page 24-28

 , item 11 .

Components, checking

24-116





   If the pressure drops again:





-  Check line connections, O-rings on fuel rail and

fuel injectors for leaks.





-  Check pressure gauge for leaks.



   When the pressure gauge is removed after

completing the test:





-  Remove fuse No. 28 from fuse holder again

before removing pressure gauge and place a
cloth around connections to be loosened.

Components, checking

24-117







Intake Manifold Change-Over
Valve -N156-, checking







The check need only be performed
when performance is poor.





The change-over from long to short
intake channels occurs at approx.
4400 rpm.





Special tools and equipment



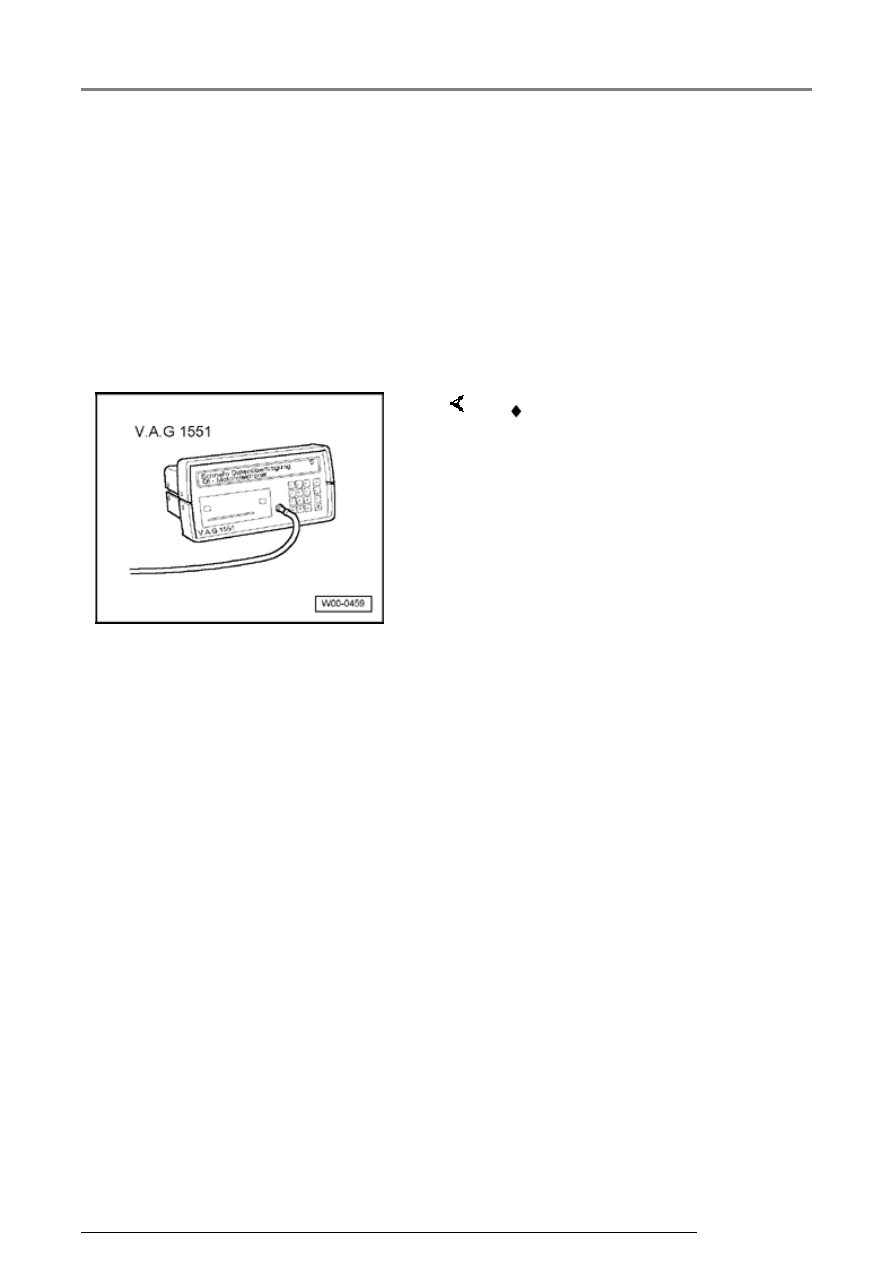

 VAG 1551 Scan tool (or VAG

1552) with VAG 1551/3 adapter
cable

Components, checking
